155
Technical data - Maintenance
VISUAL SEARCH
10
TECHNICAL DATA - MAINTENANCE
Identification markings,
serial number, paint code, tyres 150
Engine fuses 139
Windscreen/headlamp wash, levels 116
Bulbs, lighting,
changing bulbs 131-135
Checks 117-118
- battery,
- gearbox,
-
carbon fi lter, passenger compartment fi lter,
- oil filter,
- particle emission filter,
- parking brake,
- brake pads,
- brake drums, discs.
Emissions controls (EOBD) 35
Water bleeding, Diesel filter 118
Under the bonnet
- Diesel 113
- petrol 114
Fuel cut-off,
Diesel priming 121-122
Engine technical data 149
Dimensions 144-147
Weights 148
Model code 156
Opening the bonnet, stay 112
Levels 115-116
- Diesel additive,
- dipstick,
- power steering fluid,
- brake fluid,
- coolant.
- screen and headlamp wash fluid.
Towing, lifting 141
Towed loads 148
Warning lamps 28-33
Changing a wiper blade 140
156

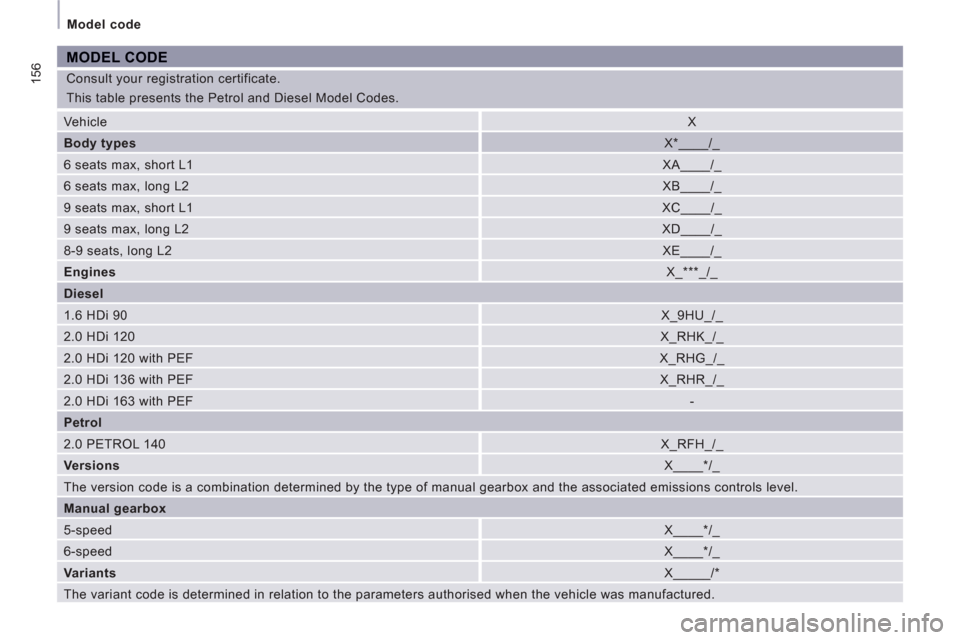

Model code
Consult your registration certificate.
This table presents the Petrol and Diesel Model Codes.
MODEL CODE
Vehicle
X
Body types
X*____/_
6 seats max, short L1
XA____/_
6 seats max, long L2
XB____/_
9 seats max, short L1
XC____/_
9 seats max, long L2
XD____/_
8-9 seats, long L2
XE____/_
Engines
X_***_/_
Diesel
1.6 HDi 90
X_9HU_/_
2.0 HDi 120
X_RHK_/_
2.0 HDi 120 with PEF
X_RHG_/_
2.0 HDi 136 with PEF
X_RHR_/_
2.0 HDi 163 with PEF
-
Petrol
2.0 PETROL 140
X_RFH_/_
Versions
X____*/_
The version code is a combination determined by the type of manual gearbox and the associated emissions controls level.
Manual gearbox
5-speed
X____*/_
6-speed
X____*/_
Variants
X_____/*
The variant code is determined in relation to the parameters authorised when the vehicle was manufactured.
05-11

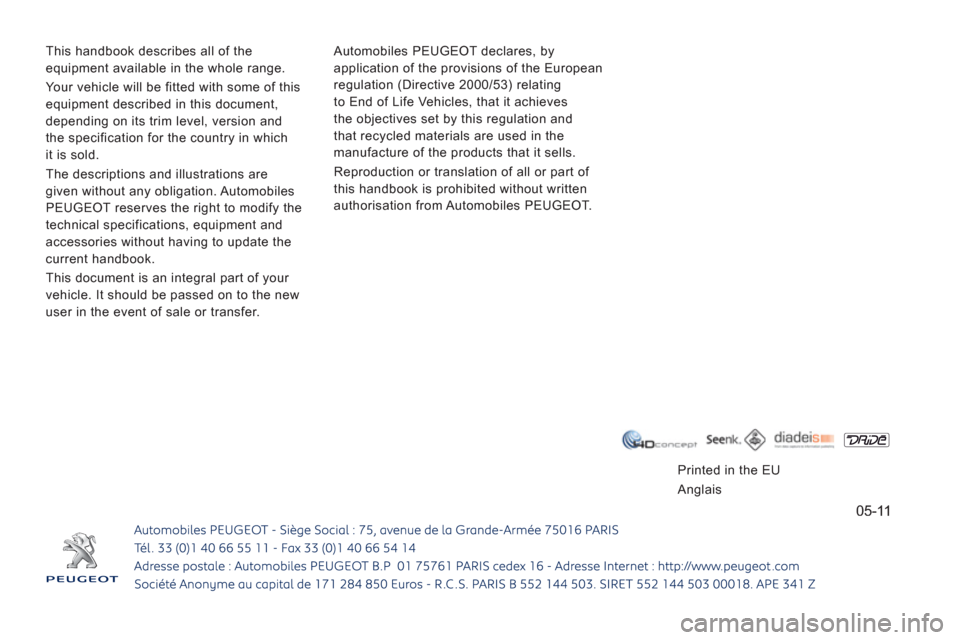

This handbook describes all of the
equipment available in the whole range.
Your vehicle will be fitted with some of this
equipment described in this document,
depending on its trim level, version and
the specification for the country in which
it is sold.
The descriptions and illustrations are
given without any obligation. Automobiles
PEUGEOT reserves the right to modify the
technical specifications, equipment and
accessories without having to update the
current handbook.
This document is an integral part of your
vehicle. It should be passed on to the new
user in the event of sale or transfer. Automobiles PEUGEOT declares, by
application of the provisions of the European
regulation (Directive 2000/53) relating
to End of Life Vehicles, that it achieves
the objectives set by this regulation and
that recycled materials are used in the
manufacture of the products that it sells.
Reproduction or translation of all or part of
this handbook is prohibited without written
authorisation from Automobiles PEUGEOT.
Printed in the EU
Anglais
