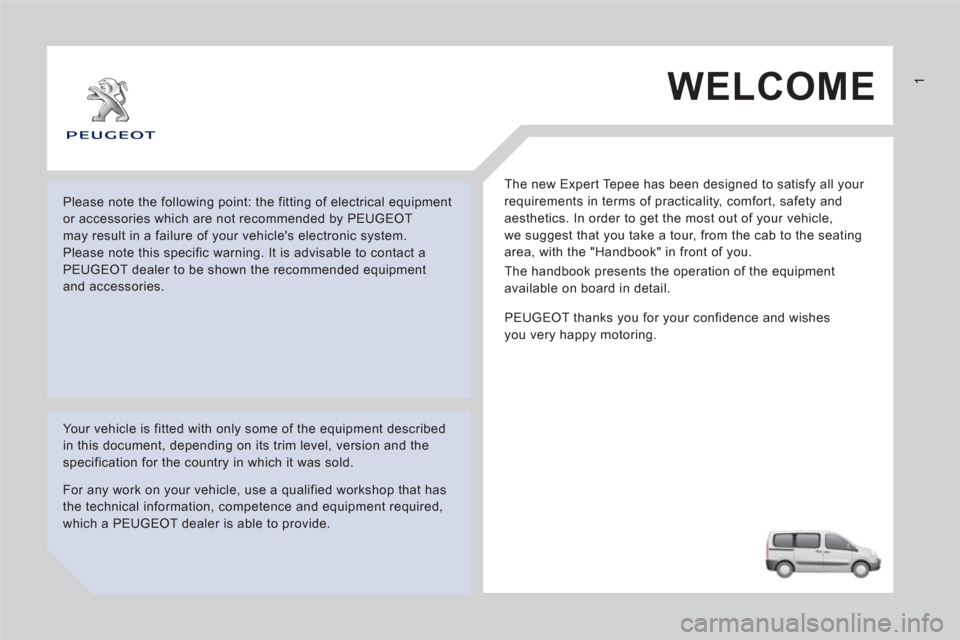

WELCOME
The new Expert Tepee has been designed to satisfy all your
requirements in terms of practicality, comfort, safety and
aesthetics. In order to get the most out of your vehicle,
we suggest that you take a tour, from the cab to the seating
area, with the "Handbook" in front of you.
The handbook presents the operation of the equipment
available on board in detail.
Your vehicle is fitted with only some of the equipment described
in this document, depending on its trim level, version and the
specification for the country in which it was sold. Please note the following point: the fitting of electrical equipment
or accessories which are not recommended by PEUGEOT
may result in a failure of your vehicle's electronic system.
Please note this specific warning. It is advisable to contact a
PEUGEOT dealer to be shown the recommended equipment
and accessories.
1
PEUGEOT thanks you for your confidence and wishes
you very happy motoring.

For any work on your vehicle, use a qualified workshop that has
the technical information, competence and equipment required,
which a PEUGEOT dealer is able to provide.

2
Contents
Remote control 19Key 20Alarm 21Doors 22Instrument panel 26Adjusting the time 27Warning lamps 28Fuel gauge 34Coolant 34Service indicator 35Lighting rheostat 36Gearboxes 37Gear shift indicator 37Automatic gearbox 38Steering wheel adjustment 41Starting and stopping 41
Lightingcontrols 42wipers 45Cruise control 47Fixed speed limiter 49Speed limiter 50Manual heating/air conditioning 53automatic 55De-icing and demisting 59Rear ventilation 61Additional heating 62Seats 652-seat front bench 67Rear seats 69Seat and bench confi guration 76Cab fittings 77Courtesy lights 80Toll cards/car park tickets 81Seating area fittings 81
Rear suspension 84Mirrors 87Electric windows 89
Presentation 4Communication4Exterior 5Sitting comfortably 10Seeing clearly 12Driving safely 13Cab fittings 14Rear fittings 14Child safety 15Ventilation 16Eco-driving 17
Parking brake 90Hazard warning lamps 90Parking sensors 91Horn 92Anti-lock braking system (ABS) 92Emergency braking assistance92Traction control (ASR) andstability control (ESP) 93Seat belts 94Airbags 97Lateral airbags 99Front airbags 100Deactivating the passenger'sairbag 100Child seats 101ISOFIX seats 103Recommended seats 106
2. READY TO SET OFF
19-41
4. SAFETY
90-108
1. FAMILIARISATION
4-183. EASE OF USE and COMFORT 42-89

CONTENT
S

Contents
3


The "Technology on board"
section presents the new radio/
navigation systems.
Towing a trailer 109Other accessories 111
Opening the bonnet 112Diesel engines 113Petrol engine 114Levels 115Checks 117Fuel 120Circuit disarmed 121Diesel repriming pump 121
Battery 123Puncture repair kit 124Changing a wheel 126Removable snow screen 130Changing a bulb 131a fuse 136a windscreen wiper blade 140
Towing the vehicle 141Environment 143
Dimensions 144Weights 148Engines 149Identification features 150
Emergency or assistance 9.1Peugeot Connect Media 9.3Peugeot Connect Navigation 9.49Peugeot Connect Sound 9.83
9. TECHNOLOGY onBOARD 5. ACCESSORIES
109-111
6. CHECKS11 2-122
7. QUICK HELP 123-143
8. TECHNICAL DATA 144-150
10. VISUAL SEARCH 151-157


The "Location" section assists
you in finding the controls
and functions and their
associated page numbers on
the schematic outlines of the
vehicle (visual index).

PC: Peugeot Connect is
the name given to all of the
new equipment of the radio/
navigation range.
Exterior 151Instruments and controls 152Interior 154
Technical data - Maintenance 155Model code 156

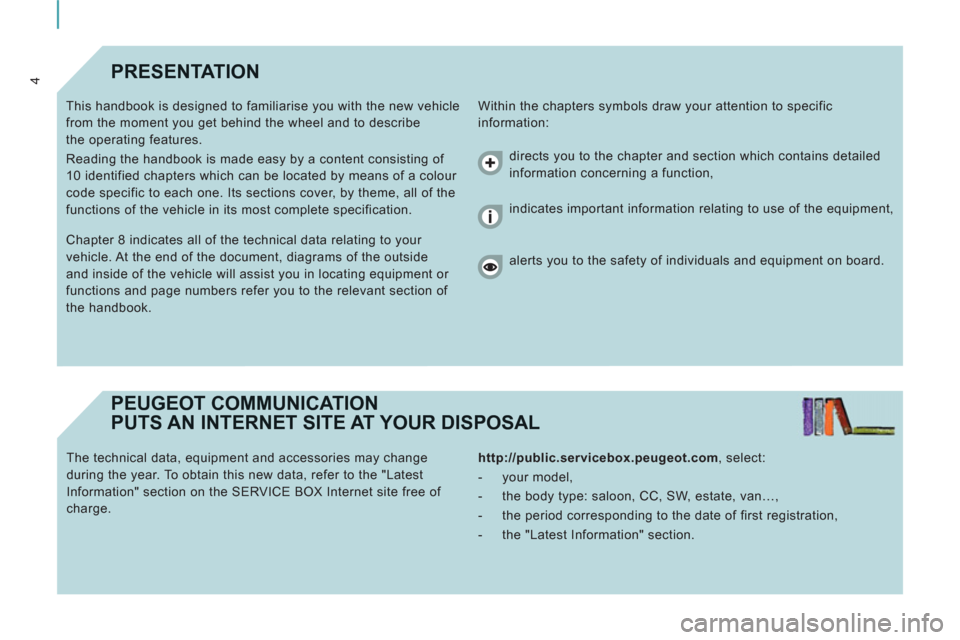

4PRESENTATION
Within the chapters symbols draw your attention to specific
information: This handbook is designed to familiarise you with the new vehicle
from the moment you get behind the wheel and to describe
the operating features.
Reading the handbook is made easy by a content consisting of
10 identified chapters which can be located by means of a colour
code specific to each one. Its sections cover, by theme, all of the
functions of the vehicle in its most complete specification.
PEUGEOT COMMUNICATION
PUTS AN INTERNET SITE AT YOUR DISPOSAL
http://public.servicebox.peugeot.com, select:


- your model,

- the body type: saloon, CC, SW, estate, van…,

- the period corresponding to the date of first registration,

- the "Latest Information" section. The technical data, equipment and accessories may change
during the year. To obtain this new data, refer to the "Latest
Information" section on the SERVICE BOX Internet site free of
charge. Chapter 8 indicates all of the technical data relating to your
vehicle. At the end of the document, diagrams of the outside
and inside of the vehicle will assist you in locating equipment or
functions and page numbers refer you to the relevant section of
the handbook. directs you to the chapter and section which contains detailed
information concerning a function,
indicates important information relating to use of the equipment,
alerts you to the safety of individuals and equipment on board.

8
2a
2b
2a
2b
8
5

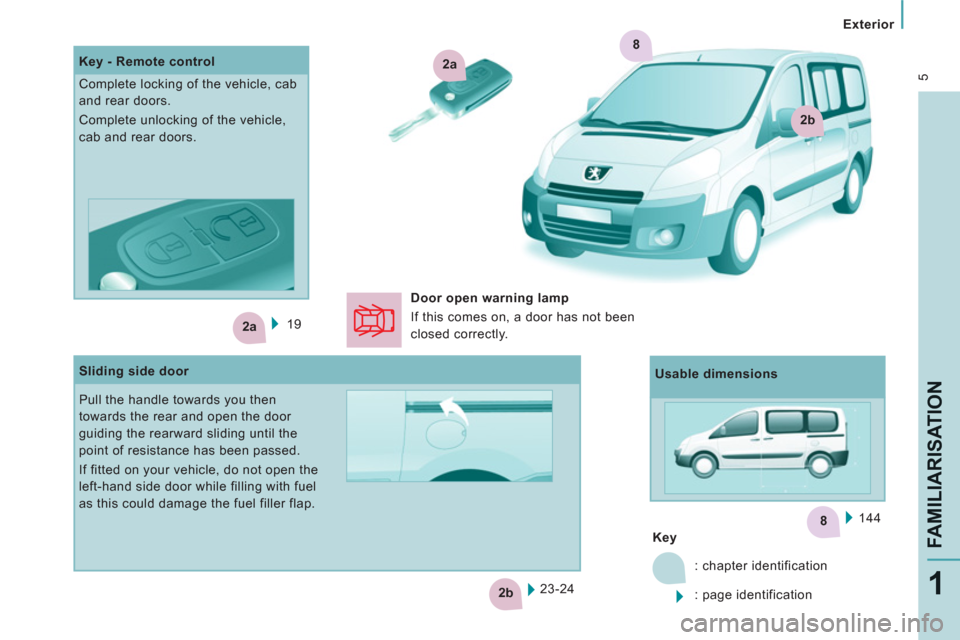

Exterior

FAMILIARISATIO
N
1

19
144



Key
: chapter identification
: page identification 23-24
Key - Remote control
Complete locking of the vehicle, cab
and rear doors.
Complete unlocking of the vehicle,
cab and rear doors.

Sliding side door
Pull the handle towards you then
towards the rear and open the door
guiding the rearward sliding until the
point of resistance has been passed.
If fitted on your vehicle, do not open the
left-hand side door while filling with fuel
as this could damage the fuel filler flap.
Usable dimensions
Door open warning lamp
If this comes on, a door has not been
closed correctly.

3b3a
2
7
7
2
3a3b
7

Exterior
6

91 84
Side-hinged rear doors
This control permits opening to
approximately 180°.

Parking sensors
Rear suspension
Two functions:


- Automatic height correction.

- Manual height correction. 124
Repairing a wheel
In bad weather or in winter, check
that the sensors are not covered with
mud, ice or snow.
126

Changing a wheel 25

6
7
6
6
7


Exterior

FAMILIARISATIO
N
1



Opening the bonnet
11 3
Diesel engines
Petrol engine
11 4

141
Towing eye 11 2 Partially open the bonnet, lift the safety
catch and raise the bonnet. Secure the stay in one of the two notches,
according to the height required, to hold the
bonnet open. Lift the cover at the foot of the left-hand
seat and pull the release lever upwards.
At the front, unclip the cover by pressing it
at the bottom.
At the rear, unclip the cover using a coin or
the flat part of the towing eye. Take care when working under the bonnet.
Refer to "Levels" in section 6 for advice on use of the fluids.

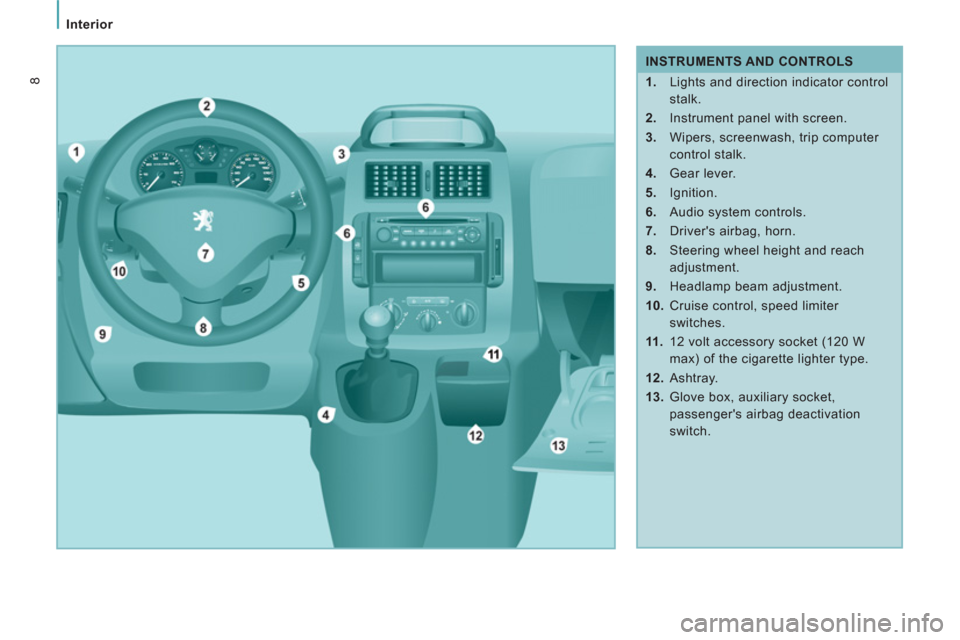

Interior
8



INSTRUMENTS AND CONTROLS


1.
Lights and direction indicator control
stalk.

2.
Instrument panel with screen.

3.
Wipers, screenwash, trip computer
control stalk.

4.
Gear lever.

5.
Ignition.

6.
Audio system controls.

7.
Driver's airbag, horn.

8.
Steering wheel height and reach
adjustment.

9.
Headlamp beam adjustment.

10.
Cruise control, speed limiter
switches.

11 .
12 volt accessory socket (120 W
max) of the cigarette lighter type.

12.
Ashtray.

13.
Glove box, auxiliary socket,
passenger's airbag deactivation
switch.
