Peugeot Expert Tepee 2011 Owner's Manual

9.99
09

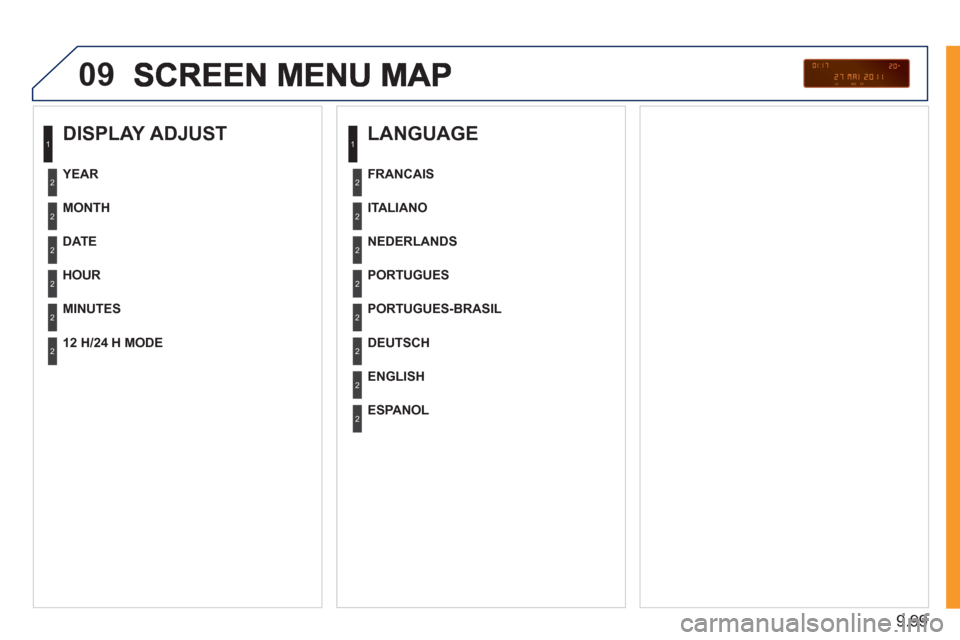

DISPLAY ADJUST


MONTH

DATE

HOUR

MINUTES
YEAR


12 H/24 H MODE


LANGUAGE


ITALIANO

NEDERLANDS

PORTUGUES

PORTUGUES-BRASIL
FRANCAIS

DEUTSCH

ENGLISH

ESPANOL
1
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2

9.100

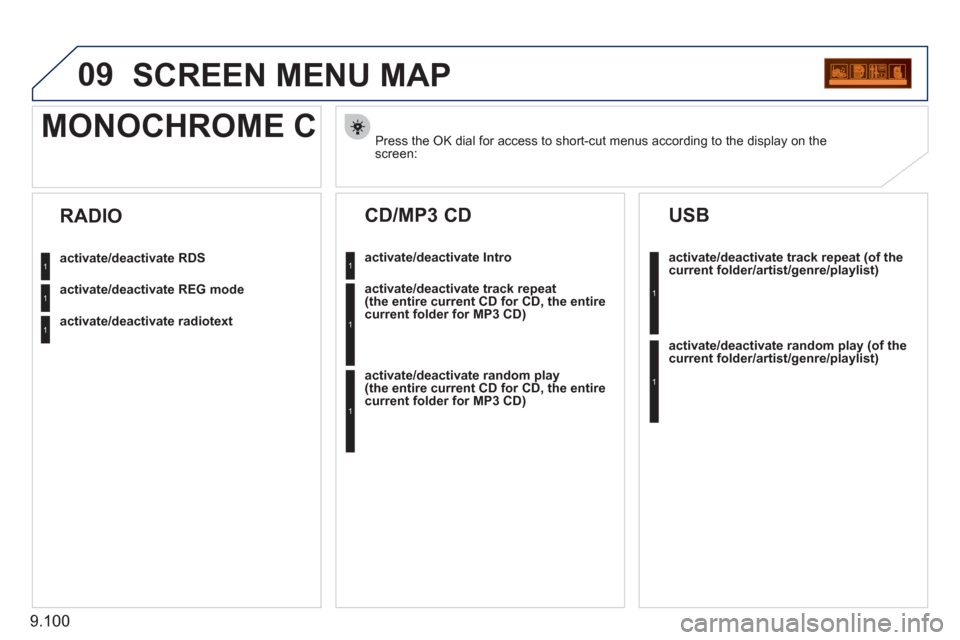

09SCREEN MENU MAP
Press the OK dial for access to short-cut menus according to the display on thescreen:
MONOCHROME C
activate/deactivate RDS
activate/deactivate REG mode
activate/deactivate radiotext


RADIO
activate/deactivate Intro


CD/MP3 CD
activate/deactivate track repeat (the entire current CD for CD, the entire current folder for MP3 CD)
activate/deactivate random play (the entire current CD for CD, the entire current folder for MP3 CD)
activate/deactivate track repeat (of the current folder/artist/genre/playlist)


USB
activate/deactivate random play(of thecurrent folder/artist/genre/playlist)
1
1
1
1
1
1
1
1

9.101
09

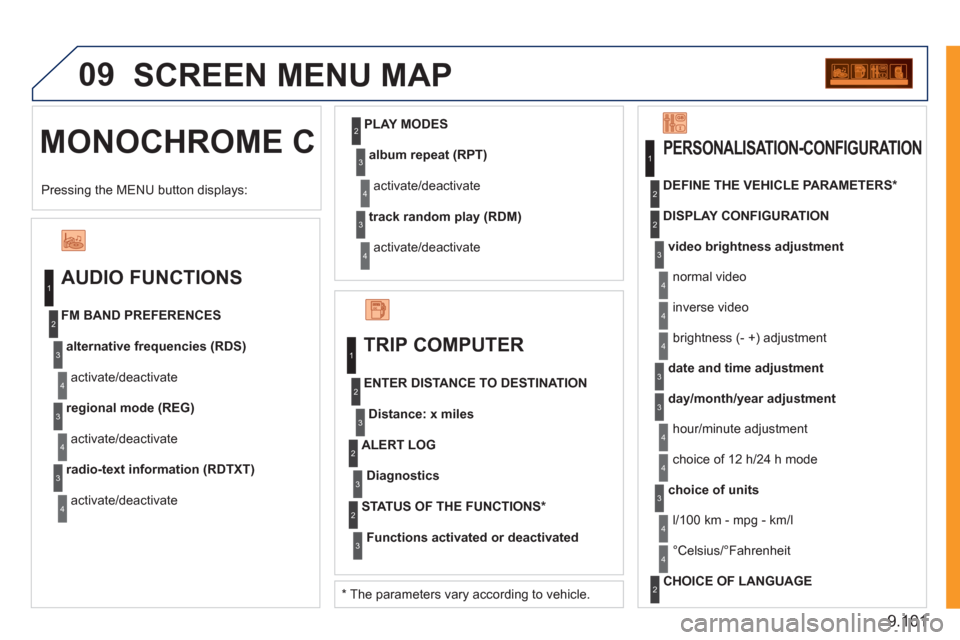

MONOCHROME C SCREEN MENU MA
P

AUDIO FUNCTIONS
alternative frequencies (RDS)
activate/deactivate FM BAND PREFERENCES
regional mode (REG)
activate/deactivate
radio-text information (RDTXT)
activate/deactivate
1
2
3
4
3
4
3
4
PLAY MODES
album repeat (RPT)
activate/deactivate
track random play (RDM)

activate/deactivate

2
3
4
3
4


TRIP COMPUTER
Distance: x miles
ENTER DISTANCE TO DESTINATION
Diagnostics


ALERT LOG
Functions activated or deactivated


STATUS OF THE FUNCTIONS *
1
2
3
3
2
3
2
video brightness adjustment
DISPLAY CONFIGURATION DEFINE THE VEHICLE PARAMETERS *


PERSONALISATION-CONFIGURATION
normal video
inverse video
brightness (- +) adjustment
date and time adjustmen
t
day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode
choice of units
l/100 km - mp
g - km/l
°
Celsius/°Fahrenheit
CHOICE OF LANGUAGE

1
2
4
3
2
4
4
3
3
4
4
2
3
4
4
Pressing the MENU button displays:

*
The parameters vary according to vehicle.

9.102
09SCREEN MENU MAP

BLUETOOTH TELEPHONE
Connect/Disconnect a device
Consult the paired device BLUETOOTH CONFIGURATION
Telephone function
Audio Streamin
g function
Delete a
paired device
P
erform a Bluetooth search
Calls lis
t
CALL

Directory
Terminate the current call

MANAGE THE TELEPHONE CALL
Activate
private mode
1
2
3
3
3
4
4
4
2
3
4
2
3
3

9.103

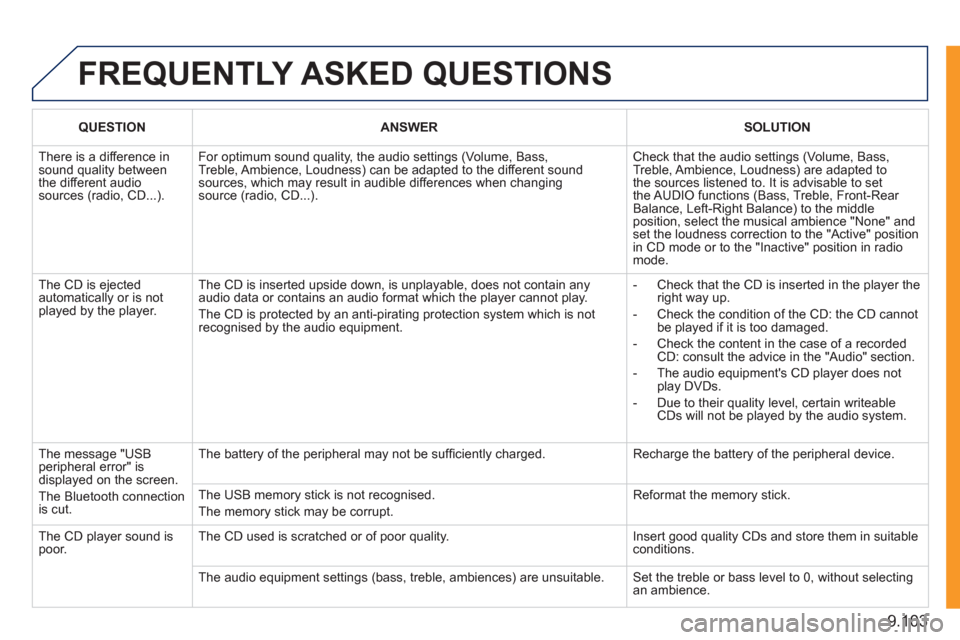

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION

There is a difference in sound quality betweenthe different audiosources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass,Treble, Ambience, Loudness) can be adapted to the different soundsources, which may result in audible differences when changing source (radio, CD...).

Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted tothe sources listened to. It is advisable to setthe AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.

The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.


- Check that the CD is inserted in the player the right way up.


- Check the condition of the CD: the CD cannot be played if it is too damaged.


- Check the content in the case of a recordedCD: consult the advice in the "Audio" section.


- The audio equipment's CD player does notplay DVDs.


- Due to their quality level, certain writeableCDs will not be played by the audio system.

The message "USB peripheral error" isdisplayed on the screen.

The Bluetooth connectionis cut.
The battery of the peripheral may not be suffi ciently charged.
Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt.

Reformat the memory stick.

The CD player sound ispoor.The CD used is scratched or of poor quality.
Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selectingan ambience.

9.104

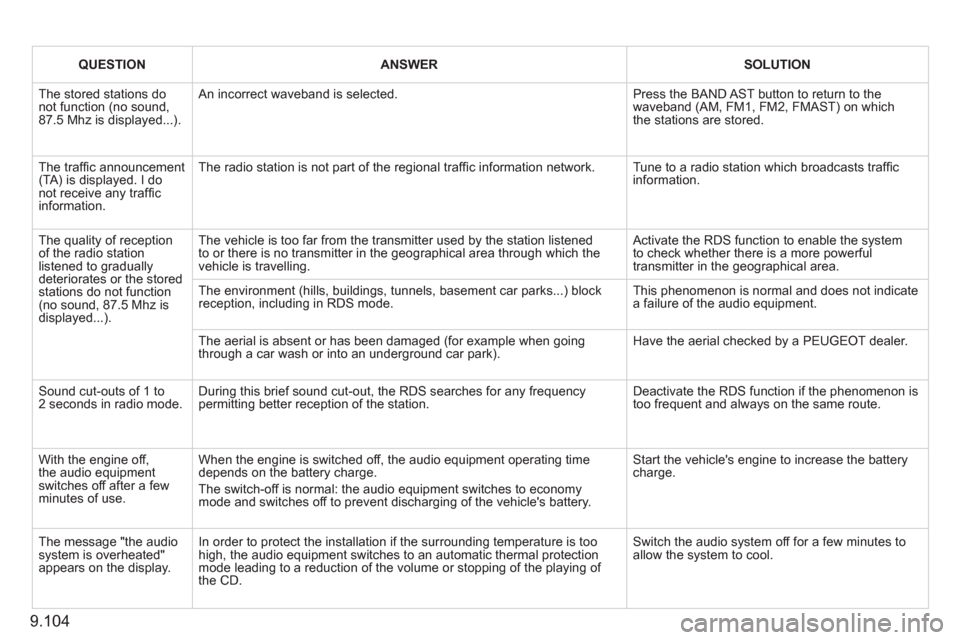

QUESTIONANSWERSOLUTION
The stored stations donot function (no sound, 87.5 Mhz is displayed...).

An incorrect waveband is selected.
Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which the stations are stored.

The traffi c announcement(TA) is displayed. I donot receive any traffi c information.
The radio station is not part of the regional traffi c information network.
Tune to a radio station which broadcasts traffi c information.

The quality of receptionof the radio station listened to graduallydeteriorates or the stored stations do not function(no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listenedto or there is no transmitter in the geographical area through which the vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode. This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when goingthrough a car wash or into an underground car park).
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to2 seconds in radio mode.During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station.
Deactivate the RDS function if the phenomenon is too frequent and always on the same route.

With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipment operating timedepends on the battery charge.
The switch-off is normal: the audio equipment switches to economymode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the batterycharge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is toohigh, the audio equipment switches to an automatic thermal protectionmode leading to a reduction of the volume or stopping of the playing of the CD.
Switch the audio system off for a few minutes toallow the system to cool.

15
1


Exterior

VISUAL SEARCH
10
EXTERIOR


Filler cap, fuel tank 120-121
Fuel cut-off,
Diesel priming 121-122

Wiper blade 140
Door mirrors 87
Side repeater 133

Front lamps, foglamps,
direction indicators 42-44, 131
Headlamp beam height adjustment 44
Changing
front bulbs 131-133
Headlamp wash 45, 116
Snow shield 130

Front doors 22-23
Sliding side door 23-24
Key 20
Opening the bonnet 112
Electric child lock 24

Brakes, pads 90, 117
Emergency braking 92
ABS, EBFD 92
ASR, ESP 93
Tyres, pressures 150
Rear suspension 84-86
Doors, tailgate 22-25
Emergency control 25
Accessories 111

Number plate lamp 135
Dimensions 144-147

Temporary puncture repair kit 124
Spare wheel, jack,
changing a wheel, tools 126-130
Inflation, pressures 150
Remote control 19-20
Changing the battery, reinitialisation 20
Key 20
Starting 41
Central locking/
unlocking 19, 23
Alarm 21-22

Towing, lifting 141
Towbar 109-110
Parking sensors 91
Rear lamps, direction indicators 42-43, 133
3rd brake lamp 135
Changing
rear bulbs 131, 134

152


Instruments and controls



Headlamp beam height adjustment 44
Starter, ignition switch 41
Wiper controls 45-46
Automatic wiping 45
Windscreen/headlamp wash 45
Trip computer Section 9

Cruise control 47-49
Fixed speed limiter 49
Speed limiter 50-52

Steering mounted controls:


-
Peugeot Connect Media Navigation (RT5) Section 9

- Peugeot Connect Navigation (RNEG) Section 9

- Peugeot Connect Sound (RD5) Section 9



Lighting controls 42-43
Automatic illumination of headlamps 44
Foglamps 43
Daytime running lamps 43

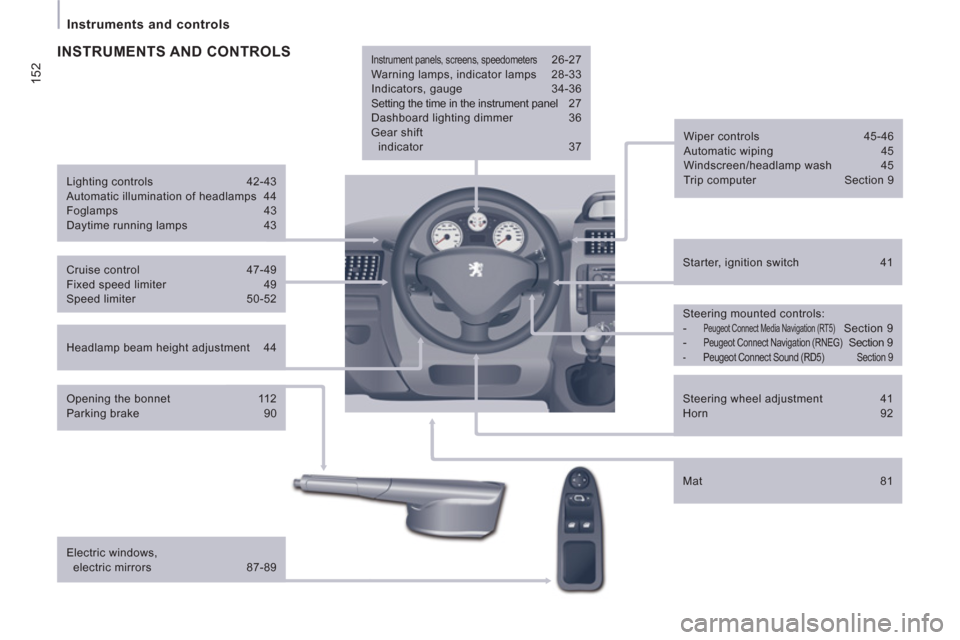

INSTRUMENTS AND CONTROLS


Opening the bonnet 112
Parking brake 90

Electric windows,
electric mirrors 87-89


Instrument panels, screens, speedometers 26-27
Warning lamps, indicator lamps 28-33
Indicators, gauge 34-36
Setting the time in the instrument panel 27
Dashboard lighting dimmer 36
Gear shift
indicator 37

Mat 81


Steering wheel adjustment 41
Horn 92

15
3


Instruments and controls

VISUAL SEARCH
10


Screens, display Section 9
Setting the time
in the screen Section 9
Rear view mirror 88
Toll cards, car park tickets 81
Child surveillance mirror 88
Courtesy lamps 80, 133
Warning lamp in overhead storage unit 26
Heated seats 66
Rear ventilation 61, 62-63

Dashboard fuses,
right-hand side 137
Passenger's airbag deactivation 100
Controls


- central locking 23

- alarm 21-22

- electric child lock 24

- parking sensors 91

- ASR, ESP 93


Technology on board Section 9


- Emergency or assistance call

-
Peugeot Connect Media Navigation (RT5)


- Peugeot Connect Navigation (RNEG)

- Peugeot Connect Sound (RD5)


Gearbox 37
Hazard warning lamps 90

Heating, ventilation


- manual ventilation 53-54

- air conditioning A/C 53

- air recirculation 54
Air conditioning with separate
adjustments 55-57
Demisting/defrosting 59-60
Additional heating 62-63

Cab fittings 77-79


- glove box,

- overhead storage,

- ashtray,

- sun visor,

- 12 volt socket,

- ticket holder,

- storage compartment.

154

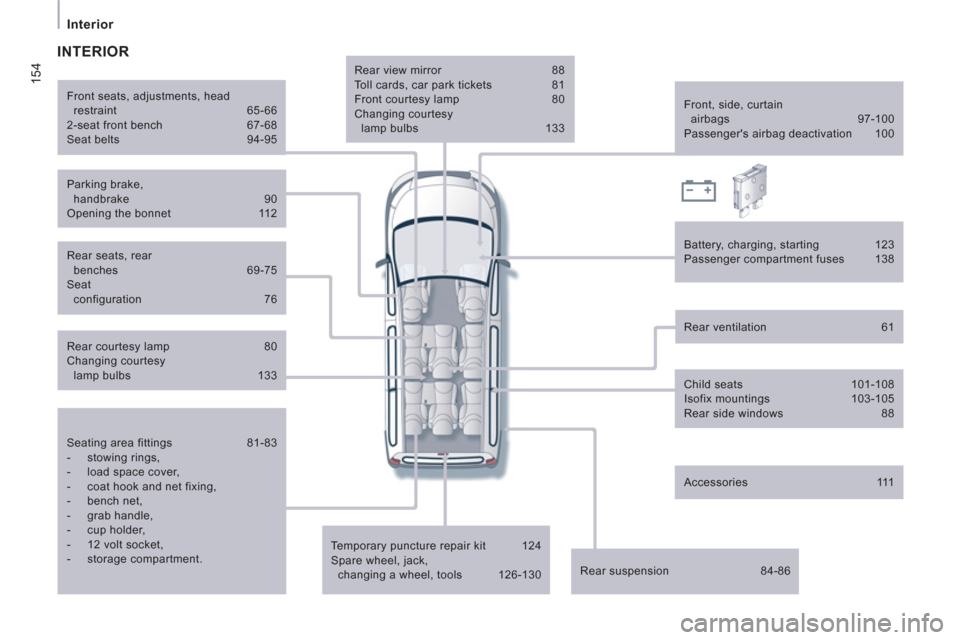

Interior



Seating area fittings 81-83


- stowing rings,

- load space cover,

- coat hook and net fixing,

- bench net,

- grab handle,

- cup holder,

- 12 volt socket,

- storage compartment.

Temporary puncture repair kit 124
Spare wheel, jack,
changing a wheel, tools 126-130
Rear suspension 84-86
Front, side, curtain
airbags 97-100
Passenger's airbag deactivation 100

Parking brake,
handbrake 90
Opening the bonnet 112

Battery, charging, starting 123
Passenger compartment fuses 138
Front seats, adjustments, head
restraint 65-66
2-seat front bench 67-68
Seat belts 94-95

Rear ventilation 61

Child seats 101-108
Isofix mountings 103-105
Rear side windows 88

INTERIOR


Rear seats, rear
benches 69-75
Seat
configuration 76

Rear courtesy lamp 80
Changing courtesy
lamp bulbs 133

Accessories 111

Rear view mirror 88
Toll cards, car park tickets 81
Front courtesy lamp 80
Changing courtesy
lamp bulbs 133
