Peugeot Expert Tepee 2014 Workshop Manual

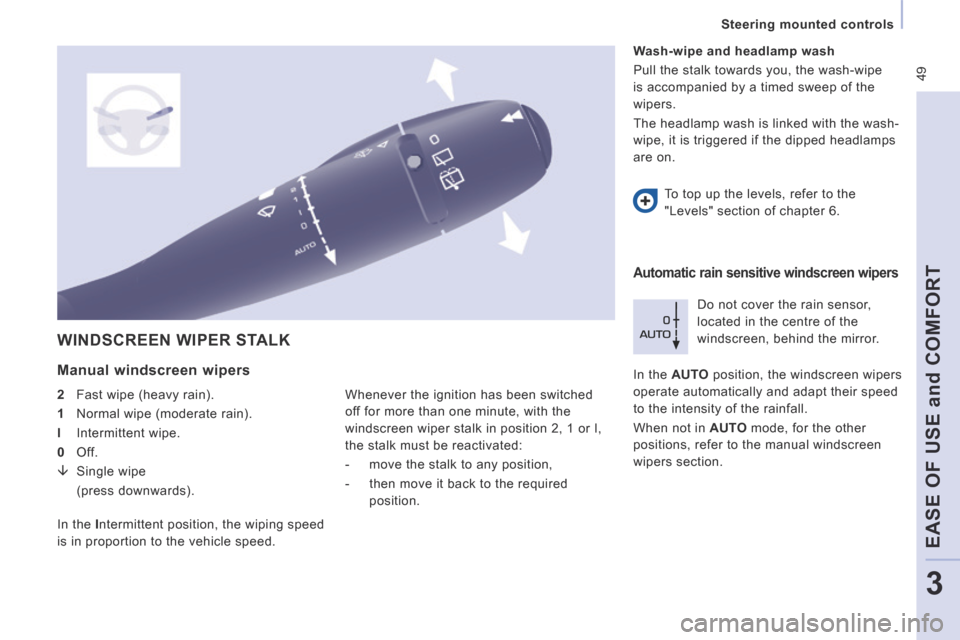

49
Steering mounted controls
EASE OF USE
and
COMFORT
3
WINDSCREEN WIPER STALK
Manual windscreen wipers
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
l Intermittent wipe.
0 Off.
 Single wipe
(press downwards). Do not cover the rain sensor,
located in the centre of the
windscreen, behind the mirror.
In the AUTO position, the windscreen wipers
operate automatically and adapt their speed
to the intensity of the rainfall.
When not in AUTO mode, for the other
positions, refer to the manual windscreen
wipers section.
In the I ntermittent position, the wiping speed
is in proportion to the vehicle speed. Wash-wipe and headlamp wash

Pull the stalk towards you, the wash-wipe
is accompanied by a timed sweep of the
wipers.
The headlamp wash is linked with the wash-
wipe, it is triggered if the dipped headlamps
are on.
To top up the levels, refer to the
"Levels" section of chapter 6.
Automatic rain sensitive windscreen wipers
Whenever the ignition has been switched
off for more than one minute, with the
windscreen wiper stalk in position 2, 1 or I,
the stalk must be reactivated:
- move the stalk to any position,
- then move it back to the required position.

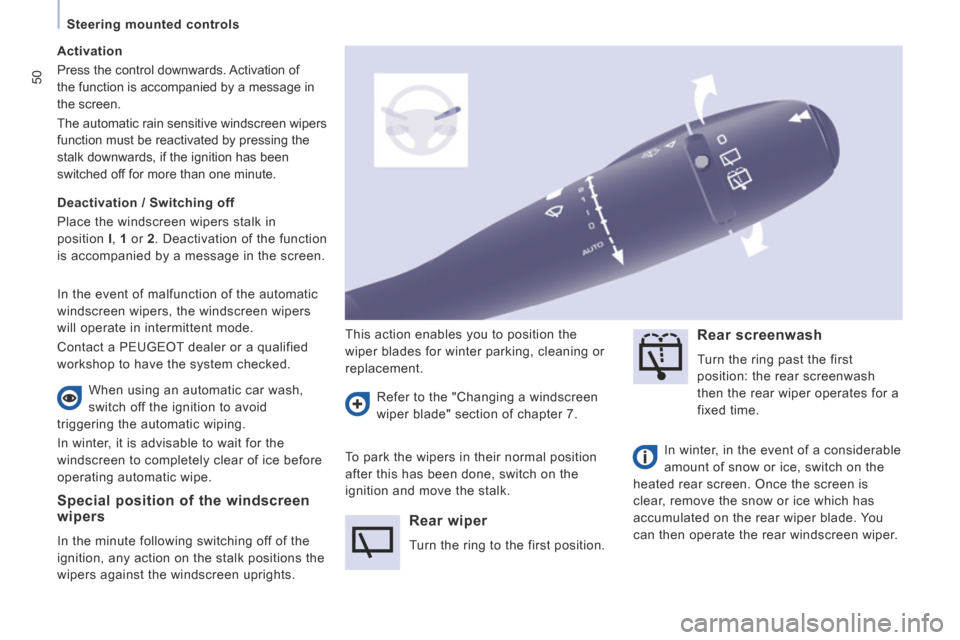

50
Steering mounted controls
Special position of the windscreen wipers
In the minute following switching off of the
ignition, any action on the stalk positions the
wipers against the windscreen uprights. This action enables you to position the
wiper blades for winter parking, cleaning or
replacement.
Refer to the "Changing a windscreen
wiper blade" section of chapter 7.
To park the wipers in their normal position
after this has been done, switch on the
ignition and move the stalk.
When using an automatic car wash,
switch off the ignition to avoid
triggering the automatic wiping.
In winter, it is advisable to wait for the
windscreen to completely clear of ice before
operating automatic wipe.
Rear wiper
Turn the ring to the first position.
Rear screenwash
Turn the ring past the first
position: the rear screenwash
then the rear wiper operates for a
fixed time.
In winter, in the event of a considerable
amount of snow or ice, switch on the
heated rear screen. Once the screen is
clear, remove the snow or ice which has
accumulated on the rear wiper blade. You
can then operate the rear windscreen wiper.
Activation
Press the control downwards. Activation of
the function is accompanied by a message in
the screen.
The automatic rain sensitive windscreen wipers
function must be reactivated by pressing the
stalk downwards, if the ignition has been
switched off for more than one minute.
Deactivation / Switching off
Place the windscreen wipers stalk in
position
I , 1 or 2 . Deactivation of the function
is accompanied by a message in the screen.
In the event of malfunction of the automatic
windscreen wipers, the windscreen wipers
will operate in intermittent mode.
Contact a PEUGEOT dealer or a qualified
workshop to have the system checked.

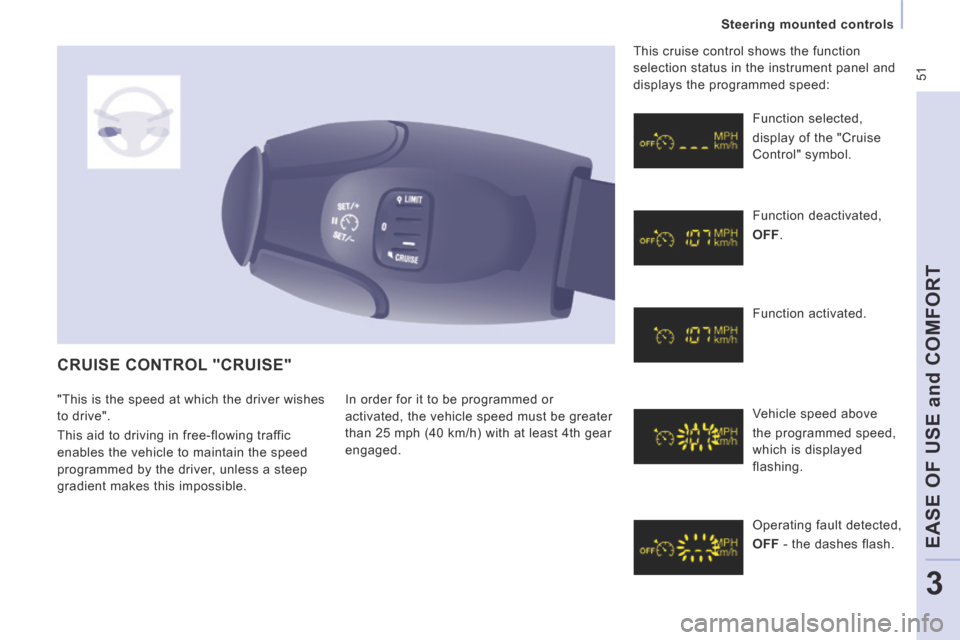

51
Steering mounted controls
EASE OF USE
and
COMFORT
3
CRUISE CONTROL "CRUISE"
In order for it to be programmed or
activated, the vehicle speed must be greater
than 25 mph (40 km/h) with at least 4th gear
engaged. Function selected,
display of the "Cruise
Control" symbol.
Function deactivated,
OFF .
Function activated .
Vehicle speed above
the programmed speed,
which is displayed
flashing.
Operating fault detected,
OFF - the dashes flash.
This cruise control shows the function
selection status in the instrument panel and
displays the programmed speed:
"This is the speed at which the driver wishes
to drive".
This aid to driving in free-flowing traffic
enables the vehicle to maintain the speed
programmed by the driver, unless a steep
gradient makes this impossible.

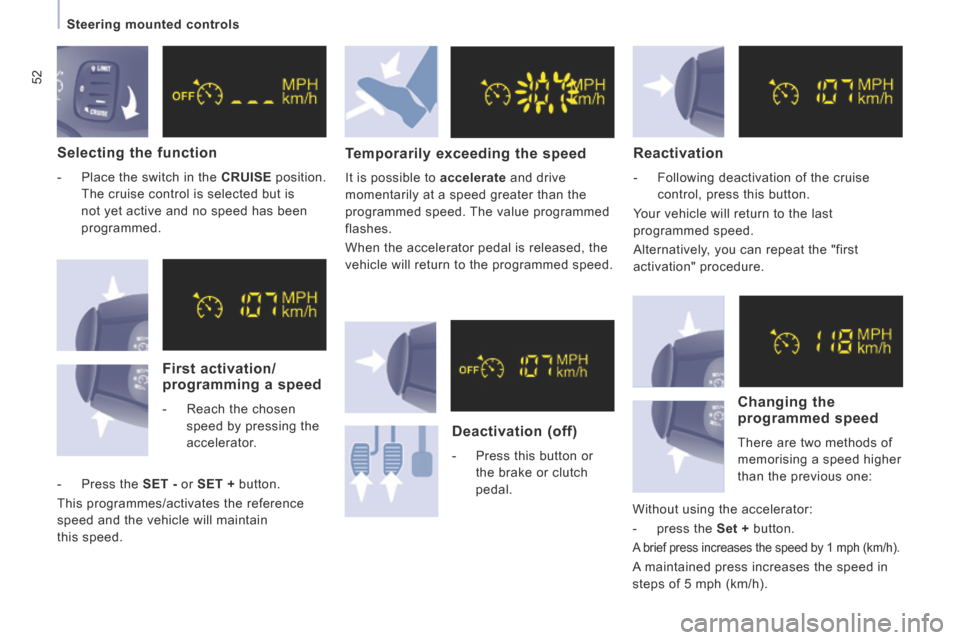

52
Steering mounted controls
Selecting the function
- Place the switch in the CRUISE position.
The cruise control is selected but is
not yet active and no speed has been
programmed.
First activation/programming a speed
- Reach the chosen speed by pressing the
accelerator.
Temporarily exceeding the speed
It is possible to accelerate and drive
momentarily at a speed greater than the
programmed speed. The value programmed
flashes.
When the accelerator pedal is released, the
vehicle will return to the programmed speed.
Reactivation
- Following deactivation of the cruise control, press this button.
Your vehicle will return to the last
programmed speed.
Alternatively, you can repeat the "first
activation" procedure.
Deactivation (off)
- Press this button or the brake or clutch
pedal.
Changing the programmed speed
There are two methods of
memorising a speed higher
than the previous one:
Without using the accelerator:
- press the Set + button.
A brief press increases the speed by 1 mph (km/h).
A maintained press increases the speed in
steps of 5 mph (km/h).
- Press the SET - or
SET + button.
This programmes/activates the reference
speed and the vehicle will maintain
this speed.

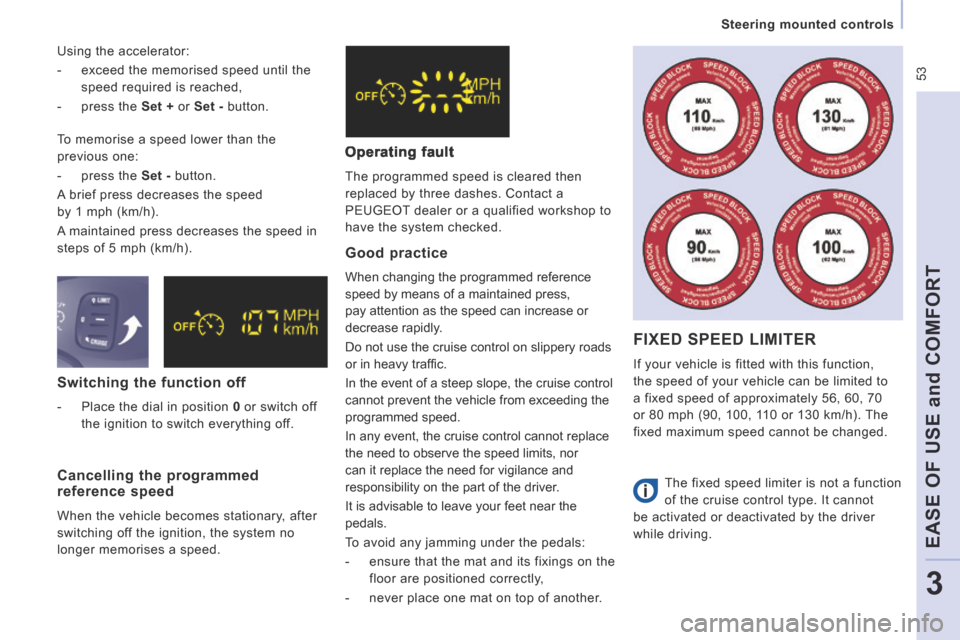

53
Steering mounted controls
EASE OF USE
and
COMFORT
3
Switching the function off
- Place the dial in position 0 or switch off
the ignition to switch everything off.
Good practice
When changing the programmed reference
speed by means of a maintained press,
pay attention as the speed can increase or
decrease rapidly.
Do not use the cruise control on slippery roads
or in heavy traffi c.
In the event of a steep slope, the cruise control
cannot prevent the vehicle from exceeding the
programmed speed.
In any event, the cruise control cannot replace
the need to observe the speed limits, nor
can it replace the need for vigilance and
responsibility on the part of the driver.
It is advisable to leave your feet near the
pedals.
To avoid any jamming under the pedals:
- ensure that the mat and its fixings on the floor are positioned correctly,
- never place one mat on top of another.
Operating fault
The programmed speed is cleared then
replaced by three dashes. Contact a
PEUGEOT dealer or a qualified workshop to
have the system checked.
Using the accelerator:
- exceed the memorised speed until the
speed required is reached,
- press the Set + or Set - button.
To memorise a speed lower than the
previous one:
- press the Set - button.
A brief press decreases the speed
by 1 mph (km/h).
A maintained press decreases the speed in
steps of 5 mph (km/h).
Cancelling the programmed reference speed
When the vehicle becomes stationary, after
switching off the ignition, the system no
longer memorises a speed.
FIXED SPEED LIMITER
If your vehicle is fitted with this function,
the speed of your vehicle can be limited to
a fixed speed of approximately 56, 60, 70
or 80 mph (90, 100, 110 or 130 km/h). The
fixed maximum speed cannot be changed.
The fixed speed limiter is not a function
of the cruise control type. It cannot
be activated or deactivated by the driver
while driving.

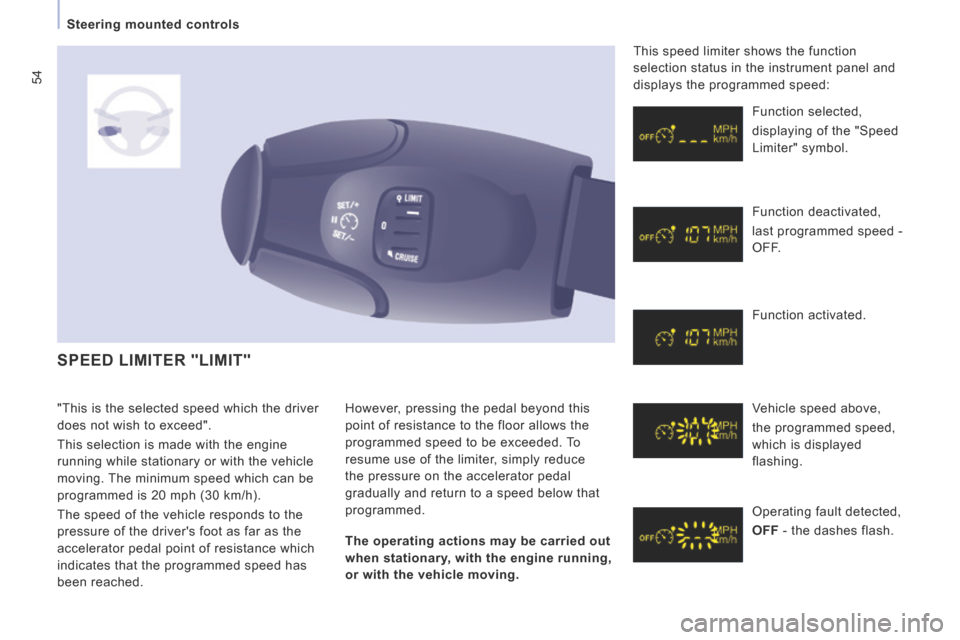

54
Steering mounted controls
SPEED LIMITER "LIMIT"
However, pressing the pedal beyond this
point of resistance to the floor allows the
programmed speed to be exceeded. To
resume use of the limiter, simply reduce
the pressure on the accelerator pedal
gradually and return to a speed below that
programmed. Function selected,
displaying of the "Speed
Limiter" symbol.
Function deactivated,
last programmed speed -
OFF.
Function activated.
Vehicle speed above,
the programmed speed,
which is displayed
flashing.
Operating fault detected,
OFF - the dashes flash.
This speed limiter shows the function
selection status in the instrument panel and
displays the programmed speed:
The operating actions may be carried out
when stationary, with the engine running,
or with the vehicle moving.
"This is the selected speed which the driver
does not wish to exceed".
This selection is made with the engine
running while stationary or with the vehicle
moving. The minimum speed which can be
programmed is 20 mph (30 km/h).
The speed of the vehicle responds to the
pressure of the driver's foot as far as the
accelerator pedal point of resistance which
indicates that the programmed speed has
been reached.

55
Steering mounted controls
EASE OF USE
and
COMFORT
3

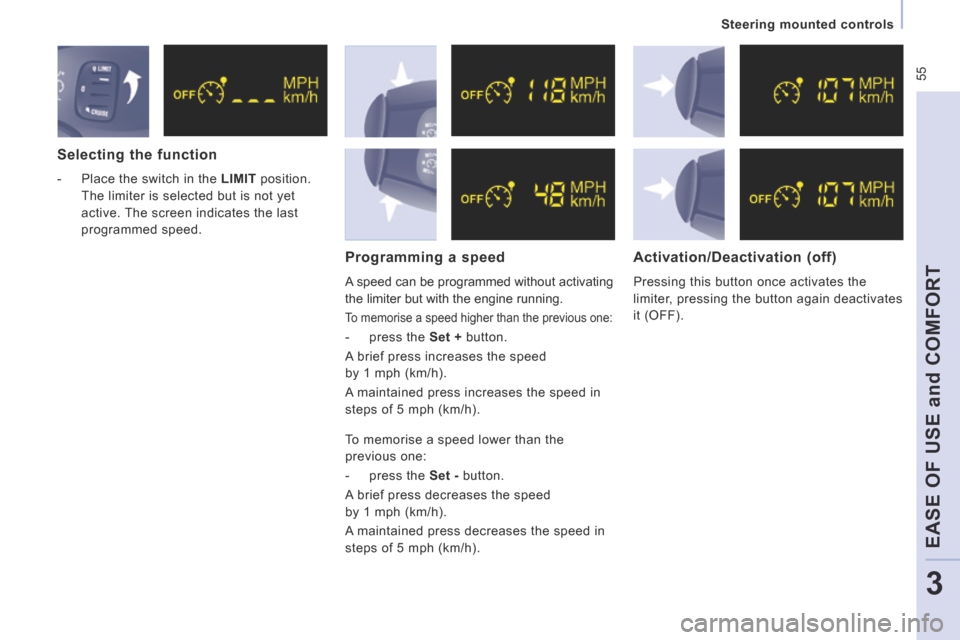

Selecting the function
- Place the switch in the LIMIT position.
The limiter is selected but is not yet
active. The screen indicates the last
programmed speed.
Programming a speed
A speed can be programmed without activating
the limiter but with the engine running.
To memorise a speed higher than the previous one:
- press the Set + button.
A brief press increases the speed
by 1 mph (km/h).
A maintained press increases the speed in
steps of 5 mph (km/h).
Activation/Deactivation (off)
Pressing this button once activates the
limiter, pressing the button again deactivates
it (OFF).
To memorise a speed lower than the
previous one:
- press the Set - button.
A brief press decreases the speed
by 1 mph (km/h).
A maintained press decreases the speed in
steps of 5 mph (km/h).

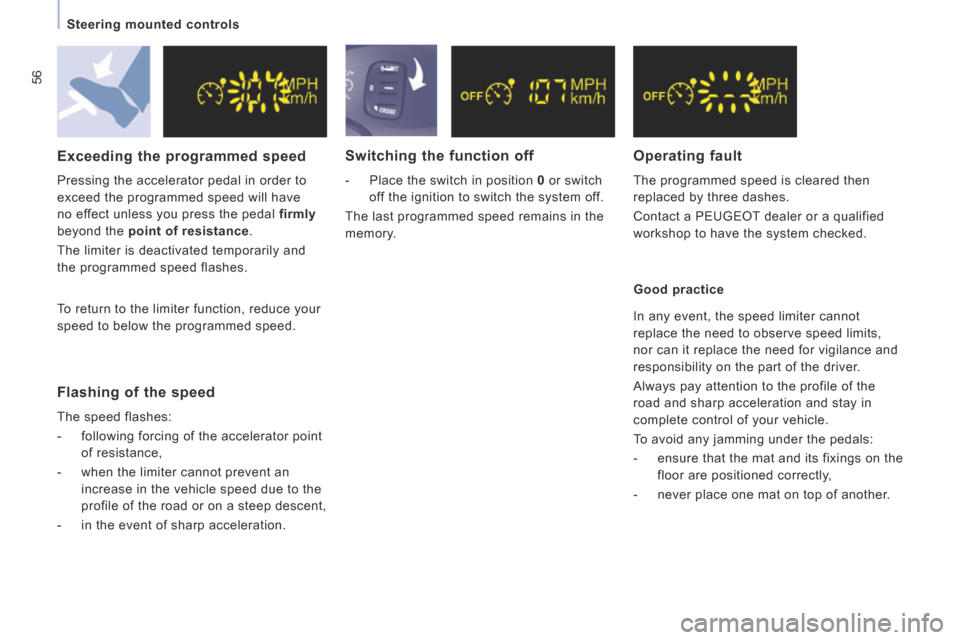

56
Steering mounted controls
Switching the function off
- Place the switch in position 0 or switch
off the ignition to switch the system off.
The last programmed speed remains in the
memory.
Exceeding the programmed speed
Pressing the accelerator pedal in order to
exceed the programmed speed will have
no effect unless you press the pedal firmly
beyond the point of resistance .
The limiter is deactivated temporarily and
the programmed speed flashes.
Good practice
Operating fault
The programmed speed is cleared then
replaced by three dashes.
Contact a PEUGEOT dealer or a qualified
workshop to have the system checked.
Flashing of the speed
The speed flashes:
- following forcing of the accelerator point of resistance,
- when the limiter cannot prevent an increase in the vehicle speed due to the
profile of the road or on a steep descent,
- in the event of sharp acceleration. To return to the limiter function, reduce your
speed to below the programmed speed. In any event, the speed limiter cannot
replace the need to observe speed limits,
nor can it replace the need for vigilance and
responsibility on the part of the driver.
Always pay attention to the profile of the
road and sharp acceleration and stay in
complete control of your vehicle.
To avoid any jamming under the pedals:
- ensure that the mat and its fixings on the
floor are positioned correctly,
- never place one mat on top of another.

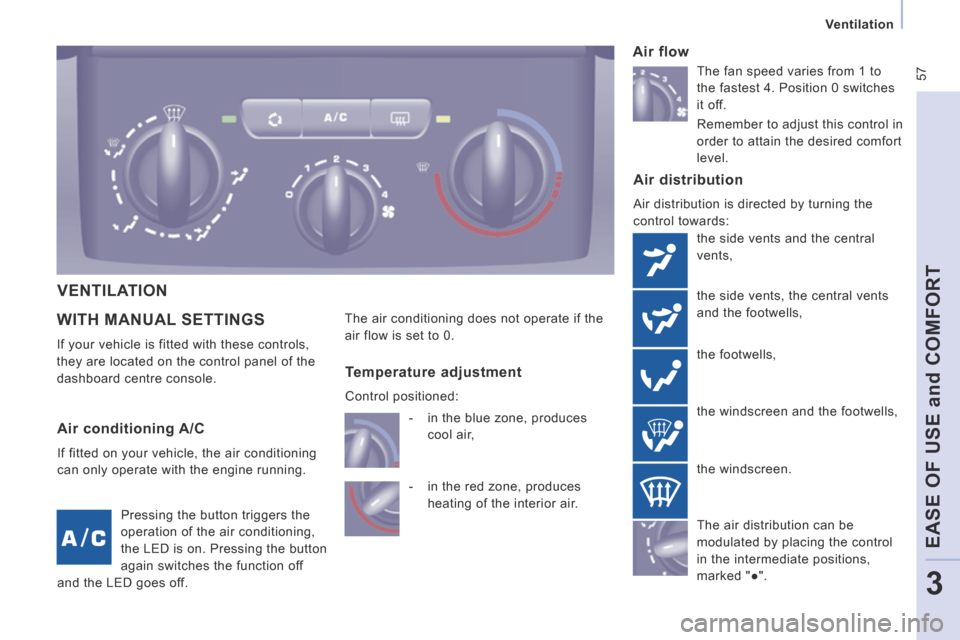

57
Ventilation
EASE OF USE and COMFORT
3
WITH MANUAL SETTINGS
If your vehicle is fitted with these controls,
they are located on the control panel of the
dashboard centre console.
Air distribution
Air distribution is directed by turning the
control towards: the side vents and the central
vents,
the side vents, the central vents
and the footwells,
the footwells,
the windscreen and the footwells,
Air flow
The air conditioning does not operate if the
air flow is set to 0.
The air distribution can be
modulated by placing the control
in the intermediate positions,
marked "●".
Air conditioning A/C
If fitted on your vehicle, the air conditioning
can only operate with the engine running. Pressing the button triggers the
operation of the air conditioning,
the LED is on. Pressing the button
again switches the function off
and the LED goes off.
Temperature adjustment
Control positioned:
- in the blue zone, produces cool air,
- in the red zone, produces heating of the interior air. The fan speed varies from 1 to
the fastest 4. Position 0 switches
it off.
Remember to adjust this control in
order to attain the desired comfort
level.
the windscreen.
VENTILATION

58
Ventilation
Intake of exterior air
Recommended settings
For optimum operation of the manual system, the settings below are recom\
mended:
The LED in the button is off.
This is the preferred operating
position.
The LED in the button is on.
Recirculation temporarily prevents
exterior odours and smoke
from entering the passenger
compartment.
Used with the air conditioning switched on
and setting of the force of blown air (from 1
to 4), recirculation enables you to obtain
the required ambient air comfort level more
quickly with both hot or cold settings.
This position should only be temporary.
When your ambient air comfort level has
been reached, return to the intake of exterior
air position to permit renewal of the air in the
passenger compartment and avoid misting.
This operating mode is preferable. If I require...
Air
distribution Temperature
Air flow Air
recirculation Air
conditioning A/C
Heating

Cooling
Demisting
Defrosting
Recirculation of interior air
