Peugeot Expert Tepee 2014 Manual PDF

69
Seats
EASE OF USE and COMFORT
3

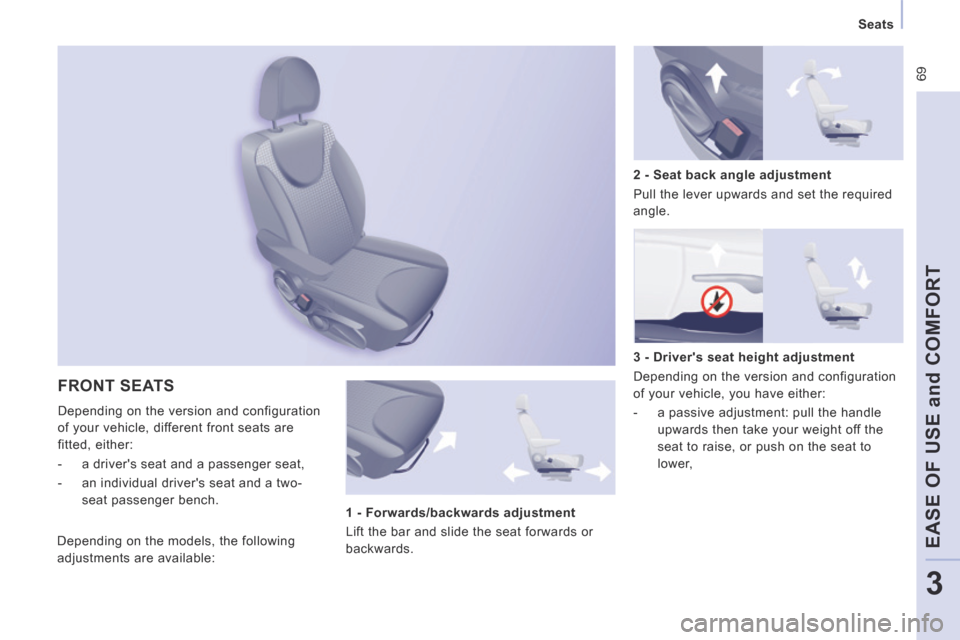

FRONT SEATS
Depending on the version and configuration
of your vehicle, different front seats are
fitted, either:
- a driver's seat and a passenger seat,
- an individual driver's seat and a two-seat passenger bench. 3 - Driver's seat height adjustment
Depending on the version and configuration
of your vehicle, you have either:
- a passive adjustment: pull the handle
upwards then take your weight off the
seat to raise, or push on the seat to
lower,
2 - Seat back angle adjustment
Pull the lever upwards and set the required
angle.
1 - Forwards/backwards adjustment
Lift the bar and slide the seat forwards or
backwards.
Depending on the models, the following
adjustments are available:

70
Seats

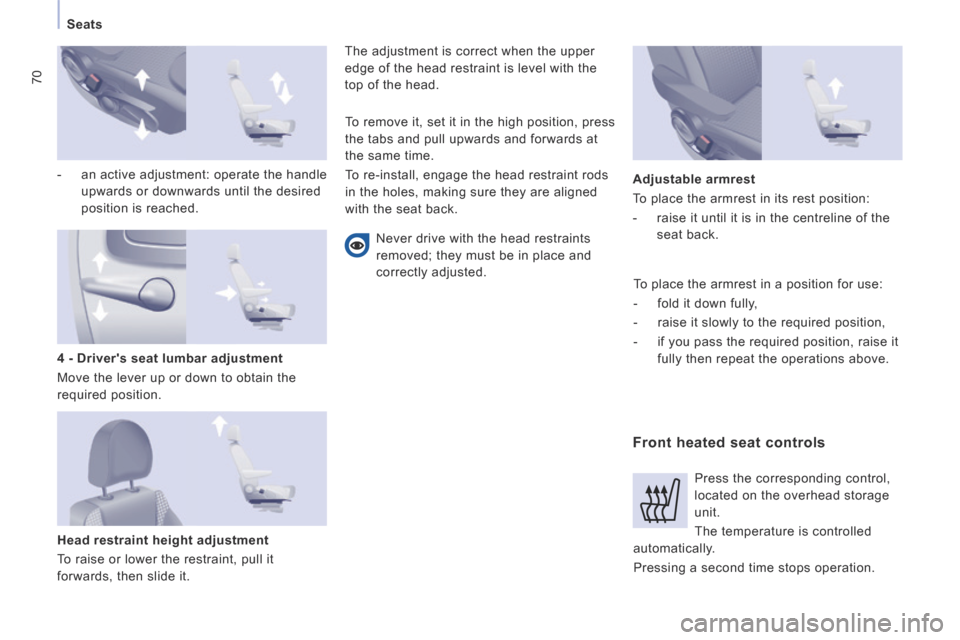

- an active adjustment: operate the handle upwards or downwards until the desired
position is reached.
Head restraint height adjustment
To raise or lower the restraint, pull it
forwards, then slide it. The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
Front heated seat controls
Adjustable armrest
To place the armrest in its rest position:
- raise it until it is in the centreline of the seat back.
4 - Driver's seat lumbar adjustment
Move the lever up or down to obtain the
required position. To remove it, set it in the high position, press
the tabs and pull upwards and forwards at
the same time.
To re-install, engage the head restraint rods
in the holes, making sure they are aligned
with the seat back.
To place the armrest in a position for use:
- fold it down fully,
- raise it slowly to the required position,
- if you pass the required position, raise it fully then repeat the operations above.
Press the corresponding control,
located on the overhead storage
unit.
The temperature is controlled
automatically.
Pressing a second time stops operation.

71
Seats
EASE OF USE and COMFORT
3

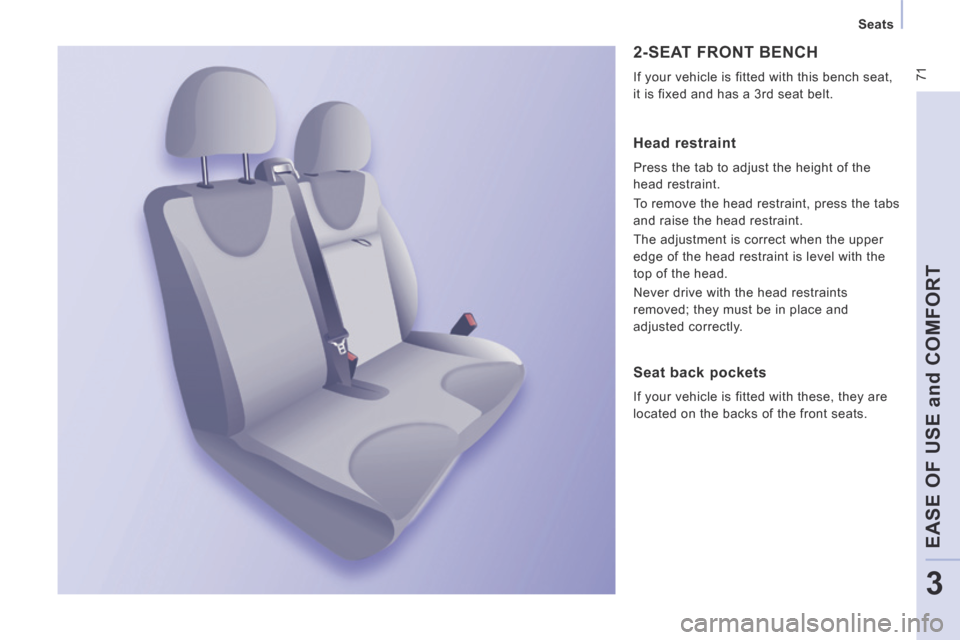

2-SEAT FRONT BENCH
If your vehicle is fitted with this bench seat,
it is fixed and has a 3rd seat belt.
Head restraint
Press the tab to adjust the height of the
head restraint.
To remove the head restraint, press the tabs
and raise the head restraint.
The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Seat back pockets
If your vehicle is fitted with these, they are
located on the backs of the front seats.

72
Seats

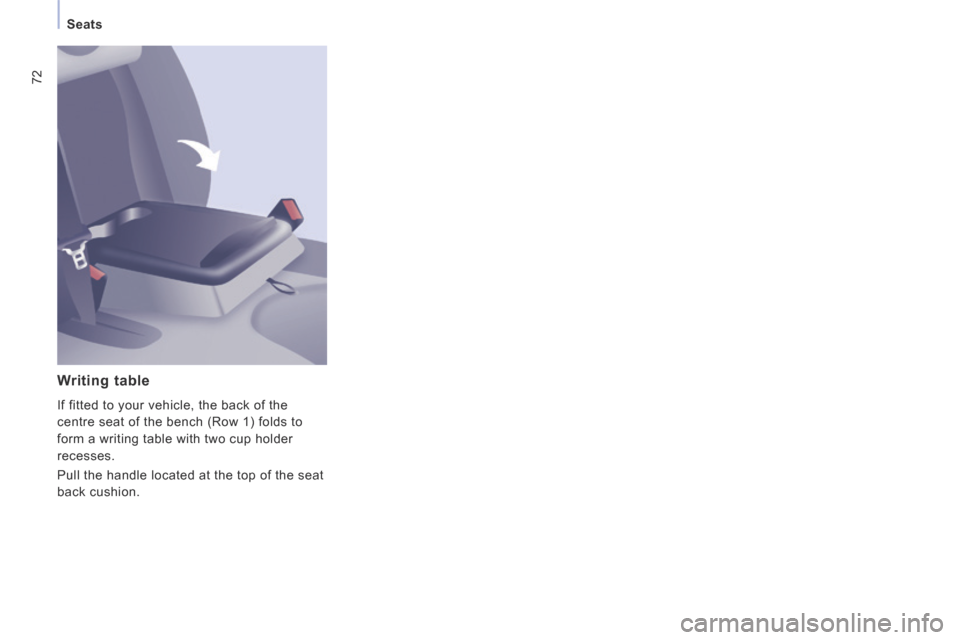

Writing table
If fitted to your vehicle, the back of the
centre seat of the bench (Row 1) folds to
form a writing table with two cup holder
recesses.
Pull the handle located at the top of the seat
back cushion.

73
Seats
EASE OF USE and COMFORT
3

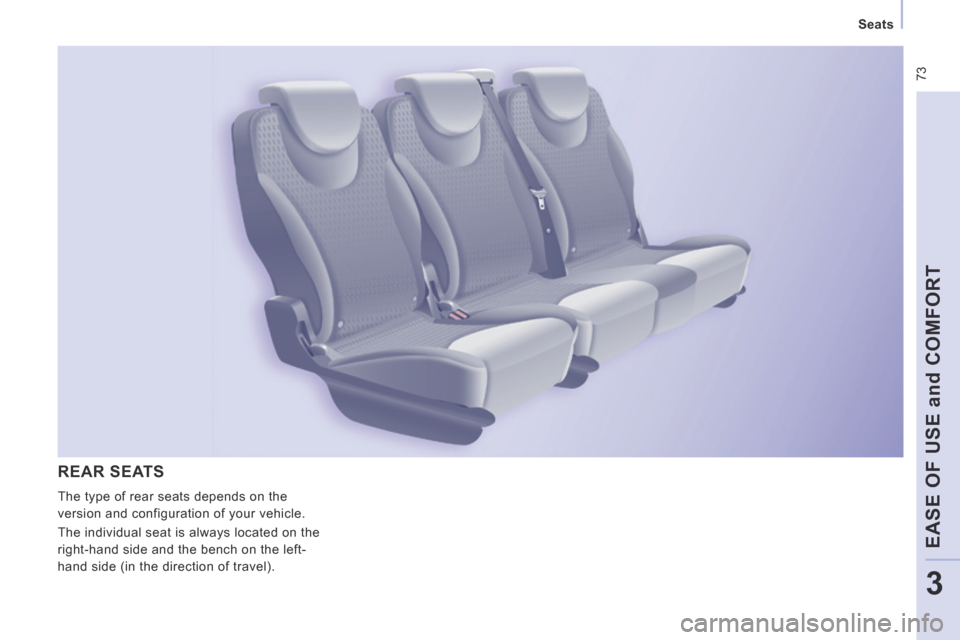

REAR SEATS
The type of rear seats depends on the
version and configuration of your vehicle.
The individual seat is always located on the
right-hand side and the bench on the left-
hand side (in the direction of travel).

74
Seats

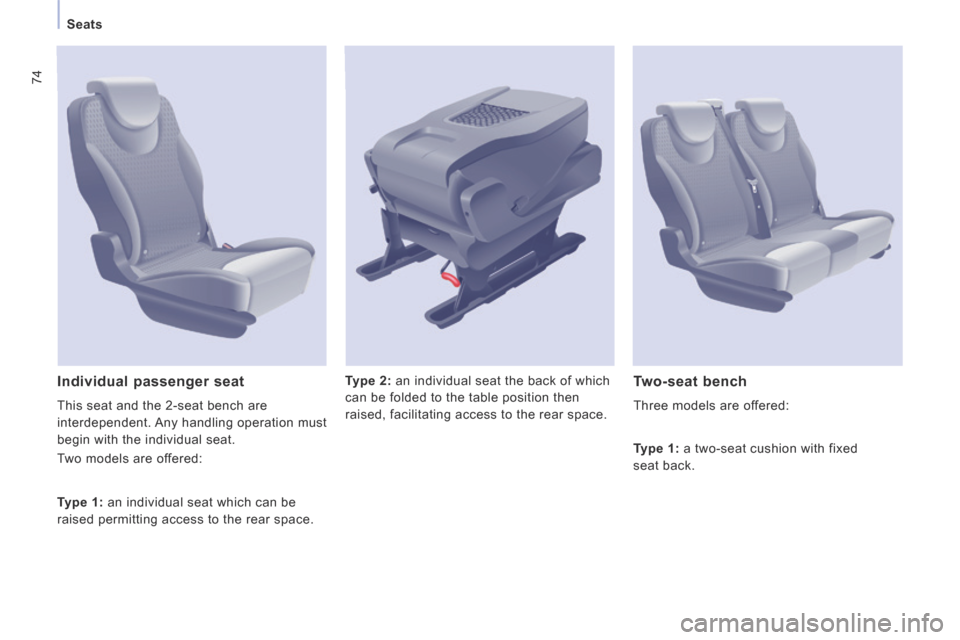

Type 2: an individual seat the back of which
can be folded to the table position then
raised, facilitating access to the rear space. Individual passenger seat
This seat and the 2-seat bench are
interdependent. Any handling operation must
begin with the individual seat.
Two models are offered:
Two-seat bench
Three models are offered:
Type 1: an individual seat which can be
raised permitting access to the rear space. Type 1: a two-seat cushion with fixed
seat back.

75
Seats
EASE OF USE and COMFORT
3

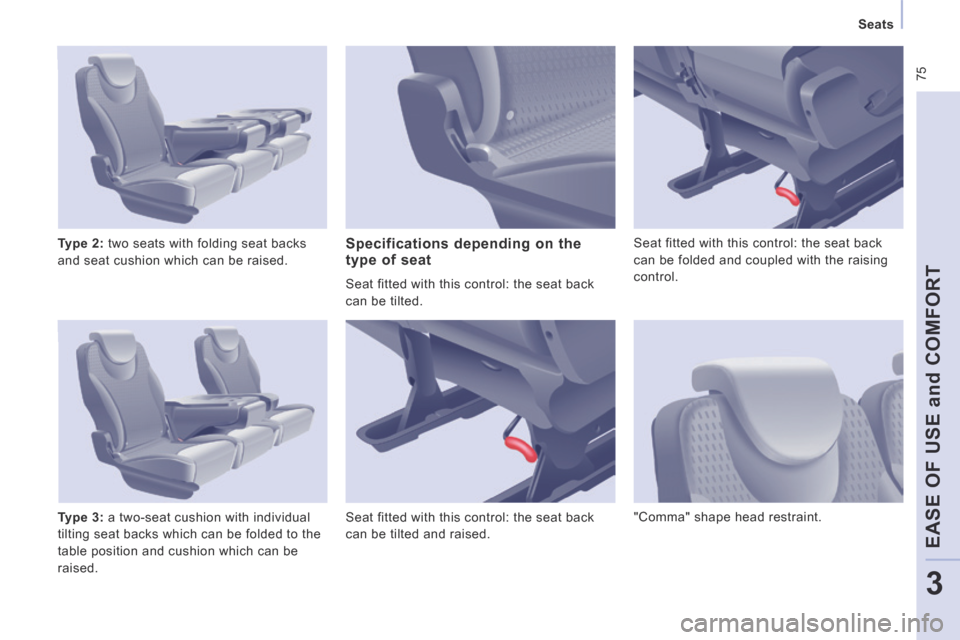

Type 2: two seats with folding seat backs
and seat cushion which can be raised.
Type 3: a two-seat cushion with individual
tilting seat backs which can be folded to the
table position and cushion which can be
raised. Specifications depending on the type of seat
Seat fitted with this control: the seat back
can be tilted.
Seat fitted with this control: the seat back
can be tilted and raised. Seat fitted with this control: the seat back
can be folded and coupled with the raising
control.
"Comma" shape head restraint.

76
Seats

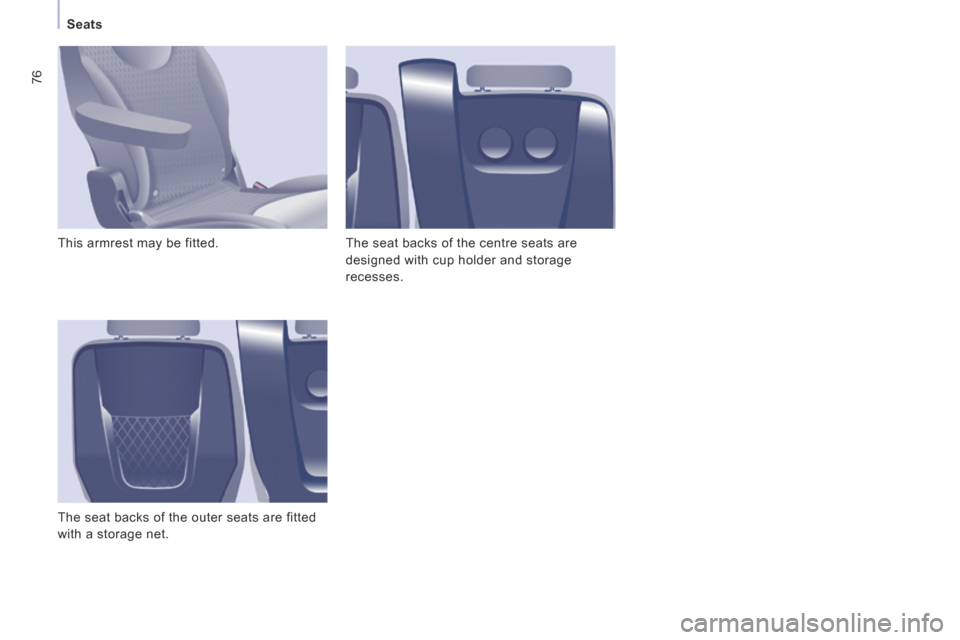

This armrest may be fitted.
The seat backs of the outer seats are fitted
with a storage net. The seat backs of the centre seats are
designed with cup holder and storage
recesses.

77
Seats
EASE OF USE and COMFORT
3

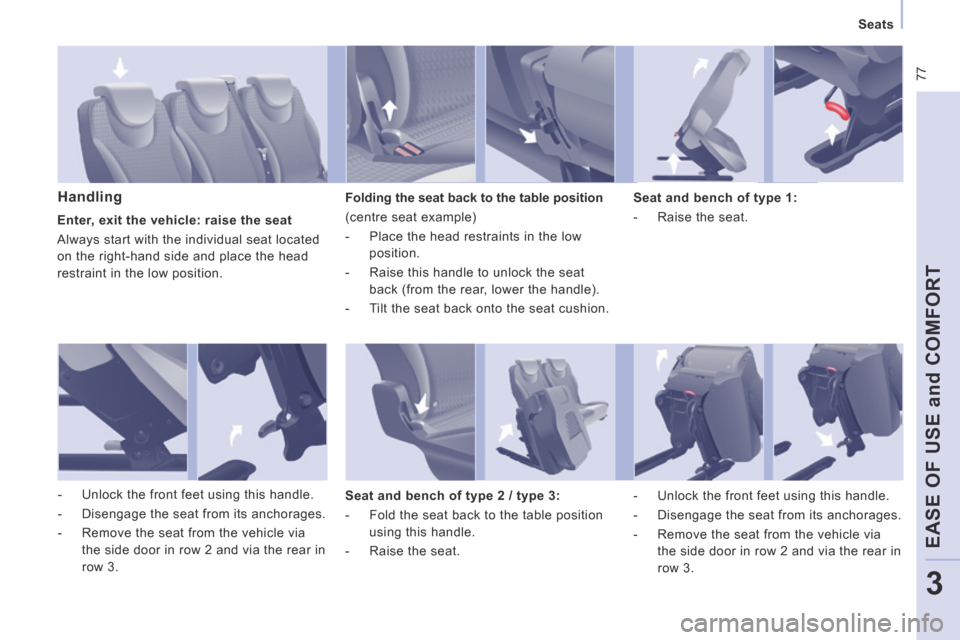

Handling Folding the seat back to the table position
(centre seat example)
- Place the head restraints in the low position.
- Raise this handle to unlock the seat back (from the rear, lower the handle).
- Tilt the seat back onto the seat cushion. Seat and bench of type 1:
- Raise the seat.
Seat and bench of type 2 / type 3:
- Fold the seat back to the table position using this handle.
- Raise the seat. - Unlock the front feet using this handle.
- Disengage the seat from its anchorages.
- Remove the seat from the vehicle via
the side door in row 2 and via the rear in
row 3.
- Unlock the front feet using this handle.
- Disengage the seat from its anchorages.
- Remove the seat from the vehicle via
the side door in row 2 and via the rear in
row 3.
Enter, exit the vehicle: raise the seat
Always start with the individual seat located
on the right-hand side and place the head
restraint in the low position.

78
Seats

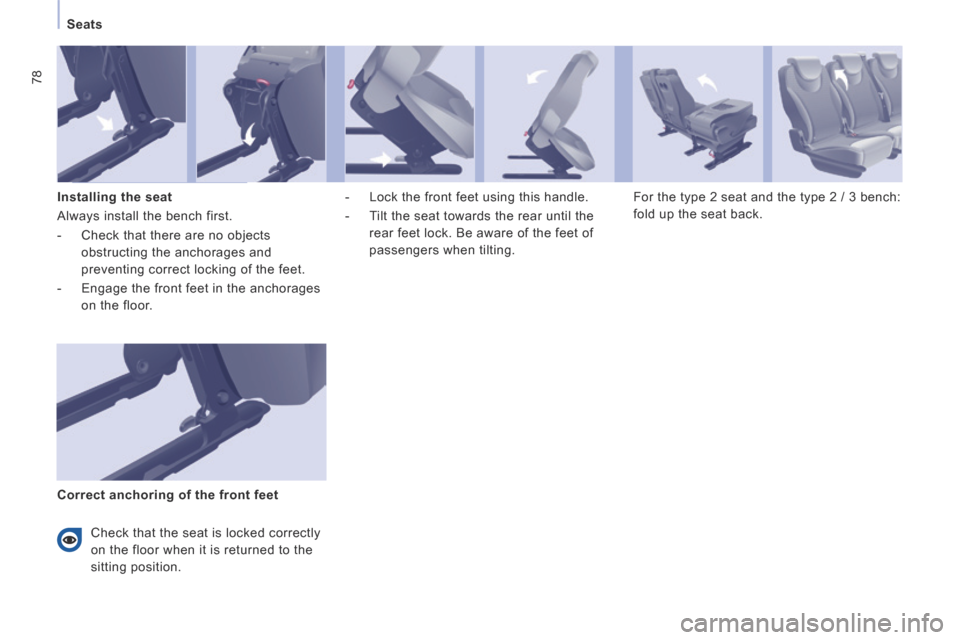

Installing the seat
Always install the bench first.
- Check that there are no objects obstructing the anchorages and
preventing correct locking of the feet.
- Engage the front feet in the anchorages on the floor. - Lock the front feet using this handle.
- Tilt the seat towards the rear until the
rear feet lock. Be aware of the feet of
passengers when tilting. For the type 2 seat and the type 2 / 3 bench:
fold up the seat back.
Correct anchoring of the front feet Check that the seat is locked correctly
on the floor when it is returned to the
sitting position.
