Peugeot Expert VU 2011 User Guide

9


Interior

FAMILIARISATIO
N
1


CENTRE CONSOLE AND OVERHEAD STORAGE UNIT



1.
Location of controls:


- central locking/unlocking,

- locking/unlocking the load space.

2.
Heating and/or air conditioning
controls.

3.
Location of the ticket/card storage or
controls:


- deactivation the ESP,

- deactivation of the interior
protection alarm, alarm LED,

- deactivation of the parking
sensors.

4.
Storage compartment.

5.
Audio system or storage
compartment.

6.
Central adjustable vents.

7.
Hazard warning lamps switch.

8.
Screen or storage compartment.

9.
Courtesy lamp.

10.
Passenger's airbag deactivated
warning lamp

11 .
Location of the ticket/card storage,
heated seat controls.




ADJUSTING THE TIME


- a centre console with screen: refer to
"Adjusting the date and time" in section 9,

- a centre console without screen: refer to
"Instruments and controls" in section 2.

Depending on the configuration of your
vehicle, you have either:

3





Interior


10

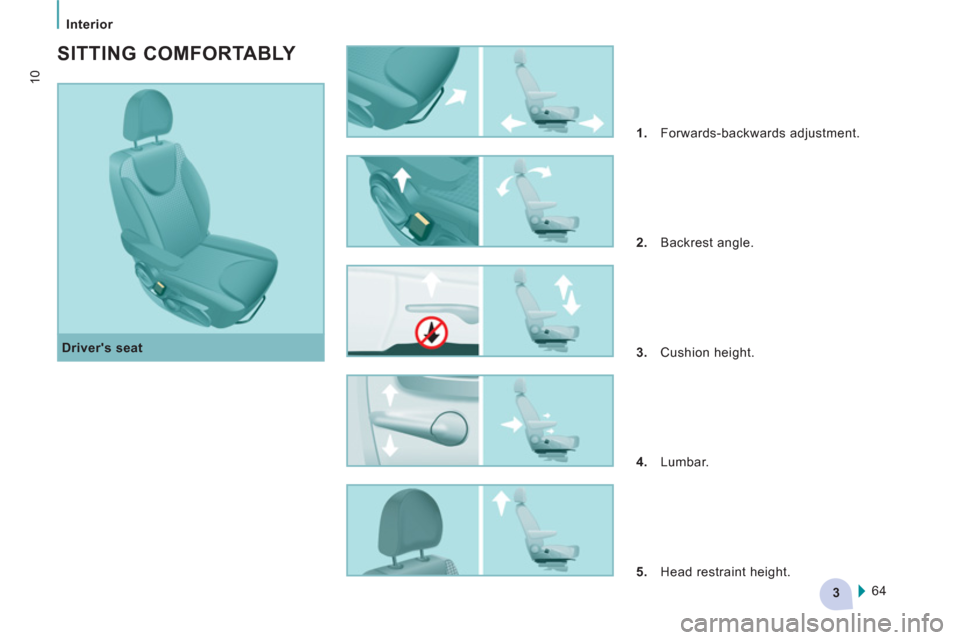

Driver's seat


SITTING COMFORTABLY



1.
Forwards-backwards adjustment.

2.
Backrest angle.

3.
Cushion height.

4.
Lumbar.

5.
Head restraint height.
64

2
4
3
3
11


Interior

FAMILIARISATIO
N
1

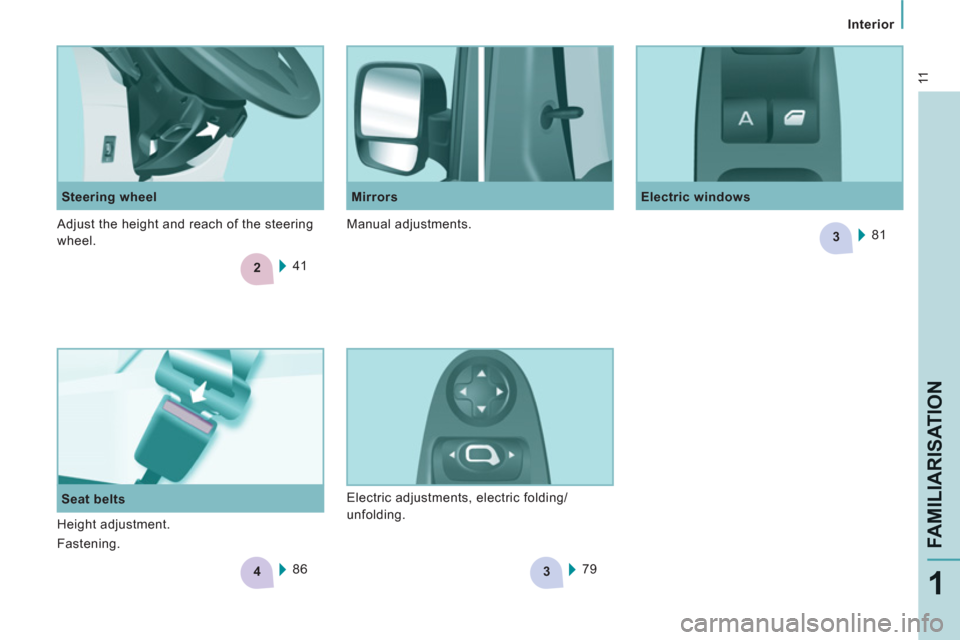

Seat belts
Steering wheel

Electric windows

Mirrors
41
86 81

79 Electric adjustments, electric folding/
unfolding.
Height adjustment.
Fastening. Adjust the height and reach of the steering
wheel. Manual adjustments.

3
3
7





Interior


12

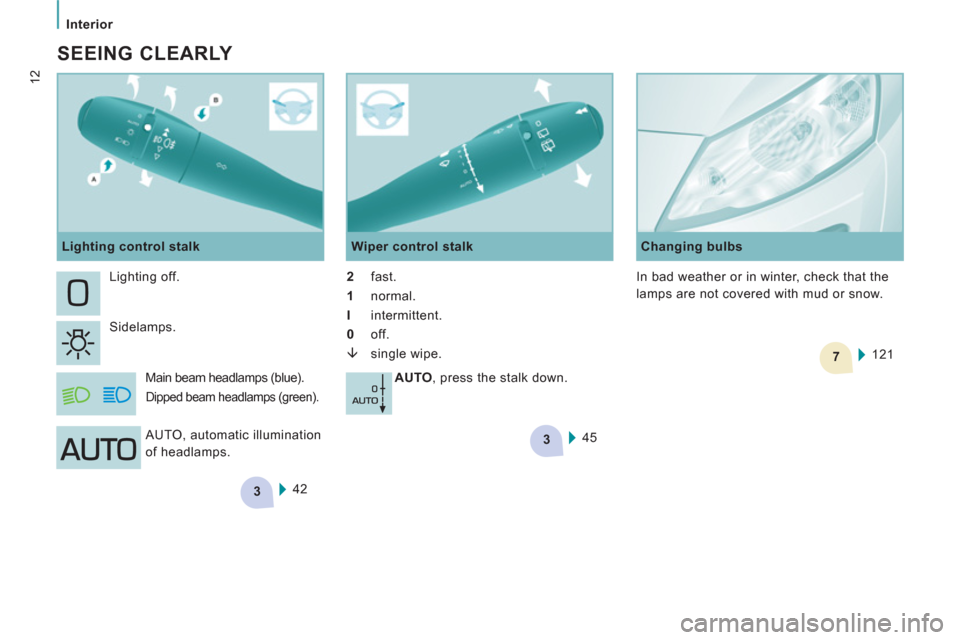

SEEING CLEARLY

42 Lighting off.
Sidelamps.
Main beam headlamps (blue).
Dipped beam headlamps (green).


Wiper control stalk

2
fast.
1
normal.
I
intermittent.
0
off.

9
9
3
3
3
9
13


Interior

FAMILIARISATIO
N
1

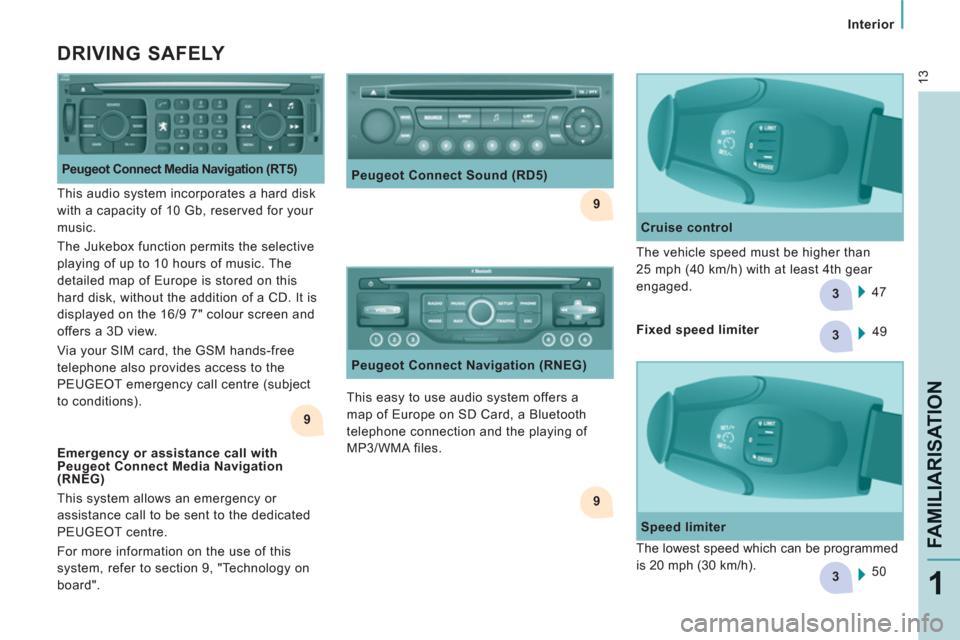

DRIVING SAFELY


Peugeot Connect Media Navigation (RT5)
This easy to use audio system offers a
map of Europe on SD Card, a Bluetooth
telephone connection and the playing of
MP3/WMA files. 47
Cruise control
The vehicle speed must be higher than
25 mph (40 km/h) with at least 4th gear
engaged.
Peugeot Connect Sound (RD5)
This audio system incorporates a hard disk
with a capacity of 10 Gb, reserved for your
music.
The Jukebox function permits the selective
playing of up to 10 hours of music. The
detailed map of Europe is stored on this
hard disk, without the addition of a CD. It is
displayed on the 16/9 7" colour screen and
offers a 3D view.
Via your SIM card, the GSM hands-free
telephone also provides access to the
PEUGEOT emergency call centre (subject
to conditions).
Peugeot Connect Navigation (RNEG)
50

Speed limiter
The lowest speed which can be programmed
is 20 mph (30 km/h).
Emergency or assistance call with
Peugeot Connect Media Navigation
(RNEG)
This system allows an emergency or
assistance call to be sent to the dedicated
PEUGEOT centre.
For more information on the use of this
system, refer to section 9, "Technology on
board".
Fixed speed limiter
49

3
33





Interior


14

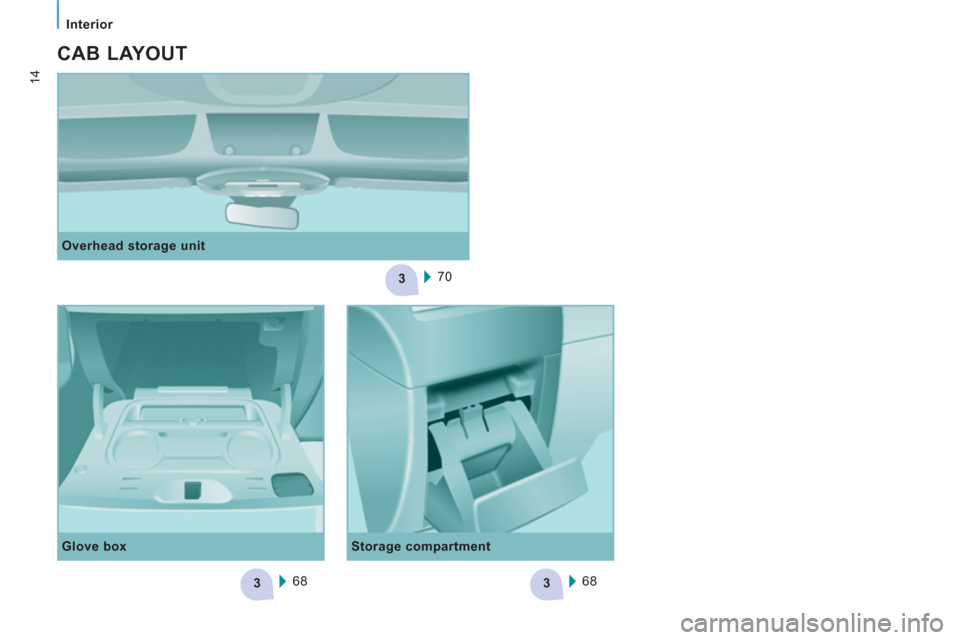

Overhead storage unit
70


CAB LAYOUT


Glove box
68 68

Storage compartment

5
333
15


Interior

FAMILIARISATIO
N
1

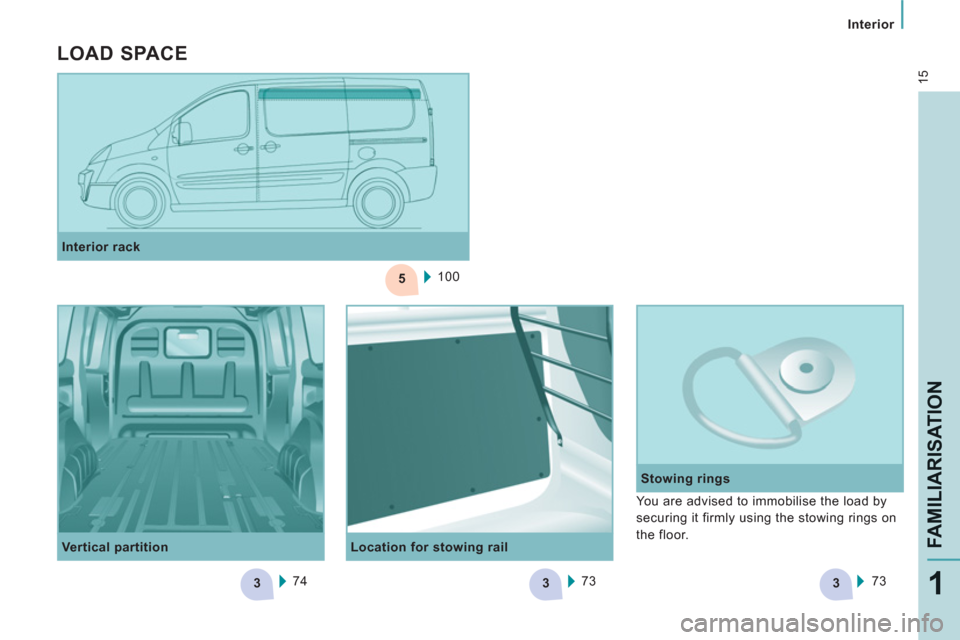

Location for stowing rail
Stowing rings
Interior rack
100

Vertical partition
74
73
73
You are advised to immobilise the load by
securing it firmly using the stowing rings on
the floor.

LOAD SPACE

3
3





Interior


16

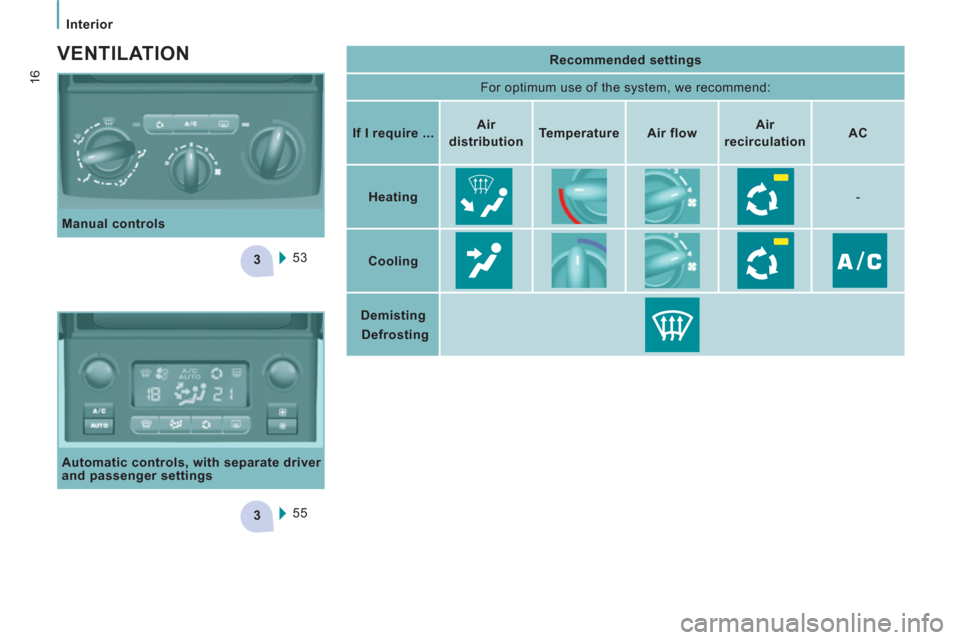

Manual controls

Automatic controls, with separate driver
and passenger settings
55 53


VENTILATION


Recommended settings

For optimum use of the system, we recommend:


If I require ...



Air
distribution


Temperature



Air flow


Air
recirculation



AC



Heating

-


Cooling



Demisting
Defrosting

17
FAMILIARISATIO
N
1

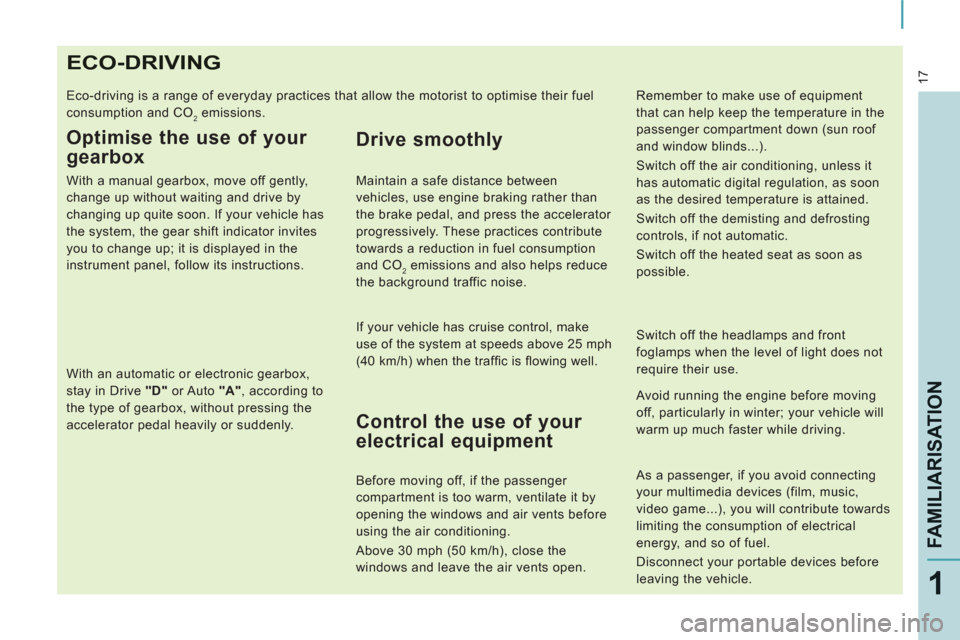

ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel
consumption and CO
2 emissions.

Optimise the use of your
gearbox

With a manual gearbox, move off gently,
change up without waiting and drive by
changing up quite soon. If your vehicle has
the system, the gear shift indicator invites
you to change up; it is displayed in the
instrument panel, follow its instructions.

With an automatic or electronic gearbox,
stay in Drive "D"
or Auto "A"
, according to
the type of gearbox, without pressing the
accelerator pedal heavily or suddenly.



Control the use of your
electrical equipment

Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents before
using the air conditioning.
Above 30 mph (50 km/h), close the
windows and leave the air vents open.
Switch off the headlamps and front
foglamps when the level of light does not
require their use.

Avoid running the engine before moving
off, particularly in winter; your vehicle will
warm up much faster while driving.


Drive smoothly


Maintain a safe distance between
vehicles, use engine braking rather than
the brake pedal, and press the accelerator
progressively. These practices contribute
towards a reduction in fuel consumption
and CO
2 emissions and also helps reduce
the background traffic noise.

If your vehicle has cruise control, make
use of the system at speeds above 25 mph
(40 km/h) when the traffi c is fl owing well.


As a passenger, if you avoid connecting
your multimedia devices (film, music,
video game...), you will contribute towards
limiting the consumption of electrical
energy, and so of fuel.
Disconnect your portable devices before
leaving the vehicle.
Remember to make use of equipment
that can help keep the temperature in the
passenger compartment down (sun roof
and window blinds...).
Switch off the air conditioning, unless it
has automatic digital regulation, as soon
as the desired temperature is attained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.

18

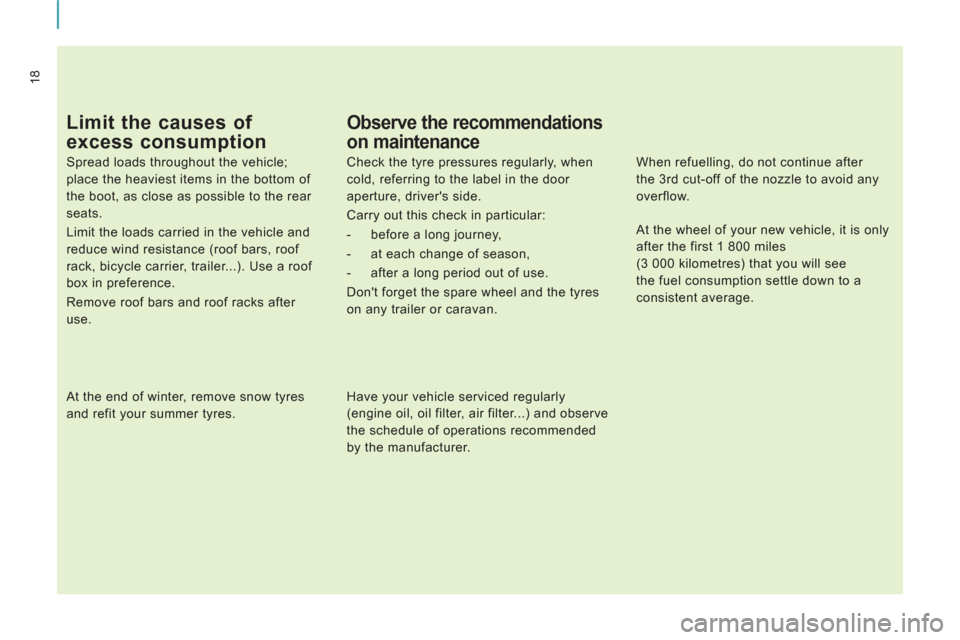

Limit the causes of
excess consumption

Spread loads throughout the vehicle;
place the heaviest items in the bottom of
the boot, as close as possible to the rear
seats.
Limit the loads carried in the vehicle and
reduce wind resistance (roof bars, roof
rack, bicycle carrier, trailer...). Use a roof
box in preference.
Remove roof bars and roof racks after
use.

At the end of winter, remove snow tyres
and refit your summer tyres.



Observe the recommendations
on maintenance

Check the tyre pressures regularly, when
cold, referring to the label in the door
aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the tyres
on any trailer or caravan.

Have your vehicle serviced regularly
(engine oil, oil filter, air filter...) and observe
the schedule of operations recommended
by the manufacturer.


When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid any
overflow.

At the wheel of your new vehicle, it is only
after the first 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.
