Peugeot Expert VU 2011 Owner's Manual

145


Instruments and controls

VISUAL SEARCH
10


Screens, display Section 9
Setting the time in the screen Section 9

Rear view mirror 80
Toll cards, car park tickets 71
Courtesy lamps 71, 123

Warning lamp in the overhead storage unit 26
Heated seats 65

Right-hand side
dashboard fuses 127
Passenger's airbag deactivation 92
Controls


- central locking 23

- load space locking 23

- alarm 21-22

- parking sensors 83

- ASR, ESP 85


Technology on board Section 9


- Emergency or assistance call

-
Peugeot Connect Media Navigation (RT5)


- Peugeot Connect Navigation (RNEG)

- Peugeot Connect Sound (RD5)


Gearbox 37-40
Hazard warning lamps 82

Heating, ventilation


- manual ventilation 53-54

- air conditioning A/C 53

- air recirculation 54

Air conditioning with separate adjustments 55-57
Demisting/defrosting 59-60
Additional heating 61-62

Cab fi ttings 68-70


- glove box,

- overhead storage,

- ashtray,

- sun visor,

- 12 volt socket,

- ticket holder,

- storage compartment.

146


Interior


Rear view mirror 80
Toll cards, car park tickets 71
Front courtesy lamp 71
Changing courtesy
lamp bulbs 123
Rear suspension 76-78 Front, lateral airbags 89-92
Passenger's airbag deactivation 92
Parking brake,
handbrake 82
Opening the bonnet 102
Battery, charging, starting 113
Passenger compartment fuses 128 Front seats, adjustments,
head rests 64-65
2-seat front bench 66-67
Seat belts 86-87
Child seats 93-97

Rear courtesy lamp 71
Changing courtesy
lamp bulbs 123
Accessories 100-101
Towing, towbar,
converter's fuses 130
Platform cab fuses 126, 130 Load space 73-74, 100


- stowing rings,

- load retainer,

- roof box,

- trim,

- 12 volt socket,

- ladder separation or partition,

- stowing rail support,

- internal rack.
Temporary puncture repair kit 114
Spare wheel, jack,
changing a wheel, tools 116-120

Technical data - Maintenance

VISUAL SEARCH
10

TECHNICAL DATA - MAINTENANCE

Identifi cation markingss, serial number,
paint code, tyres 142
Engine fuses 129
Windscreen/headlamp wash, levels 106
Bulbs, lighting,
changing bulbs 121-125
Opening the bonnet, stay 102 Warning lamps 28-33
Changing a wiper blade 131
Under the bonnet


- Diesel 103

- petrol 104
Fuel cut-off, Diesel priming 111-112
Engine technical data 141
Van dimensions 134-137
Platform cab dimensions 138-139
Weights 140
Model code 148 Checks 107-108


- battery,

- gearbox,

- carbon/passenger compartment fi lter,

- oil fi lter,

- particle emission fi lter,

- parking brake,

- brake pads,

- brake drums, discs.
Emissions controls (EOBD) 35 Water bleeding, Diesel fi lter 108 Levels 105-106


- Diesel additive,

- dipstick,

- power steering fl uid,

- brake fl uid,

- coolant,

- screen and headlamp wash
fl uid.
Towing, lifting 132-133
Towed loads 140

148
Model code
Consult your registration certificate.

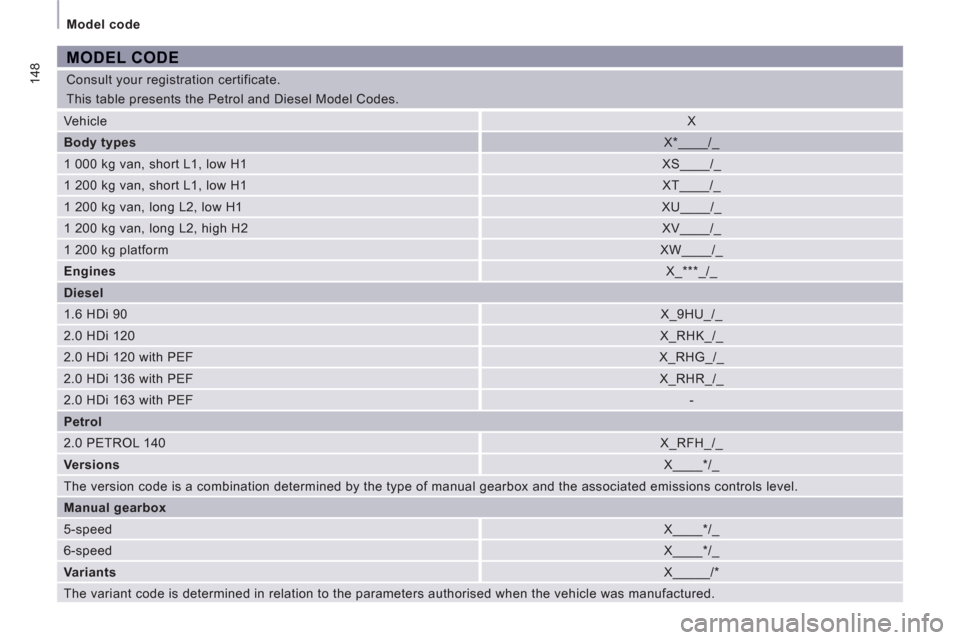

This table presents the Petrol and Diesel Model Codes.
MODEL CODE

Vehicle

X

Body types

X*____/_
1 000 kg van, short L1, low H1
XS____/_
1 200 kg van, short L1, low H1
XT____/_
1 200 kg van, long L2, low H1

XU____/_
1 200 kg van, long L2, high H2
XV____/_
1 200 kg platform

XW____/_

Engines

X_***_/_

Diesel





1.6 HDi 90

X_9HU_/_
2.0 HDi 120

X_RHK_/_
2.0 HDi 120 with PEF

X_RHG_/_
2.0 HDi 136 with PEF

X_RHR_/_
2.0 HDi 163 with PEF

-

Petrol





2.0 PETROL 140

X_RFH_/_

Versions

X____*/_
The version code is a combination determined by the type of manual gearbox and the associated emissions controls level.

Manual gearbox





5-speed

X____*/_
6-speed

X____*/_

Variants

X_____/*
The variant code is determined in relation to the parameters authorised when the vehicle was manufactured.

14
9


Precautions

VISUAL SEARCH
10

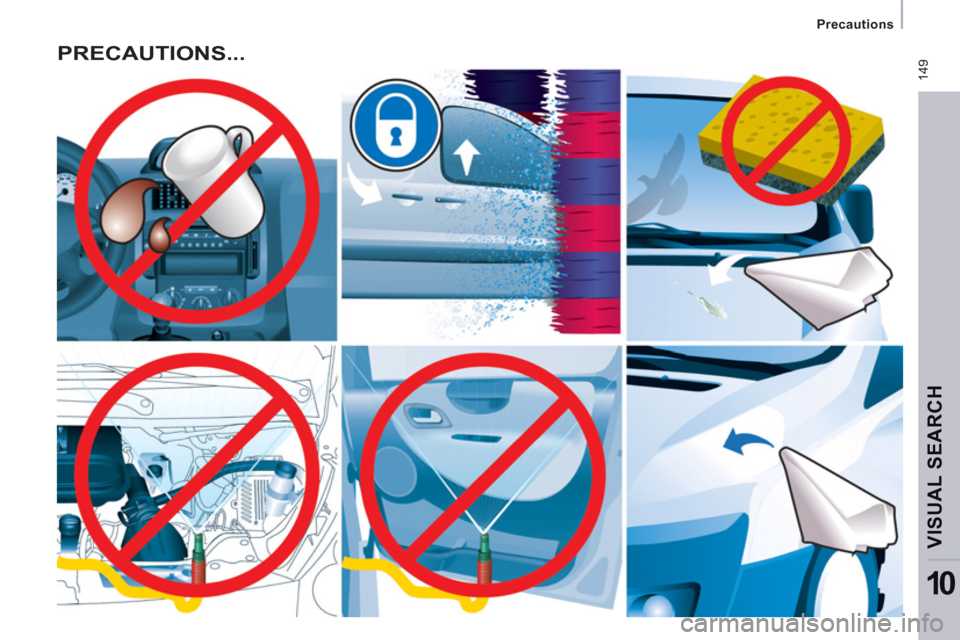

PRECAUTIONS...

05-11
This handbook describes all of the
equipment available in the whole range.
Your vehicle will be fitted with some of this
equipment described in this document,
depending on its trim level, version and the
specification for the country in which it is
sold.
The descriptions and illustrations are
given without any obligation. Automobiles
PEUGEOT reserves the right to modify the
technical specifications, equipment and
accessories without having to update the
current handbook.

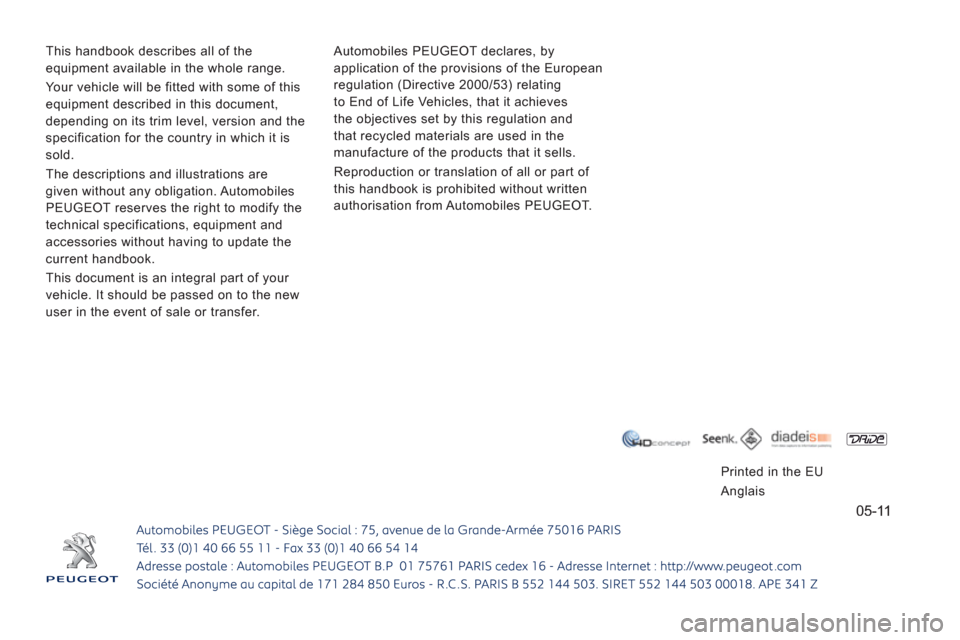

This document is an integral part of your
vehicle. It should be passed on to the new
user in the event of sale or transfer. Automobiles PEUGEOT declares, by
application of the provisions of the European
regulation (Directive 2000/53) relating
to End of Life Vehicles, that it achieves
the objectives set by this regulation and
that recycled materials are used in the
manufacture of the products that it sells.
Reproduction or translation of all or part of
this handbook is prohibited without written
authorisation from Automobiles PEUGEOT.
Printed in the EU
Anglais
