Peugeot Expert VU 2011 Owner's Manual

9.87
04
1
2
3
4
1
2
3
4

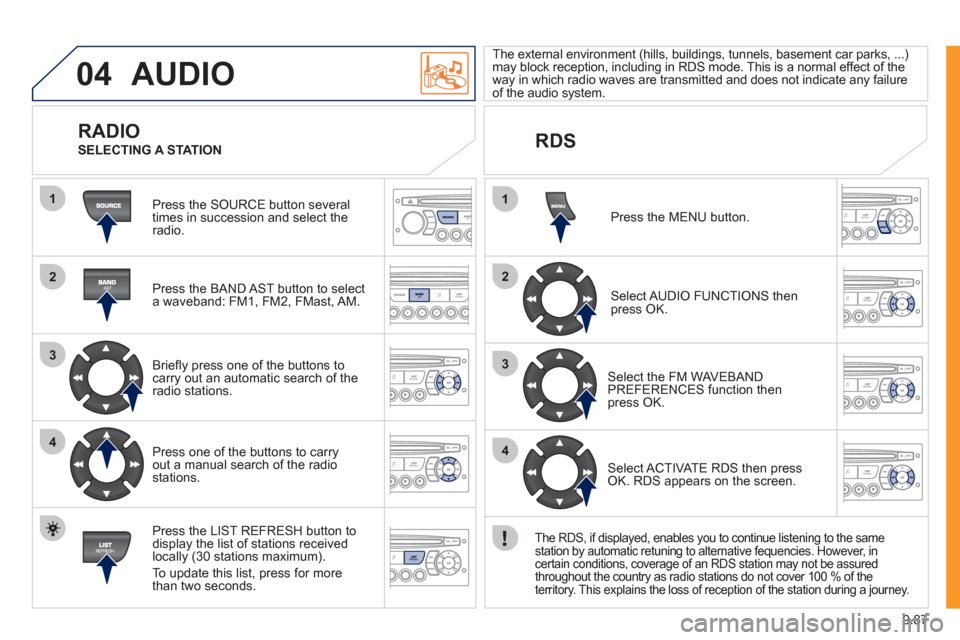

AUDIO

Press the SOURCE button several
times in succession and select theradio.

Press the BAND A
ST button to select
a waveband: FM1, FM2, FMast, AM.

Briefl
y press one of the buttons tocarry out an automatic search of theradio stations.

Press one o
f the buttons to carry out a manual search of the radio stations.

Press the LI
ST REFRESH button to
display the list of stations received
locally (30 stations maximum).
To update this list, press for more
t
han two seconds. The external environment
(hills, buildings, tunnels, basement car parks, ...) may block reception, including in RDS mode. This is a normal effect of the
way in which radio waves are transmitted and does not indicate any failure of the audio system.

RDS





RADIO

SELECTING A STATION
Pr
ess the MENU button.

Select AUDIO FUNCTIONS thenpress OK.

Select the FM WAVEBANDPREFERENCES function thenpress OK.

Select ACTIVATE RDS then pressOK. RDS appears on the screen.
The RDS, if displayed, enables you to continue listening to the same station by automatic retuning to alternative fequencies. However, incertain conditions, coverage of an RDS station may not be assured
throughout the country as radio stations do not cover 100 % of the
territory. This explains the loss of reception of the station during a journey.

9.88
04
1
2
3

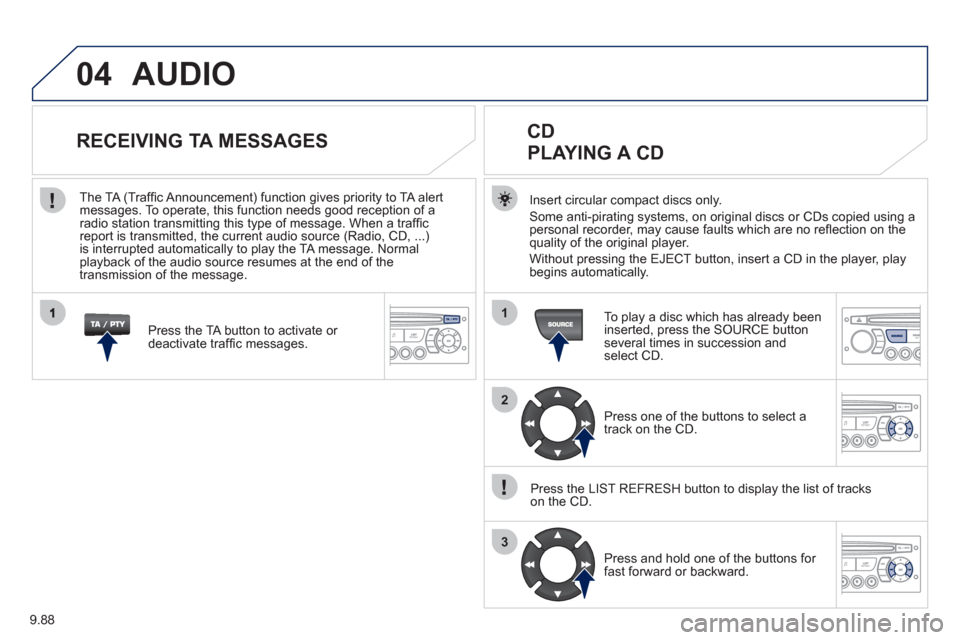

AUDIO
Insert circular compact discs only.
Some anti-pirating systems, on original discs or CDs copied using a
personal recorder, may cause faults which are no refl ection on the quality of the original player.
Without pressin
g the EJECT button, insert a CD in the player, playbegins automatically.

CD
PLAYING A CD


To play a disc which has already been
inserted, press the SOURCE buttonseveral times in succession andselect CD.

Pr
ess one of the buttons to select a
track on the CD.
Press the LI
ST REFRESH button to display the list of trackson the CD.

Pr
ess and hold one of the buttons for
fast forward or backward.








RECEIVING TA MESSAGES
Press the TA button to activate or
deactivate traffi c messages.
The TA
(Traffi c Announcement) function gives priority to TA alert messages. To operate, this function needs good reception of a
radio station transmitting this type of message. When a traffi c
report is transmitted, the current audio source (Radio, CD, ...)
is interrupted automatically to play the TA message. Normal playback of the audio source resumes at the end of the
transmission of the message.

9.89
04
1
2
3

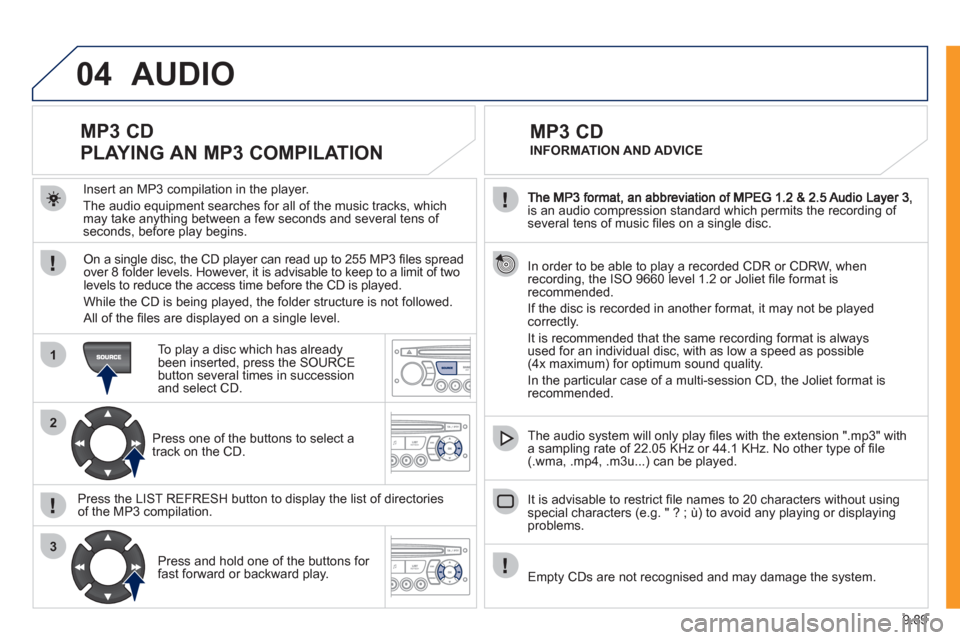

is an audio compression standard which permits the recording of several tens of music fi les on a single disc.
In order to be able to play a recorded
CDR or CDRW, when recording, the ISO 9660 level 1.2 or Joliet fi le format isrecommended.
If the disc is recorded in another format, it ma
y not be playedcorrectly.
It is recommended that the same recordin
g format is alwaysused for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality.
In the particular case o
f a multi-session CD, the Joliet format is recommended.
The audio s
ystem will only play fi les with the extension ".mp3" with
a sampling rate of 22.05 KHz or 44.1 KHz. No other type of fi le(.wma, .mp4, .m3u...) can be played.
It is advisable to restrict fi le names to 20 characters without usin
gspecial characters (e.g. " ? ; ù) to avoid any playing or displaying problems.













MP3 CD
INFORMATION AND ADVICE

AUDIO

Empty CDs are not recognised and may damage the system.
Insert an MP3 compilation in the pla
yer.
The audio equipment searches
for all of the music tracks, which
may take anything between a few seconds and several tens of seconds, before play begins.









MP3 CD
PLAYING AN MP3 COMPILATION

On a single disc, the CD player can read up to 255 MP3 fi les spread
over 8 folder levels. However, it is advisable to keep to a limit of twolevels to reduce the access time before the CD is played.
While the
CD is being played, the folder structure is not followed.
All of the fi les are displayed on a single level.

To play a disc which has already
been inserted, press the SOURCE button several times in successionand select CD.
Pr
ess one of the buttons to select atrack on the CD.

Press the LI
ST REFRESH button to display the list of directories of the MP3 compilation.

Pr
ess and hold one of the buttons for fast forward or backward play.

9.90
05
1
1
2
3
PEUGEOT CONNECT USB


The system puts together playlists (temporary memory) createdover a period which depends on the capacity of the USB device.
The other sources are available durin
g this time.
The pla
ylists are updated each time the ignition is switched off or each time a USB memory stick is connected.
When connectin
g for the fi rst time, the classifi cation suggested
is by folder. When you reconnect, the classifi cation selected
previously is retained.
Connect the memory stick to the port, directly or using a lead. If the audio equipment is switched
on, the USB source is detected as soon as it
is connected. Play begins automatically after a
delay which depends on the capacity of the USB memory stick.
The fi le formats reco
gnised are .mp3 (mpeg1 layer 3 only), .wma (standard 9 only,
128 kbits/sec compression), .wav and .ogg.
The playlists types accepted are m
3u, .pls, .wpl.
This unit consists of a USB port and an auxiliar
yJack socket *
. The audio fi les are transmittedfrom portable equipment such as a digitalplayer or a USB memory stick to your PeugeotConnect Sound to be listened to via the vehicle'sspeakers.

U
SB memory stick (1.1, 1.2 and 2.0) or iPod Æof generation 5 or later:


- USB memor
y sticks should be formattedFAT or FAT 32 (NTFS not supported),

- t
he iPodÆ
lead is essential, Æ


- navigation through the fi le database is bymeans of the steering mounted controls,

- th
e iPodÆ
software should be regularlyÆ
updated for the best connection.The list o
f compatible equipment and the compression rates supported are available from PEUGEOT dealers.
















USING THE PEUGEOT CONNECT USB

CONNECTING A USB MEMORY STICK

Other iPod®
players of earlier generations and®
players using the MTP protocol * :


- pla
y via Jack-Jack lead only (not supplied),

- navi
gation through the fi le database is from
the portable device.

*
Accordin
g to vehicle.

9.91
05
42
3
1
5

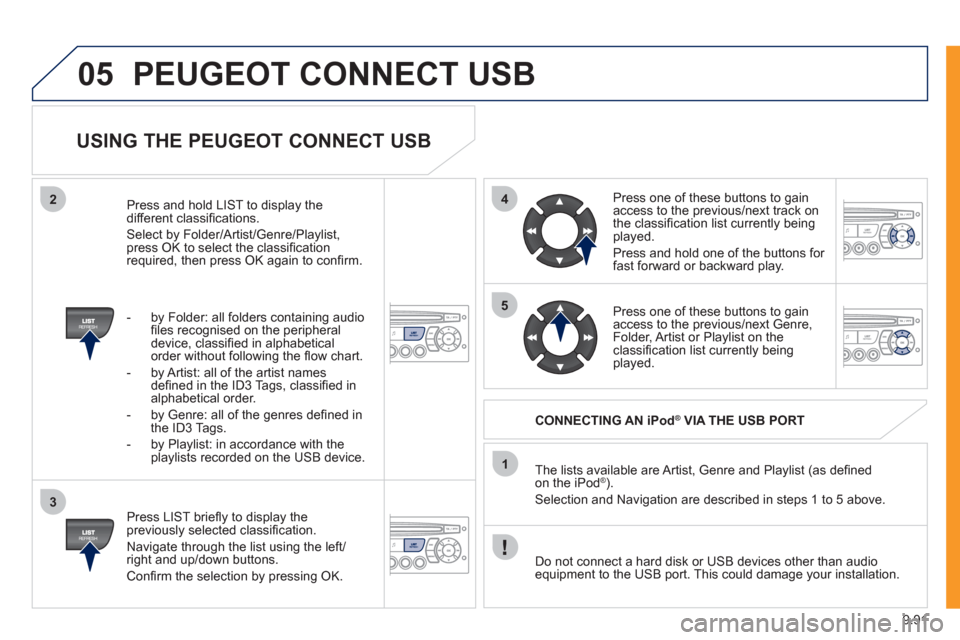

PEUGEOT CONNECT USB

USING THE PEUGEOT CONNECT USB


Press LIST briefl y to display thepreviously selected classifi cation.
Navi
gate through the list using the left/right and up/down buttons.

Confi rm the selection by pressing OK. The lists available are Artist, Genre and Pla
ylist (as defi ned on the iPod ®).

Selection and Navigation are described in steps 1 to 5 above.

Do not connect a hard disk or U
SB devices other than audioequipment to the USB port. This could damage your installation.


CONNECTING AN iPod®
VIA THE USB PORT®


Press one of these buttons to gain
access to the previous/next track on
the classifi cation list currently beingplayed.
Pr
ess and hold one of the buttons for fast forward or backward play.

Press one of these buttons to
gain
access to the previous/next Genre,
Folder, Artist or Playlist on theclassifi cation list currently being played.
Press and hold LI
ST to display the different classifi cations.
Select b
y Folder/Artist/Genre/Playlist, press OK to select the classifi cation required, then press OK again to confi rm.


- by Folder: all
folders containing audio fi les recognised on the peripheral
device, classifi ed in alphabetical
order without following the fl ow chart.

- b
y Artist: all of the artist names
defi ned in the ID3 Tags, classifi ed in alphabetical order.

- b
y Genre: all of the genres defi ned in
the ID3 Tags.

- b
y Playlist: in accordance with the
playlists recorded on the USB device.

9.92
05
1
21
2

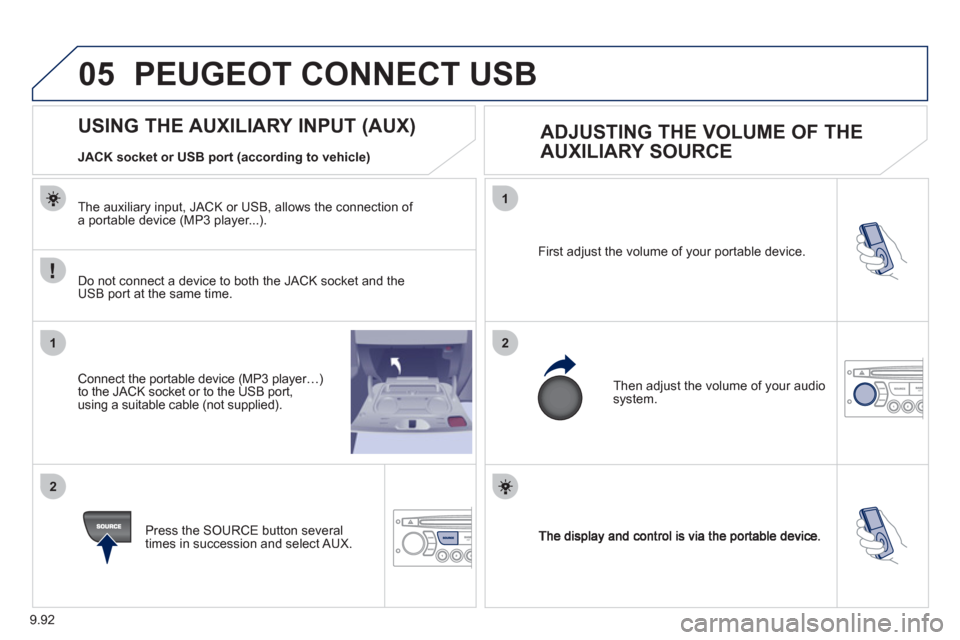

First adjust the volume of your portable device.
Then ad
just the volume of your audio system.



















USING THE AUXILIARY INPUT (AUX)

ADJUSTING THE VOLUME OF THE
AUXILIARY SOURCE
PEUGEOT CONNECT USB


JACK socket or USB port (according to vehicle)

Do not connect a device to both the
JACK socket and the USB port at the same time.

Connect the portable device
(MP3 player…)to the JACK socket or to the USB port,
using a suitable cable (not supplied).

Pr
ess the SOURCE button several
times in succession and select AUX.
The auxiliar
y input, JACK or USB, allows the connection of
a portable device (MP3 player...).

9.93
06
1
2
3
4
5
6
7
8
9
10

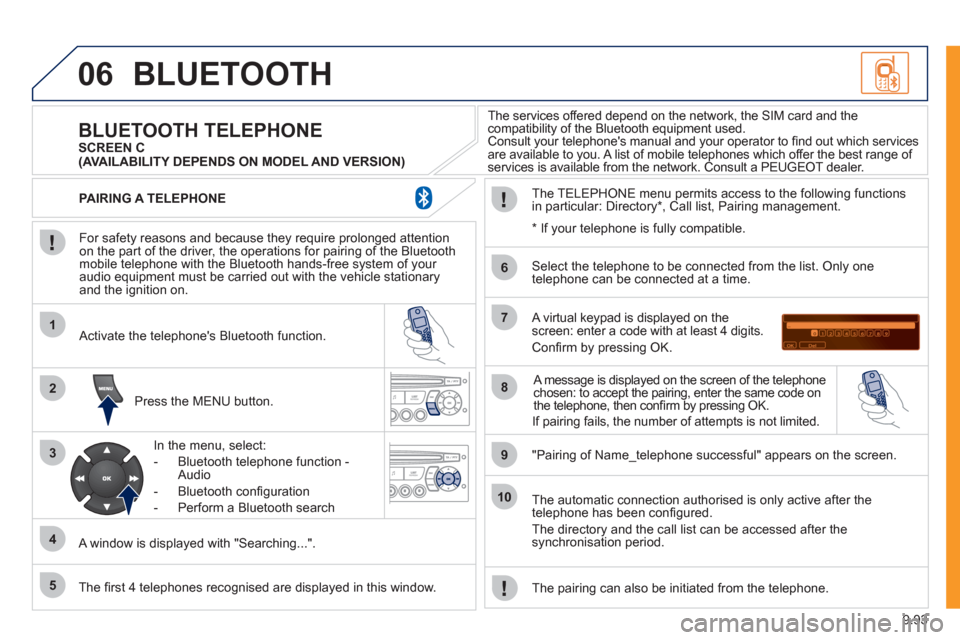

BLUETOOTH

For safety reasons and because they require prolonged attentionon the part of the driver, the operations for pairing of the Bluetooth mobile telephone with the Bluetooth hands-free system of your
audio equipment must be carried out with the vehicle stationary
and the ignition on.
Press the MENU button.

A window is displa
yed with "Searching...".
Activate the telephone's Bluetooth
function.
In the menu, select:
- Bluetooth telephone
function -
Audio
- Bluetooth con
fi guration
- P
erform a Bluetooth search
The services offered de
pend on the network, the SIM card and thecompatibility of the Bluetooth equipment used.
Consult your telephone's manual and your operator to fi nd out which services are available to you. A list of mobile telephones which offer the best range of
services is available from the network. Consult a PEUGEOT dealer.









BLUETOOTH TELEPHONE SCREEN C

The TELEPH
ONE menu permits access to the following functions
in particular: Directory * , Call list, Pairing management.
The fi rst 4 telephones reco
gnised are displayed in this window.
A virtual keypad is displayed on thescreen: enter a code with at least 4 digits.

Confi rm by pressing OK.

"Pairin
g of Name_telephone successful" appears on the screen.
Select the telephone to be connected from the list.
Only one
telephone can be connected at a time.

A messa
ge is displayed on the screen of the telephone chosen: to accept the pairing, enter the same code on
the telephone, then confi rm by pressing OK.
The automatic connection authorised is onl
y active after the
telephone has been confi gured.
The directory and the call list can be accessed a
fter thesynchronisation period.
PAIRING A TELEPHONE

The pairin
g can also be initiated from the telephone.

(AVAILABILITY DEPENDS ON MODEL AND VERSION)


*
If
your telephone is fully compatible.

If pairin
g fails, the number of attempts is not limited.

9.94
06
2
1
2
2
3

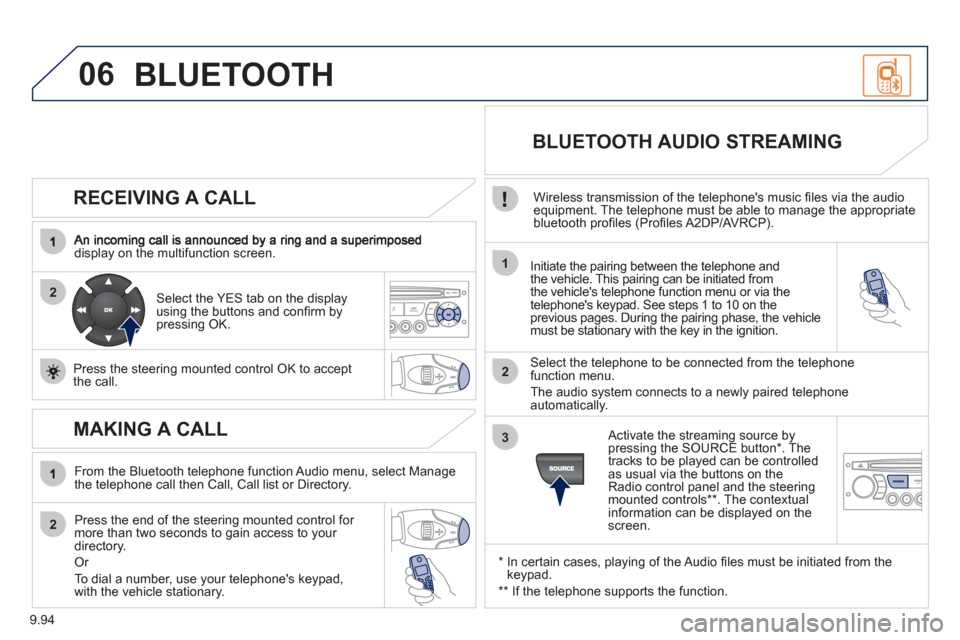

RECEIVING A CALL
display on the multifunction screen.Initiate the pairing between the telephone and
the vehicle. This pairing can be initiated from
the vehicle's telephone function menu or via the
telephone's keypad. See steps 1 to 10 on the
previous pages. During the pairing phase, the vehicle
must be stationary with the key in the ignition.
Select the telephone to be connected from the telephone function menu.
The audio system connects to a newly paired telephone
automatically.
Select the YES tab on the display
using the buttons and confi rm bypressing OK.

Press the steerin
g mounted control OK to accept
the call.








BLUETOOTH AUDIO STREAMING


Wireless transmission of the telephone's music fi les via the audio equipment. The telephone must be able to manage the appropriate
bluetooth profi les (Profi les A2DP/AVRCP).
*

In certain cases, playing of the Audio fi les must be initiated from the keypad.
**
If the tele
phone supports the function.
Activate the streamin
g source by
pressing the SOURCE button * . The
tracks to be played can be controlled as usual via the buttons on theRadio control panel and the steering
mounted controls ** . The contextual
information can be displayed on the screen.



MAKING A CALL


From the Bluetooth telephone function Audio menu, select Manage
the telephone call then Call, Call list or Directory.

Press the end o
f the steering mounted control for more than two seconds to gain access to your
directory.

Or
To dial a number, use
your telephone's keypad,with the vehicle stationary.
BLUETOOTH

9.95
07
1
2
3
4
5
6
7
8

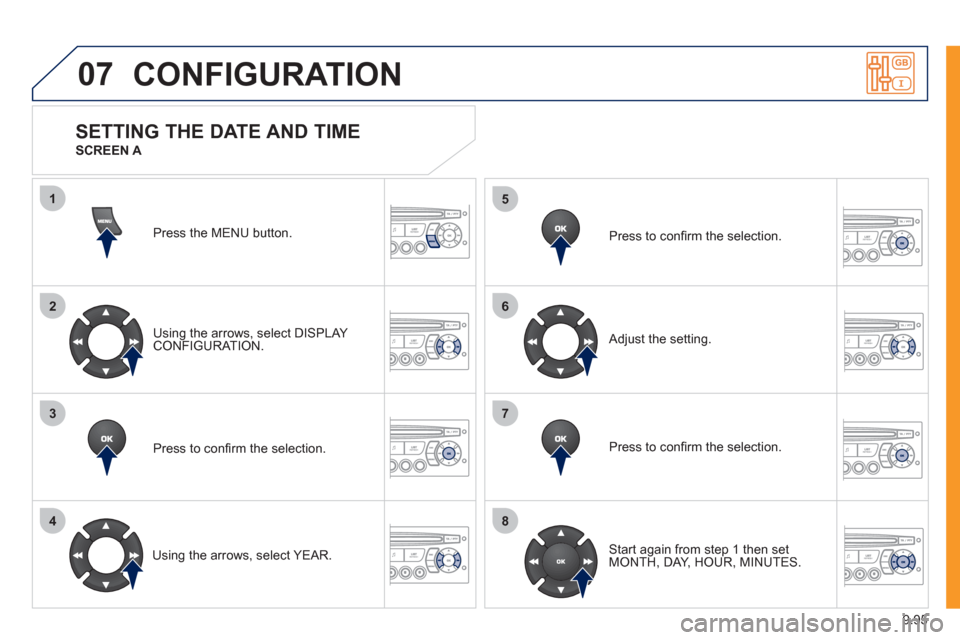

CONFIGURATION
Press the MENU button.
Usin
g the arrows, select DISPLAY CONFIGURATION.
Pr
ess to confi rm the selection.

Using the arrows, select YEAR. Pr
ess to confi rm the selection.
Pr
ess to confi rm the selection.
Ad
just the setting.
Start again from step 1 then set MONTH, DAY, HOUR, MINUTES.

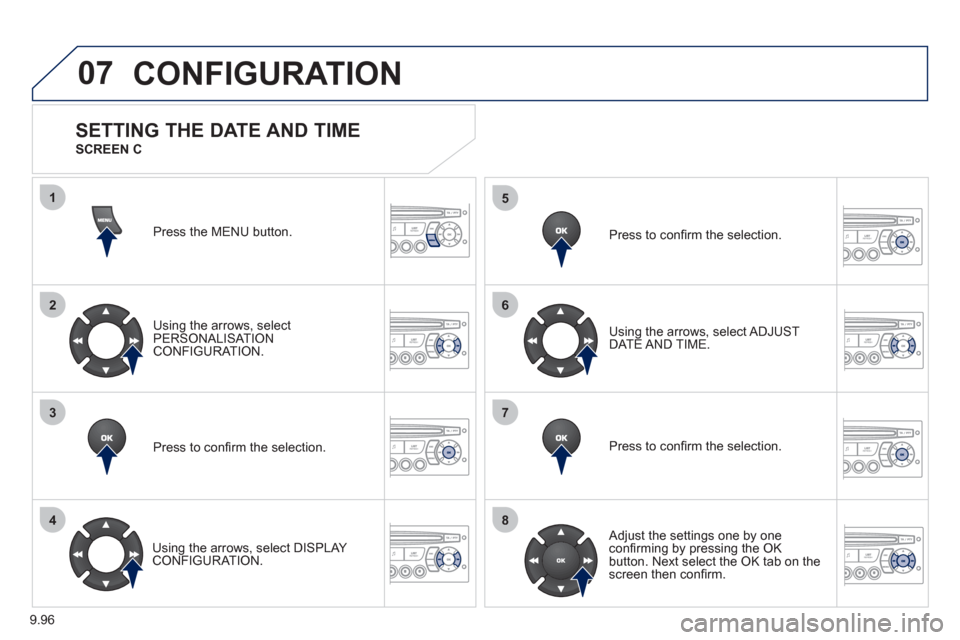

SETTING THE DATE AND TIME
SCREEN A

9.96
07
1
2
3
4
5
6
7
8
CONFIGURATION
Press the MENU button.
Usin
g the arrows, select
PERSONALISAT ION CONFIGURATION.
Pr
ess to confi rm the selection.

Using the arrows, select DI
SPLAY CONFIGURATION. Pr
ess to confi rm the selection.
Pr
ess to confi rm the selection. Usin
g the arrows, select ADJUST DATE AND TIME.
Adjust the settings one by one confi rming by pressing the OK
button. Next select the OK tab on thescreen then confi rm.























SETTING THE DATE AND TIME
SCREEN C
