Peugeot Expert VU 2013 Owner's Manual

12
9

Changing a bulb
QUICK HELP
7

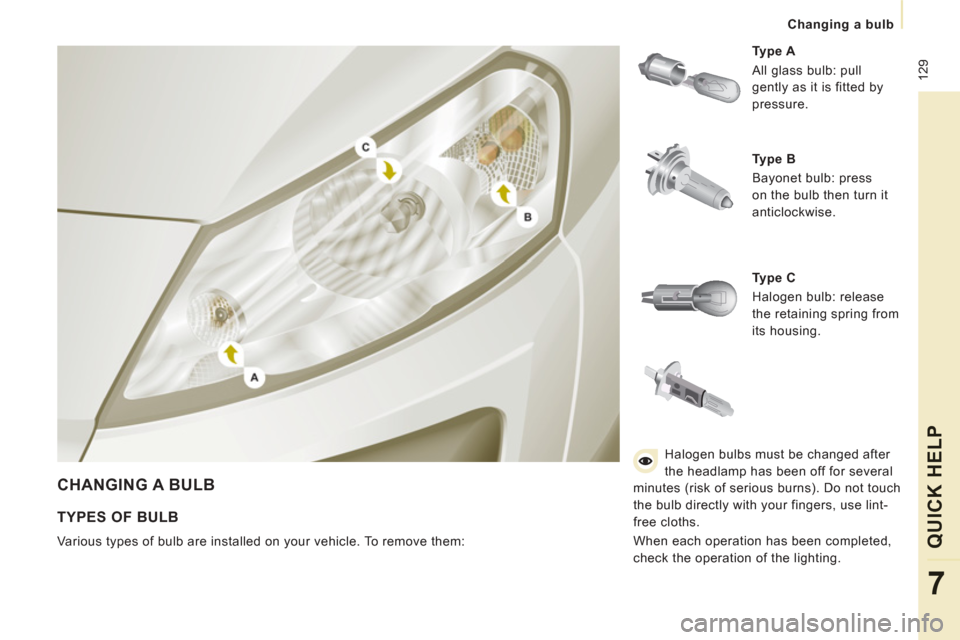

CHANGING A BULB

Type A

All glass bulb: pull
gently as it is fitted by
pressure.
Type B

Bayonet bulb: press
on the bulb then turn it
anticlockwise.
Type C

Halogen bulb: release
the retaining spring from
its housing.
TYPES OF BULB

Various types of bulb are installed on your vehicle. To remove them:
Halogen bulbs must be changed after
the headlamp has been off for several
minutes (risk of serious burns). Do not touch
the bulb directly with your fingers, use lint-
free cloths.
When each operation has been completed,
check the operation of the lighting.

130
Changing a bulb
3. Direction indicators
Type B , PY21W - 21W (amber)

- Turn the bulb holder a quarter turn anticlockwise.

- Remove the bulb by pressing it lightly while turning it anticlockwise.

- Change the bulb.

-
Ensure that the cover is refitted
correctly all the way round to ensure
sealing.

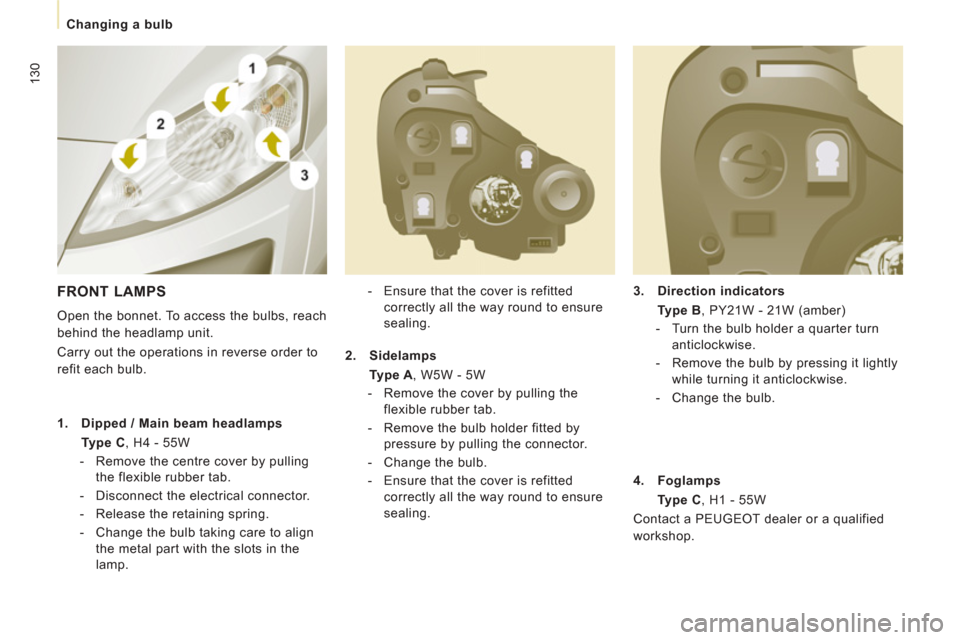

FRONT LAMPS

Open the bonnet. To access the bulbs, reach
behind the headlamp unit.
Carry out the operations in reverse order to
refit each bulb.
1. Dipped / Main beam headlamps
Type C , H4 - 55W

- Remove the centre cover by pulling the flexible rubber tab.

- Disconnect the electrical connector.
- Release the retaining spring.
- Change the bulb taking care to align the metal part with the slots in the
lamp. 2.
Sidelamps
Type A , W5W - 5W

- Remove the cover by pulling the flexible rubber tab.

- Remove the bulb holder fitted by pressure by pulling the connector.

- Change the bulb.
- Ensure that the cover is refitted
correctly all the way round to ensure
sealing. 4.
Foglamps
Type C , H1 - 55W

Contact a PEUGEOT dealer or a qualified
workshop.

131

Changing a bulb
QUICK HELP
7

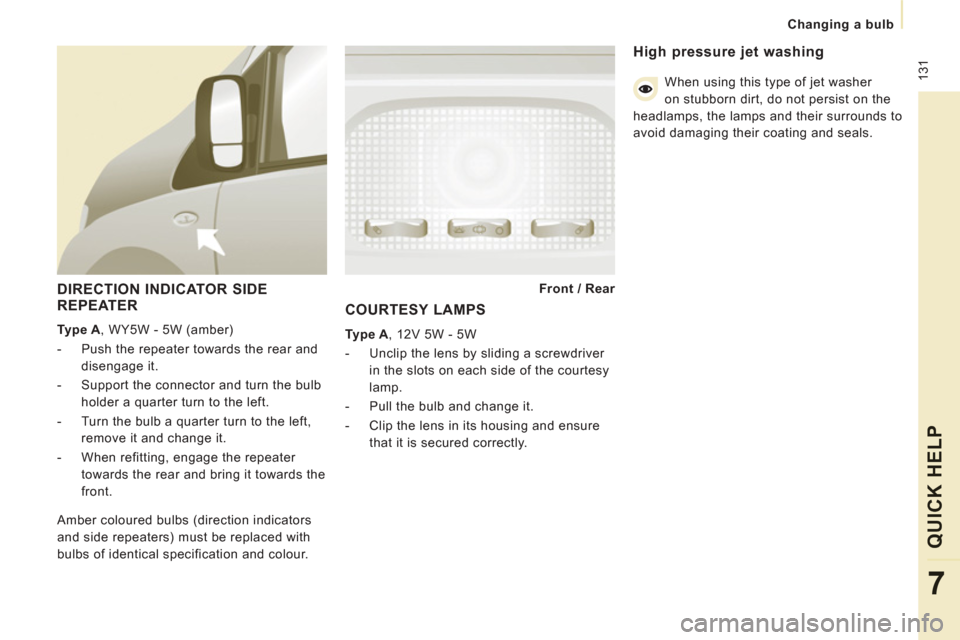

DIRECTION INDICATOR SIDE
REPEATER
Type A , WY5W - 5W (amber)

- Push the repeater towards the rear and disengage it.

- Support the connector and turn the bulb holder a quarter turn to the left.

- Turn the bulb a quarter turn to the left, remove it and change it.

- When refitting, engage the repeater towards the rear and bring it towards the
front. Front / Rear


Amber coloured bulbs (direction indicators
and side repeaters) must be replaced with
bulbs of identical specification and colour.
COURTESY LAMPS

Type A , 12V 5W - 5W

- Unclip the lens by sliding a screwdriver in the slots on each side of the courtesy
lamp.
- Pull the bulb and change it.
- Clip the lens in its housing and ensure that it is secured correctly.

High pressure jet washing

When using this type of jet washer
on stubborn dirt, do not persist on the
headlamps, the lamps and their surrounds to
avoid damaging their coating and seals.

132
Changing a bulb

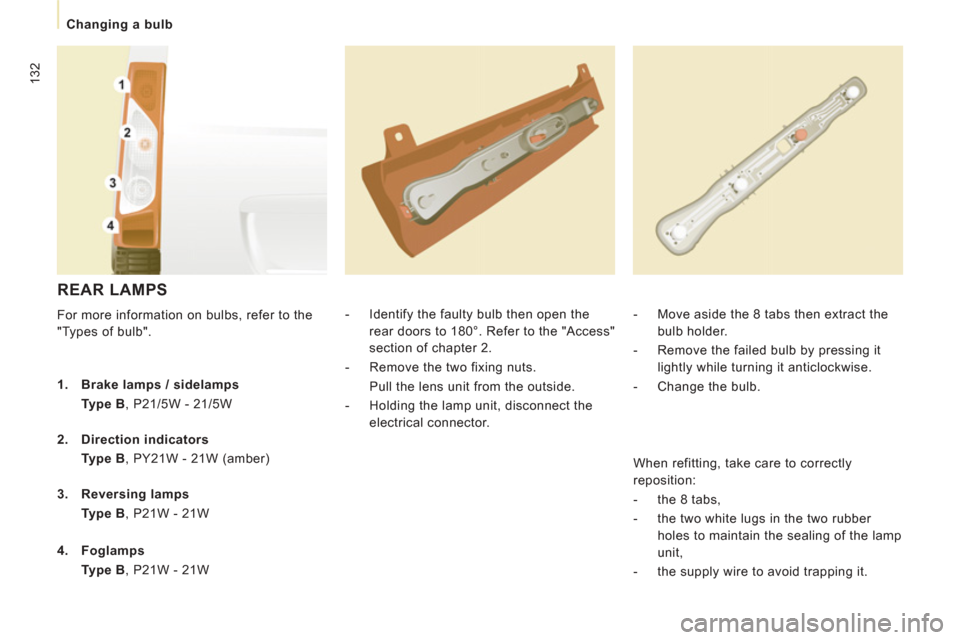

REAR LAMPS

For more information on bulbs, refer to the
"Types of bulb". - Identify the faulty bulb then open the
rear doors to 180°. Refer to the "Access"
section of chapter 2.
- Remove the two fixing nuts.
Pull the lens unit from the outside.
- Holding the lamp unit, disconnect the electrical connector.
- Move aside the 8 tabs then extract the
bulb holder.

- Remove the failed bulb by pressing it lightly while turning it anticlockwise.

- Change the bulb.

1.
Brake lamps / sidelamps
Type B , P21/5W - 21/5W

2. Direction indicators
Type B , PY21W - 21W (amber)

3. Reversing lamps
Type B , P21W - 21W

4. Foglamps
Type B , P21W - 21W
When refitting, take care to correctly
reposition:
- the 8 tabs,
- the two white lugs in the two rubber
holes to maintain the sealing of the lamp
unit,
- the supply wire to avoid trapping it.

133

Changing a bulb
QUICK HELP
7

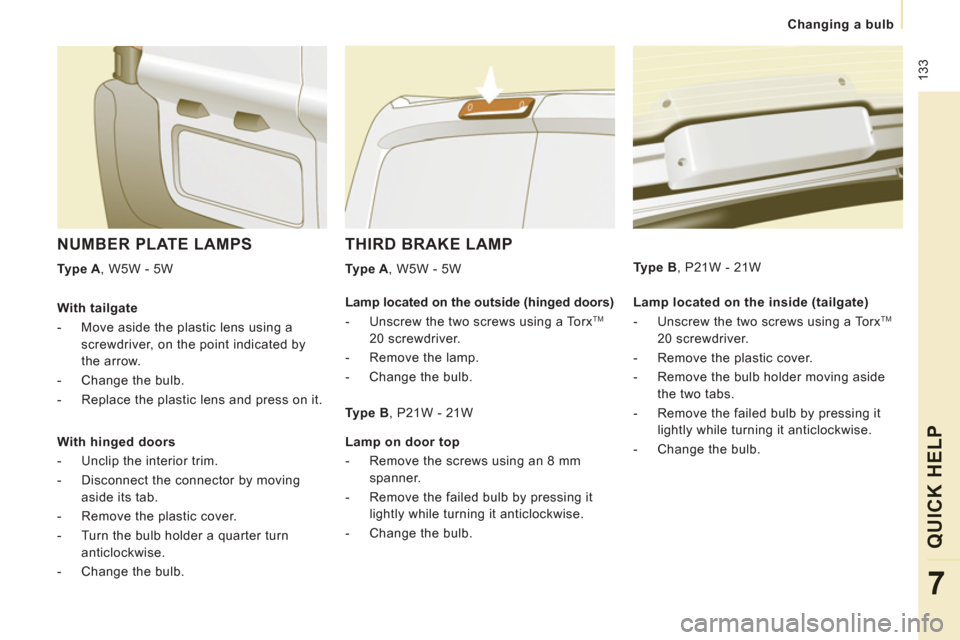

THIRD BRAKE LAMP

Type A , W5W - 5W

NUMBER PLATE LAMPS

Type A , W5W - 5W

Lamp located on the inside (tailgate)
- Unscrew the two screws using a Torx
TM
20 screwdriver.

- Remove the plastic cover.
- Remove the bulb holder moving aside the two tabs.

- Remove the failed bulb by pressing it lightly while turning it anticlockwise.

- Change the bulb.

Type B
, P21W - 21W

With tailgate
- Move aside the plastic lens using a
screwdriver, on the point indicated by
the arrow.
- Change the bulb.
- Replace the plastic lens and press on it.

With hinged doors
- Unclip the interior trim.
- Disconnect the connector by moving aside its tab.

- Remove the plastic cover.
- Turn the bulb holder a quarter turn anticlockwise.

- Change the bulb. Lamp located on the outside (hinged doors)
- Unscrew the two screws using a Torx
TM
20 screwdriver.

- Remove the lamp.
- Change the bulb.
Type B
, P21W - 21W

Lamp on door top
- Remove the screws using an 8 mm
spanner.

- Remove the failed bulb by pressing it lightly while turning it anticlockwise.

- Change the bulb.

134
Changing a fuse

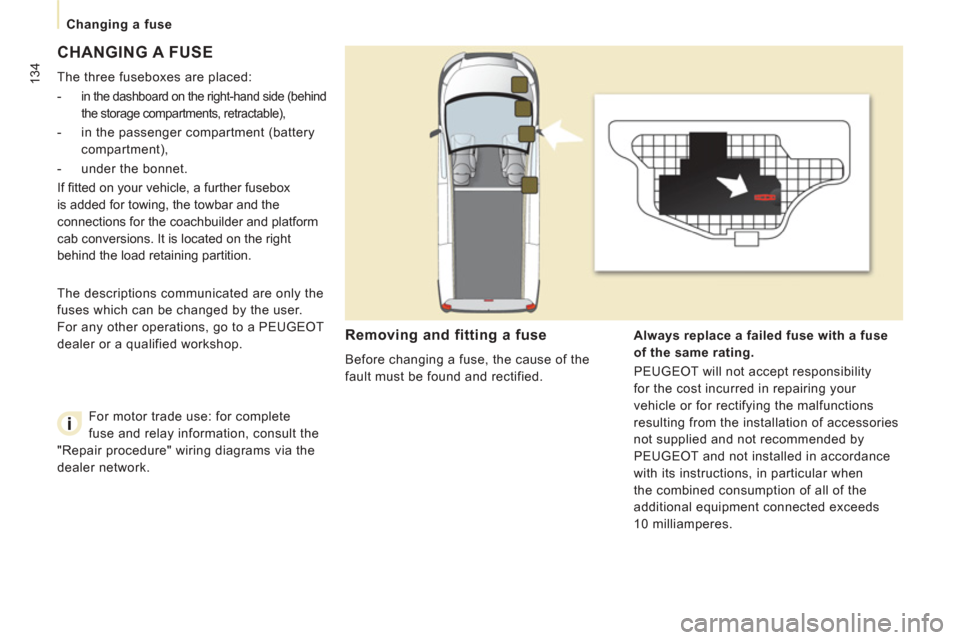

CHANGING A FUSE

The three fuseboxes are placed:
-
in the dashboard on the right-hand side (behind
the storage compartments, retractable),
- in the passenger compartment (battery
compartment),

- under the bonnet.
If fi tted on your vehicle, a further fusebox
is added for towing, the towbar and the
connections for the coachbuilder and platform
cab conversions. It is located on the right
behind the load retaining partition.
Removing and fitting a fuse

Before changing a fuse, the cause of the
fault must be found and rectified. Always replace a failed fuse with a fuse
of the same rating.

PEUGEOT will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
PEUGEOT and not installed in accordance
with its instructions, in particular when
the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes.
The descriptions communicated are only the
fuses which can be changed by the user.
For any other operations, go to a PEUGEOT
dealer or a qualified workshop.
For motor trade use: for complete
fuse and relay information, consult the
"Repair procedure" wiring diagrams via the
dealer network.

135

Changing a fuse
QUICK HELP
7

RIGHT-HAND SIDE DASHBOARD
FUSES
- Tilt the storage compartment then pull it
firmly to access the fuses.
Fuses

F
Amperes

A
Allocation


1
15 Rear wiper

2
- Free

3
5 Airbag control unit

4
10
Steering wheel angle sensor, Diagnostic socket, DSC
sensor, Manual ventilation, Clutch switch, Headlamp beam
height, Particle emission filter pump
5
30 Electric mirrors, Passenger electric window motor

6
30 Front electric windows supply

7
5 Courtesy lamps and glove box lamp

8
20
Multifunction screen, Anti-theft alarm siren, Audio
equipment, Compact disc changer, Audio/telephone, Trailer
fusebox (accessory), Coachbuilder/vehicle converter unit
(platform cab)
9
10 Load space accessory socket

10
30
Rear ride height corrector, Steering wheel switching,
Instrument panel
11
15 Diagnostic socket, Ignition switch

12
15
Hands-free kit, Airbag control unit, Parking sensors control
unit
13
5 Engine fusebox, Trailer fusebox

14
15 Rain sensor, Digital air conditioning, Instrument panel

15
30 Locking/unlocking/deadlocking

16
- Free

17
40 Heated rear screen, Heated mirrors

17
10 Heated mirrors only

136
Changing a fuse

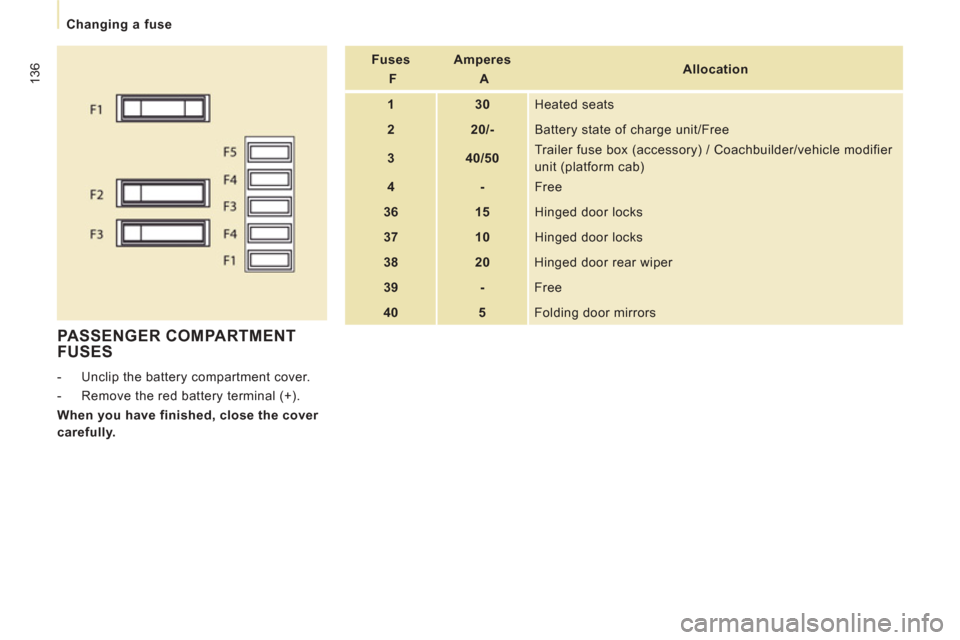

PASSENGER COMPARTMENT
FUSES
- Unclip the battery compartment cover.
- Remove the red battery terminal (+).

When you have finished, close the cover
carefully. Fuses

F
Amperes

A
Allocation


1
30 Heated seats

2
20/- Battery state of charge unit/Free

3
40/50
Trailer fuse box (accessory) / Coachbuilder/vehicle modifier
unit (platform cab)
4
- Free

36
15 Hinged door locks

37
10 Hinged door locks

38
20 Hinged door rear wiper

39
- Free


40
5 Folding door mirrors

137

Changing a fuse
QUICK HELP
7

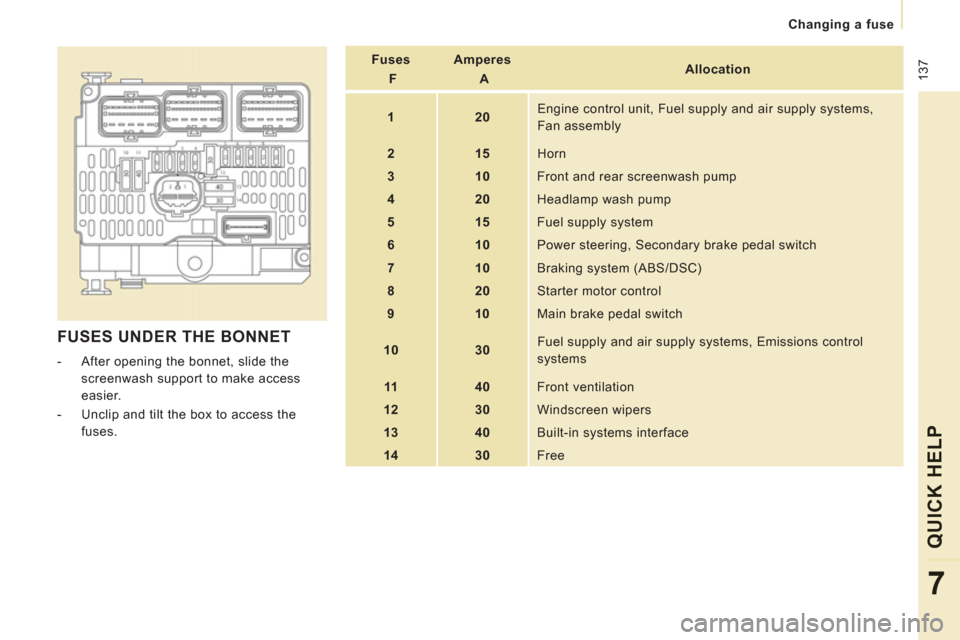

FUSES UNDER THE BONNET

- After opening the bonnet, slide the
screenwash support to make access
easier.
- Unclip and tilt the box to access the fuses.
Fuses

F
Amperes

A
Allocation


1
20
Engine control unit, Fuel supply and air supply systems,
Fan assembly
2
15 Horn

3
10 Front and rear screenwash pump

4
20 Headlamp wash pump

5
15 Fuel supply system

6
10 Power steering, Secondary brake pedal switch

7
10 Braking system (ABS/DSC)

8
20 Starter motor control

9

10 Main brake pedal switch


10
30
Fuel supply and air supply systems, Emissions control
systems
11
40 Front ventilation

12
30 Windscreen wipers

13
40 Built-in systems interface

14
30 Free

138
Changing a fuse

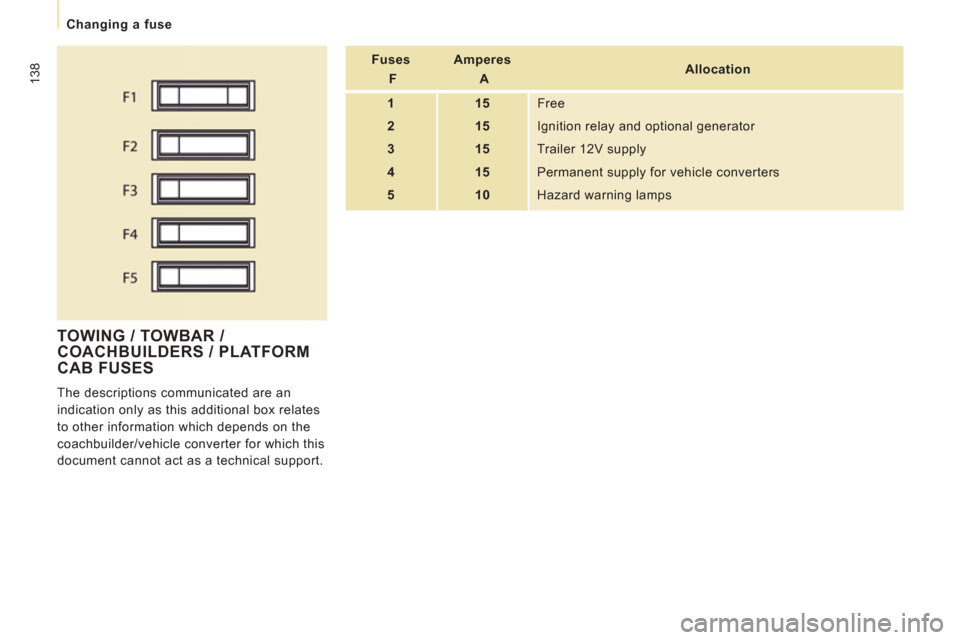

TOWING / TOWBAR /
COACHBUILDERS / PLATFORM
CAB FU
SES
The descriptions communicated are an
indication only as this additional box relates
to other information which depends on the
coachbuilder/vehicle converter for which this
document cannot act as a technical support. Fuses

F
Amperes

A
Allocation


1
15 Free

2
15 Ignition relay and optional generator

3
15 Trailer 12V supply

4
15 Permanent supply for vehicle converters

5
10 Hazard warning lamps
