Peugeot Expert VU 2016 - RHD (UK, Australia) Owners Manual

89
Confirmation that the door is going
to close is signalled by the direction
indicators flashing for a few seconds,
accompanied by an audible signal.
th
e movement of the door is reversed
if you pass your foot under the bumper
during operation of the door.
If fitted to your vehicle, the electric door
mirrors fold on locking the vehicle.

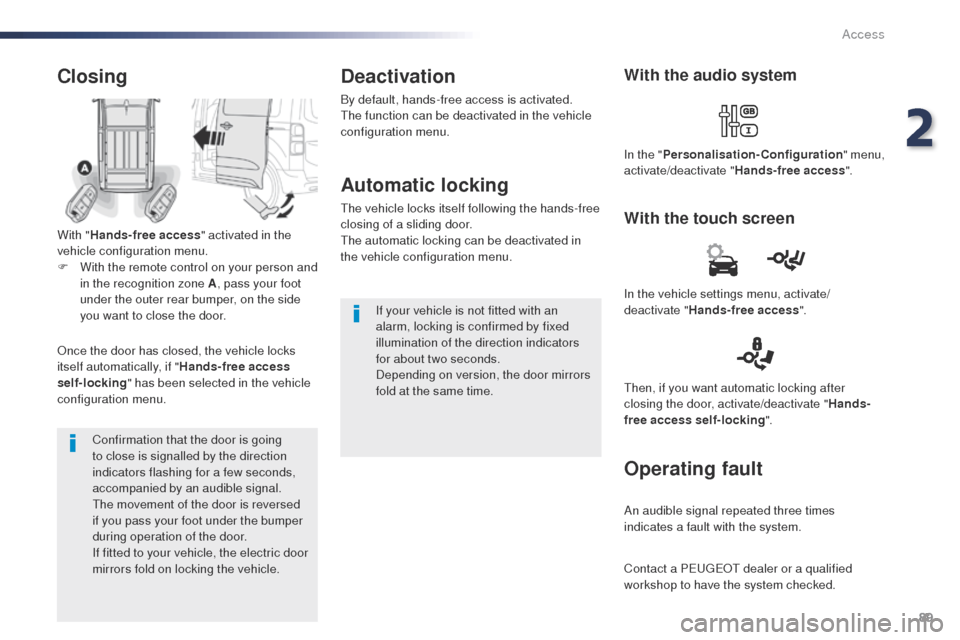

Closing
With " Hands-free access " activated in the
vehicle configuration menu.
F

W
ith the remote control on your person and
in the recognition zone A , pass your foot
under the outer rear bumper, on the side
you want to close the door.
on

ce the door has closed, the vehicle locks
itself automatically, if " Hands-free access
self-locking " has been selected in the vehicle
configuration menu.
With the audio system
With the touch screen
In the " Personalisation-Configuration " menu,
activate/deactivate " Hands-free access".
Deactivation
By default, hands-free access is activated.th
e function can be deactivated in the vehicle
configuration menu.
Automatic locking
the vehicle locks itself following the hands-free
closing of a sliding door.
th

e automatic locking can be deactivated in
the vehicle configuration menu.
If your vehicle is not fitted with an
alarm, locking is confirmed by fixed
illumination of the direction indicators
for about two seconds.
Depending on version, the door mirrors
fold at the same time. In the vehicle settings menu, activate/
deactivate "
Hands-free access ".
th

en, if you want automatic locking after
closing the door, activate/deactivate " Hands-
free access self-locking ".
Operating fault
An audible signal repeated three times
indicates a fault with the system.
Contact a P
e

ugeot dealer or a qualified
workshop to have the system checked.
2
Access

90

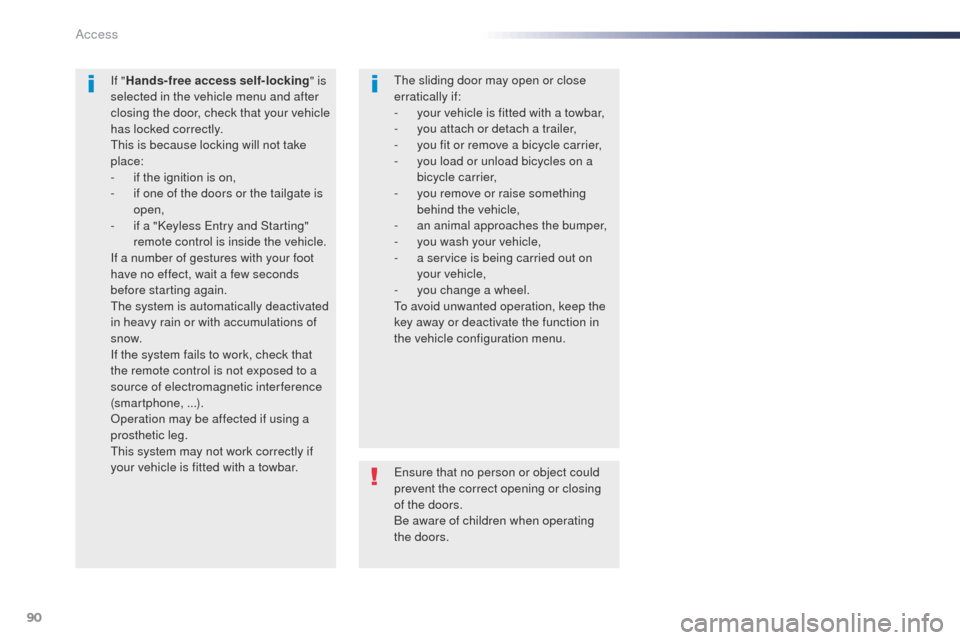

ensure that no person or object could
prevent the correct opening or closing
of the doors.
Be aware of children when operating
the doors.
If "
Hands-free access self-locking " is
selected in the vehicle menu and after
closing the door, check that your vehicle
has locked correctly.
th

is is because locking will not take
place:
-

i

f the ignition is on,
-

i

f one of the doors or the tailgate is
open,
-

i

f a "Keyless
e
n

try and Starting"
remote control is inside the vehicle.
If a number of gestures with your foot
have no effect, wait a few seconds
before starting again.
th

e system is automatically deactivated
in heavy rain or with accumulations of
snow.
If the system fails to work, check that
the remote control is not exposed to a
source of electromagnetic interference
(smar tphone, ...).
op

eration may be affected if using a
prosthetic leg.
th

is system may not work correctly if
your vehicle is fitted with a towbar.
th
e sliding door may open or close
erratically if:
-
y
our vehicle is fitted with a towbar,
-
y
ou attach or detach a trailer,
-
y
ou fit or remove a bicycle carrier,
-
y
ou load or unload bicycles on a
bicycle carrier,
-
y
ou remove or raise something
behind the vehicle,
-
an
animal approaches the bumper,
-
y
ou wash your vehicle,
-
a s
ervice is being carried out on
your vehicle,
-
y
ou change a wheel.
to a

void unwanted operation, keep the
key away or deactivate the function in
the vehicle configuration menu.
Access

91
If the left-hand door is not fully closed
(the right-hand door is not detected):
-
v
ehicle stationary and engine
running, this warning lamp
comes on, accompanied by an
alert message for a few seconds,
-

v
ehicle moving (speed above
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an audible signal and an alert
message for a few seconds.
For more information on the Key,
Remote control or Keyless Entr y and
Starting and in particular unlocking
the vehicle, refer to the corresponding
section.

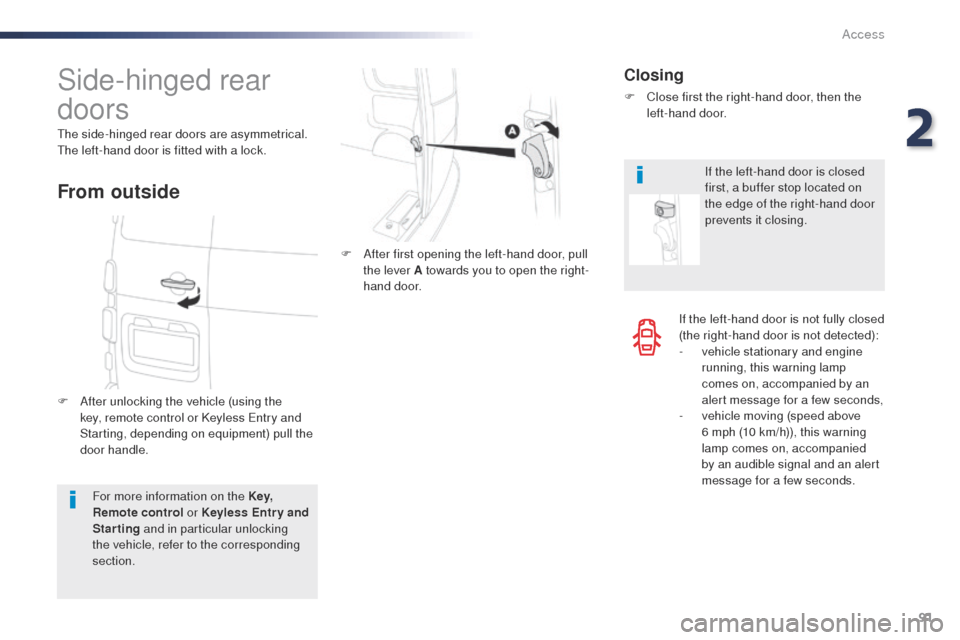

Side-hinged rear
doors
the side-hinged rear doors are asymmetrical.th e left-hand door is fitted with a lock.
F

A
fter unlocking the vehicle (using the
key, remote control or Keyless
e
n
try and
Starting, depending on equipment) pull the
door handle. F

A
fter first opening the left-hand door, pull
the lever A towards you to open the right-
hand door.
From outside
Closing
F Close first the right-hand door, then the left-hand door.
If the left-hand door is closed
first, a buffer stop located on
the edge of the right-hand door
prevents it closing.
2
Access

92
If fitted to your vehicle, a check strap system
that allows the doors to be opened from about
90° to about 180°.
F
P
ull the yellow control when the door is
open.
th

e check strap will engage again
automatically on closing.
When parked with the rear doors
open to 90°, the doors mask the rear
lamps.
t
o s
ignal your position to
other road users driving in the same
direction who may not have seen
your vehicle, use a warning triangle
or other device required by the
legislation in your country.
Opening to approximately 180° Opening to about 235°
If fitted to your vehicle, the hinges include three
notches which allow the door to be held open
at 90°, 180° or 235°.
F
o
p
en the door to the desired position.
Access

93
If the child lock is on (activated), the
handle is inoperative.
For more information on the Child lock,
refer to the corresponding section.

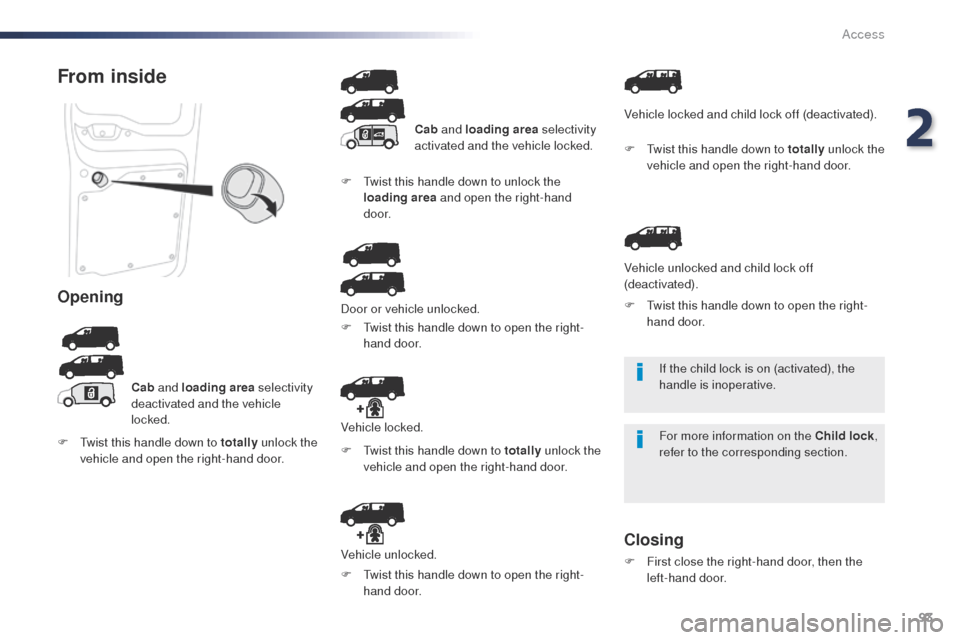

From inside
Opening
Cab and loading area selectivity
deactivated and the vehicle
locked. Cab
and loading area selectivity
activated and the vehicle locked.
Door or vehicle unlocked.
F
t
w

ist this handle down to totally unlock the
vehicle and open the right-hand door. F
t
w
ist this handle down to unlock the
loading area and open the right-hand
d o o r.
F t
w
ist this handle down to open the right-
hand door.
Closing
F First close the right-hand door, then the left-hand door.
Vehicle locked and child lock off (deactivated).
F
t
w
ist this handle down to totally
unlock the
vehicle and open the right-hand door.
Vehicle locked.
F
t
w

ist this handle down to totally
unlock the
vehicle and open the right-hand door.
Vehicle unlocked.
F
tw
ist this handle down to open the right-
hand door. Vehicle unlocked and child lock off
(deactivated).
F
t
w
ist this handle down to open the right-
hand door.
2
Access

94
For more information on the Key,
Remote control or Keyless Entr y and
Starting and in particular unlocking
the vehicle, refer to the corresponding
section. For more information on the Key,

Remote control or Keyless Entr y and
Starting and in particular on locking
the vehicle, refer to the corresponding
section.
tailgate
F After unlocking the vehicle with the key, the remote control or the Keyless en try
and Starting, pull the handle, then raise the
tailgate.
Opening
F Lower the tailgate using the interior grab handle then push it home to fully close it.
Closing Back-up control
It allows the mechanical unlocking of the
tailgate in the event of a battery or central
locking system malfunction.
Unlocking
F If fitted to your vehicle and if necessary,
fold back the rear seats to gain access to
the lock from inside.
Locking after closing
If the fault persists after closing again, the
tailgate will remain locked.
If the tailgate is not fully closed:
-

v

ehicle stationary and engine running, this
warning lamp comes on, accompanied by
an alert message for a few seconds,
-

v

ehicle moving (speed above 6 mph
(10 km/h)), this warning lamp comes on,
accompanied by an audible signal and an
alert message for a few seconds. F
I
nsert a small screwdriver into hole A of the
lock to unlock the tailgate.
F
M
ove the latch to the left.
Access

95

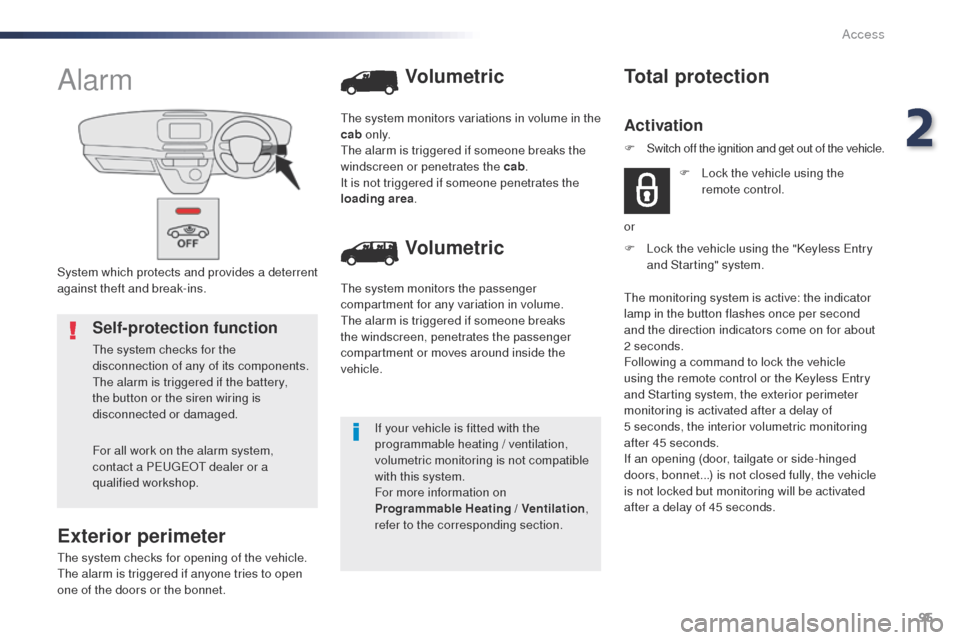

System which protects and provides a deterrent
against theft and break-ins.
Alarm
Exterior perimeter
the system checks for opening of the vehicle.the alarm is triggered if anyone tries to open
one of the doors or the bonnet.
Self-protection function
the system checks for the
disconnection of any of its components.
th

e alarm is triggered if the battery,
the button or the siren wiring is
disconnected or damaged.
For all work on the alarm system,
contact a P
e

ugeot dealer or a
qualified workshop.
Volumetric Volumetric
the system monitors the passenger
compartment for any variation in volume.
th

e alarm is triggered if someone breaks
the windscreen, penetrates the passenger
compartment or moves around inside the
vehicle.
th
e system monitors variations in volume in the
cab o n l y.
th
e alarm is triggered if someone breaks the
windscreen or penetrates the cab .
It is not triggered if someone penetrates the
loading area .
If your vehicle is fitted with the
programmable heating / ventilation,
volumetric monitoring is not compatible
with this system.
For more information on
Programmable Heating / Ventilation ,
refer to the corresponding section. F

L
ock the vehicle using the "Keyless e
n
try
and Starting" system.
Total protection
Activation
F Lock the vehicle using the remote control.
or
th

e monitoring system is active: the indicator
lamp in the button flashes once per second
and the direction indicators come on for about
2 seconds.
Following a command to lock the vehicle
using the remote control or the Keyless
e
n
try
and Starting system, the exterior perimeter
monitoring is activated after a delay of
5

seconds, the interior volumetric monitoring
after 45 seconds.
If an opening (door, tailgate or side-hinged
doors, bonnet...) is not closed fully, the vehicle
is not locked but monitoring will be activated
after a delay of 45 seconds. F

Switch off the ignition and get out of the vehicle.
2
Access

96
Deactivation
F Press this unlocking button on the remote control.
or
F
u
n

lock the vehicle using the "Keyless e
n
try
and Starting" system.
If the vehicle locks itself automatically
(this occurs after 30 seconds if one of
the doors is not opened), the monitoring
system is reactivated automatically.
th

e monitoring system is deactivated: the
indicator lamp in the button is off and the
direction indicators flash for about 2 seconds.
Protection - exterior
perimeter monitoring only
Deactivate the interior volumetric monitoring
to avoid unwanted triggering of the alarm in
certain cases such as:
-

o
ccupant(s) present in the vehicle,
-

l
eaving a window partially open,
-
w

ashing your vehicle,
-
c

hanging a wheel,
-

t
owing your vehicle,
-

t
ransport on a ferry.
Volumetric monitoring
Deactivation F
S
witch off the ignition and within
ten seconds press this button
until its indicator lamp is on fixed.
F
g
e
t out of the vehicle.
Reactivation
th

e indicator lamp in the button goes off. F

I
mmediately lock the vehicle
using the remote control or the
"Keyless
e
n
try and Starting"
system.
on

ly the exterior perimeter protection system is
active: the indicator lamp in the button flashes
once per second.
to b

e effective, this deactivation must be done
every time the ignition is switched off.
F

D
eactivate the exterior perimeter
monitoring by unlocking the
vehicle using the remote control
or the "Keyless
e
n
try and
Starting" system. F

R
eactivate the full alarm system
by locking the vehicle using the
remote control or the "Keyless
en

try and starting" system.
th

e indicator lamp in the button flashes once
per second again.
Triggering of the alarm
this is indicated by sounding of the siren
and flashing of the direction indicators for
thirty


seconds.
th

e monitoring functions remain active until
the alarm has been triggered eleven times in
succession.
When the vehicle is unlocked using
the remote control or the "Keyless
en

try and Starting" system, rapid
flashing of the indicator lamp in the
button informs you that the alarm was
triggered during your absence.
When the ignition is switched on, this
flashing stops immediately.
Access

97

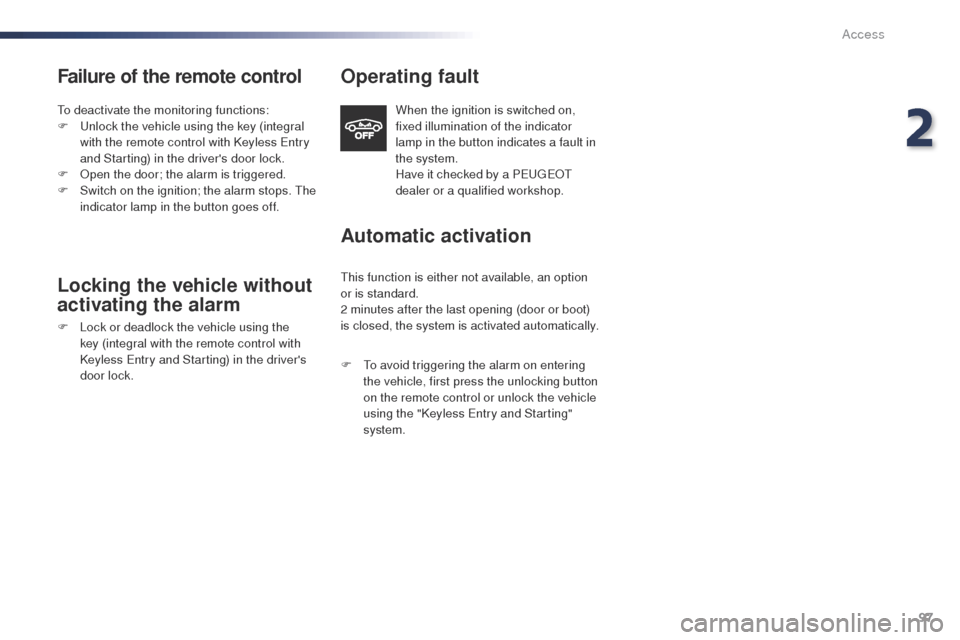

Failure of the remote control
to deactivate the monitoring functions:
F un lock the vehicle using the key (integral
with the remote control with Keyless
e
n
try
and Starting) in the driver's door lock.
F
o
p
en the door; the alarm is triggered.
F

S
witch on the ignition; the alarm stops. t
h
e
indicator lamp in the button goes off.
Locking the vehicle without
activating the alarm
F Lock or deadlock the vehicle using the key (integral with the remote control with
Keyless
e
n
try and Starting) in the driver's
door lock.
Operating fault
When the ignition is switched on,
fixed illumination of the indicator
lamp in the button indicates a fault in
the system.
Have it checked by a P
e

ugeot
dealer or a qualified workshop.
Automatic activation
this function is either not available, an option
or is standard.
2 minutes after the last opening (door or boot)
is closed, the system is activated automatically.
F
t
o a
void triggering the alarm on entering
the vehicle, first press the unlocking button
on the remote control or unlock the vehicle
using the "Keyless
e
n
try and Starting"
system.
2
Access

98

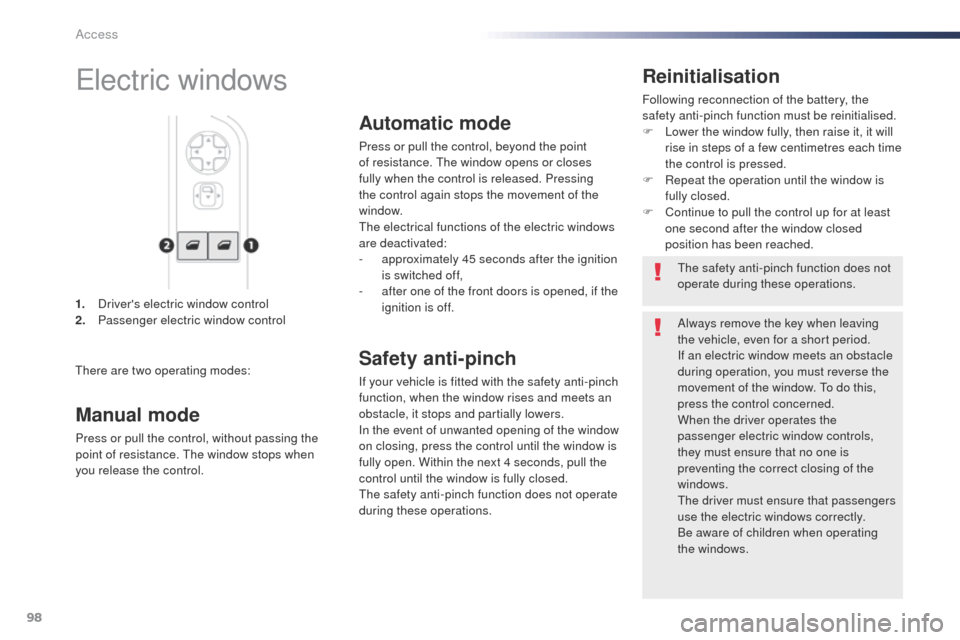

1. Driver's electric window control
2. Passenger electric window control
Reinitialisation
Following reconnection of the battery, the
safety anti-pinch function must be reinitialised.
F

L
ower the window fully, then raise it, it will
rise in steps of a few centimetres each time
the control is pressed.
F

R
epeat the operation until the window is
fully closed.
F

C
ontinue to pull the control up for at least
one second after the window closed
position has been reached.electric windows
there are two operating modes:
th
e safety anti-pinch function does not
operate during these operations.
Always remove the key when leaving
the vehicle, even for a short period.
If an electric window meets an obstacle
during operation, you must reverse the
movement of the window.
t
o d
o this,
press the control concerned.
When the driver operates the
passenger electric window controls,
they must ensure that no one is
preventing the correct closing of the
windows.
the

driver must ensure that passengers
use the electric windows correctly.
Be aware of children when operating
the windows.
Manual mode
Press or pull the control, without passing the
point of resistance. th e window stops when
you release the control.
Automatic mode
Press or pull the control, beyond the point
of resistance. th e window opens or closes
fully when the control is released. Pressing
the control again stops the movement of the
window.
th

e electrical functions of the electric windows
are deactivated:
-

a
pproximately 45 seconds after the ignition
is switched off,
-

a
fter one of the front doors is opened, if the
ignition is off.
Safety anti-pinch
If your vehicle is fitted with the safety anti-pinch
function, when the window rises and meets an
obstacle, it stops and partially lowers.
In the event of unwanted opening of the window
on closing, press the control until the window is
fully open. Within the next 4 seconds, pull the
control until the window is fully closed.
th

e safety anti-pinch function does not operate
during these operations.
Access
