Peugeot Expert VU 2016 - RHD (UK, Australia) Repair Manual

59
the unlocking, locking or deadlocking
does not take place:
-
i
f the ignition is on,
-

i
f one of the doors or the boot is still
open,
-

i
f the key for the Keyless e
n
try and
Starting system has been left inside
the vehicle.
When the vehicle is locked (with the
remote control or Keyless
e
n
try and
Starting), if it is unlocked inadvertently,
it will lock itself again automatically after
about thirty seconds unless a door has
been opened.
And if your vehicle has an alarm, this
will be reactivated (with volumetric
monitoring, even if this had been
deactivated).

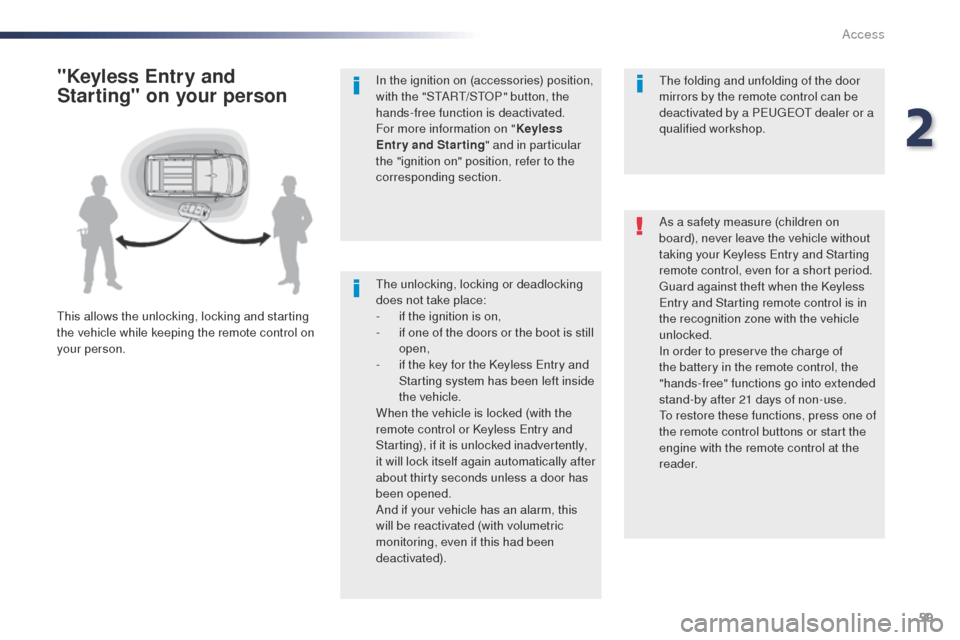

"Keyless Entry and
Starting" on your person
this allows the unlocking, locking and starting
the vehicle while keeping the remote control on
your person. As a safety measure (children on
board), never leave the vehicle without
taking your Keyless
e
n
try and Starting
remote control, even for a short period.
gu
ard against theft when the Keyless en
try and Starting remote control is in
the recognition zone with the vehicle
unlocked.
In order to preserve the charge of
the battery in the remote control, the
"hands-free" functions go into extended
stand-by after 21 days of non-use.
to r

estore these functions, press one of
the remote control buttons or start the
engine with the remote control at the
reader.
th
e folding and unfolding of the door
mirrors by the remote control can be
deactivated by a P
e
ugeot dealer or a
qualified workshop.
In the ignition on (accessories) position,
with the "S
tA
R
t/
S
t
o
P
" button, the
hands-free function is deactivated.
For more information on " Keyless
Entry and Starting " and in particular
the "ignition on" position, refer to the
corresponding section.
2
Access

60
Cab and loading area selectivity
deactivated.
un

locking is signalled by the rapid
flashing of the direction indicators for
about two seconds.
Depending on version, the door mirrors
unfold and the alarm is deactivated.
Total unlocking
F to unlock the vehicle , remote control on
your person and in the recognition zone A,
pass your hand behind one of the door
handles (front doors, manual sliding side
doors or side-hinged doors).
F

P
ull the handle to open the corresponding
d o o r.
With electric sliding slide door(s)
F to unlock the vehicle , remote control on
your person and in the recognition zone A,
pull and release the door handle.
t
h
is
action also triggers the electrically powered
opening of the corresponding door.
With tailgate
F to unlock the vehicle , remote control on
your person and in the recognition zone A ,
pull the tailgate handle.
F

Ra
ise the tailgate.
Access

61
Depending on version, the door mirrors
unfold only on unlocking the cab, the
alarm is deactivated
Cab
and loading area selectivity
activated.

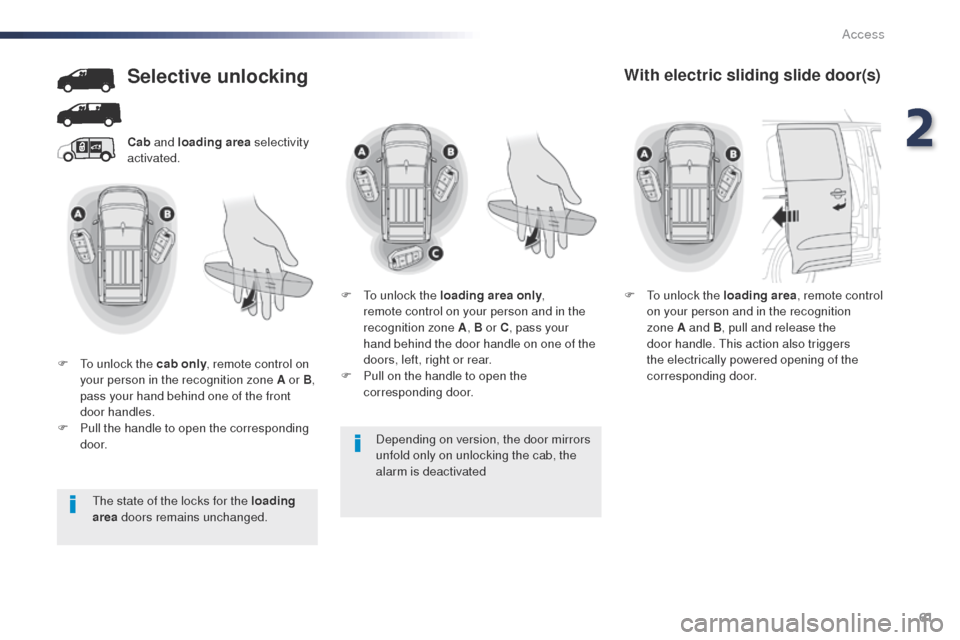

Selective unlocking
F to unlock the cab only , remote control on
your person in the recognition zone A or B,
pass your hand behind one of the front
door handles.
F

P
ull the handle to open the corresponding
d o o r. F
t
o u
nlock the loading area only
,
remote control on your person and in the
recognition zone A , B or C, pass your
hand behind the door handle on one of the
doors, left, right or rear.
F P ull on the handle to open the
corresponding door.
With electric sliding slide door(s)
F to unlock the loading area , remote control
on your person and in the recognition
zone
A and B, pull and release the
door handle.
t
h
is action also triggers
the electrically powered opening of the
corresponding door.
th

e state of the locks for the loading
area doors remains unchanged.
2
Access

62
With tailgate
F to unlock the loading area only,
remote control on your person and in the
recognition zone C , pull the tailgate handle.
F

Ra
ise the tailgate.
un

locking is signalled by the rapid
flashing of the direction indicators for
about two seconds.
Access

63

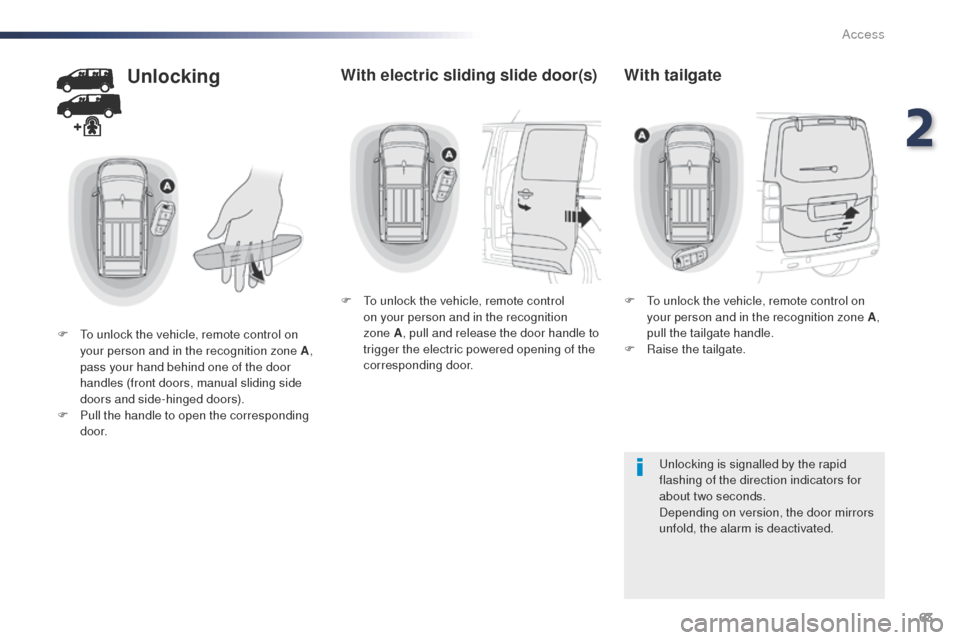

Unlocking
F to unlock the vehicle, remote control on your person and in the recognition zone A,
pass your hand behind one of the door
handles (front doors, manual sliding side
doors and side-hinged doors).
F

P
ull the handle to open the corresponding
d o o r.
With electric sliding slide door(s)
F to unlock the vehicle, remote control on your person and in the recognition
zone
A, pull and release the door handle to
trigger the electric powered opening of the
corresponding door.
With tailgate
F to unlock the vehicle, remote control on your person and in the recognition zone A ,
pull the tailgate handle.
F

Ra
ise the tailgate.
un

locking is signalled by the rapid
flashing of the direction indicators for
about two seconds.
Depending on version, the door mirrors
unfold, the alarm is deactivated.
2
Access

64
With electric sliding side door(s)Locking
F to totally lock the vehicle, with the remote
control in the recognition zone A , press
with a finger or thumb at the markings on
one of the front or manual sliding side door
handles.
If a door is not properly closed
(except the right-hand door with side-
hinged rear doors):
-

v
ehicle stationary and the engine
running, this warning lamp
comes on, accompanied by an
alert message for a few seconds,
-

v
ehicle moving (speed above
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an audible signal and an alert
message for a few seconds.
With side-hinged doors
F to totally lock the vehicle, with the remote
control in the recognition zone A , press
with a finger or thumb at the markings on
one of the front door handles. F
to l ock the vehicle, with the remote control
in the recognition zone A , press the left-
hand door locking control.
Access

65

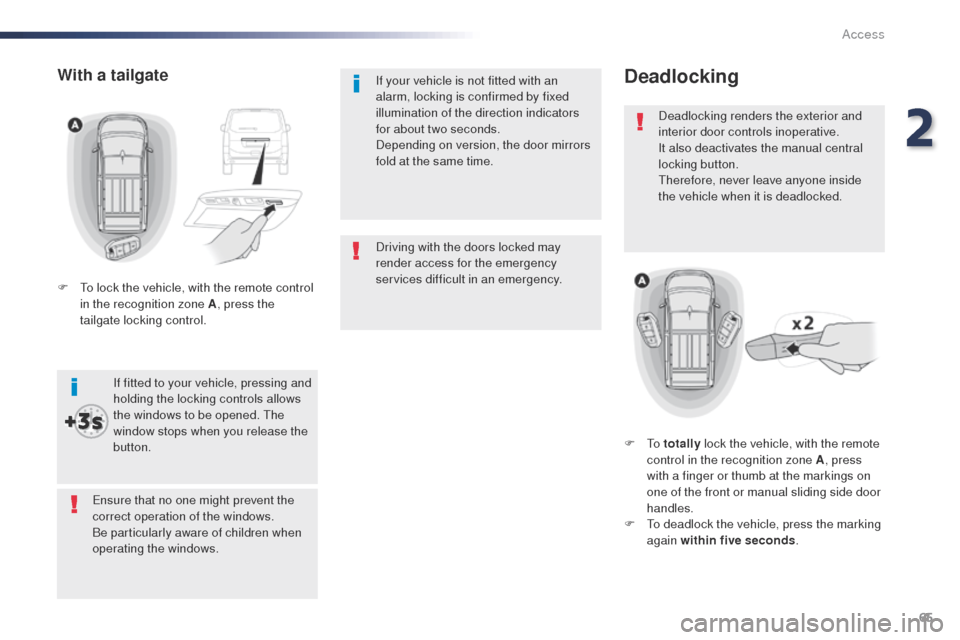

Driving with the doors locked may
render access for the emergency
services difficult in an emergency. If your vehicle is not fitted with an
alarm, locking is confirmed by fixed
illumination of the direction indicators
for about two seconds.
Depending on version, the door mirrors
fold at the same time.
Deadlocking
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
locking button.
th
erefore, never leave anyone inside
the vehicle when it is deadlocked.
F
t
o
totally lock the vehicle, with the remote
control in the recognition zone A , press
with a finger or thumb at the markings on
one of the front or manual sliding side door
handles.
F
t
o d
eadlock the vehicle, press the marking
again within five seconds .
en

sure that no one might prevent the
correct operation of the windows.
Be particularly aware of children when
operating the windows. If fitted to your vehicle, pressing and
holding the locking controls allows
the windows to be opened.
t
h

e
window stops when you release the
button.
With a tailgate
F to lock the vehicle, with the remote control in the recognition zone A , press the
tailgate locking control.
2
Access

66
F to totally lock the vehicle, with the remote
control in the recognition zone A , press
with a finger or thumb at the markings on
one of the front door handles.
F
t
o d
eadlock the vehicle, press the marking
again within five seconds .
If your vehicle is not fitted with an alarm,
deadlocking is confirmed by fixed
illumination of the direction indicators
for about two seconds.
With electric sliding side door(s)With a tailgate
With side-hinged doors
F to lock the vehicle, with the remote control
in the recognition zone A , press the
tailgate locking control.
F
t
o d
eadlock the vehicle, press the control
again within five seconds .
F
to l
ock the vehicle, with the remote control
in the recognition zone A , press the left-
hand door locking control.
F
t
o d

eadlock the vehicle, press the control
again within five seconds .
Access

67

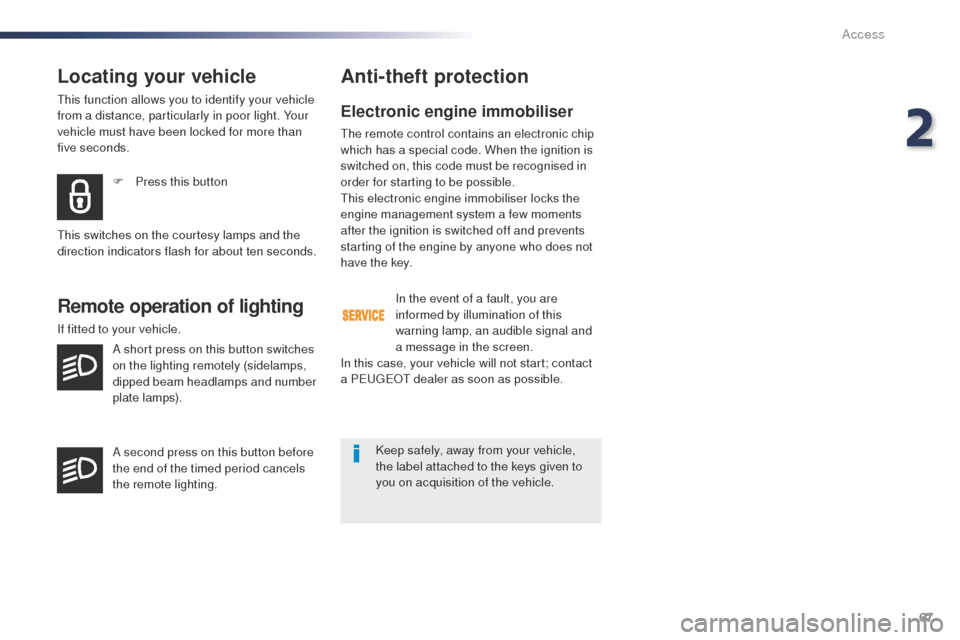

Locating your vehicle
this function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must have been locked for more than
five seconds.F

P
ress this button
th

is switches on the courtesy lamps and the
direction indicators flash for about ten seconds.
Remote operation of lighting
If fitted to your vehicle.
A short press on this button switches
on the lighting remotely (sidelamps,
dipped beam headlamps and number
plate lamps).
A second press on this button before
the end of the timed period cancels
the remote lighting.
Anti-theft protection
Electronic engine immobiliser
the remote control contains an electronic chip
which has a special code. When the ignition is
switched on, this code must be recognised in
order for starting to be possible.
th

is electronic engine immobiliser locks the
engine management system a few moments
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal and
a message in the screen.
In this case, your vehicle will not start; contact
a P
e

ugeot dealer as soon as possible.
Keep safely, away from your vehicle,
the label attached to the keys given to
you on acquisition of the vehicle.
2
Access

68

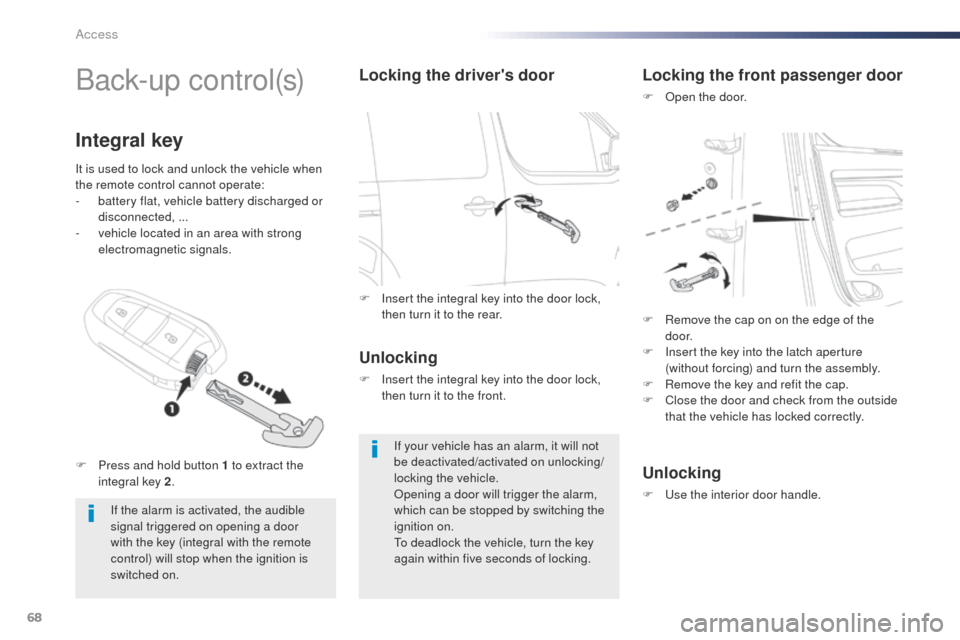

B a c k- u p c o nt r o l (s)
If the alarm is activated, the audible
signal triggered on opening a door
with the key (integral with the remote
control) will stop when the ignition is
switched on.
Integral key
Locking the driver's door
Unlocking
F Insert the integral key into the door lock, then turn it to the front.
If your vehicle has an alarm, it will not
be deactivated/activated on unlocking/
locking the vehicle.
op

ening a door will trigger the alarm,
which can be stopped by switching the
ignition on.
to d

eadlock the vehicle, turn the key
again within five seconds of locking.
Locking the front passenger door
F open the door.
Unlocking
F use the interior door handle.
It is used to lock and unlock the vehicle when
the remote control cannot operate:
-

b

attery flat, vehicle battery discharged or
disconnected, ...
-

v

ehicle located in an area with strong
electromagnetic signals.
F

P

ress and hold button 1 to extract the
integral key 2 . F

I

nsert the integral key into the door lock,
then turn it to the rear. F
R
emove the cap on on the edge of the
d o o r.
F
I
nsert the key into the latch aperture
(without forcing) and turn the assembly.
F
R
emove the key and refit the cap.
F
C
lose the door and check from the outside
that the vehicle has locked correctly.
