Peugeot Expert VU 2016 Owner's Manual - RHD (UK, Australia)

139
F Press and hold this button to stop the heating immediately.
F

P
ress and hold this button to
start the heating immediately.
th

e indicator lamp in the remote control comes
on in red for about 2
seconds to confirm that
the signal has been received by the vehicle.
th

e indicator lamp in the remote control comes
on in green for about 2 seconds to confirm that
the signal has been received by the vehicle.
Switching off Switching on

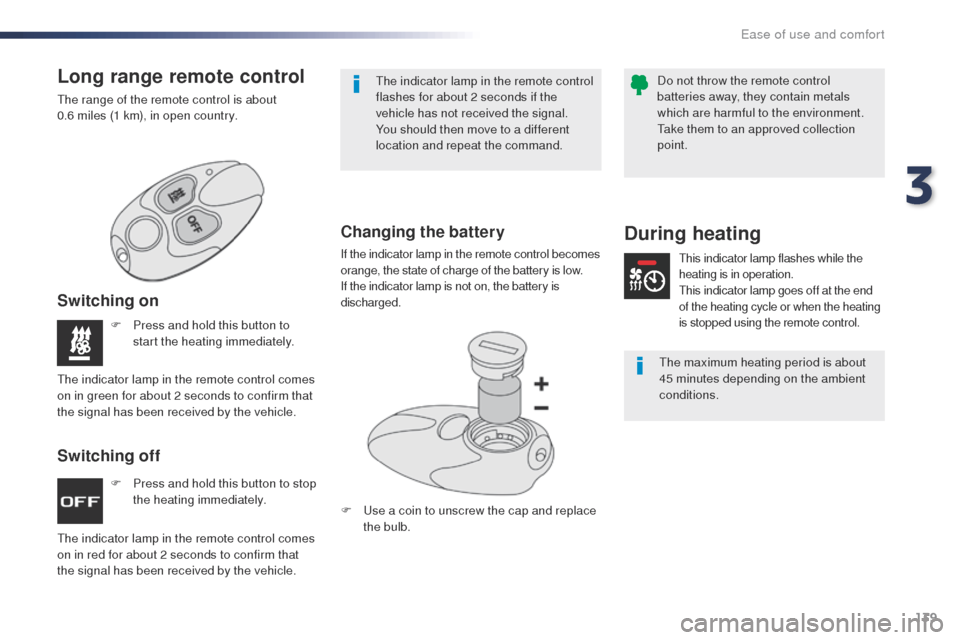

Long range remote control
the range of the remote control is about
0.6 miles (1 km), in open country.
th
e indicator lamp in the remote control
flashes for about 2 seconds if the
vehicle has not received the signal.
You should then move to a different
location and repeat the command.
Changing the battery
If the indicator lamp in the remote control becomes
orange, the state of charge of the battery is low.
If the indicator lamp is not on, the battery is
discharged.
F
u
s
e a coin to unscrew the cap and replace
the bulb.
During heating
this indicator lamp flashes while the
heating is in operation.
th

is indicator lamp goes off at the end
of the heating cycle or when the heating
is stopped using the remote control.
the maximum heating period is about
45 minutes depending on the ambient
conditions.
Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
ta

ke them to an approved collection
point.
3
ease of use and comfort

140

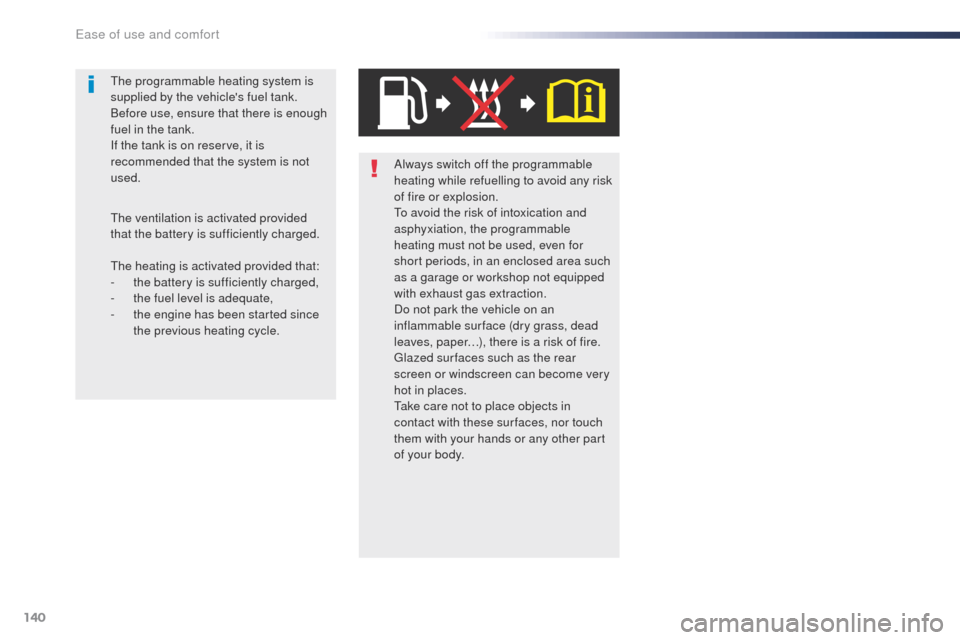

Always switch off the programmable
heating while refuelling to avoid any risk
of fire or explosion.
to a
void the risk of intoxication and
asphyxiation, the programmable
heating must not be used, even for
short periods, in an enclosed area such
as a garage or workshop not equipped
with exhaust gas extraction.
Do not park the vehicle on an
inflammable sur face (dry grass, dead
leaves, paper…), there is a risk of fire.
gl

azed sur faces such as the rear
screen or windscreen can become very
hot in places.
ta

ke care not to place objects in
contact with these sur faces, nor touch
them with your hands or any other part
of your body.
th

e heating is activated provided that:
-

t

he battery is sufficiently charged,
-

t

he fuel level is adequate,
-

t

he engine has been started since
the previous heating cycle.
the

programmable heating system is
supplied by the vehicle's fuel tank.
Before use, ensure that there is enough
fuel in the tank.
If the tank is on reserve, it is
recommended that the system is not
used.
th

e ventilation is activated provided
that the battery is sufficiently charged.
ease of use and comfort

141
Permanently off. Comes on when one of the front or
rear doors is opened. Permanently on, ignition on.
Rear

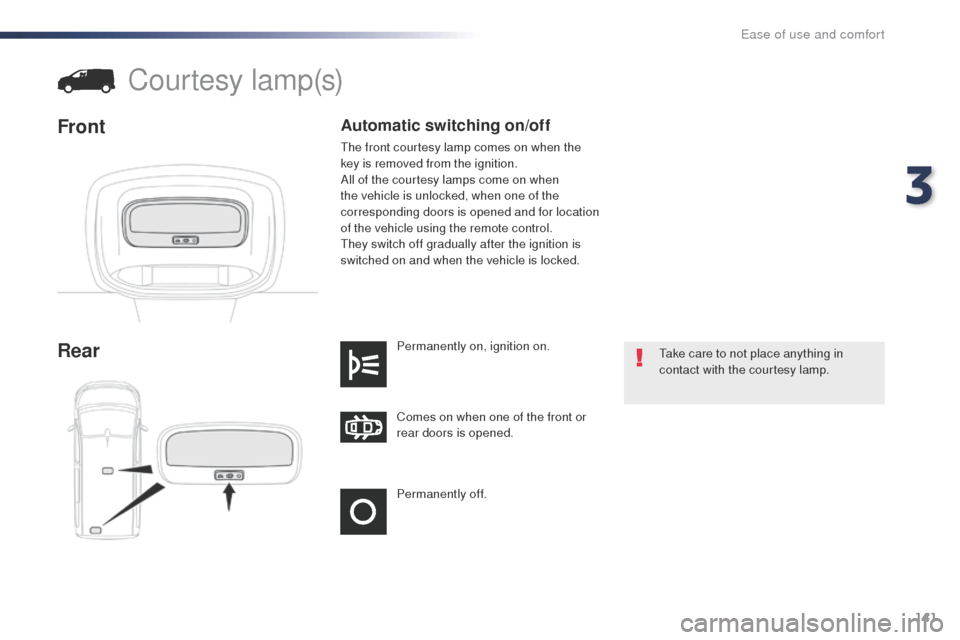

Courtesy lamp(s)
Front
take care to not place anything in
contact with the courtesy lamp.
Automatic switching on/off
the front courtesy lamp comes on when the
key is removed from the ignition.
All of the courtesy lamps come on when
the vehicle is unlocked, when one of the
corresponding doors is opened and for location
of the vehicle using the remote control.
th
ey switch off gradually after the ignition is
switched on and when the vehicle is locked.
3
ease of use and comfort

142
Individual reading lamp
RearCourtesy lampsAutomatic operation
the front courtesy lamp comes on when the
key is removed from the ignition switch.
All of the courtesy lamps come on when
the vehicle is unlocked, when one of the
corresponding doors is opened and for location
of the vehicle using the remote control.
th
ey go off gradually after the ignition is
switched on and when the vehicle is locked.
Front
Permanently off. Row 2 and row 3: comes on when
one of the rear doors or the boot
is opened (sliding side door and
depending on equipment, the left-
hand side-hinged door or the tailgate). Front: comes on when one of
the front or rear doors is opened
(sliding side door and depending on
equipment, the left-hand side-hinged
door or the tailgate).
Permanently on, ignition on.
ta
ke care not to leave anything in
contact with the courtesy lamp. If fitted to the vehicle, these are
operated by means of a manual
switch.
With the ignition on, operate the
corresponding switch.
Ease of use and comfort

143
F Move switch A to the right or to the left to select the corresponding mirror.
F

M
ove knob B in all four directions to adjust.
F

R
eturn switch A to the centre position.
Electric unfolding
the electric unfolding of the mirrors is possible
with the remote control or the key on unlocking
the vehicle, unless folding was selected using
switch A . In this case, pull the switch rear wards
from the centre position again.

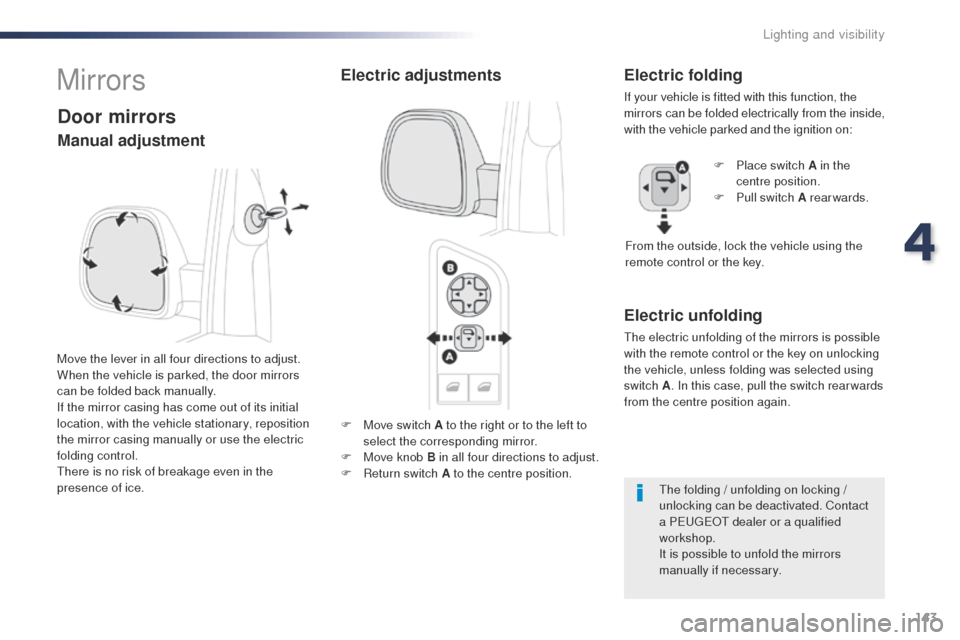

MirrorsElectric adjustments Electric folding
If your vehicle is fitted with this function, the
mirrors can be folded electrically from the inside,
with the vehicle parked and the ignition on:
F

P
lace switch A in the
centre position.
F

P
ull switch A rearwards.
From the outside, lock the vehicle using the
remote control or the key.
th

e folding / unfolding on locking /
unlocking can be deactivated. Contact
a P
e

ugeot dealer or a qualified
workshop.
It is possible to unfold the mirrors
manually if necessary.
Door mirrors
Move the lever in all four directions to adjust.
When the vehicle is parked, the door mirrors
can be folded back manually.
If the mirror casing has come out of its initial
location, with the vehicle stationary, reposition
the mirror casing manually or use the electric
folding control.
th

ere is no risk of breakage even in the
presence of ice.
Manual adjustment
4
Lighting and visibility

144
Heated mirrors
orA s a safety measure, the mirrors should
be adjusted to reduce the blind spots.
th
e objects observed are, in reality,
closer than they appear.
ta
ke this into account in order to
correctly judge the distance of vehicles
approaching from behind.
For more information on Rear

screen demist - defrost , refer to the
corresponding section.
F
P
ress the heated rear window
button.
F
P
ress the heated mirror button.
If your vehicle has heated door mirrors:
Lighting and visibility

145
Rear view mirror
equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused by the sun, headlamps from other vehicles...
Manual model
Adjustment
F A djust the mirror so that the glass is
directed correctly in the "day" position.
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
Day / night position
F

P
ull the lever to change to the "night" anti-
dazzle position.
F

P
ush the lever to change to the normal
"day" position.
Automatic "electrochrome"
model
this system automatically and progressively
changes between the day and night uses by
means of a sensor, which measures the light
from the rear of the vehicle.
4
Lighting and visibility

146
Model without AUTO lighting
Model with AUTO lighting
Main lighting selection ringLighting off (ignition off) / Front daytime
running lamps (engine running).
Automatic illumination of headlamps.
Sidelamps only.
Dipped or main beam headlamps.Dipping the headlamps
In the lighting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.
op

eration of the selected lighting is
confirmed by the illumination of the
corresponding indicator lamp. Pull the stalk to switch between dipped and
main beam headlamps.
Lighting control stalk
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
tu

rn the ring to align the desired symbol with
the marking.
Lighting and visibility

147

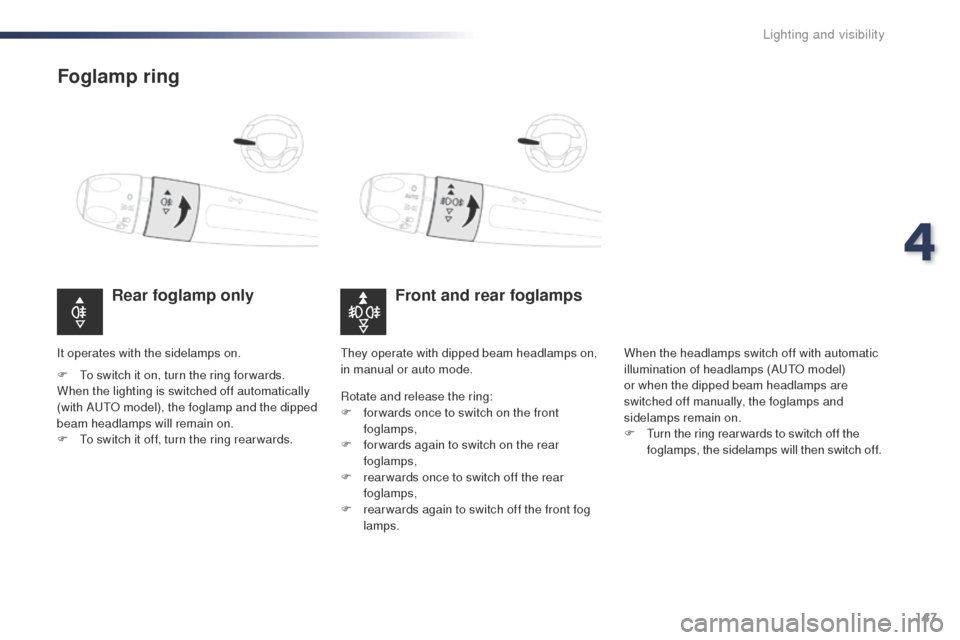

Foglamp ring
Front and rear foglamps
Rear foglamp only
F to switch it on, turn the ring for wards.
When the lighting is switched off automatically
(with A
u

to model), the foglamp and the dipped
beam headlamps will remain on.
F
t
o s
witch it off, turn the ring rear wards. Rotate and release the ring:
F

f
or wards once to switch on the front
foglamps,
F

f
or wards again to switch on the rear
foglamps,
F

r
ear wards once to switch off the rear
foglamps,
F

r
ear wards again to switch off the front fog
lamps. When the headlamps switch off with automatic
illumination of headlamps (Au
to model)
or when the dipped beam headlamps are
switched off manually, the foglamps and
sidelamps remain on.
F
t
u
rn the ring rear wards to switch off the
foglamps, the sidelamps will then switch off.
th
ey operate with dipped beam headlamps on,
in manual or auto mode.
It operates with the sidelamps on.
4
Lighting and visibility

148
Direction indicators
F Left: lower the lighting stalk, passing the point of resistance.
F

R
ight: raise the lighting stalk, passing the
point of resistance.
Three flashes of the direction
indicators
F Press briefly upwards or downwards, without going beyond the point of
resistance; the direction indicators will
flash 3 times.
In good or rainy weather, both day
and night, the front foglamps and the
rear foglamps are prohibited. In these
situations, the power of their beams
may dazzle other drivers.
t
he

y should
only be used in fog or snow.
In these weather conditions, it is your
responsibility to switch on the foglamps
and dipped headlamps manually as the
sunshine sensor may detect sufficient
light.
Do not forget to switch off the front
foglamps and the rear foglamps when
they are no longer needed.
Lighting left on audible
signal
An audible signal when a front door
is opened warns the driver that the
vehicle's exterior lighting is on, with the
ignition off and in manual lighting mode.
In this case, switching off the lighting
stops the audible signal.
Travelling abroad
If using your vehicle in a country that
drives on the other side of the road, the
headlamps must be adjusted to avoid
dazzling on-coming drivers.
Contact a P
e

ugeot dealer or a
qualified workshop.
th
e lighting goes off when you switch
off the ignition, but you can always
switch it on again using the lighting
control stalk.
Lighting and visibility
