Peugeot Expert VU 2016 Owner's Manual - RHD (UK, Australia)

259

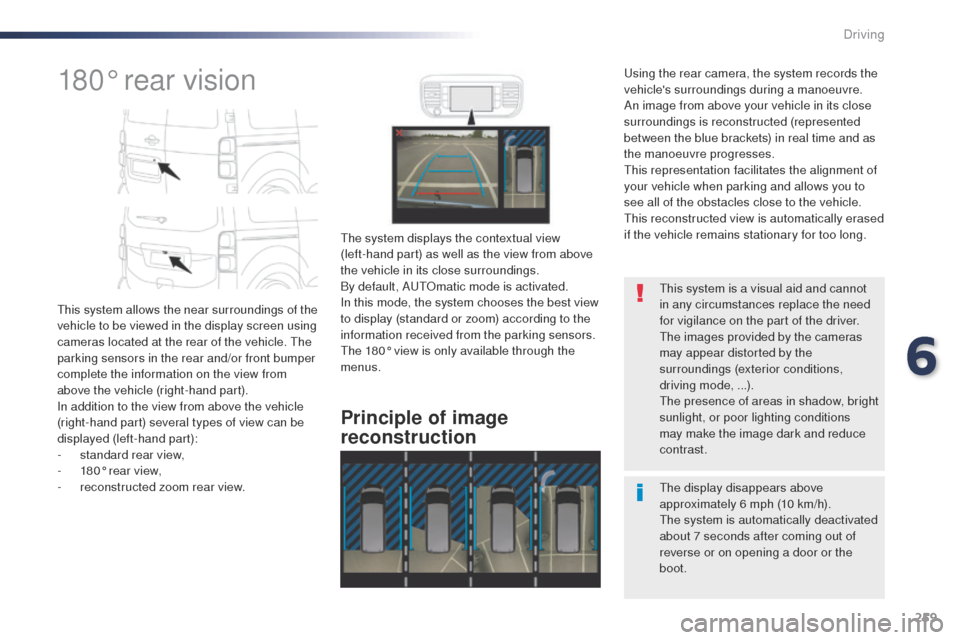

180° rear vision
this system allows the near surroundings of the
vehicle to be viewed in the display screen using
cameras located at the rear of the vehicle. t
h
e
parking sensors in the rear and/or front bumper
complete the information on the view from
above the vehicle (right-hand part).
In addition to the view from above the vehicle
(right-hand part) several types of view can be
displayed (left-hand part):
-

s
tandard rear view,
-

1
80° rear view,
-
r

econstructed zoom rear view.
Principle of image
reconstruction
the system displays the contextual view
(left-hand part) as well as the view from above
the vehicle in its close surroundings.
By default, A
u
to
m
atic mode is activated.
In this mode, the system chooses the best view
to display (standard or zoom) according to the
information received from the parking sensors.
th

e 180° view is only available through the
menus.
th

e display disappears above
approximately 6 mph (10 km/h).
th

e system is automatically deactivated
about 7 seconds after coming out of
reverse or on opening a door or the
boot.
th

is system is a visual aid and cannot
in any circumstances replace the need
for vigilance on the part of the driver.
th

e images provided by the cameras
may appear distorted by the
surroundings (exterior conditions,
driving mode, ...).
th

e presence of areas in shadow, bright
sunlight, or poor lighting conditions
may make the image dark and reduce
contrast.
us
ing the rear camera, the system records the
vehicle's surroundings during a manoeuvre.
An image from above your vehicle in its close
surroundings is reconstructed (represented
between the blue brackets) in real time and as
the manoeuvre progresses.
th
is representation facilitates the alignment of
your vehicle when parking and allows you to
see all of the obstacles close to the vehicle.
th
is reconstructed view is automatically erased
if the vehicle remains stationary for too long.
6
Driving

260
"Standard view""180° view"
"Zoom view" (reconstructed)
the camera records the surroundings during a
manoeuvre in order to create a reconstruction
of the view from above the rear of the vehicle in
its close surroundings, allowing the vehicle to
be manoeuvred among the obstacles nearby.
th

is view is available with A
u
to view or by
selecting of the view in the change view menu.
180° view makes it possible to reverse out of
a parking space while being able to see the
arrival of vehicles, pedestrians or cyclists.
th

is view is not recommended for carrying out
a complete manoeuvre.
It is made up of the following:
th

e area to the rear of your vehicle is displayed
in the screen.
th

e blue outline represents the width of your
vehicle (with mirrors): its orientation depends
on the position of the steering wheel.
th

e red line represents a distance of 30

cm
from the rear bumper and the two blue lines,
1 m and 2 m respectively.
Rear views
engage reverse gear to activate the camera,
located on the tailgate or rear door.
th

e rear parking sensors also
provide information on the vehicle's
surroundings.
ob

stacles may appear further away
than they are in reality.
It is important to check the side views
using the mirrors during the manoeuvre.
Driving

261

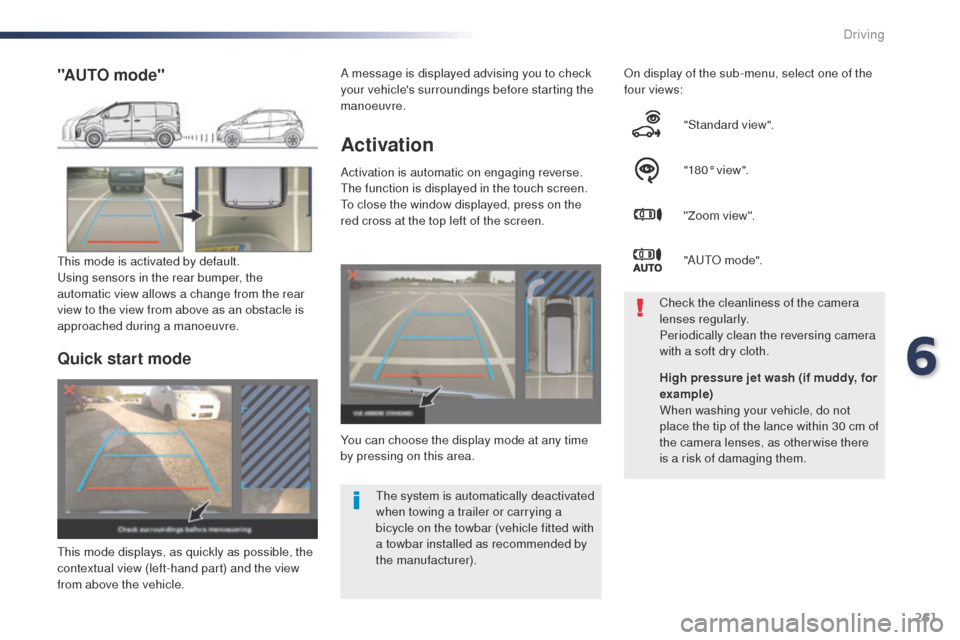

Activation
Activation is automatic on engaging reverse.the function is displayed in the touch screen.
to c

lose the window displayed, press on the
red cross at the top left of the screen.
on d
isplay of the sub-menu, select one of the
four views:
"Standard view".
"180° view".
"Zoom view".
"A
u

to
m
o de".
You can choose the display mode at any time
by pressing on this area. Check the cleanliness of the camera
lenses regularly.
Periodically clean the reversing camera
with a soft dry cloth.
"AUTO mode"
this mode is activated by default.us
ing sensors in the rear bumper, the
automatic view allows a change from the rear
view to the view from above as an obstacle is
approached during a manoeuvre.
th

e system is automatically deactivated
when towing a trailer or carrying a
bicycle on the towbar (vehicle fitted with
a towbar installed as recommended by
the manufacturer).
Quick start mode
this mode displays, as quickly as possible, the
contextual view (left-hand part) and the view
from above the vehicle. High pressure jet wash (if muddy, for
example)
When washing your vehicle, do not
place the tip of the lance within 30 cm of
the camera lenses, as otherwise there
is a risk of damaging them.
A message is displayed advising you to check
your vehicle's surroundings before starting the
manoeuvre.
6
Driving

262

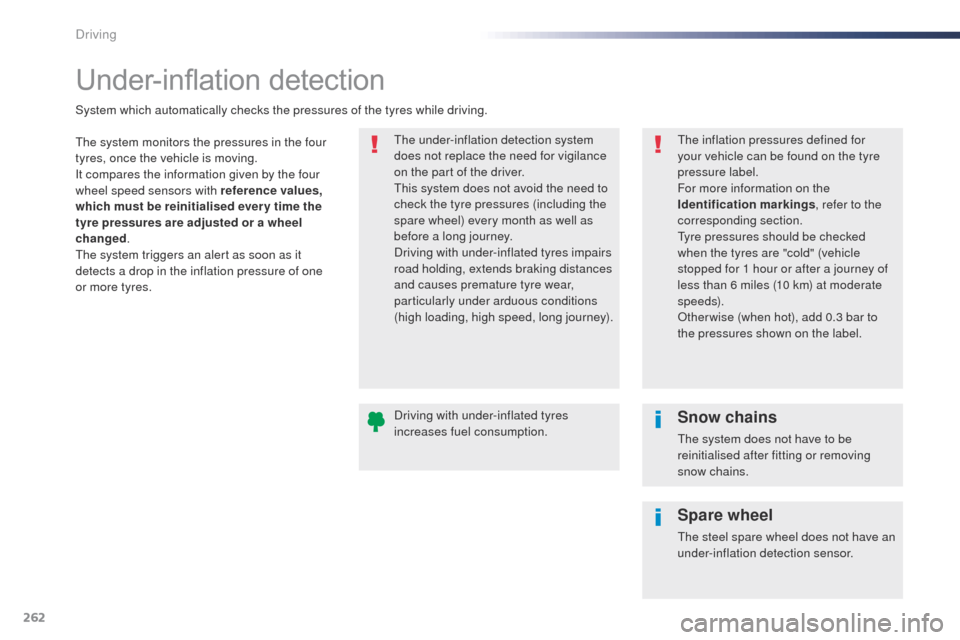

Under-inflation detection
the system monitors the pressures in the four
tyres, once the vehicle is moving.
It compares the information given by the four
wheel speed sensors with reference values,
which must be reinitialised ever y time the
tyre pressures are adjusted or a wheel
changed.
th

e system triggers an alert as soon as it
detects a drop in the inflation pressure of one
or more tyres.th e under-inflation detection system
does not replace the need for vigilance
on the part of the driver.
th

is system does not avoid the need to
check the tyre pressures (including the
spare wheel) every month as well as
before a long journey.
Driving with under-inflated tyres impairs
road holding, extends braking distances
and causes premature tyre wear,
particularly under arduous conditions
(high loading, high speed, long journey).
System which automatically checks the pressures of the tyres while driving.th
e inflation pressures defined for
your vehicle can be found on the tyre
pressure label.
For more information on the
Identification markings , refer to the
corresponding section.
ty

re pressures should be checked
when the tyres are "cold" (vehicle
stopped for 1 hour or after a journey of
less than 6 miles (10 km) at moderate
speeds).
ot

her wise (when hot), add 0.3 bar to
the pressures shown on the label.
Driving with under-inflated tyres
increases fuel consumption.
Snow chains
the system does not have to be
reinitialised after fitting or removing
snow chains.
Spare wheel
the steel spare wheel does not have an
under-inflation detection sensor.
Driving

263

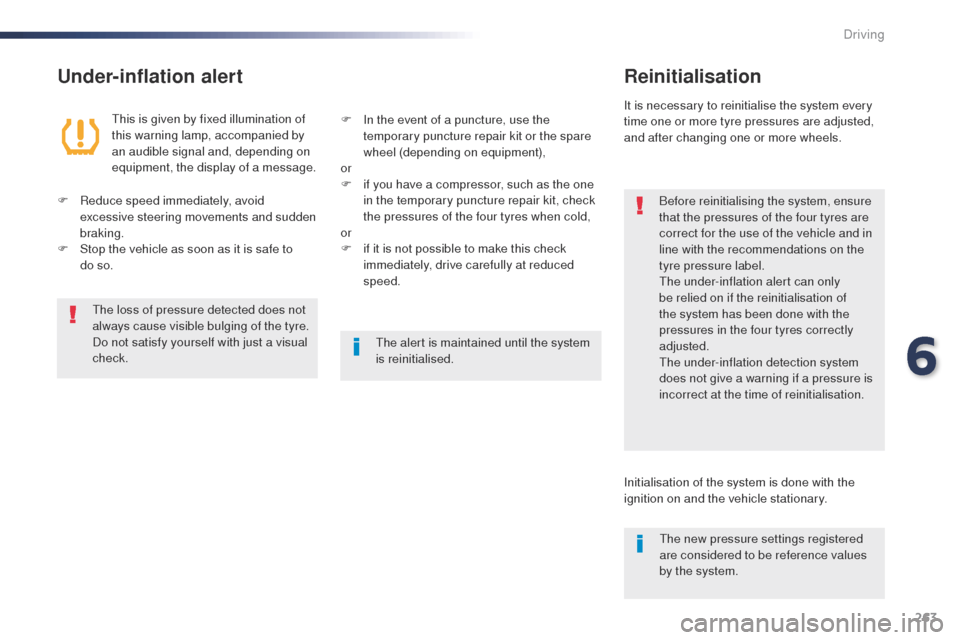

Under-inflation alertReinitialisation
Before reinitialising the system, ensure
that the pressures of the four tyres are
correct for the use of the vehicle and in
line with the recommendations on the
tyre pressure label.
th

e under-inflation alert can only
be relied on if the reinitialisation of
the system has been done with the
pressures in the four tyres correctly
adjusted.
th

e under-inflation detection system
does not give a warning if a pressure is
incorrect at the time of reinitialisation.
th

is is given by fixed illumination of
this warning lamp, accompanied by
an audible signal and, depending on
equipment, the display of a message. It is necessary to reinitialise the system every
time one or more tyre pressures are adjusted,
and after changing one or more wheels.
F
R
educe speed immediately, avoid
excessive steering movements and sudden
braking.
F

S

top the vehicle as soon as it is safe to
do


so. F

I

n the event of a puncture, use the
temporary puncture repair kit or the spare
wheel (depending on equipment),
or
F

i

f you have a compressor, such as the one
in the temporary puncture repair kit, check
the pressures of the four tyres when cold,
or
F

i

f it is not possible to make this check
immediately, drive carefully at reduced
speed.
th

e loss of pressure detected does not
always cause visible bulging of the tyre.
Do not satisfy yourself with just a visual
check.
th

e alert is maintained until the system
is reinitialised.
Initialisation of the system is done with the
ignition on and the vehicle stationary.
the

new pressure settings registered
are considered to be reference values
by the system.
6
Driving

264
In the Driving menu, select " Under-inflation
initialisation ".
With the audio system
In the "Personalisation-configuration " menu,
select " Under-inflation initialisation ".
Operating fault
the flashing and then fixed illumination of the
under-inflation warning lamp accompanied
by illumination of the Service warning lamp
indicates a fault with the system.
In this case, under-inflation monitoring of the
tyres is no longer assured.
Have the system checked by a P
e

ugeot
dealer or a qualified workshop.
Before doing anything to the system,
the pressures of the four tyres must be
checked and the system reinitialised.
With the touch screen
Press on " Ye s" to Confirm the command,
initialisation is confirmed by an audible signal
and a message.
Without audio system
F Press this button for about 3 seconds then release it; an
audible signal confirms the
reinitialisation.
Driving

265

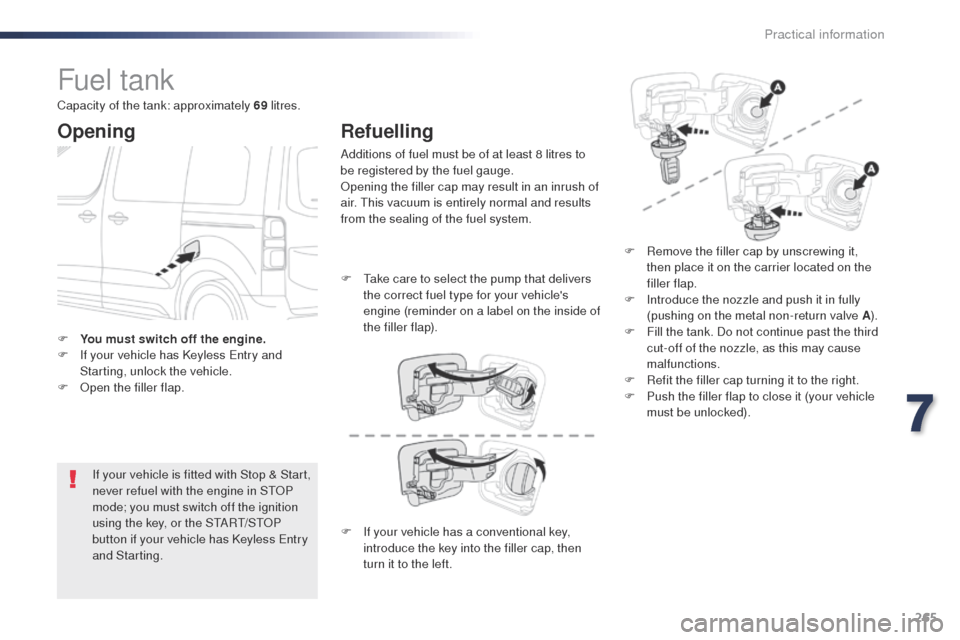

Fuel tank
Opening
If your vehicle is fitted with Stop & Start,
never refuel with the engine in StoP
m
ode; you must switch off the ignition
using the key, or the S
tA

R
t/
S
t
o
P
b

utton if your vehicle has Keyless e
n
try
and Starting.
F

Y

ou must switch off the engine.
F

I

f your vehicle has Keyless e
n
try and
Starting, unlock the vehicle.
F
o
p
en the filler flap.
Refuelling
Additions of fuel must be of at least 8 litres to
be registered by the fuel gauge.
op

ening the filler cap may result in an inrush of
air.
t
h
is vacuum is entirely normal and results
from the sealing of the fuel system.
F

R
emove the filler cap by unscrewing it,
then place it on the carrier located on the
filler flap.
F

I
ntroduce the nozzle and push it in fully
(pushing on the metal non-return valve A ).
F

F
ill the tank. Do not continue past the third
cut-off of the nozzle, as this may cause
malfunctions.
F

R
efit the filler cap turning it to the right.
F

P
ush the filler flap to close it (your vehicle
must be unlocked).
F
t
a
ke care to select the pump that delivers
the correct fuel type for your vehicle's
engine (reminder on a label on the inside of
the filler flap).
Capacity of the tank: approximately 69
litres.
F
I
f your vehicle has a conventional key,
introduce the key into the filler cap, then
turn it to the left.
7
Practical information

266
Low fuel level
When the low fuel level in
the tank is reached, this
warning lamp comes on
in the instrument panel,
accompanied by an audible
warning and a message.
Fuel supply cut-off
Your vehicle is equipped with a safety device
which cuts off the fuel supply in the event of a
collision. When it first comes on, less than 8 litres of fuel
remain in the tank.
You must refuel as soon as possible to avoid
running out.If you have put in the wrong fuel for
your vehicle, you must have the tank
drained and refilled with the correct
fuel before you star t the engine.
Your vehicle is fitted with a catalytic converter,
a device which helps to reduce the level of
harmful emissions in the exhaust gases.
Diesel misfuel
prevention
Mechanical device which prevents filling the
tank of a Diesel vehicle with petrol. It avoids
the risk of engine damage that can result from
filling with the wrong fuel.
Located in the filler neck, the misfuel
prevention device appears when the filler cap
is removed.
When a petrol filler nozzle is introduced into the
fuel filler neck of your Diesel vehicle, it comes
into contact with the flap.
t
h
e system remains
closed and prevents filling.
Do not persist but introduce a Diesel filler
nozzle.
If your vehicle has sliding side doors, do
not open the left hand sliding door as
there is a risk of damaging the fuel filler
flap when refuelling.
Practical information

267

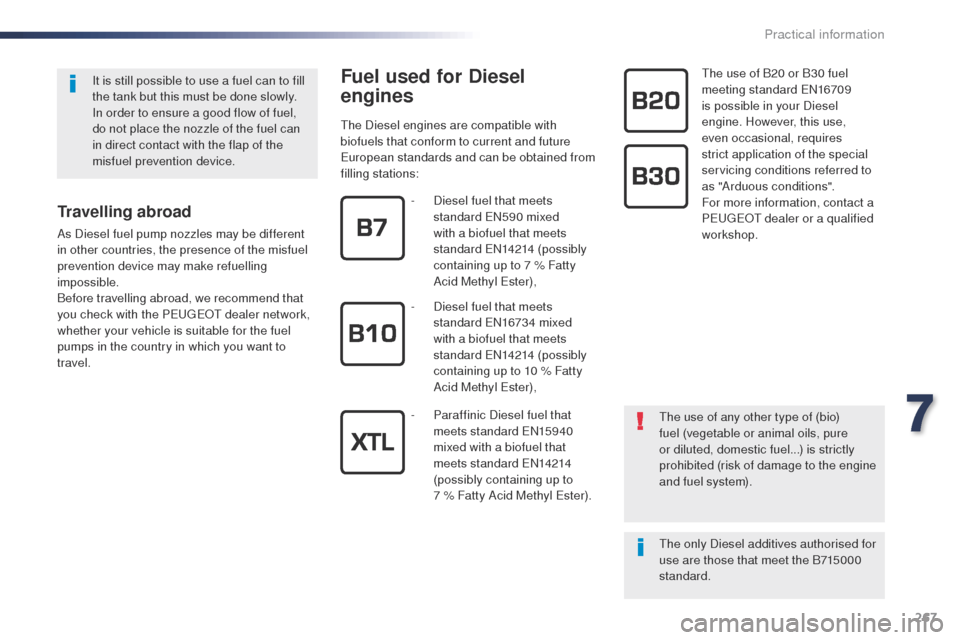

Fuel used for Diesel
engines
the Diesel engines are compatible with
biofuels that conform to current and future
eu
ropean standards and can be obtained from
filling stations:
th
e use of B20 or B30 fuel
meeting standard e
N
16709
is possible in your Diesel
engine. However, this use,
even occasional, requires
strict application of the special
servicing conditions referred to
as "Arduous conditions".
For more information, contact a
P
e

ugeot dealer or a qualified
workshop.
It is still possible to use a fuel can to fill
the tank but this must be done slowly.
In order to ensure a good flow of fuel,
do not place the nozzle of the fuel can
in direct contact with the flap of the
misfuel prevention device.
Travelling abroad
As Diesel fuel pump nozzles may be different
in other countries, the presence of the misfuel
prevention device may make refuelling
impossible.
Before travelling abroad, we recommend that
you check with the P
e

ugeot dealer network,
whether your vehicle is suitable for the fuel
pumps in the country in which you want to
travel.
th

e use of any other type of (bio)
fuel (vegetable or animal oils, pure
or diluted, domestic fuel...) is strictly
prohibited (risk of damage to the engine
and fuel system).
th

e only Diesel additives authorised for
use are those that meet the B715000
standard.
-

D
iesel fuel that meets
standard e
N
590 mixed
with a biofuel that meets
standard eN 14214 (possibly
containing up to 7 % Fatty
Acid Methyl
e
s
ter),
-

D
iesel fuel that meets
standard
e
N
16734 mixed
with a biofuel that meets
standard
e
N
14214 (possibly
containing up to 10 % Fatty
Acid Methyl
e
s
ter),
-

P
araffinic Diesel fuel that
meets standard
e
N
15940
mixed with a biofuel that
meets standard
e
N
14214
(possibly containing up to
7
% Fatty Acid Methyl e
s
ter).
7
Practical information

268
Snow chains
In wintry conditions, snow chains improve
traction as well as the behaviour of the vehicle
when braking.
th
e snow chains must be fitted only to
the front wheels.
ta

ke account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised. Avoid driving with snow chains on roads
that have been cleared of snow, to
avoid damaging your vehicle's tyres and
the road sur face. If your vehicle is fitted
with alloy wheels, check that no part of
the chain or its fixings is in contact with
the wheel rim.
us

e only the chains designed to be fitted to the
type of wheel fitted to your vehicle:
You can also use snow socks.
For more information, contact a P
e

ugeot
dealer or a qualified workshop.
Advice on installation
F If you have to fit the chains during a journey, stop the vehicle on a flat sur face
on the side of the road.
F

A
pply the parking brake and position any
wheel chocks to prevent movement of your
vehicle.
F

F
it the chains following the instructions
provided by the manufacturer.
F

M
ove off gently and drive for a few
moments, without exceeding 30 mph
(50


km/h).
F

S
top your vehicle and check that the snow
chains are correctly tightened.
or

iginal tyre size
ty

pe of chain
215/65 R16 12 mm links
215/60 R17 K
oN

I
g

K-S
uM

MI
t


VA N K8 4
225/55 R17
It is strongly recommended that before
you leave, you practise fitting the snow
chains on a level and dry sur face.
Practical information
