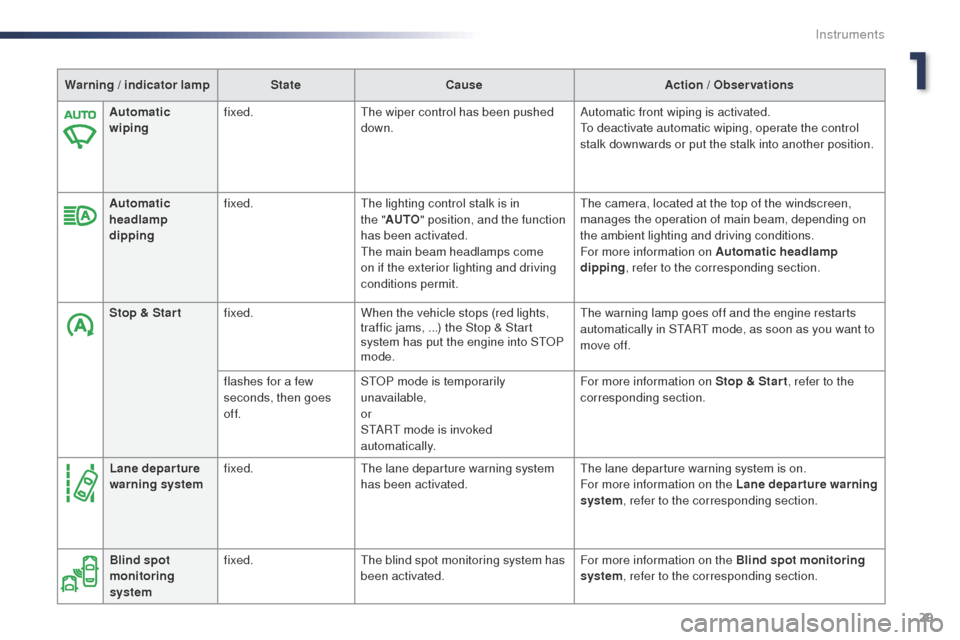

Warning / indicator lampStateCause Action / Observations
Automatic
wiping fixed.
th

e wiper control has been pushed
down. Automatic front wiping is activated.
to d

eactivate automatic wiping, operate the control
stalk downwards or put the stalk into another position.
Automatic
headlamp
dipping fixed.
th

e lighting control stalk is in
the
"AUTO " position, and the function
has been activated.
th

e main beam headlamps come
on if the exterior lighting and driving
conditions permit.
th

e camera, located at the top of the windscreen,
manages the operation of main beam, depending on
the ambient lighting and driving conditions.
For more information on Automatic headlamp
dipping , refer to the corresponding section.
Stop & Star t fixed. When the vehicle stops (red lights,
traffic jams,
...) the Stop & Start
system has put the engine into S
t

o
P
m

ode.
th
e warning lamp goes off and the engine restarts
automatically in S
tA

R
t
mode, as soon as you want to
move off.
flashes for a few
seconds, then goes
of f. S
t

o
P m
ode is temporarily
unavailable,
or
S
tA

R
t
mode is invoked
automatically. For more information on Stop & Star t
, refer to the
corresponding section.
Blind spot
monitoring
system fixed.
th

e blind spot monitoring system has
been activated. For more information on the Blind spot monitoring
system, refer to the corresponding section.
Lane departure
warning system
fixed.
th

e lane departure warning system
has been activated.
th

e lane departure warning system is on.
For more information on the Lane departure warning
system, refer to the corresponding section.
1
Instruments

30
For more information on the Lighting control stalk, refer to the corresponding section.
Warning / indicator lamp
StateCause Action / Observations
Front foglamps fixed.
th
e front foglamps are switched on
using the ring on the lighting control
stalk.
tu
rn the ring on the lighting control stalk rear ward
once to switch off the front foglamps.
Sidelamps fixed.
th
e lighting stalk is in the
"Sidelamps" position.
Left-hand
direction
indicato r flashing with buzzer.
th
e lighting stalk has been pushed
down.
Right-hand
direction
indicator flashing with buzzer.
th
e lighting stalk has been
pushed

up.
Dipped beam
headlamps fixed.
th
e lighting stalk is in the "Dipped
beam headlamps" position.
Main beam
headlamps fixed.
th
e lighting stalk has been pulled
towards you. Pull the stalk to return to dipped beam headlamps.
Instruments

31
With the engine running, when the needle or
the bar graph (depending on version) is:
-
i
n zone A , the temperature of the engine
coolant is correct,
-

i
n zone B, the temperature of the engine
coolant is too high; the maximum
temperature and the central STOP warning
lamps come on, accompanied by an
audible signal and a warning message in
the touch screen.
You MUST stop as soon as it is safe to do so.
Wait a few minutes before switching off the
engine.
Contact a P
e

ugeot dealer or a qualified
workshop. After driving for a few minutes, the temperature
and pressure in the cooling system increase.
to t

op-up the level:
F
w
ait at least one hour for the engine to
cool,
F
u
nscrew the cap two turns to allow the
pressure to drop,
F
w
hen the pressure has dropped, remove
the cap,
F
t
op-up the level to the "MA X" mark.
Be aware of the risk of burns when
topping up the cooling system. Do not
fill above the maximum level (indicated
on the header tank).

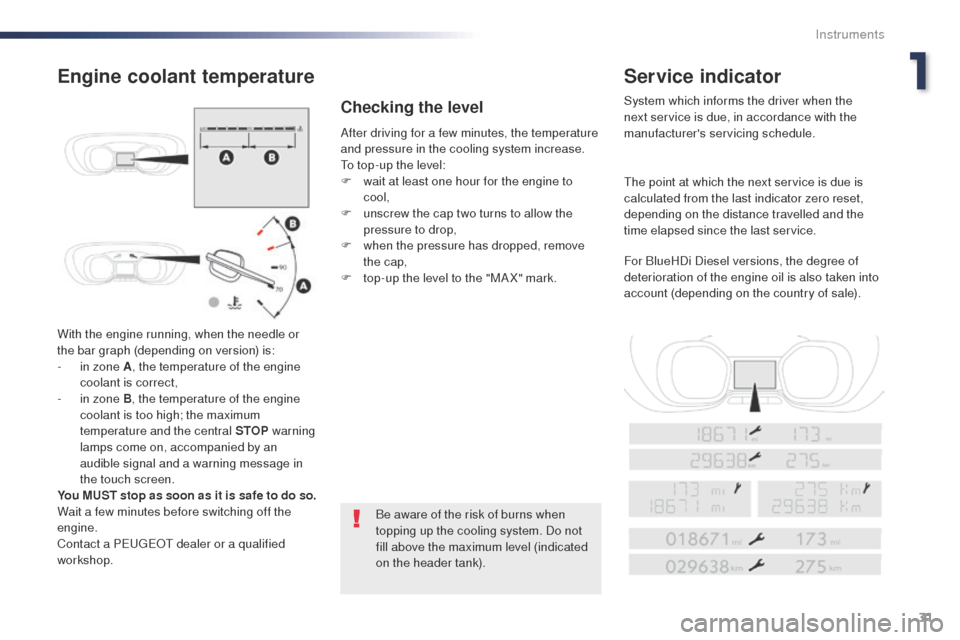

Engine coolant temperature Service indicator
System which informs the driver when the
next service is due, in accordance with the
manufacturer's servicing schedule.
th

e point at which the next service is due is
calculated from the last indicator zero reset,
depending on the distance travelled and the
time elapsed since the last service.
For BlueHDi Diesel versions, the degree of
deterioration of the engine oil is also taken into
account (depending on the country of sale).Checking the level
1
Instruments

32
Between 600 miles (1 000 km) and 1 800 miles
(3 000 km) remain before the next service is due
For 5 seconds after the ignition is switched on,
the spanner symbolising the service operations
comes on.
t
h
e distance recorder display line
indicates the distance remaining before the
next service is due.
Example: 1 700 miles (2 800 km) remain
before the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds after the ignition is switched on,
the spanner goes off ; the distance recorder
resumes its normal operation.
t
h
e screen then
indicates the total distance.
Service overdue
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on .
For 5 seconds after the ignition is switched on,
the spanner flashes
to indicate that the service
must be carried out as soon as possible.
Example: the service is overdue by 180 miles
(3 0 0 k m).
For 5 seconds after the ignition is switched on,
the screen indicates:
Less than 600 miles (1 000 km)
remain before the next service is due
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on to
indicate that a service must be carried out
soon.
For BlueHDi Diesel versions, this alert may
also be accompanied by the fixed illumination
of the service warning lamp when the ignition
is on.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no service
information appears in the screen. Example:
560 miles (900 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
Instruments

33
the distance remaining may be
weighted by the time factor, depending
on the driving conditions.
th
erefore, the spanner may also come
on if you have exceeded the period
since the last service, indicated in the
manufacturer's service schedule.
For BlueHDi Diesel versions, the
spanner may also be brought on earlier
than expected, depending on the
degree of deterioration of the engine oil
(depending on the country of sale).
th

e rate of deterioration of the engine
oil depends on the driving conditions in

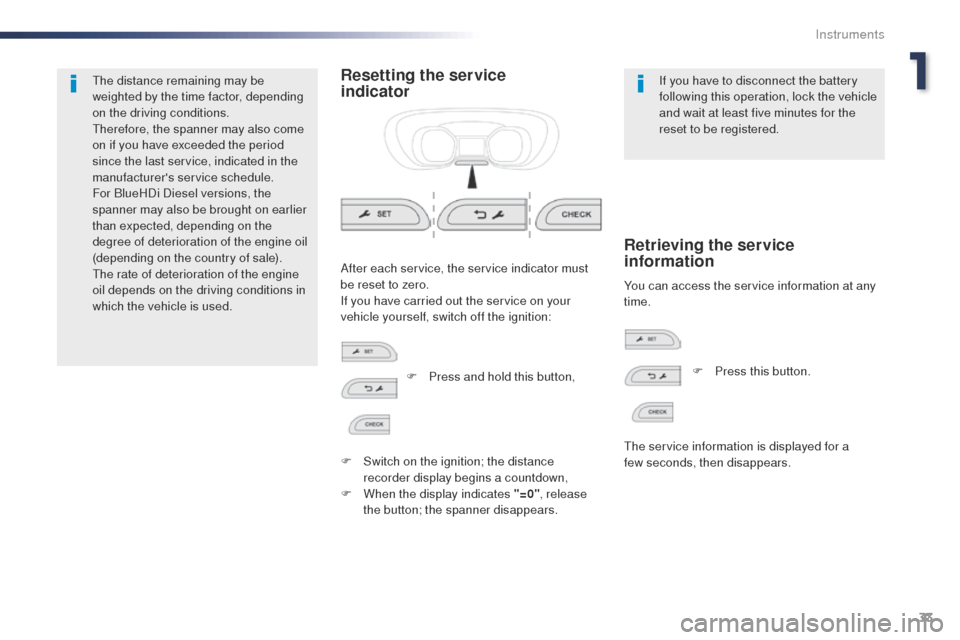

which the vehicle is used.Resetting the service
indicatorIf you have to disconnect the battery
following this operation, lock the vehicle
and wait at least five minutes for the
reset to be registered.
You can access the service information at any
time.
After each service, the service indicator must
be reset to zero.
If you have carried out the service on your
vehicle yourself, switch off the ignition:
Retrieving the service
information
F Press and hold this button,
F

S

witch on the ignition; the distance
recorder display begins a countdown,
F

W

hen the display indicates "=0" , release
the button; the spanner disappears. F
P ress this button.
th

e service information is displayed for a
few


seconds, then disappears.
1
Instruments

34
Engine oil level
indicator
on versions fitted with an electric oil gauge,
information on the oil level is displayed in the
instrument panel for a few seconds when the
ignition is switched on, at the same time as the
service information.
th
e level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30 minutes.
Oil level correct Oil level incorrect
Oil level indicator faultDipstick
there are 2 marks on the
dipstick:
-

A
= max; never exceed this
level,
-

B
= min; top-up the level via
the oil filler, using the grade
of oil suited to your engine.
to l

ocate the dipstick and the oil filler
cap for the Diesel engine , refer to the
corresponding section.
th

is is indicated by a message in the
instrument panel.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped-up to
avoid damage to the engine.
th

is is indicated by a message in the
instrument panel.
th

is is indicated by a message in the
instrument panel. Contact a P
e

ugeot
dealer
or a qualified workshop.
Instruments

35

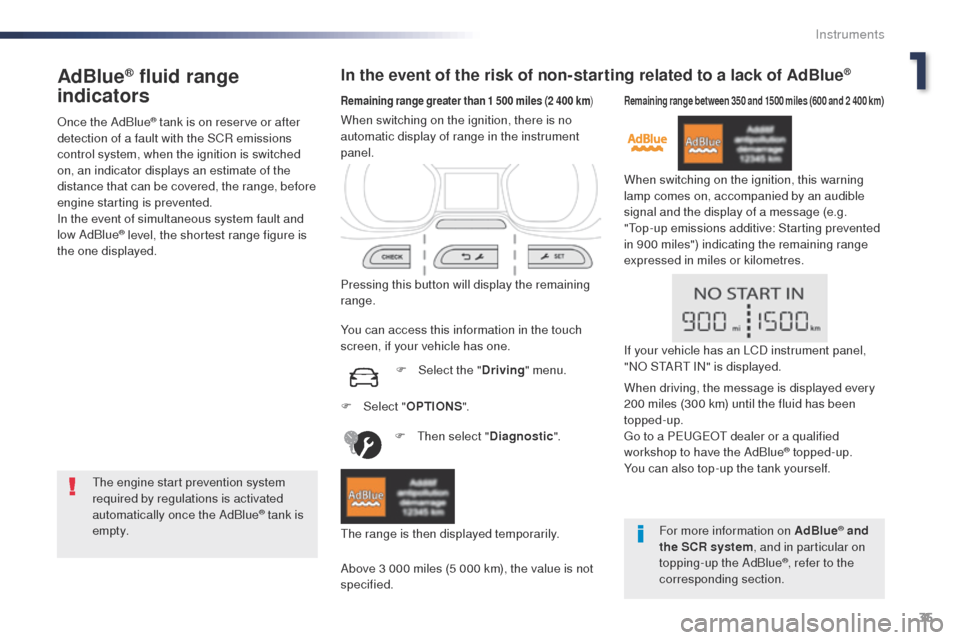

AdBlue® fluid range
indicators
once the AdBlue® tank is on reserve or after
detection of a fault with the SCR emissions
control system, when the ignition is switched
on, an indicator displays an estimate of the
distance that can be covered, the range, before
engine starting is prevented.
In the event of simultaneous system fault and
low AdBlue
® level, the shortest range figure is
the one displayed.
In the event of the risk of non-starting related to a lack of AdBlue®
the engine start prevention system
required by regulations is activated
automatically once the AdBlue
® tank is
e m pt y.
Remaining range greater than 1 500 miles (2 400 km )
Pressing this button will display the remaining
range.
F
t
hen
select "Diagnostic ".
Above 3 000 miles (5 000 km), the value is not
specified. When switching on the ignition, there is no
automatic display of range in the instrument
panel.
the

range is then displayed temporarily.
You can access this information in the touch
screen, if your vehicle has one.
F

Sel
ect the "Driving" menu.
Remaining range between 350 and 1500 miles (600 and 2 400 km)
When switching on the ignition, this warning
lamp comes on, accompanied by an audible
signal and the display of a message (e.g.
"
to

p-up emissions additive: Starting prevented
in 900 miles") indicating the remaining range
expressed in miles or kilometres.
F

Sel

ect " OPTIONS ".
For more information on AdBlue
® and
the SCR system , and in particular on
topping-up the AdBlue
®, refer to the
corresponding section.
If your vehicle has an LCD instrument panel,
"N
o

S
tA

R
t

IN" is displayed.
When driving, the message is displayed every
200 miles (300 km) until the fluid has been
topped-up.
go t

o a P
e

ugeot
dealer or a qualified
workshop to have the AdBlue
® topped-up.
You can also top-up the tank yourself.
1
Instruments

36
Remaining range between 0 and 350 miles (0 and 600 km)
When switching on the ignition, this warning
lamp flashes, accompanied by an audible
signal and the display of a message (e.g.
"
to
p-up emissions additive: Starting prevented
in 350 miles") indicating the remaining range
expressed in miles or kilometres. Breakdown related to a lack of AdBlue
®
When switching on the ignition, this
warning lamp flashes, accompanied
by an audible signal and the display
of the message "
to

p-up emissions
additive: Starting prevented".
to b

e able to start the engine,
we recommend that you call on a
P
e

ugeot dealer or a qualified
workshop for the top-up required.
If you carry out the top-up yourself, it
is essential to add at least 3.8 litres of
AdBlue
® to the tank.
For more information on AdBlue
® and
the SCR system , and in particular on
topping-up the AdBlue
®, refer to the
corresponding section.
If your vehicle has an LCD instrument panel,
"N
o

S
tA

R
t

IN" is displayed.
If your vehicle has an LCD instrument panel,
"N
o
S
tA
R
t
IN" is displayed.
When driving, the message is displayed every
30 seconds until the fluid has been topped-up.
go t

o a P
e

ugeot
dealer or a qualified
workshop to have the AdBlue
® topped-up.
You can also top-up the tank yourself.
ot

her wise you will not be able to restart your
engine.
th
e AdBlue
® tank is empty: the system required
by regulations prevents engine starting.
Instruments

37
Starting prevented
ev
ery time the ignition is switched on, these
warning lamps come on, accompanied by an
audible signal and the display of the message
"
em

issions fault: Starting prevented".
You have exceeded the authorised
driving limit: the starting prevention
system inhibits engine starting.
to b

e able to start the engine, you must call on
a P
e

ugeot dealer or a qualified workshop.

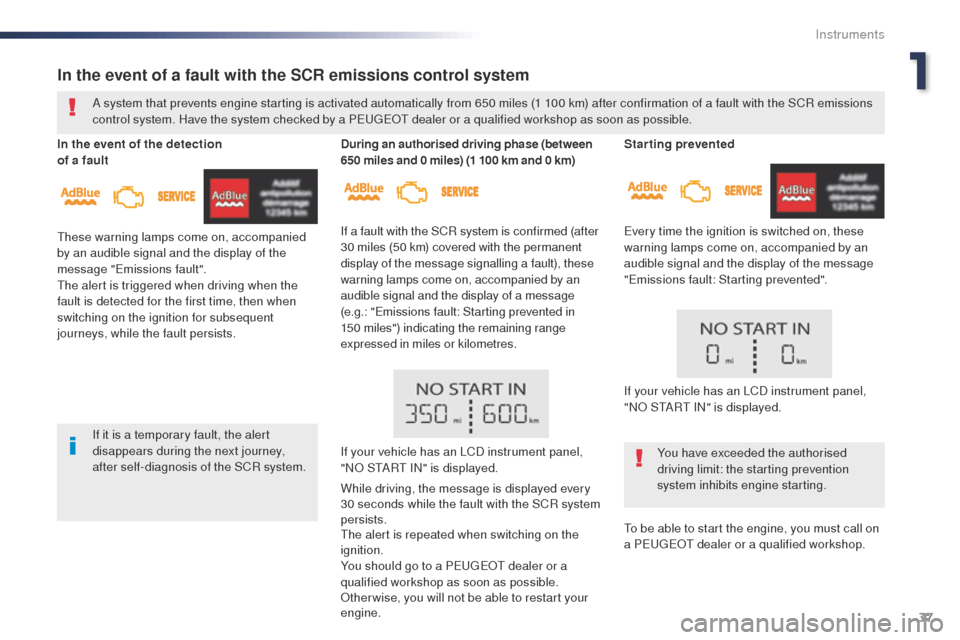

In the event of a fault with the SCR emissions control system
A system that prevents engine starting is activated automatically from 650 miles (1 100 km) after confirmation of a fault with the SCR emissions
control system. Have the system checked by a Pe ugeot dealer or a qualified workshop as soon as possible.
If it is a temporary fault, the alert
disappears during the next journey,
after self-diagnosis of the SCR system.
In the event of the detection
of a fault
th

ese warning lamps come on, accompanied
by an audible signal and the display of the
message "
em

issions fault".
the

alert is triggered when driving when the
fault is detected for the first time, then when
switching on the ignition for subsequent
journeys, while the fault persists. During an authorised driving phase (between
650 miles and 0 miles) (1 100 km and 0 km)
If a fault with the SCR system is confirmed (after
30 miles (50 km) covered with the permanent
display of the message signalling a fault), these
warning lamps come on, accompanied by an
audible signal and the display of a message
(e.g.: "
em

issions fault: Starting prevented in
150 miles") indicating the remaining range
expressed in miles or kilometres.
If your vehicle has an LCD instrument panel,
"N
o

S
tA
R
t
IN" is displayed.
While driving, the message is displayed every
30 seconds while the fault with the SCR system
persists.
the

alert is repeated when switching on the
ignition.
You should go to a P
e

ugeot dealer or a
qualified workshop as soon as possible.
ot

her wise, you will not be able to restart your
engine. If your vehicle has an LCD instrument panel,
"N
o

S
tA
R
t
IN" is displayed.
1
Instruments

38
Distance recorders
the total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.When travelling abroad, you may
have to change the units of distance:
the display of road speed must be in
the official units (miles or km) for the
country.
t
h
e change of units is done via
the screen configuration menu, with the
vehicle stationary.
Total distance recorder
It measures the total distance travelled by the
vehicle since its first registration.
Trip distance recorder
It measures the distance travelled since it was
reset to zero by the driver.
F

W
ith the ignition on, press this
button until zeros appear.
Instruments
