Peugeot Expert VU 2016 Owner's Manual

129
Expert_en_Chap03_ergonomie-et-confort_ed01-2016

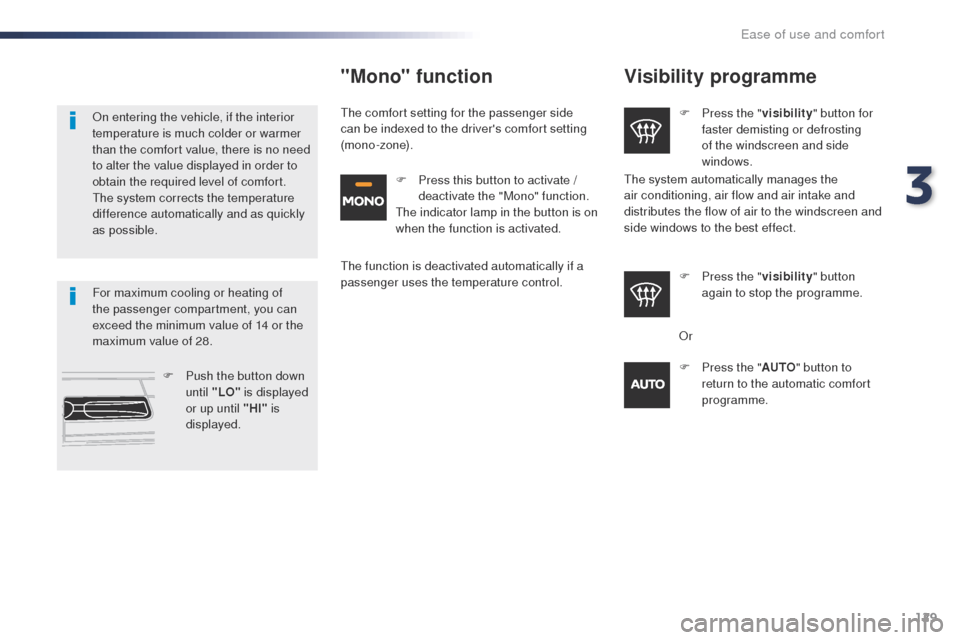

Visibility programme
F Press the "visibility" button for
faster demisting or defrosting
of the windscreen and side
windows.
F

P
ress the " visibility" button
again to stop the programme.
th

e system automatically manages the
air conditioning, air flow and air intake and
distributes the flow of air to the windscreen and
side windows to the best effect.
For maximum cooling or heating of
the passenger compartment, you can
exceed the minimum value of 14 or the
maximum value of 28. F

P

ush the button down
until "LO" is displayed
or up until "HI" is
displayed.on e
ntering the vehicle, if the interior
temperature is much colder or warmer
than the comfort value, there is no need
to alter the value displayed in order to
obtain the required level of comfort.
th

e system corrects the temperature
difference automatically and as quickly
as possible.
"Mono" function
the comfort setting for the passenger side
can be indexed to the driver's comfort setting
(mono-zone).
th

e function is deactivated automatically if a
passenger uses the temperature control.
o

r
F

P
ress the "AUTO" button to
return to the automatic comfort
programme.
F

P
ress this button to activate /
deactivate the "Mono" function.
th

e indicator lamp in the button is on
when the function is activated.
3
Ease of use and comfort

130
Expert_en_Chap03_ergonomie-et-confort_ed01-2016
F Press this button to increase air f low.
Air distribution
F Press this button repeatedly to direct the air flow in turn to:
-

t

he windscreen, the side windows and the
footwells,
-

t

he footwells,
-

t

he central vents, the side vents and the
footwells,
-

t

he windscreen, the side windows, the
centre vents and the footwells,
-

t

he centre and side vents,
-

t

he windscreen and side windows
(demisting or defrosting).
Air flow
F Press this button to decrease air f low.
th

e air flow symbol (a fan) appears. It is filled
in or emptied progressively according to the
setting.
Air conditioning
It enables you to:
- l ower the temperature, in summer,
-
i

ncrease the effectiveness of the demisting
in winter, above 3°C.
Switching on
With the engine running, the air conditioning is
designed to operate effectively in all seasons,
with the windows closed.
th

e air conditioning does not operate
when the air flow adjustment is set to
of f.
to o

btain cool air more quickly, you
can use interior air recirculation for
a few moments.
t
h
en return to the
intake of exterior air. F

P
ress this button; its indicator
lamp comes on.
F

P
ress this button again; its
indicator lamp goes off.
Switching off
Switching off may result in some
discomfort (humidity, misting).
Ease of use and comfort

131
Expert_en_Chap03_ergonomie-et-confort_ed01-2016
Switching the system off
F Press this button until the fan symbol disappears.
th

is action switches off all of the functions of
the system.
th

e temperature is no longer controlled. A
slight flow of air, resulting from the movement
of the vehicle, remains perceptible however.
Avoid driving for too long with the
system switched off (risk of misting and
of deterioration of the air quality).
Air intake / Air recirculation
the intake of exterior air avoids misting of the
windscreen and side windows.
th
e recirculation of interior air insulates the
passenger compartment from exterior odours
and smoke.
Return to exterior air intake as soon as
possible to avoid deterioration of the air
quality and the formation of mist.
th
is allows hot or cold air to be
delivered quickly when required.
F

P
ress this button to recirculate
the interior air; the symbol
appears.
F

P
ress this button again to allow
exterior air into the passenger
compartment; the symbol
disappears. F

P
ress this button to switch the
system on again.
3
Ease of use and comfort

132
Expert_en_Chap03_ergonomie-et-confort_ed01-2016
Front demist - defrost
these markings on the control panel indicate the control positions for rapid demisting or
defrosting of the windscreen and side windows.
Manual heating/ventilation
or air conditioning
With Stop & Start, when demisting has
been activated, the StoP m ode is not
available.
Dual-zone digital air
conditioning
F Put the air flow, temperature and distribution controls to the dedicated
marked position.
th
e system automatically manages the air
conditioning, air flow and air intake, and
provides optimum distribution towards the
windscreen and side windows.
the

system reverts to the previous settings.F

P
ress this button to demist or
defrost the windscreen and side
windows as quickly as possible.
F t
o s
top, press this button again
or on "AUTO".
F

F
or air conditioning, press this
button; its indicator lamp comes
on. Heated windscreen and washer jets
For more information on the Wiper
control stalk
and in particular the
heated windscreen and washer jets,
refer to the corresponding section.
Ease of use and comfort

133
Expert_en_Chap03_ergonomie-et-confort_ed01-2016

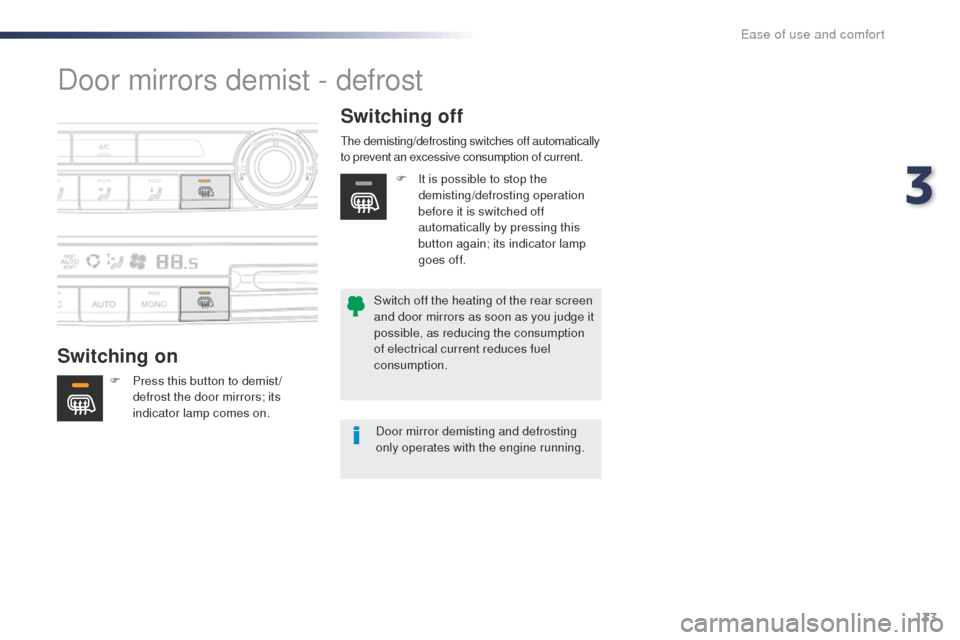

Door mirrors demist - defrost
Switching onSwitching off
F Press this button to demist /
defrost the door mirrors; its
indicator lamp comes on.
the demisting/defrosting switches off automatically
to prevent an excessive consumption of current.
Door mirror demisting and defrosting
only operates with the engine running.
Switch off the heating of the rear screen
and door mirrors as soon as you judge it
possible, as reducing the consumption
of electrical current reduces fuel
consumption. F
I
t is possible to stop the
demisting/defrosting operation
before it is switched off
automatically by pressing this
button again; its indicator lamp
goes off.
3
Ease of use and comfort

134
Expert_en_Chap03_ergonomie-et-confort_ed01-2016
Rear screen demist - defrost
Switching onSwitching off
F Press this button to demist /
defrost the rear screen and the
door mirrors (if your vehicle is
so equipped); its indicator lamp
comes on.
the demisting/defrosting switches off automatically
to prevent an excessive consumption of current.
Rear screen demisting and defrosting
only operates with the engine running.
Switch off the heating of the rear screen
and door mirrors as soon as you judge it
possible, as reducing the consumption
of electrical current reduces fuel
consumption. F
I
t is possible to stop the
demisting/defrosting operation
before it is switched off
automatically by pressing this
button again; its indicator lamp
goes off.
Ease of use and comfort

135
Expert_en_Chap03_ergonomie-et-confort_ed01-2016
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F t
o o
btain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located at the rear.
F

D
o not cover the sunshine sensor, located at the top of the windscreen; this is used for
regulation of the air conditioning system.
F
o
p
erate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in per fect working order.
F

E
nsure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly.
W

e recommend the use of a combined passenger compartment filter. t
h
anks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
F
t
o e
nsure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the warranty and maintenance record.
F

I
f the system does not produce cold air, switch it off and contact a PE
u
g
Eo
t dealer or
a qualified workshop.
Recommendations for heating, ventilation and air conditioning
If after an extended stop in sunshine,
the interior temperature is very high, first
ventilate the passenger compartment for
a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
th

e air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
th

e condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
perfectly normal.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.
Stop & Start
the heating and air conditioning
systems only work when the engine is
running.
to m
aintain a comfortable temperature
in the passenger compartment, you can
temporarily deactivate the Stop & Start
system.
For more information on Stop & Star t ,
refer to the corresponding section.
Air vents
to close a vent, move the control
towards the outside of the vehicle. Slight
resistance may be felt.
3
Ease of use and comfort

136
Expert_en_Chap03_ergonomie-et-confort_ed01-2016
I require...Heating or Manual air conditioning
Air distribution Air flowRecirculation of interior air /
Intake of exterior air Temperature Manual AC
HOT
COLD
DEMISTING
DEFROSTING
Suggested interior settings
Dual-zone air conditioning: use the automatic mode in preference by pressing the "AUTO" button.
Ease of use and comfort

137
Expert_en_Chap03_ergonomie-et-confort_ed01-2016

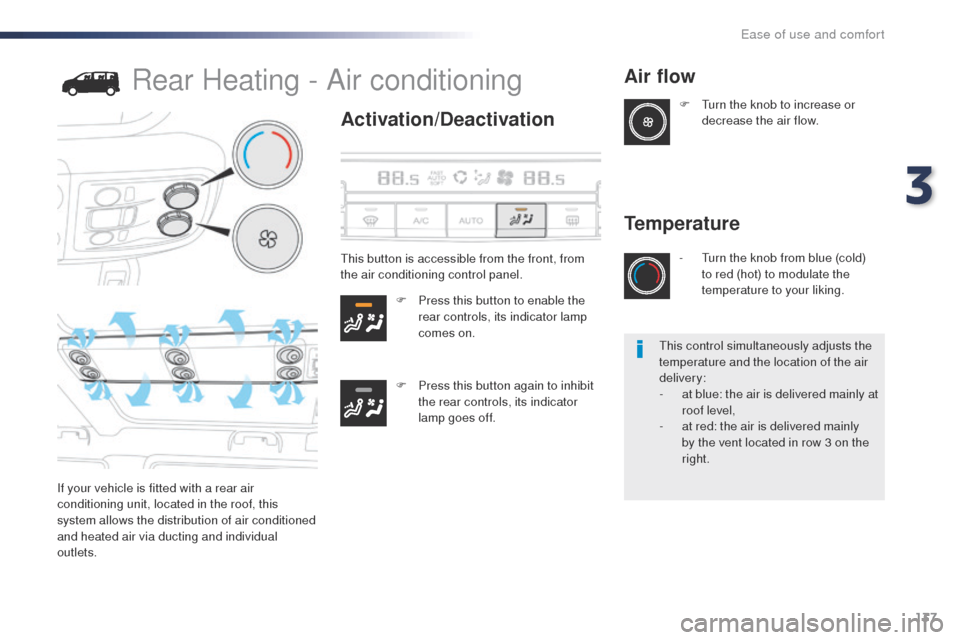

Rear Heating - Air conditioning
Activation/Deactivation
F Press this button to enable the rear controls, its indicator lamp
comes on.
F

P
ress this button again to inhibit
the rear controls, its indicator
lamp goes off.
Air flow
If your vehicle is fitted with a rear air
conditioning unit, located in the roof, this
system allows the distribution of air conditioned
and heated air via ducting and individual
outlets. F
t
u
rn the knob to increase or
decrease the air flow.
Temperature
- turn the knob from blue (cold) to red (hot) to modulate the
temperature to your liking.th
is button is accessible from the front, from
the air conditioning control panel.
thi

s control simultaneously adjusts the
temperature and the location of the air
delivery:
-

a
t blue: the air is delivered mainly at
roof level,
-

a
t red: the air is delivered mainly
by the vent located in row 3 on the
right.
3
Ease of use and comfort

138
Expert_en_Chap03_ergonomie-et-confort_ed01-2016
Heating
this is an additional and separate system
which heats the engine hot water circuit to
heat the passenger compartment and improve
defrosting.
th
is indicator lamp is on when if the
system is programmed to come on
for heating.
th

is indicator lamp flashes while the
heating is operating.
Programmable Heating / Ventilation
Ventilation
this system allows ventilation of the passenger
compartment to improve the temperature
experienced on entering the vehicle in summer.
Programming
Audio system
F Press on the MENU button to go
to the main menu.
F

Sel

ect " Pre-heat. / Pre-ventil. ".
F

Sel

ect " Heating " to heat the engine and
passenger compartment or " Ventilation"
to ventilate the passenger compartment. F
Select:
-

t
he 1
st clock to programme/store your
start time,
-

t

he 2
nd clock to programme/store a
second start time.
us

ing these two clocks and according
to season you can, for example, select
one or the other start time.
A message in the screen confirms your
choice.
F

Sel

ect " Activation " and if necessary for
programming, select " Parameters".
Ease of use and comfort
