Peugeot Expert VU 2016 Owner's Manual

159
Expert_en_Chap04_eclairage-et-visibilite_ed01-2016
* Depending on the country of sale.

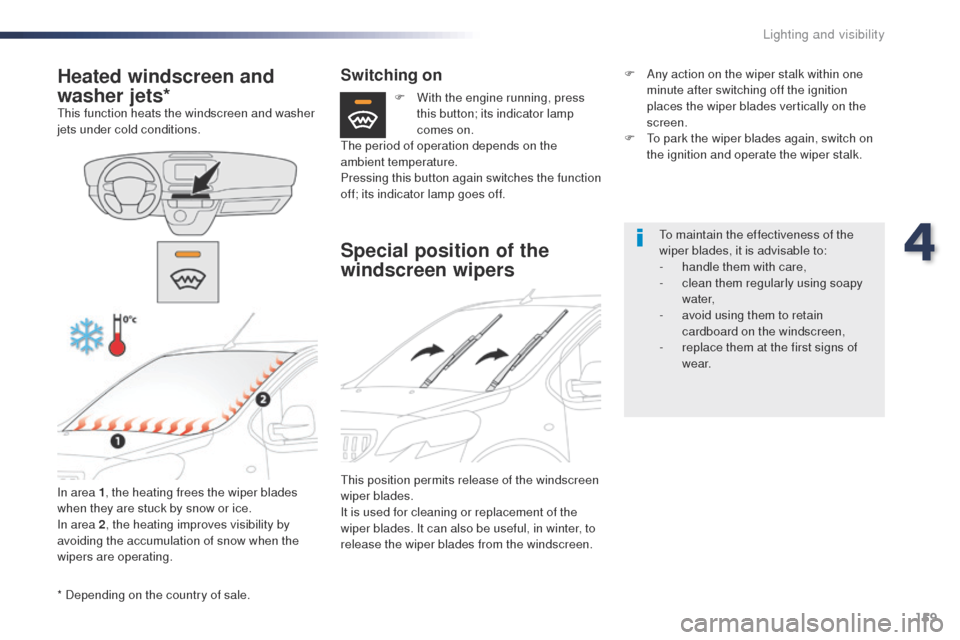

Heated windscreen and
washer jets*
this function heats the windscreen and washer
jets under cold conditions.In area 1 , the heating frees the wiper blades
when they are stuck by snow or ice.
In area 2 , the heating improves visibility by
avoiding the accumulation of snow when the
wipers are operating.
Switching on
F With the engine running, press this button; its indicator lamp
comes on.
th

e period of operation depends on the
ambient temperature.
Pressing this button again switches the function
off; its indicator lamp goes off.
Special position of the
windscreen wipers
this position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the
wiper blades. It can also be useful, in winter, to
release the wiper blades from the windscreen.
to m
aintain the effectiveness of the
wiper blades, it is advisable to:
-
h
andle them with care,
-
c
lean them regularly using soapy
water,
-
a
void using them to retain
cardboard on the windscreen,
-
r
eplace them at the first signs of
w e a r.
F
A
ny action on the wiper stalk within one
minute after switching off the ignition
places the wiper blades vertically on the
screen.
F t
o p
ark the wiper blades again, switch on
the ignition and operate the wiper stalk.
4
Lighting and visibility

160
Expert_en_Chap05_securite_ed01-2016

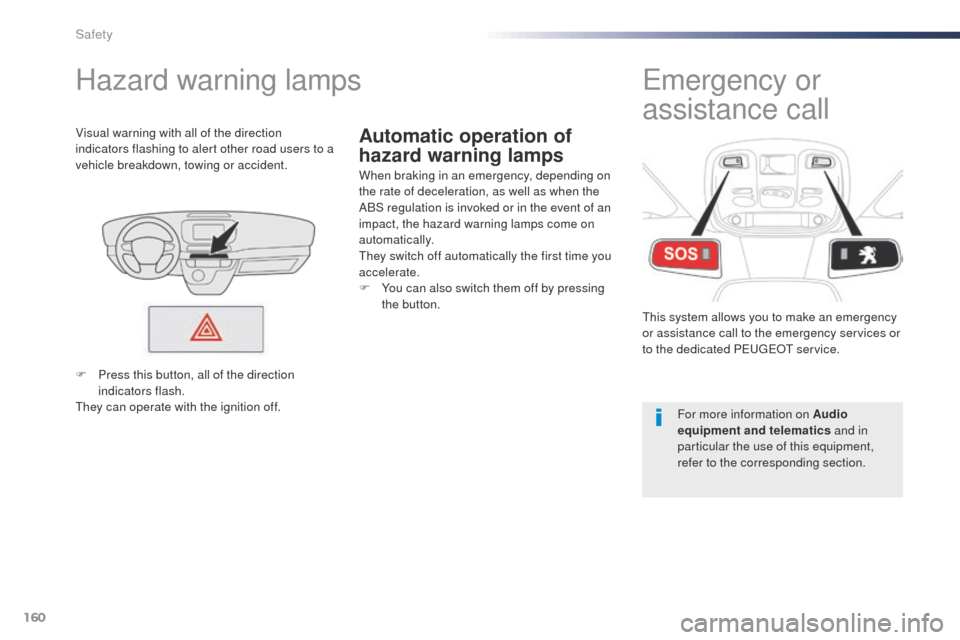

Automatic operation of
hazard warning lamps
Hazard warning lamps
When braking in an emergency, depending on
the rate of deceleration, as well as when the
ABS regulation is invoked or in the event of an
impact, the hazard warning lamps come on
automatically.
th
ey switch off automatically the first time you
accelerate.
F

Y
ou can also switch them off by pressing
the button.
Visual warning with all of the direction
indicators flashing to alert other road users to a
vehicle breakdown, towing or accident.
Emergency or
assistance call
this system allows you to make an emergency
or assistance call to the emergency services or
to the dedicated PE
u

g
Eo
t service.
For more information on Audio
equipment and telematics and in
particular the use of this equipment,
refer to the corresponding section.
F

P

ress this button, all of the direction
indicators flash.
th

ey can operate with the ignition off.
Safety

161
Expert_en_Chap05_securite_ed01-2016

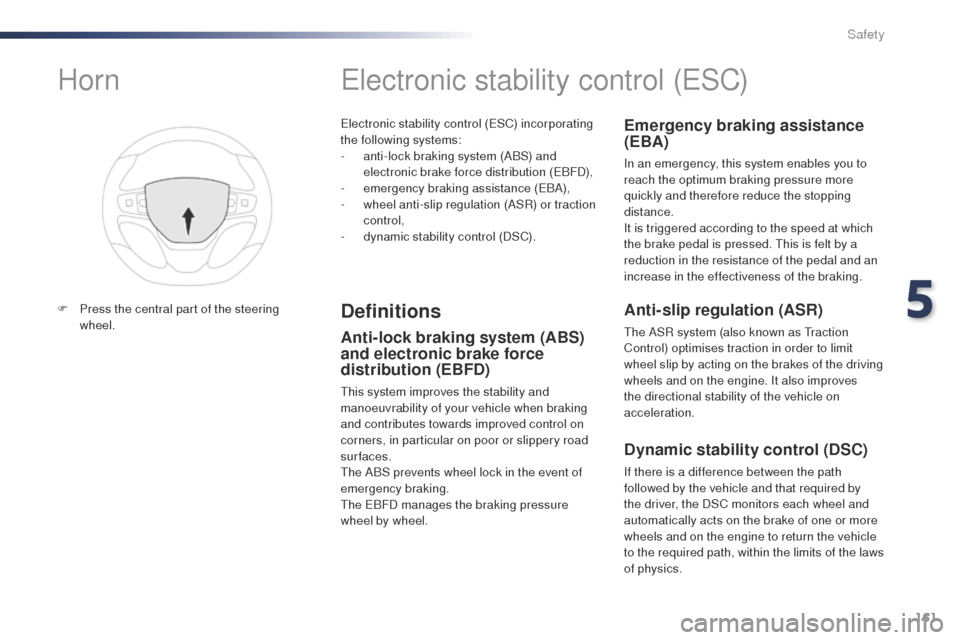

Electronic stability control (ESC) incorporating
the following systems:
-
a
nti-lock braking system (ABS) and
electronic brake force distribution (EBFD),
-
em

ergency braking assistance (EBA),
-

w
heel anti-slip regulation (ASR) or traction
control,
-
d

ynamic stability control (DSC).
Electronic stability control (ESC)
Definitions
Anti-lock braking system (ABS)
and electronic brake force
distribution (EBFD)
this system improves the stability and
manoeuvrability of your vehicle when braking
and contributes towards improved control on
corners, in particular on poor or slippery road
surfaces.
th
e ABS prevents wheel lock in the event of
emergency braking.
th

e EBFD manages the braking pressure
wheel by wheel.
Emergency braking assistance
(EBA)
In an emergency, this system enables you to
reach the optimum braking pressure more
quickly and therefore reduce the stopping
distance.
It is triggered according to the speed at which
the brake pedal is pressed.
t
h
is is felt by a
reduction in the resistance of the pedal and an
increase in the effectiveness of the braking.
Anti-slip regulation (ASR)
the ASR system (also known as tr action
Control) optimises traction in order to limit
wheel slip by acting on the brakes of the driving
wheels and on the engine. It also improves
the directional stability of the vehicle on
acceleration.
Dynamic stability control (DSC)
If there is a difference between the path
followed by the vehicle and that required by
the driver, the DSC monitors each wheel and
automatically acts on the brake of one or more
wheels and on the engine to return the vehicle
to the required path, within the limits of the laws
of physics.
Horn
F Press the central part of the steering wheel.
5
Safety

162
Expert_en_Chap05_securite_ed01-2016

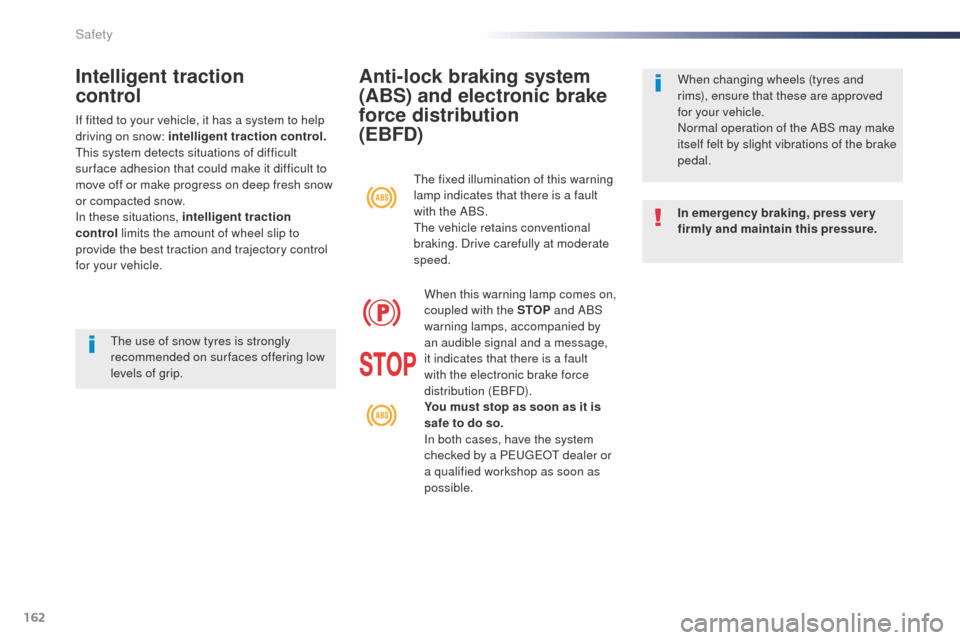

Anti-lock braking system
(ABS) and electronic brake
force distribution
(EBFD)
In emergency braking, press ver y
firmly and maintain this pressure. When changing wheels (tyres and
rims), ensure that these are approved
for your vehicle.
Normal operation of the ABS may make
itself felt by slight vibrations of the brake
pedal.
th

e fixed illumination of this warning
lamp indicates that there is a fault
with the ABS.th
e vehicle retains conventional
braking. Drive carefully at moderate
speed.
When this warning lamp comes on,
coupled with the STOP and ABS
warning lamps, accompanied by
an audible signal and a message,
it indicates that there is a fault
with the electronic brake force
distribution (EBFD).
You must stop as soon as it is
safe to do so.
In both cases, have the system
checked by a PE
u

g
Eo

t
dealer or
a qualified workshop as soon as
possible.
Intelligent traction
control
If fitted to your vehicle, it has a system to help
driving on snow: intelligent traction control.
th

is system detects situations of difficult
sur face adhesion that could make it difficult to
move off or make progress on deep fresh snow
or compacted snow.
In these situations, intelligent traction
control limits the amount of wheel slip to
provide the best traction and trajectory control
for your vehicle.
th

e use of snow tyres is strongly
recommended on sur faces offering low
levels of grip.
Safety

163
Expert_en_Chap05_securite_ed01-2016

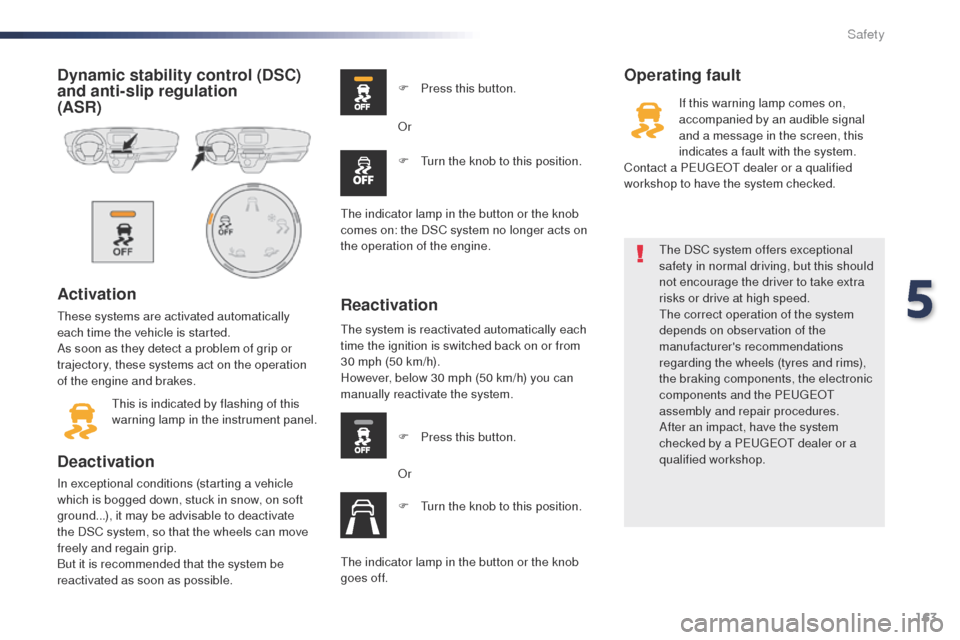

Dynamic stability control (DSC)
and anti-slip regulation
(ASR)
Activation
these systems are activated automatically
each time the vehicle is started.
As soon as they detect a problem of grip or
trajectory, these systems act on the operation
of the engine and brakes.
th
is is indicated by flashing of this
warning lamp in the instrument panel.
Deactivation
In exceptional conditions (starting a vehicle
which is bogged down, stuck in snow, on soft
ground...), it may be advisable to deactivate
the DSC system, so that the wheels can move
freely and regain grip.
But it is recommended that the system be
reactivated as soon as possible.
Operating fault
Reactivation
F Press this button. F t
u
rn the knob to this position.
o
r
th

e indicator lamp in the button or the knob
comes on: the DSC system no longer acts on
the operation of the engine.
th

e system is reactivated automatically each
time the ignition is switched back on or from
30 mph (50 km/h).
However, below 30 mph (50 km/h) you can
manually reactivate the system. F
P
ress this button.
o

r
F
t
u
rn the knob to this position.
th

e indicator lamp in the button or the knob
goes off.
th
e DSC system offers exceptional
safety in normal driving, but this should
not encourage the driver to take extra
risks or drive at high speed.
th
e correct operation of the system
depends on observation of the
manufacturer's recommendations
regarding the wheels (tyres and rims),
the braking components, the electronic
components and the PE
u
g
Eo
t
assembly and repair procedures.
After an impact, have the system
checked by a PEu gEo t dealer or a
qualified workshop. If this warning lamp comes on,
accompanied by an audible signal
and a message in the screen, this
indicates a fault with the system.
Contact a PE
u
g
Eo
t dealer or a qualified
workshop to have the system checked.
5
Safety

164
Expert_en_Chap05_securite_ed01-2016

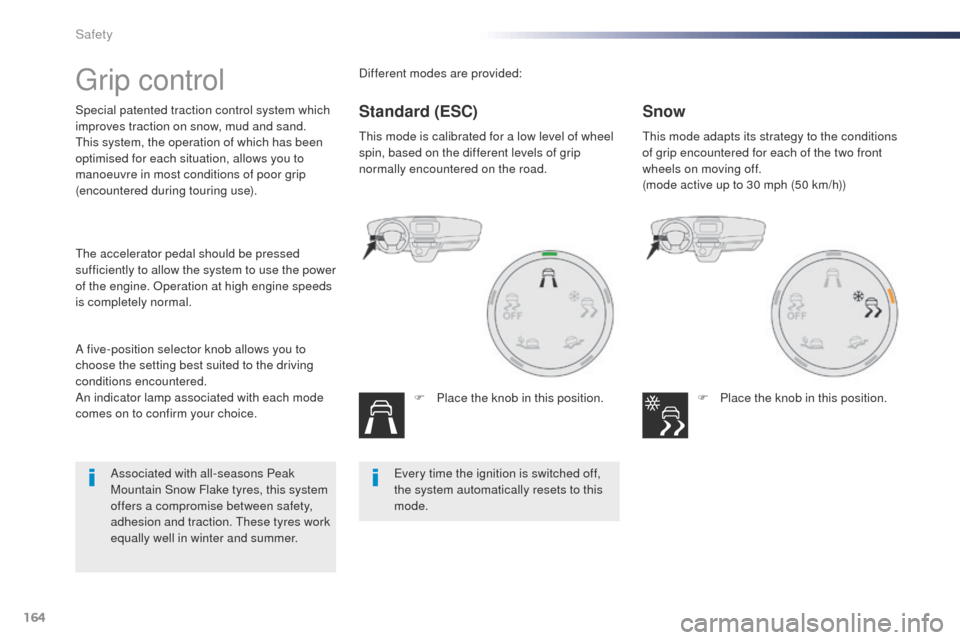

grip control
Special patented traction control system which
improves traction on snow, mud and sand.
th
is system, the operation of which has been
optimised for each situation, allows you to
manoeuvre in most conditions of poor grip
(encountered during touring use).
th

is mode is calibrated for a low level of wheel
spin, based on the different levels of grip
normally encountered on the road.
F

P
lace the knob in this position.
th
is mode adapts its strategy to the conditions
of grip encountered for each of the two front
wheels on moving off.
(mode active up to 30 mph (50 km/h))
F

P
lace the knob in this position.
A five-position selector knob allows you to
choose the setting best suited to the driving
conditions encountered.
An indicator lamp associated with each mode
comes on to confirm your choice.
th

e accelerator pedal should be pressed
sufficiently to allow the system to use the power
of the engine.
o
p
eration at high engine speeds
is completely normal. Different modes are provided:Snow
Standard (ESC)
Every time the ignition is switched off,
the system automatically resets to this
mode.
Associated with all-seasons Peak
Mountain Snow Flake tyres, this system
offers a compromise between safety,
adhesion and traction.
t
h

ese tyres work
equally well in winter and summer.
Safety

165
Expert_en_Chap05_securite_ed01-2016

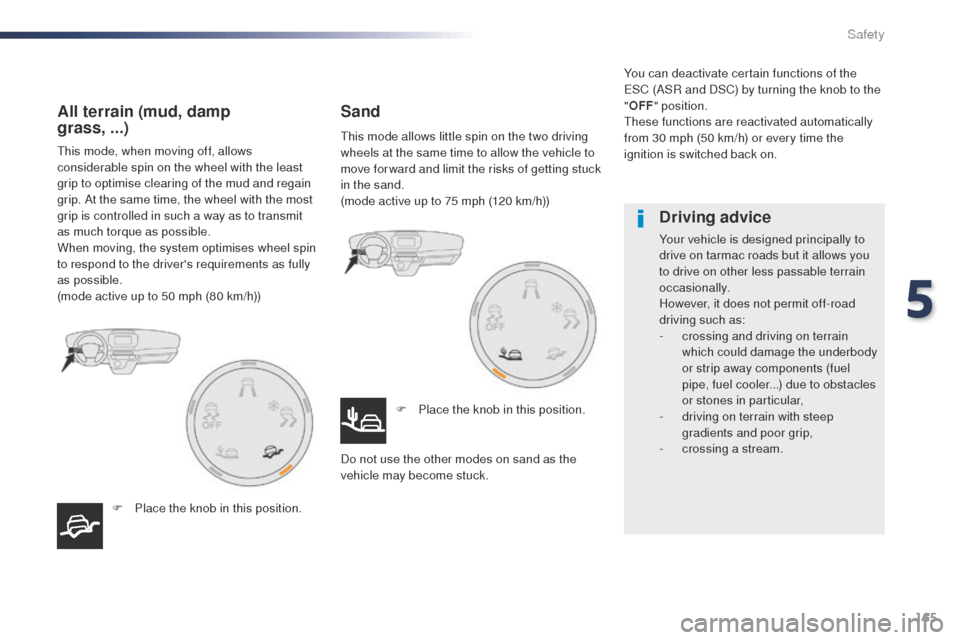

this mode, when moving off, allows
considerable spin on the wheel with the least
grip to optimise clearing of the mud and regain
grip. At the same time, the wheel with the most
grip is controlled in such a way as to transmit
as much torque as possible.
When moving, the system optimises wheel spin
to respond to the driver's requirements as fully
as possible.
(mode active up to 50 mph (80 km/h))F

P
lace the knob in this position.th is mode allows little spin on the two driving
wheels at the same time to allow the vehicle to
move for ward and limit the risks of getting stuck
in the sand.
(mode active up to 75 mph (120 km/h))
F

P
lace the knob in this position.
Do not use the other modes on sand as the
vehicle may become stuck. You can deactivate certain functions of the
ESC (ASR and DSC) by turning the knob to the
"
OFF " position.
th
ese functions are reactivated automatically
from 30 mph (50 km/h) or every time the
ignition is switched back on.
All terrain (mud, damp
grass, ...) Sand
Driving advice
Your vehicle is designed principally to
drive on tarmac roads but it allows you
to drive on other less passable terrain
occasionally.
However, it does not permit off-road
driving such as:
-

c
rossing and driving on terrain
which could damage the underbody
or strip away components (fuel
pipe, fuel cooler...) due to obstacles
or stones in particular,
-

d
riving on terrain with steep
gradients and poor grip,
-

c
rossing a stream.
5
Safety

166
Expert_en_Chap05_securite_ed01-2016

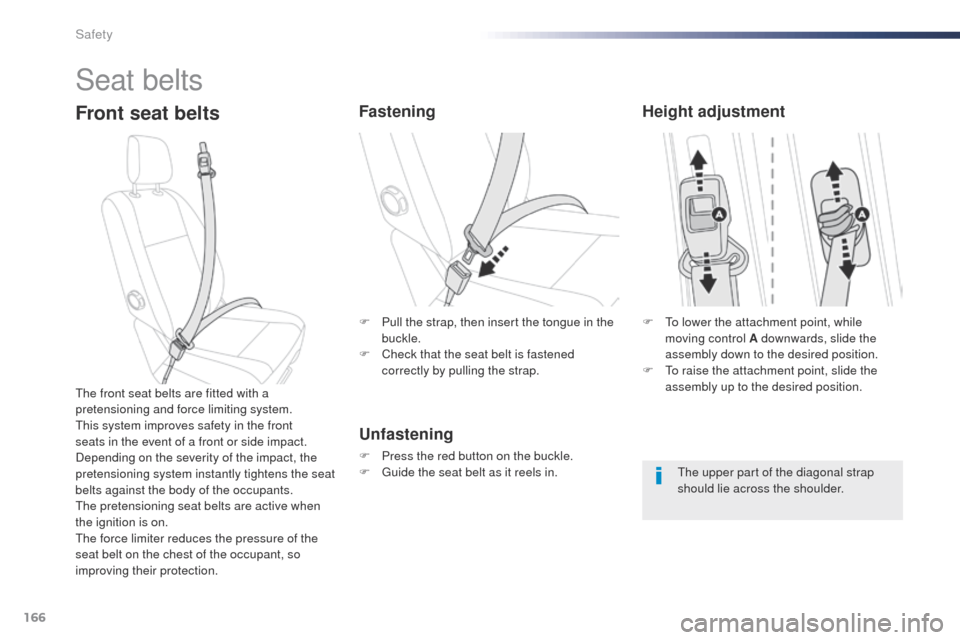

Seat belts
Front seat beltsFastening
Unfastening
F Press the red button on the buckle.
F gu ide the seat belt as it reels in.
th

e front seat belts are fitted with a
pretensioning and force limiting system.
th

is system improves safety in the front
seats in the event of a front or side impact.
Depending on the severity of the impact, the
pretensioning system instantly tightens the seat
belts against the body of the occupants.
the

pretensioning seat belts are active when
the ignition is on.
th

e force limiter reduces the pressure of the
seat belt on the chest of the occupant, so
improving their protection.
Height adjustment
the upper part of the diagonal strap
should lie across the shoulder.
F
t
o l
ower the attachment point, while
moving control A downwards, slide the
assembly down to the desired position.
F
t
o r
aise the attachment point, slide the
assembly up to the desired position.
F

P

ull the strap, then insert the tongue in the
buckle.
F

C

heck that the seat belt is fastened
correctly by pulling the strap.
Safety

167
Expert_en_Chap05_securite_ed01-2016

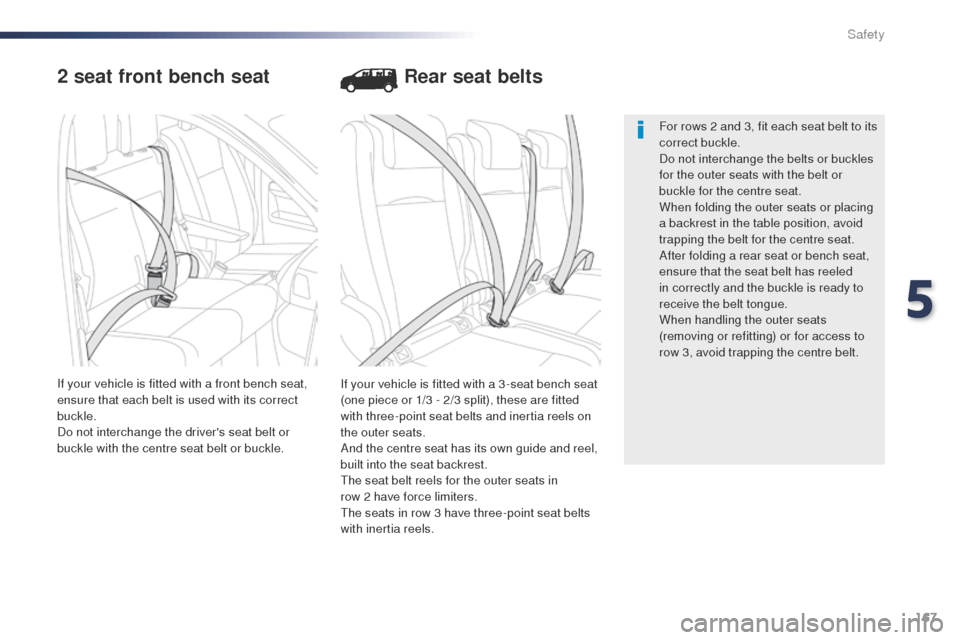

2 seat front bench seat
If your vehicle is fitted with a 3 -seat bench seat
(one piece or 1/3 - 2/3 split), these are fitted
with three-point seat belts and inertia reels on
the outer seats.
And the centre seat has its own guide and reel,
built into the seat backrest.
th
e seat belt reels for the outer seats in
row
2 have force limiters.
th

e seats in row 3 have three-point seat belts
with inertia reels.
If your vehicle is fitted with a front bench seat,
ensure that each belt is used with its correct
buckle.
Do not interchange the driver's seat belt or
buckle with the centre seat belt or buckle. For rows 2 and 3, fit each seat belt to its
correct buckle.
Do not interchange the belts or buckles
for the outer seats with the belt or
buckle for the centre seat.
When folding the outer seats or placing
a backrest in the table position, avoid
trapping the belt for the centre seat.
After folding a rear seat or bench seat,
ensure that the seat belt has reeled
in correctly and the buckle is ready to
receive the belt tongue.
When handling the outer seats
(removing or refitting) or for access to
row 3, avoid trapping the centre belt.
Rear seat belts
5
Safety

168
Expert_en_Chap05_securite_ed01-2016

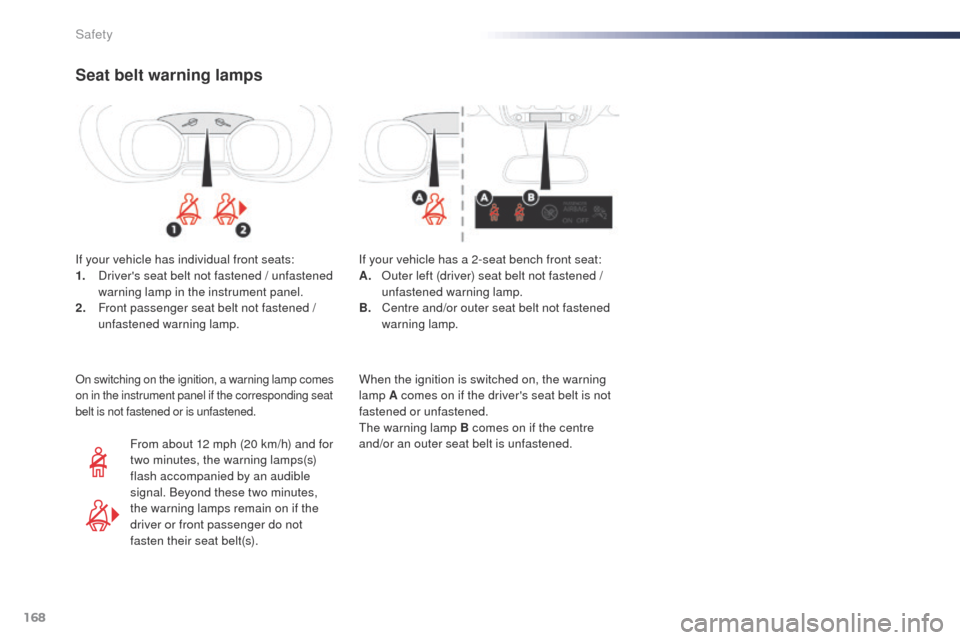

Seat belt warning lamps
If your vehicle has individual front seats:
1. Driver's seat belt not fastened / unfastened
warning lamp in the instrument panel.
2.
F

ront passenger seat belt not fastened /
unfastened warning lamp.
From about 12 mph (20 km/h) and for
two minutes, the warning lamps(s)
flash accompanied by an audible
signal. Beyond these two minutes,
the warning lamps remain on if the
driver or front passenger do not
fasten their seat belt(s).
on switching on the ignition, a warning lamp comes
on in the instrument panel if the corresponding seat
belt is not fastened or is unfastened.
If your vehicle has a 2-seat bench front seat:
A. ou ter left (driver) seat belt not fastened /
unfastened warning lamp.
B.
C

entre and/or outer seat belt not fastened
warning lamp.
When the ignition is switched on, the warning
lamp A comes on if the driver's seat belt is not
fastened or unfastened.
th

e warning lamp B comes on if the centre
and/or an outer seat belt is unfastened.
Safety
