Peugeot Expert VU 2016 Owner's Manual

419
3
2
4
5
6
7
Expert_en_Chap10b_NAC-1_ed01-2016

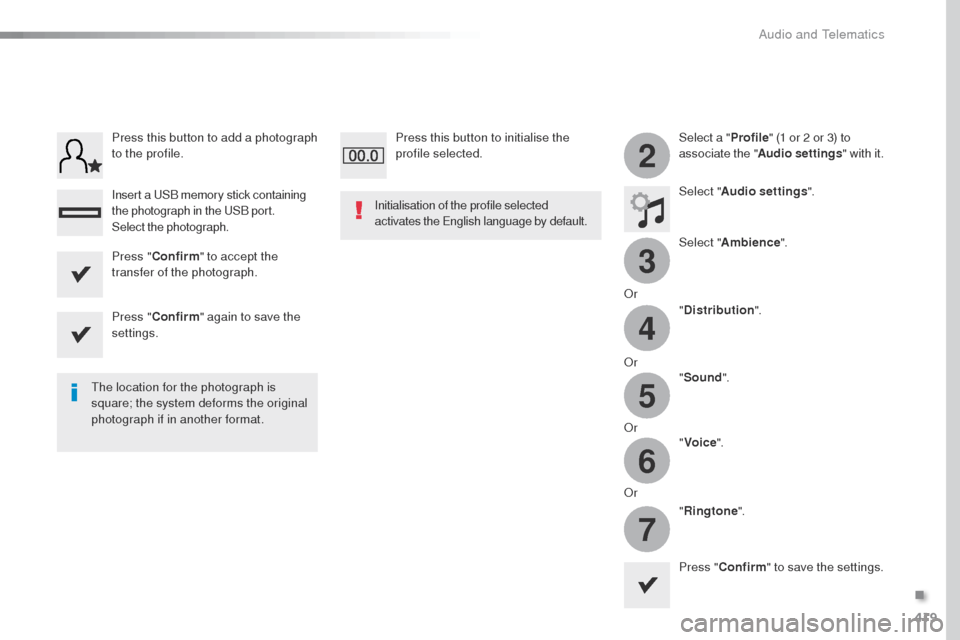

Select a "Profile" (1 or 2 or 3) to
associate the " Audio settings " with it.
Select " Audio settings ".
Select " Ambience ".
o

r "Distribution ".
o

r "Sound ".
o

r "Voice ".
o

r "Ringtone ".
th

e location for the photograph is
square; the system deforms the original
photograph if in another format. Initialisation of the profile selected
activates the English language by default.
Press "Confirm " to save the settings.
Press "
Confirm " to accept the
transfer of the photograph.
Press " Confirm " again to save the
settings. Press this button to add a photograph
to the profile.
Insert a
u
S

B memory stick containing
the photograph in the
u
S

B port.
Select the photograph. Press this button to initialise the
profile selected.
.
Audio and Telematics

420
111
10
11
12
8
91
Expert_en_Chap10b_NAC-1_ed01-2016
Press Settings to display the primary
page. Press Settings
to display the primary
page.
Press Settings
to display the primary
page.
Press the "OPTIONS" button to go to
the secondary page. Press the "
OPTIONS" button to go to
the secondary page.
Press the "
OPTIONS" button to go to
the secondary page.
Select "System settings ".
Select " Screen configuration ".
Select "Units" to change the units
for distance, fuel consumption and
temperature. Select "
Languages " to change the
language.
Activate or deactivatre " Automatic
scrolling ".
Adjust the brightness of the screen. Select "
Factory settings " to return
to the initial settings.
Select " System info " to display the
versions of the different modules
installed in the system.
Modifying system settings
Returning the system to factory settings
activates the English language by
default.
Select "
Animation ".
Select " Brightness ".
Select the language
Press Settings to display the primary
page.
Press the " OPTIONS" button to go to
the secondary page.
Select " Setting the time- date ".
Setting the date
Audio and Telematics

421
1
17
18
Expert_en_Chap10b_NAC-1_ed01-2016

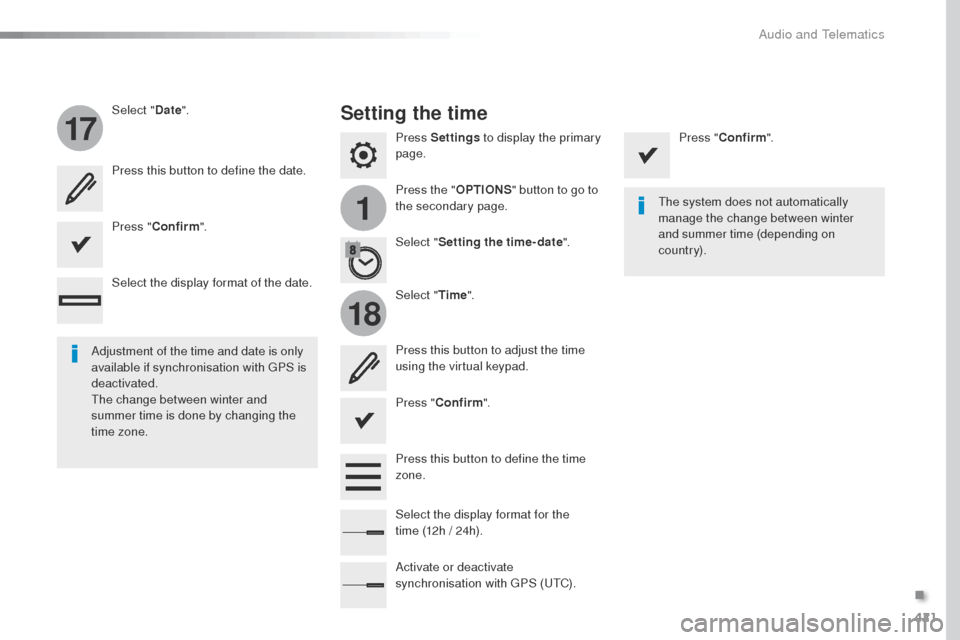

Press Settings to display the primary
page.
Press the " OPTIONS" button to go to
the secondary page.
Select "
Date".
Select "Time".
Select "
Setting the time- date ".
Adjustment of the time and date is only
available if synchronisation with
g
P

S is
deactivated.
th

e change between winter and
summer time is done by changing the
time zone.
th

e system does not automatically
manage the change between winter
and summer time (depending on
c ountr y).
Setting the time
Press this button to define the date.
Press this button to adjust the time
using the virtual keypad.
Press "
Confirm ". Press "
Confirm ".
Press " Confirm ".
Press this button to define the time
zone.
Select the display format of the date.
Select the display format for the
time
(12h / 24h).
Activate or deactivate
synchronisation with
g
P
S (
u
t
C
).
.
Audio and Telematics

422
Expert_en_Chap10b_NAC-1_ed01-2016
the following table groups together the answers to the most frequently asked questions concerning your audio system.QUESTION ANSWER SOLUTION
th

e route calculation is
not successful.
th

e route settings may conflict with the current location (exclusion
of toll roads on a toll motor way). Check the route settings in the "Navigation"
menu.
th

e P
oI
s do not appear.
th
e P o
Is
have not been selected. Select the P
oI

s in the list of P
oI
s.
th

e audible warning of
"Danger areas" does not
work.
th

e audible warning is not active. Activate audible warnings (without the possibility
of adjusting the volume) in the "Navigation"
menu.
th

e system does not
suggest a detour around
an incident on the route.
th

e guidance criteria do not take account of t
M
C messages. Select a setting for the "
tr
affic info" function
in the list of route settings (Without, Manual or
Automatic).
I receive a "Danger area"
alert which is not on my
route.
ot

her than guidance, the system announces all "Danger areas"
positioned in a cone located in front of the vehicle. It may provide
an alert for "Danger areas" located on nearby or parallel roads. Zoom in on the map to view the exact position of the
"Danger areas". Select "
on t

he route" to no longer
receive alerts other than navigation instructions or to
reduce the time for the announcement.
Frequently asked questions
Navigation
Audio and telematics

423
Expert_en_Chap10b_NAC-1_ed01-2016

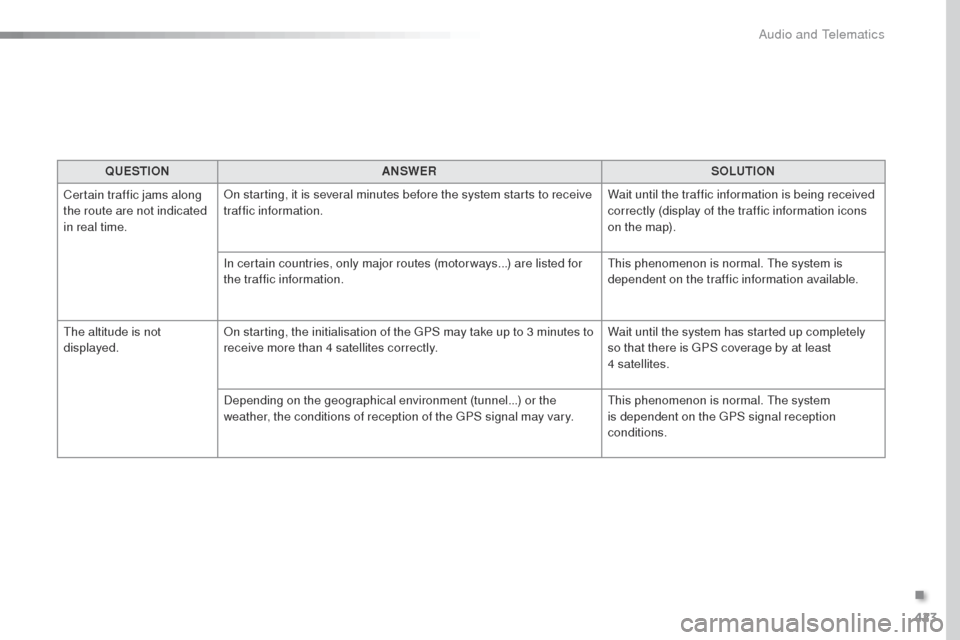

QUESTIONANSWER SOLUTION
Certain traffic jams along
the route are not indicated
in real time.
on s
tarting, it is several minutes before the system starts to receive
traffic information. Wait until the traffic information is being received
correctly (display of the traffic information icons
on the map).
In certain countries, only major routes (motor ways...) are listed for
the traffic information.
th

is phenomenon is normal. t
he
system is
dependent on the traffic information available.
th

e altitude is not
displayed.
on s

tarting, the initialisation of the g
P
S may take up to 3 minutes to
receive more than 4 satellites correctly. Wait until the system has started up completely
so that there is
g
P
S coverage by at least
4


satellites.
Depending on the geographical environment (tunnel...) or the
weather, the conditions of reception of the
g
P
S signal may vary.
th
is phenomenon is normal. t
he
system
is dependent on the
g
P
S signal reception
conditions.
.
Audio and telematics

424
Expert_en_Chap10b_NAC-1_ed01-2016
Radio
QUESTIONANSWER SOLUTION
th

e quality of reception of
the radio station listened
to gradually deteriorates
or the stored stations do
not function (no sound,
87.5

Mhz is displayed...).
th
e vehicle is too far from the transmitter used by the station
listened to or there is no transmitter in the geographical area
through which the vehicle is travelling. Activate the "RDS" function by means of the
short-cut menu to enable the system to check
whether there is a more power ful transmitter in
the geographical area.
th

e environment (hills, buildings, tunnels, basement car parks...)
block reception, including in RDS mode.
th

is phenomenon is normal and does not
indicate a fault with the audio system.
th

e aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park). Have the aerial checked by a franchised dealer.
I cannot find some radio
stations in the list of
stations received.
th

e station is not received or its name has changed in the list. Press on the "
up
date list" button in the "Radio
stations" secondary menu.
Some radio stations send other information in place of their name
(the title of the song for example).
th

e system interprets this information as the name of the station.
th

e name of the radio
station changes.
Audio and telematics

425
Expert_en_Chap10b_NAC-1_ed01-2016

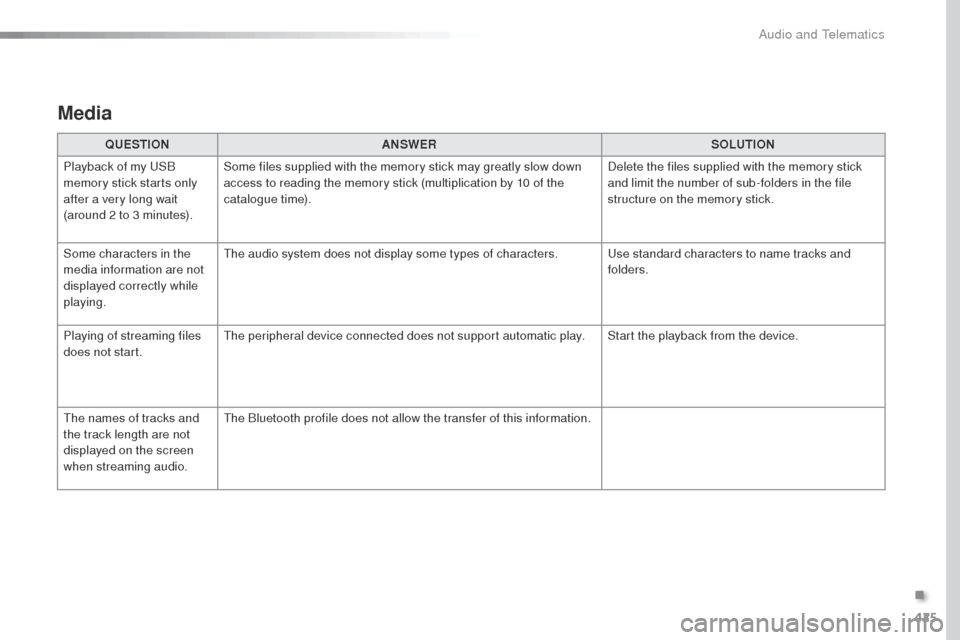

Media
QUESTIONANSWER SOLUTION
Playback of my u
S
B
memory stick starts only
after a very long wait
(around 2 to 3 minutes). Some files supplied with the memory stick may greatly slow down
access to reading the memory stick (multiplication by 10 of the
catalogue time).
Delete the files supplied with the memory stick
and limit the number of sub-folders in the file
structure on the memory stick.
Some characters in the
media information are not
displayed correctly while
playing.
th

e audio system does not display some types of characters.
u
se standard characters to name tracks and
folders.
Playing of streaming files
does not start.
th

e peripheral device connected does not support automatic play. Start the playback from the device.
th

e names of tracks and
the track length are not
displayed on the screen
when streaming audio.
th

e Bluetooth profile does not allow the transfer of this information.
.
Audio and telematics

426
Expert_en_Chap10b_NAC-1_ed01-2016
QUESTIONANSWER SOLUTION
I cannot connect my
Bluetooth telephone.
th
e telephone's Bluetooth function may be switched off or the
telephone may not be visible. Check that your telephone's Bluetooth function is
switched on.
Check in the telephone settings that it is "visible
to all ".
th

e Bluetooth telephone is not compatible with the system. You can check the compatibility of your
telephone at the brand's website (services).
th

e volume of the
telephone connected
in Bluetooth mode is
inaudible.
th

e volume depends both on the system and on the telephone. Increase the volume of the audio system, to maximum if required, and increase the volume of
the telephone if necessary.
th

e ambient noise level has an influence on the quality of
telephone communication. Reduce the ambient noise level (close the
windows, reduce the booster fan speed,
slow down, ...).
Some contacts are
duplicated in the list.
th

e options for synchronizing contacts are synchronizing the
contacts on the SIM card, the contacts on the telephone, or both.
When both synchronizations are selected, some contacts may be
duplicated. Select "Display SIM card contacts" or "Display
telephone contacts".
Contacts are not shown in
alphabetical order. Some telephones offer display options. Depending on the settings
chosen, contacts can be transferred in a specific order. Modify the display setting in the telephone
di r e c to r y.
th

e system does not
receive SMS text messages.
th

e Bluetooth mode does not permit sending SMS text messages
to the system.
Telephone
Audio and telematics

427
Expert_en_Chap10b_NAC-1_ed01-2016

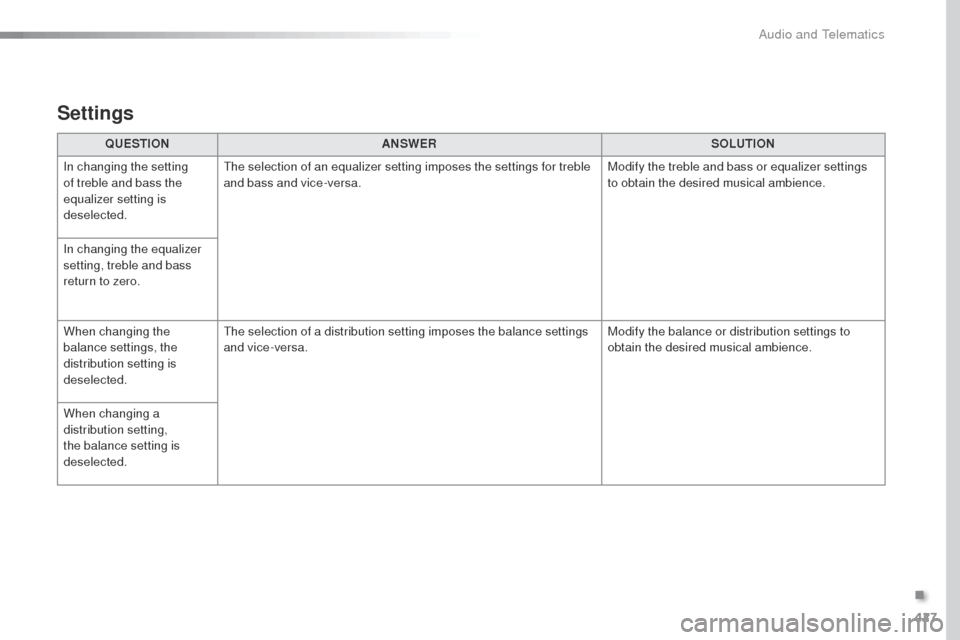

QUESTIONANSWER SOLUTION
In changing the setting
of treble and bass the
equalizer setting is
deselected.
th
e selection of an equalizer setting imposes the settings for treble
and bass and vice-versa. Modify the treble and bass or equalizer settings
to obtain the desired musical ambience.
In changing the equalizer
setting, treble and bass
return to zero.
When changing the
balance settings, the
distribution setting is
deselected.
th

e selection of a distribution setting imposes the balance settings
and vice-versa. Modify the balance or distribution settings to
obtain the desired musical ambience.
When changing a
distribution setting,
the balance setting is
deselected.
Settings
.
Audio and telematics

428
Expert_en_Chap10b_NAC-1_ed01-2016
QUESTIONANSWER SOLUTION
th

ere is a difference in
sound quality between the
different audio sources. For optimum sound quality, the audio settings for Loudness,
Ambience,
t
r
eble, Bass and Volume can be adapted to the different
sound sources, which may result in audible differences when
changing source. Check that the audio settings for Loudness,
Ambience,
t
r
eble, Bass and Volume are adapted
to the sources listened to. Adjust the Balance,
tr

eble and Bass to the middle position, select the
"None" musical ambience and set the loudness
correction to the "Active" position in CD mode or
to the "Inactive" position in radio mode.
With the engine off, the
system switches off after a
few minutes of use. When the engine is switched off, the system's operating time
depends on the state of charge of the battery.
th

e switch-off is normal: the system switches to economy mode
and switches off to prevent discharging of the vehicle's battery. Start the vehicle's engine to increase the battery
charge.
Audio and telematics
