Peugeot Expert VU 2016 Owner's Manual

379
1
1
1
1
6
7
8
2
3
4
5
Expert_en_Chap10b_NAC-1_ed01-2016
Level 2Level 3 Comments
Connectivity
Secondary page Bluetooth
connection All
Display all telephones, connected or
disconnected.
Connected Display all connected telephones.
Search Start a search for a device to connect.
Connectivity
Secondary page Wi- Fi network connection Secured
Display secured Wi-Fi networks.
Not secured Display non-secured Wi-Fi networks.
Stored Display remembered Wi-Fi networks.
Connectivity
Secondary page
Manage connection Display the state of the subscription to connected
services, the state of the network connection and
the connection mode.
Connectivity
Secondary page Share Wi- Fi connection Activation
Activate or deactivating the sharing of the Wi-Fi
connection.
Settings Select a Wi-Fi network found by the system and
connect to it.
Save settings.
Functionalities available according to equipment.
.
Audio and Telematics

380
1
Expert_en_Chap10b_NAC-1_ed01-2016
Bluetooth® connection
Procedure from the systemConnection sharing
Press on "Telephone " to display the
secondary page.
Press on " Bluetooth connection ".
Select " Search".
th

e list of detected telephones is
displayed.
If the pairing procedure fails, it is recommended
that you deactivate and then reactivate the
"Bluetooth" function in your telephone.
the " Mobile internet data " profile
must be activated for connected
navigation (where the vehicle does not
have "Emergency and assistance call"
services), having first activated sharing
of this connection on your smartphone.
th

e system offers to connect the
telephone

with 3 profiles:
-

"
Telephone " (hands-free kit, telephone
only),
-

"
Streaming " (wireless play of audio files
on the telephone),
-

"
Mobile internet data ".
Select the name of the chosen
telephone in the list. Press on "Confirm".
Select one or more profiles.
Press on the "
OPTIONS" button to
go to the secondary page.
As a safety measure and because it
requires sustained attention by the
driver, the pairing of a Bluetooth mobile
telephone with the Bluetooth hands-
free system of your audio system must
be done with the vehicle stationary

and the ignition on.
Procedure from the telephone
Select the name of the system in the
list of devices detected.
In the system, accept the connection request
from the telephone. Activate the Bluetooth function on the
telephone and ensure that it is "visible
to all" (telephone configuration).
to c

omplete the pairing, whichever
procedure used (from the telephone or
from the system), ensure that the code
is the same in the system and in the
telephone. Depending on the type of telephone, you
may be asked to accept or not the transfer
of your contacts and messages.
Audio and Telematics

381
11
1
7
8
Expert_en_Chap10b_NAC-1_ed01-2016

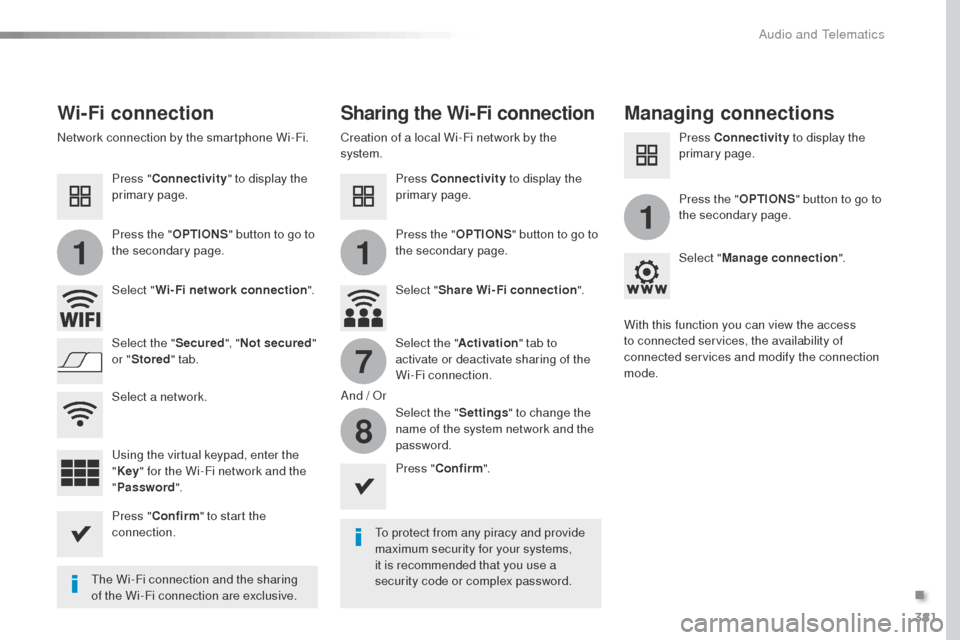

Wi-Fi connectionSharing the Wi-Fi connectionManaging connections
to protect from any piracy and provide
maximum security for your systems,
it is recommended that you use a
security code or complex password.
th

e Wi-Fi connection and the sharing
of the Wi-Fi connection are exclusive. Press "
Confirm ".
Press " Confirm " to start the
connection. Press " Connectivity " to display the
primary page.
Network connection by the smartphone Wi-Fi. Creation of a local Wi-Fi network by the
system.
Press Connectivity to display the
primary page. Press Connectivity
to display the
primary page.
Press the " OPTIONS" button to go to
the secondary page. Press the "
OPTIONS" button to go to
the secondary page. Press the "
OPTIONS" button to go to
the secondary page.
Select " Wi-Fi network connection ".Select "Share Wi-Fi connection ".Select "
Manage connection ".
And /
o
r
Sel

ect the "
Secured ", "Not secured "
or " Stored " tab. Select the "
Activation" tab to
activate or deactivate sharing of the
Wi-Fi connection.
Select the " Settings" to change the
name of the system network and the
password. With this function you can view the access
to connected services, the availability of
connected services and modify the connection
mode.
us

ing the virtual keypad, enter the
" Key " for the Wi-Fi network and the
" Password ".
Select a network.
.
Audio and Telematics

382
12:13
23 °C531 kHz
Expert_en_Chap10b_NAC-1_ed01-2016
MirrorLinkTM smartphone connection
Audio and telematics

383
Expert_en_Chap10b_NAC-1_ed01-2016
As a safety measure and because it
requires the sustained attention of
the driver, using a smartphone when
driving is prohibited.
op
eration must be with the vehicle
stationary .
th

e synchronisation of a
smartphone allows applications on a
smartphone that are adapted to the
MirrorLink
tM technology to be displayed
i
n the vehicle's screen.
th

e principles and standards
are constantly evolving. For the
communication process between
the smartphone and the system to
work correctly, the smartphone must
be unlocked; update the operating
system of your smar tphone as
well as the date and time in the
smartphone and the system .
For the list of eligible smartphones,
connect to the brand's internet website
in your country.
th
e "
MirrorLink
tM" function requires
the use of a compatible smartphone
and applications.
th

ere may be a wait for the availability
of applications, depending on the
quality of your network.
When connecting a smartphone to the
system, it is recommended that Bluetooth®
be started on the smartphone
Depending on the smartphone, it may be
necessary to activate the " MirrorLinktM" function.
During the procedure, several screen
pages relating to certain functions
are displayed.
Accept to start and end the
connection. Connect a
u
S

B cable.
t
h

e
smartphone charges when
connected by a
u
S

B cable.
Press " MirrorLink
tM" to start the
application in the system.
on
ce connection is established, a page
is displayed with the applications already
downloaded to your smartphone and adapted
to MirrorLink
tM technology.
Access to the different audio sources remains
accessible in the margin of the MirrorLink
tM
display, using touch buttons in the upper bar.
Access to the menus for the system is possible
at any time using the dedicated buttons
From the system, press on
" Connectivity " to display the primary
page.
As a safety measure, applications
can only be viewed with the vehicle
stationary; display is interrupted once
the vehicle is moving.
.
Audio and telematics

384
12:13
23 °C531 kHz
Expert_en_Chap10b_NAC-1_ed01-2016
Level 1 Level 2Level 3
Audio and telematics

385
Expert_en_Chap10b_NAC-1_ed01-2016

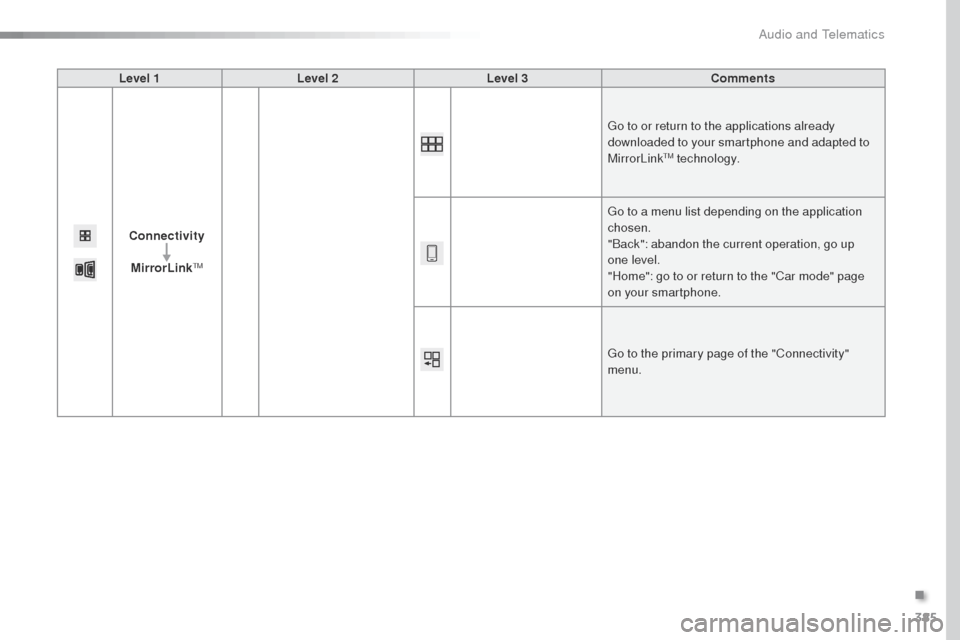

Level 1Level 2 Level 3 Comments
Connectivity MirrorLink
tM
go to or return to the applications already
downloaded to your smartphone and adapted to
MirrorLink
tM technology.
go t

o a menu list depending on the application
chosen.
"Back": abandon the current operation, go up
one level.
"Home": go to or return to the "Car mode" page
on your smartphone.
go t

o the primary page of the "Connectivity"
menu.
.
Audio and telematics

386
12:13
23 °C531 kHz
Expert_en_Chap10b_NAC-1_ed01-2016

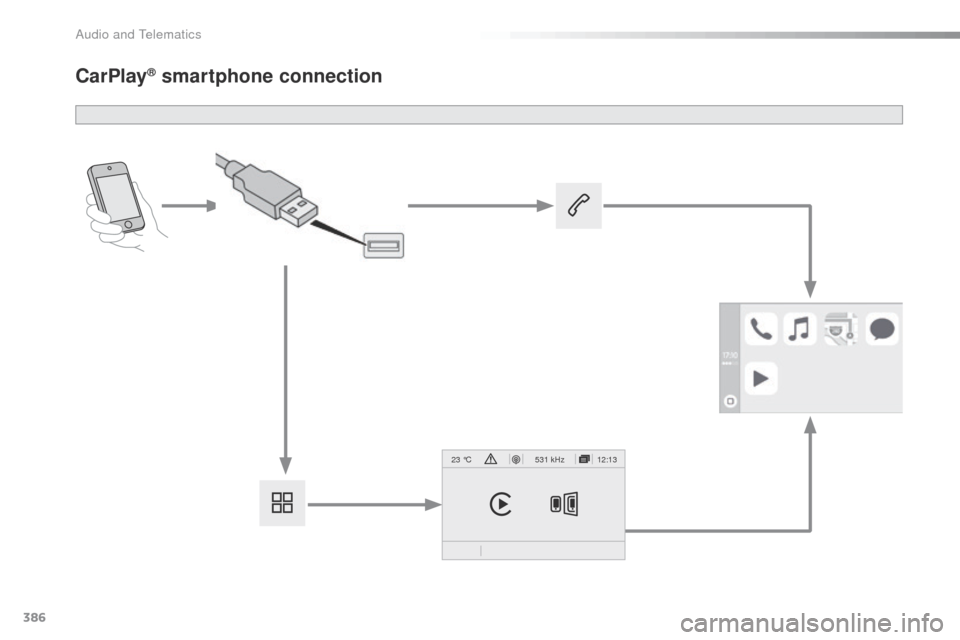

CarPlay® smartphone connection
Audio and telematics

387
Expert_en_Chap10b_NAC-1_ed01-2016

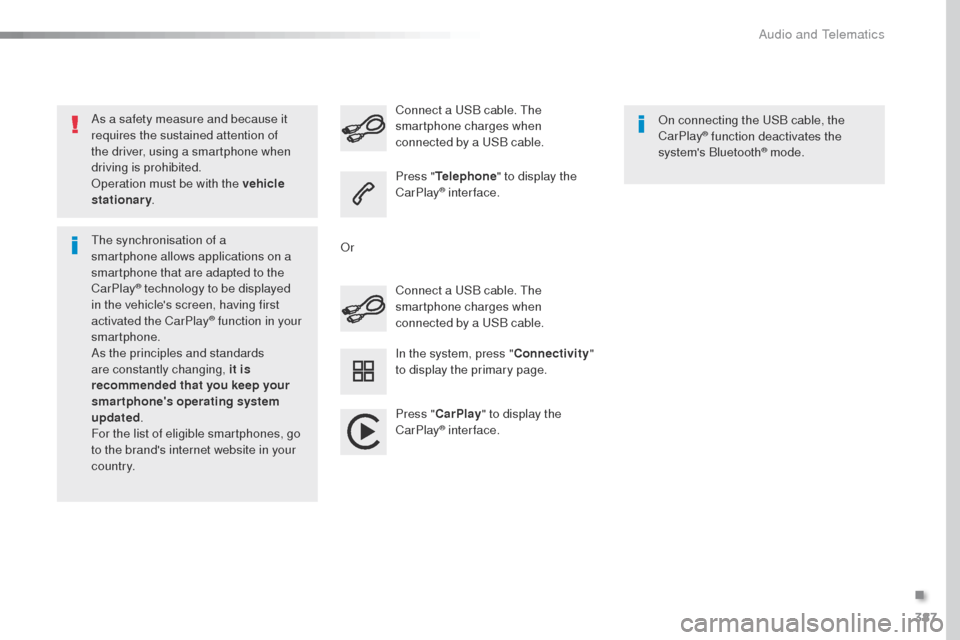

As a safety measure and because it
requires the sustained attention of
the driver, using a smartphone when
driving is prohibited.
op
eration must be with the vehicle
stationary .
th

e synchronisation of a
smartphone allows applications on a
smartphone that are adapted to the
CarPlay
® technology to be displayed
i
n the vehicle's screen, having first
activated the CarPlay
® function in your
smartphone.
As the principles and standards
are constantly changing, it is
recommended that you keep your
smartphone's operating system
updated .
For the list of eligible smartphones, go
to the brand's internet website in your
c o unt r y. Connect a
u
S
B cable. t
h
e
smartphone charges when
connected by a uS B cable.
Connect a
u
S
B cable. t
h
e
smartphone charges when
connected by a u
S
B cable.
Press " Telephone " to display the
CarPlay
® inter face.
Press " CarPlay " to display the
CarPlay
® inter face.
on c
onnecting the u
S
B cable, the
CarPlay
® function deactivates the
system's Bluetooth® mode.
In the system, press " Connectivity"
to display the primary page.
o

r
.
Audio and telematics

388
FM/87.5 MHz
87.5MHz12:13
23 °C 87.5 MHz
2143
FM/87.5 MHz
87.5MHz 12:13
87.5 MHz
23 °C
AM/531 kHz
PO
kHz 12:13
23 °C 531 kHz
2134
Expert_en_Chap10b_NAC-1_ed01-2016
Radio Media
Level 1 Level 2
Radio stations
Audio and Telematics
