Indicator and warning
lamps
Visual indicators informing the driver that
a system is in operation or is switched off
(indicator lamp), or has a fault (warning lamp).
When the ignition is switched on
Certain warning lamps come on for a few
seconds when the vehicle's ignition is
switched

on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.
Associated warnings
Certain warning lamps may come on in one of
two modes: fixed (continuous) or flashing.
on

ly by relating the type of illumination to the
operation of the vehicle can it be determined
whether the situation is normal or a fault has
occurred. In the event of a fault, the illumination
of the warning lamp may be accompanied by
an audible signal and/or a message.
Warning lamps
When the engine is running or the vehicle is
being driven, illumination of one of the following
warning lamps indicates a fault which requires
action on the part of the driver.
Any fault resulting in the illumination of a
warning lamp must be investigated further
using the associated message.
If you encounter any problems, contact a
PE
u

g
Eo
t dealer or a qualified workshop.
Operation indicator lamps
If one of the following indicator lamps comes on
in the instrument panel and/or instrument panel
screen, this confirms that the corresponding
system has come into operation.
Deactivation indicator lamps
If one of the following indicator lamps comes
on, this confirms that the corresponding system
has been switched off intentionally.
th
is is may be accompanied by an audible
signal and the display of a message.
1
Instruments

18
Warning / indicator lampStateCause Action / Observations
STOP fixed, associated with
another warning lamp,
accompanied by an
audible signal and a
message. Illumination of this warning lamp is
related to a serious fault detected
with the engine, the braking system,
the power steering, etc., or a major
electrical fault. You must stop as soon as it is safe to do so.
Park, switch off the ignition and call a PE
u

g
Eo
t
dealer or a qualified workshop.
Parking brake fixed.
th

e parking brake is applied or not
properly released. Release the parking brake to switch off the warning
lamp, keeping your foot on the brake pedal.
ob

serve the safety recommendations.
For more information on the Parking brake , refer to
the corresponding section.
Braking fixed.
th

e brake fluid level has dropped
significantly. You must stop as soon as it is safe to do so.
to

p-up with brake fluid listed by PE
u
g
Eo
t
.
I

f the problem persists, have the system checked by a
PE
u

g
Eo
t dealer or a qualified workshop.
+ fixed, associated
with the ABS warning
lamp.
th

e electronic brake force distribution
(EBFD) system has a fault. You must stop as soon as it is safe to do so.
Have it checked by a PE
u

g
Eo
t dealer or a qualified
workshop.
Instruments

22
Warning / indicator lampStateCause Action / Observations
Under-inflation fixed, accompanied by
an audible signal and
a message.
th

e pressure in one or more tyres is
too low. Check the tyre pressures as soon as possible.
th

is check should preferably be carried out when the
tyres are cold.
You must reinitialise the system after the adjustment
of one or more tyre pressures and after changing one
or more wheels.
For more information on Under-inflation detection ,
refer to the corresponding section.
+ flashing then fixed,
accompanied by the
Service warning lamp.
th

e system has a fault: the tyre
pressures are no longer monitored. Check the tyre pressures as soon as possible.
Have the system checked by a PE
u

g
Eo
t dealer or a
qualified workshop.
Foot on the
brake pedal fixed.
th

e brake pedal must be pressed. With an automatic or electronic gearbox, press the brake pedal, engine running, before releasing the
parking brake, to release the selector lever and come
out of position P or N.
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.
Foot on the
clutch fixed.
In the S
t

o
P m
ode of Stop & Start,
the change to S
tA

R
t
mode is denied
because the clutch pedal is not fully
down. If your vehicle has a manual gearbox, you must
declutch fully to allow the change to engine S
tA

R
t

mode.
Instruments

23
Expert_en_Chap01_instruments-de-bord_ed01-2016

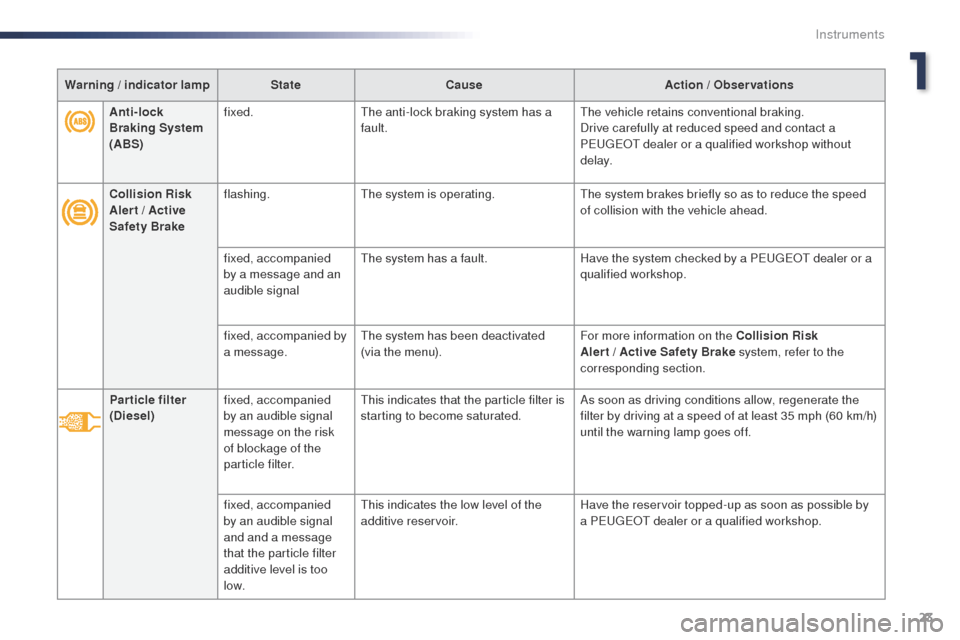

Anti-lock
Braking System
(ABS)fixed.th
e anti-lock braking system has a
fault.th e vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
PE
u

g
Eo
t dealer or a qualified workshop without
d e l ay.
Warning / indicator lamp
StateCause Action / Observations
Collision Risk
Aler t / Active
Safety Brake flashing.
the

system is operating.
th
e system brakes briefly so as to reduce the speed
of collision with the vehicle ahead.
fixed, accompanied
by a message and an
audible signal
th

e system has a fault.Have the system checked by a PE
u

g
Eo
t dealer or a
qualified workshop.
fixed, accompanied by
a message.
th

e system has been deactivated
(via the menu). For more information on the Collision Risk
Aler t / Active Safety Brake system, refer to the
corresponding section.
Par ticle filter
(Diesel) fixed, accompanied
by an audible signal
message on the risk
of blockage of the
particle filter.
th

is indicates that the particle filter is
starting to become saturated. As soon as driving conditions allow, regenerate the
filter by driving at a speed of at least 35 mph (60 km/h)
until the warning lamp goes off.
fixed, accompanied
by an audible signal
and and a message
that the particle filter
additive level is too
low.
th

is indicates the low level of the
additive reservoir. Have the reservoir topped-up as soon as possible by
a PE
u

g
Eo
t dealer or a qualified workshop.
1
Instruments

25
Expert_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lampStateCause Action / Observations
Power steering fixed.
th

e power steering has a fault. Drive carefully at reduced speed.Have it checked by a PE
u

g
Eo
t dealer or a qualified
workshop.
Dynamic
stability control
(DSC/ASR)
flashing.
th

e DSC/ASR regulation is
operating.
th

e system optimises traction and improves the
directional stability of the vehicle in the event of loss of
grip or trajectory.
fixed.
th

e DSC/ASR system has a fault. Have the system checked by a PE
u
g
Eo
t dealer or a
qualified workshop.
Dynamic
stability control
(DSC/ASR)
fixed.
th

e button is pressed and the
indicator lamp comes on.
the

DSC/ASR is deactivated.
DSC: dynamic stability control.
ASR: anti-slip regulation. Press the button to activate the DSC/ASR. Its
indicator lamp goes off.
th

e DSC/ASR system is activated automatically when
the vehicle is started.
If deactivated, the system is reactivated automatically
from around 30 mph (50 km/h).
For more information on the Electronic stability
programme (ESC) and in particular, DSC/ASR, refer
to the corresponding section.
1
Instruments

26
For topping-up the AdBlue® fluid or for more information on AdBlue®, refer to the corresponding section.
Warning / indicator lamp
StateCause Action / Observations
AdBlue
®
(BlueHDi Diesel) fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating
the remaining driving
range.the
remaining driving range is
between 350 miles (600 km)
and
1500 miles (2400 km).Have the AdBlue® tank topped-up as soon as
possible: go to a PEu gEo t dealer or a qualified
workshop, or carry out this operation yourself.
flashing, accompanied
by an audible signal
and a message
indicating the
remaining driving
range.
the

remaining driving range is
between 0 and 350 miles (600 km). You must top-up the AdBlue
® tank to avoid a
breakdown : go to a PEu
gEo t dealer or a qualified
workshop, or carry out this operation yourself.
flashing, accompanied
by an audible signal
and a message
indicating that starting
is prevented.
th

e AdBlue
® tank is empty: the
starting inhibition system required
by legislation prevents starting of the
engine.to b e able to start the engine, you must top-up the
AdBlue® tank: go to a PEu gEo t dealer or a qualified
workshop, or carry out this operation yourself.
It is essential to add at least 3.8 litres of AdBlue
® to
the fluid tank.
Instruments

28
Warning / indicator lampStateCause Action / Observations
Rear foglamps fixed.
th

e rear foglamps are on.
tu
rn the ring on the stalk rear ward to switch off the
rear foglamps.
Service
on temporarily. A minor fault has occurred for which
there is no specific warning lamp. Identify the fault by means of the associated message,
for example:
-

l
ow engine oil level,
-

l
ow screenwash/headlamp wash fluid level,
-

d
ischarged remote control battery,
-

l
ow tyre pressures,
-

s
aturation of the particle filter (FAP) on Diesel
vehicles.
-


...
For more information on Checks and in particular the
particle filter, refer to the corresponding section.
For any other faults, contact a PE
u

g
Eo
t dealer or a
qualified workshop.
fixed. A major fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message and contact
a PE
u

g
Eo
t dealer or a qualified workshop.
+ fixed, associated with
flashing and then fixed
display of the service
spanner.
the

servicing interval has been
exceeded.
on

ly on BlueHDi Diesel versions.
Your vehicle must be serviced as soon as possible.
Instruments

29
Expert_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lampStateCause Action / Observations
Automatic
wiping fixed.
th

e wiper control has been pushed
down. Automatic front wiping is activated.
to d

eactivate automatic wiping, operate the control
stalk downwards or put the stalk into another position.
Automatic
headlamp
dipping fixed.
th

e lighting control stalk is in
the
"AUTO " position, and the function
has been activated.
th

e main beam headlamps come
on if the exterior lighting and driving
conditions permit.
th

e camera, located at the top of the windscreen,
manages the operation of main beam, depending on
the ambient lighting and driving conditions.
For more information on Automatic headlamp
dipping , refer to the corresponding section.
Stop & Star t fixed. When the vehicle stops (red lights,
traffic jams,
...) the Stop & Start
system has put the engine into S
t

o
P
m

ode.
th
e warning lamp goes off and the engine restarts
automatically in S
tA

R
t
mode, as soon as you want to
move off.
flashes for a few
seconds, then goes
of f. S
t

o
P m
ode is temporarily
unavailable,
or
S
tA

R
t
mode is invoked
automatically. For more information on Stop & Star t
, refer to the
corresponding section.
Blind spot
monitoring
system fixed.
th

e blind spot monitoring system has
been activated. For more information on the Blind spot monitoring
system, refer to the corresponding section.
Lane departure
warning system
fixed.
th

e lane departure warning system
has been activated.
th

e lane departure warning system is on.
For more information on the Lane departure warning
system, refer to the corresponding section.
1
Instruments

30
For more information on the Lighting control stalk, refer to the corresponding section.
Warning / indicator lamp
StateCause Action / Observations
Front foglamps fixed.
th
e front foglamps are switched on
using the ring on the lighting control
stalk.
tu
rn the ring on the lighting control stalk rear ward
once to switch off the front foglamps.
Sidelamps fixed.
th
e lighting stalk is in the
"Sidelamps" position.
Left-hand
direction
indicato r flashing with buzzer.
th
e lighting stalk has been pushed
down.
Right-hand
direction
indicator flashing with buzzer.
th
e lighting stalk has been
pushed

up.
Dipped beam
headlamps fixed.
th
e lighting stalk is in the "Dipped
beam headlamps" position.
Main beam
headlamps fixed.
th
e lighting stalk has been pulled
towards you. Pull the stalk to return to dipped beam headlamps.
Instruments

34
Engine oil level
indicator
on versions fitted with an electric oil gauge,
information on the oil level is displayed in the
instrument panel for a few seconds when the
ignition is switched on, at the same time as the
service information.
th
e level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30 minutes.
Oil level correct Oil level incorrect
Oil level indicator faultDipstick
there are 2 marks on the
dipstick:
-

A
= max; never exceed this
level,
-

B
= min; top-up the level via
the oil filler, using the grade
of oil suited to your engine.
to l

ocate the dipstick and the oil filler
cap for the Diesel engine , refer to the
corresponding section.
th

is is indicated by a message in the
instrument panel.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped-up to
avoid damage to the engine.
th

is is indicated by a message in the
instrument panel.
th

is is indicated by a message in the
instrument panel. Contact a PE
u

g
Eo

t
dealer
or a qualified workshop.
Instruments
