15
Accesses
READY to SET OFF
2
KEY
This locks and unlocks the locks on the
vehicle and starts the engine.
ACCESSES
Security of use
REMOTE CONTROL
Unlocking Unlocking the load space Central locking
Press this button to lock the
vehicle completely.
T h e d i r e c t i o n i n d i c a t o r s fl a s h o n c e .
If one of the doors is open
(transportation of long loads) or is not
closed correctly, the central locking will
not work.
Deadlocking
A second press on the closed
padlock on the remote control within
fi v e s e c o n d s a f t e r l o c k i n g c h a n g e s t h e
locking to deadlocking.
T h i s i s c o n fi r m e d b y fi x e d l i g h t i n g
of the direction indicators for
a p p r o x i m a t e l y t w o s e c o n d s .
D e a d l o c k i n g r e n d e r s t h e e x t e r i o r
and interior door opening handles
inoperative: do not leave anyone inside
the vehicle when it is deadlocked.
If deadlocking is activated from inside
the vehicle using the remote control,
it will change to normal locking when
the vehicle is started.
To unlock the load space only:
Press this control to unlock
the load space, the front
doors alone remain locked.
Press this control to lock the
vehicle completely.
Press this button to unlock all
of the rear doors.
Press this button once to
unlock the front doors.
Press this button again
to unlock your vehicle
completely.
T h e d i r e c t i o n i n d i c a t o r s fl a s h t w i c e .
Page 11 of 185
15
Accesses
READY to SET OFF
2
KEY
This locks and unlocks the locks on the
vehicle and starts the engine.
ACCESSES
Security of use
REMOTE CONTROL
Unlocking Unlocking the load space Central locking
Press this button to lock the
vehicle completely.
T h e d i r e c t i o n i n d i c a t o r s fl a s h o n c e .
If one of the doors is open
(transportation of long loads) or is not
closed correctly, the central locking will
not work.
Deadlocking
A second press on the closed
padlock on the remote control within
fi v e s e c o n d s a f t e r l o c k i n g c h a n g e s t h e
locking to deadlocking.
T h i s i s c o n fi r m e d b y fi x e d l i g h t i n g
of the direction indicators for
a p p r o x i m a t e l y t w o s e c o n d s .
D e a d l o c k i n g r e n d e r s t h e e x t e r i o r
and interior door opening handles
inoperative: do not leave anyone inside
the vehicle when it is deadlocked.
If deadlocking is activated from inside
the vehicle using the remote control,
it will change to normal locking when
the vehicle is started.
To unlock the load space only:
Press this control to unlock
the load space, the front
doors alone remain locked.
Press this control to lock the
vehicle completely.
Press this button to unlock all
of the rear doors.
Press this button once to
unlock the front doors.
Press this button again
to unlock your vehicle
completely.
T h e d i r e c t i o n i n d i c a t o r s fl a s h t w i c e .
Page 20 of 185
22
Accesses
REAR ROOF FLAP
T h i s r e a r r o o f fl a p i s o n l y c o m p a t i b l e
with the hinged doors.
T o o p e n t h e r e a r r o o f fl a p :
- raise the black paddle of the toggle,
- relieve the toggle by pressing the r e a r r o o f fl a p ( d o w n w a r d s ) t h e n
release the hook,
- l i f t t h e r e a r r o o f fl a p ,
- pass the point of resistance to s e c u r e t h e r e a r r o o f fl a p u s i n g t h e
support struts. Support bar
A support bar is provided for
transporting long loads, after opening
t h e r e a r r o o f fl a p .
Fold back the support bar by lifting
the lever.
Support it to the door pillar.
Support the long loads to be
transported, lift them and reposition
the support bar with one hand.
Ensure that it is secured correctly by
pressing the handle downwards past
the point of resistance and secure the
l o a d s fi r m l y . The rear bumper has been
strengthened to serve as a
footrest on entering the vehicle.
Never drive without the support
bar in place.
The rear doors only lock when the
support bar is installed.
W h e n t h e r e a r r o o f fl a p i s o p e n , t a k e
care when driving where height is
restricted.
Never rest loads directly on the rear
doors.
Comply with the usual indications,
to attract the attention of other drivers.
The side supports can be used as
hooking points.
- lower the black paddle to secure
t h e r e a r r o o f fl a p .
S e c u r i n g t h e r e a r r o o f fl a p p l a c e s i t
on the seal correctly and guarantees
sealing without noise.
T o c l o s e t h e r e a r r o o f fl a p :
- check that the support bar is secured correctly,
- l o w e r t h e r e a r r o o f fl a p ,
- w h i l e p r e s s i n g t h e r e a r r o o f fl a p (downwards), take hold of the two
loops of the spring then place the
hook in its housing,
Page 70 of 185
6 9
ERGONOMICS and COMFORT
33
Practical information

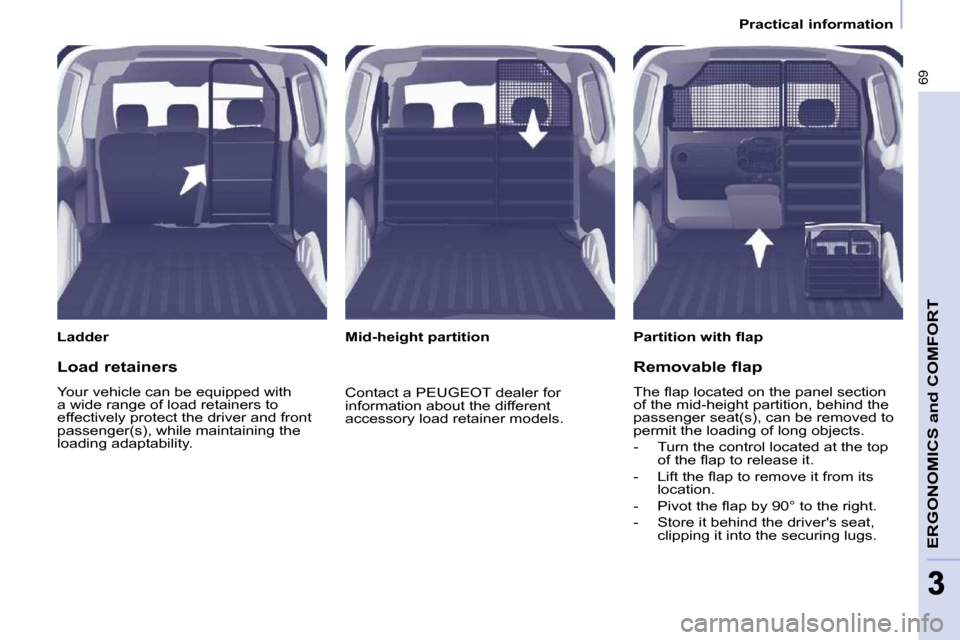

Ladder P a r t i t i o n w i t h fl a p
Mid-height partition
Load retainers
Y o u r v e h i c l e c a n b e e q u i p p e d w i t h
a w i d e r a n g e o f l o a d r e t a i n e r s t o
e f f e c t i v e l y p r o t e c t t h e d r i v e r a n d f r o n t
p a s s e n g e r ( s ) , w h i l e m a i n t a i n i n g t h e
l o a d i n g a d a p t a b i l i t y . Removable flap
T h e fl a p l o c a t e d o n t h e p a n e l s e c t i o n
o f t h e m i d - h e i g h t p a r t i t i o n , b e h i n d t h e
p a s s e n g e r s e a t ( s ) , c a n b e r e m o v e d t o
p e r m i t t h e l o a d i n g o f l o n g o b j e c t s .
- T u r n t h e c o n t r o l l o c a t e d a t t h e t o p
o f t h e fl a p t o r e l e a s e i t .
- L i f t t h e fl a p t o r e m o v e i t f r o m i t s l o c a t i o n .
- P i v o t t h e fl a p b y 9 0 ° t o t h e r i g h t .
- S t o r e i t b e h i n d t h e d r i v e r ' s s e a t , clipping it into the securing lugs.
C o n t a c t a P E U G E O T d e a l e r f o r
i n f o r m a t i o n a b o u t t h e d i f f e r e n t
a c c e s s o r y l o a d r e t a i n e r m o d e l s .
Page 84 of 185
82
Seat belts
SEAT BELTS

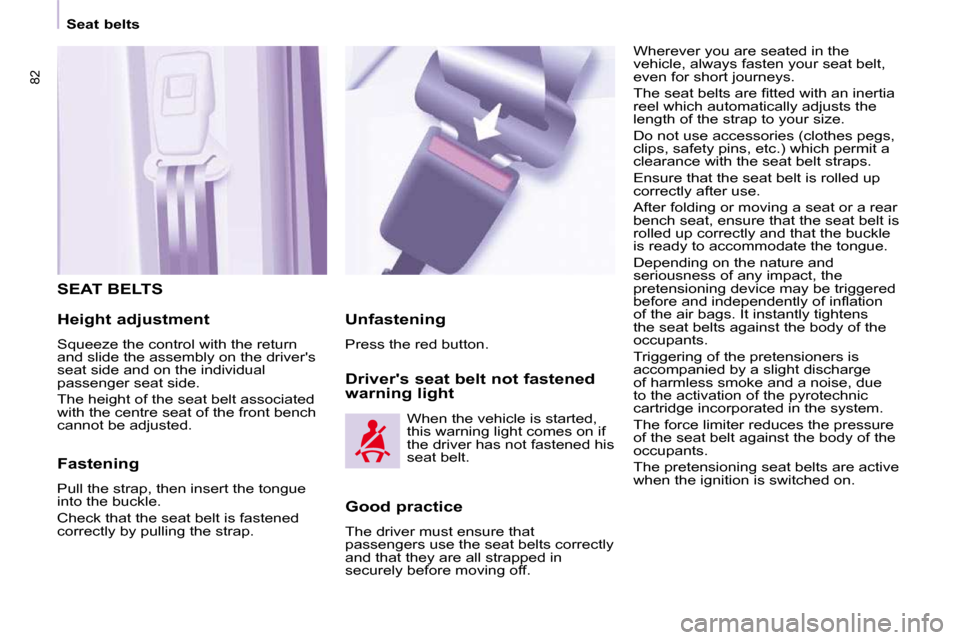

Height adjustment
Squeeze the control with the return
and slide the assembly on the driver's
seat side and on the individual
passenger seat side.
The height of the seat belt associated
with the centre seat of the front bench
cannot be adjusted.
Fastening
Pull the strap, then insert the tongue
into the buckle.
Check that the seat belt is fastened
correctly by pulling the strap. Driver's seat belt not fastened
warning light Wherever you are seated in the
vehicle, always fasten your seat belt,
even for short journeys.
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n e r t i a
reel which automatically adjusts the
length of the strap to your size.
D o n o t u s e a c c e s s o r i e s ( c l o t h e s p e g s ,
clips, safety pins, etc.) which permit a
clearance with the seat belt straps.
Ensure that the seat belt is rolled up
correctly after use.
After folding or moving a seat or a rear
bench seat, ensure that the seat belt is
rolled up correctly and that the buckle
is ready to accommodate the tongue.
Depending on the nature and
seriousness of any impact, the
pretensioning device may be triggered
b e f o r e a n d i n d e p e n d e n t l y o f i n fl a t i o n
of the air bags. It instantly tightens
the seat belts against the body of the
occupants.
Triggering of the pretensioners is
accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
The force limiter reduces the pressure
of the seat belt against the body of the
occupants.
The pretensioning seat belts are active
when the ignition is switched on.
Unfastening
Press the red button.
When the vehicle is started,
this warning light comes on if
the driver has not fastened his
seat belt.
Good practice
The driver must ensure that
passengers use the seat belts correctly
and that they are all strapped in
securely before moving off.
Page 93 of 185
89
SAFETY
4
Child safety
Refer to chapter 4, "Air bags" section.
The child seats function and the
passenger air bag disarming
function are common to the entire
PEUGEOT range.
If the passenger air bag is not
disarmed, the installation of a
"rearwards-facing" child seat in the

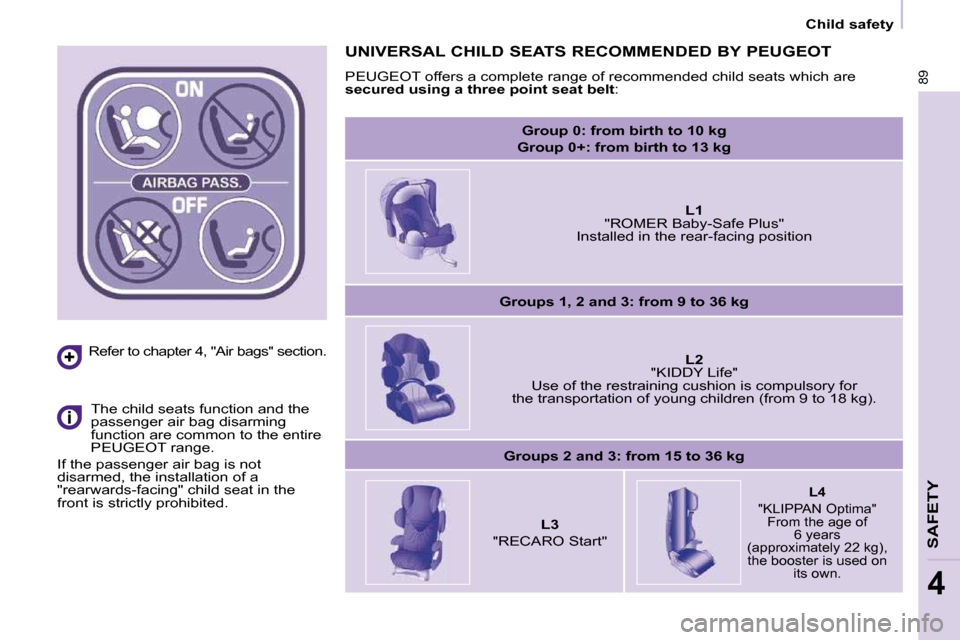

front is strictly prohibited. UNIVERSAL CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which a
re
secured using a three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position
Groups 1, 2 and 3: from 9 to 36 kg
L2
"KIDDY Life"
Use of the restraining cushion is compulsory for
t h e t r a n s p o r t a t i o n o f y o u n g c h i l d r e n ( f r o m 9 t o 1 8 k g ) .
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start''
L4
"KLIPPAN Optima" From the age of 6 years
( a p p r o x i m a t e l y 2 2 k g ) , the booster is used on its own.
Page 94 of 185
89
SAFETY
4
Child safety
Refer to chapter 4, "Air bags" section.
The child seats function and the
passenger air bag disarming
function are common to the entire
PEUGEOT range.
If the passenger air bag is not
disarmed, the installation of a
"rearwards-facing" child seat in the
front is strictly prohibited. UNIVERSAL CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which a
re
secured using a three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position
Groups 1, 2 and 3: from 9 to 36 kg
L2
"KIDDY Life"
Use of the restraining cushion is compulsory for
t h e t r a n s p o r t a t i o n o f y o u n g c h i l d r e n ( f r o m 9 t o 1 8 k g ) .
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start''
L4
"KLIPPAN Optima" From the age of 6 years
( a p p r o x i m a t e l y 2 2 k g ) , the booster is used on its own.
Page 95 of 185
90
Child safety
INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT

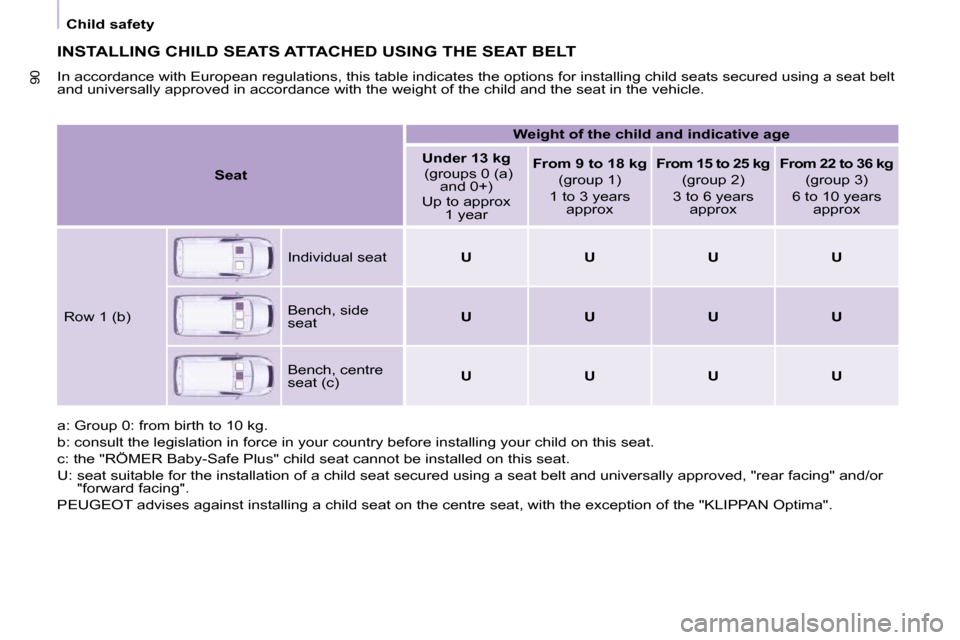

In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt
and universally approved in accordance with the weight of the child and the seat in the vehicle.
a : G r o u p 0 : f r o m b i r t h t o 1 0 k g .
b : c o n s u l t t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y b e f o r e i n s t a l l i n g y o u r c h i l d o n t h i s s e a t .
c : t h e " R Ö M E R B a b y - S a f e P l u s " c h i l d s e a t c a n n o t b e i n s t a l l e d o n t h i s s e a t .
U : s e a t s u i t a b l e f o r t h e i n s t a l l a t i o n o f a c h i l d s e a t s e c u r e d u s i n g a s e a t b e l t a n d u n i v e r s a l l y a p p r o v e d , " r e a r f a c i n g " a n d / o r
"forward facing".
PEUGEOT advises against installing a child seat on the centre seat, with the exception of the "KLIPPAN Optima".
Seat
Weight of the child and indicative age
Under 13 kg
( g r o u p s 0 ( a ) and 0+)
Up to approx 1 year
From 9 to 18 kg
( g r o u p 1 )
1 to 3 years approx
From 15 to 25 kg
( g r o u p 2 )
3 to 6 years approx
From 22 to 36 kg
( g r o u p 3 )
6 to 10 years approx
R o w 1 ( b ) Individual seat
U U U U
Bench, side
seat
U U U U
Bench, centre
s e a t ( c )
U U U U
Page 96 of 185
91
SAFETY
4
Child safety
ADVICE ON CHILD SEATS
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child's body to a
minimum , even for short journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back
of the child seat is in contact with the
back of the vehicle's seat and that the
head restraint does not cause any
discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached
securely to prevent it from being
thrown around the vehicle in the event
of sharp braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when a
"rear facing" child seat is installed on
the front seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag
w e r e t o i n fl a t e . A s a s a f e t y p r e c a u t i o n , d o n o t l e a v e :
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors, use the "Child Lock".
Take care not to open the rear windows
by more than one third.
To protect young children from the rays
o f t h e s u n , fi t s i d e b l i n d s t o t h e r e a r
windows. Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends the use of a
b o o s t e r s e a t w h i c h h a s a b a c k , fi t t e d
with a seat belt guide at shoulder level.
Page 101 of 185
96

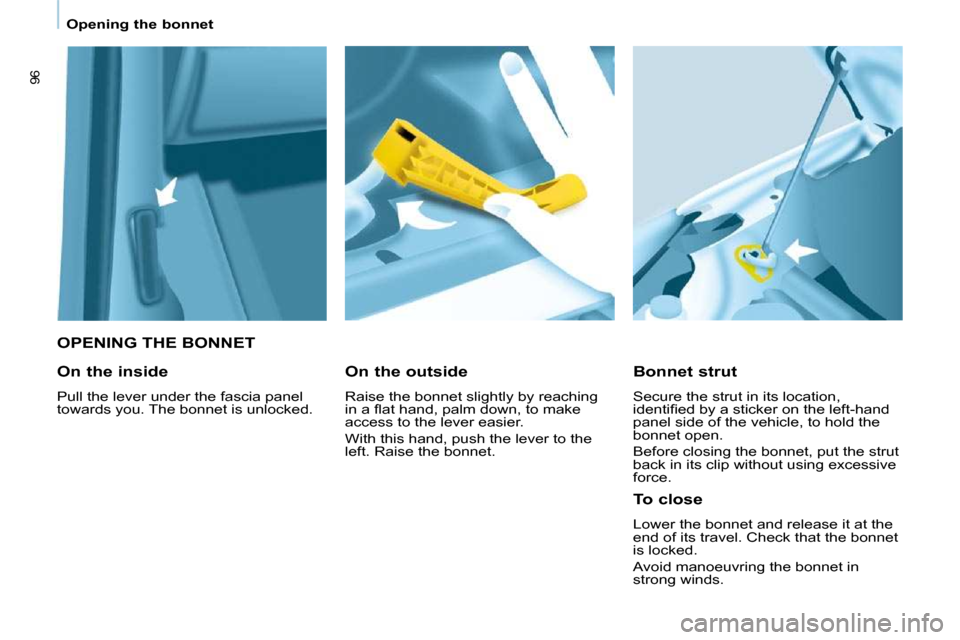

Opening the bonnet
OPENING THE BONNET
Bonnet strut
Secure the strut in its location,
i d e n t i fi e d b y a s t i c k e r o n t h e l e f t - h a n d
panel side of the vehicle, to hold the
bonnet open.
Before closing the bonnet, put the strut
b a c k i n i t s c l i p w i t h o u t u s i n g e x c e s s i v e
force.
On the outside
Raise the bonnet slightly by reaching
i n a fl a t h a n d , p a l m d o w n , t o m a k e
access to the lever easier.
With this hand, push the lever to the
left. Raise the bonnet.
On the inside
Pull the lever under the fascia panel
t o w a r d s y o u . T h e b o n n e t i s u n l o c k e d .
To close
Lower the bonnet and release it at the
e n d o f i t s t r a v e l . C h e c k t h a t t h e b o n n e t
i s l o c k e d .
Avoid manoeuvring the bonnet in
strong winds.
