Page 3 of 185
8
Interior
INSTRUMENTS AND CONTROLS
1. Lights and direction indicators
stalk.
2. I n s t r u m e n t p a n e l w i t h d i s p l a y .
3. Wipers, wash-wipe, trip
computer controls.
4. I g n i t i o n .
5. Audio equipment.
6. Driver's air bag, horn.
7. Steering wheel height and depth
adjustment.
8. Cruise control, speed limiter
switch.
9. Control pad, parking assistance,
h e a d l a m p b e a m a d j u s t m e n t , E S P .
10. B o n n e t r e l e a s e .
11. E l e c t r i c e x t e r i o r m i r r o r
adjustment.
Page 4 of 185
4
4
9
1
FAMILIARISATION
Interior
CENTRE CONSOLE
1. Gear lever.
2. Controls bar: electric window.
3. Controls bar: hazard warning
lights, central locking (passenger
compartment, load space).
4. Lighter.
5. Heating-ventilation controls.
6. Storage compartment.
7. Audio equipment.
8. Display.
79
9. Grip Control.
10. E m e r g e n c y o r a s s i s t a n c e c a l l .
81
Page 6 of 185
3
3
3
3
9
3
11
1
FAMILIARISATION
Interior
Lights off.
Sidelamps.
Main beam headlamps (blue).
Dipped headlamps (green). 2 fast.
1 normal.
I i n t e r m i t t e n t .
0 off.
single wipe.
A U T O , p r e s s t h e s t a l k d o w n .
A U T O , a u t o m a t i c
switching on of the lamps.
40 43 I n c r u i s e c o n t r o l m o d e , t h e v e h i c l e s p e e d
must be higher than 25 mph (40 km/h)
with at least 4th gear engaged.
45,
48
39
SEE CLEARLY
DRIVE SAFELY
Motorway function: press up or down
once, without passing the point of
resistance; the corresponding direction
i n d i c a t o r s w i l l fl a s h t h r e e t i m e s . Lights stalk Wipers stalk
Cruise control, Speed limiter
Hill start assist
Peugeot Connect Sound
44,
120
Special position of the windscreen
wipers
I n t h e m i n u t e f o l l o w i n g s w i t c h i n g o f f
of the ignition, any action on the wiper
stalk positions the wipers vertically at
the sides of the windscreen.
Page 25 of 185
27
READY to SET OFF
22
Instruments and controls
WARNING LAMPS
Each time the vehicle is started: a series of warning lamps comes on applying a self-test check. They switch off almost
i m m e d i a t e l y . W h e n t h e e n g i n e i s r u n n i n g : t h e w a r n i n g l a m p b e c o m e s a w a r n i n g i f i t r e m a i n s o n c o n t i n u o u s l y o r fl a s h e s .
This initial warning may be accompanied by an audible signal and a message which appears on the display.
Do not ignore these warnings.
Warning lamp is indicates Solution - action
STOP lit, associated
with another
warning
lamp and
accompanied
by a message
on the display. major faults linked with
t h e " B r a k e fl u i d l e v e l " ,
"Engine oil pressure and
temperature", "Coolant
temperature", "Electronic
brake force distribution" and
"Power steering" warning
lights.
You must stop, park and switch off the
ignition. Have the fault checked by a
PEUGEOT dealer.
Handbrake/
B r a k e fl u i d
level/EBFD lit.
that the handbrake is applied
or has not been released fully. Releasing the handbrake switches off the warning
lamp.
lit. a l o w b r a k e fl u i d l e v e l . T o p u p u s i n g a fl u i d r e c o m m e n d e d b y P E U G E O T .
remaining on
even though the
level is correct
and associated
with the ABS
warning lamp.
a failure of the electronic
brake force distribution.
You must stop, park and switch off the
ignition. Have the fault checked by a
PEUGEOT dealer.
Engine oil
pressure and
temperature lit while driving.
i n s u f fi c i e n t p r e s s u r e o r a
high temperature. Park and switch off the ignition then allow
to cool. Visually check the level. Chapter 6,
"Levels" section.
remaining on,
even though
the level is
correct. a major fault. Have the fault checked by a PEUGEOT dealer.
Page 29 of 185
31
READY to SET OFF
22
Instruments and controls
Warning lamp is indicates Solution - action
Particle
e m i s s i o n fi l t e r lit. a malfunction of the particle
e m i s s i o n fi l t e r ( d i e s e l
additive level, risk of
clogging, ...). H a v e t h e fi l t e r c h e c k e d b y a P E U G E O T d e a l e r .
Chapter 6, "Levels" section.
Dipped
headlamps/
Daytime
lights
lit. a manual selection or
automatic lighting.
Turn the ring on the lights stalk to the second
position.
lighting of the dipped
headlamps from the time the
ignition is switched on: daytime
lights (depending on the country
in which the vehicle is sold).
Chapter 3, "Steering wheel controls" section.
Main beam
headlamps pulling of the stalk towards
you.
Pull the stalk to return to dipped headlamps.
Direction
indicators fl a s h i n g w i t h
buzzer. a change of direction via the
lights stalk, to the left of the
steering wheel. To the Right: control to be pushed upwards.
To the Left: control to be pushed downwards.
Front fog
lamps lit. a manual selection. The fog lamps only operate if the side lights or
dipped headlamps are on.
Rear fog
lamps lit. a manual selection. The fog lamps only operate if the side lights or
dipped headlamps are on. In conditions of normal
visibility, take care to switch them off to avoid
breaking the law. "This light is a dazzling red."
Page 33 of 185
35
READY to SET OFF
22
Instruments and controls

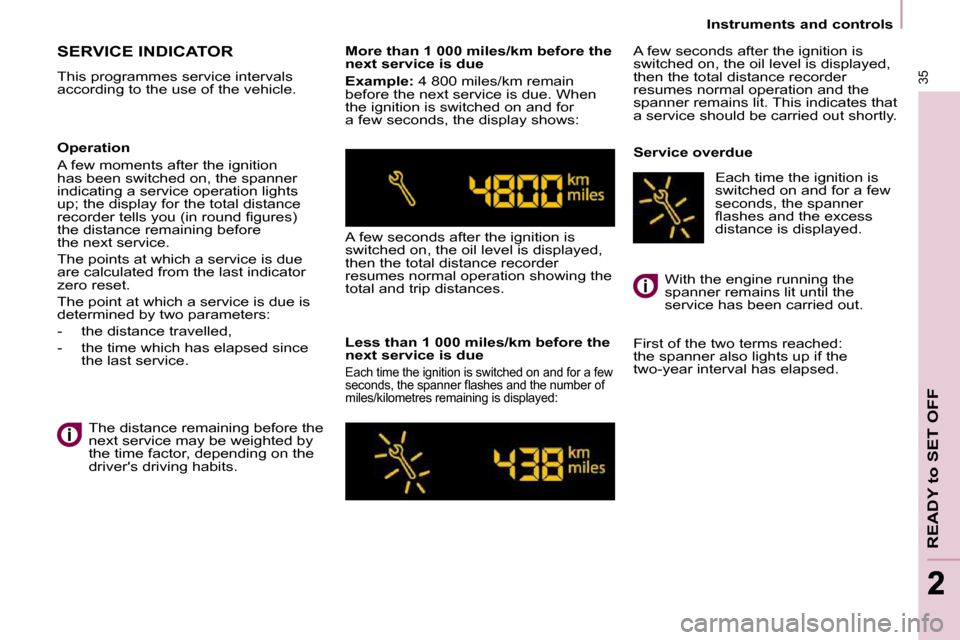

SERVICE INDICATOR
This programmes service intervals
according to the use of the vehicle. More than 1 000 miles/km before the
next service is due
Example: 4 800 miles/km remain
b e f o r e t h e n e x t s e r v i c e i s d u e . W h e n
the ignition is switched on and for
a few seconds, the display shows:
A few seconds after the ignition is
switched on, the oil level is displayed,
then the total distance recorder
resumes normal operation showing the
total and trip distances.
Less than 1 000 miles/km before the
next service is due
Each time the ignition is switched on and for a fe w
s e c o n d s , t h e s p a n n e r fl a s h e s a n d t h e n u m b e r o f
miles/kilometres remaining is displayed:
A few seconds after the ignition is
switched on, the oil level is displayed,
then the total distance recorder
resumes normal operation and the
spanner remains lit. This indicates that
a service should be carried out shortly.
Service overdue
First of the two terms reached:
the spanner also lights up if the
two-year interval has elapsed.
Operation
A few moments after the ignition
has been switched on, the spanner
indicating a service operation lights
up; the display for the total distance
r e c o r d e r t e l l s y o u ( i n r o u n d fi g u r e s )
the distance remaining before
t h e n e x t s e r v i c e .
The points at which a service is due
are calculated from the last indicator
zero reset.
The point at which a service is due is
determined by two parameters:
- the distance travelled,
- the time which has elapsed since
the last service.
The distance remaining before the
n e x t s e r v i c e m a y b e w e i g h t e d b y
the time factor, depending on the
driver's driving habits. With the engine running the
spanner remains lit until the
service has been carried out.
Each time the ignition is
switched on and for a few
seconds, the spanner
fl a s h e s a n d t h e e x c e s s
distance is displayed.
Page 34 of 185
36
Instruments and controls Trip recorder zero
reset button
After this operation, if you wish
to disconnect the battery, lock
the vehicle and wait for at least
fi v e m i n u t e s , o t h e r w i s e t h e z e r o r e - s e t
will not be registered.
Zero re-set
Your PEUGEOT dealer carries out this
operation after each service.
However, if you carry out the service
yourself, the re-set procedure is as
follows:
- switch off the ignition,
- press and hold the trip recorder
reset button,
- switch on the ignition.
The display begins a countdown.
When the display shows "=0" , release
the button; the spanner disappears.

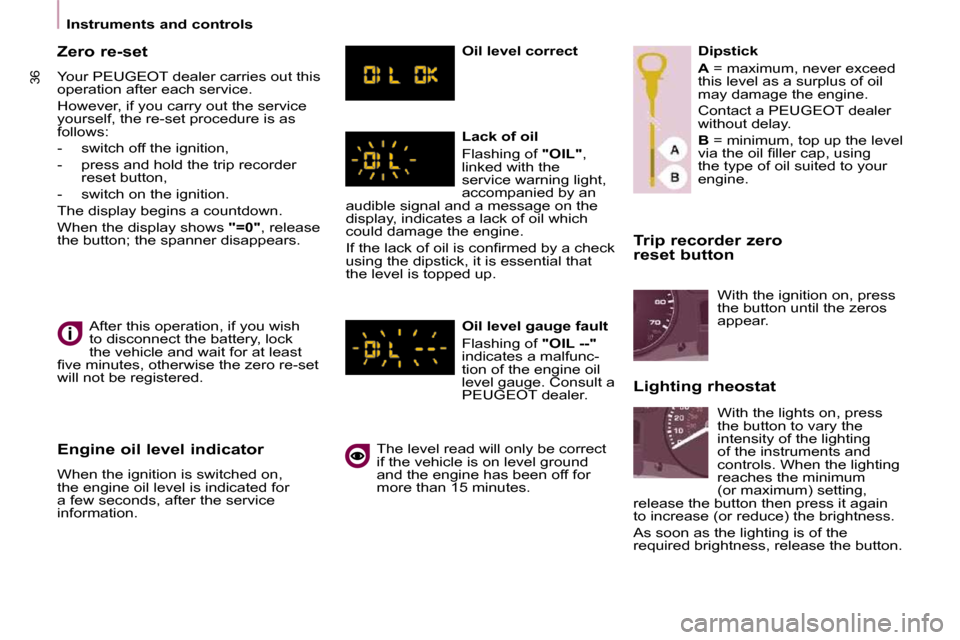

Engine oil level indicator
When the ignition is switched on,
the engine oil level is indicated for
a few seconds, after the service
information. Oil level correct
Lack of oil
Flashing of
"OIL" ,
linked with the
service warning light,
accompanied by an
audible signal and a message on the
display, indicates a lack of oil which
could damage the engine.
I f t h e l a c k o f o i l i s c o n fi r m e d b y a c h e c k
using the dipstick, it is essential that
the level is topped up.
Oil level gauge fault
Flashing of "OIL --"
indicates a malfunc-
tion of the engine oil
level gauge. Consult a
PEUGEOT dealer.
The level read will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes. Dipstick
A = m a x i m u m , n e v e r e x c e e d
this level as a surplus of oil
may damage the engine.
Contact a PEUGEOT dealer
without delay.
B = minimum, top up the level
v i a t h e o i l fi l l e r c a p , u s i n g
the type of oil suited to your
engine.

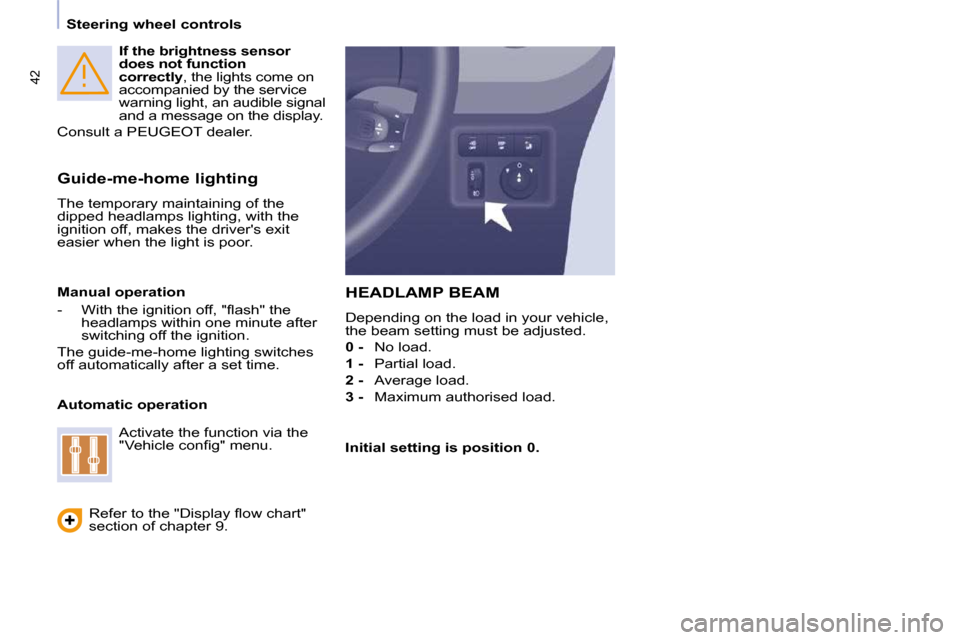

With the lights on, press
the button to vary the
intensity of the lighting
of the instruments and
controls. When the lighting
reaches the minimum
( o r m a x i m u m ) s e t t i n g ,
release the button then press it again
to increase (or reduce) the brightness.
As soon as the lighting is of the
required brightness, release the button. With the ignition on, press
the button until the zeros
appear.
Lighting rheostat
Page 40 of 185
41
Steering wheel controls
ERGONOMICS and COMFORT
3
Daytime lights
Depending on the country in which
t h e v e h i c l e i s s o l d , t h e v e h i c l e m a y
b e e q u i p p e d w i t h d a y t i m e l i g h t s . T h e
d i p p e d h e a d l a m p s c o m e o n w h e n t h e
v e h i c l e i s s t a r t e d .
R e a r f o g l a m p s ( a m b e r ,
2 n d r o t a t i o n o f t h e r i n g
f o r w a r d s ) .
F r o n t f o g l a m p s ( g r e e n ,
1 s t r o t a t i o n o f t h e r i n g
f o r w a r d s ) .
Front and rear foglamps
R o t a t e r i n g
B f o r w a r d s t o s w i t c h o n
a n d r e a r w a r d s t o s w i t c h o f f . T h e
s t a t u s i s c o n fi r m e d b y t h e l a m p o n t h e
i n s t r u m e n t p a n e l .
T h e s e o p e r a t e w i t h t h e s i d e l a m p s a n d
t h e d i p p e d b e a m h e a d l a m p s .
Do not forget to switch them off
w h e n t h e y a r e n o l o n g e r n e e d e d .
O p e r a t i o n o f t h e u t o m a t i c l i g h t i n g
s w i t c h e s o f f t h e r e a r f o g l a m p s , b u t t h e
f r o n t f o g l a m p s r e m a i n o n . T h i s w a r n i n g l i g h t c o m e s o n
o n t h e i n s t r u m e n t p a n e l .
T h e i n s t r u m e n t s a n d c o n t r o l s
( i n s t r u m e n t p a n e l , d i s p l a y , a i r
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e
o n l y l i t o n s w i t c h i n g t o t h e a u t o m a t i c
switching on of the lights mode or
w h e n t h e l i g h t s a r e s w i t c h e d o n
m a n u a l l y .
T o s w i t c h o f f t h e f r o n t a n d r e a r
f o g l a m p s , t u r n t h e r i n g r e a r w a r d s t w i c e
in succession.
I n c l e a r w e a t h e r o r i n r a i n , b o t h d a y
a n d n i g h t , r e a r f o g l a m p s d a z z l e a n d
their use is prohibited. Automatic switching on of the lights
I n f o g g y w e a t h e r o r i n s n o w ,
t h e b r i g h t n e s s s e n s o r c a n
d e t e c t s u f fi c i e n t l i g h t . A s a
consequence, the lights will not come
o n a u t o m a t i c a l l y . I f n e c e s s a r y , y o u
m u s t s w i t c h o n t h e d i p p e d h e a d l a m p s
m a n u a l l y .
D o n o t c o v e r t h e b r i g h t n e s s
s e n s o r l o c a t e d o n t h e w i n d s c r e e n ,
behind the mirror. It is used for
t h e a u t o m a t i c s w i t c h i n g o n o f t h e l i g h t s
a n d f o r t h e a u t o m a t i c w i p e r s .
Activation
Turn the ring to the AUTO position.
T h e a c t i v a t i o n o f t h i s f u n c t i o n i s
a c c o m p a n i e d b y a m e s s a g e o n t h e
d i s p l a y .
Deactivation
T u r n t h e r i n g f o r w a r d s o r r e a r w a r d s .
T h e d e a c t i v a t i o n o f t h i s f u n c t i o n i s
a c c o m p a n i e d b y a m e s s a g e o n t h e
d i s p l a y .
T h e f u n c t i o n i s d e a c t i v a t e d t e m p o r a r i l y
w h e n y o u u s e t h e m a n u a l l i g h t s s t a l k . The side lights
a n d d i p p e d b e a m
h e a d l a m p s s w i t c h
o n a u t o m a t i c a l l y i f
the light is poor, or
d u r i n g o p e r a t i o n o f t h e w i n d s c r e e n
w i p e r s . T h e y s w i t c h o f f a s s o o n a s t h e
light becomes bright enough or the
windscreen wipers stop.
T h i s f u n c t i o n i s n o t c o m p a t i b l e w i t h t h e
d a y t i m e l i g h t s .
Page 41 of 185
4 2
Steering wheel controls
If the brightness sensor
does not function
correctly , the lights come on
a c c o m p a n i e d b y t h e s e r v i c e
w a r n i n g l i g h t , a n a u d i b l e s i g n a l
a n d a m e s s a g e o n t h e d i s p l a y .
C o n s u l t a P E U G E O T d e a l e r .
Guide-me-home lighting
T h e t e m p o r a r y m a i n t a i n i n g o f t h e
d i p p e d h e a d l a m p s l i g h t i n g , w i t h t h e
i g n i t i o n o f f , m a k e s t h e d r i v e r ' s e x i t
e a s i e r w h e n t h e l i g h t i s p o o r .
HEADLAMP BEAM
D e p e n d i n g o n t h e l o a d i n y o u r v e h i c l e ,
t h e b e a m s e t t i n g m u s t b e a d j u s t e d .
0 - N o l o a d .
1 - P a r t i a l l o a d .
2 - A v e r a g e l o a d .
3 - M a x i m u m a u t h o r i s e d l o a d .
Manual operation
- W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
h e a d l a m p s w i t h i n o n e m i n u t e a f t e r
switching off the ignition.
T h e g u i d e - m e - h o m e l i g h t i n g s w i t c h e s
o f f a u t o m a t i c a l l y a f t e r a s e t t i m e .
Automatic operation
R e f e r t o t h e " D i s p l a y fl o w c h a r t "
s e c t i o n o f c h a p t e r 9 . A c t i v a t e t h e f u n c t i o n v i a t h e
" V e h i c l e c o n fi g " m e n u .
Initial setting is position 0.
Page 42 of 185
4 2
Steering wheel controls
If the brightness sensor
does not function
correctly , the lights come on
a c c o m p a n i e d b y t h e s e r v i c e
w a r n i n g l i g h t , a n a u d i b l e s i g n a l
a n d a m e s s a g e o n t h e d i s p l a y .
C o n s u l t a P E U G E O T d e a l e r .
Guide-me-home lighting
T h e t e m p o r a r y m a i n t a i n i n g o f t h e
d i p p e d h e a d l a m p s l i g h t i n g , w i t h t h e
i g n i t i o n o f f , m a k e s t h e d r i v e r ' s e x i t
e a s i e r w h e n t h e l i g h t i s p o o r .
HEADLAMP BEAM
D e p e n d i n g o n t h e l o a d i n y o u r v e h i c l e ,
t h e b e a m s e t t i n g m u s t b e a d j u s t e d .
0 - N o l o a d .
1 - P a r t i a l l o a d .
2 - A v e r a g e l o a d .
3 - M a x i m u m a u t h o r i s e d l o a d .
Manual operation
- W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
h e a d l a m p s w i t h i n o n e m i n u t e a f t e r
switching off the ignition.
T h e g u i d e - m e - h o m e l i g h t i n g s w i t c h e s
o f f a u t o m a t i c a l l y a f t e r a s e t t i m e .
Automatic operation
R e f e r t o t h e " D i s p l a y fl o w c h a r t "
s e c t i o n o f c h a p t e r 9 . A c t i v a t e t h e f u n c t i o n v i a t h e
" V e h i c l e c o n fi g " m e n u .
Initial setting is position 0.
