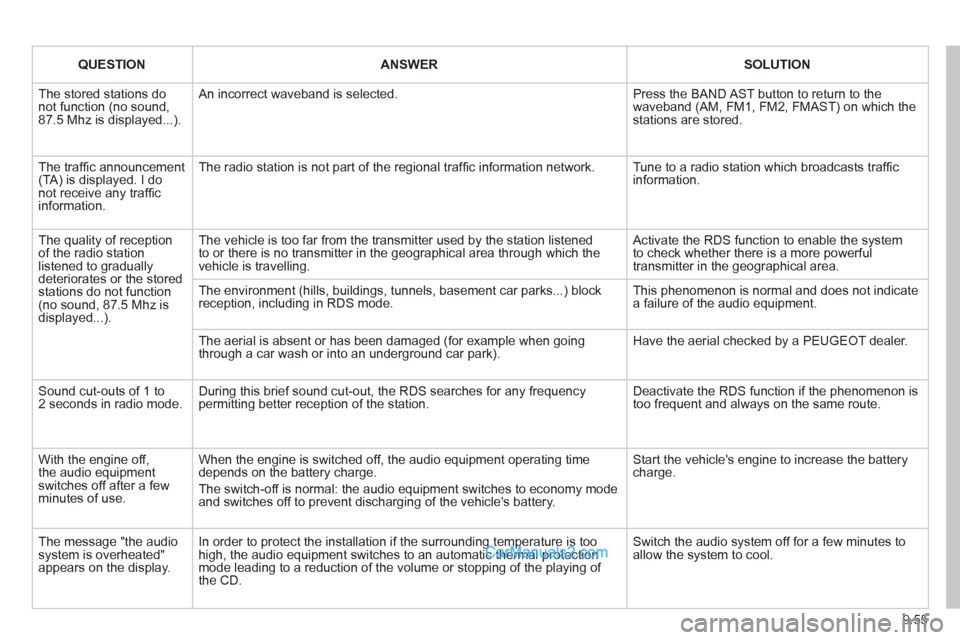

QUESTIONANSWERSOLUTION
The stored stations donot function (no sound, 87.5 Mhz is displayed...).

An incorrect waveband is selected.
Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which thestations are stored.

The traffi c announcement(TA) is displayed. I donot receive any traffi c information.
The radio station is not part of the regional traffi c information network.
Tune to a radio station which broadcasts traffi c information.

The quality of receptionof the radio station listened to graduallydeteriorates or the stored stations do not function(no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listenedto or there is no transmitter in the geographical area through which the vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode. This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when goingthrough a car wash or into an underground car park).
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to2 seconds in radio mode.During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station.
Deactivate the RDS function if the phenomenon is too frequent and always on the same route.

With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipment operating timedepends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the batterycharge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is toohigh, the audio equipment switches to an automatic thermal protectionmode leading to a reduction of the volume or stopping of the playing of the CD.
Switch the audio system off for a few minutes toallow the system to cool.

135


Exterior

VISUAL SEARCH
10

EXTERIOR


Remote control 15-16
Changing the battery,
reinitialisation 16
Key 15
Starting 44
Hill start assist 45
Central locking/unlocking 15, 24
Locking/unlocking
the load space 15, 24

Filler cap, fuel tank 109
Fuel cut-off, Diesel priming 110

Wiper blade 126
Door mirrors 77
Side repeater 119

Front lamps, foglamps,
direction indicators 46-47, 118
Headlamp beam height
adjustment 48
Changing front bulbs 117-119
Headlamp wash 50, 106
Snow cover 116

Front doors 18
Sliding side door 19
Key 15
Opening the bonnet 102

Infl ation, pressure 134
Towing, lifting 98-99, 127
Towbar 98-99
Rear parking sensors 81-82
Number plate lamp 121
Spare wheel, jack,
changing a wheel, tools 112-116
Rear lamps, direction
indicators 46-47, 120
3rd brake lamp 121
Changing rear bulbs 120-121
Load space, opening 15, 24
Doors, tailgate 20-23
Accessories 100
Roof bars 76

Rear roof fl ap 22
Emergency control 23
Dimensions 128-132
Floor cab dimensions 132

Brakes, pads 80, 107
Emergency braking 83

ABS, EBFD 83
ASR, ESP 84
"Grip control" 85
Tyre, pressures 134
Tyre under-infl ation detection 34

136

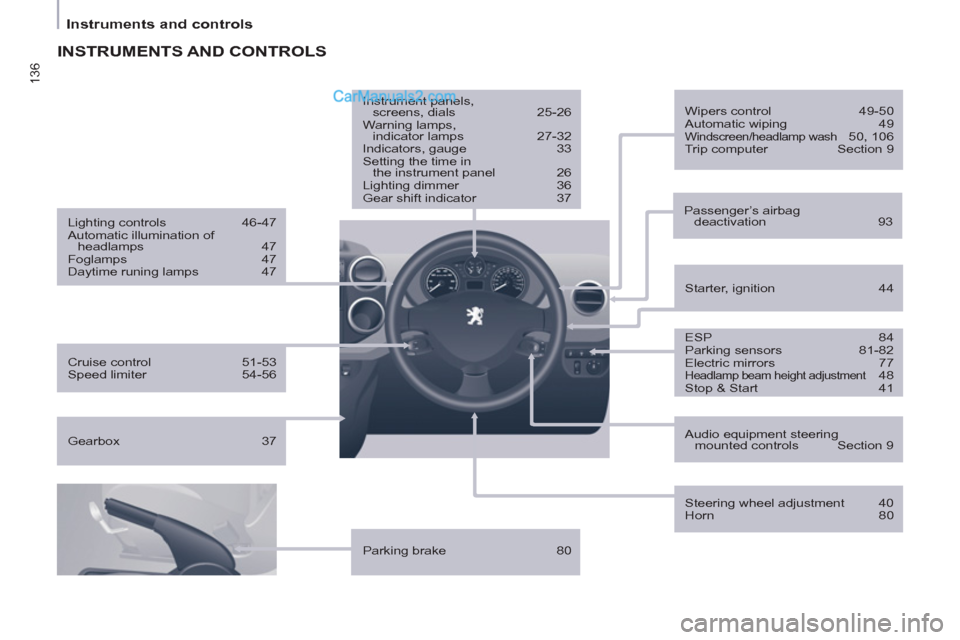

Instruments and controls
INSTRUMENTS AND CONTROLS


ESP 84
Parking sensors 81-82
Electric mirrors 77

Headlamp beam height adjustment 48
Stop & Start 41
Starter, ignition 44
Wipers control 49-50
Automatic wiping 49

Windscreen/headlamp wash 50, 106
Trip computer Section 9

Cruise control 51-53
Speed limiter 54-56
Lighting controls 46-47
Automatic illumination of
headlamps 47
Foglamps 47
Daytime runing lamps 47

Parking brake 80
Instrument panels,
screens, dials 25-26
Warning lamps,
indicator lamps 27-32
Indicators, gauge 33
Setting the time in
the instrument panel 26
Lighting dimmer 36
Gear shift indicator 37

Audio equipment steering
mounted controls Section 9

Steering wheel adjustment 40
Horn 80


Passenger’s airbag
deactivation 93

Gearbox 37

137

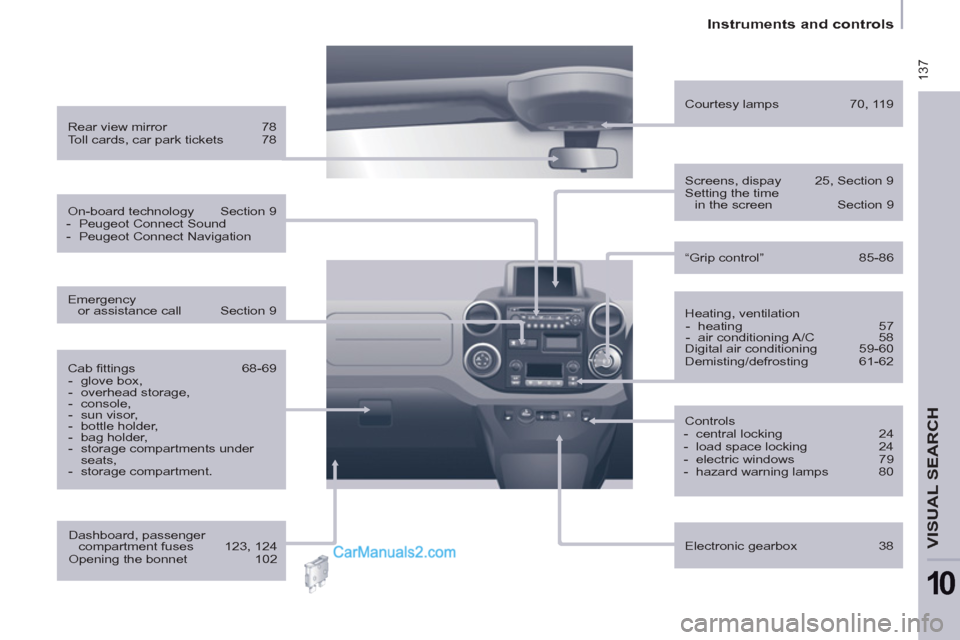

Instruments and controls

VISUAL SEARCH
10


Heating, ventilation


- heating 57

- air conditioning A/C 58
Digital air conditioning 59-60
Demisting/defrosting 61-62
Rear view mirror 78
Toll cards, car park tickets 78
Courtesy lamps 70, 119

Controls


- central locking 24

- load space locking 24

- electric windows 79

- hazard warning lamps 80


Electronic gearbox 38
Cab fi ttings 68-69


- glove box,

- overhead storage,

- console,

- sun visor,

- bottle holder,

- bag holder,

- storage compartments under
seats,

- storage compartment.


Screens, dispay 25, Section 9
Setting the time
in the screen Section 9

Dashboard, passenger
compartment fuses 123, 124
Opening the bonnet 102
On-board technology Section 9


- Peugeot Connect Sound

- Peugeot Connect Navigation


Emergency
or assistance call Section 9
“Grip control” 85-86

138
Interior
INTERIOR


Towing, lifting, towbar 98, 127
Towed loads 133
Rear view mirror 78
Toll cards, car park tickets 78
Front courtesy lamp 70
Changing courtesy
lamp bulbs 119

Spare wheel, jack, changing
a wheel, tools 112-116
Front, lateral airbags 90-93
Passenger's airbag
deactivation 93
Battery, recharging, starting 111

Parking brake, handbrake 80
Child seats 94-97
Front seats, adjustments,
head restraint 63-64
Multi-Flex bench seat 65-66
Seat, bench confi gurations 67
Seat belts 88-89

Towing, towbar, coachbuilders,
fl oor cab fuses 124
Rear courtesy lamp 70
Changing courtesy
lamp bulbs 119

Load space 74-75


- stowing rings,

- load retainer,

- trim,

- 12 volt socket,

- ladder separation or partition,

- removable fl ap.

Opening the bonnet 102

Accessories 99

139


Technical data - Maintenance

VISUAL SEARCH
10

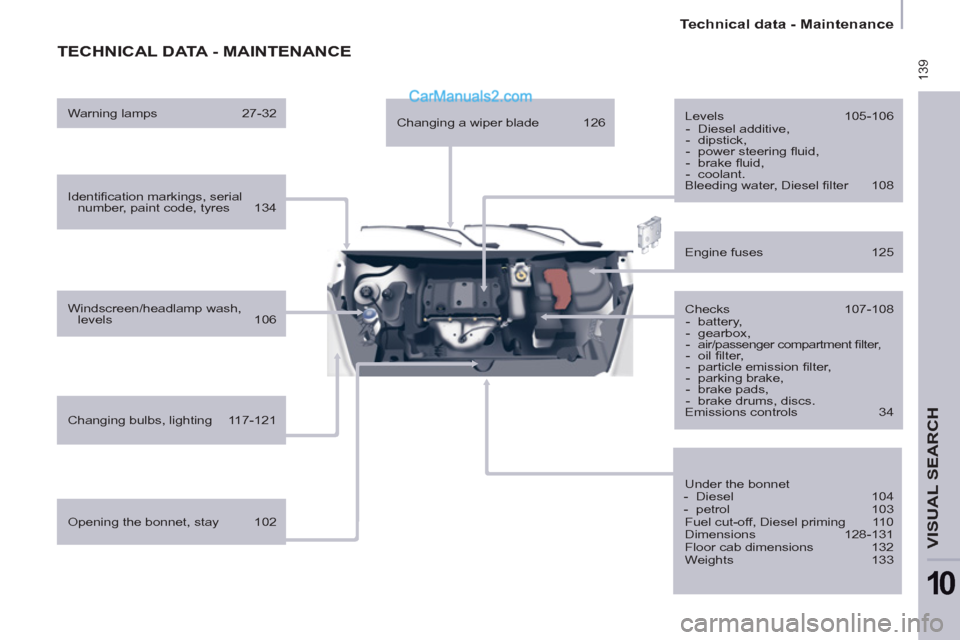

TECHNICAL DATA - MAINTENANCE


Identifi cation markings, serial
number, paint code, tyres 134

Windscreen/headlamp wash,
levels 106

Changing bulbs, lighting 117-121
Checks 107-108


- battery,

- gearbox,

-
air/passenger compartment fi lter,

- oil fi lter,

- particle emission fi lter,

- parking brake,

- brake pads,

- brake drums, discs.
Emissions controls 34
Engine fuses 125

Under the bonnet


- Diesel 104

- petrol 103
Fuel cut-off, Diesel priming 110
Dimensions 128-131
Floor cab dimensions 132
Weights 133

Opening the bonnet, stay 102
Levels 105-106


- Diesel additive,

- dipstick,

- power steering fl uid,

- brake fl uid,

- coolant.
Bleeding water, Diesel fi lter 108
Warning lamps 27-32

Changing a wiper blade 126

140

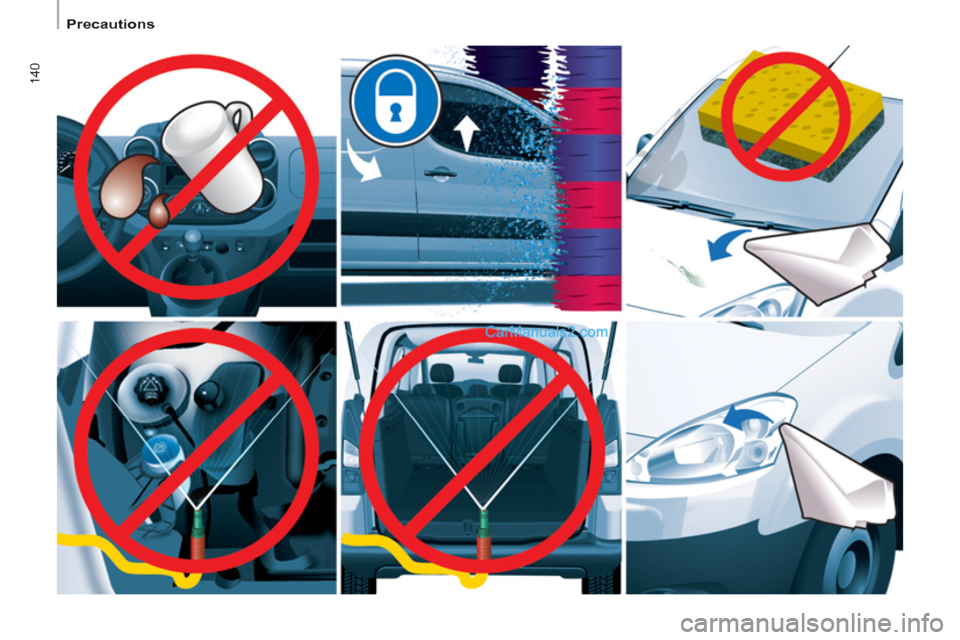

Precautions

I 06-11

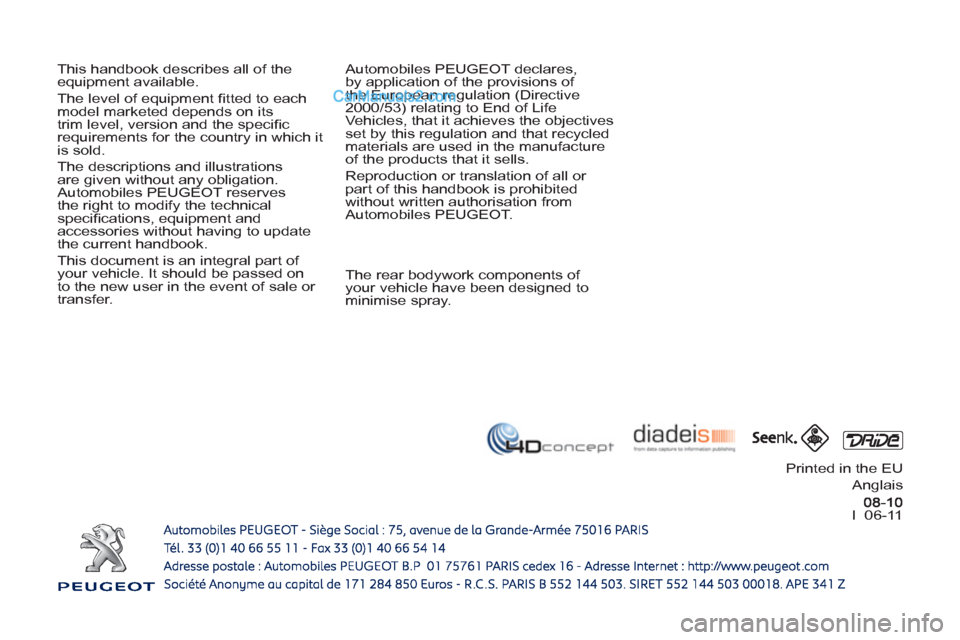

This handbook describes all of the
equipment available.
The level of equipment fi tted to each
model marketed depends on its
trim level, version and the specifi c
requirements for the country in which it
is sold.
The descriptions and illustrations
are given without any obligation.
Automobiles PEUGEOT reserves
the right to modify the technical
specifi cations, equipment and
accessories without having to update
the current handbook.
This document is an integral part of
your vehicle. It should be passed on
to the new user in the event of sale or
transfer. Automobiles PEUGEOT declares,
by application of the provisions of
the European regulation (Directive
2000/53) relating to End of Life
Vehicles, that it achieves the objectives
set by this regulation and that recycled
materials are used in the manufacture
of the products that it sells.
Reproduction or translation of all or
part of this handbook is prohibited
without written authorisation from
Automobiles PEUGEOT.
Printed in the EU
Anglais
The rear bodywork components of
your vehicle have been designed to
minimise spray.

AN. 11PAR.0630Anglais
