Peugeot Partner 2017 Owner's Manual - RHD (UK, Australia)

149
Partner-2-VU_en_Chap08_Aide-rapide_ed02-2016

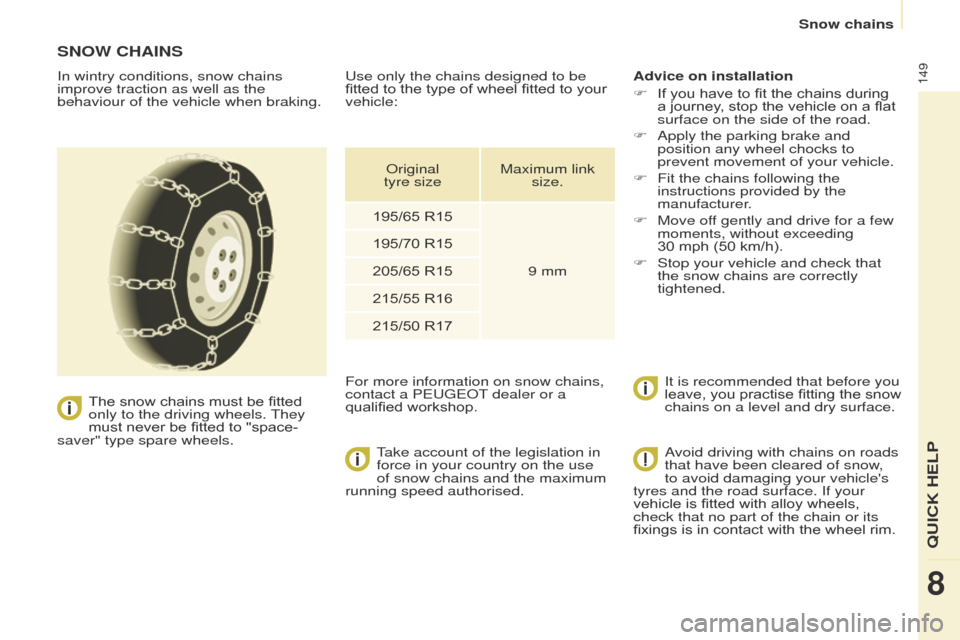

SNOW CHAINS
In wintry conditions, snow chains
improve traction as well as the
behaviour of the vehicle when braking.The snow chains must be fitted
only to the driving wheels. They
must never be fitted to "space-
saver" type spare wheels. Take account of the legislation in
force in your country on the use
of snow chains and the maximum
running speed authorised. Advice on installation
F

If you have to fit the chains during
a journey

, stop the vehicle on a flat
surface on the side of the road.
F

Apply the parking brake and
position any wheel chocks to
prevent movement of your vehicle.
F


Fit the chains following the
instructions provided by the
manufacturer

.
F

Move of
f gently and drive for a few
moments, without exceeding
30 mph (50 km/h).
F

Stop your vehicle and check that
the snow chains are correctly
tightened.It is recommended that before you
leave, you practise fitting the snow
chains on a level and dry surface.
Use only the chains designed to be
fitted to the type of wheel fitted to your
vehicle:
For more information on snow chains,
contact a PEUGEOT

dealer or a
qualified workshop. Original
tyre size Maximum link
size.
195/65
R159
mm
195/70
R15
205/65
R15
215/55
R16
215/50
R17Avoid driving with chains on roads
that have been cleared of snow,
to avoid damaging your vehicle's
tyres and the road surface. If your
vehicle is fitted with alloy wheels,
check that no part of the chain or its
fixings is in contact with the wheel rim.
QUICK HELP
8
Snow chains

150
Partner-2-VU_en_Chap08_Aide-rapide_ed02-2016

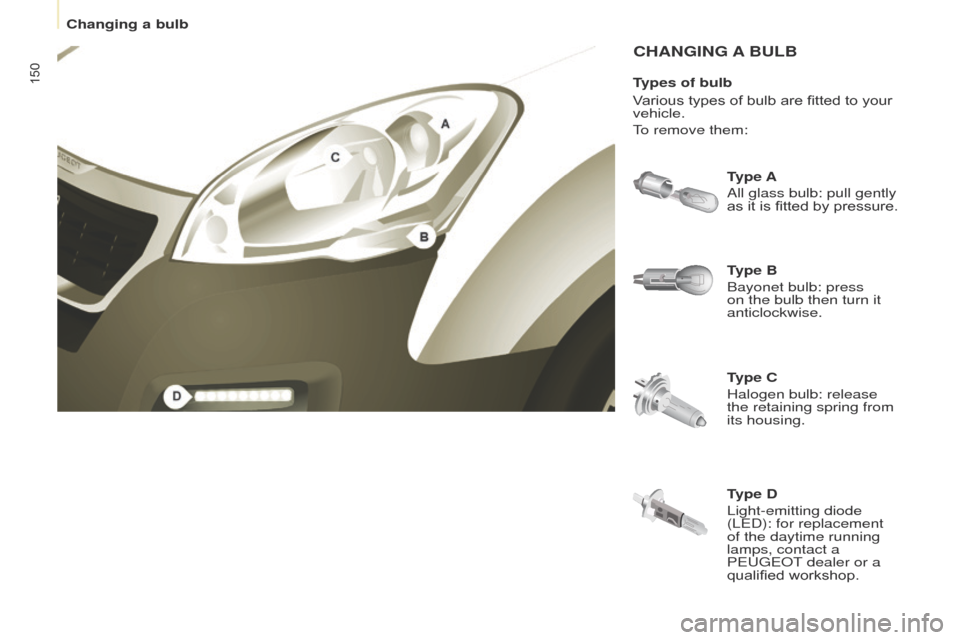

CHANGING A BULB
Type B
Bayonet bulb: press
on the bulb then turn it
anticlockwise. Type A
All glass bulb: pull gently
as it is fitted by pressure.
Type C
Halogen bulb: release
the retaining spring from
its housing.
Types of bulb
Various types of bulb are fitted to your
vehicle.
To remove them:
Type D
Light-emitting diode
(LED): for replacement
of the daytime running
lamps, contact a
PEUGEOT dealer or a
qualified workshop.
Changing a bulb

151
Partner-2-VU_en_Chap08_Aide-rapide_ed02-2016

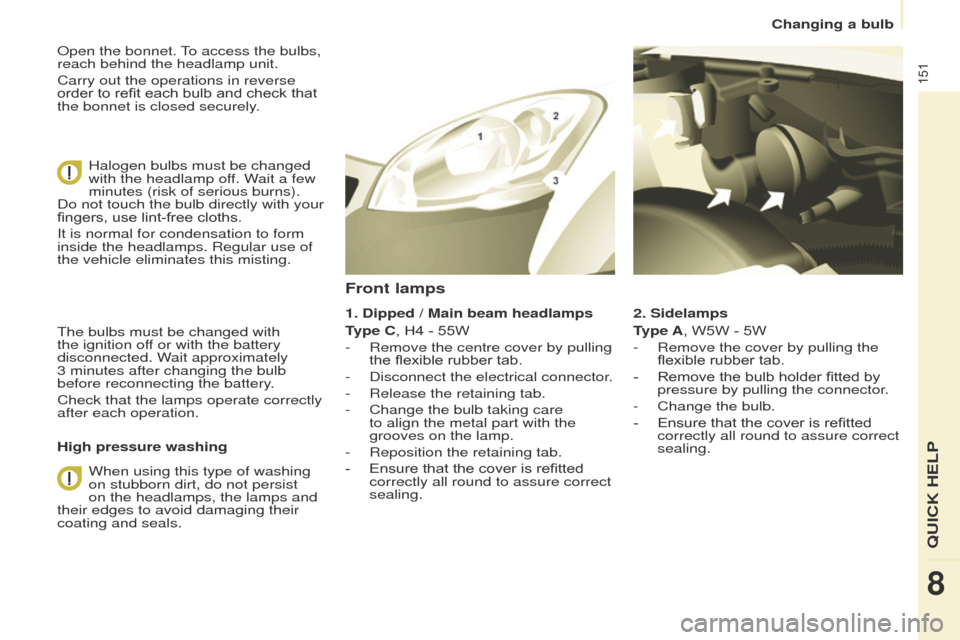

Open the bonnet. To access the bulbs,
reach behind the headlamp unit.
Carry out the operations in reverse
order to refit each bulb and check that
the bonnet is closed securely.Halogen bulbs must be changed
with the headlamp off. Wait a few
minutes (risk of serious burns).
Do not touch the bulb directly with your
fingers, use lint-free cloths.
It is normal for condensation to form
inside the headlamps. Regular use of
the vehicle eliminates this misting.
The bulbs must be changed with
the ignition off or with the battery
disconnected. Wait approximately
3
minutes after changing the bulb
before reconnecting the battery.
Check that the lamps operate correctly
after each operation.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist
on the headlamps, the lamps and
their edges to avoid damaging their
coating and seals. 2. Sidelamps
Type A, W5W - 5W
-

Remove the cover by pullin
g the
flexible rubber tab.
-

Remove the bulb holder fitted by
pressure by pullin

g the connector.
-

Change the bulb.
-


Ensure that the cover is refitted
correctly all round to assure correct
sealing.
Front lamps
1. Dipped / Main beam headlamps
T ype C, H4 - 55W
-

Remove the centre cover by pullin
g
the flexible rubber tab.
-

Disconnect the electrical connector
.
-

Release the retaining tab.
-


Change the bulb taking care
to align the metal part with the
grooves on the lamp.
-


Reposition the retaining tab.
-


Ensure that the cover is refitted
correctly all round to assure correct
sealing.
QUICK HELP
8
Changing a bulb

152
Partner-2-VU_en_Chap08_Aide-rapide_ed02-2016

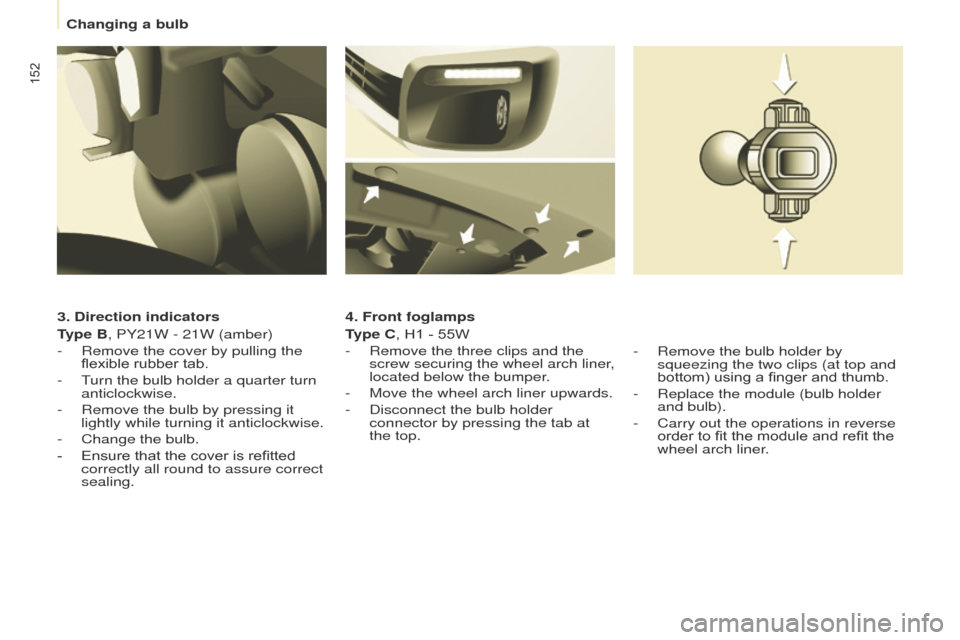

3. Direction indicators
Type B, PY21W - 21W (amber)
-
Remove the cover by pullin
g the
flexible rubber tab.
-

T
urn the bulb holder a quarter turn
anticlockwise.
-

Remove the bulb by pressing it
lightly while turning it anticlockwise.
-


Change the bulb.
-


Ensure that the cover is refitted
correctly all round to assure correct
sealing. 4. Front foglamps
T

ype C, H1 - 55W
-

Remove the three clips and the
screw securing the wheel arch liner

,
located below the bumper.
-

Move the wheel arch liner upwards.
-


Disconnect the bulb holder
connector by pressing the tab at
the top.-


Remove the bulb holder by
squeezing the two clips (at top and
bottom) using a finger and thumb.
-


Replace the module (bulb holder
and bulb).
-


Carry out the operations in reverse
order to fit the module and refit the
wheel arch liner

.
Changing a bulb

153
Partner-2-VU_en_Chap08_Aide-rapide_ed02-2016

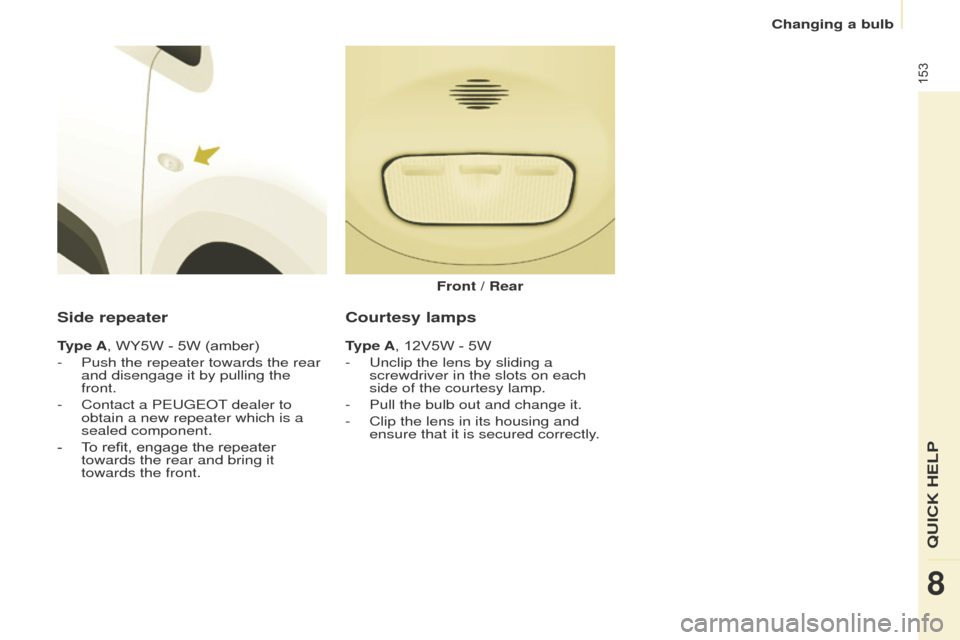

Side repeater
Type A, WY5W - 5W (amber)
-
Push the repeater towards the rear
and disengage it by pullin

g the
front.
-

Contact a PEUGEOT
dealer to
obtain a new repeater which is a
sealed component.
-

T
o refit, engage the repeater
towards the rear and bring it
towards the front. Front / Rear
Courtesy lamps
Type A, 12V5W - 5W
-

Unclip the lens by sliding a
screwdriver in the slots on each
side of the courtesy lamp.
-


Pull the bulb out and change it.
-


Clip the lens in its housing and
ensure that it is secured correctly

.
QUICK HELP
8
Changing a bulb

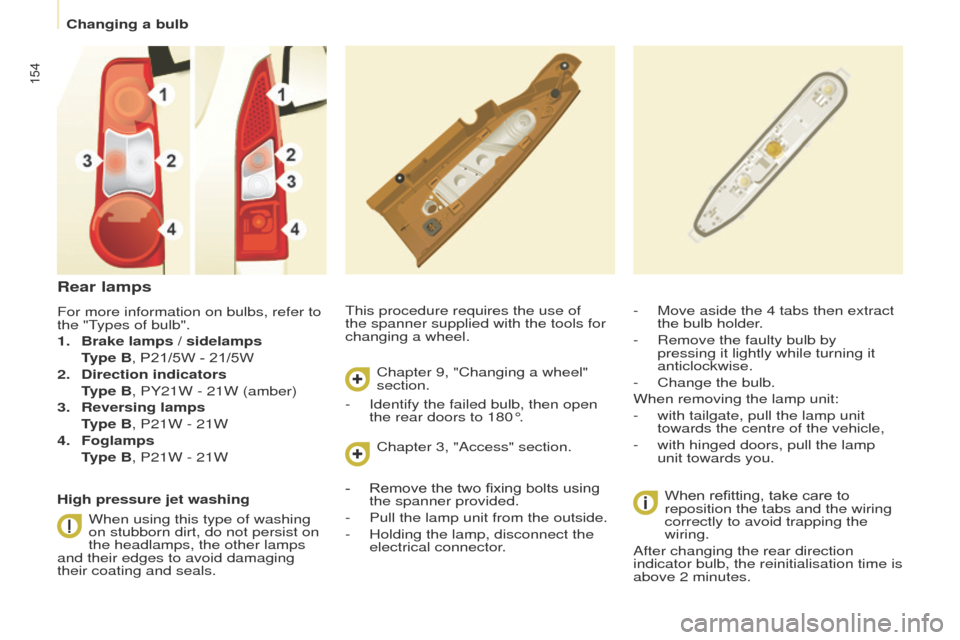

154
Partner-2-VU_en_Chap08_Aide-rapide_ed02-2016
This procedure requires the use of
the spanner supplied with the tools for
changing a wheel.-
Move aside the 4 tabs then extract
the bulb holder
.
-

Remove the faulty bulb by
pressing it lightly while turning it
anticlockwise.
-


Change the bulb.
When removing the lamp unit:
-


with tailgate, pull the lamp unit
towards the centre of the vehicle,
-


with hinged doors, pull the lamp
unit towards you.When refitting, take care to
reposition the tabs and the wiring
correctly to avoid trapping the
wiring.
After changing the rear direction
indicator bulb, the reinitialisation time is
above 2 minutes.
Rear lamps
For more information on bulbs, refer to
the "Types of bulb".
1.

Brake lamps / sidelamps



T
ype B, P21/5W - 21/5W
2.

Direction indicators



T
ype B, PY21W - 21W (amber)
3.

Reversing lamps



T
ype B, P21W - 21W
4.

Foglamps



T
ype B, P21W - 21W
High pressure jet washing When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the other lamps
and their edges to avoid damaging
their coating and seals. Chapter 9, "Changing a wheel"
section.
Chapter 3, "Access" section.
-

Identify the failed bulb, then open
the rear doors to 180°.
-


Remove the two fixing bolts using
the spanner provided.
-


Pull the lamp unit from the outside.
-


Holding the lamp, disconnect the
electrical connector

.
Changing a bulb

155
Partner-2-VU_en_Chap08_Aide-rapide_ed02-2016

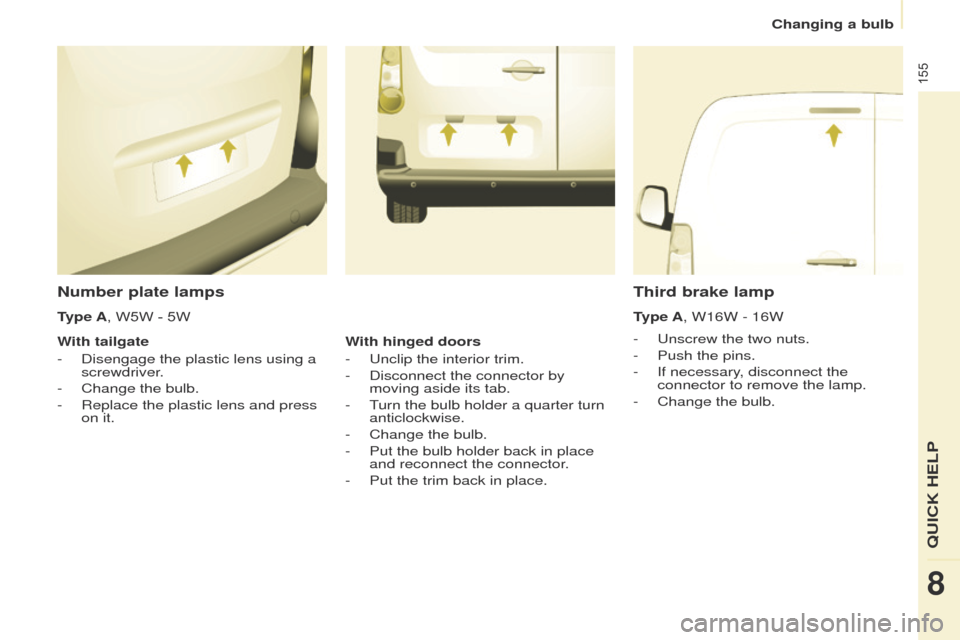

Number plate lamps
- Unscrew the two nuts.
-
Push the pins.
-


If necessary
, disconnect the
connector to remove the lamp.
-

Change the bulb.
Third brake lamp
Type A, W16W - 16W
Type A, W5W - 5W
With tailgate
-

Disengage the plastic lens using a
screwdriver

.
-

Change the bulb.
-


Replace the plastic lens and press
on it. W

ith hinged doors
-

Unclip the interior trim.
-


Disconnect the connector by
moving aside its tab.
-


T

urn the bulb holder a quarter turn
anticlockwise.
-

Change the bulb.
-


Put the bulb holder back in place
and reconnect the connector

.
-

Put the trim back in place.
QUICK HELP
8
Changing a bulb

156
Partner-2-VU_en_Chap08_Aide-rapide_ed02-2016

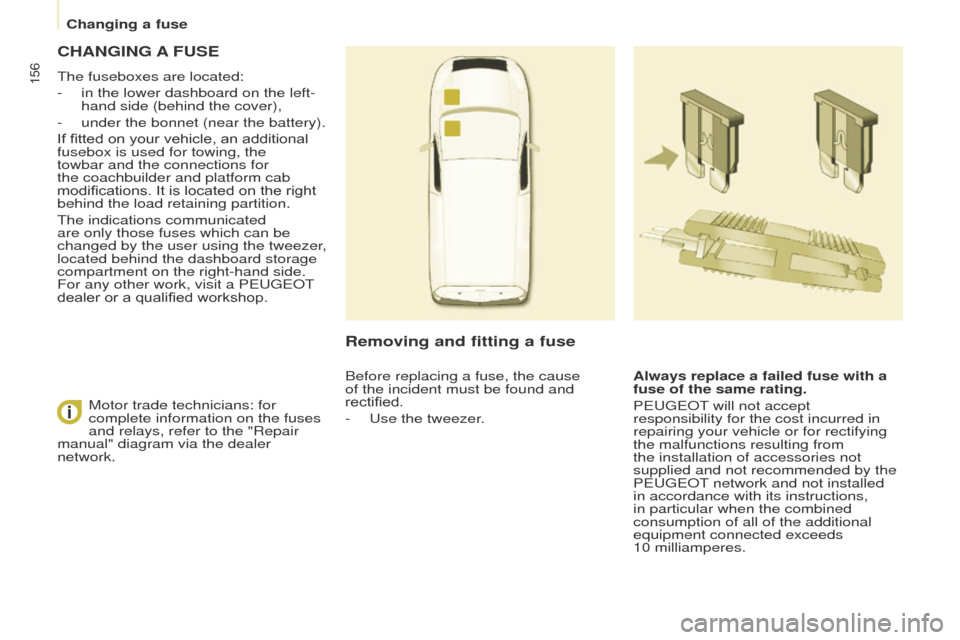

CHANGING A FUSE
The fuseboxes are located:
-
in the lower dashboard on the left-
hand side (behind the cover),
-


under the bonnet (near the battery).
If fitted on your vehicle, an additional
fusebox is used for towing, the
towbar and the connections for
the coachbuilder and platform cab
modifications. It is located on the right
behind the load retaining partition.
The indications communicated
are only those fuses which can be
changed by the user using the tweezer

,
located behind the dashboard storage
compartment on the right-hand side.
For any other work, visit a PEUGEOT
dealer or a qualified workshop.
Removing and fitting a fuse
Always replace a failed fuse with a
fuse of the same rating.
PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from
the installation of accessories not
supplied and not recommended by the
PEUGEOT network and not installed
in accordance with its instructions,
in particular when the combined
consumption of all of the additional
equipment connected exceeds
10
milliamperes.
Motor trade technicians: for
complete information on the fuses
and relays, refer to the "Repair
manual" diagram via the dealer
network. Before replacing a fuse, the cause
of the incident must be found and
rectified.
-

Use the tweezer

.
Changing a fuse

157
Partner-2-VU_en_Chap08_Aide-rapide_ed02-2016
Dashboard fuses
Tilt the cover to gain access to the
fuses.Fuses
F Amperes
A Allocation
1 15Rear wiper
2 30 Central locking
3 5Airbags
4 10 Air conditioning, diagnostic socket, mirror control,
headlamp beam
5 30 Electric windows
6 30 Locks
7 5Rear courtesy lamp, front map reading lamp, roof
console
8 20 Audio equipment, screen, tyre under-inflation
detection, alarm and siren
9 30 Front and rear 12V socket
10 15Central column
11 15Low current ignition switch
12 15Rain and sunshine sensor, airbag
13 5Instrument panel
14 15Parking sensors, digital air conditioning controls,
hands-free kit
15 30 Locks
16 - Not used 17 40 Heated rear screen/mirrors
QUICK HELP
8
Changing a fuse

158
Partner-2-VU_en_Chap08_Aide-rapide_ed02-2016

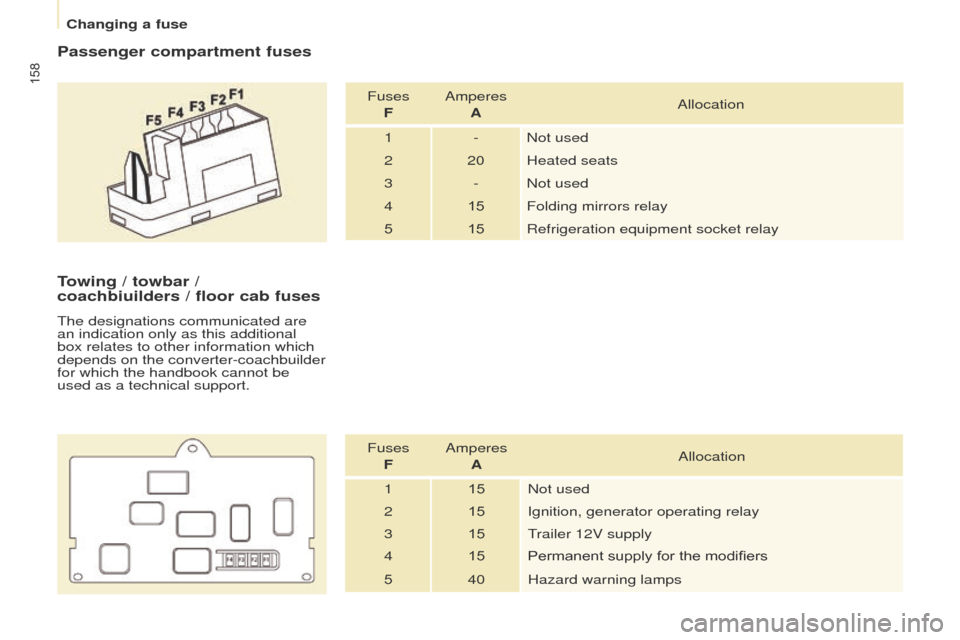

Passenger compartment fuses
Fuses F Amperes
A Allocation
1 - Not used
2 20 Heated seats
3 - Not used
4 15Folding mirrors relay
5 15 Refrigeration equipment socket relay
Towing / towbar /
coachbiuilders
/ floor cab fuses
The designations communicated are
an indication only as this additional
box relates to other information which
depends on the converter-coachbuilder
for which the handbook cannot be
used as a technical support.
Fuses F Amperes
A Allocation
1 15Not used
2 15Ignition, generator operating relay
3 15Trailer 12V supply
4 15 Permanent supply for the modifiers
5 40 Hazard warning lamps
