Fuses under the bonnet
After opening the bonnet, unclip and tilt
the box to gain access to the fuses.Fuses
F Amperes
A Allocation
1 20 Engine management
2 15Horn
3 10 Front and rear screenwash pump
4 20 LED
5 15 Engine components
6 10 Steering wheel angle sensor, DSC
7 10 Brake switch, clutch switch
8 25Starter motor
9 10 Headlamp beam motor, parc management unit
10 30 Engine components 11 40 Not used
12 30 Wipers
13 40 Built-in systems interface
14 30 Pump
15 10 Right-hand main beam headlamp
16 10 Left-hand main beam headlamp
17 15Right-hand dipped beam headlamp
18 15Left-hand dipped beam headlamp
QUICK HELP
8
Changing a fuse

160
Partner-2-VU_en_Chap08_Aide-rapide_ed02-2016

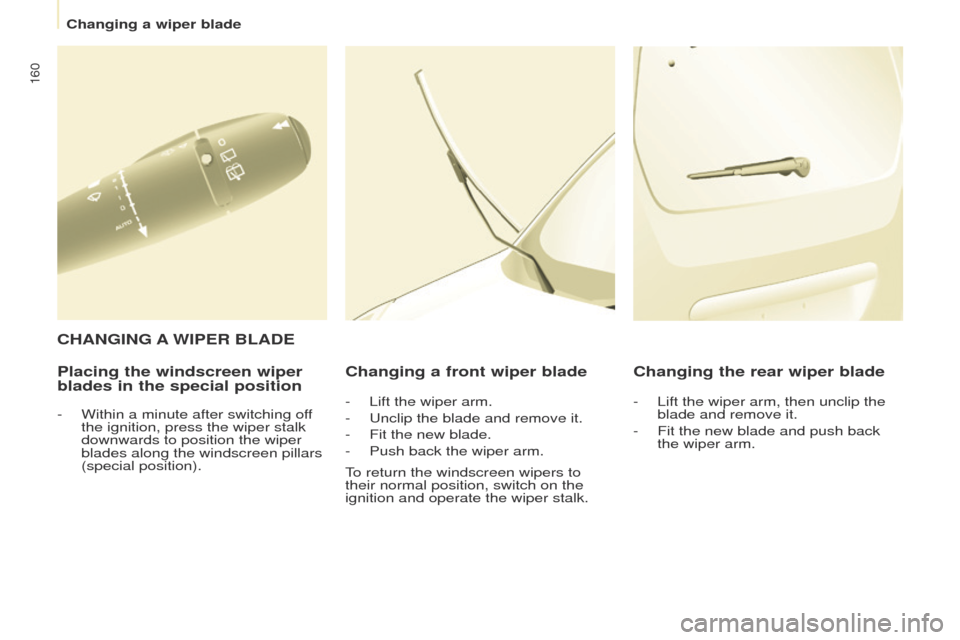

Placing the windscreen wiper
blades in the special positionChanging a front wiper blade Changing the rear wiper blade
C HANGING
A
WIPER BLADE
- Within a minute after switching of
f
the ignition, press the wiper stalk
downwards to position the wiper
blades along the windscreen pillars
(special position). -
Lift the wiper arm.
- Unclip the blade and remove it.
-

Fit the new blade.
-


Push back the wiper arm.
T

o return the windscreen wipers to
their normal position, switch on the
ignition and operate the wiper stalk. -
Lift the wiper arm, then unclip the
blade and remove it.
-

Fit the new blade and push back
the wiper arm.
Changing a wiper blade

161
Partner-2-VU_en_Chap08_Aide-rapide_ed02-2016

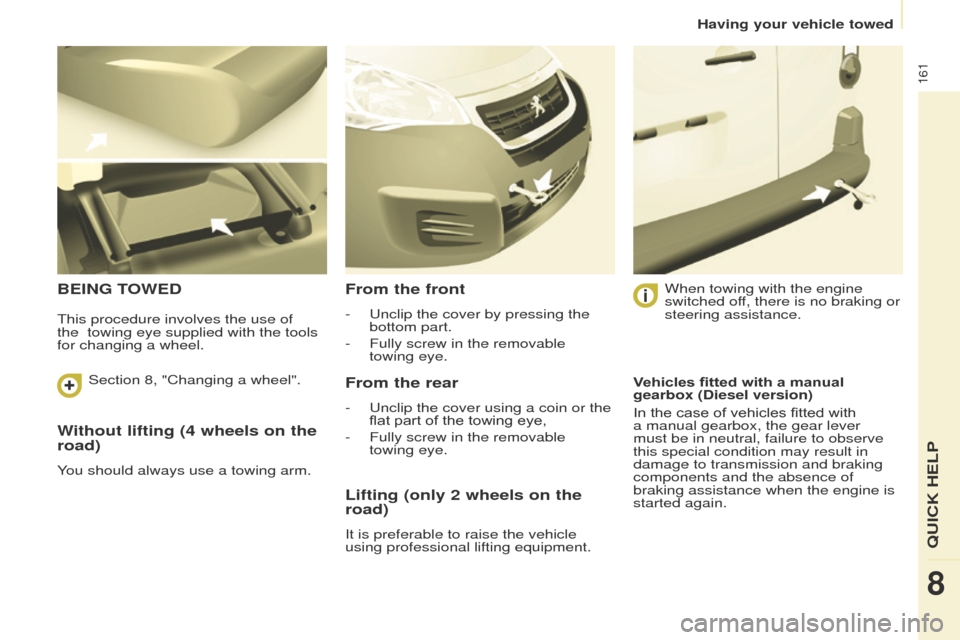

Without lifting (4 wheels on the
road)
You should always use a towing arm.
BEING TOWEDFrom the front
- Unclip the cover by pressing the
bottom part.
-

Fully screw in the removable
towing

eye.
From the rear
- Unclip the cover using a coin or the
flat part of the towing eye,
-

Fully screw in the removable
towing

eye. When towing with the engine
switched off, there is no braking or
steering assistance.
Lifting (only 2 wheels on the
road)
It is preferable to raise the vehicle
using professional lifting equipment.
This procedure involves the use of
the

towing eye supplied with the tools
for changing a wheel.
Vehicles fitted with a manual
gearbox (Diesel version)
In the case of vehicles fitted with
a manual gearbox, the gear lever
must be in neutral, failure to observe
this special condition may result in
damage to transmission and braking
components and the absence of
braking assistance when the engine is
started again.
Section 8, "Changing a wheel".
QUICK HELP
8
Having your vehicle towed

162
Partner-2-VU_en_Chap08_Aide-rapide_ed02-2016

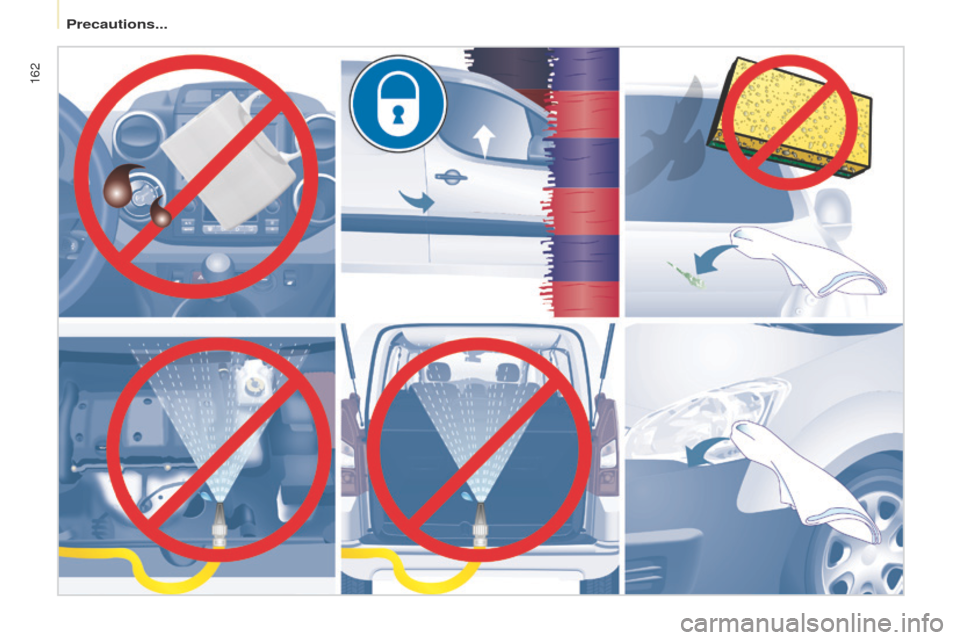

Precautions...

163
Partner-2-VU_en_Chap08_Aide-rapide_ed02-2016
QUICK HELP
8

164
Partner-2-VU_en_Chap09_Caract-technique_ed02-2016

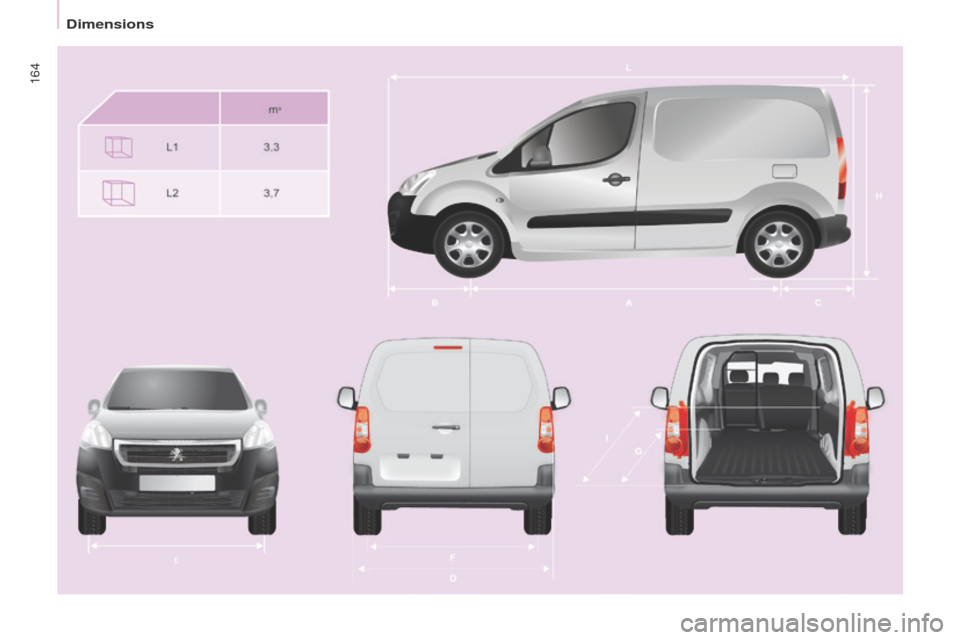

Dimensions

165
Partner-2-VU_en_Chap09_Caract-technique_ed02-2016
Short - L1Long - L2
625 850750
L Overall length 43804628
H Overall height 1805-1834
A Wheelbase 2728
B Front overhang 925
C Rear overhang 727975
D Width over panels: without mirrors
1810
with mirrors 2112
E Width of front track 1505
F Width of rear track 1554
G Rear floor load length 18002050
I Load length with front passenger seat folded 30003250
DIMENSIONSV
an (mm)
The vehicle is available in 2 lengths (L1 and L2),
refer to the tables.
Dimensions
TECHNICAL DATA
9

166
Partner-2-VU_en_Chap09_Caract-technique_ed02-2016

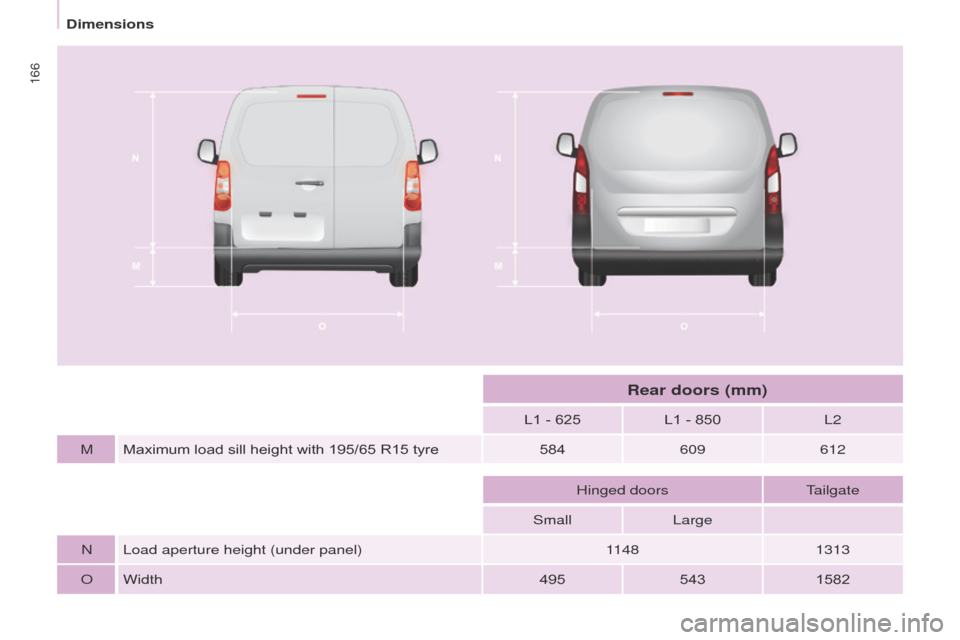

L1 - 625L1 - 850 L2
M Maximum load sill height with 195/65 R15 tyre 584609612
Hinged doors Tailgate
Small Large
N Load aperture height (under panel) 11481313
O Width 4955431582
Rear doors (mm)
Dimensions

167
Partner-2-VU_en_Chap09_Caract-technique_ed02-2016

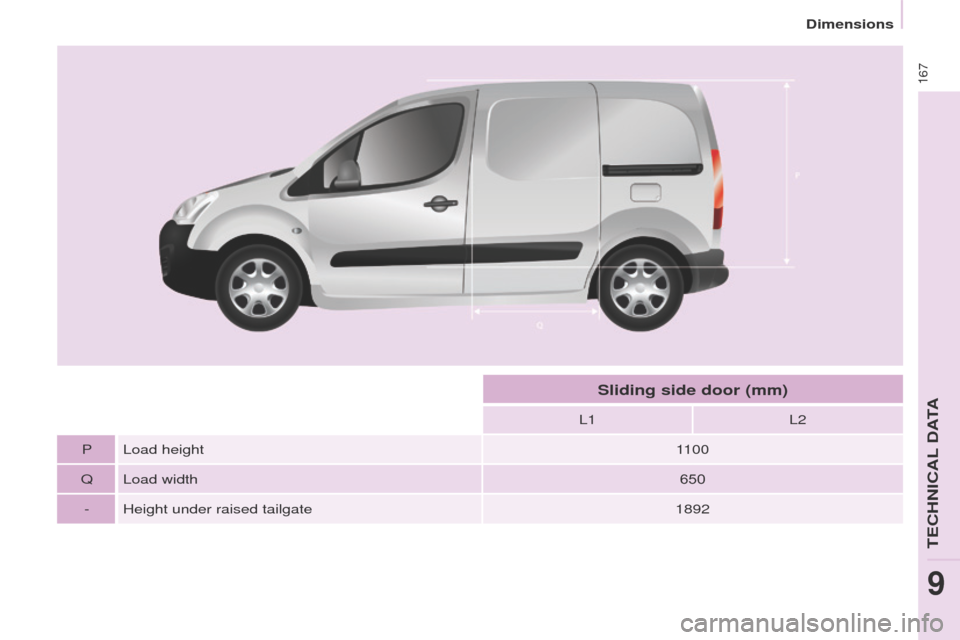

L1L2
P Load height 1100
Q Load width 650
- Height under raised tailgate 1892
Sliding side door (mm)
Dimensions
TECHNICAL DATA
9

168
Partner-2-VU_en_Chap09_Caract-technique_ed02-2016

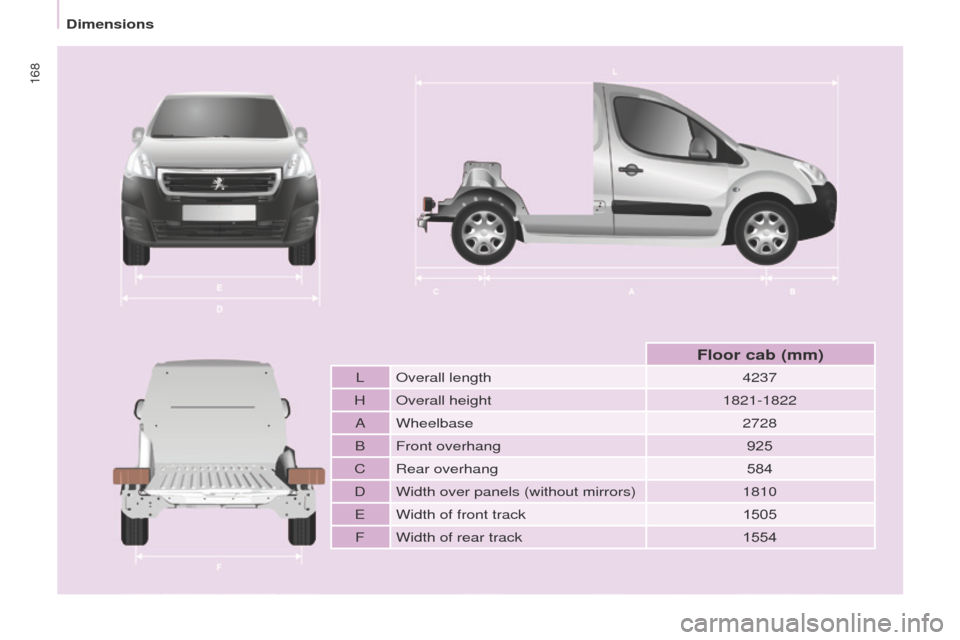

L Overall length4237
H Overall height 1821-1822
A Wheelbase 2728
B Front overhang 925
C Rear overhang 584
D Width over panels (without mirrors) 1810
E Width of front track 1505
F Width of rear track 1554
Floor cab (mm)
