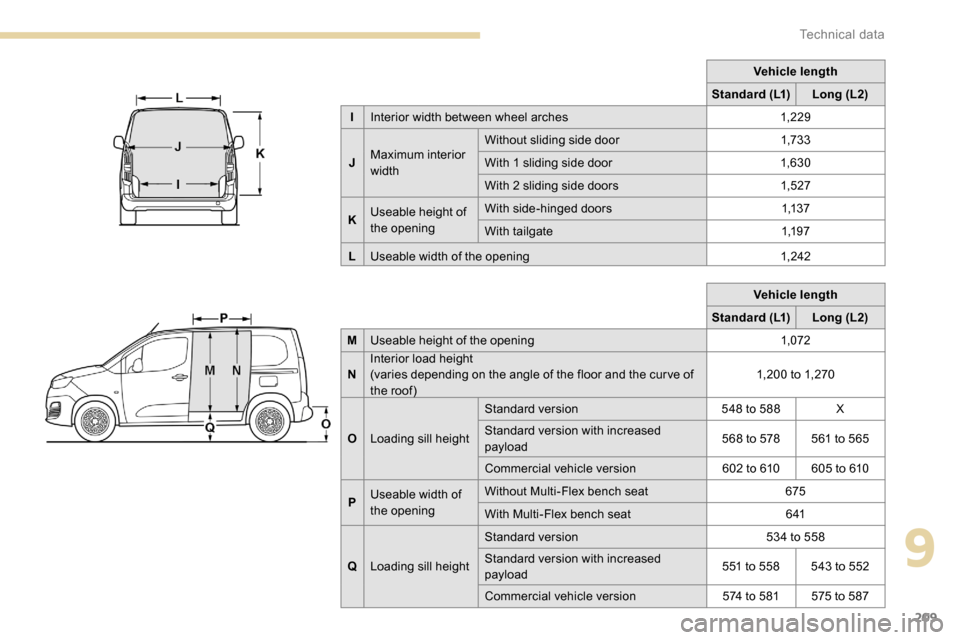

209
Vehicle length
Standard (L1) Long (L2)
M Useable height of the opening 1,072
N Interior load height
(varies depending on the angle of the floor and the cur ve of
the roof) 1, 20 0 to 1, 270
O Loading sill height Standard version
548 to 588 X
Standard version with increased
payload 568 to 578 561 to 565
Commercial vehicle version 602 to 610 605 to 610
P Useable width of
the opening Without Multi-Flex bench seat
675
With Multi-Flex bench seat 6 41
Q Loading sill height Standard version
534 to 558
Standard version with increased
payload 551 to 558 543 to 552
Commercial vehicle version 574 to 581 575 to 587Vehicle length
Standard (L1) Long (L2)
I Interior width between wheel arches 1, 2 2 9
J Maximum interior
width Without sliding side door
1,73 3
With 1 sliding side door 1,6 3 0
With 2 sliding side doors 1,527
K Useable height of
the opening With side-hinged doors
1,13 7
With tailgate 1,1 9 7
L Useable width of the opening 1, 242
9

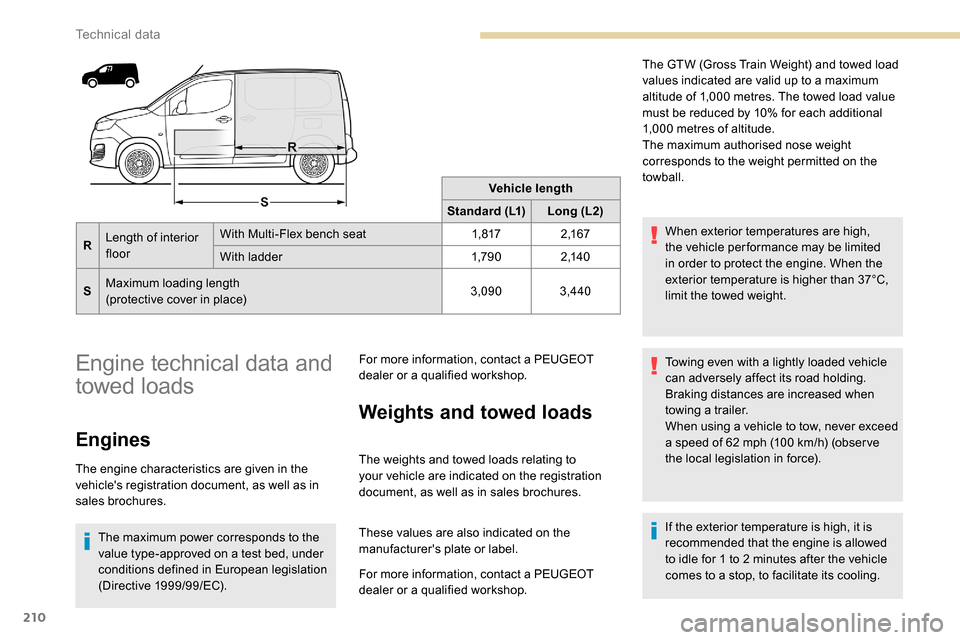

Technical data

210
Vehicle length
Standard (L1) Long (L2)
R Length of interior
floor With Multi-Flex bench seat
1, 8172 ,1 6 7
With ladder 1,79 02 ,14 0
S Maximum loading length
(protective cover in place) 3,090
3,440
Engine technical data and
towed loads
Engines
The engine characteristics are given in the
vehicle's registration document, as well as in
sales brochures.
The maximum power corresponds to the
value type-approved on a test bed, under
conditions defined in European legislation
(Directive 1999/99/EC). For more information, contact a PEUGEOT
dealer or a qualified workshop.
Weights and towed loads
The weights and towed loads relating to
your vehicle are indicated on the registration
document, as well as in sales brochures.
These values are also indicated on the
manufacturer's plate or label.
For more information, contact a PEUGEOT
dealer or a qualified workshop. The GTW (Gross Train Weight) and towed load
values indicated are valid up to a maximum
altitude of 1,000
metres. The towed load value
must be reduced by 10% for each additional
1,000 metres of altitude.
The maximum authorised nose weight
corresponds to the weight permitted on the
towball.
When exterior temperatures are high,
the vehicle per formance may be limited
in order to protect the engine. When the
exterior temperature is higher than 37°C,
limit the towed weight.
Towing even with a lightly loaded vehicle
can adversely affect its road holding.
Braking distances are increased when
towing a trailer.
When using a vehicle to tow, never exceed
a speed of 62 mph (100 km/h) (obser ve
the local legislation in force).
If the exterior temperature is high, it is
recommended that the engine is allowed
to idle for 1 to 2
minutes after the vehicle
comes to a stop, to facilitate its cooling.
Technical data

211

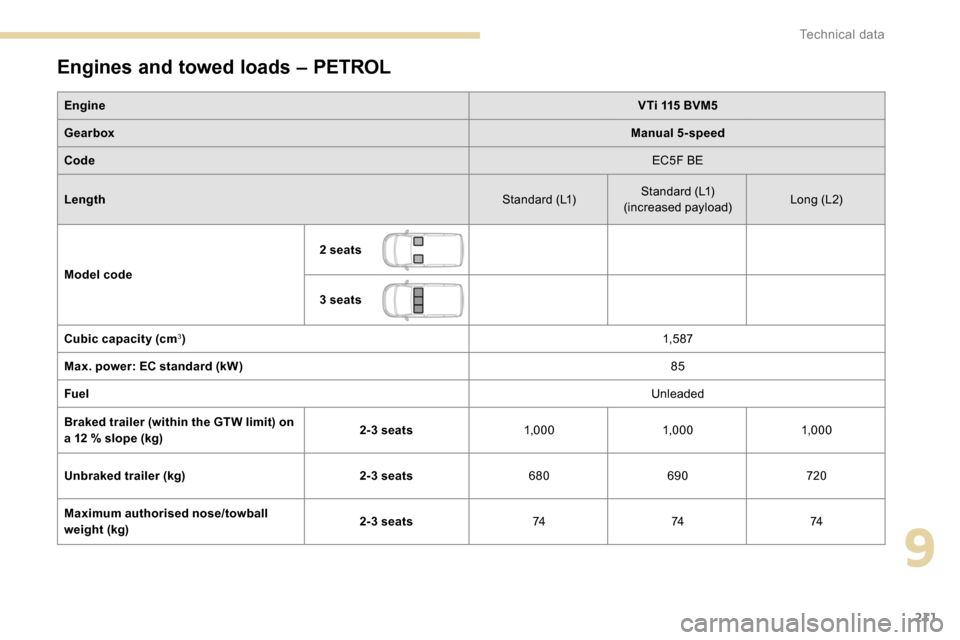

Engines and towed loads – PETROL
EngineVTi 115 BVM5
Gearbox Manual 5-speed
Code EC5F BE
Length Standard (L1)Standard (L1)
(increased payload) Long (L2)
Model code 2 seats
3 seats
Cubic capacity (cm
3) 1,5 87
Max. power: EC standard (kW) 85
Fuel Unleaded
Braked trailer (within the GTW limit) on
a 12

% slope (kg) 2-3 seats
1,0001,0001,000
Unbraked trailer (kg) 2-3 seats680690 720
Maximum authorised nose/towball
weight (kg) 2-3 seats
747474
9
Technical data

212

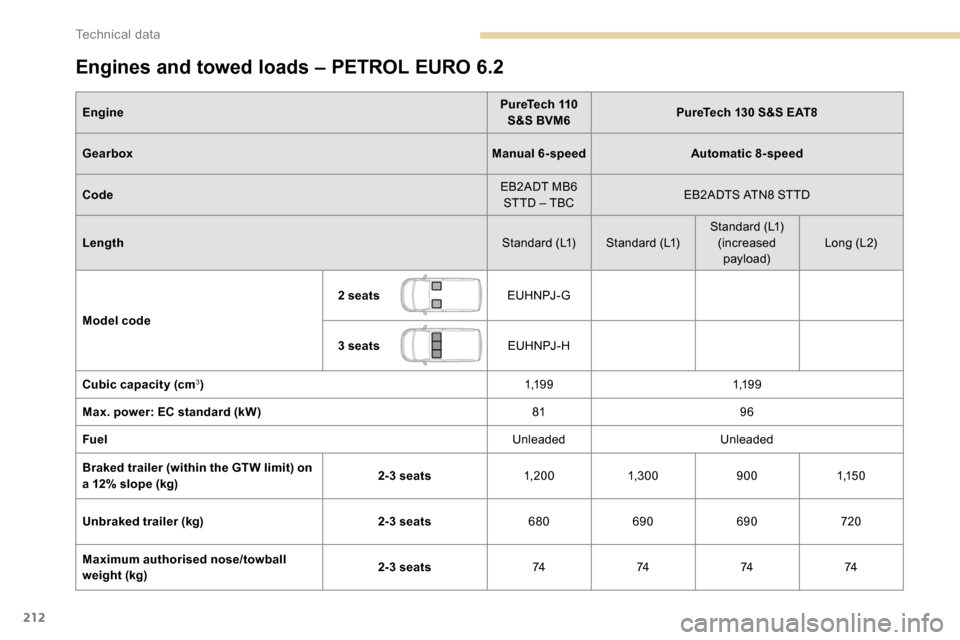

Engines and towed loads – PETROL EURO 6.2
EnginePureTech 110
S&S BVM6 PureTech 130 S&S EAT8
Gearbox Manual 6-speedAutomatic 8-speed
Code EB2ADT MB6
STTD – TBC EB2ADTS ATN8 STTD
Length Standard (L1) Standard (L1)Standard (L1)
(increased payload) Long (L2)
Model code 2 seats
EU H N PJ - G
3 seats EU H N PJ - H
Cubic capacity (cm
3) 1,1 9 91,1 9 9
Max. power: EC standard (kW) 8196
Fuel UnleadedUnleaded
Braked trailer (within the GTW limit) on
a 12% slope (kg) 2-3 seats
1, 20 01,3 0 0 9001,1 5 0
Unbraked trailer (kg) 2-3 seats680690 690 720
Maximum authorised nose/towball
weight (kg) 2-3 seats
74747474
Technical data

213

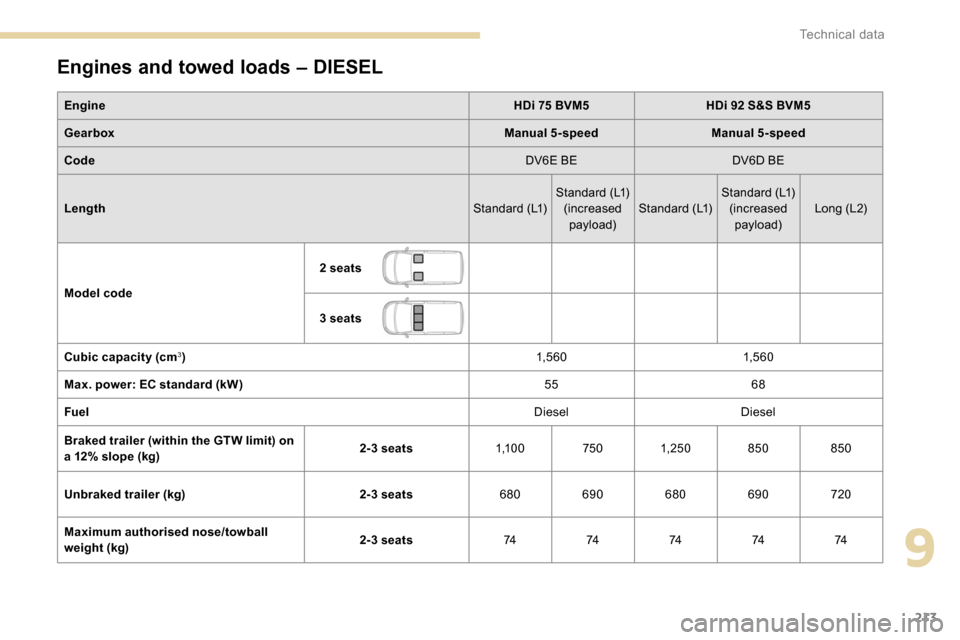

Engines and towed loads – DIESEL
EngineHDi 75 BVM5HDi 92 S&S BVM5
Gearbox Manual 5-speedManual 5-speed
Code DV6E BEDV6D BE
Length Standard (L1)Standard (L1)
(increased payload) Standard (L1) Standard (L1)
(increased payload) Long (L2)
Model code 2 seats
3 seats
Cubic capacity (cm
3) 1,5 6 01,5 6 0
Max. power: EC standard (kW) 5568
Fuel DieselDiesel
Braked trailer (within the GTW limit) on
a 12% slope (kg) 2-3 seats
1,1 0 07501, 25 0 850850
Unbraked trailer (kg) 2-3 seats680690 680690 720
Maximum authorised nose/towball
weight (kg) 2-3 seats
7474747474
9
Technical data

214

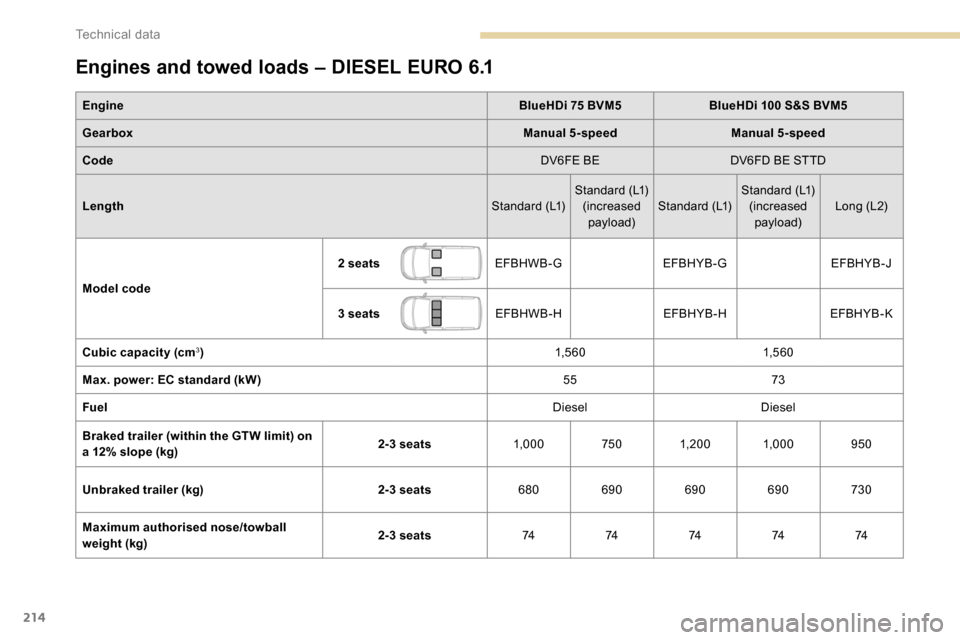

Engines and towed loads – DIESEL EURO 6.1
EngineBlueHDi 75 BVM5BlueHDi 100 S&S BVM5
Gearbox Manual 5-speedManual 5-speed
Code DV6FE BEDV6FD BE STTD
Length Standard (L1)Standard (L1)
(increased payload) Standard (L1) Standard (L1)
(increased payload) Long (L2)
Model code 2 seats
EFBHWB-G EFBHYB-G EFBHYB-J
3 seats EFBHWB-H EFBHYB-HEFBHYB-K
Cubic capacity (cm
3) 1,5 6 01,5 6 0
Max. power: EC standard (kW) 5573
Fuel DieselDiesel
Braked trailer (within the GTW limit) on
a 12% slope (kg) 2-3 seats
1,0007501, 20 0 1,000 950
Unbraked trailer (kg) 2-3 seats680690 690690 730
Maximum authorised nose/towball
weight (kg) 2-3 seats
7474747474
Technical data

215

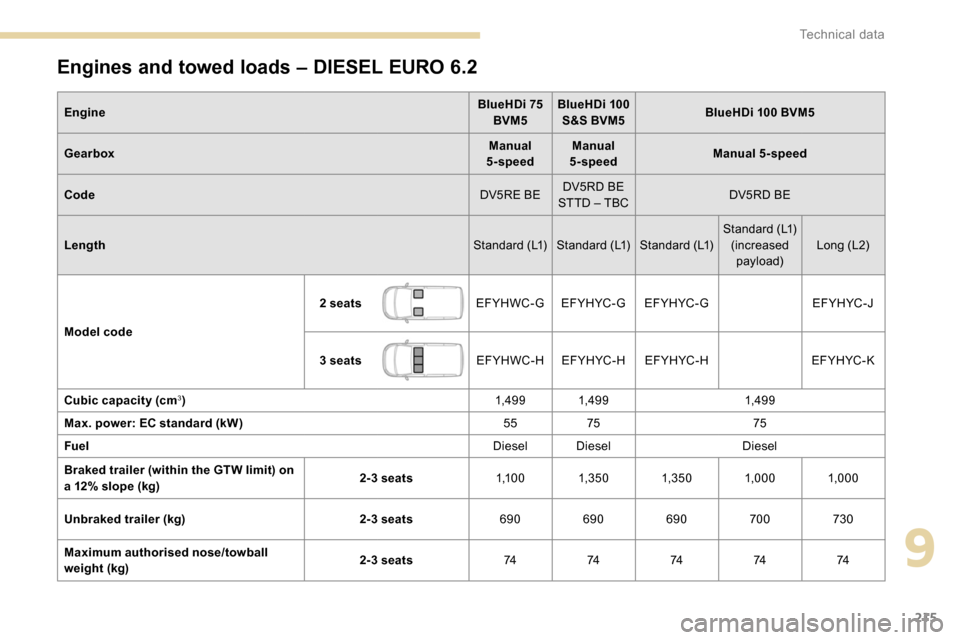

Engines and towed loads – DIESEL EURO 6.2
EngineBlueHDi 75
BVM5 BlueHDi 100
S&S BVM5 BlueHDi 100 BVM5
Gearbox Manual
5-speed Manual
5-speed Manual 5-speed
Code DV5RE BEDV5RD BE
STTD – TBC DV5RD BE
Length Standard (L1) Standard (L1) Standard (L1)Standard (L1)
(increased payload) Long (L2)
Model code 2 seats
EFYHWC-GEF YH YC - G EF YH YC - G EFYHYC-J
3 seats EFYHWC-HEF YH YC - H EF YH YC - H EF YH YC - K
Cubic capacity (cm
3) 1,49 9 1,49 91,49 9
Max. power: EC standard (kW) 5575 75
Fuel Diesel DieselDiesel
Braked trailer (within the GTW limit) on
a 12% slope (kg) 2-3 seats
1,1 0 01,3 5 0 1,3 5 0 1,000 1,000
Unbraked trailer (kg) 2-3 seats690690690 700730
Maximum authorised nose/towball
weight (kg) 2-3 seats
7474747474
9
Technical data

216

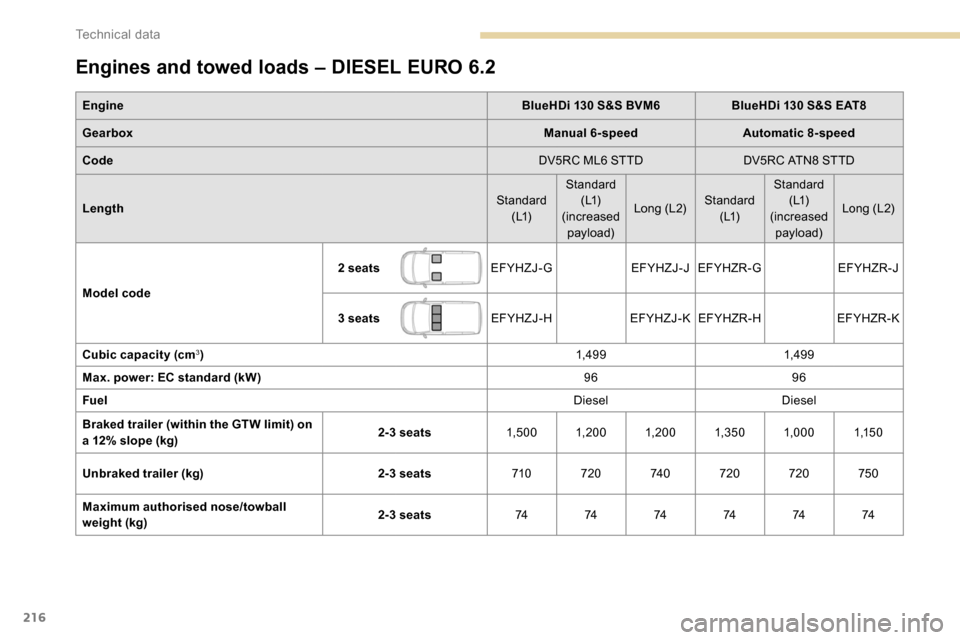

Engines and towed loads – DIESEL EURO 6.2
EngineBlueHDi 130 S&S BVM6BlueHDi 130 S&S EAT8
Gearbox Manual 6-speedAutomatic 8-speed
Code DV5RC ML6 STTDDV5RC ATN8 STTD
Length Standard
( L1) Standard
( L1)
(increased payload) Long (L2)
Standard
( L1) Standard
( L1)
(increased payload) Long (L2)
Model code 2 seats
EFYHZJ-GEFYHZJ-JEFYHZR-G EFYHZR-J
3 seats EFYHZJ-HEFYHZJ-K EFYHZR-H EFYHZR-K
Cubic capacity (cm
3) 1,49 91,49 9
Max. power: EC standard (kW) 9696
Fuel DieselDiesel
Braked trailer (within the GTW limit) on
a 12% slope (kg) 2-3 seats
1,5 0 0 1, 20 0 1, 20 0 1,3 5 0 1,0001,1 5 0
Unbraked trailer (kg) 2-3 seats710720 74 0720 720 750
Maximum authorised nose/towball
weight (kg) 2-3 seats
74 74 74 74 74 74
Technical data

217
Identification markings
Different visible markings for the identification
and localisation of your vehicle.
A. Vehicle identification number (VIN),
under the bonnet.
This number is engraved on the chassis near
the right-hand front wheel arch.
B. Vehicle Identification Number (VIN) on
the windscreen lower cross member.
This number is recorded on a label, visible
through the windscreen.
C. Manufacturer's label.
This self-destroying label on the middle door pillar, right
or left-hand side, contains the following information:
-
t
he name of the manufacturer,
-

t
he European Whole Vehicle Type Approval number,
-

t
he vehicle identification number (VIN),
-

t
he maximum authorised weight (gross vehicle
weight),
-

t
he maximum authorised weight with trailer (gross
train weight),
-

t
he maximum weight on the front axle,
-

t
he maximum weight on the rear axle.
D. Tyre/paint label.
This label on the middle door pillar, driver's
side, contains the following information:
-
t
he tyre pressures, unladen and laden,
-

t
he tyre sizes (including the load index and
speed rating),
-

t
he spare tyre inflation pressure,
-

t
he paint colour code. The vehicle may be originally equipped
with tyres with higher load and speed
indices than those indicated on the label,
without affecting inflation pressure.
9
