Peugeot Partner Tepee 2011 Owners Manual

89
EASE OF USE
andCOMFOR
T
3


Practical information

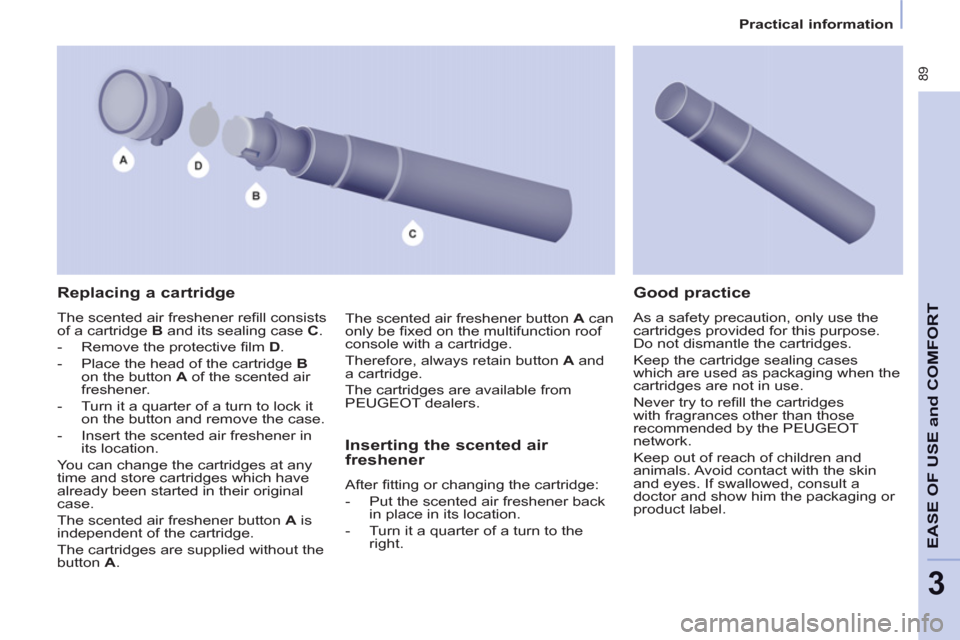

Replacing a cartridge

The scented air freshener refi ll consists
of a cartridge B and its sealing case C .


- Remove the protective fi lm D .

- Place the head of the cartridge B
on the button A of the scented air
freshener.

- Turn it a quarter of a turn to lock it
on the button and remove the case.

- Insert the scented air freshener in
its location.
You can change the cartridges at any
time and store cartridges which have
already been started in their original
case.
The scented air freshener button A is
independent of the cartridge.
The cartridges are supplied without the
button A .


Inserting the scented air
freshener
After fi tting or changing the cartridge:


- Put the scented air freshener back
in place in its location.

- Turn it a quarter of a turn to the
right.



Good practice

As a safety precaution, only use the
cartridges provided for this purpose.
Do not dismantle the cartridges.
Keep the cartridge sealing cases
which are used as packaging when the
cartridges are not in use.
Never try to refi ll the cartridges
with fragrances other than those
recommended by the PEUGEOT
network.
Keep out of reach of children and
animals. Avoid contact with the skin
and eyes. If swallowed, consult a
doctor and show him the packaging or
product label. The scented air freshener button A can
only be fi xed on the multifunction roof
console with a cartridge.
Therefore, always retain button A and
a cartridge.
The cartridges are available from
PEUGEOT dealers.

90


Practical information

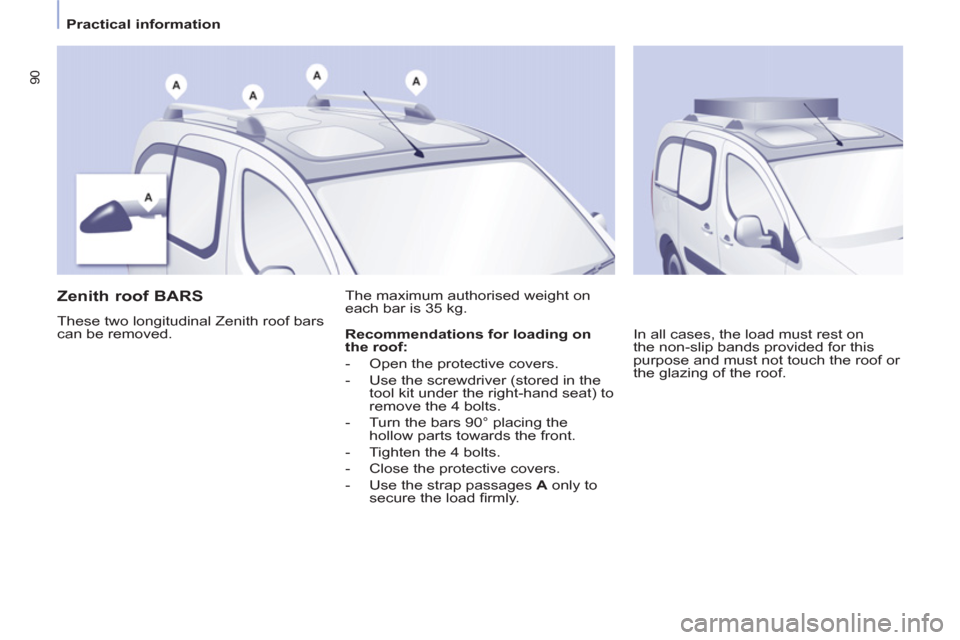

Zenith roof BARS

These two longitudinal Zenith roof bars
can be removed. The maximum authorised weight on
each bar is 35 kg.
In all cases, the load must rest on
the non-slip bands provided for this
purpose and must not touch the roof or
the glazing of the roof.
Recommendations for loading on
the roof:


- Open the protective covers.

- Use the screwdriver (stored in the
tool kit under the right-hand seat) to
remove the 4 bolts.

- Turn the bars 90° placing the
hollow parts towards the front.

- Tighten the 4 bolts.

- Close the protective covers.

- Use the strap passages A only to
secure the load fi rmly.

91
EASE OF USE
andCOMFOR
T
3


Practical information

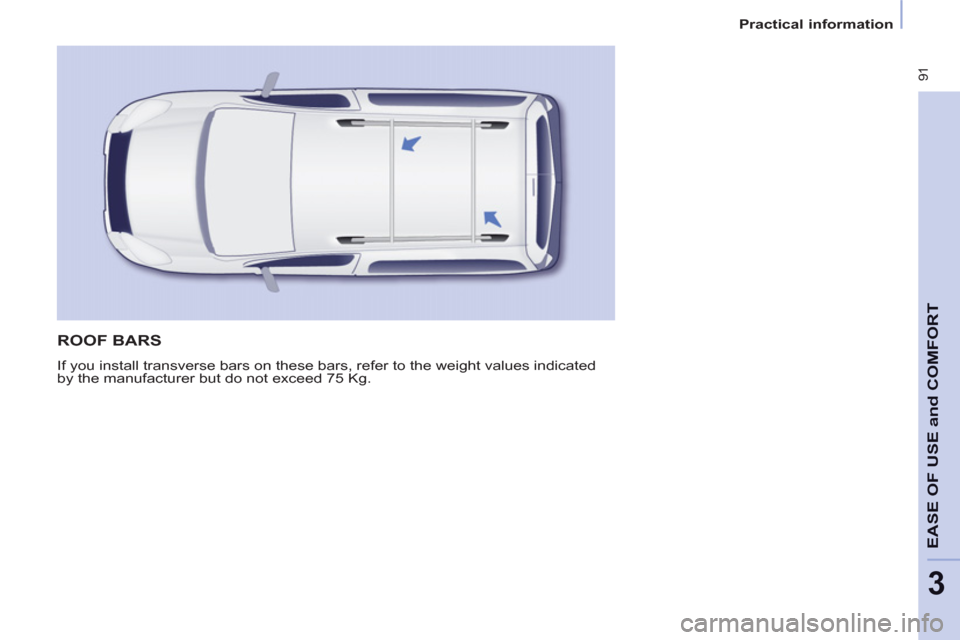

ROOF BARS

If you install transverse bars on these bars, refer to the weight values indicated
by the manufacturer but do not exceed 75 Kg.

92


Practical information


Automatic switching on/off
The front courtesy light comes on
when the key is removed from the
ignition, when the vehicle is unlocked,
when one of the front doors is opened
and for location of the vehicle using the
remote control.
It switches off gradually after the
ignition is switched on and when the
vehicle is locked. Front seats: comes on when
one of the front doors is
opened. These are switched on and off by
means of a manual switch, with
the ignition on.

Rear seats: comes on when
one of the rear doors is
opened.
If the doors remain open for
a few minutes, the courtesy
lights are switched off.
Permanently off. Permanently on, ignition on.
Front courtesy light

COURTESY LIGHTS


Rear courtesy light
Front individual reading lights

93
EASE OF USE
andCOMFOR
T
3


Practical information

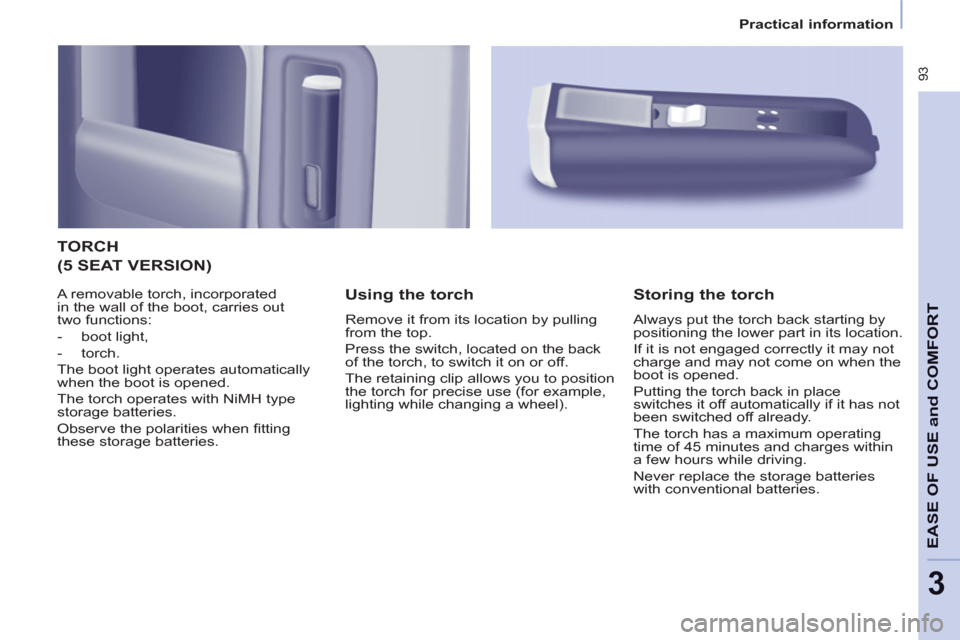

TORCH

Using the torch

Remove it from its location by pulling
from the top.
Press the switch, located on the back
of the torch, to switch it on or off.
The retaining clip allows you to position
the torch for precise use (for example,
lighting while changing a wheel).


Storing the torch

Always put the torch back starting by
positioning the lower part in its location.
If it is not engaged correctly it may not
charge and may not come on when the
boot is opened.
Putting the torch back in place
switches it off automatically if it has not
been switched off already.
The torch has a maximum operating
time of 45 minutes and charges within
a few hours while driving.
Never replace the storage batteries
with conventional batteries.
(5 SEAT VERSION)

A removable torch, incorporated
in the wall of the boot, carries out
two functions:


- boot light,

- torch.
The boot light operates automatically
when the boot is opened.
The torch operates with NiMH type
storage batteries.
Observe the polarities when fi tting
these storage batteries.

94


Practical information

LOAD SPACE COVER (5 SEAT VERSION)


This rigid shelf conceals the objects
stored in the boot.
Removing
Fold the load space cover.
Detach it from the notches A and B
pulling it towards you.
Raise it and remove the assembly.

Refi tting
Place the load space cover in front of A
and B .
Push it forwards to insert the lugs in
the notches.
Unfold and clip into the notches C .
Folding
From the boot, fold the half-shelf,
raising it to detach it from the notch C .
Storing (according to version)
A location is provided in the back of the
rear seats to accommodate the load
space cover folded onto itself.
Slide it vertically between the side
guides located at mid seat back height.
Insert the hinge fi rst, with the free fl aps
turned upwards.

This rigid load space cover can form
a shelf. However, for safety reasons,
do not place objects on it which could
become dangerous projectiles in the
event of sharp braking or rear impact.

95
EASE OF USE
andCOMFOR
T
3


Practical information



12 Volt socket (120 W Max)

It is advisable to limit the use of this
socket to avoid discharging the battery.


Protective net

Open the cover located in the hook
support.
Fix the top of the net in the notches,
having fi rst turned the bar 1/4 of a turn.
Ensure that the end of the bar engages
correctly in the metal part of its
location.
Fix the straps in the locations provided
on the fl oor.
Tighten the net using the straps.


Stowing rings

Use these rings to secure loads on the
fl oor.

96


Practical information


REAR FITTINGS (7 SEAT VERSION)

Cup holder

Any liquid carried in a cup (mug or
other) on board which could spill,
presents a risk.
Take care.


12 volt socket (120 W max)

It is advisable to limit the use of this
socket to avoid discharging the battery.


Stowing rings

Use the stowing rings on the fl oor to
secure and retain your loads fi rmly.
The seat belt anchorages must not be
used for this purpose.

It is recommended that the load is
immobilised by securing it fi rmly
using the stowing rings on the fl oor.

97
EASE OF USE
andCOMFOR
T
3


Practical information

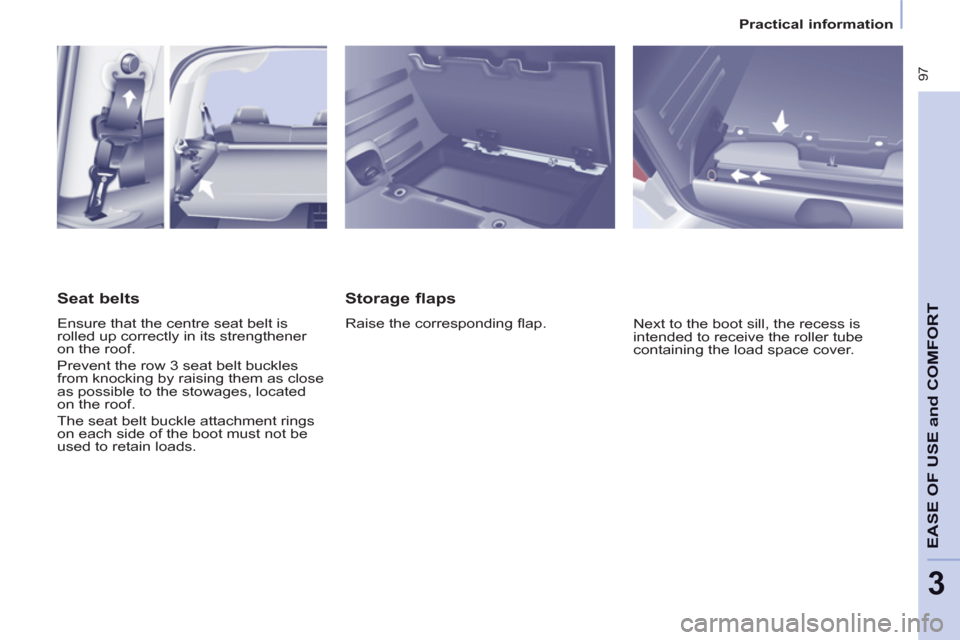

Storage flaps

Raise the corresponding fl ap.
Next to the boot sill, the recess is
intended to receive the roller tube
containing the load space cover.


Seat belts

Ensure that the centre seat belt is
rolled up correctly in its strengthener
on the roof.
Prevent the row 3 seat belt buckles
from knocking by raising them as close
as possible to the stowages, located
on the roof.
The seat belt buckle attachment rings
on each side of the boot must not be
used to retain loads.

98


Practical information

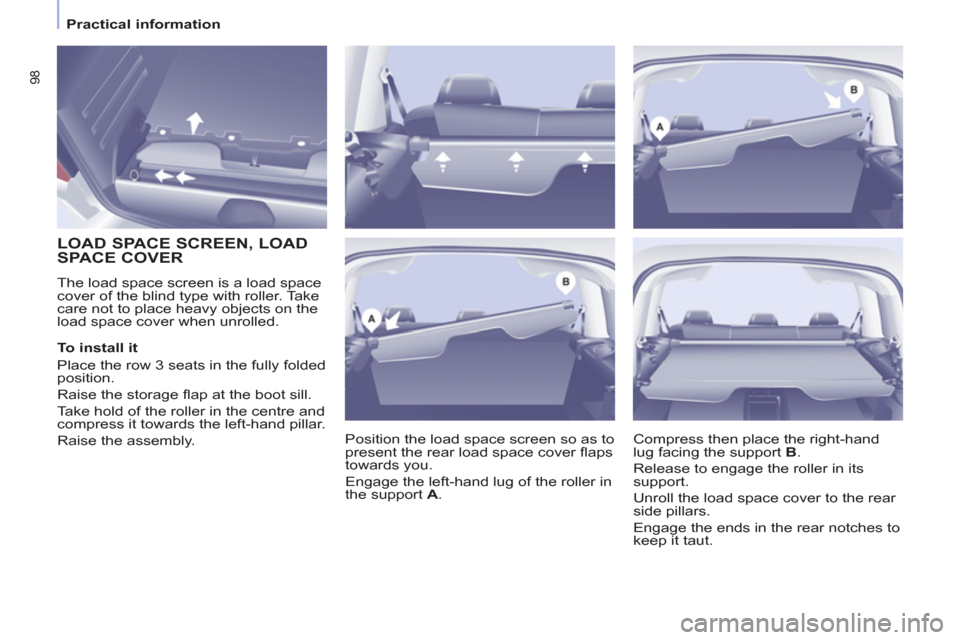

LOAD SPACE SCREEN, LOAD
SPACE COVER
The load space screen is a load space
cover of the blind type with roller. Take
care not to place heavy objects on the
load space cover when unrolled.
Position the load space screen so as to
present the rear load space cover fl aps
towards you.
Engage the left-hand lug of the roller in
the support A .
To install it
Place the row 3 seats in the fully folded
position.
Raise the storage fl ap at the boot sill.
Take hold of the roller in the centre and
compress it towards the left-hand pillar.
Raise the assembly. Compress then place the right-hand
lug facing the support B .
Release to engage the roller in its
support.
Unroll the load space cover to the rear
side pillars.
Engage the ends in the rear notches to
keep it taut.
