79
EASE OF USE
andCOMFOR
T
3





Seats

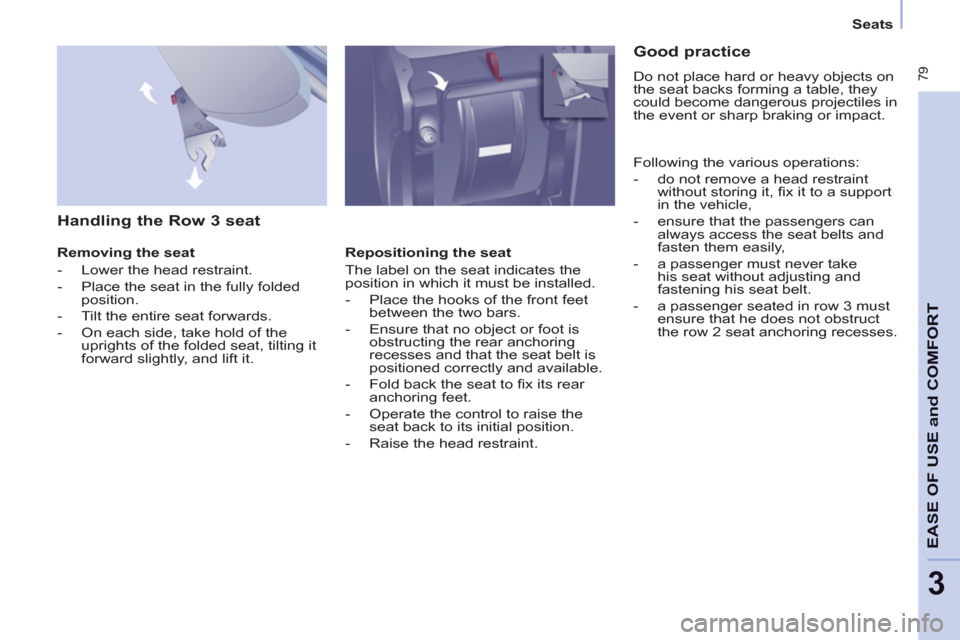

Handling the Row 3 seat


Removing the seat


- Lower the head restraint.

- Place the seat in the fully folded
position.

- Tilt the entire seat forwards.

- On each side, take hold of the
uprights of the folded seat, tilting it
forward slightly, and lift it.

Repositioning the seat
The label on the seat indicates the
position in which it must be installed.


- Place the hooks of the front feet
between the two bars.

- Ensure that no object or foot is
obstructing the rear anchoring
recesses and that the seat belt is
positioned correctly and available.

- Fold back the seat to fi x its rear
anchoring feet.

- Operate the control to raise the
seat back to its initial position.

- Raise the head restraint.




Good practice

Do not place hard or heavy objects on
the seat backs forming a table, they
could become dangerous projectiles in
the event or sharp braking or impact.
Following the various operations:


- do not remove a head restraint
without storing it, fi x it to a support
in the vehicle,

- ensure that the passengers can
always access the seat belts and
fasten them easily,

- a passenger must never take
his seat without adjusting and
fastening his seat belt.

- a passenger seated in row 3 must
ensure that he does not obstruct
the row 2 seat anchoring recesses.

80
Seats

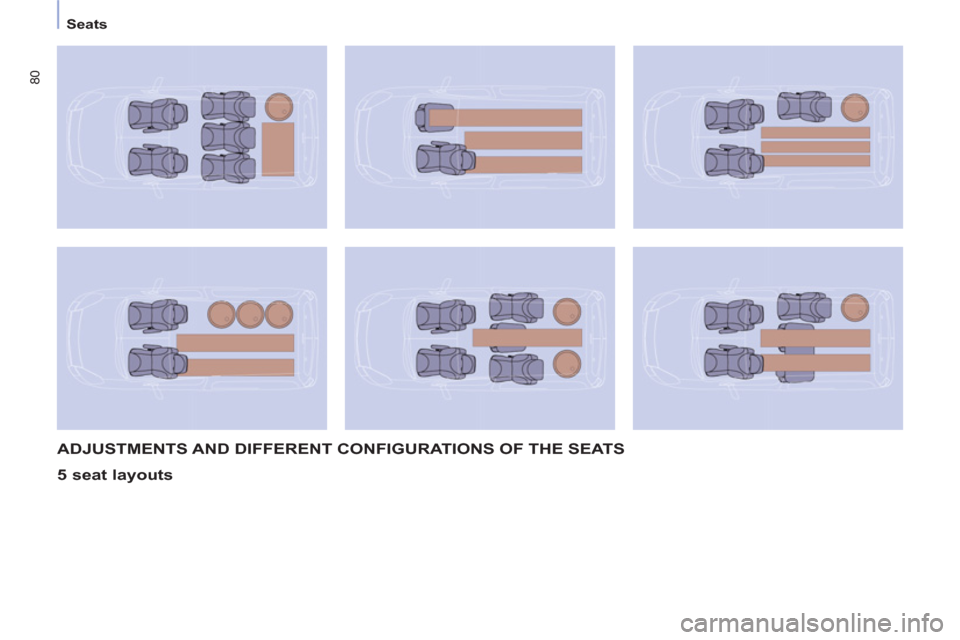

ADJUSTMENTS AND DIFFERENT CONFIGURATIONS OF THE SEATS

5 seat layouts

81
EASE OF USE
andCOMFOR
T
3





Seats

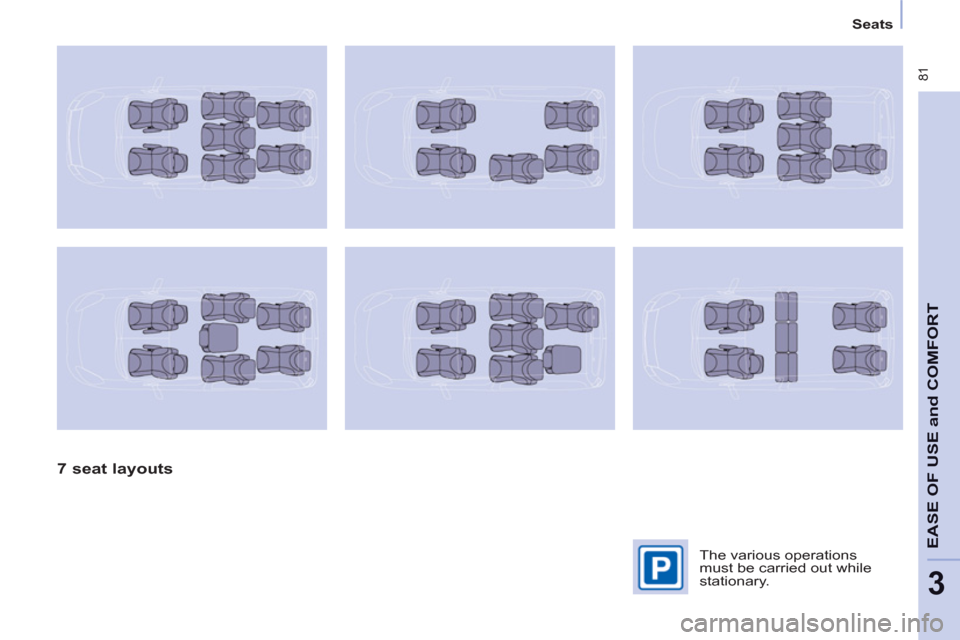

7 seat layouts


The various operations
must be carried out while
stationary.

82


Practical information

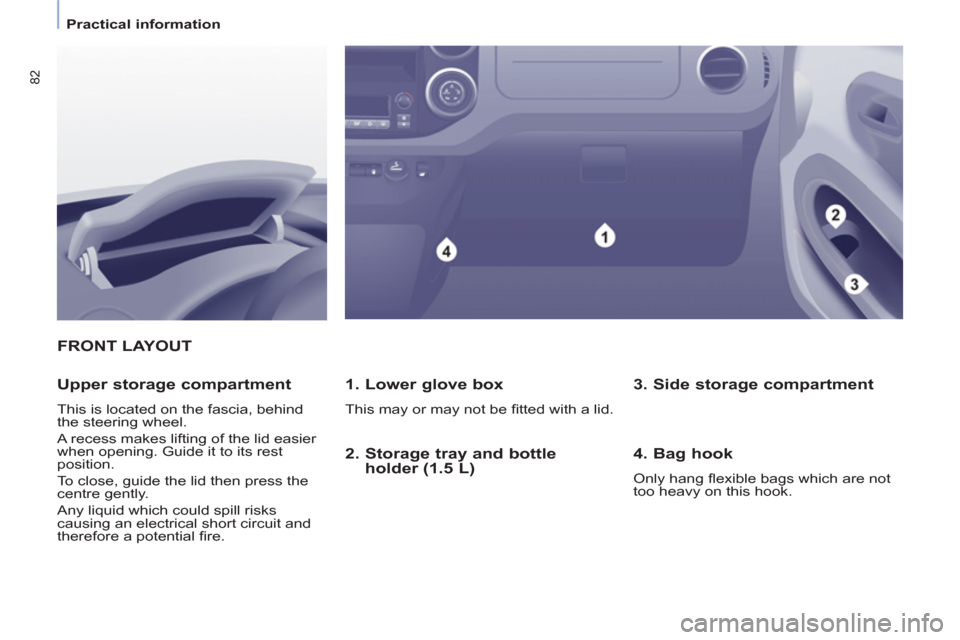

FRONT LAYOUT

1. Lower glove box

This may or may not be fi tted with a lid.


Upper storage compartment

This is located on the fascia, behind
the steering wheel.
A recess makes lifting of the lid easier
when opening. Guide it to its rest
position.
To close, guide the lid then press the
centre gently.
Any liquid which could spill risks
causing an electrical short circuit and
therefore a potential fi re.


3. Side storage compartment

4. Bag hook

Only hang fl exible bags which are not
too heavy on this hook.


2. Storage tray and bottle
holder (1.5 L)

83
EASE OF USE
andCOMFOR
T
3


Practical information



Overhead storage unit

This is located above the sun visors
and can accommodate various objects
(a jumper, fi le, gloves...).
The openings concealed by the sun
visors allow you to see and access the
objects stored in the overhead storage
unit.
The maximum weight permitted in the
overhead storage unit is 5 Kg.
Do not place objects in this storage
unit which could present a risk to
the occupants.


Central storage console

This console offers an appreciable
additional storage area: it can be
removed and clips onto a base which
also incorporates two cup holders at
the rear.
Ensure that the object (bottle, can...)
placed in the cup holder is retained
securely and does not risk being
dislodged while driving.
Any liquid which could spill presents
a risk of damage on contact with the
instrument panel and centre console
controls.
Take care.


Sun visor

To prevent dazzle from ahead, fold the
sun visor down.
A pocket is provided in the driver's sun
visor for storing toll cards, tickets, ...

84


Practical information

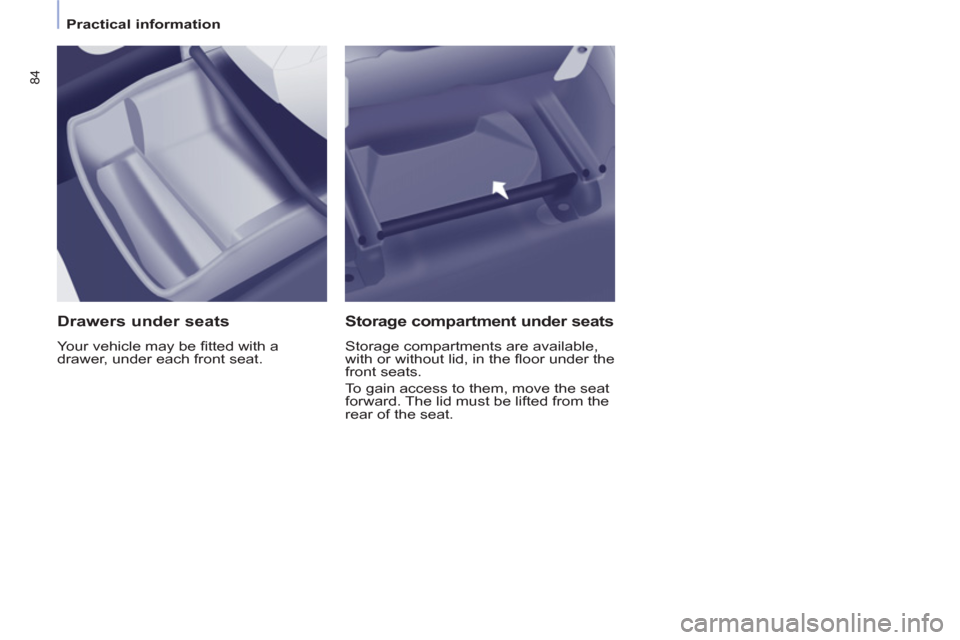

Drawers under seats

Your vehicle may be fi tted with a
drawer, under each front seat.


Storage compartment under seats

Storage compartments are available,
with or without lid, in the fl oor under the
front seats.
To gain access to them, move the seat
forward. The lid must be lifted from the
rear of the seat.

85
EASE OF USE
andCOMFOR
T
3


Practical information

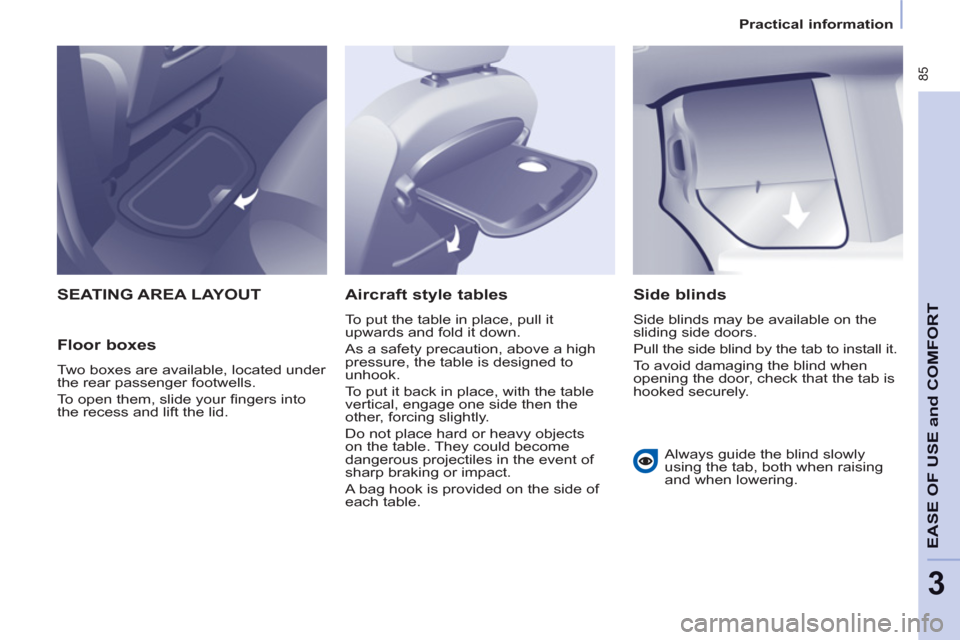

SEATING AREA LAYOUT

Floor boxes

Two boxes are available, located under
the rear passenger footwells.
To open them, slide your fi ngers into
the recess and lift the lid.


Aircraft style tables

To put the table in place, pull it
upwards and fold it down.
As a safety precaution, above a high
pressure, the table is designed to
unhook.
To put it back in place, with the table
vertical, engage one side then the
other, forcing slightly.
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event of
sharp braking or impact.
A bag hook is provided on the side of
each table.


Side blinds

Side blinds may be available on the
sliding side doors.
Pull the side blind by the tab to install it.
To avoid damaging the blind when
opening the door, check that the tab is
hooked securely.
Always guide the blind slowly
using the tab, both when raising
and when lowering.

86


Practical information

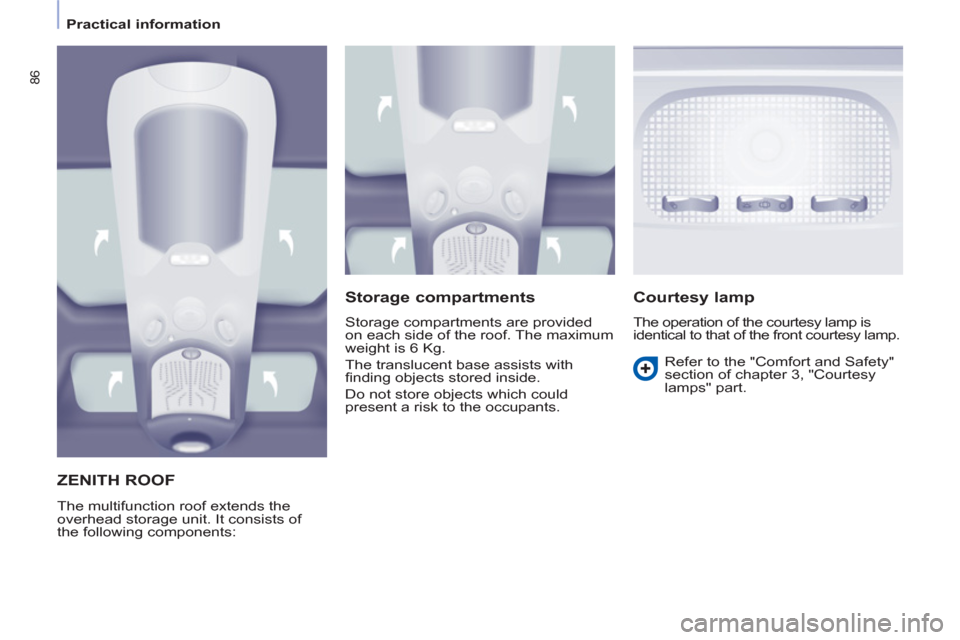

ZENITH ROOF

The multifunction roof extends the
overhead storage unit. It consists of
the following components:

Storage compartments

Storage compartments are provided
on each side of the roof. The maximum
weight is 6 Kg.
The translucent base assists with
fi nding objects stored inside.
Do not store objects which could
present a risk to the occupants.


Courtesy lamp

The operation of the courtesy lamp is
identical to that of the front courtesy lamp.
Refer to the "Comfort and Safety"
section of chapter 3, "Courtesy
lamps" part.

87
EASE OF USE
andCOMFOR
T
3


Practical information


From inside

From outside

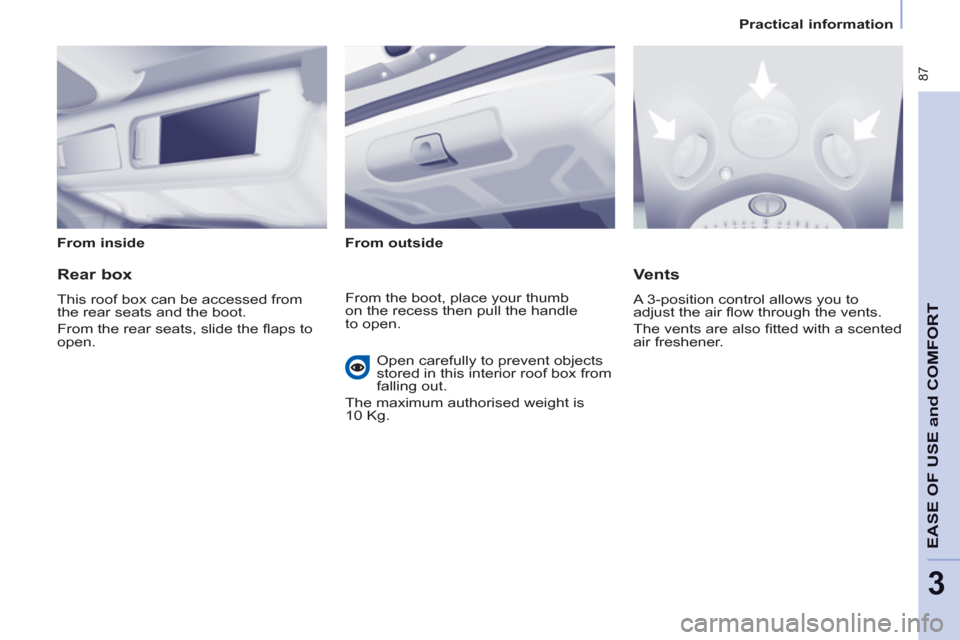

Rear box

This roof box can be accessed from
the rear seats and the boot.
From the rear seats, slide the fl aps to
open.

Vents

A 3-position control allows you to
adjust the air fl ow through the vents.
The vents are also fi tted with a scented
air freshener. From the boot, place your thumb
on the recess then pull the handle
to open.
Open carefully to prevent objects
stored in this interior roof box from
falling out.
The maximum authorised weight is
10 Kg.

88


Practical information

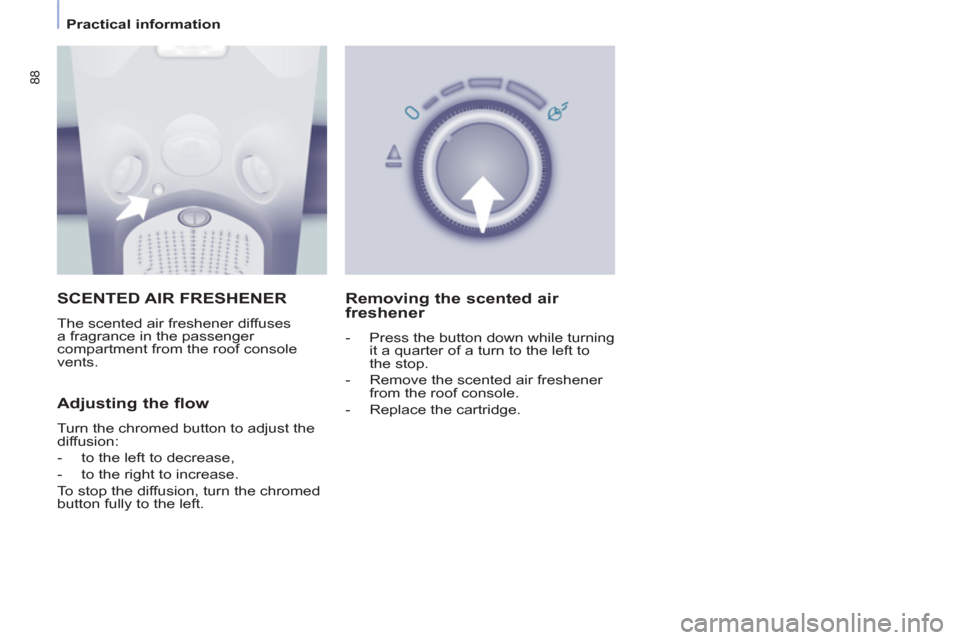

SCENTED AIR FRESHENER

The scented air freshener diffuses
a fragrance in the passenger
compartment from the roof console
vents.

Adjusting the flow

Turn the chromed button to adjust the
diffusion:


- to the left to decrease,

- to the right to increase.
To stop the diffusion, turn the chromed
button fully to the left.


Removing the scented air
freshener


- Press the button down while turning
it a quarter of a turn to the left to
the stop.

- Remove the scented air freshener
from the roof console.

- Replace the cartridge.
