Peugeot Partner Tepee 2011 Owner's Guide

19


Access

READY TO SET OFF
2


When purchasing a second-hand
vehicle:


- have the keys memorised by a
PEUGEOT dealer to ensure that
the keys in your possession are
the only ones which can start
the vehicle.



Good practice

Do not make any modifi cations to the
electronic immobiliser system.
Operating the remote control, even
when it is in your pocket, may result in
involuntary unlocking of the doors.
The simultaneous use of other
high frequency equipment (mobile
telephones, domestic alarms…), may
interfere with the operation of the
remote control temporarily.
ELECTRONIC IMMOBILISER

All of the keys contain an electronic
immobiliser device.
This device locks the engine supply
system. It is activated automatically when
the key is removed from the ignition.
After the ignition is switched on, a
dialogue is established between the
key and the electronic immobiliser
system.
The metal part of the key must be
unfolded correctly for correct dialogue
to take place.

If you lose your keys
Visit a PEUGEOT dealer with the
vehicle's V5 registration document and
your identifi cation document.
A PEUGEOT dealer will be able
to retrieve the key code and
the transponder code so that a
replacement key can be ordered.
The remote control does not operate
while the key is in the ignition, even if
the ignition is off.
As a safety precaution (with children
on board), remove the key from the
ignition when leaving the vehicle, even
for a short time.

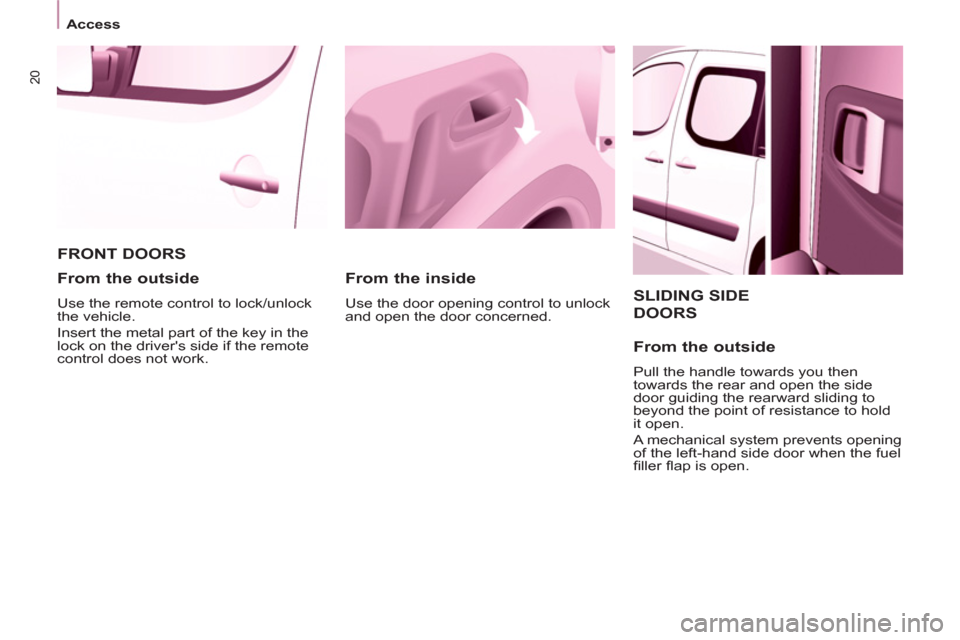

20


Access


SLIDING SIDE
DOORS

From the outside

Pull the handle towards you then
towards the rear and open the side
door guiding the rearward sliding to
beyond the point of resistance to hold
it open.
A mechanical system prevents opening
of the left-hand side door when the fuel
fi ller fl ap is open.

FRONT DOORS

From the inside

Use the door opening control to unlock
and open the door concerned.


From the outside

Use the remote control to lock/unlock
the vehicle.
Insert the metal part of the key in the
lock on the driver's side if the remote
control does not work.

21


Access

READY TO SET OFF
2

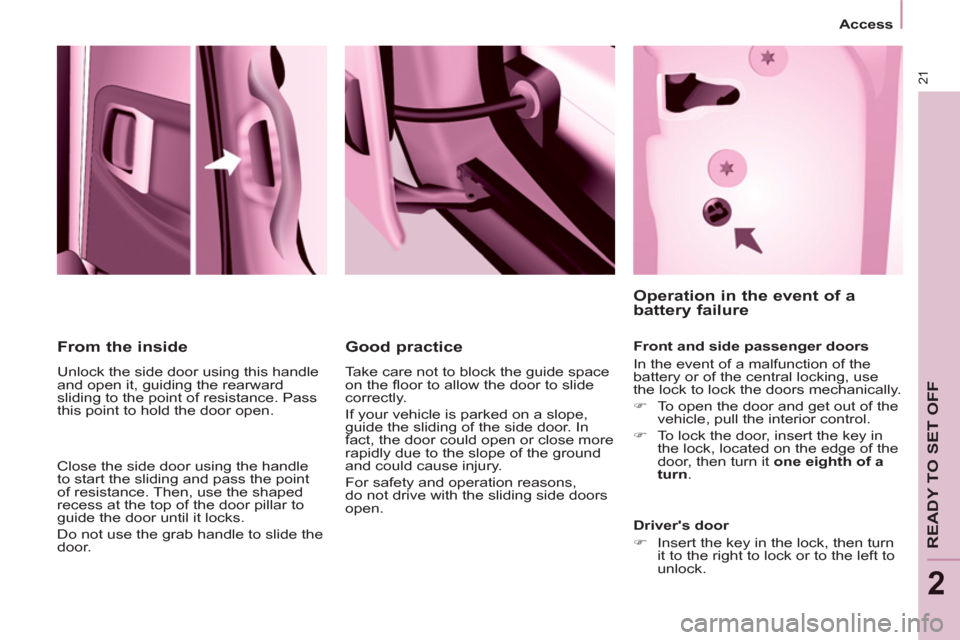

From the inside

Unlock the side door using this handle
and open it, guiding the rearward
sliding to the point of resistance. Pass
this point to hold the door open.

Close the side door using the handle
to start the sliding and pass the point
of resistance. Then, use the shaped
recess at the top of the door pillar to
guide the door until it locks.
Do not use the grab handle to slide the
door.


Good practice

Take care not to block the guide space
on the fl oor to allow the door to slide
correctly.
If your vehicle is parked on a slope,
guide the sliding of the side door. In
fact, the door could open or close more
rapidly due to the slope of the ground
and could cause injury.
For safety and operation reasons,
do not drive with the sliding side doors
open.







Operation in the event of a
battery failure

Front and side passenger doors
In the event of a malfunction of the
battery or of the central locking, use
the lock to lock the doors mechanically.


)
To open the door and get out of the
vehicle, pull the interior control.

)
To lock the door, insert the key in
the lock, located on the edge of the
door, then turn it one eighth of a
turn
.


Driver's door


)
Insert the key in the lock, then turn
it to the right to lock or to the left to
unlock.

22


Access

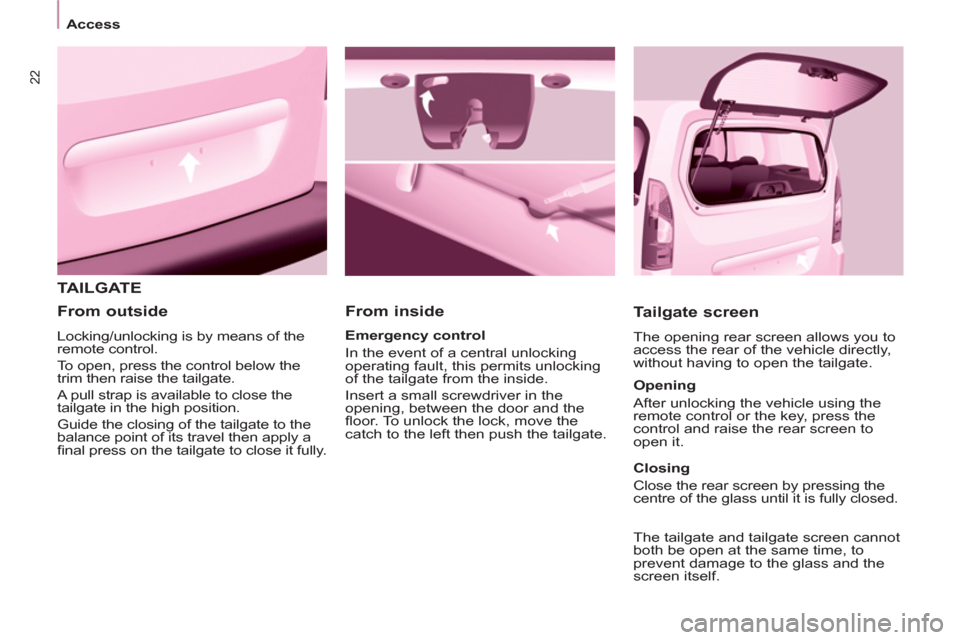

TAILGATE

From inside

Tailgate screen

The opening rear screen allows you to
access the rear of the vehicle directly,
without having to open the tailgate.
Emergency control
In the event of a central unlocking
operating fault, this permits unlocking
of the tailgate from the inside.
Insert a small screwdriver in the
opening, between the door and the
fl oor. To unlock the lock, move the
catch to the left then push the tailgate.



From outside

Locking/unlocking is by means of the
remote control.
To open, press the control below the
trim then raise the tailgate.
A pull strap is available to close the
tailgate in the high position.
Guide the closing of the tailgate to the
balance point of its travel then apply a
fi nal press on the tailgate to close it fully.
Opening
After unlocking the vehicle using the
remote control or the key, press the
control and raise the rear screen to
open it.

Closing
Close the rear screen by pressing the
centre of the glass until it is fully closed.

The tailgate and tailgate screen cannot
both be open at the same time, to
prevent damage to the glass and the
screen itself.

23


Access

READY TO SET OFF
2

HINGED REAR DOORS

From outside

To open, pull the handle towards you. Pull the lever to open the right-hand
door.
To close, start with the right-hand door
then close the left-hand door.
With the roof rear fl ap, the rear bumper
has been strengthened to serve as a
footrest on accessing the vehicle.


Practice

It is possible to drive with the
right-hand door open to make the
transportation of long loads easier. The
left-hand door is kept closed by the
distinctive "yellow" lock, positioned at
the base of the door. This closed door
must not be used as a load retainer.
Driving with the right-hand door open
is a special dispensation. Comply with
the usual safety indications to attract
the attention of other drivers. The hinged rear doors are
asymmetrical (2/3 - 1/3), with the
smaller door on the right.
They are fi tted with a central lock.

24


Access

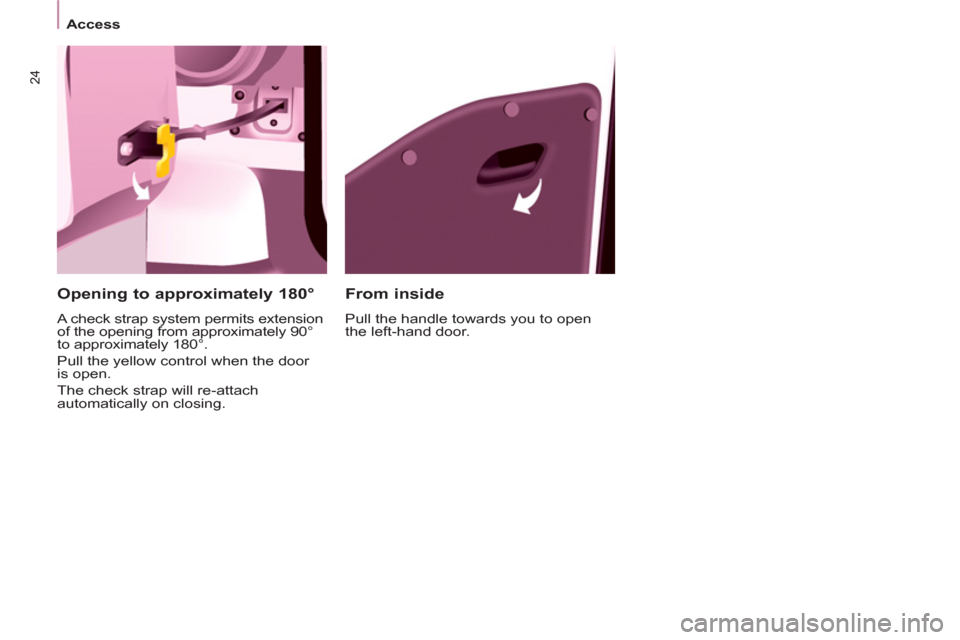

From inside

Pull the handle towards you to open
the left-hand door.


Opening to approximately 180°

A check strap system permits extension
of the opening from approximately 90°
to approximately 180°.
Pull the yellow control when the door
is open.
The check strap will re-attach
automatically on closing.

25


Access

READY TO SET OFF
2

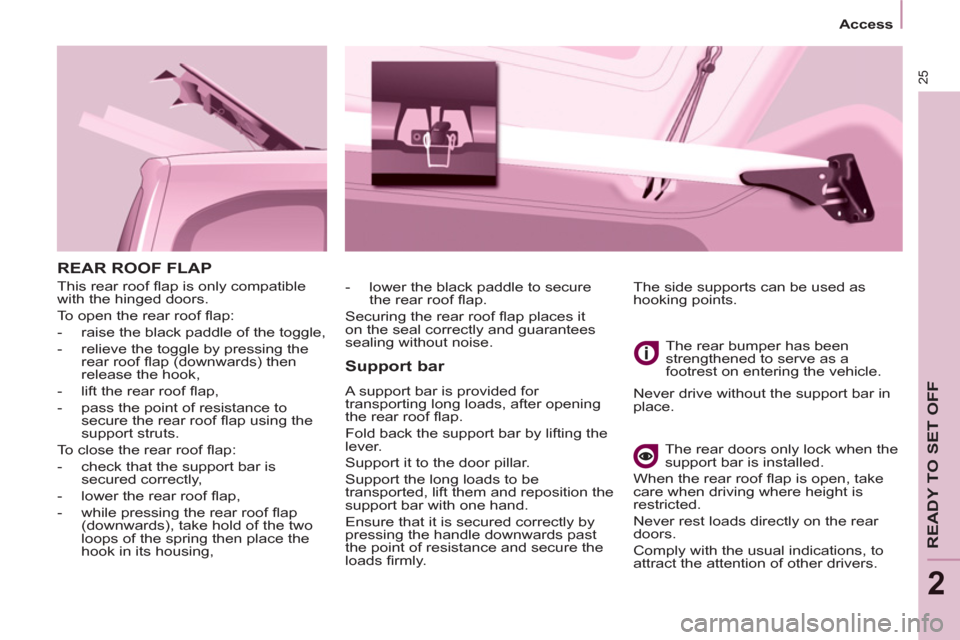

REAR ROOF FLAP

This rear roof fl ap is only compatible
with the hinged doors.
To open the rear roof fl ap:


- raise the black paddle of the toggle,

- relieve the toggle by pressing the
rear roof fl ap (downwards) then
release the hook,

- lift the rear roof fl ap,

- pass the point of resistance to
secure the rear roof fl ap using the
support struts.


To close the rear roof fl ap:


- check that the support bar is
secured correctly,

- lower the rear roof fl ap,

- while pressing the rear roof fl ap
(downwards), take hold of the two
loops of the spring then place the
hook in its housing,

Support bar

A support bar is provided for
transporting long loads, after opening
the rear roof fl ap.
Fold back the support bar by lifting the
lever.
Support it to the door pillar.
Support the long loads to be
transported, lift them and reposition the
support bar with one hand.
Ensure that it is secured correctly by
pressing the handle downwards past
the point of resistance and secure the
loads fi rmly. The rear bumper has been
strengthened to serve as a
footrest on entering the vehicle.

Never drive without the support bar in
place.
The rear doors only lock when the
support bar is installed.
When the rear roof fl ap is open, take
care when driving where height is
restricted.
Never rest loads directly on the rear
doors.
Comply with the usual indications, to
attract the attention of other drivers. The side supports can be used as
hooking points.
- lower the black paddle to secure
the rear roof fl ap.
Securing the rear roof fl ap places it
on the seal correctly and guarantees
sealing without noise.

26


Access

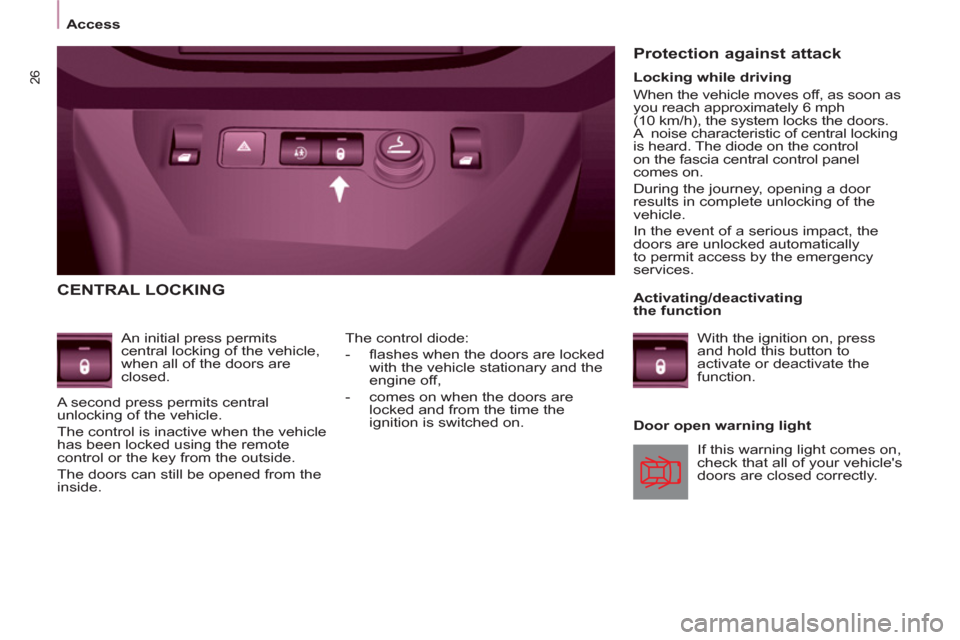

CENTRAL LOCKING


An initial press permits
central locking of the vehicle,
when all of the doors are
closed.
A second press permits central
unlocking of the vehicle.
The control is inactive when the vehicle
has been locked using the remote
control or the key from the outside.
The doors can still be opened from the
inside.
Door open warning light The control diode:


- fl ashes when the doors are locked
with the vehicle stationary and the
engine off,

- comes on when the doors are
locked and from the time the
ignition is switched on.



Protection against attack

If this warning light comes on,
check that all of your vehicle's
doors are closed correctly.

Locking while driving
When the vehicle moves off, as soon as
you reach approximately 6 mph
(10 km/h), the system locks the doors.
A noise characteristic of central locking
is heard. The diode on the control
on the fascia central control panel
comes on.
During the journey, opening a door
results in complete unlocking of the
vehicle.
In the event of a serious impact, the
doors are unlocked automatically
to permit access by the emergency
services.

Activating/deactivating
the function
With the ignition on, press
and hold this button to
activate or deactivate the
function.

READY TO SET OFF
22


Instruments and controls

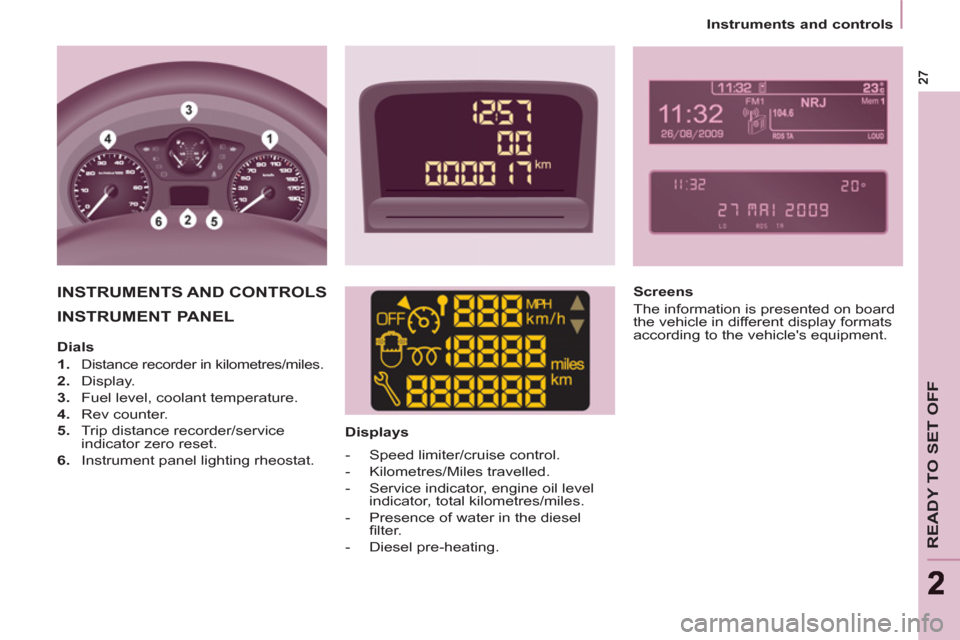

INSTRUMENT PANEL



Displays

INSTRUMENTS AND CONTROLS

Screens
The information is presented on board
the vehicle in different display formats
according to the vehicle's equipment.


Dials


1.
Distance recorder in kilometres/miles.


2. Display.

3. Fuel level, coolant temperature.

4. Rev counter.

5. Trip distance recorder/service
indicator zero reset.

6. Instrument panel lighting rheostat.




- Speed limiter/cruise control.

- Kilometres/Miles travelled.

- Service indicator, engine oil level
indicator, total kilometres/miles.

- Presence of water in the diesel
fi lter.

- Diesel pre-heating.

28


Instruments and controls



Centre console with display


Instrument panel without display

- turn to the right to increase the
hours (hold the button to the right
for rapid scrolling),

- turn to the left: 24 H or 12 H is
displayed,

- turn to the right to select 24 H or 12 H,

- turn to the left to complete the time
adjustment.
After approximately 30 seconds
without any action, the display returns
to the normal display.

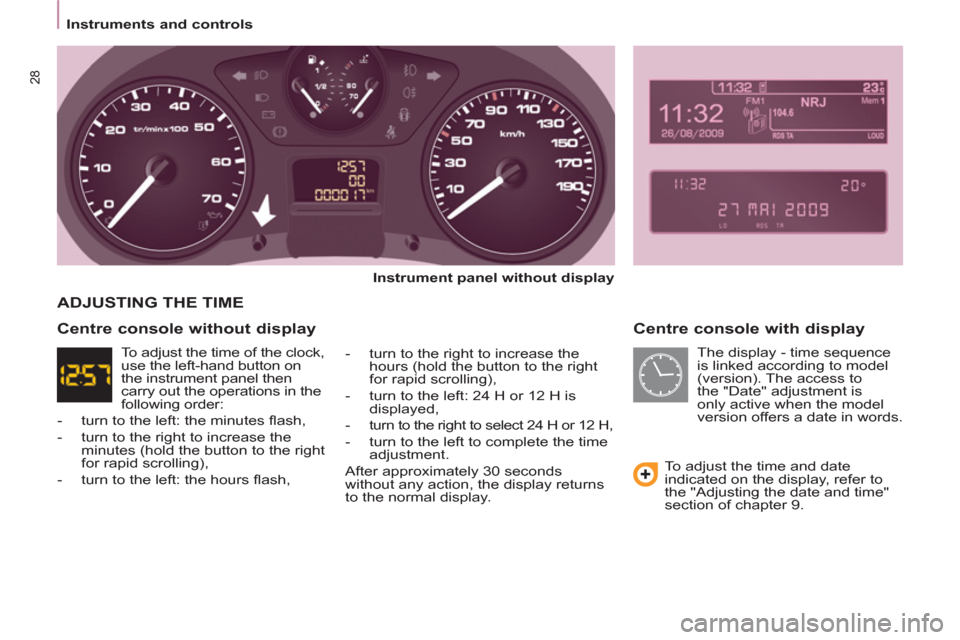

ADJUSTING THE TIME

To adjust the time and date
indicated on the display, refer to
the "Adjusting the date and time"
section of chapter 9.


Centre console without display

The display - time sequence
is linked according to model
(version). The access to
the "Date" adjustment is
only active when the model
version offers a date in words. To adjust the time of the clock,
use the left-hand button on
the instrument panel then
carry out the operations in the
following order:


- turn to the left: the minutes fl ash,

- turn to the right to increase the
minutes (hold the button to the right
for rapid scrolling),

- turn to the left: the hours fl ash,
