Peugeot Partner Tepee 2011 User Guide
Manufacturer: PEUGEOT, Model Year: 2011, Model line: Partner Tepee, Model: Peugeot Partner Tepee 2011Pages: 232, PDF Size: 7.4 MB
Page 11 of 232
4
2
4
9
1
FAMILIARISATION
Interior

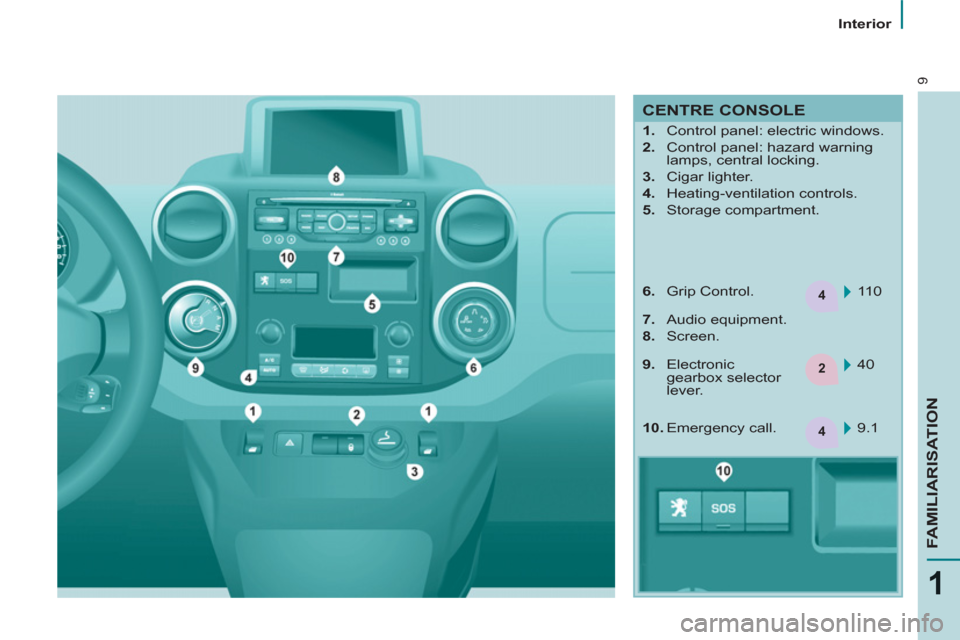

CENTRE CONSOLE
1.
Control panel: electric windows.
2.
Control panel: hazard warning
lamps, central locking.
3.
Cigar lighter.
4.
Heating-ventilation controls.
5.
Storage compartment.
110
6.
Grip Control.
7.
Audio equipment.
8.
Screen.
40
9.1
10.
Emergency call.
9.
Electronic
gearbox selector
lever.

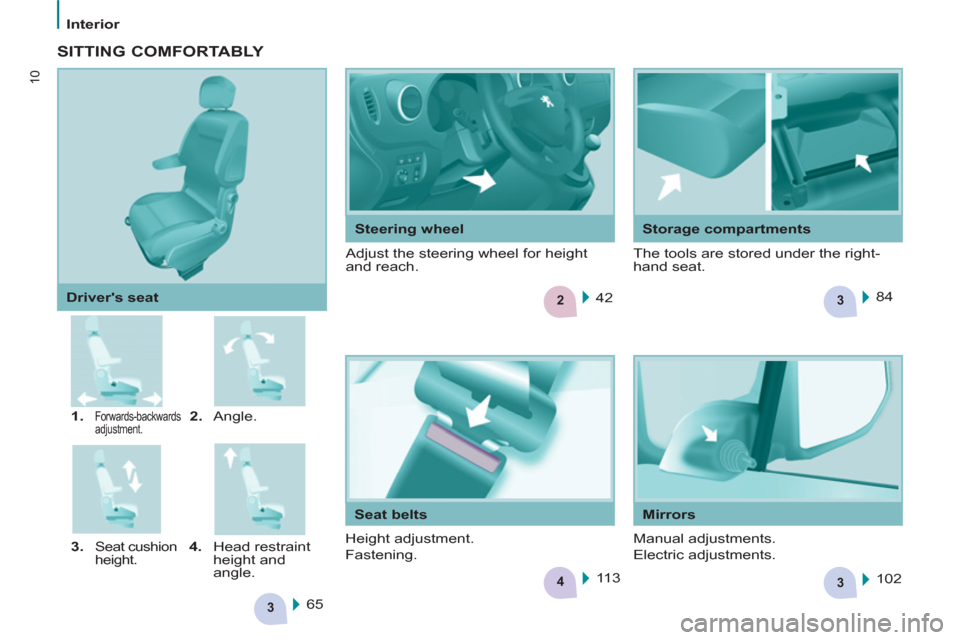

Page 12 of 232
2
34
3
3
10
Interior
Steering wheel
Storage compartments
1.
Forwards-backwards
adjustment.
2.
Angle.
3.
Seat cushion
height.
4.
Head restraint
height and
angle.
Driver's seat
65 42 84
113
102
SITTING COMFORTABLY
The tools are stored under the right-
hand seat. Adjust the steering wheel for height
and reach.
Mirrors
Manual adjustments.
Electric adjustments.
Seat belts
Height adjustment.
Fastening.
Page 13 of 232
3
3
7
3
11
1
FAMILIARISATION
Interior
Lighting off.
Sidelamps.
Main beam headlamps (blue).
Dipped beam headlamps (green). 2 fast.
1 normal.
I intermittent.
0 park.
È
single wipe.
AUTO, press the stalk down.
Reactivate if the ignition has
been off for more than one
minute.
AUTO, automatic
illumination of headlamps.
48 51

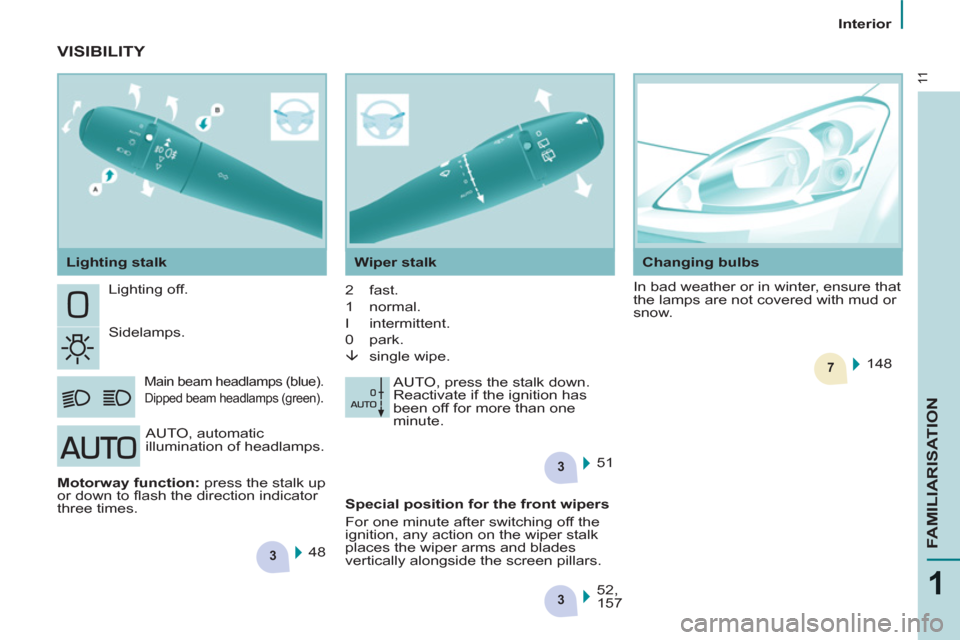

VISIBILITY
Motorway function:
press the stalk up
or down to fl ash the direction indicator
three times. 148
Lighting stalk
Wiper stalk
Changing bulbs
In bad weather or in winter, ensure that
the lamps are not covered with mud or
snow.
Special position for the front wipers
For one minute after switching off the
ignition, any action on the wiper stalk
places the wiper arms and blades
vertically alongside the screen pillars.
52,
157

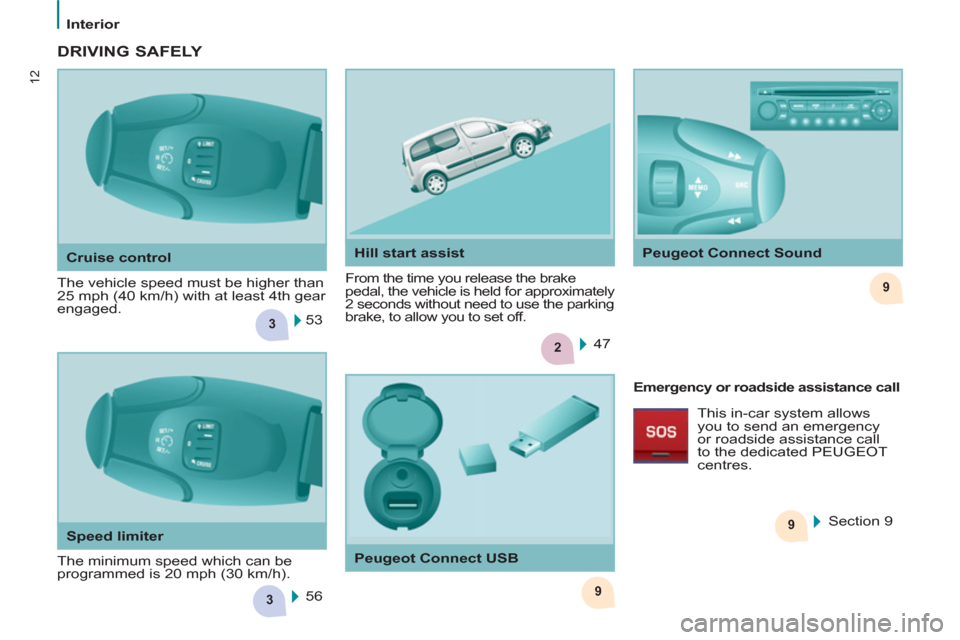

Page 14 of 232
3
2
9
3
9
9
12
Interior
Cruise control
The vehicle speed must be higher than
25 mph (40 km/h) with at least 4th gear
engaged.
From the time you release the brake
pedal, the vehicle is held for approximately
2 seconds without need to use the parking
brake, to allow you to set off.
53
47
DRIVING SAFELY
The minimum speed which can be
programmed is 20 mph (30 km/h).
56
Emergency or roadside assistance call
Section 9
Hill start assist
Peugeot Connect Sound
Peugeot Connect USB
Speed limiter This in-car system allows
you to send an emergency
or roadside assistance call
to the dedicated PEUGEOT
centres.
Page 15 of 232
33
3
3
13
1

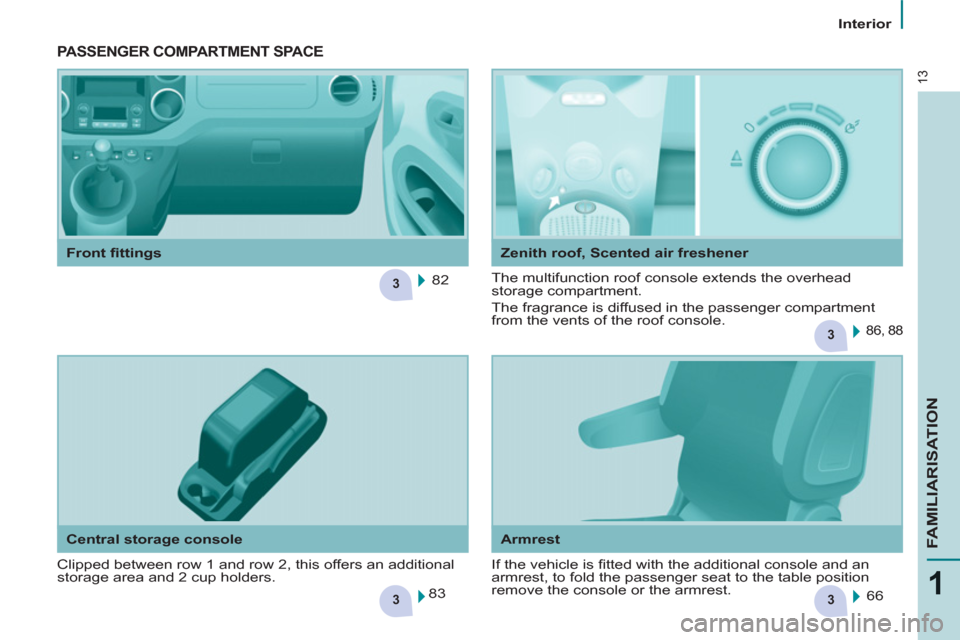

FAMILIARISATION
Interior
Armrest
Central storage console
Zenith roof, Scented air freshener
PASSENGER COMPARTMENT SPACE
Clipped between row 1 and row 2, this offers an additional
storage area and 2 cup holders. If the vehicle is fi tted with the additional console and an
armrest, to fold the passenger seat to the table position
remove the console or the armrest. 82
83
86, 88
66
The multifunction roof console extends the overhead
storage compartment.
The fragrance is diffused in the passenger compartment
from the vents of the roof console.
Front fi ttings
Page 16 of 232
3
3
33
3
14
Interior
Interior rack
Load space cover, 5 seat version
Rear seats, 5 seat version

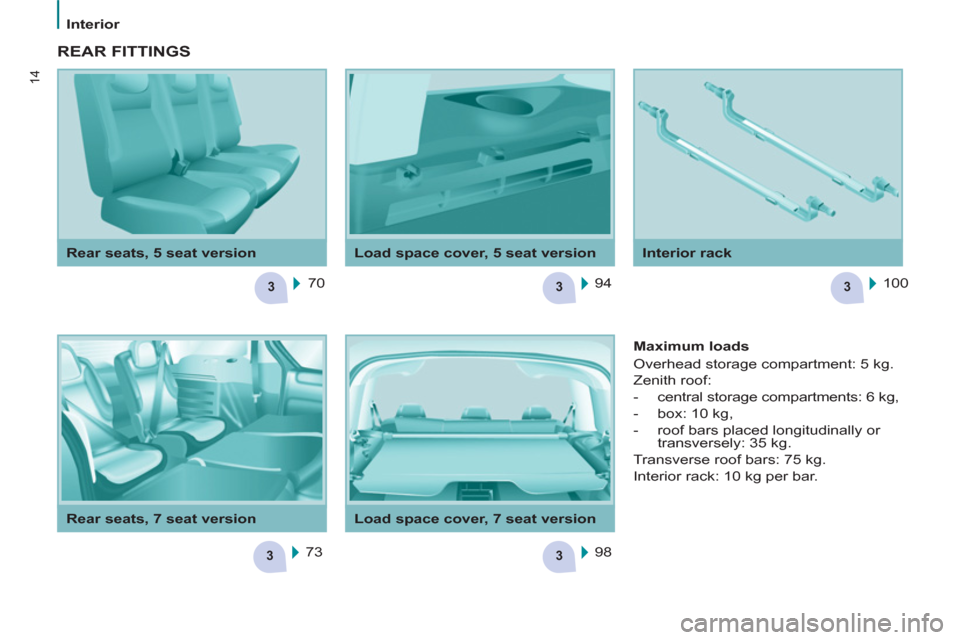

REAR FITTINGS
70
73 94 100
98
Maximum loads
Overhead storage compartment: 5 kg.
Zenith roof:
- central storage compartments: 6 kg,
- box: 10 kg,
- roof bars placed longitudinally or
transversely: 35 kg.
Transverse roof bars: 75 kg.
Interior rack: 10 kg per bar.
Load space cover, 7 seat version
Rear seats, 7 seat version
Page 17 of 232
3
3
5
5
5
15
1

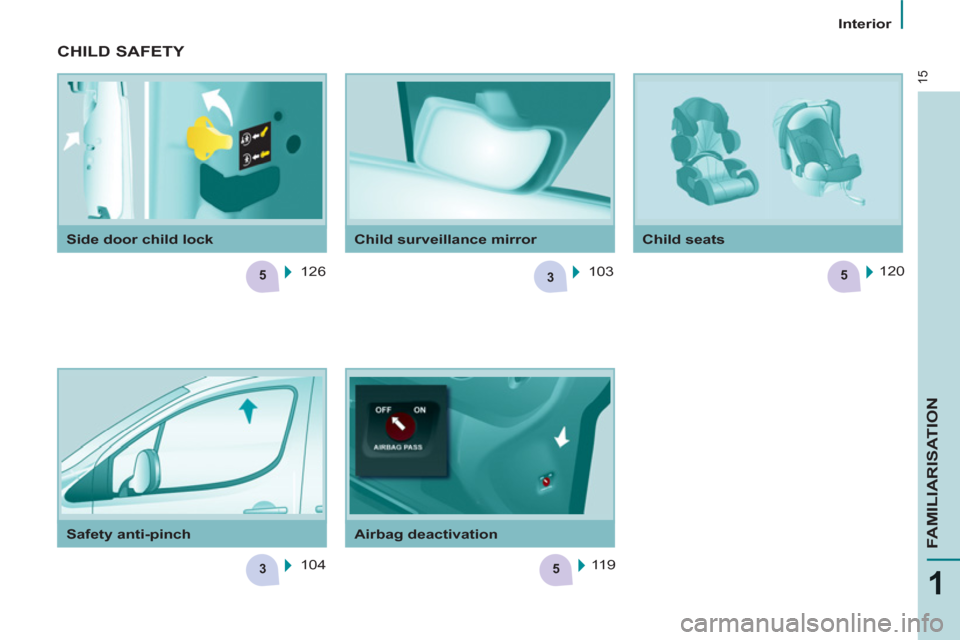

FAMILIARISATION
Interior
Safety anti-pinch
Airbag deactivation
Child seats
Side door child lock
Child surveillance mirror
CHILD SAFETY
126
104 103 120
119
Page 18 of 232
3
3
3
3
16
Interior

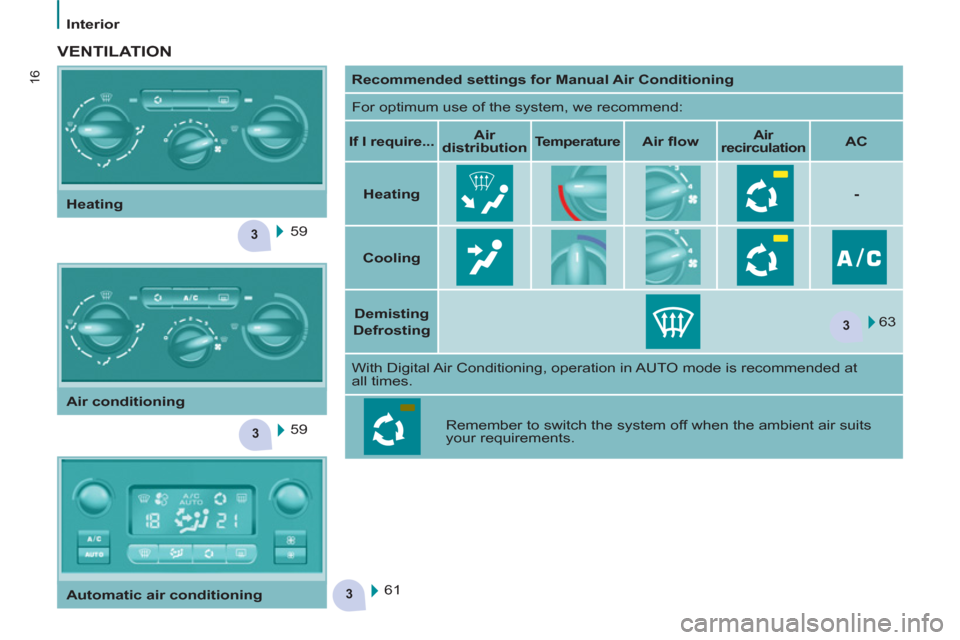

VENTILATION
Recommended settings for Manual Air Conditioning
For optimum use of the system, we recommend:
If I require...
Air
distribution
Temperature
Air fl ow
Air
recirculation
AC
Heating
-
Cooling
Demisting
Defrosting
63
With Digital Air Conditioning, operation in AUTO mode is recommended at
all times.
Remember to switch the system off when the ambient air suits
your requirements.
61
Heating
Air conditioning
Automatic air conditioning 59 59
Page 19 of 232
17
Access
READY TO SET OFF
2
KEY
This locks and unlocks the locks on the
vehicle and starts the engine.
ACCESS REMOTE CONTROL
Central unlocking
Central locking
Press this button to lock all of
your vehicle's doors.
The direction indicators fl ash once.
If one of the doors is open or is not
closed correctly, the central locking will
not work.
Deadlocking
A second press on the closed
padlock on the remote control within
fi ve seconds after locking changes the
locking to deadlocking.
This is confi rmed by fi xed lighting
of the direction indicators for
approximately two seconds.
Deadlocking renders the exterior
and interior door opening handles
inoperative: do not leave anyone inside
the vehicle when it is deadlocked.
If deadlocking is activated from inside
the vehicle using the remote control, it
will change to normal locking when the
vehicle is started. Press this button to unlock all
of your vehicle's doors.
The direction indicators fl ash twice.

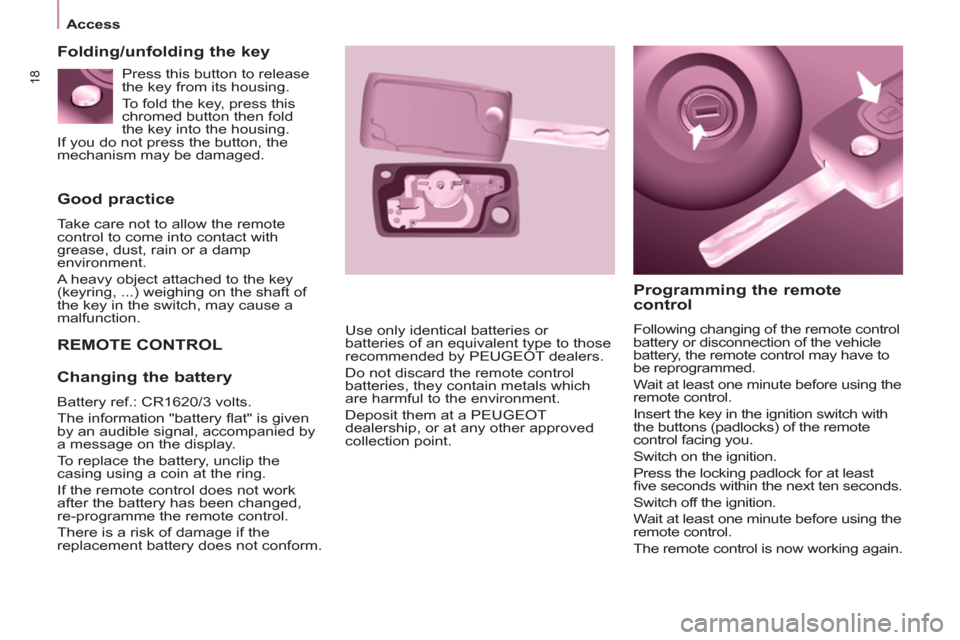

Page 20 of 232
18
Access
Good practice
Take care not to allow the remote
control to come into contact with
grease, dust, rain or a damp
environment.
A heavy object attached to the key
(keyring, ...) weighing on the shaft of
the key in the switch, may cause a
malfunction.
REMOTE CONTROL
Programming the remote
control
Following changing of the remote control
battery or disconnection of the vehicle
battery, the remote control may have to
be reprogrammed.
Wait at least one minute before using the
remote control.
Insert the key in the ignition switch with
the buttons (padlocks) of the remote
control facing you.
Switch on the ignition.
Press the locking padlock for at least
fi ve seconds within the next ten seconds.
Switch off the ignition.
Wait at least one minute before using the
remote control.
The remote control is now working again. Use only identical batteries or
batteries of an equivalent type to those
recommended by PEUGEOT dealers.
Do not discard the remote control
batteries, they contain metals which
are harmful to the environment.
Deposit them at a PEUGEOT
dealership, or at any other approved
collection point.
Folding/unfolding the key
Changing the battery
Battery ref.: CR1620/3 volts.
The information "battery fl at" is given
by an audible signal, accompanied by
a message on the display.
To replace the battery, unclip the
casing using a coin at the ring.
If the remote control does not work
after the battery has been changed,
re-programme the remote control.
There is a risk of damage if the
replacement battery does not conform. Press this button to release
the key from its housing.
To fold the key, press this
chromed button then fold
the key into the housing.
If you do not press the button, the
mechanism may be damaged.
