Peugeot Partner Tepee 2015 Owner's Guide

29
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014

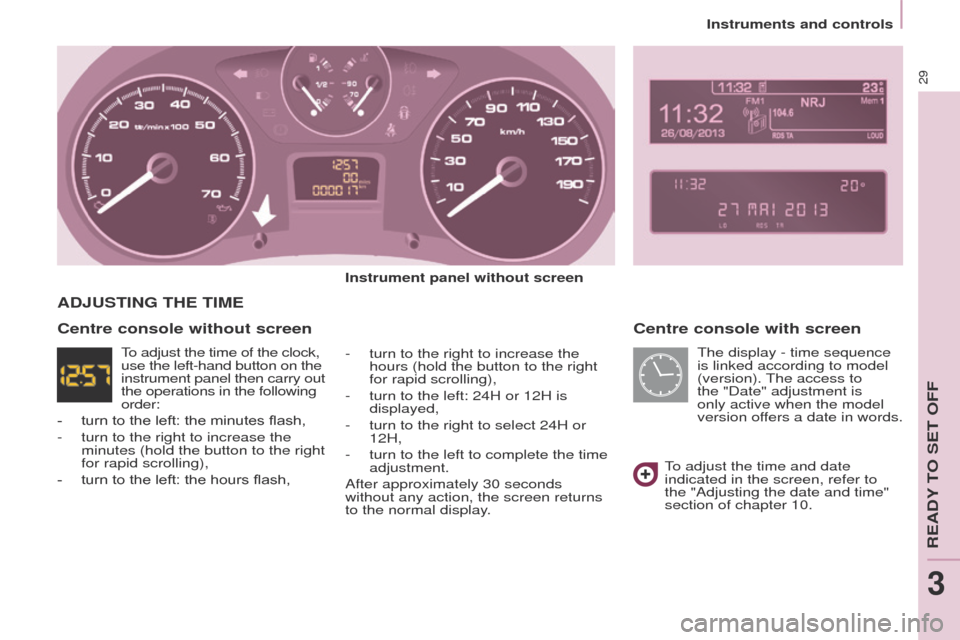

Centre console with screen
Instrument panel without screen
-
turn to the right to increase the
hours (hold the button to the right
for rapid scrollin

g),
-

turn to the left: 24H or 12H is
displayed,
-


turn to the right to select 24H or
12H,
-


turn to the left to complete the time
adjustment.
After approximately 30 seconds
without any action, the screen returns
to the normal display

.
ADJUSTING THE TIME
to adjust the time and date
indicated in the screen, refer to
the "Adjusting the date and time"
section of chapter 10.
Centre console without screen
the display - time sequence
is linked according to model
(version).
t

he access to
the "Date" adjustment is
only active when the model
version offers a date in words.to adjust the time of the clock,

use the left-hand button on the
instrument panel then carry out
the operations in the following
order:
-

turn to the left: the minutes flash,
-


turn to the right to increase the
minutes (hold the button to the right
for rapid scrollin

g),
-

turn to the left: the hours flash,
Instruments and controls
ReADY tO Set OFF
3

30
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014
WARNING LAMPS
each time the vehicle is started: a series of warning lamps comes on appl\
ying a self-test check. t hey go off almost immediately.
When the engine is running: the warning lamp becomes a warning if it remains on continuously or flashes. This initial
warning may be accompanied by an audible signal and a message which appe\
ars in the screen.
Do not ignore these warnings.
Warning lamp is indicatesSolution - action
STOP on, associated
with another
warning
lamp and
accompanied
by a message
in the screen.major faults linked with
the "Brake fluid level",
"
e ngine oil pressure and
temperature", "Coolant
temperature", "
e lectronic
brake force distribution" and
"Power steering" warning
lamps. You must stop as soon as it is safe to do
so. Park and switch off the ignition. Have it
checked by a PEUGEOT dealer or a qualified
workshop.
Parking
brake
/ Brake
fluid level /
EBFD on.
that the parking brake is applied
or has not been released fully.Releasing the parking brake switches off the
warning lamp.
on. low brake fluid level. Top up using a fluid recommended by PEUGEOT.
remaining on even
though the level
is correct and
associated with the
ABS warning lamp.
a fault with the electronic
brake force distribution. You must stop as soon as it is safe to do
so. Park and switch off the ignition. Have it
checked by a PEUGEOT dealer or a qualified
workshop.
Engine oil
pressure and
temperature on while
driving.
low pressure or a high
temperature. Park and switch off the ignition then allow to cool.
Visually check the level.
Chapter 7, "Levels" section.
remaining on,
even though the
level is correct. a major fault.
Have it checked by a P
euge O t
dealer or a
qualified workshop.
Instruments and controls

31
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014
Warning lamp isindicatesSolution - action
Coolant
temperature
and level on with needle
in the red
zone.
an abnormal increase in
temperature.
Park and switch off the ignition then allow to cool.
Visually check the level.
flashing. a drop in the coolant level. Chapter 7, "Levels" section.
Contact a PEUGEOT


dealer or a qualified
workshop.
Service on temporarily. minor faults or warnings.
Consult the alert log in the display or screen.
If your vehicle is equipped with a trip computer
or a screen: refer to the "Audio equipment -
trip
computer" section of chapter 10.
Contact a PEUGEOT

dealer or a qualified
workshop.
remaining on. major faults.
Seat belt not
fastened on then
flashing.
the driver and/or front
passenger has not fastened
their seat belt.
Pull the strap then insert the tongue in the buckle.
accompanied
by an audible
signal then
remains on. the vehicle is moving with
the driver's and/or front
passenger's seat belt not
fastened.
Check that the seat belt is fastened by pulling the
strap.
Chapter 5, "Seat belts" section.
ECO on.
t

he Stop & Start system
has put the engine in
S
t
OP
mode following a
vehicle stop (red light, traffic
jam,
etc...).As soon as you want to move off, the warning
lamp goes off and the engine restarts
automatically in S
t
ARt mode.
flashes for a
few seconds,
then goes of

f.S
t
OP
mode is temporarily
unavailable.
or
S
t
ARt mode has been
invoked automatically

.Chapter 3, "Stop & Start" section.
Instruments and controls
ReADY tO Set OFF
3

32
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014
Warning lamp isindicatesSolution - action
Front / lateral
airbag flashing or
remaining on.
a failure of an airbag. Have the system checked by a P
euge O t

dealer or a qualified workshop without delay

.
Chapter 5, "Airbags" section.
Front
passenger's
airbag
deactivated on. the intentional deactivation
of this airbag in the
presence of a rearward
facing child seat. Chapter 5, "Airbags" or "child safety" section.
Low fuel
level on with gauge
needle in the
red zone. When it first comes on,
there remains around
8
litres of fuel in the tank.
t

he distance you can drive
on this fuel depends on
your style of driving and the
engine type. You must fill up with fuel to avoid running out.
t

his warning lamp comes on each time you
switch on the ignition until you have filled up.
Capacity of the tank: approximately 60 litres.
Never risk driving until the tank is empty, this
could damage the emissions and injection
systems.
flashing. cutting off of the fuel supply
following a serious impact. Restore the supply.
Chapter 7, "Fuel" section.
EOBD
emission
control
system flashing or
remaining on.
a failure of the system.
t

here is a risk of damage to the catalytic
converter. Have it checked by a P
euge O t

dealer or a qualified workshop.
Battery
charge on.
a fault in the charging
circuit. Check the battery terminals, …
Chapter 8, "Battery" section.
flashing. placing of the active
functions on standby
(economy mode). Chapter 8, "Battery" section.
remaining on,
in spite of the
checks. an ignition or injection
malfunction.
Have it checked by a P

euge O t
dealer or a
qualified workshop.
Instruments and controls

+
ABS
33
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014
Warning lamp isindicatesSolution - action
Power
steering on. a fault with the
system.
t

he vehicle retains conventional steering without
assistance. Have it checked by a P
euge O t

dealer or a qualified workshop.
Door open
detection on and accompanied
by a message in the
screen. that a door is not
closed correctly

.Check that all of the doors are closed.
ABS remaining on. a fault with the anti-
lock braking system.
t

he vehicle retains conventional braking.
Have it checked by a P
euge O t
dealer or a
qualified workshop.
ESC flashing.
triggering of the

ASR
or DSC regulation.
t

he system optimises traction and improves the
directional stability of the vehicle.
Chapter 5, "Driving safety" section.
remaining on. a fault with the
system.
e .g.: under-
inflation of the tyres.
e

.g.: check the pressure of the tyres. (Wheel
speed sensor, hydraulic block, ...). Have it
checked by a PEUGEOT dealer or a qualified
workshop.
Under-
inflation on.
t

he tyre pressure is
too low in or more
wheels. Check the tyre pressure as soon as possible.
t

his check should preferably be done with the
tyres cold.
flashing then
remaining on,
accompanied by
the Service warning
lamp, and depending
on equipment, the
display of a message.
t

he tyre pressure
monitoring system
has a fault or one of
the wheels does not
have a sensor. Detection of under-inflation is no longer assured.
have it checked by a P
euge O t
dealer or a
qualified workshop.
Particle filter on. a problem with the
particle filter (fuel
additive level, risk of
blockage,...).Have the filter checked by a PEUGEOT

dealer or
a qualified workshop.
Chapter 7, "Levels" section.
Instruments and controls
READY TO SET OFF
3

34
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014
Warning lamp isindicatesSolution - action

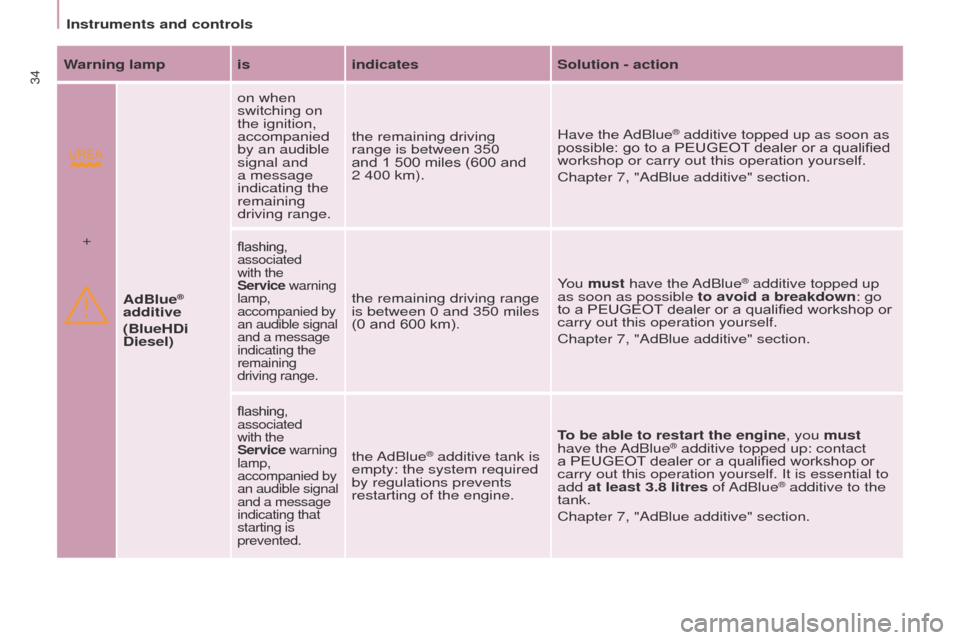

AdBlue
®
additive
(BlueHDi
Diesel) on when
switching on
the ignition,
accompanied
by an audible
signal and
a message
indicating the
remaining
driving range.
the remaining driving
range is between 350
and 1 500 miles (600 and
2 400 km).
Have the AdBlue
® additive topped up as soon as
possible: go to a PEUGEOT dealer or a qualified
workshop or carry out this operation yourself.
Chapter 7, "AdBlue additive" section.
+
flashing,
associated
with the
Service warning
lamp,
accompanied by
an audible signal
and a message
indicating the
remaining
driving range.
the remaining driving range
is between 0 and 350 miles
(0 and 600 km). You must have the AdBlue
® additive topped up
as soon as possible to avoid a breakdown: go
to a PEUGEOT dealer or a qualified workshop or
carry out this operation yourself.
Chapter 7, "AdBlue additive" section.
flashing,
associated
with the
Service
warning
lamp,
accompanied by
an audible signal
and a message
indicating that
starting is
prevented.
the AdBlue® additive tank is
empty: the system required
by regulations prevents
restarting of the engine. To be able to restart the engine, you must
have the AdBlue® additive topped up: contact
a PEUGEOT dealer or a qualified workshop or
carry out this operation yourself. It is essential to
add at least 3.8 litres of AdBlue
® additive to the
tank.
Chapter 7, "AdBlue additive" section.
Instruments and controls

35
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014
Warning lamp isindicatesSolution - action

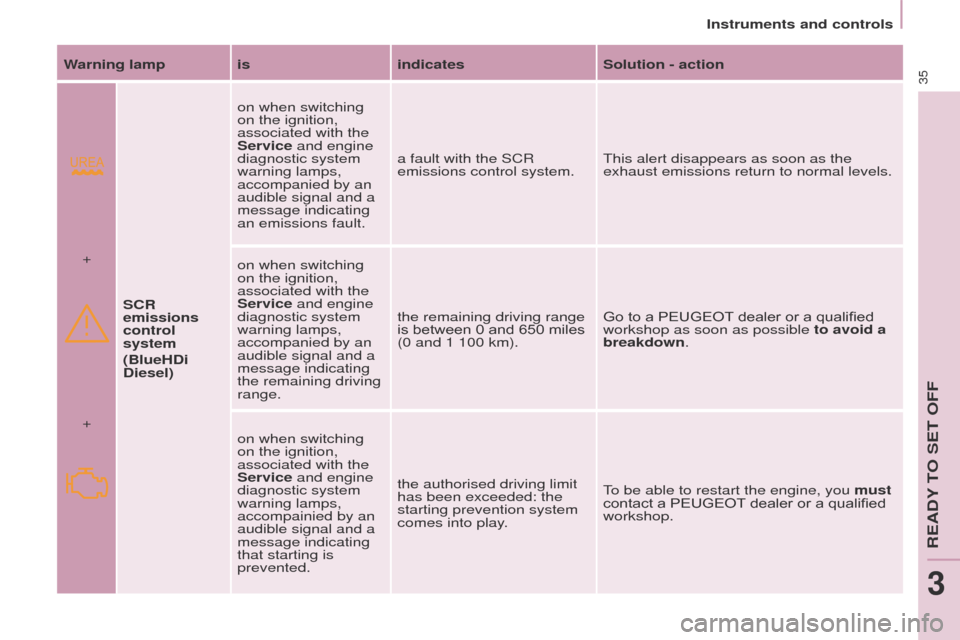

SCR
emissions
control
system
(BlueHDi
Diesel) on when switching
on the ignition,
associated with the
Service
and engine
diagnostic system
warning lamps,
accompanied by an
audible signal and a
message indicating
an emissions fault. a fault with the SCR
emissions control system.
t

his alert disappears as soon as the
exhaust emissions return to normal levels.
+ on when switching
on the ignition,
associated with the
Service
and engine
diagnostic system
warning lamps,
accompanied by an
audible signal and a
message indicating
the remaining driving
range. the remaining driving range
is between 0 and 650 miles
(0 and 1 100 km).
Go to a PEUGEOT dealer or a qualified
workshop as soon as possible to avoid a
breakdown.
+ on when switching
on the ignition,
associated with the
Service
and engine
diagnostic system
warning lamps,
accompainied by an
audible signal and a
message indicating
that starting is
prevented. the authorised driving limit
has been exceeded: the
starting prevention system
comes into play.
to be able to restart the engine, you

must
contact a PEUGEOT dealer or a qualified
workshop.
Instruments and controls
ReADY tO Set OFF
3

36
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014

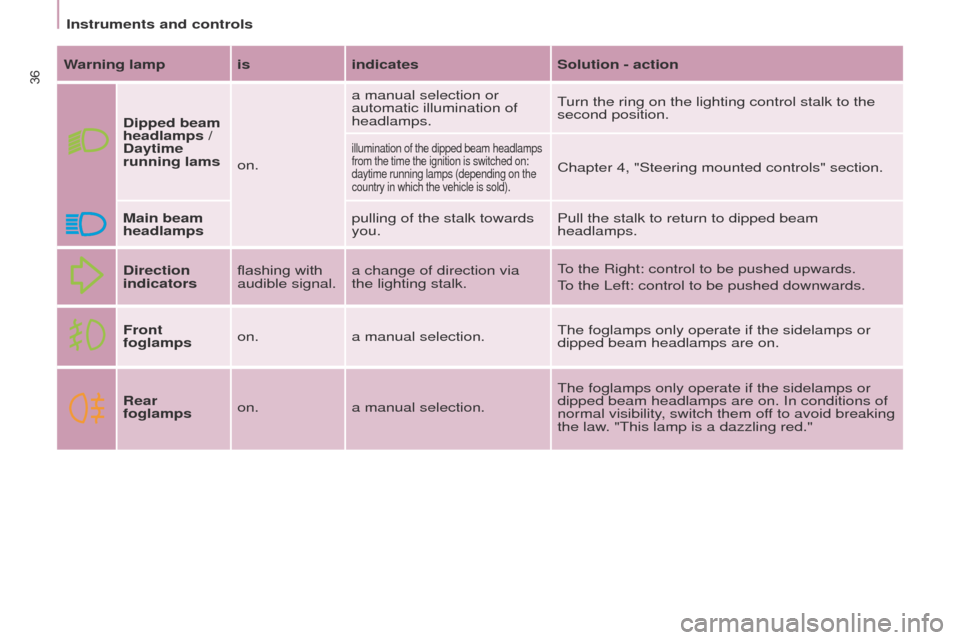

Warning lamp isindicatesSolution - action
Dipped beam
headlamps
/
Daytime
running lams on.a manual selection or
automatic illumination of
headlamps.
turn the ring on the lighting control stalk to the
second position.
illumination of the dipped beam headlamps
from the time the ignition is switched on:
daytime running lamps (depending on the
country in which the vehicle is sold).
Chapter 4, "Steering mounted controls" section.
Main beam
headlamps pulling of the stalk towards
you.Pull the stalk to return to dipped beam
headlamps.
Direction
indicators flashing with
audible signal.a change of direction via
the lighting stalk.
to the Right: control to be pushed upwards.
to the Left: control to be pushed downwards.
Front
foglamps on.
a manual selection.
t

he foglamps only operate if the sidelamps or
dipped beam headlamps are on.
Rear
foglamps on.
a manual selection.
t

he foglamps only operate if the sidelamps or
dipped beam headlamps are on. In conditions of
normal visibility, switch them off to avoid breaking
the law. "
t his lamp is a dazzling red."
Instruments and controls

37
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014

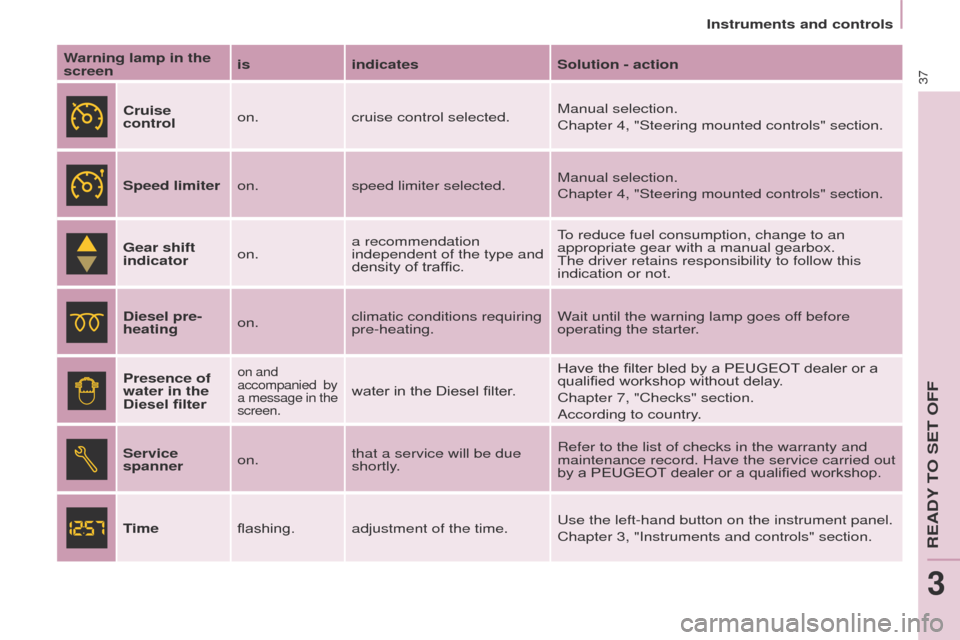

Warning lamp in the
screenis
indicates Solution - action
Cruise
control on.
cruise control selected. Manual selection.
Chapter 4, "Steering mounted controls" section.
Speed limiter on.speed limiter selected. Manual selection.
Chapter 4, "Steering mounted controls" section.
Gear shift
indicator on.a recommendation
independent of the type and
density of traffic.
to reduce fuel consumption, change to an
appropriate gear with a manual gearbox.
t

he driver retains responsibility to follow this
indication or not.
Diesel pre-
heating on.climatic conditions requiring
pre-heating. Wait until the warning lamp goes off before
operating the starter.
Presence of
water in the
Diesel filter
on and
accompanied by
a message in the
screen.
water in the Diesel filter. Have the filter bled by a PEUGEOT dealer or a
qualified workshop without delay.
Chapter 7, "Checks" section.
According to country.
Service
spanner on.that a service will be due
shortly. Refer to the list of checks in the warranty and
maintenance record. Have the service carried out
by a PEUGEOT dealer or a qualified workshop.
Time flashing.adjustment of the time.
u

se the left-hand button on the instrument panel.
Chapter 3, "Instruments and controls" section.
Instruments and controls
ReADY tO Set OFF
3

38
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014
FUEL GAUGECOOLANT
TEMPERATURE
The needle is positioned before the
red zone: normal operation.
In arduous conditions of use or hot
climatic conditions, the needle may
move close to the red graduations. What you should do if the needle
enters the red zone:
Reduce your speed or let the engine
run at idle.
What you should do if the warning
lamp comes on:
-

stop immediately
, switch off the
ignition.
t
he fan may continue to
operate for a certain time, up to
approximately 10 minutes,
-
wait for the engine to cool down in
order to check the coolant level and
top it up if necessary

.
As the cooling system is pressurised,
follow this advice in order to avoid any
risk of scalding:
-
wait at least one hour after
switching of

f the engine before
carrying out any work,
-
unscrew the cap by 1/4 turn to
allow the pressure to drop,
-

when the pressure has dropped,
check the level on the expansion
bottle,
-
if necessary , remove the cap to top
up.
If the needle remains in the red zone,
have the system checked by a P euge O t
dealer or a qualified workshop.
Refer to chapter 7, "Levels"
section.
Refer to chapter 7, "Fuel" section.
t

he fuel level is tested each time the
key is turned to the "running" position.
t

he gauge is positioned on:
-

1:

the fuel tank is full,
approximately 60 litres.
-
0:
the reserve is now being used,
the warning lamp comes on
continuously. t
he reserve when
the warning first comes on is
approximately 8 litres.
Instruments and controls
