79
Partner_2_VP_en_Chap04_ergonomie_ed02-2014
Adjusting the angle of the seat back
-
Operate the control and adjust
the

angle.
Placing the seat in the table position
-

Lower the head restraint fully
.
-

Operate the control to fold the seat
back onto the seat cushion. Returning the seat back to the
sitting position
-


Release the seat back by pullin
g
the control, then return it to its
original position.
e
nsure that the entire seat is anchored
securely.
Placing the seat in the fully folded
position
-
Place the seat in the table position.
-


Pull the red strap, located behind
the seat, to release the feet of the
seat from their anchorage on the
floor

.
-
t
ilt the entire seat forwards.
Row 2 seat adjustmentsReturning the seat to its original
position
-
Fold back the entire seat.
Before folding the seat, ensure
that:
-


in row 3, no passenger's
foot is at one of the seat
anchorages on the floor

,
-

the seat is locked securely on
the floor

,
-

the seat belt is available for
the passenger

.
Seats
eASe OF uSe and COMFORt
4

80
Partner_2_VP_en_Chap04_ergonomie_ed02-2014

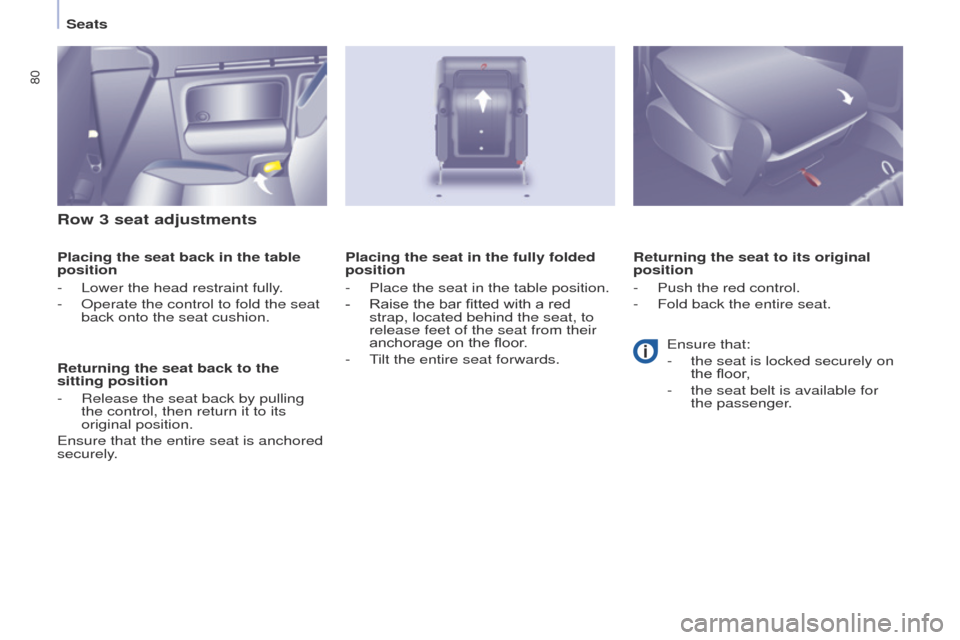

Row 3 seat adjustments
Placing the seat back in the table
position
-
Lower the head restraint fully
.
-

Operate the control to fold the seat
back onto the seat cushion.
Returning the seat back to the
sitting position
-


Release the seat back by pullin
g
the control, then return it to its
original position.
e

nsure that the entire seat is anchored
securely. Returning the seat to its original
position
-

Push the red control.
-


Fold back the entire seat.
Placing the seat in the fully folded
position
-


Place the seat in the table position.
-


Raise the bar fitted with a red
strap, located behind the seat, to
release feet of the seat from their
anchorage on the floor

.
-
t
ilt the entire seat forwards.e
nsure that:
-

the seat is locked securely on
the floor

,
-

the seat belt is available for
the passenger

.
Seats

81
Partner_2_VP_en_Chap04_ergonomie_ed02-2014

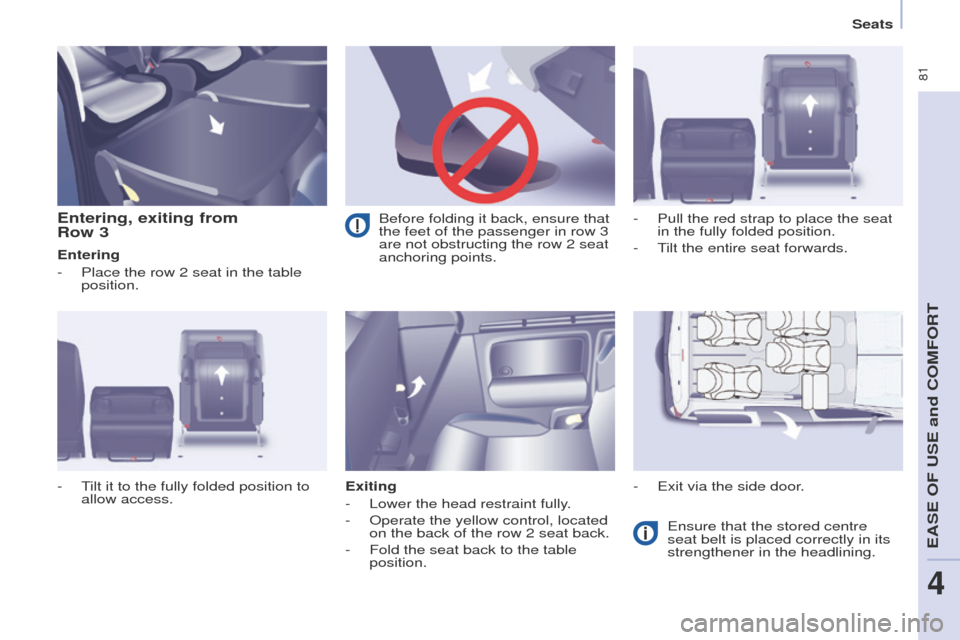

Entering, exiting from
Row 3
Entering
-
Place the row 2 seat in the table
position.
Exiting
-


Lower the head restraint fully
.
-

Operate the yellow control, located
on the back of the row 2 seat back.
-


Fold the seat back to the table
position.
e
nsure that the stored centre
seat belt is placed correctly in its
strengthener in the headlining.
-
t
ilt it to the fully folded position to
allow access. -


Pull the red strap to place the seat
in the fully folded position.
-
tilt the entire seat forwards.
- e xit via the side door.
Before folding it back, ensure that
the feet of the passenger in row 3
are not obstructing the row 2 seat
anchoring points.
Seats
eASe OF uSe and COMFORt
4

82
Partner_2_VP_en_Chap04_ergonomie_ed02-2014
Removing the seat
-
If necessary
, move the front seats
forward.
-

Lower the head restraint.
-


Place the seat in the fully folded
position.
-

t
ilt the entire seat forwards then
lift

it. Repositioning the seat
t

he label on the seat indicates the
position in which it must be installed.
-

Place the hooks of the front feet
between the two bars.
-


Fold back the seat to fix the rear
anchoring points.
-


Operate the control to raise the
seat back to its initial position.
-


Raise the head restraint.
e nsure that no object or foot of
a passenger seated in the rear
is obstructing the anchoring
recesses or preventing correct
locking of the seat.
Handling the Row 2 seat
Seats

83
Partner_2_VP_en_Chap04_ergonomie_ed02-2014

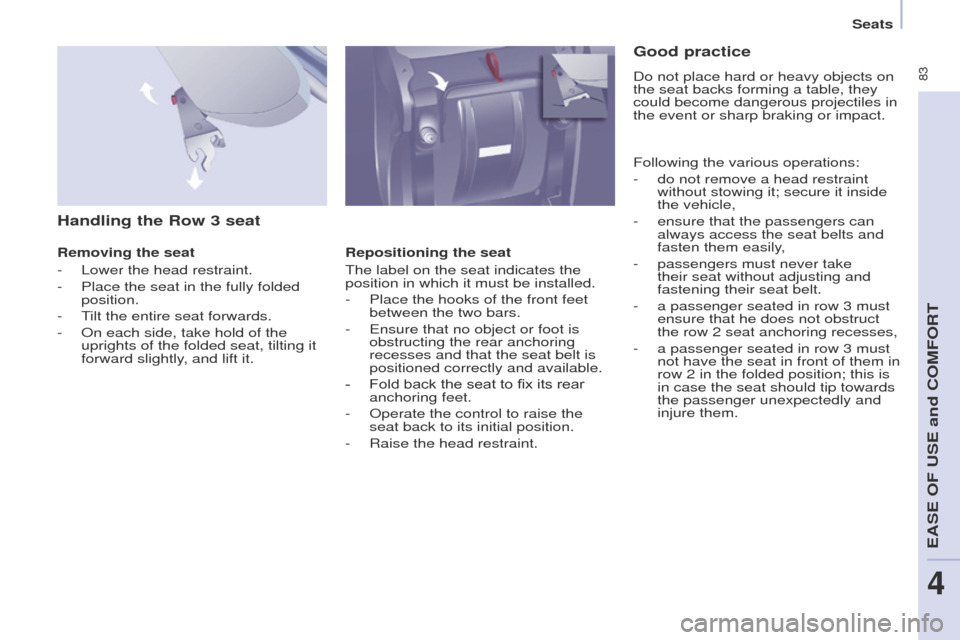

Handling the Row 3 seat
Removing the seat
-
Lower the head restraint.
-


Place the seat in the fully folded
position.
-

t
ilt the entire seat forwards.
-


On each side, take hold of the
uprights of the folded seat, tilting it
forward slightly

, and lift it. Repositioning the seat
t

he label on the seat indicates the
position in which it must be installed.
-

Place the hooks of the front feet
between the two bars.
-

e nsure that no object or foot is
obstructing the rear anchoring
recesses and that the seat belt is
positioned correctly and available.
-

Fold back the seat to fix its rear
anchoring feet.
-


Operate the control to raise the
seat back to its initial position.
-


Raise the head restraint.
Good practice
Do not place hard or heavy objects on
the seat backs forming a table, they
could become dangerous projectiles in
the event or sharp braking or impact.
Following the various operations:
-
do not remove a head restraint
without stowing it; secure it inside
the vehicle,
-


ensure that the passengers can
always access the seat belts and
fasten them easily

,
-

passengers must never take
their seat without adjusting and
fastening their seat belt.
-


a passenger seated in row 3 must
ensure that he does not obstruct
the row 2 seat anchoring recesses,
-


a passenger seated in row 3 must
not have the seat in front of them in
row 2 in the folded position; this is
in case the seat should tip towards
the passenger unexpectedly and
injure them.
Seats
eASe OF uSe and COMFORt
4

84
Partner_2_VP_en_Chap04_ergonomie_ed02-2014

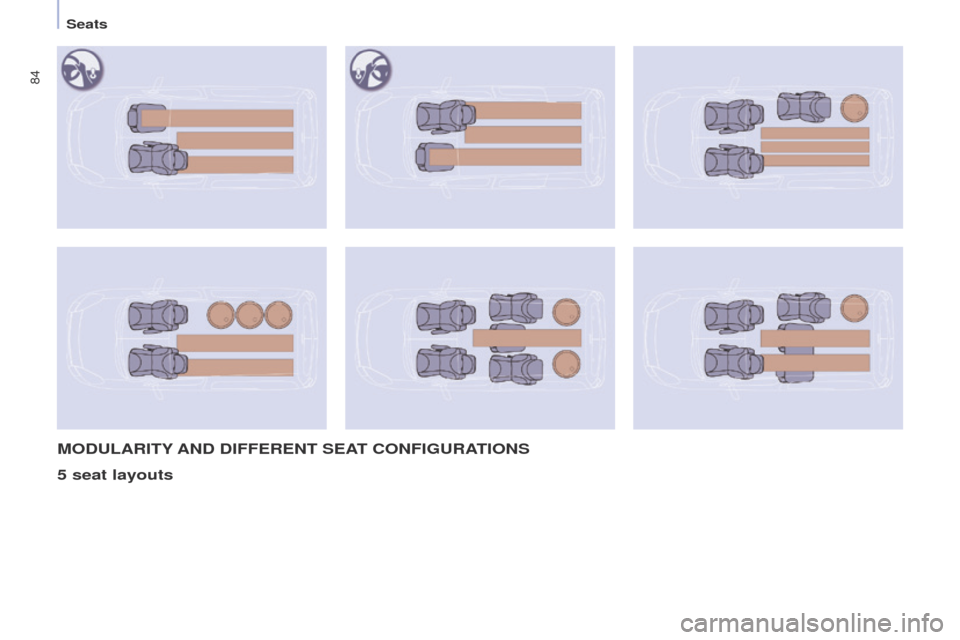

MODULARITY AND DIFFERENT SEAT CONFIGURATIONS
5 seat layouts
Seats

85
Partner_2_VP_en_Chap04_ergonomie_ed02-2014
7 seat layouts
the various operations
must be carried out while
stationary
.
Seats
eASe OF uSe and COMFORt
4

86
Partner_2_VP_en_Chap04_ergonomie_ed02-2014
FRONT FITTINGS1. Lower glove box
This may or may not be fitted with a lid.
Upper storage compartment
this is located on the dashboard,
behind the steering wheel.
A
recess makes lifting of the lid easier
when opening.
g uide it to its rest
position.
to close, guide the lid then press the
centre gently

.
Any liquid which could spill risks
causing an electrical short circuit and
therefore a potential fire.
3. Side storage compartment
4. Bag hook
Only hang flexible bags which are not
too heavy on this hook.
2. Storage pocket and bottle
holder (1.5 L)
Practical information

87
Partner_2_VP_en_Chap04_ergonomie_ed02-2014

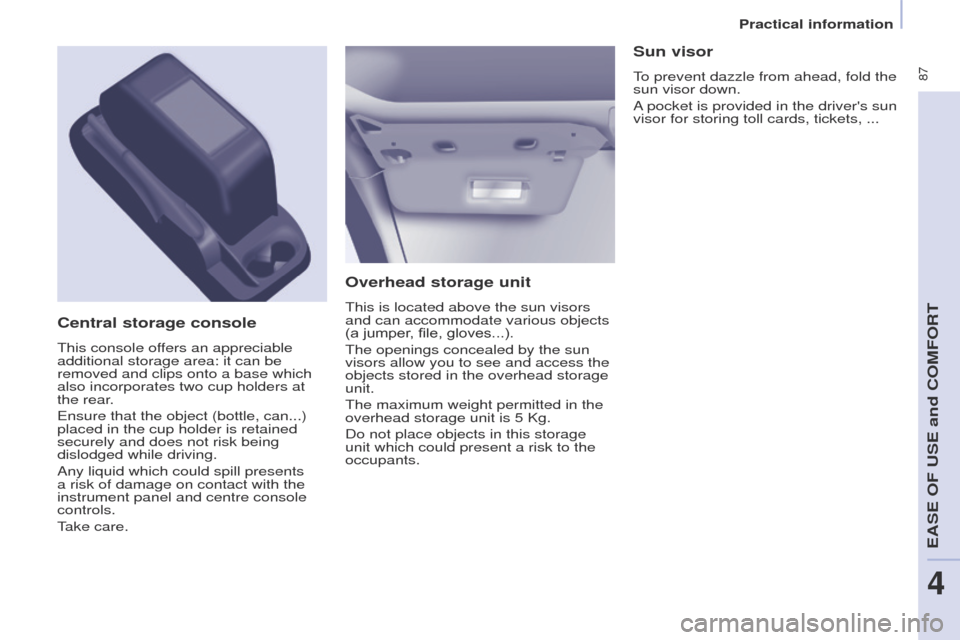

Overhead storage unit
this is located above the sun visors
and can accommodate various objects
(a jumper
, file, gloves...).
t

he openings concealed by the sun
visors allow you to see and access the
objects stored in the overhead storage
unit.
t

he maximum weight permitted in the
overhead storage unit is 5 Kg.
Do not place objects in this storage
unit which could present a risk to the
occupants.
Central storage console
this console offers an appreciable
additional storage area: it can be
removed and clips onto a base which
also incorporates two cup holders at
the rear
.
e

nsure that the object (bottle, can...)
placed in the cup holder is retained
securely and does not risk being
dislodged while driving.
Any liquid which could spill presents
a risk of damage on contact with the
instrument panel and centre console
controls.
take care.
Sun visor
to prevent dazzle from ahead, fold the
sun visor down.
A
pocket is provided in the driver's sun
visor for storing toll cards, tickets, ...
Practical information
eASe OF uSe and COMFORt
4

88
Partner_2_VP_en_Chap04_ergonomie_ed02-2014

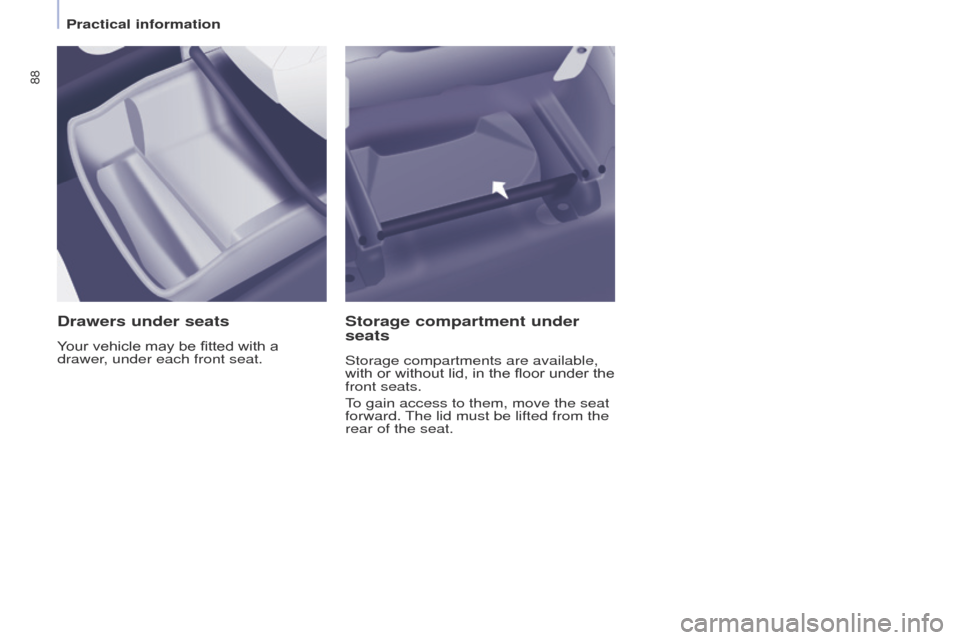

Drawers under seats
Your vehicle may be fitted with a
drawer, under each front seat.
Storage compartment under
seats
Storage compartments are available,
with or without lid, in the floor under the
front seats.
to gain access to them, move the seat
forward. t

he lid must be lifted from the
rear of the seat.
Practical information
