Peugeot Partner Tepee 2015 Owners Manual

89
Partner_2_VP_en_Chap04_ergonomie_ed02-2014

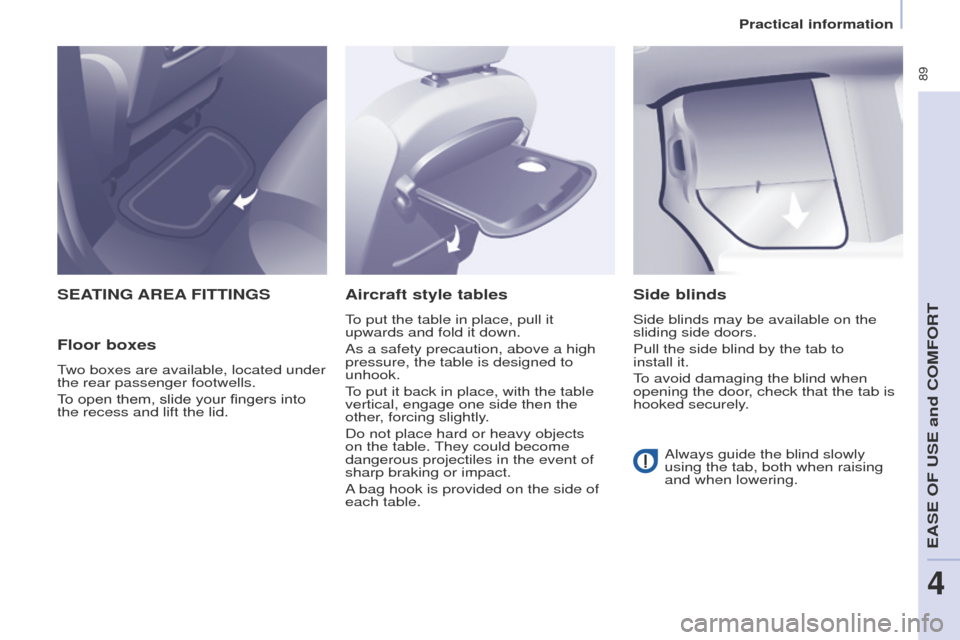

SEATING AREA FITTINGS
Floor boxes
two boxes are available, located under
the rear passenger footwells.
T
o open them, slide your fingers into
the recess and lift the lid.
Aircraft style tables
to put the table in place, pull it
upwards and fold it down.
As a safety precaution, above a high
pressure, the table is designed to
unhook.
to put it back in place, with the table
vertical, engage one side then the
other

, forcing slightly.
Do not place hard or heavy objects
on the table.
t

hey could become
dangerous projectiles in the event of
sharp braking or impact.
A bag hook is provided on the side of
each table.
Side blinds
Side blinds may be available on the
sliding side doors.
Pull the side blind by the tab to
install
it.
to avoid damaging the blind when
opening the door

, check that the tab is
hooked securely.
Always guide the blind slowly
using the tab, both when raising
and when lowering.
Practical information
eASe OF uSe and COMFORt
4

90
Partner_2_VP_en_Chap04_ergonomie_ed02-2014
ZENITH ROOF
the multifunction roof extends the
overhead storage unit. It consists of
the following components:
Storage compartments
Storage compartments are provided
on each side of the roof. t he maximum
authorised load is 6 kg.
t

he translucent base assists with
finding objects stored inside.
Do not store objects which could
present a risk to the occupants.
Courtesy lamp
the operation of the courtesy lamp is
identical to that of the front courtesy lamp.
Refer to chapter 4 "Comfort and
Safety", "Courtesy lamps" section.
Practical information

91
Partner_2_VP_en_Chap04_ergonomie_ed02-2014

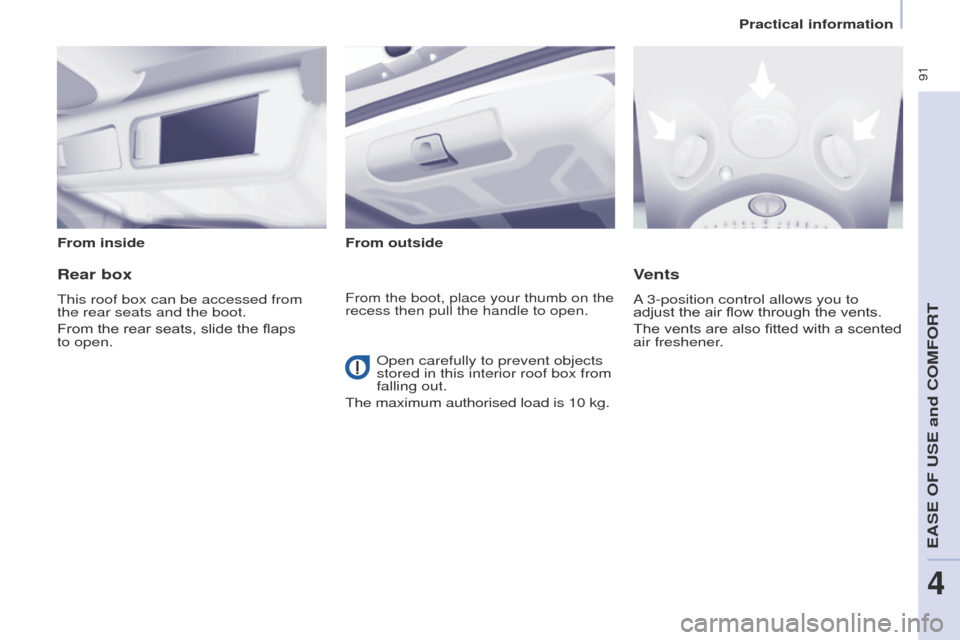

From insideFrom outside
Rear box
this roof box can be accessed from
the rear seats and the boot.
From the rear seats, slide the flaps
to
open.
Vents
A 3-position control allows you to
adjust the air flow through the vents.
The vents are also fitted with a scented
air freshener.From the boot, place your thumb on the
recess then pull the handle to open.
Open carefully to prevent objects
stored in this interior roof box from
falling out.
t

he maximum authorised load is 10 kg.
Practical information
eASe OF uSe and COMFORt
4

92
Partner_2_VP_en_Chap04_ergonomie_ed02-2014

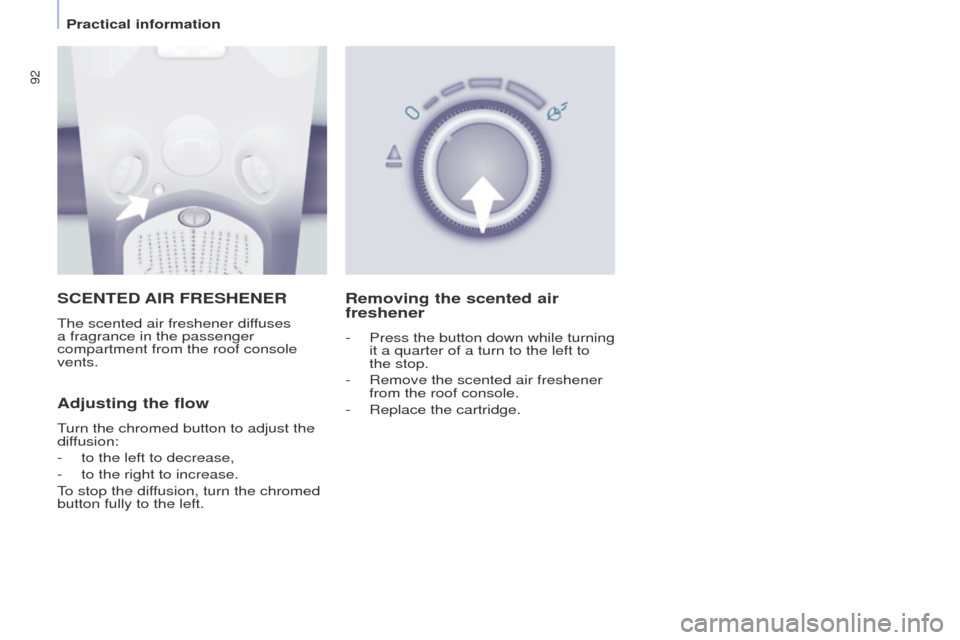

SCENTED AIR FRESHENER
the scented air freshener diffuses
a fragrance in the passenger
compartment from the roof console
vents.
Adjusting the flow
turn the chromed button to adjust the
dif fusion:
-

to the left to decrease,
-


to the right to increase.
to stop the dif

fusion, turn the chromed
button fully to the left.
Removing the scented air
freshener
- Press the button down while turning
it a quarter of a turn to the left to
the stop.
-

Remove the scented air freshener
from the roof console.
-


Replace the cartridge.
Practical information

93
Partner_2_VP_en_Chap04_ergonomie_ed02-2014

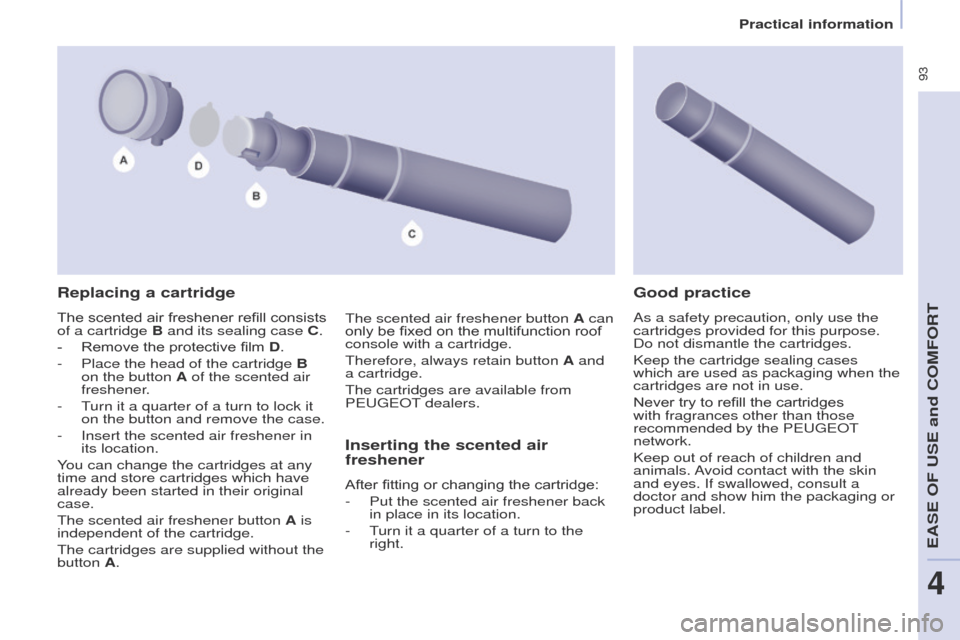

Replacing a cartridge
The scented air freshener refill consists
of a cartridge B and its sealing case C.
-
Remove the protective film
D.
-

Place the head of the cartridge
B
on the button A of the scented air
freshener.
-
t
urn it a quarter of a turn to lock it
on the button and remove the case.
-


Insert the scented air freshener in
its location.
Y

ou can change the cartridges at any
time and store cartridges which have
already been started in their original
case.
t

he scented air freshener button A is
independent of the cartridge.
t

he cartridges are supplied without the
button A.
Inserting the scented air
freshener
After fitting or changing the cartridge:
-

Put the scented air freshener back
in place in its location.
-

t
urn it a quarter of a turn to the
right.
Good practice
As a safety precaution, only use the
cartridges provided for this purpose.
Do not dismantle the cartridges.
Keep the cartridge sealing cases
which are used as packaging when the
cartridges are not in use.
Never try to refill the cartridges
with fragrances other than those
recommended by the P
euge O t

network.
Keep out of reach of children and
animals.

Avoid contact with the skin
and eyes. If swallowed, consult a
doctor and show him the packaging or
product label.t
he scented air freshener button A can
only be fixed on the multifunction roof
console with a cartridge.
t

herefore, always retain button A and
a cartridge.
t

he cartridges are available from
P
euge
O
t
dealers.
Practical information
eASe OF uSe and COMFORt
4

94
Partner_2_VP_en_Chap04_ergonomie_ed02-2014

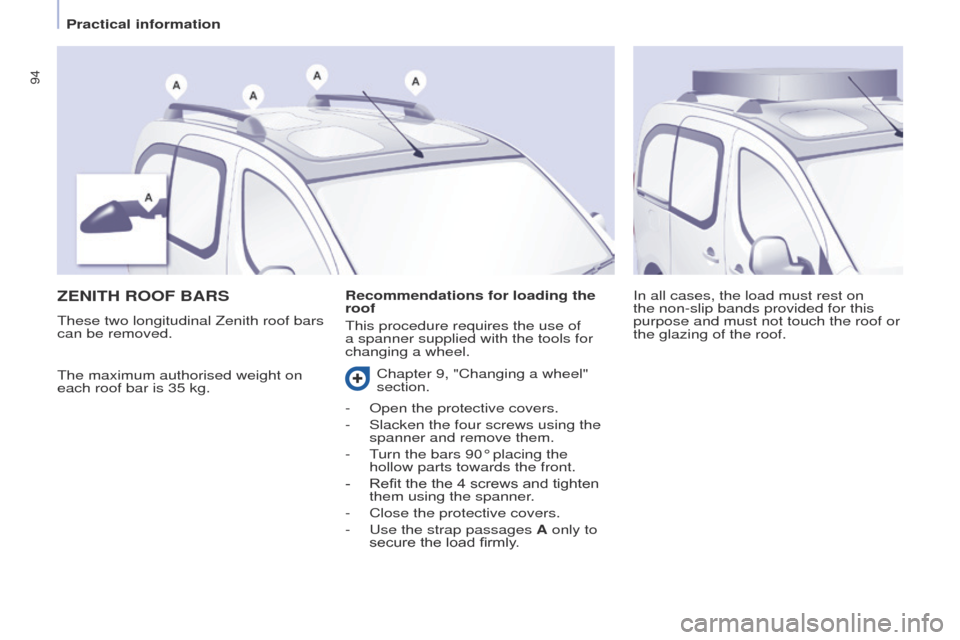

ZENITH ROOF BARS
the maximum authorised weight on
each roof bar is 35 kg. In all cases, the load must rest on
the non-slip bands provided for this
purpose and must not touch the roof or
the glazing of the roof.
Recommendations for loading the
roof
t
his procedure requires the use of
a spanner supplied with the tools for
changing a wheel.
t
hese two longitudinal Zenith roof bars
can be removed.
Chapter 9, "Changing a wheel"
section.
-

Open the protective covers.
-


Slacken the four screws using the
spanner and remove them.
-

t
urn the bars 90° placing the
hollow parts towards the front.
-


Refit the the 4 screws and tighten
them using the spanner

.
-

Close the protective covers.
-

u se the strap passages A only to
secure the load firmly.
Practical information

95
Partner_2_VP_en_Chap04_ergonomie_ed02-2014
ROOF BARS
If you install transverse bars on these bars, refer to the weight values\
indicated
by the manufacturer but do not exceed 75 Kg.
Practical information
eASe OF uSe and COMFORt
4

96
Partner_2_VP_en_Chap04_ergonomie_ed02-2014
Automatic switching on/off
t
he front courtesy lamp comes on
when the key is removed from the
ignition, when the vehicle is unlocked,
when one of the front doors is opened
and for location of the vehicle using the
remote control.
It goes off gradually after the ignition
is switched on and when the vehicle is
locked. Front seats: comes on when
one of the front doors is
opened.t
hese are switched on and off by
means of a manual switch, with
the ignition on.
Rear seats: comes on when
one of the rear doors is
opened.
If the doors remain open for
a few minutes, the courtesy
lamps go off.
Permanently off.
Permanently on, ignition on.
Front courtesy lamp
COURTESY LAMPS
Rear courtesy lamp
Front individual reading lamps
Practical information

97
Partner_2_VP_en_Chap04_ergonomie_ed02-2014
LOAD SPACE COVER (5 SEAT VERSION)
this rigid shelf conceals the objects
stored in the boot. Removing
Fold the load space cover
.
Detach it from the notches A and B
pulling it towards you.
Raise it and remove the assembly.
Refitting
Place the load space cover in front
of A and B.
Push it forwards to insert the lugs in
the notches.
u

nfold and clip into the notches C.
Folding
From the boot, fold the half-shelf,
raising it to detach it from the notch C. Storing (according to version)
A location is provided in the back of the
rear seats to accommodate the load
space cover folded onto itself.
Slide it vertically between the side
guides located at mid seat back height.
Insert the hinge first, with the free flaps
turned upwards.
t

his rigid load space cover can
form a shelf. However, for safety
reasons, do not place objects
on it which could become dangerous
projectiles in the event of sharp braking
or rear impact.
Practical information
eASe OF uSe and COMFORt
4

98
Partner_2_VP_en_Chap04_ergonomie_ed02-2014

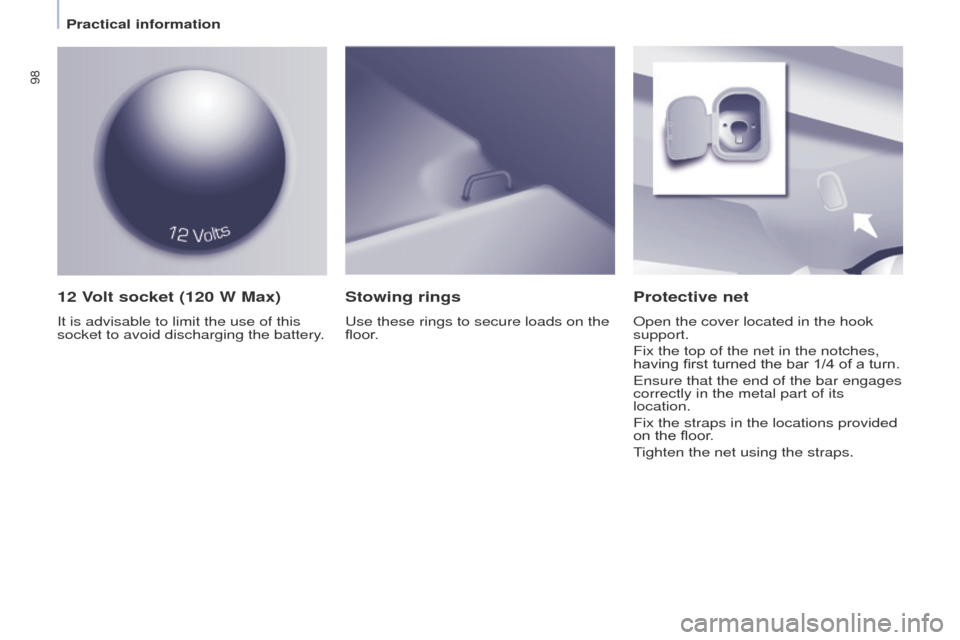

12 Volt socket (120 W Max)
It is advisable to limit the use of this
socket to avoid discharging the battery.
Protective net
Open the cover located in the hook
support.
Fix the top of the net in the notches,
having first turned the bar 1/4 of a turn.
e
nsure that the end of the bar engages
correctly in the metal part of its
location.
Fix the straps in the locations provided
on the floor.
tighten the net using the straps.
Stowing rings
use these rings to secure loads on the
floor .
Practical information
