Peugeot Partner Tepee 2016 Owner's Manual

99

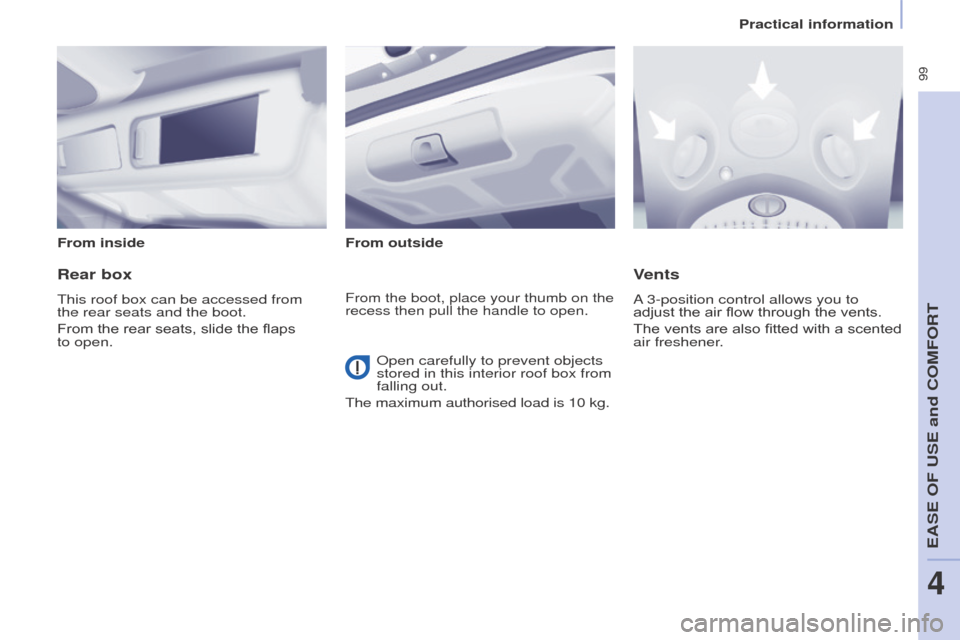

From insideFrom outside
Rear box
This roof box can be accessed from
the rear seats and the boot.
From the rear seats, slide the flaps
to
open.
Vents
A 3-position control allows you to
adjust the air flow through the vents.
The vents are also fitted with a scented
air freshener.From the boot, place your thumb on the
recess then pull the handle to open.
open carefully to prevent objects
stored in this interior roof box from
fallin
g out.
The maximum authorised load is 10 kg.
eASe oF uSe and CoMFoRT
4
Practical information

100

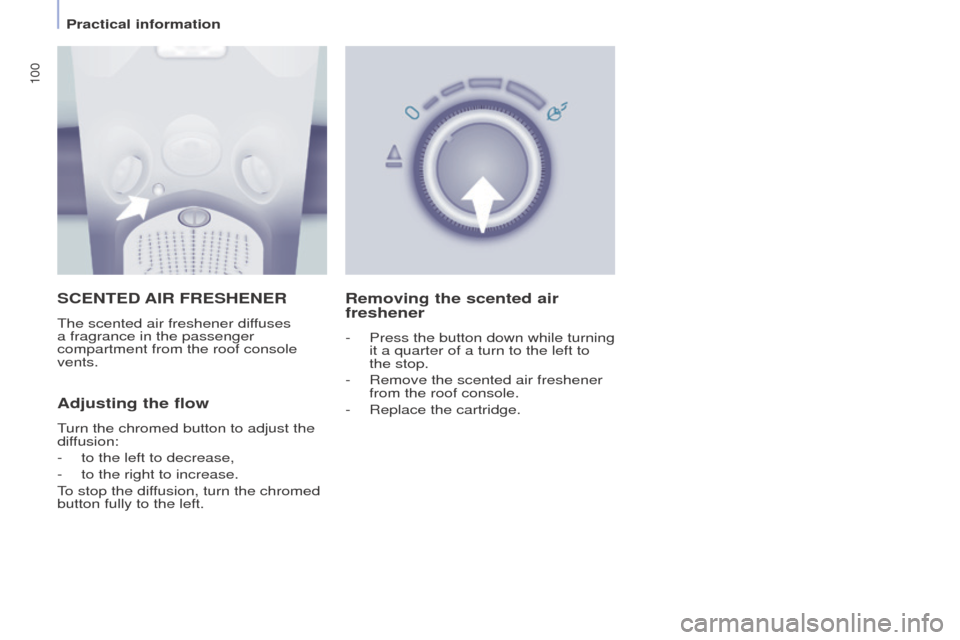

SCeNteD AIR FRe SH e N e R
The scented air freshener diffuses
a fragrance in the passenger
compartment from the roof console
vents.
Adjusting the flow
Turn the chromed button to adjust the
diffusion:
-

to the left to decrease,
-


to the right to increase.
T

o stop the diffusion, turn the chromed
button fully to the left.
Removing the scented air
freshener
- Press the button down while turning
it a quarter of a turn to the left to
the stop.
-

Remove the scented air freshener
from the roof console.
-


Replace the cartridge.
Practical information

101

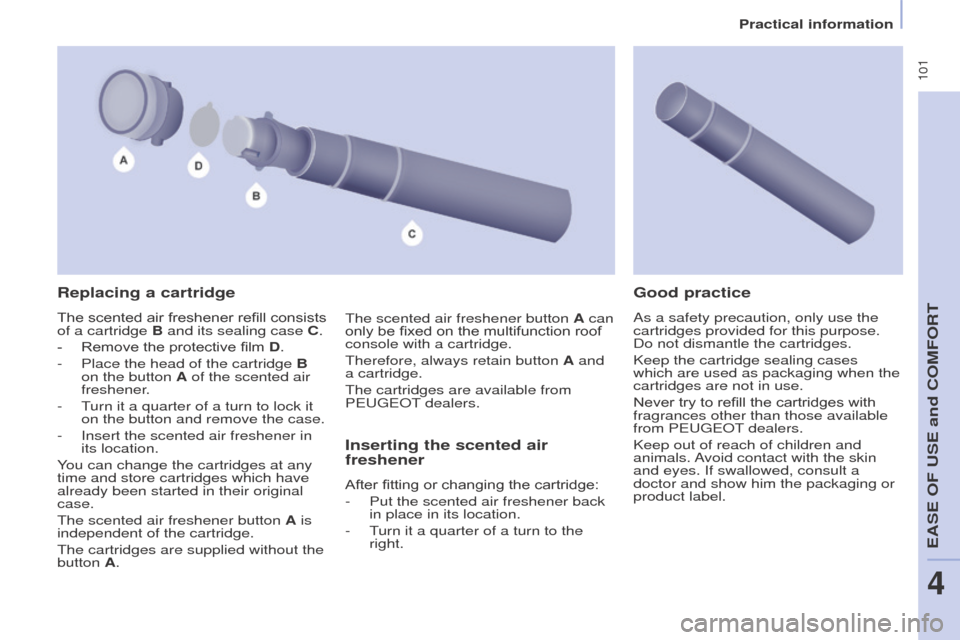

Replacing a cartridge
The scented air freshener refill consists
of a cartridge B and its sealing case C.
-
Remove the protective film
D.
-

Place the head of the cartridge
B
on the button A of the scented air
freshener.
-

T
urn it a quarter of a turn to lock it
on the button and remove the case.
-

Insert the scented air freshener in
its location.
Y

ou can change the cartridges at any
time and store cartridges which have
already been started in their original
case.
The scented air freshener button A is
independent of the cartridge.
The cartridges are supplied without the
button A.
Inserting the scented air
freshener
After fitting or changing the cartridge:
-

Put the scented air freshener back
in place in its location.
-


T
urn it a quarter of a turn to the
right.
good practice
As a safety precaution, only use the
cartridges provided for this purpose.
Do not dismantle the cartridges.
Keep the cartridge sealing cases
which are used as packaging when the
cartridges are not in use.
Never try to refill the cartridges with
fragrances other than those available
from P
eugeo T dealers.
Keep out of reach of children and
animals. Avoid contact with the skin
and eyes. If swallowed, consult a
doctor and show him the packaging or
product label.
The scented air freshener button A can
only be fixed on the multifunction roof
console with a cartridge.
Therefore, always retain button A and
a cartridge.
The cartridges are available from
P
eugeo
T dealers.
eASe oF uSe and CoMFoRT
4
Practical information

102
ZeNItH RooF BARS
The maximum authorised weight on
each roof bar is 35 kg.In all cases, the load must rest on
the non-slip bands provided for this
purpose and must not touch the roof or
the glazing of the roof.
Recommendations for loading the
roof
This procedure requires the use of
a spanner supplied with the tools for
changing a wheel.
These two longitudinal Zenith roof bars
can be removed.
Chapter 9, "Changing a wheel"
section.
-
o pen the protective covers.
-

Slacken the four screws using the
spanner and remove them.
-


T
urn the bars 90° placing the
hollow parts towards the front.
-

Refit the the 4 screws and tighten
them using the spanner

.
-

Close the protective covers.
-

u se the strap passages A only to
secure the load firmly.
Practical information

103

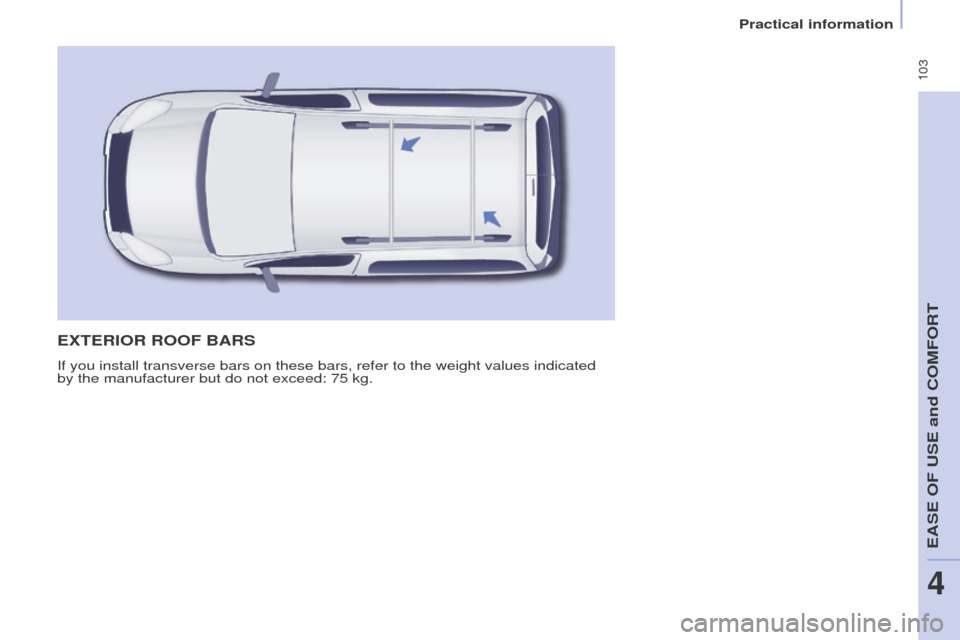

exteRIoR RooF BARS
If you install transverse bars on these bars, refer to the weight values\
indicated
by the manufacturer but do not exceed: 75 kg.
eASe oF uSe and CoMFoRT
4
Practical information

104

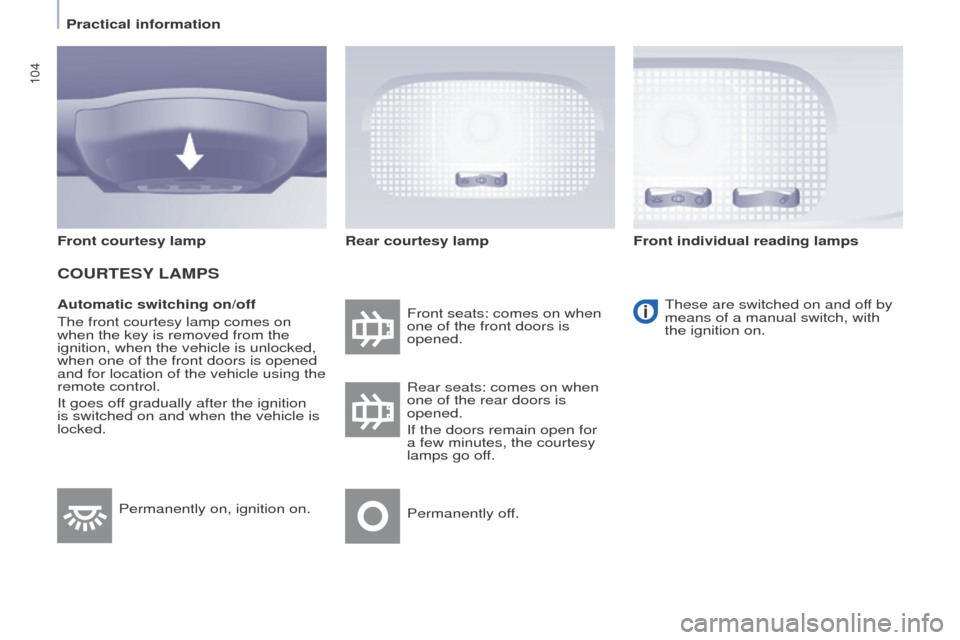

Automatic switching on/off
The front courtesy lamp comes on
when the key is removed from the
ignition, when the vehicle is unlocked,
when one of the front doors is opened
and for location of the vehicle using the
remote control.
It goes off gradually after the ignition
is switched on and when the vehicle is
locked.Front seats: comes on when
one of the front doors is
opened.
These are switched on and off by
means of a manual switch, with
the ignition on.
Rear seats: comes on when
one of the rear doors is
opened.
If the doors remain open for
a few minutes, the courtesy
lamps go off.
Permanently off.
Permanently on, ignition on.
Front courtesy lamp
CouRteSY
LAMPS
Rear courtesy lamp Front individual reading lamps
Practical information

105

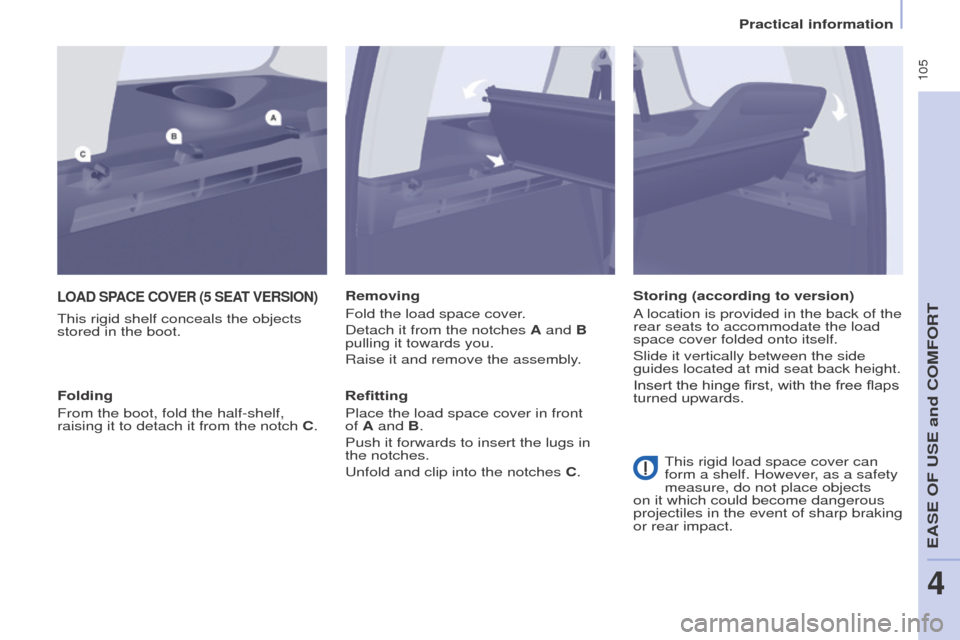

LoAD SPACe CoVeR (5 SeAt V e RSI o N )
This rigid shelf conceals the objects
stored in the boot. Removing
Fold the load space cover.
Detach it from the notches A and B
pulling it towards you.
Raise it and remove the assembly.
Refitting
Place the load space cover in front
of
A and B.
Push it forwards to insert the lugs in
the notches.
u

nfold and clip into the notches C.
Folding
From the boot, fold the half-shelf,
raising it to detach it from the notch C. Storing (according to version)
A location is provided in the back of the
rear seats to accommodate the load
space cover folded onto itself.
Slide it vertically between the side
guides located at mid seat back height.
Insert the hinge first, with the free flaps
turned upwards.
This rigid load space cover can
form a shelf. However, as a safety
measure, do not place objects
on it which could become dangerous
projectiles in the event of sharp braking
or rear impact.
eASe oF uSe and CoMFoRT
4
Practical information

106
12 volt socket (120 W max)
It is advisable to limit the use of this
socket to avoid discharging the battery.
Protective net
open the cover located in the hook
support.
Fix the top of the net in the notches,
having first turned the bar 1/4 of a turn.
e

nsure that the end of the bar engages
correctly in the metal part of its
location.
Fix the straps in the locations provided
on the floor.
Tighten the net using the straps.
Stowing rings
use these rings to secure loads on the
floor .
Practical information

107
ReAR FIttINgS
(7 S e At V e RSI o N )
Cup holder
Any liquid carried in a cup (mug or
other) on board which could spill,
presents a risk.
Take care.
12 volt socket (120 W max)
It is advisable to limit the use of this
socket to avoid discharging the battery.
Stowing rings
Use the stowing rings on the floor to
secure and retain your loads firmly.
The seat belt anchorages must not be
used for this purpose.
It is recommended that the load is
immobilised by securing it firmly
using the stowing rings on the
floor

.
eASe oF uSe and CoMFoRT
4
Practical information

108

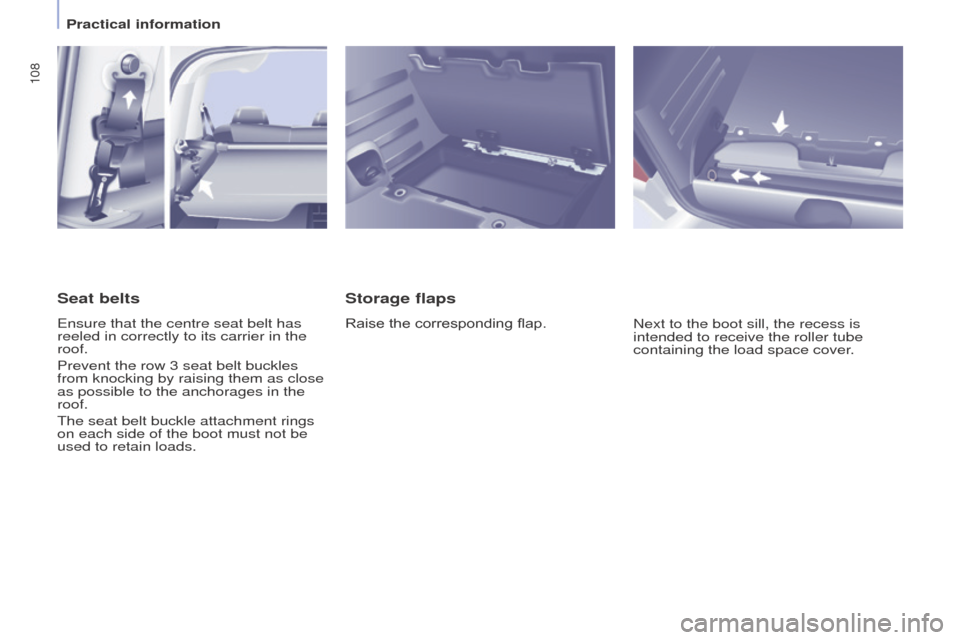

Storage flaps
Raise the corresponding flap.Next to the boot sill, the recess is
intended to receive the roller tube
containing the load space cover.
Seat belts
ensure that the centre seat belt has
reeled in correctly to its carrier in the
roof.
Prevent the row 3 seat belt buckles
from knocking by raising them as close
as possible to the anchorages in the
roof.
The seat belt buckle attachment rings
on each side of the boot must not be
used to retain loads.
