PRACTICAL INFORMATION
114
22-12-2003

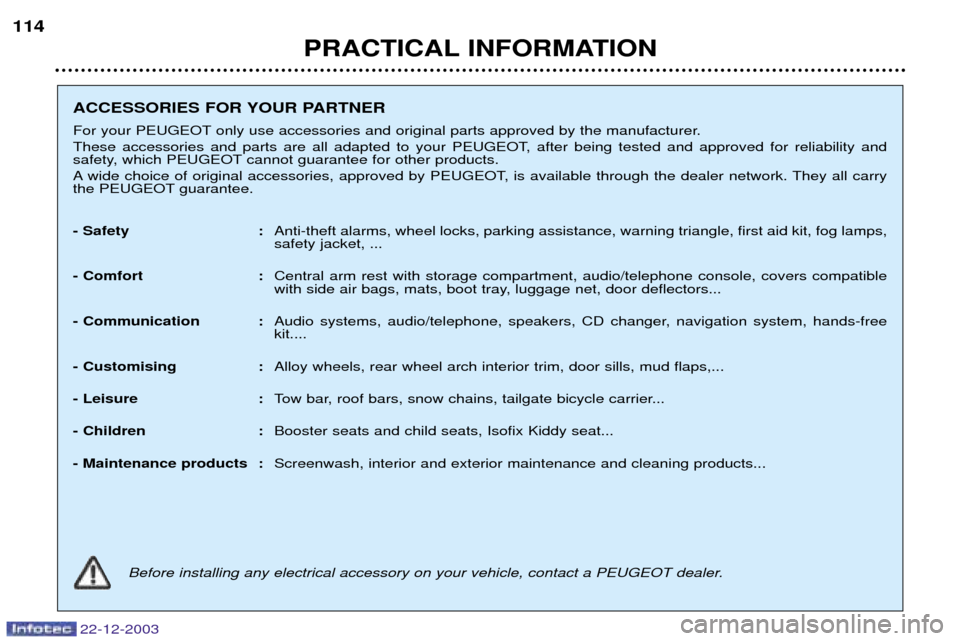

ACCESSORIES FOR YOUR PARTNER
For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and
safety, which PEUGEOT cannot guarantee for other products.
A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry
the PEUGEOT guarantee.
- Safety :
Anti-theft alarms, wheel locks, parking assistance, warning triangle, first aid kit, fog lamps, safety jacket, ...
- Comfort : Central arm rest with storage compartment, audio/telephone console, covers compatible
with side air bags, mats, boot tray, luggage net, door deflectors...
- Communication : Audio systems, audio/telephone, speakers, CD changer, navigation system, hands-freekit....
- Customising : Alloy wheels, rear wheel arch interior trim, door sills, mud flaps,...
- Leisure : Tow bar, roof bars, snow chains, tailgate bicycle carrier...
- Children : Booster seats and child seats, Isofix Kiddy seat...
- Maintenance products : Screenwash, interior and exterior maintenance and cleaning products...
Before installing any electrical accessory on your vehicle, contact a PEUGEOT dealer.
Page 122 of 128
TECHNICAL DATA115

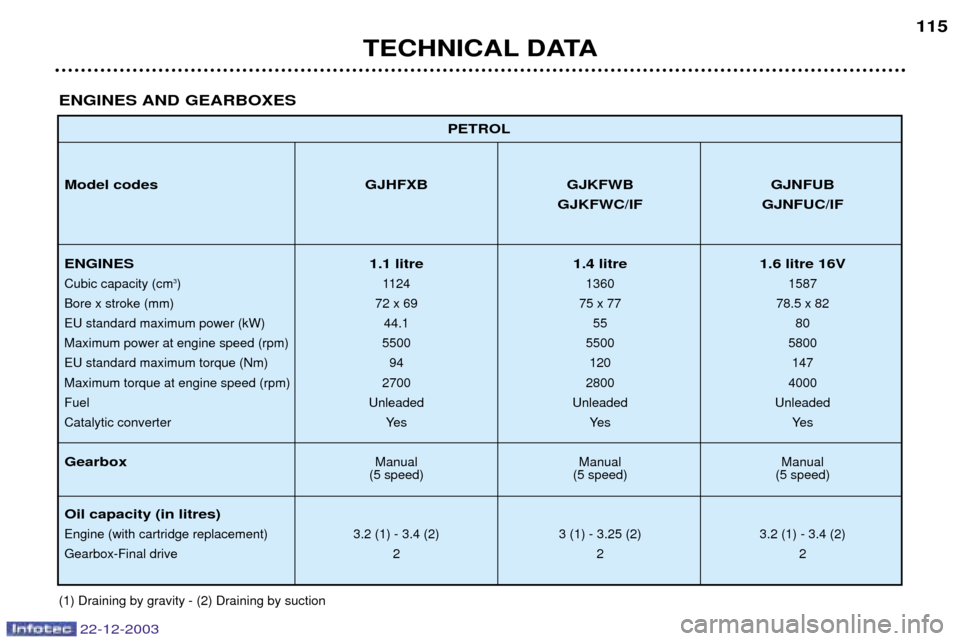

PETROL
Model codes GJHFXB GJKFWB GJNFUB GJKFWC/IF GJNFUC/IF
ENGINES 1.1 litre 1.4 litre 1.6 litre 16V
Cubic capacity (cm 3
) 1124 1360 1587
Bore x stroke (mm) 72 x 69 75 x 77 78.5 x 82
EU standard maximum power (kW) 44.1 55 80
Maximum power at engine speed (rpm) 5500 5500 5800
EU standard maximum torque (Nm) 94 120 147
Maximum torque at engine speed (rpm) 2700 2800 4000Fuel Unleaded Unleaded Unleaded
Catalytic converter Yes Yes Yes
GearboxManual Manual Manual
(5 speed) (5 speed) (5 speed)
Oil capacity (in litres)
Engine (with cartridge replacement) 3.2 (1) - 3.4 (2) 3 (1) - 3.25 (2) 3.2 (1) - 3.4 (2)Gearbox-Final drive 2 2 2
ENGINES AND GEARBOXES
(1) Draining by gravity - (2) Draining by suction
22-12-2003
Page 123 of 128
22-12-2003
TECHNICAL DATA
116

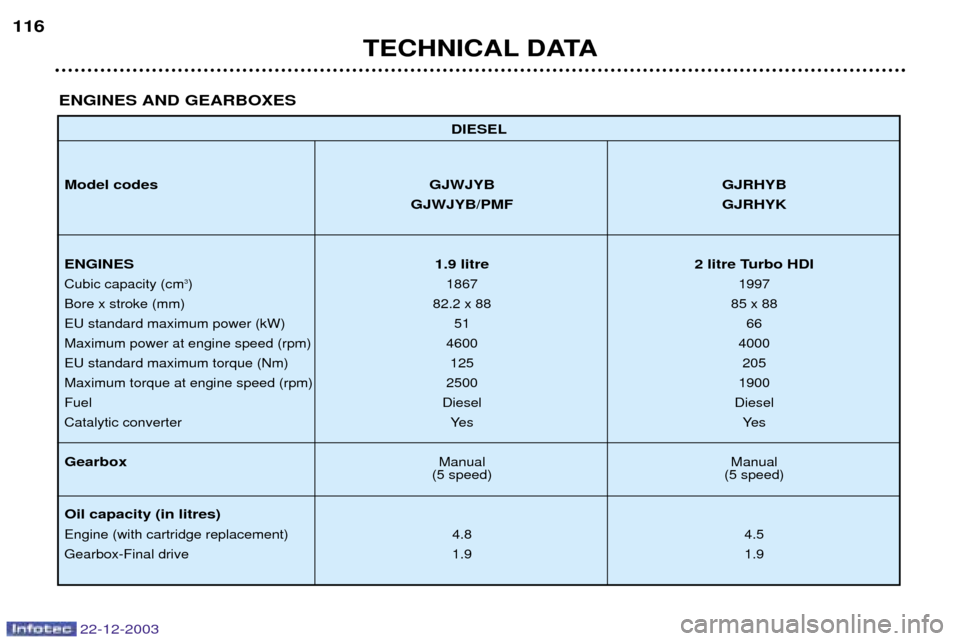

DIESEL
Model codes GJWJYB GJRHYB
GJWJYB/PMF GJRHYK
ENGINES 1.9 litre 2 litre Turbo HDI
Cubic capacity (cm3
) 1867 1997
Bore x stroke (mm) 82.2 x 8885 x 88
EU standard maximum power (kW) 51 66
Maximum power at engine speed (rpm) 4600 4000
EU standard maximum torque (Nm) 125 205
Maximum torque at engine speed (rpm) 2500 1900
Fuel DieselDiesel
Catalytic converter YesYes
GearboxManual Manual
(5 speed) (5 speed)
Oil capacity (in litres)
Engine (with cartridge replacement) 4.8 4.5
Gearbox-Final drive 1.91.9
ENGINES AND GEARBOXES
Page 124 of 128

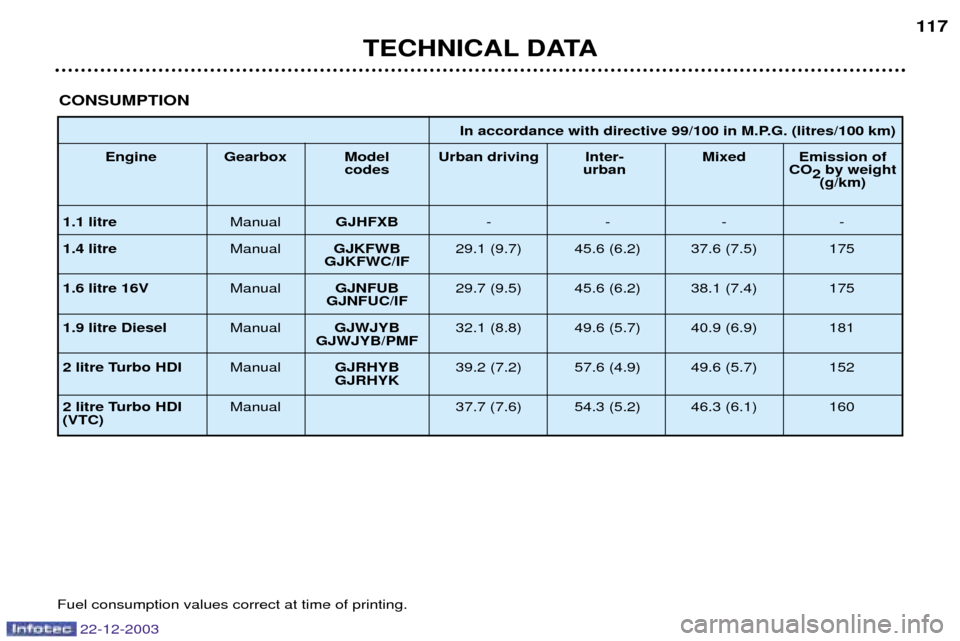

CONSUMPTION
Fuel consumption values correct at time of printing.In accordance with directive 99/100 in M.P.G. (litres/100 km)
Engine Gearbox Model Urban driving Inter- Mixed Emission of codes urban CO 2by weight
(g/km)
1.1 litre ManualGJHFXB ----
1.4 litre ManualGJKFWB 29.1 (9.7) 45.6 (6.2) 37.6 (7.5) 175
GJKFWC/IF
1.6 litre 16V ManualGJNFUB 29.7 (9.5) 45.6 (6.2) 38.1 (7.4) 175
GJNFUC/IF
1.9 litre Diesel ManualGJWJYB 32.1 (8.8) 49.6 (5.7) 40.9 (6.9) 181
GJWJYB/PMF
2 litre Turbo HDI ManualGJRHYB 39.2 (7.2) 57.6 (4.9) 49.6 (5.7) 152
GJRHYK
2 litre Turbo HDI Manual 37.7 (7.6) 54.3 (5.2) 46.3 (6.1) 160
(VTC)
TECHNICAL DATA 117
22-12-2003
Page 125 of 128
22-12-2003
TECHNICAL DATA
118

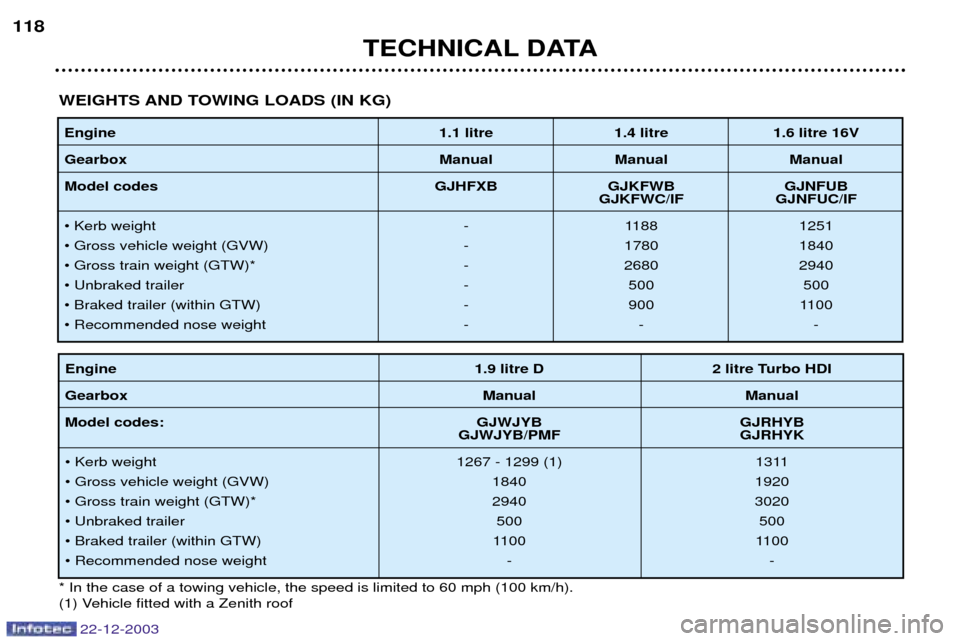

Engine
1.1 litre 1.4 litre 1.6 litre 16V
Gearbox Manual Manual Manual
Model codes GJHFXB GJKFWB GJNFUB
GJKFWC/IF GJNFUC/IF
¥ Kerb weight - 1188 1251
¥ Gross vehicle weight (GVW) - 1780 1840
¥ Gross train weight (GTW)* - 2680 2940¥ Unbraked trailer - 500 500
¥ Braked trailer (within GTW) - 900 1100
¥ Recommended nose weight - - -
WEIGHTS AND TOWING LOADS (IN KG) * In the case of a towing vehicle, the speed is limited to 60 mph (100 km/h).
(1) Vehicle fitted with a Zenith roof
Engine 1.9 litre D 2 litre Turbo HDI
Gearbox Manual Manual
Model codes: GJWJYB GJRHYB
GJWJYB/PMF GJRHYK
¥ Kerb weight 1267 - 1299 (1) 1311
¥ Gross vehicle weight (GVW) 1840 1920
¥ Gross train weight (GTW)* 2940 3020¥ Unbraked trailer 500 500
¥ Braked trailer (within GTW) 1100 1100
¥ Recommended nose weight - -
Page 126 of 128
EXTERIOR DIMENSIONS (in mm)
A2 690
B 4 140
C 840
D 610
E 550
F 1 440 or 1 520
G 1 960
H 1 810 to 1 860
I 1 420 or 1 440
J 1 720
TECHNICAL DATA 119
22-12-2003
Page 127 of 128
22-12-2003
TECHNICAL DATA
120

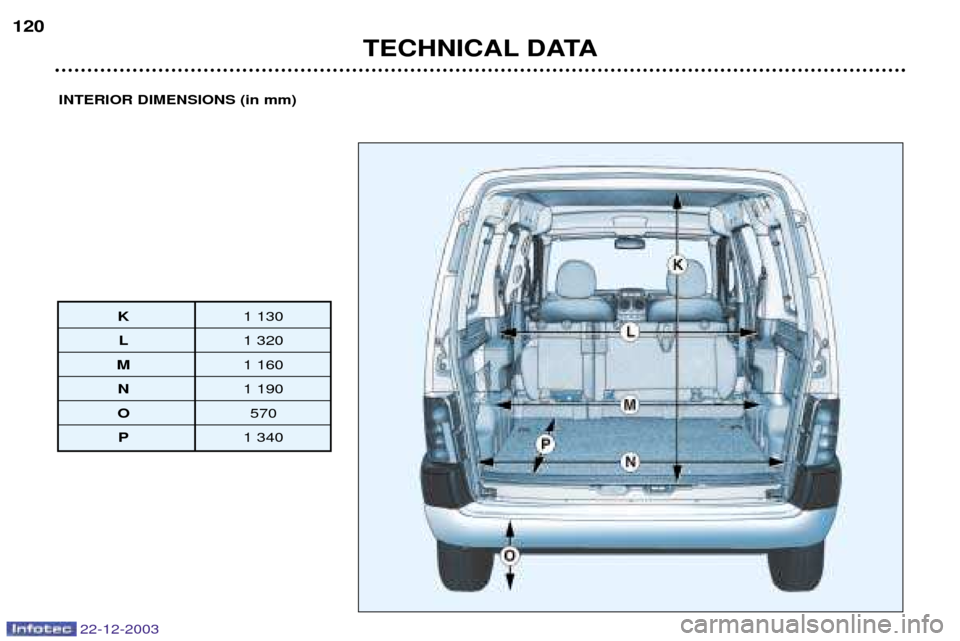

INTERIOR DIMENSIONS (in mm)
K
1 130
L1 320
M 1 160
N1 190
O 570
P 1 340
Page 128 of 128
22-12-2003

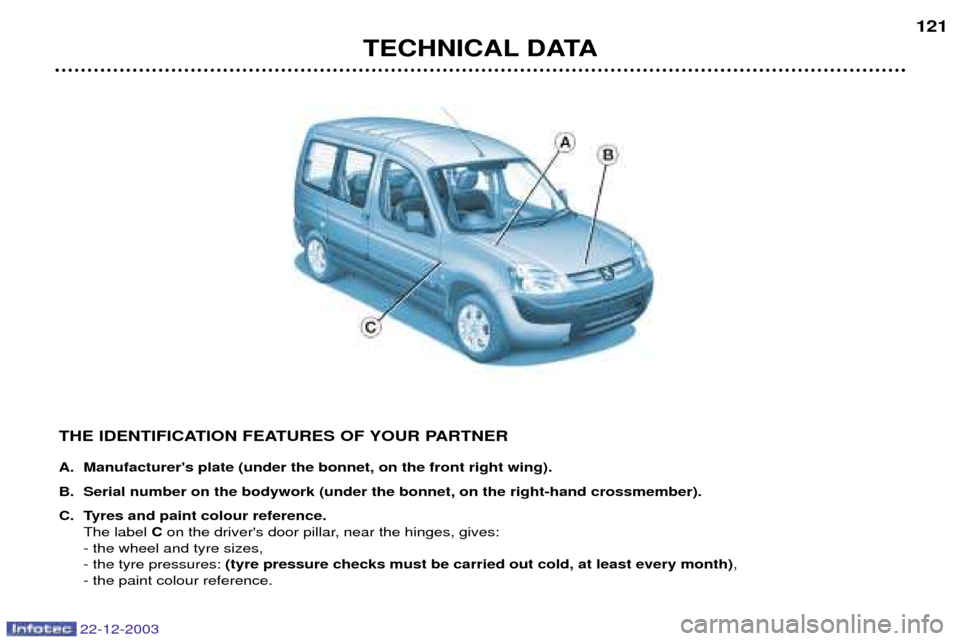

THE IDENTIFICATION FEATURES OF YOUR PARTNER
A. Manufacturer's plate (under the bonnet, on the front right wing).
B. Serial number on the bodywork (under the bonnet, on the right-hand crossmember).
C. Tyres and paint colour reference.The label Con the driver's door pillar, near the hinges, gives:
- the wheel and tyre sizes, - the tyre pressures: (tyre pressure checks must be carried out cold, at least every month) ,
- the paint colour reference.
TECHNICAL DATA 121
