PEUGEOT RCZ 2012 Service Manual
Manufacturer: PEUGEOT, Model Year: 2012, Model line: RCZ, Model: PEUGEOT RCZ 2012Pages: 336, PDF Size: 14.1 MB
Page 41 of 336
1/
INSTRUMENTS and CONTROLS

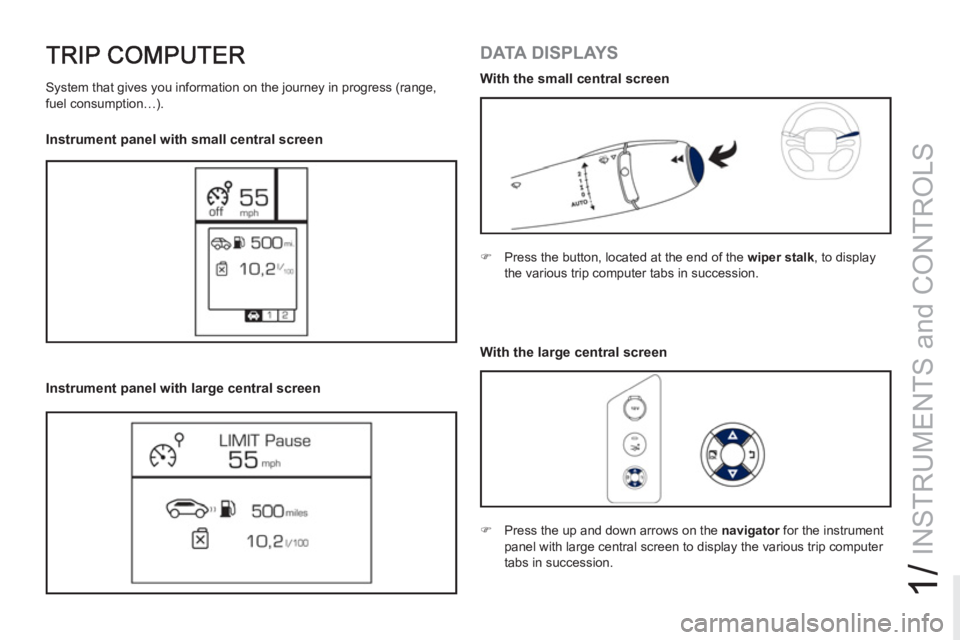

DATA DISPLAYS
)
Press the button, located at the end of the wiper stalk
, to display
the various trip computer tabs in succession.
)
Press the up and down arrows on the navigator for the instrument
panel with large central screen to display the various trip computer
tabs in succession.
With the large central screen
Instrument panel with small central screen
Instrument panel with large central screen
With the small central screen
System that gives you information on the journey in progress (range,
fuel consumption…).
Page 42 of 336
1
2
40

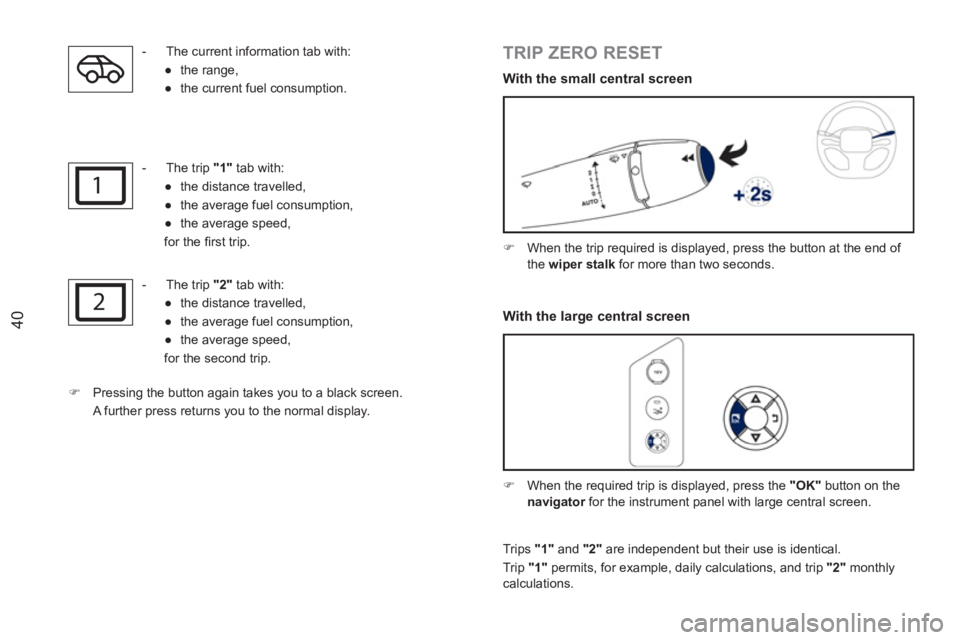

- The current information tab with:
●
the range,
●
the current fuel consumption.
- The trip "1"
tab with:
●
the distance travelled,
●
the average fuel consumption,
●
the average speed,
for the fi rst trip.
- The trip "2"
tab with:
●
the distance travelled,
●
the average fuel consumption,
●
the average speed,
for the second trip.
)
Pressing the button again takes you to a black screen.
A further press returns you to the normal display.
TRIP ZERO RESET
)
When the trip required is displayed, press the button at the end of
the wiper stalk
for more than two seconds.
With the large central screen
)
When the required trip is displayed, press the "OK"
button on the
navigator
for the instrument panel with large central screen.
With the small central screen
Trips "1"
and "2"
are independent but their use is identical.
Trip "1"
permits, for example, daily calculations, and trip "2"
monthly
calculations.
Page 43 of 336
1/
INSTRUMENTS and CONTROLS

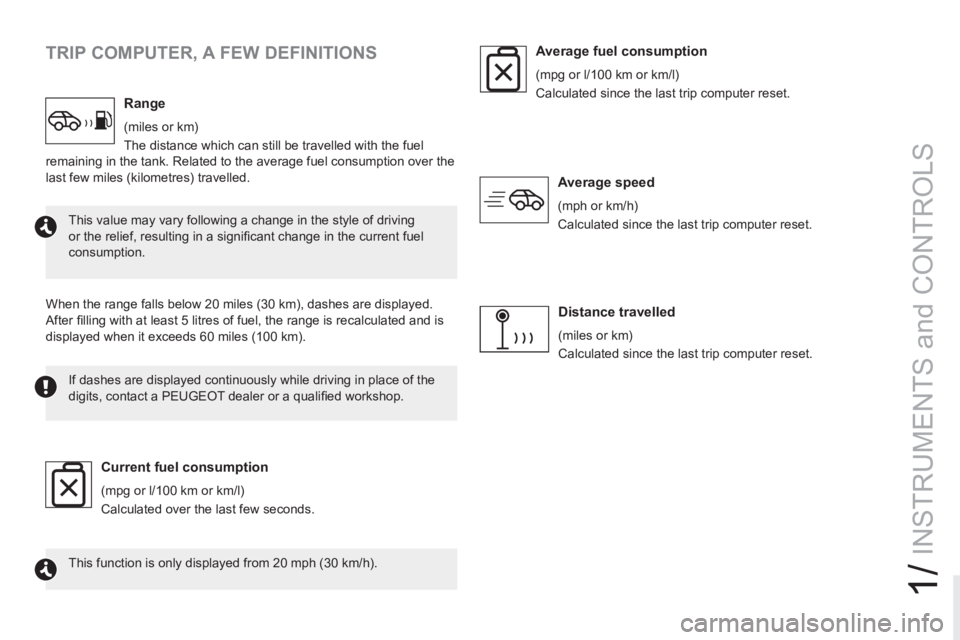

TRIP COMPUTER, A FEW DEFINITIONS
Range
(miles or km)
The distance which can still be travelled with the fuel
remaining in the tank. Related to the average fuel consumption over the
last few miles (kilometres) travelled.
This value may vary following a change in the style of driving
or the relief, resulting in a signifi cant change in the current fuel
consumption.
If dashes are displayed continuously while driving in place of the
digits, contact a PEUGEOT dealer or a qualifi ed workshop.
This function is only displayed from 20 mph (30 km/h).
When the range falls below 20 miles (30 km), dashes are displayed.
After fi lling with at least 5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).
Current fuel consumption
(mpg or l/100 km or km/l)
Calculated over the last few seconds.
Average fuel consumption
(mpg or l/100 km or km/l)
Calculated since the last trip computer reset.
Average speed
(mph or km/h)
Calculated since the last trip computer reset.
Distance travelled
(miles or km)
Calculated since the last trip computer reset.
Page 44 of 336
42

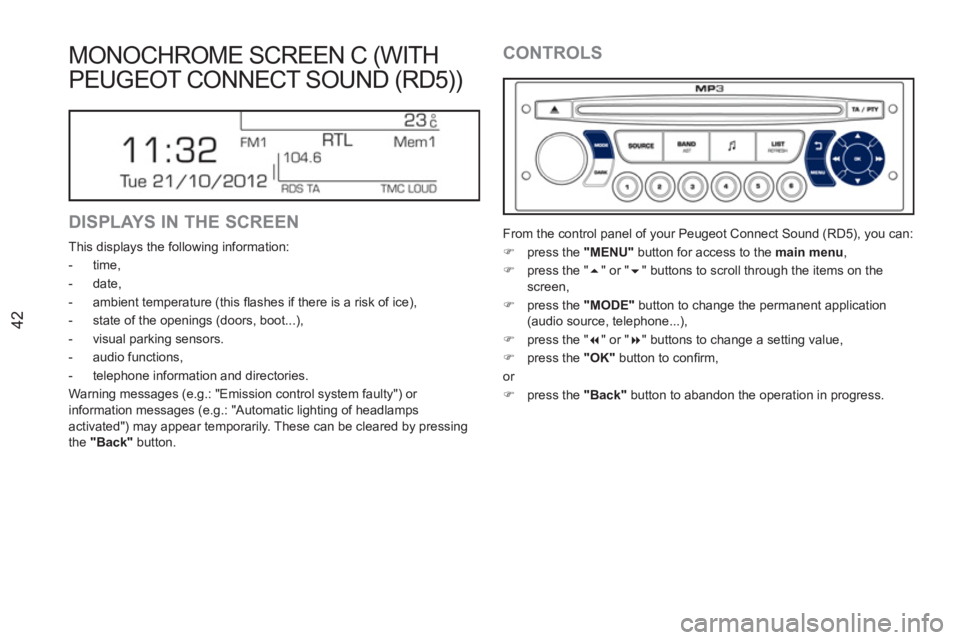

MONOCHROME SCREEN C (WITH
PEUGEOT CONNECT SOUND (RD5))
DISPLAYS IN THE SCREEN
This displays the following information:
- time,
- date,
- ambient temperature (this fl ashes if there is a risk of ice),
- state of the openings (doors, boot...),
- visual parking sensors.
- audio functions,
- telephone information and directories.
Warning messages (e.g.: "Emission control system faulty") or
information messages (e.g.: "Automatic lighting of headlamps
activated") may appear temporarily. These can be cleared by pressing
the "Back"
button.
CONTROLS
From the control panel of your Peugeot Connect Sound (RD5), you can:
)
press the "MENU"
button for access to the main menu
,
)
press the "
" or "
" buttons to scroll through the items on the
screen,
)
press the "MODE"
button to change the permanent application
(audio source, telephone...),
)
press the "
" or "
" buttons to change a setting value,
)
press the "OK"
button to confi rm,
or
)
press the "Back"
button to abandon the operation in progress.
Page 45 of 336
1/
INSTRUMENTS and CONTROLS

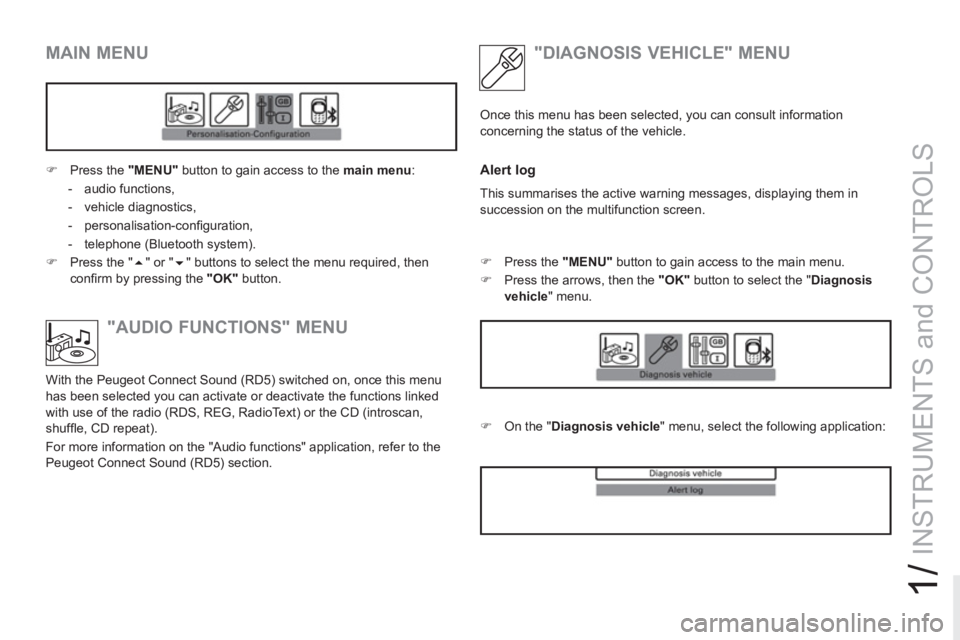

MAIN MENU
)
Press the "MENU"
button to gain access to the main menu
:
- audio functions,
- vehicle diagnostics,
- personalisation-confi guration,
- telephone (Bluetooth system).
)
Press the "
" or "
" buttons to select the menu required, then
confi rm by pressing the "OK"
button.
"AUDIO FUNCTIONS" MENU
With the Peugeot Connect Sound (RD5) switched on, once this menu
has been selected you can activate or deactivate the functions linked
with use of the radio (RDS, REG, RadioText) or the CD (introscan,
shuffl e, CD repeat).
For more information on the "Audio functions" application, refer to the
Peugeot Connect Sound (RD5) section.
"DIAGNOSIS VEHICLE" MENU
Once this menu has been selected, you can consult information
concerning the status of the vehicle.
Alert log
This summarises the active warning messages, displaying them in
succession on the multifunction screen.
)
On the " Diagnosis vehicle
" menu, select the following application:
)
Press the "MENU"
button to gain access to the main menu.
)
Press the arrows, then the "OK"
button to select the " Diagnosis
vehicle
" menu.
Page 46 of 336
44

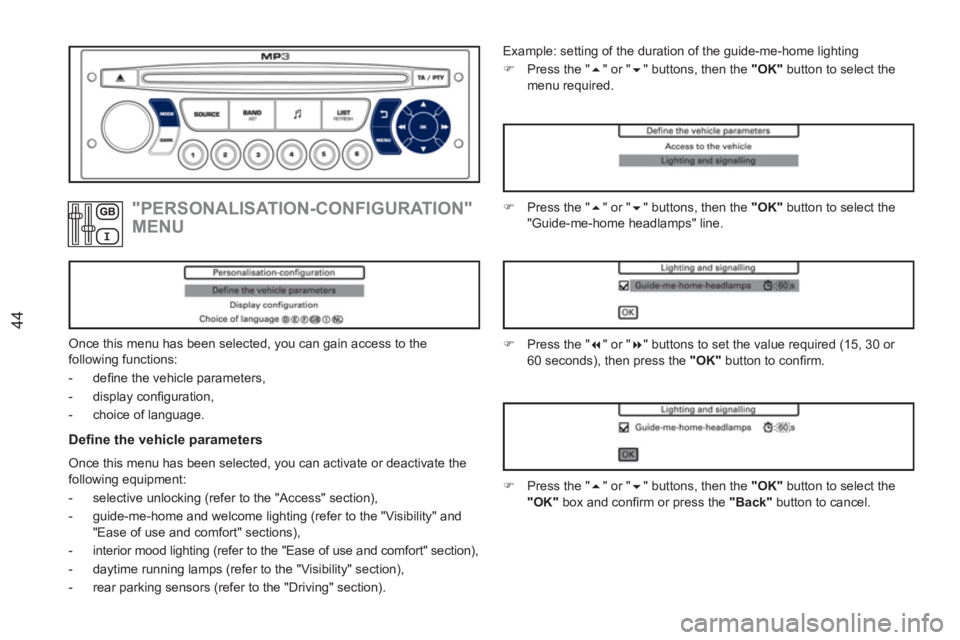

"PERSONALISATION-CONFIGURATION"
MENU
Once this menu has been selected, you can gain access to the
following functions:
- defi ne the vehicle parameters,
- display confi guration,
- choice of language.
Define the vehicle parameters
Once this menu has been selected, you can activate or deactivate the
following equipment:
- selective unlocking (refer to the "Access" section),
- guide-me-home and welcome lighting (refer to the "Visibility" and
"Ease of use and comfort" sections),
- interior mood lighting (refer to the "Ease of use and comfort" section),
- daytime running lamps (refer to the "Visibility" section),
- rear parking sensors (refer to the "Driving" section).
)
Press the "
" or "
" buttons, then the "OK"
button to select the
"Guide-me-home headlamps" line.
)
Press the "
" or "
" buttons to set the value required (15, 30 or
60 seconds), then press the "OK"
button to confi rm.
)
Press the "
" or "
" buttons, then the "OK"
button to select the
"OK"
box and confi rm or press the "Back"
button to cancel.
Example: setting of the duration of the guide-me-home lighting
)
Press the "
" or "
" buttons, then the "OK"
button to select the
menu required.
Page 47 of 336
1/
INSTRUMENTS and CONTROLS
With the Peugeot Connect Sound (RD5) switched on, once this menu
has been selected you can confi gure your Bluetooth hands-free system
(pairing), consult the various telephone directories (calls log, services...)
and manage your communications (pick up, hang up, call waiting,
secret mode...).
For more information on the "Telephone" application, refer to the
Peugeot Connect Sound (RD5) section.
"TELEPHONE" MENU
*
According to country.

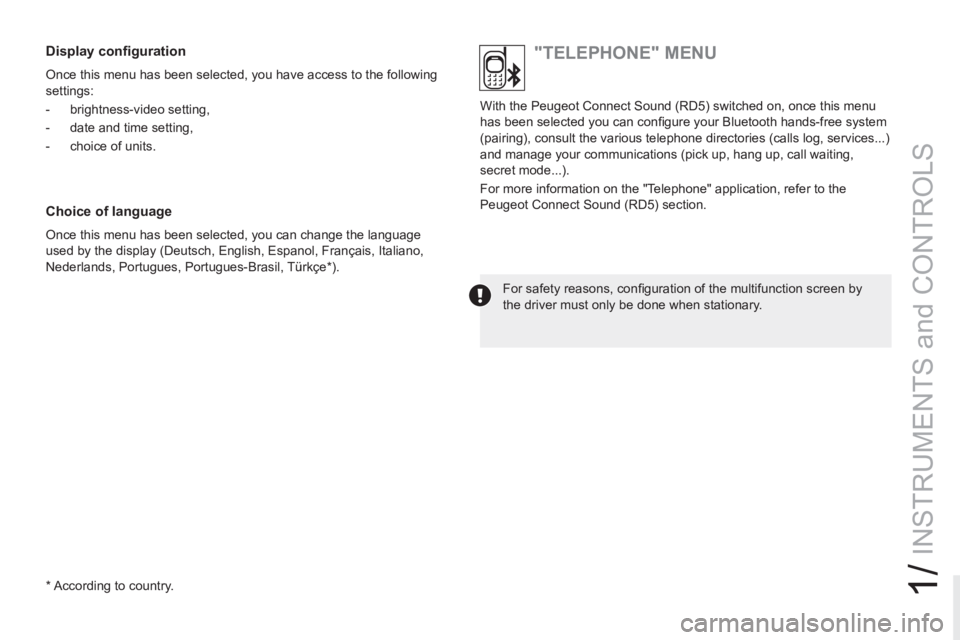

Display configuration
Once this menu has been selected, you have access to the following
settings:
- brightness-video setting,
- date and time setting,
- choice of units.
Choice of language
Once this menu has been selected, you can change the language
used by the display (Deutsch, English, Espanol, Français, Italiano,
Nederlands, Portugues, Portugues-Brasil, Türkçe * ).
For safety reasons, confi guration of the multifunction screen by
the driver must only be done when stationary.
Page 48 of 336
46

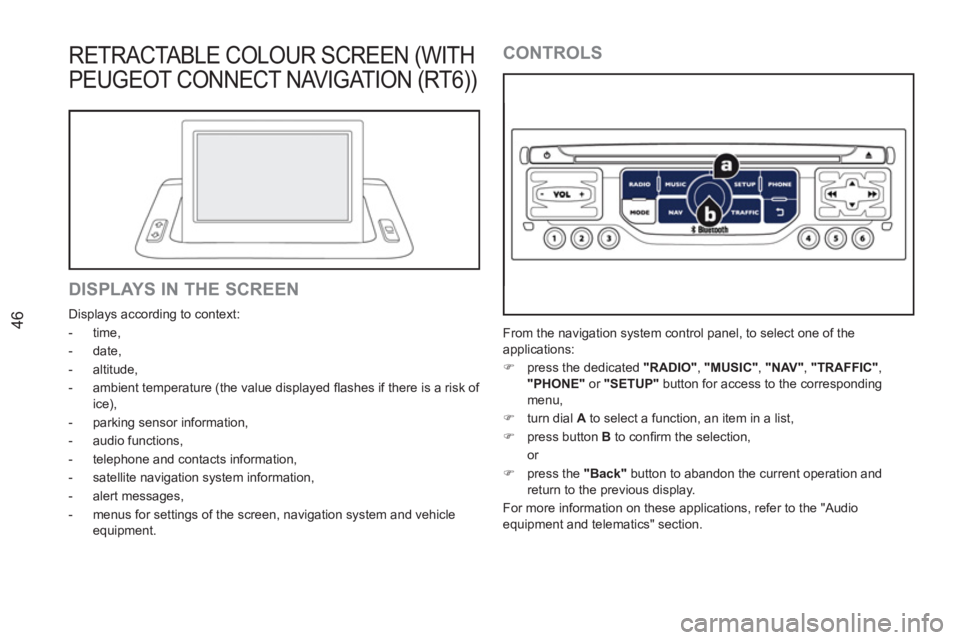

RETRACTABLE COLOUR SCREEN (WITH
PEUGE
OT CONNECT NAVIGATION (RT6))
DISPLAYS IN THE SCREEN
Displays according to context:
- time,
- date,
- altitude,
- ambient temperature (the value displayed fl ashes if there is a risk of
ice),
- parking sensor information,
- audio functions,
- telephone and contacts information,
- satellite navigation system information,
- alert messages,
- menus for settings of the screen, navigation system and vehicle
equipment.
From the navigation system control panel, to select one of the
applications:
)
press the dedicated "RADIO"
, "MUSIC"
, "NAV"
, "TRAFFIC"
,
"PHONE"
or "SETUP"
button for access to the corresponding
menu,
)
turn dial A
to select a function, an item in a list,
)
press button B
to confi rm the selection,
or
)
press the "Back"
button to abandon the current operation and
return to the previous display.
For more information on these applications, refer to the "Audio
equipment and telematics" section.
CONTROLS
Page 49 of 336
1/
INSTRUMENTS and CONTROLS
For operation of the retractable screen (opening, closing,
adjustment of the position, etc.), refer to the "Access to the
retractable screen" section.

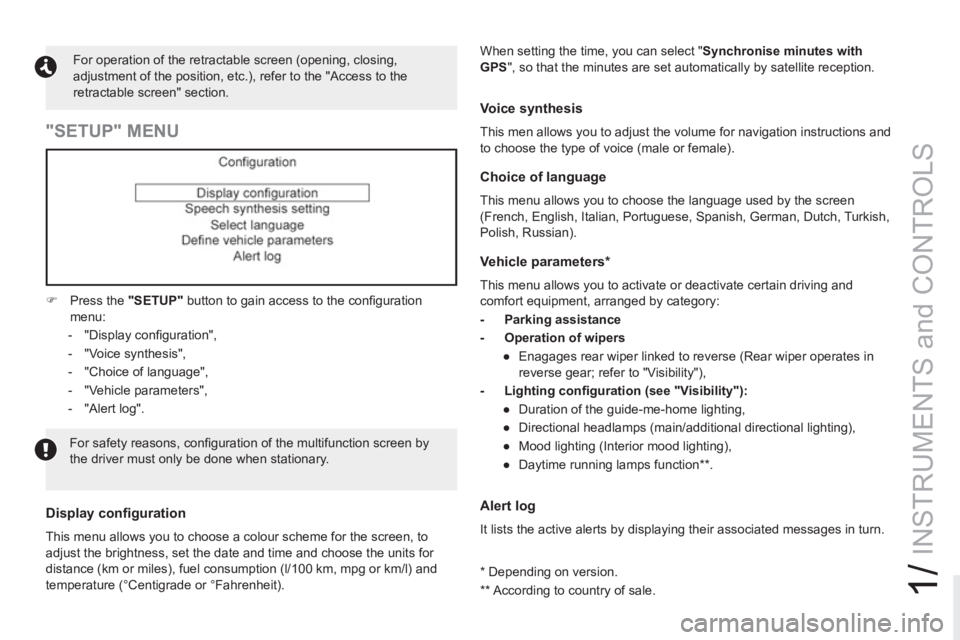

"SETUP" MENU
)
Press the "SETUP"
button to gain access to the confi guration
menu:
- "Display confi guration",
- "Voice synthesis",
- "Choice of language",
- "Vehicle parameters",
- "Alert log".
For safety reasons, confi guration of the multifunction screen by
the driver must only be done when stationary.
Display configuration
This menu allows you to choose a colour scheme for the screen, to
adjust the brightness, set the date and time and choose the units for
distance (km or miles), fuel consumption (l/100 km, mpg or km/l) and
temperature (°Centigrade or °Fahrenheit).
When setting the time, you can select " Synchronise minutes with
GPS
", so that the minutes are set automatically by satellite reception.
Voice synthesis
This men allows you to adjust the volume for navigation instructions and
to choose the type of voice (male or female).
*
Depending on version.
**
According to country of sale.
Choice of language
This menu allows you to choose the language used by the screen
(French, English, Italian, Portuguese, Spanish, German, Dutch, Turkish,
Polish, Russian).
Vehicle parameters *
This menu allows you to activate or deactivate certain driving and
comfort equipment, arranged by category:
- Parking assistance
- Operation of wipers
●
Enagages rear wiper linked to reverse (Rear wiper operates in
reverse gear; refer to "Visibility"),
- Lighting confi guration (see "Visibility"):
●
Duration of the guide-me-home lighting,
●
Directional headlamps (main/additional directional lighting),
●
Mood lighting (Interior mood lighting),
●
Daytime running lamps function ** .
Alert log
It lists the active alerts by displaying their associated messages in turn.
Page 50 of 336
48

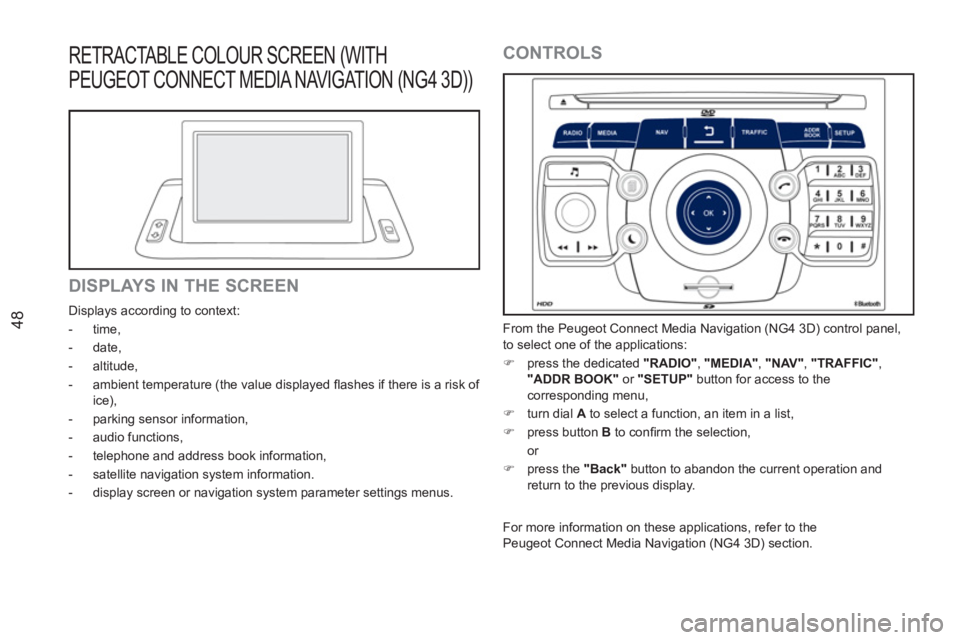

RETRACTABLE COLOUR SCREEN (WITH
PEUGEOT CONNECT MEDIA NAVIGATION (NG4 3D))
DISPLAYS IN THE SCREEN
Displays according to context:
- time,
- date,
- altitude,
- ambient temperature (the value displayed fl ashes if there is a risk of
ice),
- parking sensor information,
- audio functions,
- telephone and address book information,
- satellite navigation system information.
- display screen or navigation system parameter settings menus.
From the Peugeot Connect Media Navigation (NG4 3D) control panel,
to select one of the applications:
)
press the dedicated "RADIO"
, "MEDIA"
, "NAV"
, "TRAFFIC"
,
"ADDR BOOK"
or "SETUP"
button for access to the
corresponding menu,
)
turn dial A
to select a function, an item in a list,
)
press button B
to confi rm the selection,
or
)
press the "Back"
button to abandon the current operation and
return to the previous display.
CONTROLS
For more information on these applications, refer to the
Peugeot Connect Media Navigation (NG4 3D) section.
