Page 51 of 336
1/
INSTRUMENTS and CONTROLS

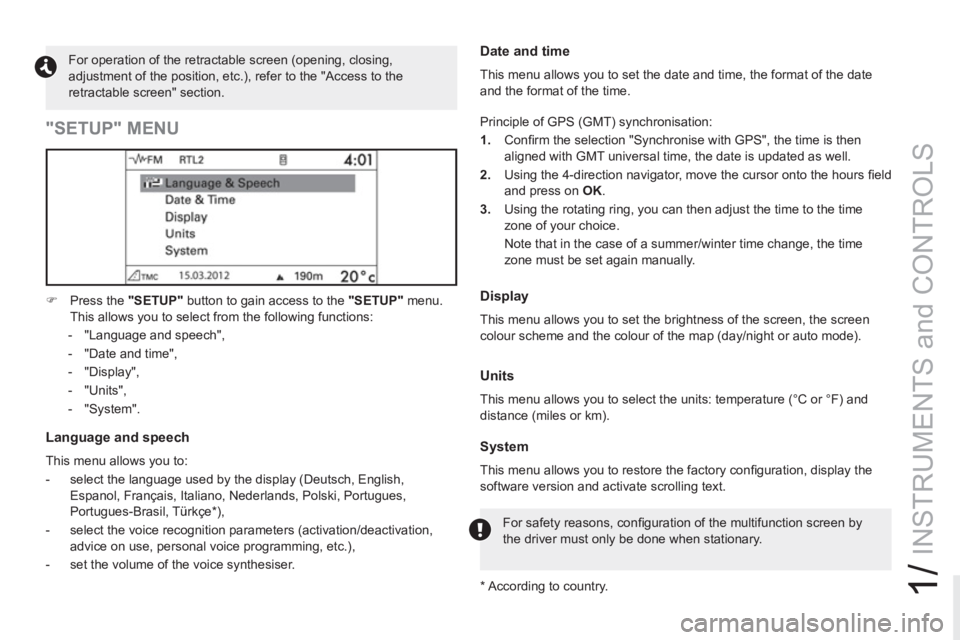

For operation of the retractable screen (opening, closing,
adjustment of the position, etc.), refer to the "Access to the
retractable screen" section.
)
Press the "SETUP"
button to gain access to the "SETUP"
menu.
This allows you to select from the following functions:
- "Language and speech",
- "Date and time",
- "Display",
- "Units",
- "System".
"SETUP" MENU
Language and speech
This menu allows you to:
- select the language used by the display (Deutsch, English,
Espanol, Français, Italiano, Nederlands, Polski, Portugues,
Portugues-Brasil, Türkçe * ),
- select the voice recognition parameters (activation/deactivation,
advice on use, personal voice programming, etc.),
- set the volume of the voice synthesiser.
Date and time
This menu allows you to set the date and time, the format of the date
and the format of the time.
Principle of GPS (GMT) synchronisation:
1.
Confi rm the selection "Synchronise with GPS", the time is then
aligned with GMT universal time, the date is updated as well.
2.
Using the 4-direction navigator, move the cursor onto the hours fi eld
and press on OK
.
3.
Using the rotating ring, you can then adjust the time to the time
zone of your choice.
Note that in the case of a summer/winter time change, the time
zone must be set again manually.
Units
This menu allows you to select the units: temperature (°C or °F) and
distance (miles or km).
System
This menu allows you to restore the factory confi guration, display the
software version and activate scrolling text.
For safety reasons, confi guration of the multifunction screen by
the driver must only be done when stationary.
Display
This menu allows you to set the brightness of the screen, the screen
colour scheme and the colour of the map (day/night or auto mode).
*
According to country.
Page 52 of 336
50

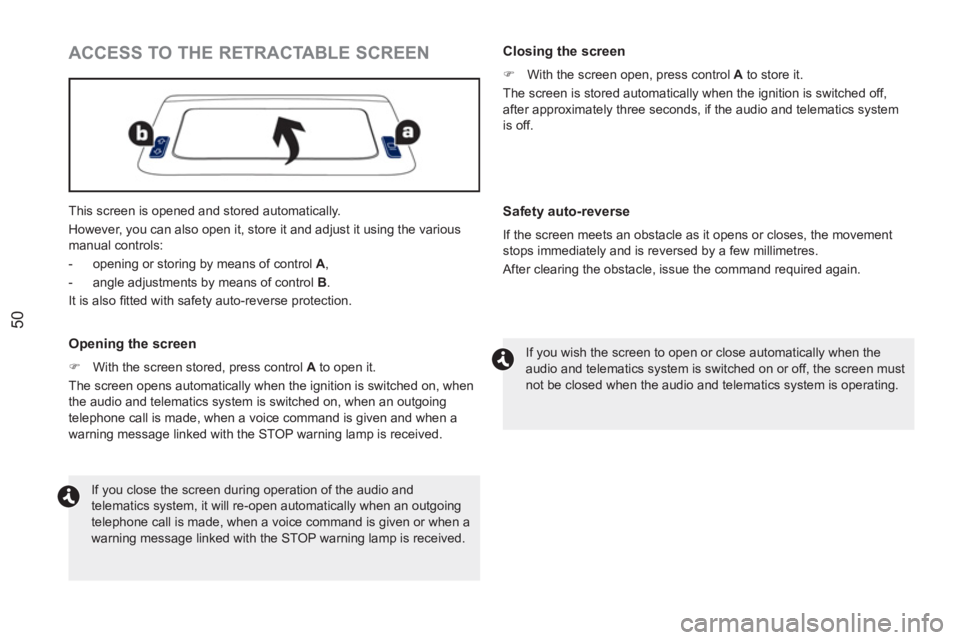

This screen is opened and stored automatically.
However, you can also open it, store it and adjust it using the various
manual controls:
- opening or storing by means of control A
,
- angle adjustments by means of control B
.
It is also fi tted with safety auto-reverse protection.
ACCESS TO THE RETRACTABLE SCREEN
Opening the screen
)
With the screen stored, press control A
to open it.
The screen opens automatically when the ignition is switched on, when
the audio and telematics system is switched on, when an outgoing
telephone call is made, when a voice command is given and when a
warning message linked with the STOP warning lamp is received.
Closing the screen
)
With the screen open, press control A
to store it.
The screen is stored automatically when the ignition is switched off,
after approximately three seconds, if the audio and telematics system
is off.
If you close the screen during operation of the audio and
telematics system, it will re-open automatically when an outgoing
telephone call is made, when a voice command is given or when a
warning message linked with the STOP warning lamp is received. If you wish the screen to open or close automatically when the
audio and telematics system is switched on or off, the screen must
not be closed when the audio and telematics system is operating.
Safety auto-reverse
If the screen meets an obstacle as it opens or closes, the movement
stops immediately and is reversed by a few millimetres.
After clearing the obstacle, issue the command required again.
Page 53 of 336
1/
INSTRUMENTS and CONTROLS
When the screen is open, you can adjust it precisely in different ways:
)
press the corresponding part of control B
to move the screen
towards you or towards the windscreen,
or
)
push or pull the screen gently by hand.
Adjusting the position of the screen
Storing the position of the screen
The system has four pre-set positions in its memory.
Each time the screen is closed, the system stores the last position of
the screen.
Each time the screen is re-opened, the system returns the screen to the
pre-set position closest to that stored.
Page 54 of 336
52

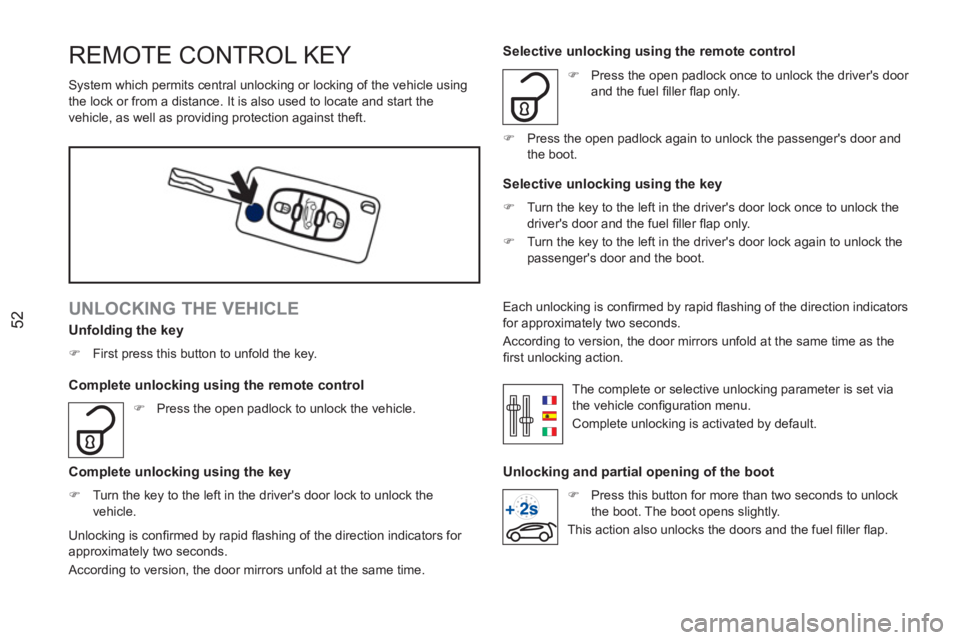

REMOTE CONTROL KEY
System which permits central unlocking or locking of the vehicle using
the lock or from a distance. It is also used to locate and start the
vehicle, as well as providing protection against theft.
UNLOCKING THE VEHICLE
Unfolding the key
)
First press this button to unfold the key.
Complete unlocking using the remote control
)
Press the open padlock to unlock the vehicle.
Selective unlocking using the remote control
)
Press the open padlock once to unlock the driver's door
and the fuel fi ller fl ap only.
)
Press the open padlock again to unlock the passenger's door and
the boot.
Selective unlocking using the key
)
Turn the key to the left in the driver's door lock once to unlock the
driver's door and the fuel fi ller fl ap only.
)
Turn the key to the left in the driver's door lock again to unlock the
passenger's door and the boot.
The complete or selective unlocking parameter is set via
the vehicle confi guration menu.
Complete unlocking is activated by default.
Complete unlocking using the key
)
Turn the key to the left in the driver's door lock to unlock the
vehicle.
Unlocking and partial opening of the boot
)
Press this button for more than two seconds to unlock
the boot. The boot opens slightly.
This action also unlocks the doors and the fuel fi ller fl ap.
Unlocking is confi rmed by rapid fl ashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors unfold at the same time.
Each unlocking is confi rmed by rapid fl ashing of the direction indicators
for approximately two seconds.
According to version, the door mirrors unfold at the same time as the
fi rst unlocking action.
Page 55 of 336
2/
ACCESS
If one of the doors or the boot is still open, the central locking does
not take place; the vehicle lock and then immediately unlocks,
witnessed by the sound of the locks rebounding.
When the vehicle is locked, if it is unlocked inadvertently, it will
relock automatically after thirty seconds unless a door is opened.
The folding and unfolding of the door mirrors using the remote
control can be deactivated by a PEUGEOT dealer or a qualifi ed
workshop.

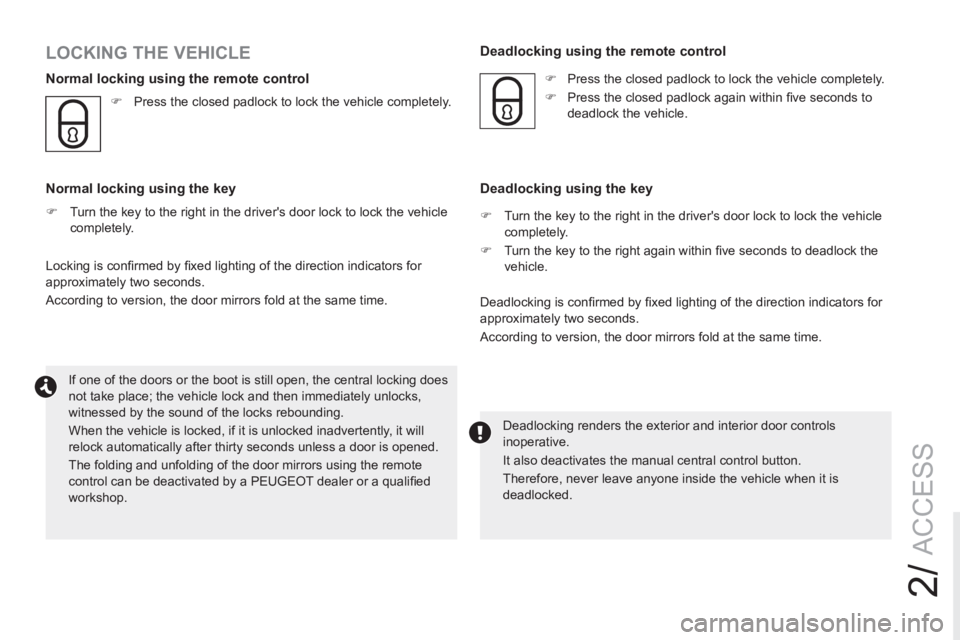

LOCKING THE VEHICLE
Normal locking using the remote control
)
Press the closed padlock to lock the vehicle completely.
Normal locking using the key
)
Turn the key to the right in the driver's door lock to lock the vehicle
completely.
Deadlocking using the remote control
)
Press the closed padlock to lock the vehicle completely.
)
Press the closed padlock again within fi ve seconds to
deadlock the vehicle.
Deadlocking using the key
Deadlocking renders the exterior and interior door controls
inoperative.
It also deactivates the manual central control button.
Therefore, never leave anyone inside the vehicle when it is
deadlocked. Locking is confi rmed by fi xed lighting of the direction indicators for
approximately two seconds.
According to version, the door mirrors fold at the same time.
Deadlocking is confi rmed by fi xed lighting of the direction indicators for
approximately two seconds.
According to version, the door mirrors fold at the same time.
)
Turn the key to the right in the driver's door lock to lock the vehicle
completely.
)
Turn the key to the right again within fi ve seconds to deadlock the
vehicle.
Page 56 of 336
54

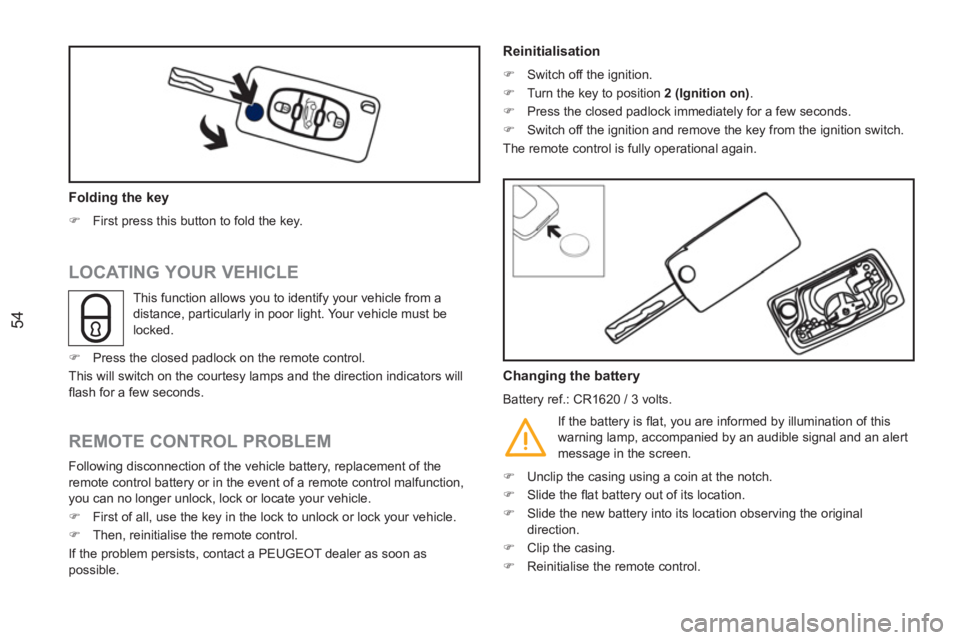

Folding the key
)
First press this button to fold the key.
LOCATING YOUR VEHICLE
REMOTE CONTROL PROBLEM
Following disconnection of the vehicle battery, replacement of the
remote control battery or in the event of a remote control malfunction,
you can no longer unlock, lock or locate your vehicle.
)
First of all, use the key in the lock to unlock or lock your vehicle.
)
Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT dealer as soon as
possible.
Reinitialisation
)
Switch off the ignition.
)
Turn the key to position 2 (Ignition on)
.
)
Press the closed padlock immediately for a few seconds.
)
Switch off the ignition and remove the key from the ignition switch.
The remote control is fully operational again.
Changing the battery
Battery ref.: CR1620 / 3 volts.
If the battery is fl at, you are informed by illumination of this
warning lamp, accompanied by an audible signal and an alert
message in the screen.
)
Unclip the casing using a coin at the notch.
)
Slide the fl at battery out of its location.
)
Slide the new battery into its location observing the original
direction.
)
Clip the casing.
)
Reinitialise the remote control.
This function allows you to identify your vehicle from a
distance, particularly in poor light. Your vehicle must be
locked.
)
Press the closed padlock on the remote control.
This will switch on the courtesy lamps and the direction indicators will
fl ash for a few seconds.
Page 57 of 336
2/
ACCESS

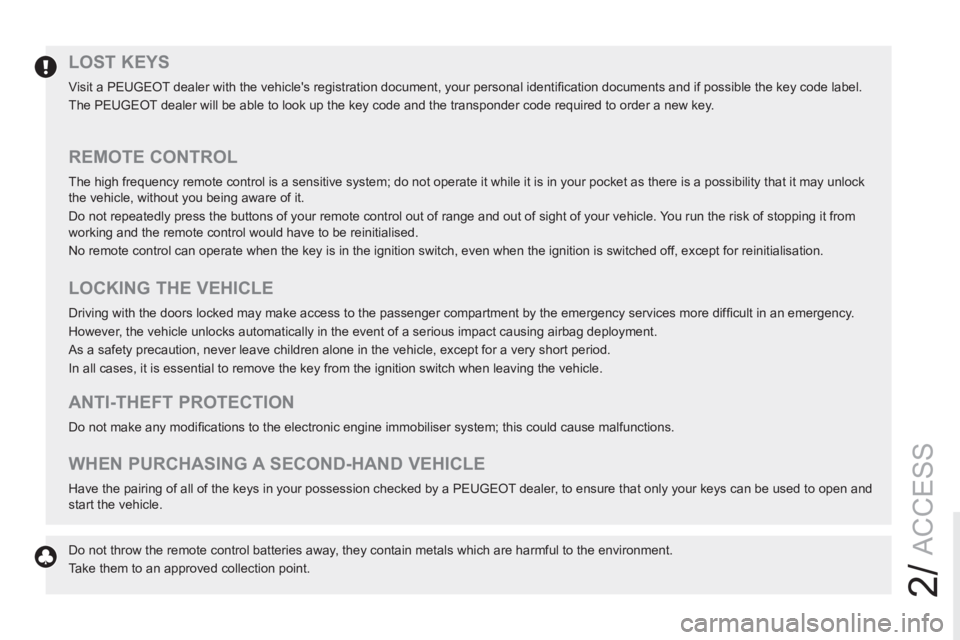

LOST KEYS
Visit a PEUGEOT dealer with the vehicle's registration document, your personal identifi cation documents and if possible the key code label.
The PEUGEOT dealer will be able to look up the key code and the transponder code required to order a new key.
LOCKING THE VEHICLE
Driving with the doors locked may make access to the passenger compartment by the emergency services more diffi cult in an emergency.
However, the vehicle unlocks automatically in the event of a serious impact causing airbag deployment.
As a safety precaution, never leave children alone in the vehicle, except for a very short period.
In all cases, it is essential to remove the key from the ignition switch when leaving the vehicle.
REMOTE CONTROL
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock
the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.
No remote control can operate when the key is in the ignition switch, even when the ignition is switched off, except for reinitialisation.
ANTI-THEFT PROTECTION
Do not make any modifi cations to the electronic engine immobiliser system; this could cause malfunctions.
Do not throw the remote control batteries away, they contain metals which are harmful to the environment.
Take them to an approved collection point.
WHEN PURCHASING A SECOND-HAND VEHICLE
Have the pairing of all of the keys in your possession checked by a PEUGEOT dealer, to ensure that only your keys can be used to open and
start the vehicle.
Page 58 of 336
56

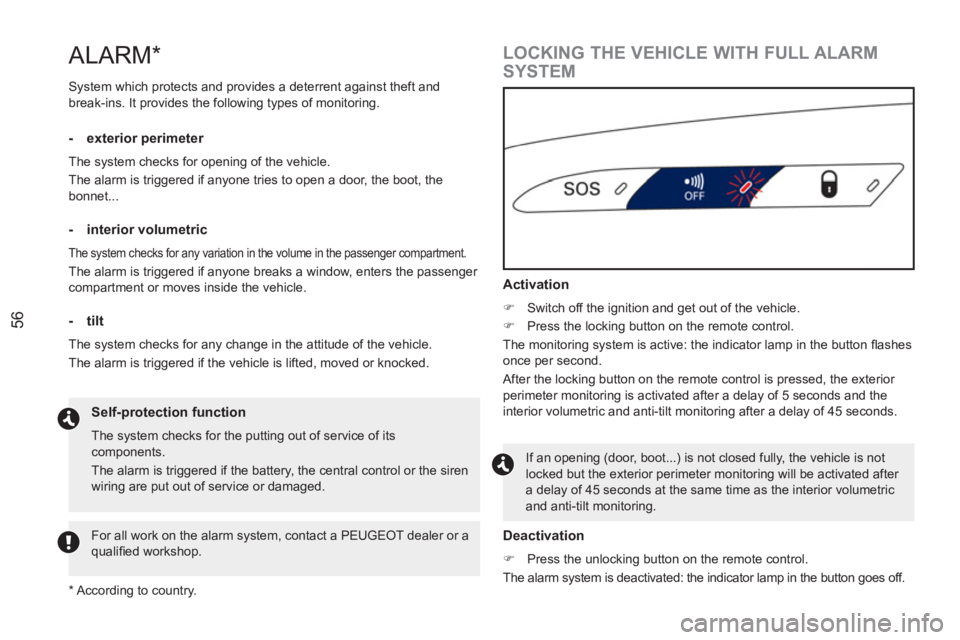

ALARM *
System which protects and provides a deterrent against theft and
break-ins. It provides the following types of monitoring.
- exterior perimeter
The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a door, the boot, the
bonnet...
- interior volumetric
The system checks for any variation in the volume in the passenger compartment.
The alarm is triggered if anyone breaks a window, enters the passenger
compartment or moves inside the vehicle.
- tilt
The system checks for any change in the attitude of the vehicle.
The alarm is triggered if the vehicle is lifted, moved or knocked.
For all work on the alarm system, contact a PEUGEOT dealer or a
qualifi ed workshop.
LOCKING THE VEHICLE WITH FULL ALARM
SYSTEM
Activation
)
Switch off the ignition and get out of the vehicle.
)
Press the locking button on the remote control.
The monitoring system is active: the indicator lamp in the button fl ashes
once per second.
After the locking button on the remote control is pressed, the exterior
perimeter monitoring is activated after a delay of 5 seconds and the
interior volumetric and anti-tilt monitoring after a delay of 45 seconds.
Deactivation
)
Press the unlocking button on the remote control.
The alarm system is deactivated: the indicator lamp in the button goes off.
Self-protection function
The system checks for the putting out of service of its
components.
The alarm is triggered if the battery, the central control or the siren
wiring are put out of service or damaged.
* According to country. If an opening (door, boot...) is not closed fully, the vehicle is not
locked but the exterior perimeter monitoring will be activated after
a delay of 45 seconds at the same time as the interior volumetric
and anti-tilt monitoring.
Page 59 of 336
2/
ACCESS

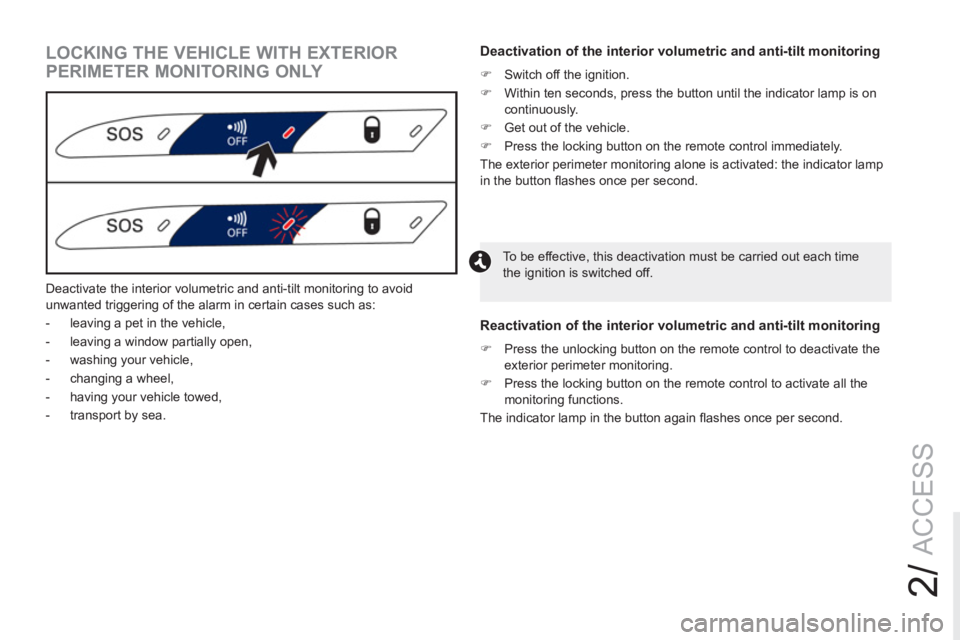

LOCKING THE VEHICLE WITH EXTERIOR
PERIMETER MONITORING ONLY
Deactivation of the interior volumetric and anti-tilt monitoring
)
Switch off the ignition.
)
Within ten seconds, press the button until the indicator lamp is on
continuously.
)
Get out of the vehicle.
)
Press the locking button on the remote control immediately.
The exterior perimeter monitoring alone is activated: the indicator lamp
in the button fl ashes once per second.
Reactivation of the interior volumetric and anti-tilt monitoring
)
Press the unlocking button on the remote control to deactivate the
exterior perimeter monitoring.
)
Press the locking button on the remote control to activate all the
monitoring functions.
The indicator lamp in the button again fl ashes once per second.
Deactivate the interior volumetric and anti-tilt monitoring to avoid
unwanted triggering of the alarm in certain cases such as:
- leaving a pet in the vehicle,
- leaving a window partially open,
- washing your vehicle,
- changing a wheel,
- having your vehicle towed,
- transport by sea. To be effective, this deactivation must be carried out each time
the ignition is switched off.
Page 60 of 336
58

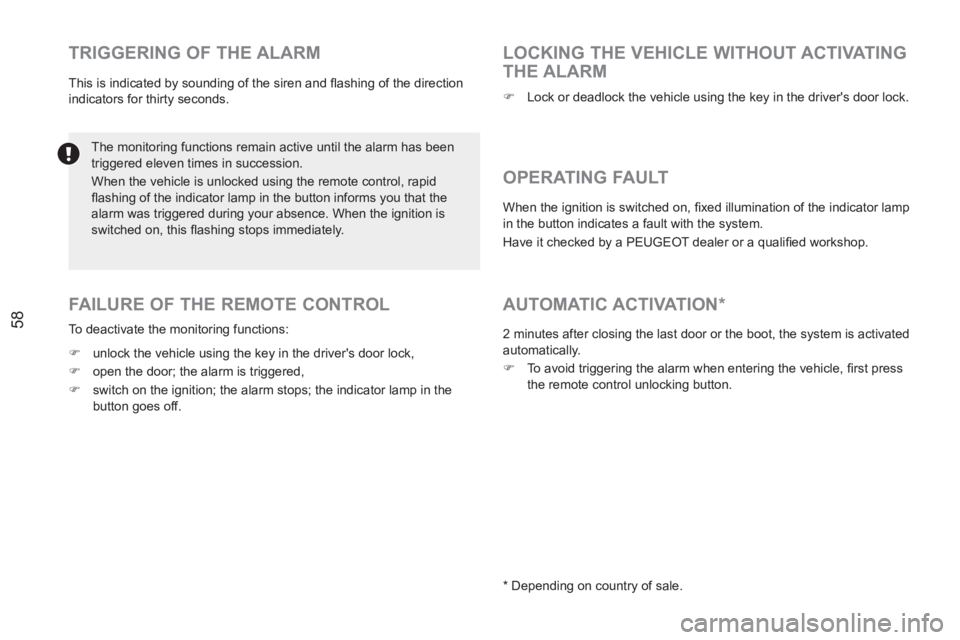

OPERATING FAULT
LOCKING THE VEHICLE WITHOUT ACTIVATING
THE ALARM
)
Lock or deadlock the vehicle using the key in the driver's door lock.
When the ignition is switched on, fi xed illumination of the indicator lamp
in the button indicates a fault with the system.
Have it checked by a PEUGEOT dealer or a qualifi ed workshop.
FAILURE OF THE REMOTE CONTROL
To deactivate the monitoring functions:
)
unlock the vehicle using the key in the driver's door lock,
)
open the door; the alarm is triggered,
)
switch on the ignition; the alarm stops; the indicator lamp in the
button goes off.
TRIGGERING OF THE ALARM
The monitoring functions remain active until the alarm has been
triggered eleven times in succession.
When the vehicle is unlocked using the remote control, rapid
fl ashing of the indicator lamp in the button informs you that the
alarm was triggered during your absence. When the ignition is
switched on, this fl ashing stops immediately.
This is indicated by sounding of the siren and fl ashing of the direction
indicators for thirty seconds.
2 minutes after closing the last door or the boot, the system is activated
automatically.
)
To avoid triggering the alarm when entering the vehicle, fi rst press
the remote control unlocking button.
AUTOMATIC ACTIVATION *
* Depending on country of sale.
