Service & Appearance Care

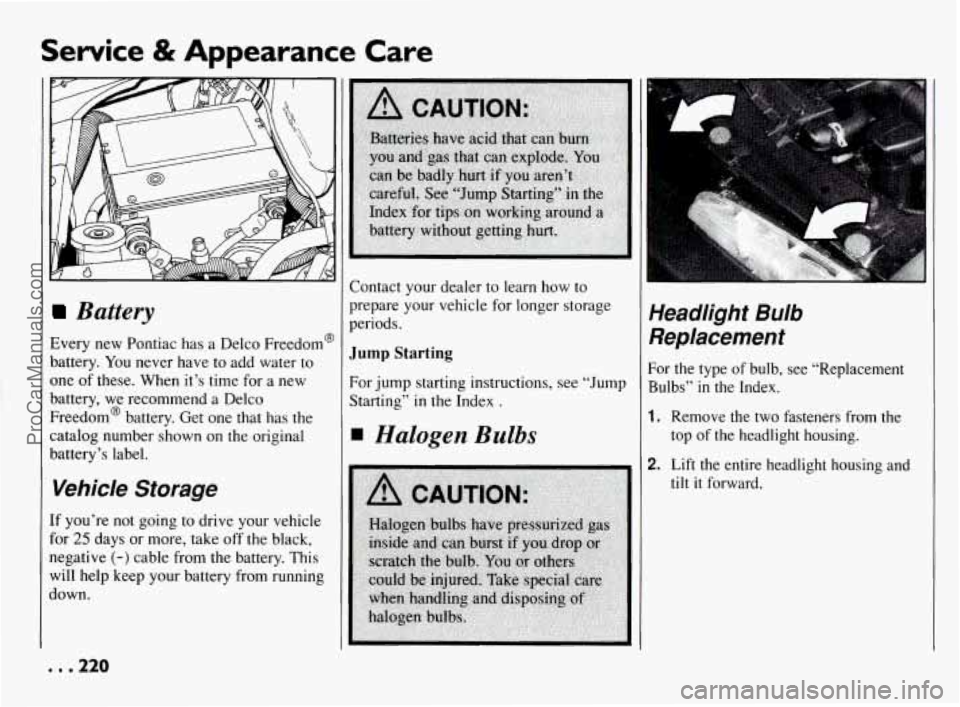

Battery
Every new Pontiac has a Delco Freedom@
battery. You never have to add water to
one of these. When it’s time for a new
battery, we recommend a Delco
Freedom@ battery. Get one that has the
catalog number shown on the original
battery’s label.
Vehicle Storage
If you’re not going to drive your vehicle
for
25 days or more, take off the black,
negative
(-) cable from the battery. This
will help keep your battery from running
down. Contact your dealer to learn
how to
prepare your vehicle for longer storage
periods.
Jump Starting
For jump starting instructions, see “Jump
Starting” in the Index
.
Halogen Bulbs
Headlight Bulb
Replacement
For the type of bulb, see “Replacement
Bulbs”
in the Index.
1. Remove the two fasteners from the
top of the headlight housing.
2. Lift the entire
tilt it forward. headlight housing and
ProCarManuals.com

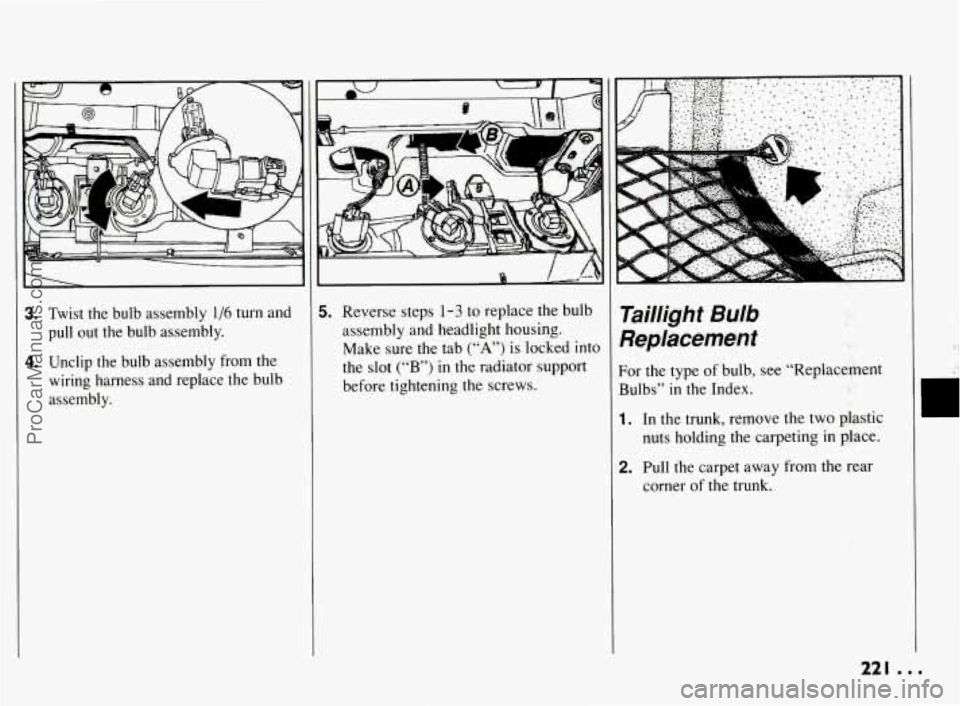

3. Twist the bulb assembly 1/6 turn and
pull out the bulb assembly.
4. Unclip the bulb assembly from the wiring harness and replace the bulb
assembly. Reverse
steps
1-3 to replace the bulb
assembly and headlight housing.
Make sure the tab
(“A”) is locked into
the slot
(“B”) in the radiator support
before tightening the screws.
Taillight Bulb
Replacement
For the type of bulb, see “Replacement
Bulbs”
in the Index.
1.
2.
In the trunk, remove the two plastic
nuts holding the carpeting in pjace.
Pull the carpet away from the rear
corner of the trunk.
221 0..
ProCarManuals.com

Service & Appearance Care

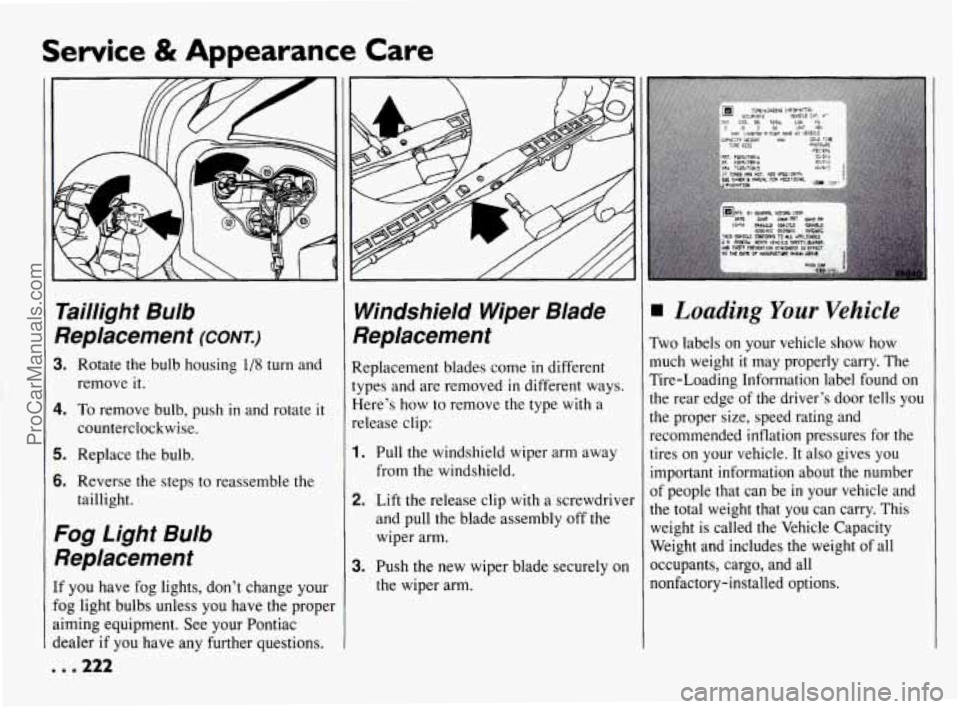

Taillight Bulb
Seplacement
(CONT.)
I. Rotate the bulb housing 1/8 turn and
1. To remove bulb, push in and rotate it
counterclockwise.
i. Replace the bulb.
i. Reverse the steps to reassemble the
remove
it.
taillight.
:og Light Bulb
qeplacement
F you have fog lights, don’t change your
lg light bulbs unless you have the proper
iming equipment. See your Pontiac
ealer if you have any further questions.
. .222
Windshield Wiper Blade
Replacement
Replacement blades come in different
types and are removed
in different ways.
Here’s how
to remove the type with a
release clip:
1.
2.
3.
Pull the windshield wiper arm away
from the windshield.
Lift the release clip with a screwdriver
and pull the blade assembly off the
wiper arm.
Push the new wiper blade securely on
the wiper arm.
Loading Your Vehicle
Two labels on your vehicle show how
much weight
it may properly carry. The
Tire-Loading Information label found on
the rear edge
of the driver’s door tells you
the proper size, speed rating and
recommended inflation pressures for the
tires on your vehicle. It also gives you
important information about the number
of people that can be in your vehicle and
the total weight that
you can carry. This
weight is called the Vehicle Capacity
Weight and includes the weight of all
occupants, cargo, and all
nonfactory-installed options.
ProCarManuals.com

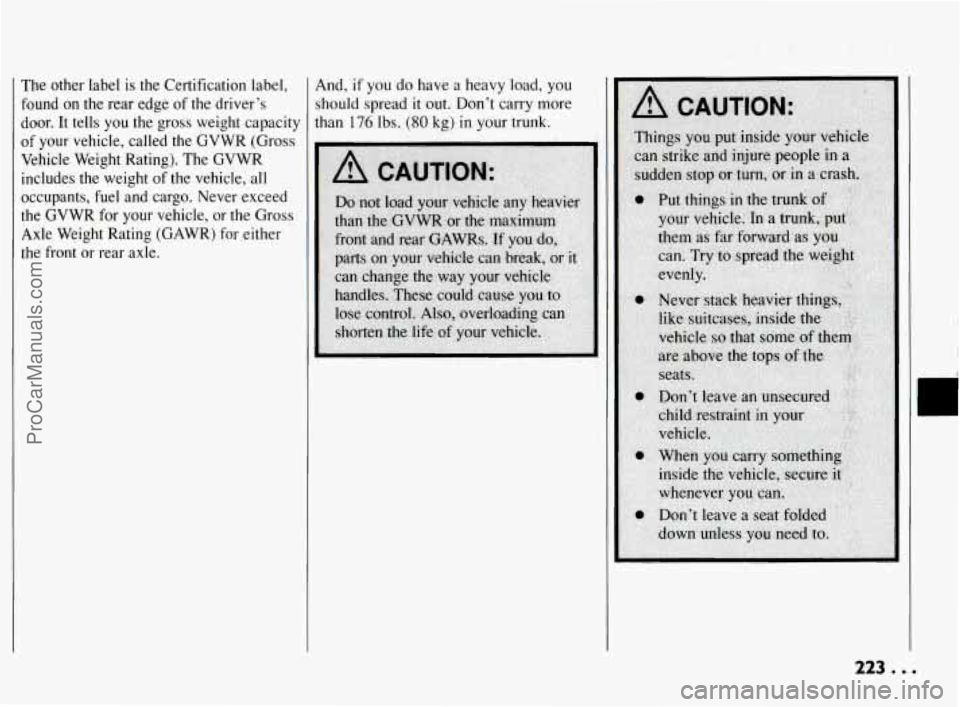

The other label is the Certification label,
found on the rear edge of
the driver’s
door. It tells you the gross weight capacity
of your vehicle, called the
GVWR (Gross
Vehicle Weight Rating). The GVWR
includes the weight of the v,ehicle, all
occupants,
fuel and cargo. Never exceed
the
GVWR for your vehicle, or the Gross
Axle Weight Rating
(GAWR) for ,either
the front or rear axle. And,
if you do have
a heavy load, you
should spread
it out. Don’t carry more
than 176 Ibs. (80 kg) in your trunk.
r
ProCarManuals.com

Service & Appearance Care

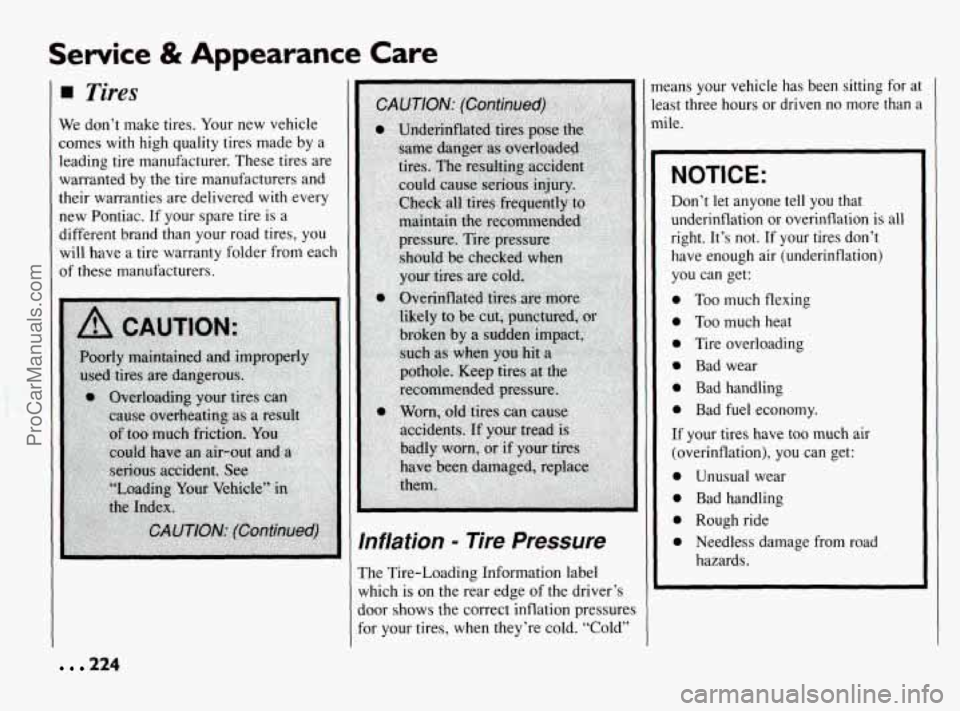

4 Tires
We don’t make tires. Your new vehicle
comes
with high quality tires made by a
leading tire manufacturer. These tires are
warranted by the tire manufacturers and
their warranties are delivered with every
new Pontiac. If your spare tire is a
different brand than your road tires, you
will have a tire warranty folder from each
of these manufacturers.
Inflation - Tire Pressure
The Tire-Loading Information label
which is on the rear edge
of the driver’s
door shows the correct inflation pressures
for your tires, when they’re cold. “Cold” means your
vehicle has been sitting for at
least three hours or driven no
more than a
mile.
NOTICE:
Don’t let anyone tell you that
underinflation or overinflation is all
right. It’s not. If your tires don’t
have enough air (underinflation)
you can get:
0 Too much flexing
0 Too much heat
0 Tire overloading
0 Bad wear
0 Bad handling
0 Bad fuel economy.
If your tires have too much air
(overinflation), you can get:
0 Unusual wear
0 Bad handling
0 Rough ride
0 Needless damage from road
hazards.
224
ProCarManuals.com

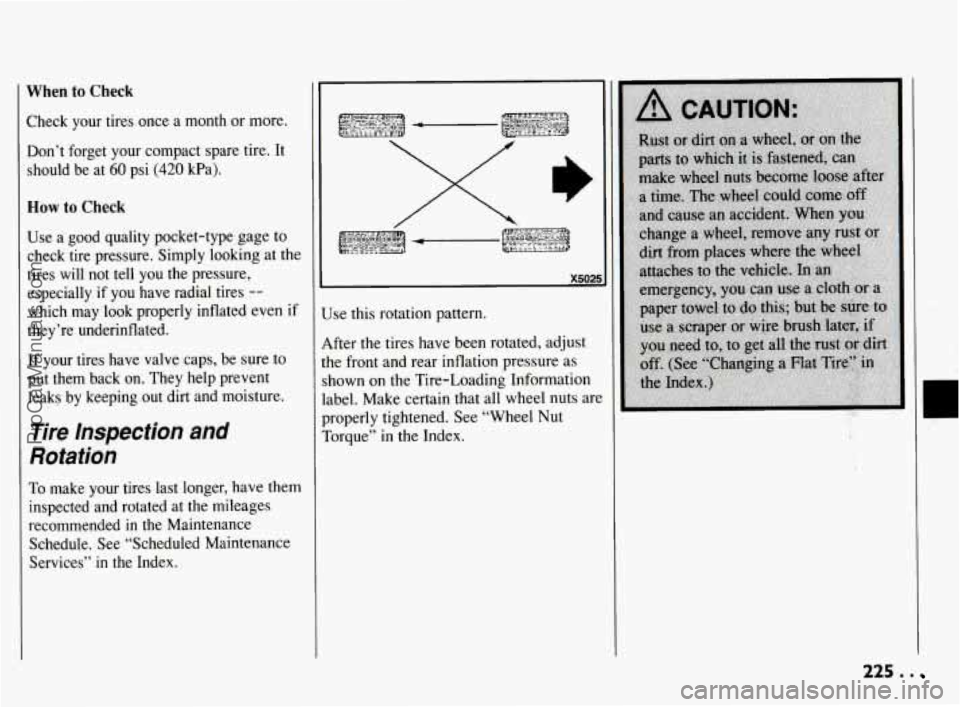

When to Check
Check your tires once a month or more.
Don’t forget your compact spare tire. It
should be at
60 psi (420 kPa).
How to Check
Use a good quality pocket-type gage to
check tire pressure. Simply looking at the
tires will.not tell you the pressure,
especially
if you have radial tires --
which may look properly inflated even if
they’re underinflated.
If your tires have valve caps, be sure to
put them back on. They help prevent
leaks by keeping out dirt and moisture.
Tire lnspecfion and
Rotafion
To make your tires last longer, have them
inspected and rotated at the mileages
recommended
in the Maintenance
Schedule. See “Scheduled Maintenance Services” in the Index.
X5028
Use this rotation pattern.
After the tires have been rotated, adjust
the front and rear inflation pressure as
shown on the Tire-Loading Information
label. Make certain that all wheel nuts are
properly tightened. See “Wheel Nut
Torque” in the Index.
e
225 . .
ProCarManuals.com

Service, & Appearance Care

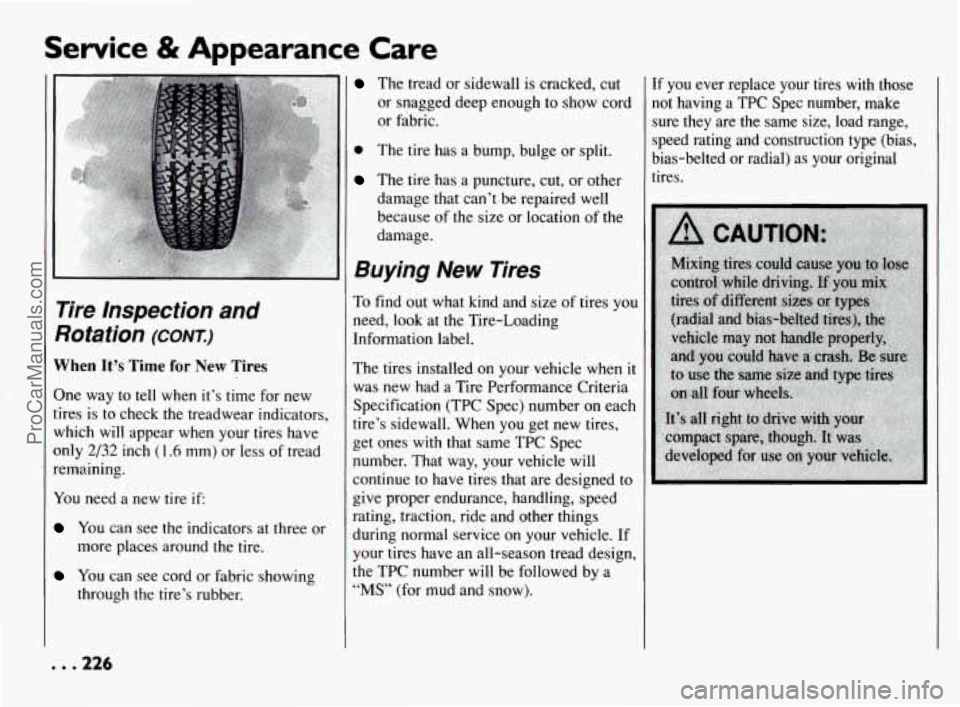

When It’s Time for New Tires
One way to tell when it’s time for new
tires is to check the treadwear indicators,
which will appear when your tires have
only
2/32 inch (1.6 mm) or less of tread
remaining,
You need a new tire if
You can see the indicators at three or
more places around the tire.
You can see cord or fabric showing
through the tire’s rubber.
The tread or sidewall is cracked, cut
or snagged deep enough to show cord
or fabric.
0 The tire has a bump, bulge or split.
The tire has a puncture, cut, or other
damage that can’t be repaired well
because of the size or location of the
damage.
Buying New Tires
To find out what kind and size of tires you
need,
look at the Tire-Loading
Information label.
The tires instaljed on your vehicle
when it
was new had a Tire Performance Criteria
Specification (TPC Spec) number on each
tire’s sidewall. When you get new tires,
get ones
with that same TPC Spec
number. That way, your vehicle will
zontinue to have tires that are designed to
give proper endurance, handling, speed
rating, traction, ride and other things
during normal service on your vehicle. If
your tires have an all-season tread design,
the
TPC number will be followed by a
“MS” (for mud and snow). If you
ever replace your tires with those
not having a TPC Spec number, make
sure they are the same size, load range,
speed rating and construction type (bias,
bias-belted or radial) as your original
tires.
. . .226
ProCarManuals.com

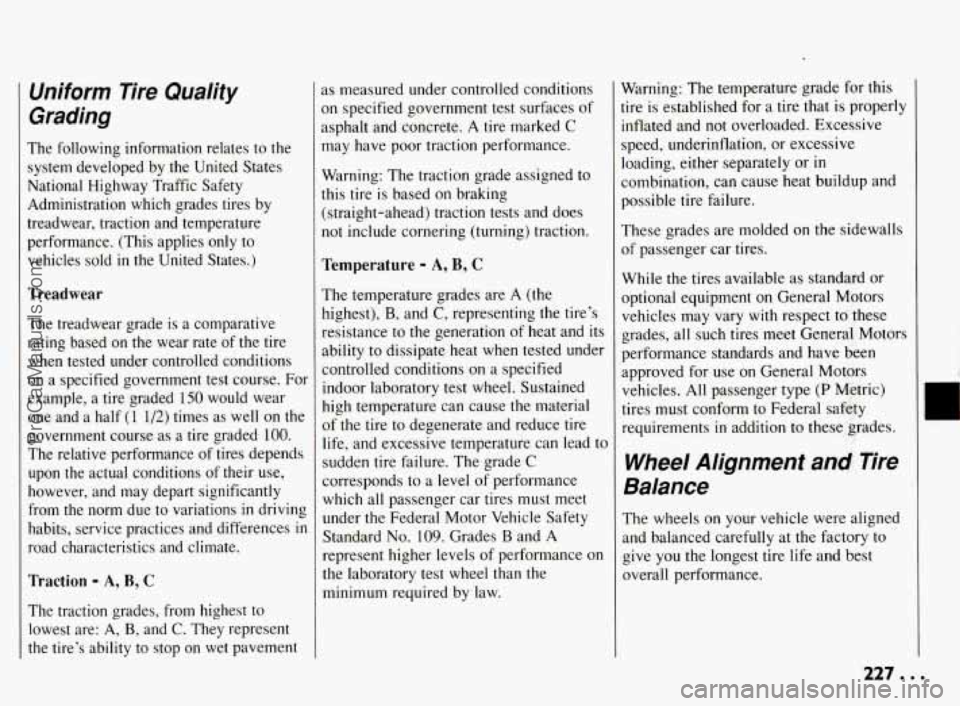

Uniform Tire Quality
Grading
The following information relates to the
system developed by the United States
National Highway Traffic Safety
Administration which grades tires by
treadwear, traction and temperature
performance. (This applies only to
vehicles sold
in the United States.)
Treadwear
The treadwear grade is a comparative
rating based on the wear rate of the tire
when tested under controlled conditions
on a specified government test course. For
example, a tire graded
150 would wear
one and a half
(1 1/2) times as well on the
government course as a tire graded 100.
The relative performance of tires depends
upon the actual conditions of their use,
however, and may depart significantly
from the norm due to variations in driving
habits, service practices and differences
in
road characteristics and climate.
Traction - A, B, C
The traction grades, from highest to
lowest are: A,
B, and C. They represent
i the tire's ability to stop on wet pavement as measured under controlled conditions
on specified government test surfaces
of
asphalt and concrete. A tire marked
C
may have poor traction performance.
Warning: The traction grade assigned to
this tire is based on braking (straight-ahead) traction tests and does
not include cornering (turning) traction.
Temperature - A, B, C
The temperature grades are A (the
highest),
B, and C, representing the tire's
resistance to the generation of heat and its
ability
to dissipate heat when tested under
controlled conditions on a specified
indoor laboratory test wheel. Sustained
high temperature can cause the material
of the tire to degenerate and reduce tire
life, and excessive temperature can lead
to
sudden tire failure. The grade C
corresponds to a level of performance
which all passenger car tires must meet
under the Federal Motor Vehicle Safety
Standard No.
109. Grades B and A
represent higher levels of performance on
the laboratory test wheel than the minimum required by law. Warning:
The temperature grade for this
tire
is established for a tire that is properly
inflated and not overloaded. Excessive
speed, underinflation, or excessive
loading, either separately or in
combination, can cause heat buildup and
possible tire failure.
These grades are molded on the sidewalls
of passenger car tires.
While the tires available as standard or
optional equipment on General Motors
vehicles may vary with respect to these
grades, all such tires meet General Motors
performance standards and have been
approved for use on General Motors
vehicles. All passenger type
(P Metric)
tires must conform
to Federal safety
requirements in addition
to these grades.
Wheel Alignment and Tire
Balance
The wheels on your vehicle were aligned
and balanced carefully at the factory to
give you the longest tire life and best
overall performance.
ProCarManuals.com

Service & Appearance Care

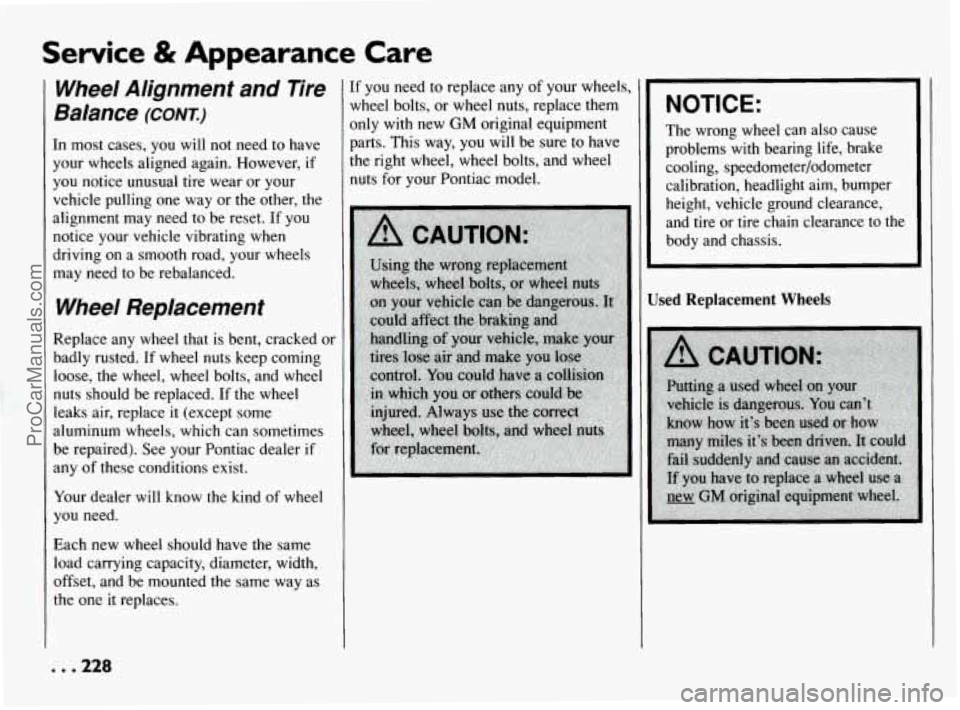

Wheel Alignment and Tire
Balance
(CONT)
In most cases, you will not need to have
your wheels aligned again. However,
if
you notice unusual tire wear or your
vehicle pulling one way or the other, the
alignment may need to be reset.
If you
notice your vehicle vibrating when
driving on
a smooth road, your wheels
may need to be rebalanced.
Wheel Replacement
Replace any wheel that is bent, cracked or
badly rusted. If wheel nuts keep coming
loose, the wheel, wheel bolts, and wheel
nuts should be replaced. If the wheel
leaks air, replace
it (except some
aluminum wheels, which can sometimes
be repaired). See your Pontiac dealer
if
any of these conditions exist.
Your dealer
will know the kind of wheel
you need.
Each new wheel should have
the same
load carrying capacity, diameter, width,
offset, and be mounted the same way as
the one it replaces.
If you need to replace any of your wheels,
wheel bolts, or wheel nuts, replace them
only
with new GM original equipment
parts. This way, you will be sure to have
the right wheel, wheel bolts, and wheel
nuts
for your Pontiac model.
NOTICE:
The wrong wheel can also cause
problems with bearing life, brake cooling, speedometer/odometer
calibration, headlight aim, bumper
height, vehicle ground clearance,
and tire or tire chain clearance to the
body and chassis.
Used Replacement Wheels
, . .228
ProCarManuals.com

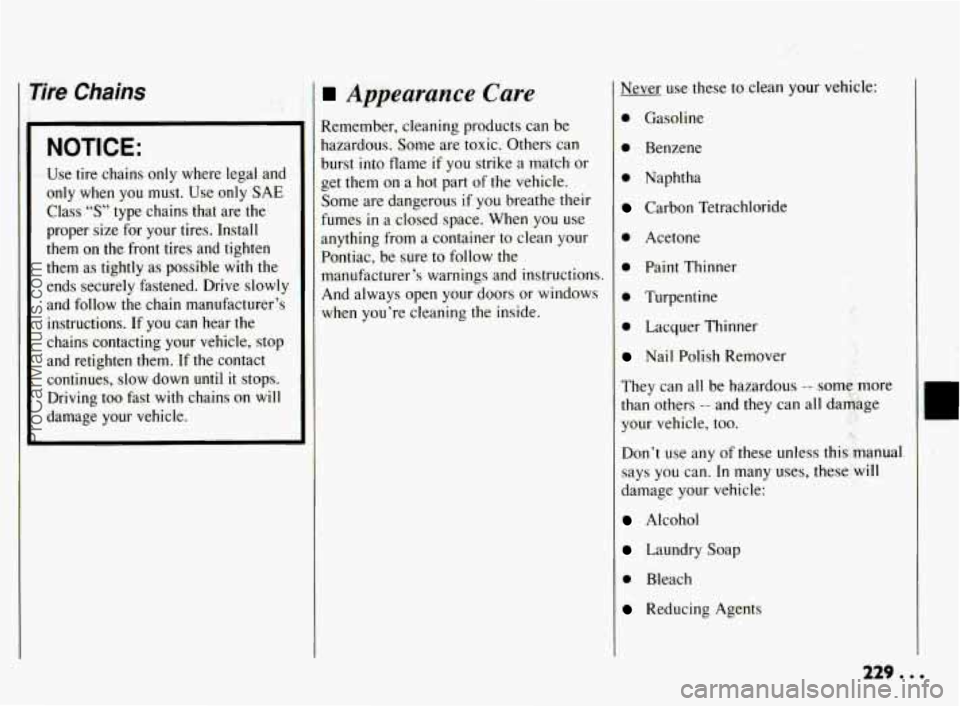

I Tire Chains
I
NOTICE:
Use tire chains only where legal and
only
when you must. Use only SAE
Class
“S” type chains that are the
proper size for your tires. Install
them on the front tires and tighten
them as tightly as possible
with the
ends securely fastened. Drive slowly
and follow the chain manufacturer’s
instructions. If you can hear
the
chains contacting your vehicle, stop
and retighten them. If the contact
continues,
slow down until it stops.
Driving too fast
with chains on will
damage your vehicle.
Appearance Care
Remember, cleaning products can be
hazardous. Some are toxic. Others can
burst into flame
if you strike a match or
get them on a hot part
of the vehicle.
Some are dangerous
if you breathe their
fumes
in a closed space. When you use
anything from a container to clean your
Pontiac, be sure to follow the
manufacturer’s warnings and instructions.
And always open your doors or windows
when you’re cleaning the inside. Never use
these to clean your vehicle:
0 Gasoline
0 Benzene
0 Naphtha
Carbon Tetrachloride
0 Acetone
0 Paint Thinner
0 Turpentine
0 Lacquer Thinner
Nail Polish Remover
They can all be hazardous
-- some more
than others
-- and they can all damage
your vehicle, too.
Don’t use any of these unless this manual
says you can. In many uses, these will
damage your vehicle:
Alcohol
Laundry Soap
0 Bleach
Reducing Agents
229 l
ProCarManuals.com
