PONTIAC BONNEVILLE 1995 Owners Manual

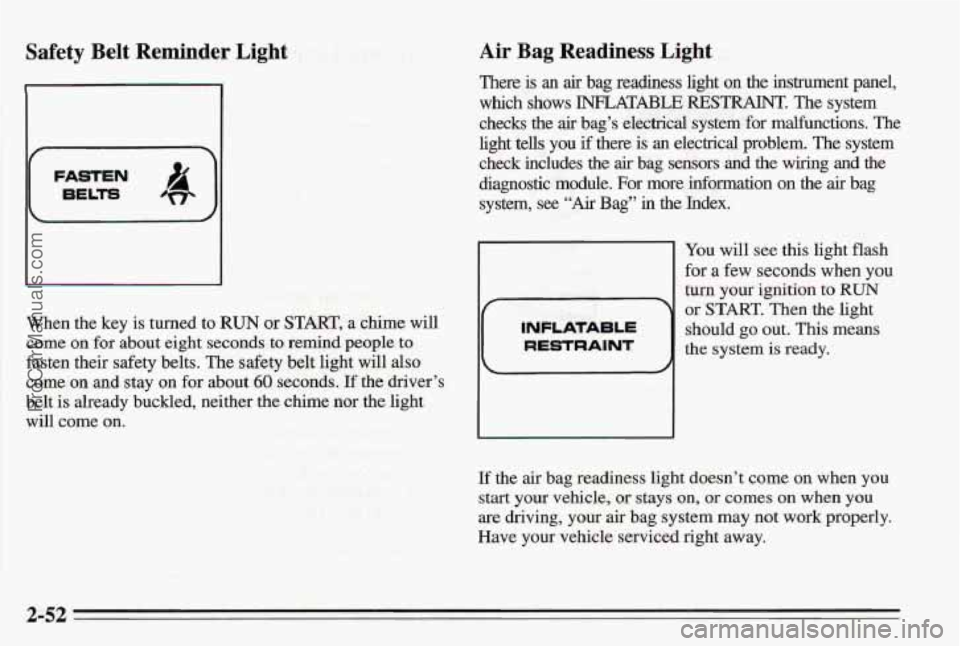

Safety Belt Reminder Light
(-iiE&=)
I I
When the key is turned to RUN or START, a chime will
come on for about eight seconds to remind people to
fasten their safety belts. The safety belt light will also
come on and stay on for about 60 seconds. If the driver’s
belt is already buckled, neither the chime nor the light
will come on.
Air Bag Readiness Light
There is an air bag re’adiness light on the instrument panel,
which shows INFLATABLE MS-. The system
checks the
air bag’s electrical system for malfunctions. The
light tells you
if there is an electrical problem. The system
check includes
the air bag sensors and the wiring and the
diagnostic module. For more information on the air bag
system,
see “Air Bag” in the Index.
You will see this light
flash
for a few seconds when you
turn your ignition to RUN
or STmT. Then the light
INFLATABLE should go out. This means
RESTRAINT the system is ready.
If the air bag readiness light doesn’t come on when you
start your vehicle, or stays on, or comes on when you
are driving, your air bag system may not work properly.
Have your vehicle serviced right away.
ProCarManuals.com

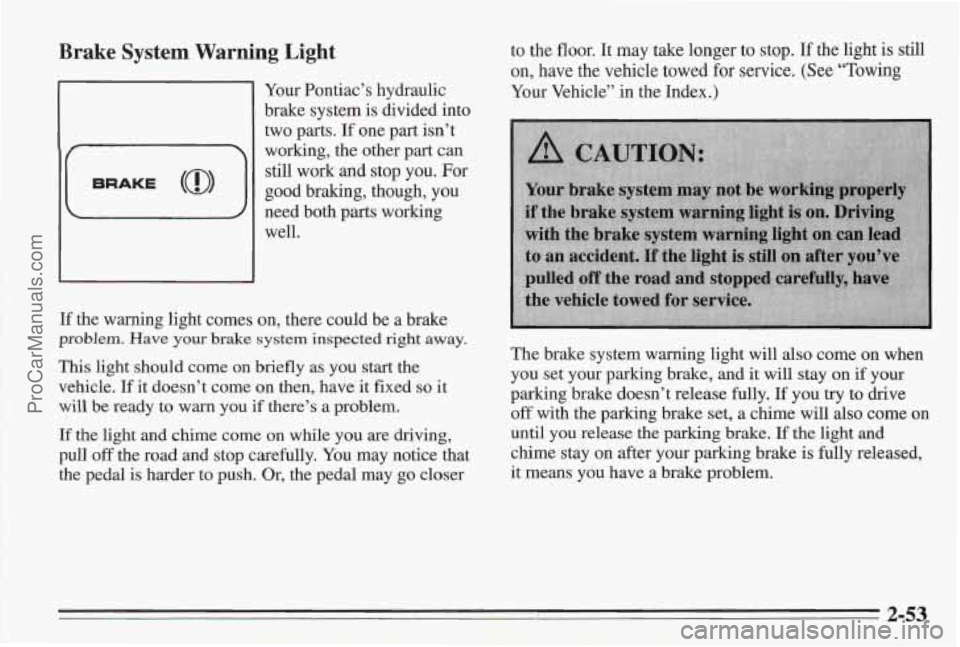

Brake System Warning Light
Your Pontiac’s hydraulic
brake system is divided into
two parts.
If one part isn’t
working, the other part can
still work and stop you.
For
good braking, though, you
need both parts working
well.
If the warning light comes on, there could be a brake
problem. Have your brake system inspected right awav.
This light should come on briefly as you start the
vehicle.
If it doesn’t come on then, have it fixed so it
will be ready to warn you if there’s a problem.
If the light and chime come on while you are driving,
pull
off the road and stop carefully. You may notice that
the pedal is harder to push. Or, the pedal may go closer to
the floor. It may take longer to stop. If the light
is still
on, have the vehicle towed for service. (See “Towing
Your Vehicle” in the Index.)
The brake system warning light will also come on when
you set your parking brake, and it will stay on if your
parking brake doesn’t release fully.
If you try to drive
off with the parking brake set, a chime will also come on
until you release the parking brake. If the light and
chime stay on after your parking brake is fully released,
it means you have a brake problem.
2-53
ProCarManuals.com

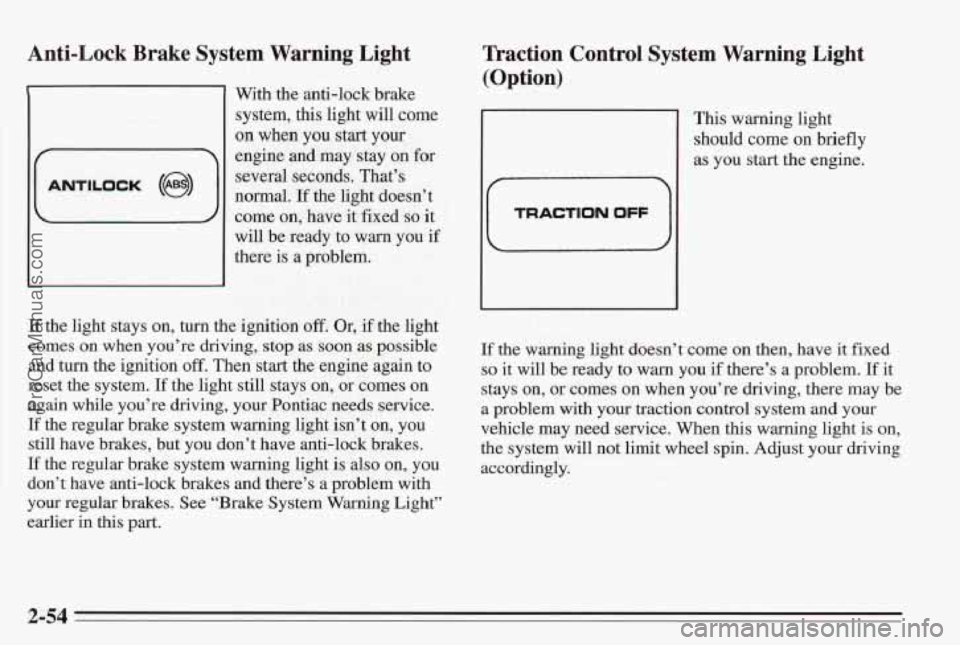

Anti-Lock Brake System Warning Light
E
ANTILOCK (@I)
With the anti-lock brake
system, this light will come
on when you start your
engine and may stay on for
several seconds. That’s
normal.
If the light doesn’t
come on, have it fixed
so it
will be ready to warn you if
there is a problem.
Traction Control System Warning Light
(Option)
This warning light
should come on briefly
as you start the engine.
r TRACTION OFF
If the light stays on, turn the ignition off. Or, if the light
comes on when you’re driving, stop
as soon as possible
and turn the ignition off. Then
start the engine again to
reset the system.
If the light still stays on, or comes on
again while you’re driving, your Pontiac needs service.
If the regular brake system warning light isn’t on, you
still have brakes, but you don’t have anti-lock brakes.
If the regular brake system warning light is also on, you
don’t have anti-lock brakes and there’s a problem with
your regular brakes. See “Brake System Warning Light”
earlier in this part.
If the warning light doesn’t come on then, have it fixed
so it will be ready to warn you if there’s a problem. If it
stays on, or comes on when you’re driving, there may be
a problem with your traction control system
and your
vehicle may need service. When this warning light is on,
the system will not limit wheel spin. Adjust your driving
accordingly.
2-54
ProCarManuals.com

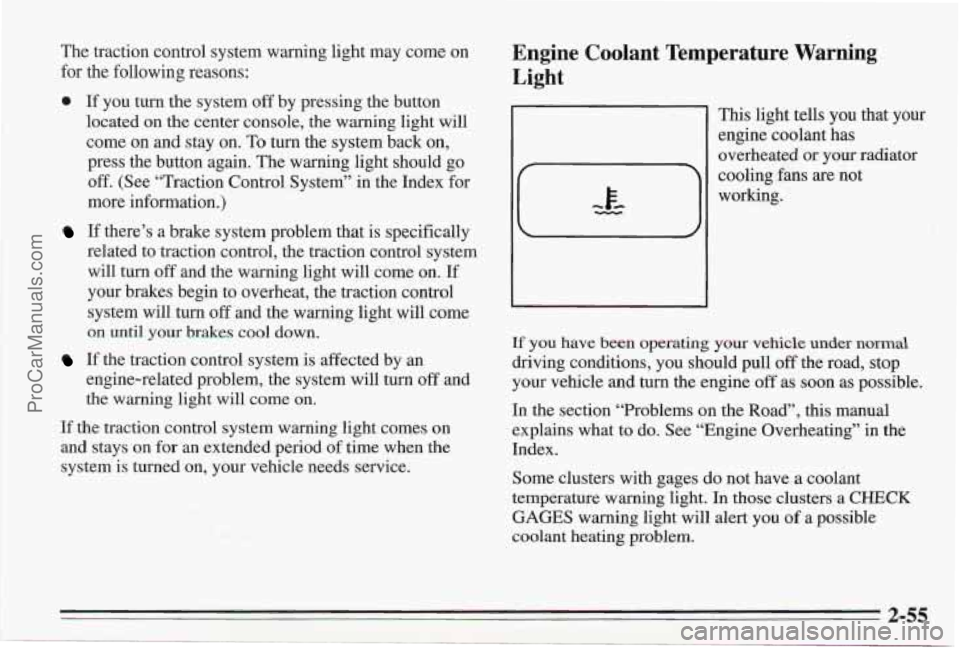

The traction control system warning light may come on
for the following reasons:
0 If you turn the system off by pressing the button
located on the center console, the warning light will
come on and stay on.
To turn the system back on,
press the button again. The warning light should go
off. (See “Traction Control System” in the Index for
more information.)
If there’s a brake system problem that is specifically
related to traction control, the traction control system
will turn off and the warning light
will come on. If
your brakes begin to overheat, the traction control
system will turn
off and the warning light will come
on until
your brakes cool down.
engine-related problem, the system will turn
off and
the warning light will come on.
If the traction control system is affected by an
If the traction control system warning light comes on
and stays on for an extended period of time when the
system is turned on, your vehicle needs service.
Engine Coolant Temperature Warning
Light
1
This light tells you that your
engine coolant has
overheated
or your radiator 4
cooling fans are not
working.
If you have been operating your vehicle under normal
driving conditions, you should pull off the road, stop
your vehicle and turn the engine
off as soon as possible.
In the section “Problems on the Road”, this manual
explains what to do. See “Engine Overheating” in the
Index.
Some clusters with gages
do not have a coolant
temperature warning light. In those clusters a
CHECK
GAGES warning light will alert you of a possible
coolant heating problem.
2-55
ProCarManuals.com

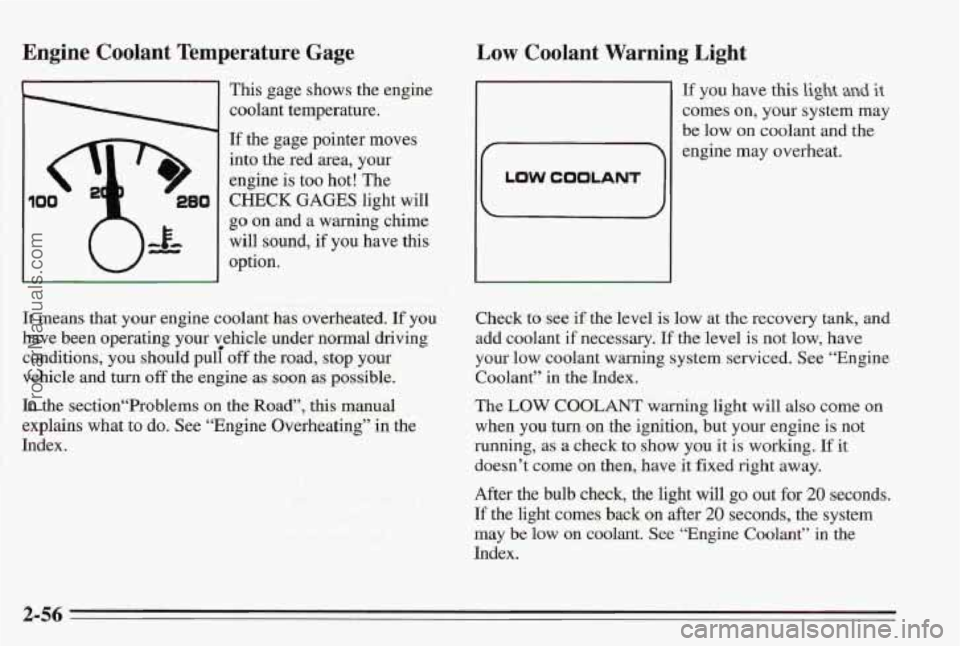

Engine Coolant Temperature Gage
This gage shows the engine
coolant temperature.
If the gage pointer moves
into the red area, your
engine
is too hot! The
CHECK GAGES light will
go on and a warning chime
will sound, if
you have this
option.
It means that your engine coolant has overheated. If you
have been operating your vehicle lander normal driving
conditions, you should puli off the road, stop you
vehicle and turn off the engine as soon as possible.
In the section“Prob1ems on the Road”, this mud
explains what to do. See “Engine Overheating” in the
-. -. . 5 . Index. .~ c.
.L -,
Low Coolant Warning Light
L
LOW COOLANT
If you have this light and it
comes on, your system may
be low on coolant and the
engine
may overheat.
Check to
see if the level is low at the recovery tank, and
add coolant if necessary.
If the level is not low, have
your low coolant warning system serviced. See “Engine
Coolant” in the
Index.
The LOW COOLANT warning light will also come on
when you turn on the ignition, but your engine is not
running, as
a check to show you it is working. If it
doesn’t come
on then, have it fixed right away.
After the
bulb check, the light will go out for 20 seconds.
If the light comes back on after 20 se’conds, the system
may be low on coolant. See “Engine Coolant”
in the
Index.
2-56
ProCarManuals.com

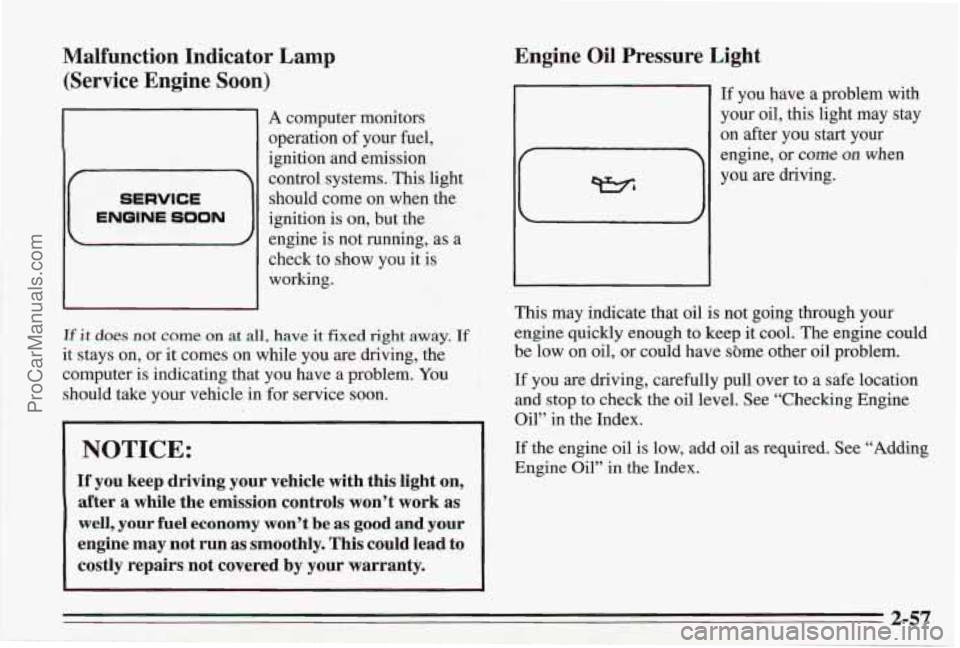

Malfunction Indicatc
(Service Engine
So01
SERVICE
ENOlNE SOON
)r Lamp
0
A computer monitors
operation
of your fuel,
ignition and emission control systems.
This light
should come on when the
ignition is on, but the
engine is not running, as a
,I I ch:;h;;.show you it is
If it does not come on at all, have it fixed right away. If
it stays on, or it comes on while you are driving, the
computer is indicating that you have a problem.
You
should take your vehicle in for service soon.
NOTICE:
If you keep driving your vehicle with this light on,
after a while the emission controls won’t work as
well, your fuel economy won’t be as good and your
engine may not run as smoothly. This could lead to
costly repairs not covered by
your warranty.
Engine Oil Pressure Light
If you have a problem with
your oil, this light may stay
on after you start your
engine,
or come on when
you are driving.
I-)
This may indicate that oil is not going through your
engine quickly enough to keep it cool. The engine could
be low on oil, or could have sbme other oil problem.
If you
are driving, carefully pull over to a safe location
and stop to check the oil level. See “Checking Engine
Oil” in the Index.
If the engine
oil is low, add oil as required. See “Adding
Engine Oil”
in the Index.
2-57
ProCarManuals.com

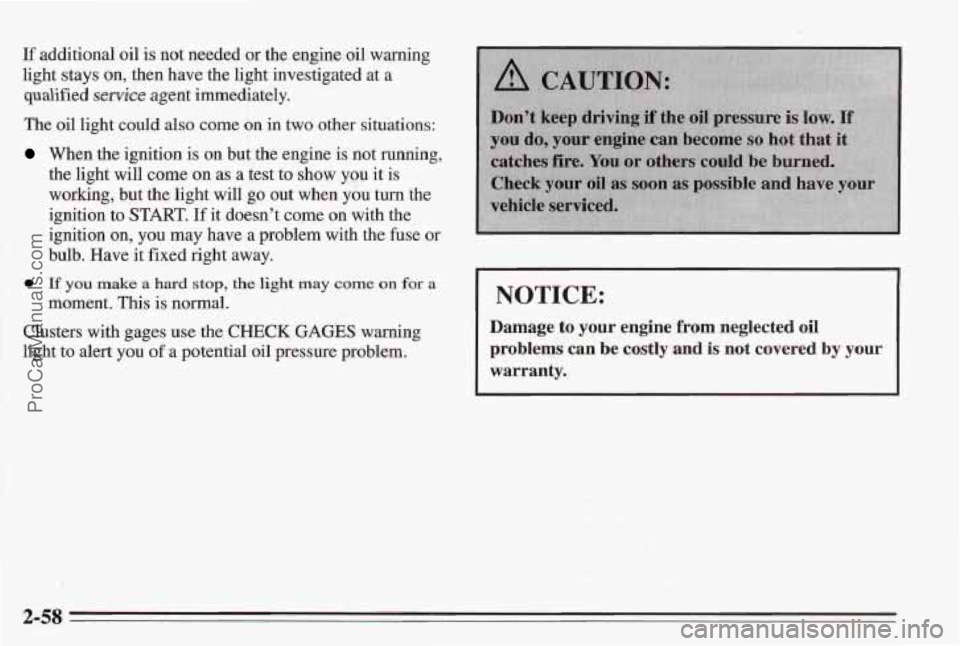

If additional oil is not needed or the engine oil warning
light stays
on, then have the light investigated at a
qualified
service agent immediately.
The oil light could also come
on in two other situations:
When the ignition is on but the engine is not running,
the light will come on as a test to show you it is
working, but the light will go out when you
turn the
ignition to
START. If it doesn’t come on with the
ignition
on, you may have a problem with the fuse or
bulb. Have it fixed right away.
moment.
This is normal.
0 If you make a hard stop, the light may come on for a
Clusters with gages use the CHECK GAGES warning
! light to alert you of a potential oil pressure problem.
.. ! ri ,i i. , ;; . ,I I, . 8. . % , 8. I. .
1 NOTICE:
Damage to your engine from neglected oil
problems can
be costly and is not covered by your
warranty.
2-58
ProCarManuals.com

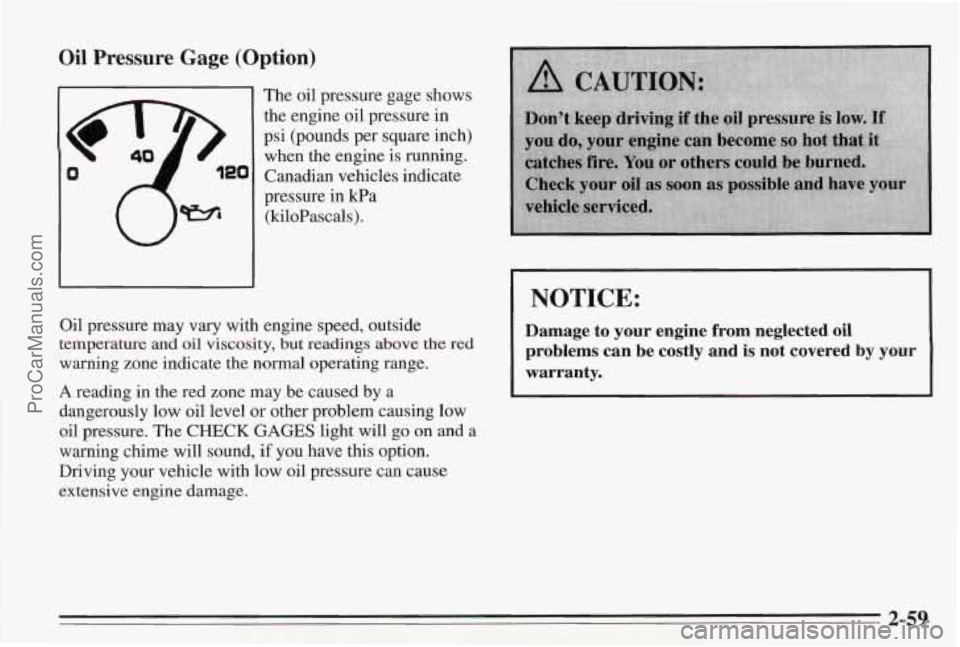

Oil Pressure Gage (Option)
The oil pressure gage shows
the engine
oil pressure in
psi (pounds per square inch)
when the engine is running.
Canadian vehicles indicate
pressure in Ea
(kiloPascals).
NOTICE:
Oil pressure may vary with engine speed, outside
temperature and oil viscosity,
but readings above the red
warning zone indicate the normal operating range.
A reading in the red zone may be caused by a
dangerously
low oil level or other problem causing low
oil pressure. The
CHECK GAGES light will go on and a
warning chime will sound, if you have this option.
Driving your vehicle with low oil pressure can cause
extensive engine damage.
Damage to your engine from neglected oil
problems can be costly and is not covered by your
warranty.
2-59
ProCarManuals.com

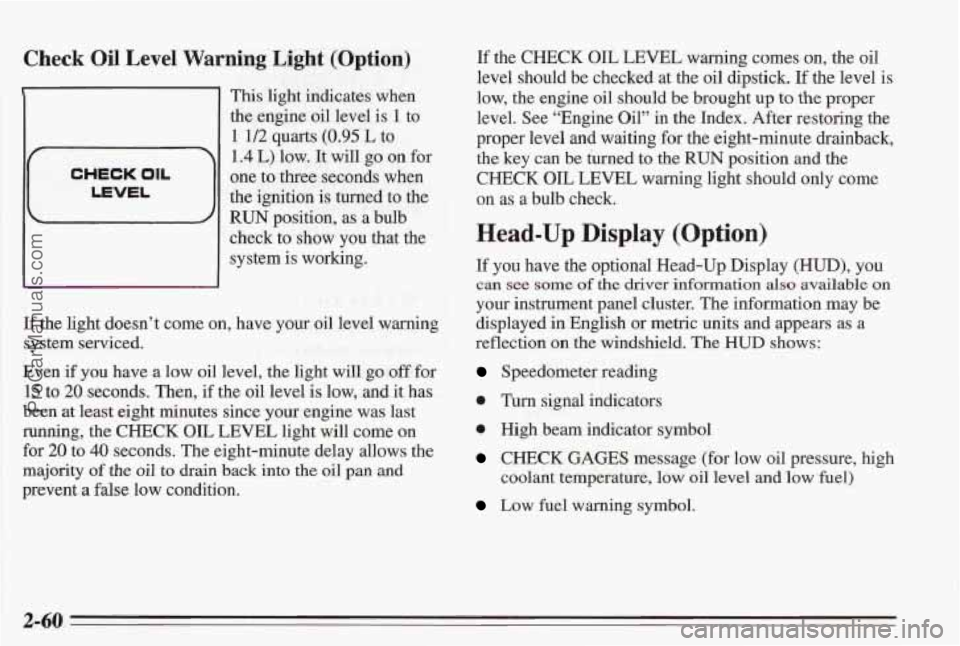

Check Oil Level Warning Light (Option)
1
CHECK OIL
LEVEL
1 This light indicates when
the engine oil level is
1 to
1 1/2 quarts (0.95 L to
1.4 L) low. It will go on for
one to three seconds when
the ignition is turned to the
RUN position, as a bulb
check to show
you that the
system is working.
If the light doesn’t come on, have your oil level warning
system serviced.
Even if
you have a low oil level, the light will go off for
15 to 20 seconds. Then, if the oil level is low, and it has
been at least eight minutes since your engine was last
running, the CHECK OIL LEVEL light will come on
for 20 to
40 seconds. The eight-minute delay allows the
majority of the
oil to drain back into the oil pan and
prevent
a false low condition. If the
CHECK OIL LEVEL
warning comes on, the oil
level should be checked at the oil dipstick. If the level is
low, the engine oil should be brought up
to the proper
level. See “Engine Oil” in the Index. After restoring the
proper level and
waiting for the eight-minute drainback,
the key can be turned to the
RUN position and the
CHECK OIL LEVEL warning light should only come
on
as a bulb check.
Head-Up Display (Option)
If you have the optional Head-Up Display (HUD), you
can see some of the driver information also available on
your instrument panel cluster. The information may be
displayed in English or metric units and appears as
a
reflection on the windshield. The HUD shows:
Speedometer reading
0 Turn signal indicators
e High beam indicator symbol
CHECK GAGES message (for low oil pressure, high
coolant temperature, low oil level and
low fuel)
Low fuel warning symbol.
2-60
ProCarManuals.com

Q
i
CHECKGAGES

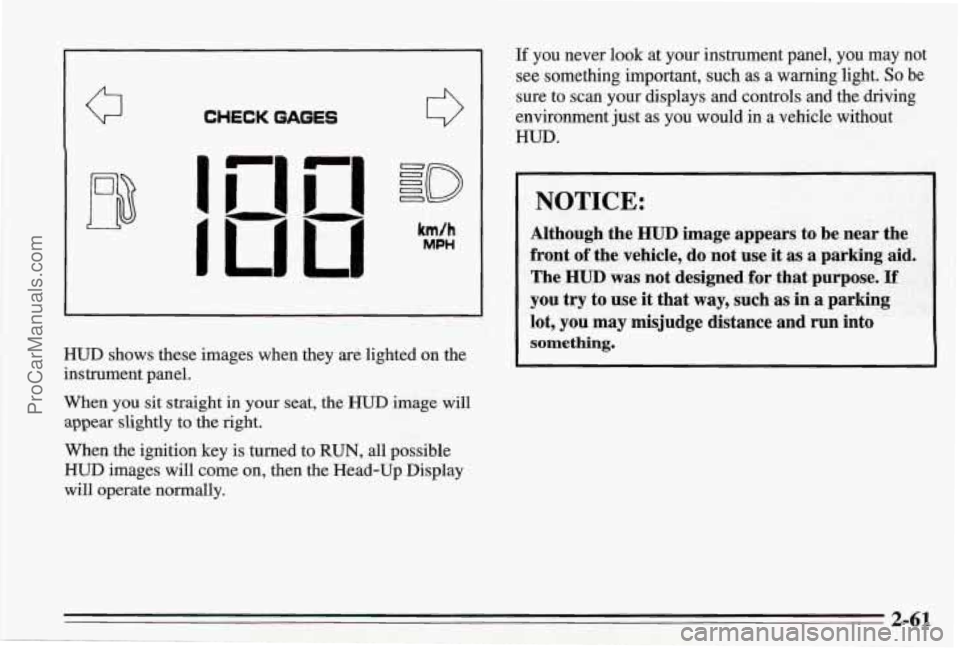

HUD shows these images when they are lighted on the
instrument panel.
When you sit straight in your seat, the
HUD image will
appear slightly to the right.
When the ignition key is turned to RUN, all possible
HUD images will come on, then the Head-Up Display
will operate normally.
If you never look at your instrument panel, you may not
see something important, such as a warning light. So be
sure to scan your displays and controls and the driving
environment just
as you would in a vehicle without
HUD.
NOTICE:
Although the HUD image appears to be near the
front
of the vehicle, do not use it as a parking aid.
The
HUD was not designed for that purpose. If
you try to use it that way, such as in a parking
lot, you may misjudge distance and run into
something.
2-61
ProCarManuals.com
