PONTIAC BONNEVILLE 1997 Owners Manual
Manufacturer: PONTIAC, Model Year: 1997, Model line: BONNEVILLE, Model: PONTIAC BONNEVILLE 1997Pages: 405, PDF Size: 18.83 MB
Page 111 of 405

Instrument Panel
2-58
ProCarManuals.com
Page 112 of 405

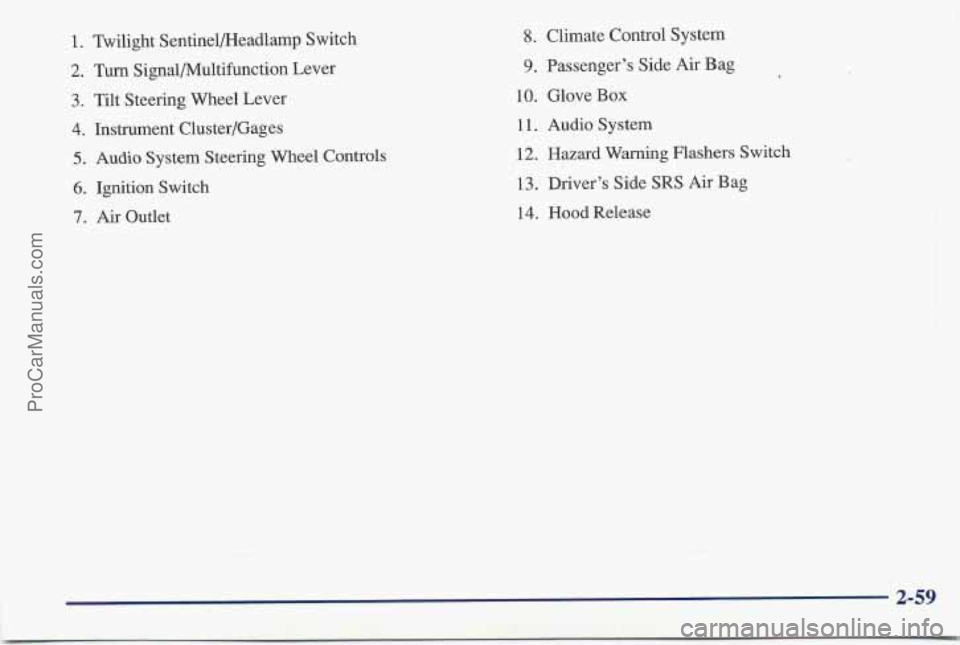

1. Twilight Sentinel/Headlamp Switch
2. Turn Signal/Multifunction Lever
3. Tilt Steering Wheel Lever
4. Instrument Cluster/Gages
5. Audio System Steering Wheel Controls
6. Ignition Switch
7. Air Outlet
8. Climate Control System
9. Passenger’s Side Air Bag
10. Glove Box
11. Audio System
12. Hazard Warning Flashers Switch
13. Driver’s Side SRS Air Bag
14. Hood Release
2-59
ProCarManuals.com
Page 113 of 405

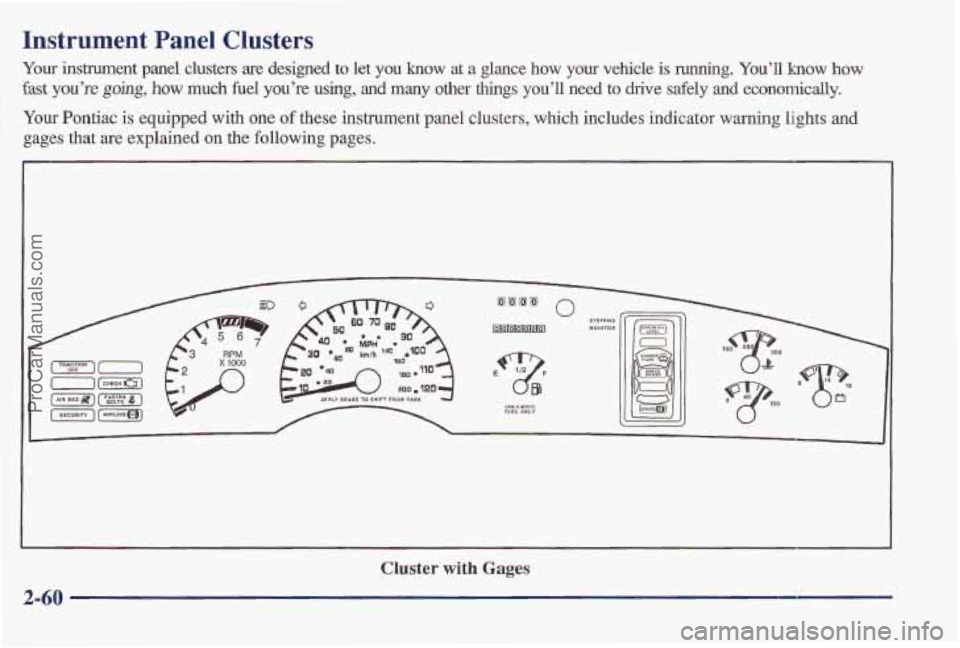

Instrument Panel Clusters
Your instrument panel clusters are designed to let you know at a glance how your vehide is running. You’ll know how
fast you’re going, how much fuel you’re using, and many other things you’ll need to drive safely and economically.
Your Pontiac is equipped with one of these instrument panel clusters, which includes indicator warning lights and -
gages that are explained on the following pages.
--
I ~~~~~~
~ -- -
FUEL ONLY UNLEADED
2-60
ProCarManuals.com
Page 114 of 405

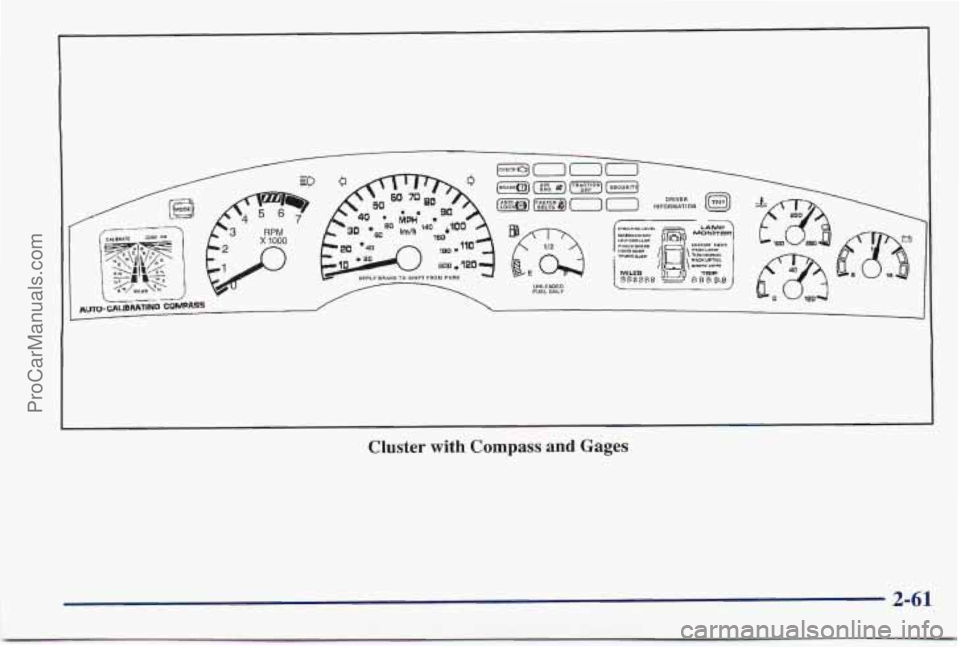

Cluster with Compass and Gages
ProCarManuals.com
Page 115 of 405

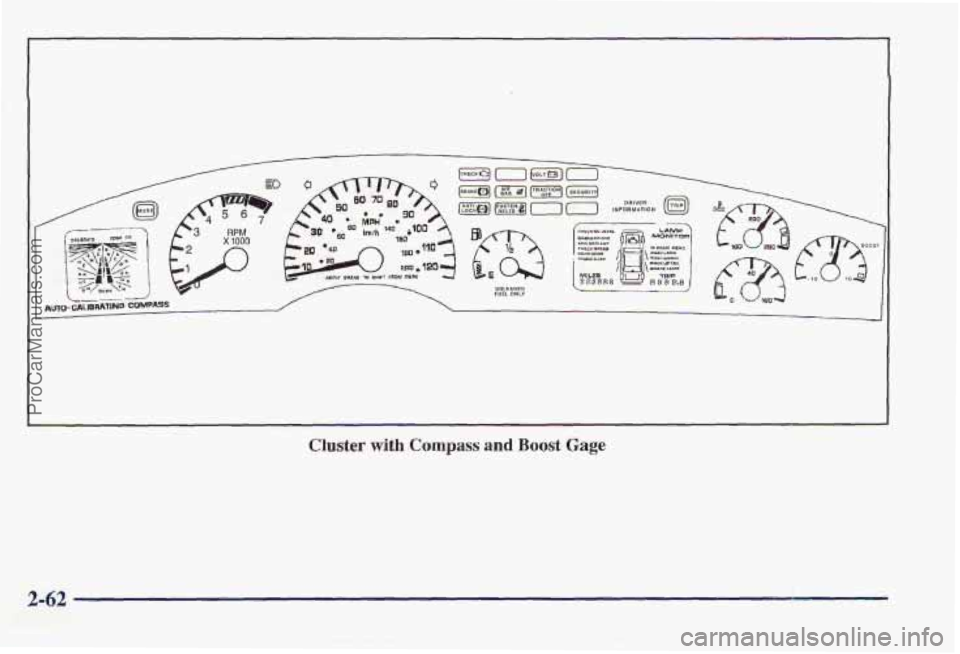

Cluster with Compass and Boost Gage
2-62
ProCarManuals.com
Page 116 of 405

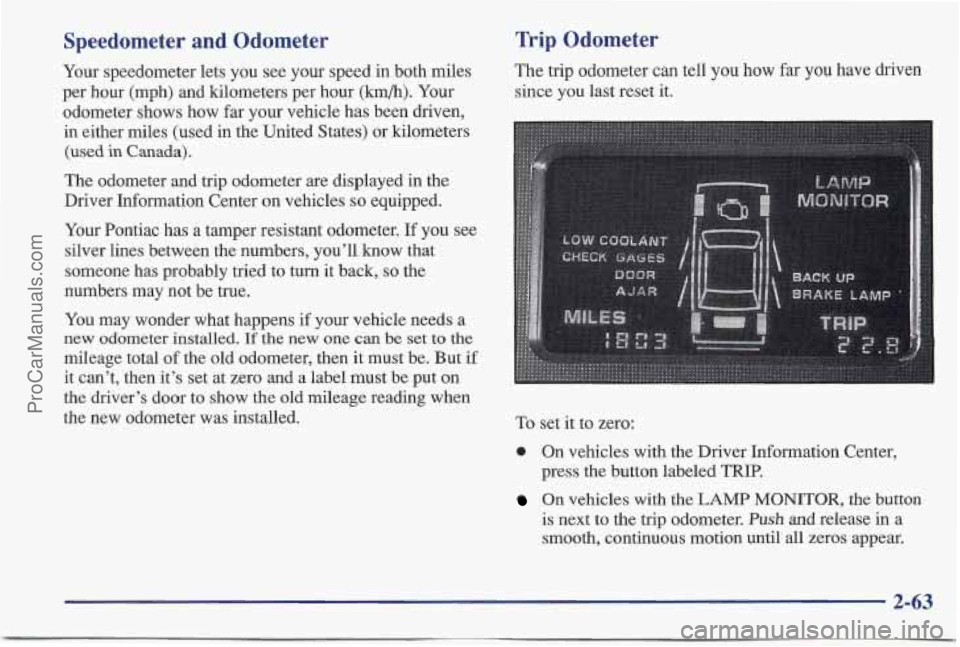

Speedometer and Odometer
Your speedometer lets you see your speed in both miles
per hour (mph) and kilometers per hour
(km/h). Your
odometer shows how far your vehicle has been driven,
in either miles (used in the United States) or kilometers
(used
in Canada).
The odometer and trip Odometer are displayed
in the
Driver Information Center on vehicles
so equipped.
Your Pontiac has a tamper resistant odometer. If you see
silver lines between the numbers, you’ll
know that
someone has probably tried to turn it back,
so the
numbers may not be true.
You may wonder what happens
if your vehicle needs a
new odometer installed.
If the new one can be set to the
mileage total of the old odometer, then it must be. But if
it can’t, then it’s set at zero and
a label must be put on
the driver’s door to show the old mileage reading when
the new odometer was installed.
Trip Odometer
The trip odometer can tell you how far you have driven
since you last reset it.
To set it to zero:
0 On vehicles with the Driver Information Center,
press the button labeled
TRIP.
On vehicles with the LAMP MONITOR, the button
is next to the trip odometer.
Push and release in a
smooth, continuous motion until all zeros appear.
2-63
ProCarManuals.com
Page 117 of 405

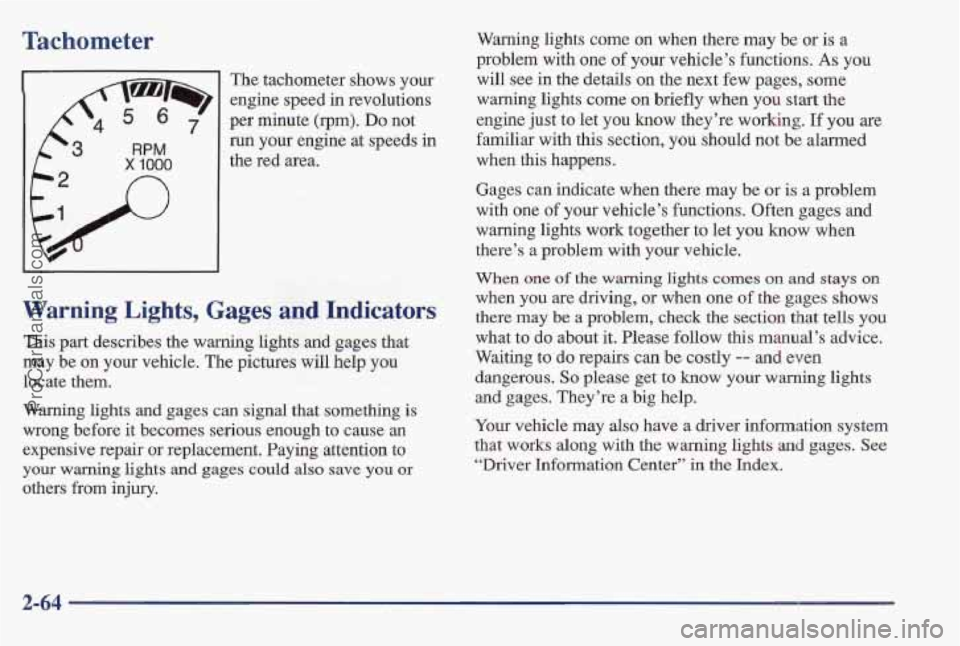

Tachometer
The tachometer shows your
engine speed in revolutions
per minute (rpm).
Do not
run your engine at speeds in
the red area.
Warning Lights, Gages and Indicators
This part describes the warning lights and gages that
may b’e on your vehicle.
The pictures will help you
locate them.
Warning lights and gages can signal that something
is
wrong before it becomes serious enough to cause an
expensive repair
or replacement. Paying attention to
your warning lights and gages could also save you or
others from injury.
Warning lights come on when there may be or is a
problem with one of your vehicle’s functions.
As you
will see in the details on the next few pages, some
warning lights
come on briefly when you start the
engine just to let you know they’re working.
If you are
familiar with this section, you should not be alarmed
when this happens.
Gages can indicate when there may be or
is a problem
with one
of your vehicle’s functions. Often gages and
warning lights work together to let you know when
there’s a problem with your vehicle.
When one of the warning lights comes on and stays on
when you are driving, or when one of the gages shows
there may be a problem, check the section that tells you
what to
do about it. Please follow this manual’s advice.
Waiting to do repairs can be costly
-- and even
dangerous.
So please get to know your warning lights
and gages. They’re a big help.
Your vehicle may also have a driver information system
that works
along with the warning lights and gages. See
“Driver Information Center” in the Index.
2-64
ProCarManuals.com

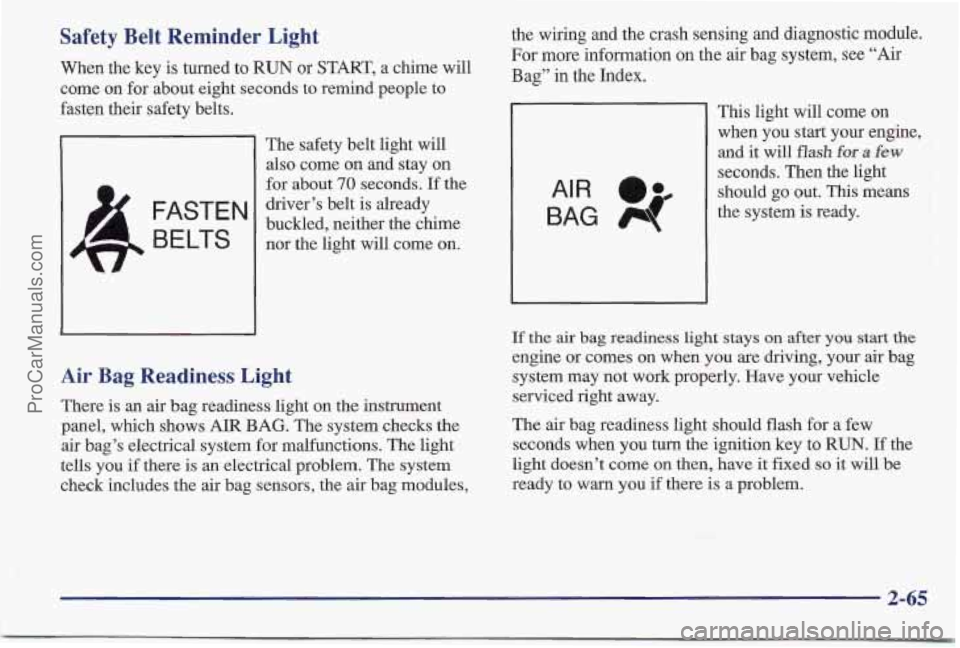

Page 118 of 405

Safety Belt Reminder Light
When the key is turned to RUN or START, a chime will
come on for about eight seconds to remind people to
fasten their safety belts.
The safety belt light will
also come on and stay on
for about
70 seconds. If the
driver’s belt is already
buckled, neither the chime
B E LTS nor the light will come on.
FASTEN
Air Bag Readiness Light
There is an air bag readiness light on the instrument
panel, which shows AIR
BAG. The system checks the
air bag’s electrical system for malfunctions. The light
tells you
if there is an electrical problem. The system
check includes the air bag sensors, the air bag modules, the
wiring and the crash sensing and diagnostic module.
For more information on the air bag system, see “Air
Bag” in the Index.
This light will come on when you start your engine,
and
it will flash for a few
seconds. Then the light
should go out. This means
the system
is ready.
If the air bag readiness light stays on after you start the
engine or comes on when you are driving, your air bag
system may not work properly. Have your vehicle
serviced right away.
The air bag readiness light should flash for a few
seconds when you turn the ignition key to RUN.
If the
light doesn’t
come on then, have it fixed so it will be
ready to warn you
if there is a problem.
2-65
ProCarManuals.com
Page 119 of 405

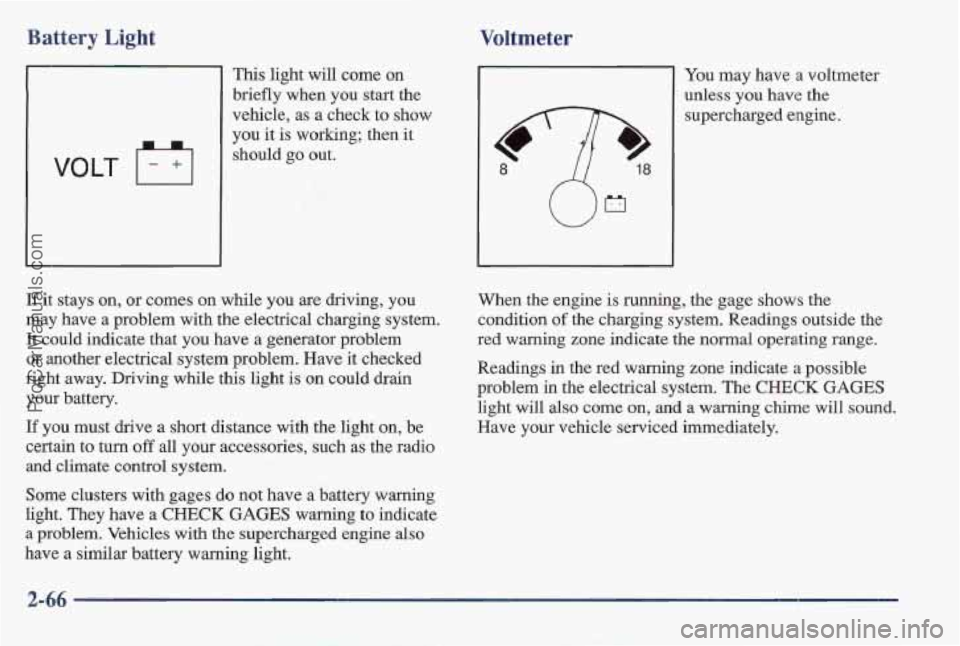

Battery Light Voltmeter
VOLT
This light will come on
briefly when you start the
vehicle, as a check to show
you it is working; then it
should go out.
You may have a voltmeter
unless you have the
supercharged engine.
If it stays on, OF comes on while you are driving, you
may have a problem with the electrical charging system.
It could indicate that you have a generator problem
or another electrical system problem. Have it checked
right away. Driving while this light is
on could drain
your battery.
If you must drive a short distance with the light on, be
certain to turn
off all your accessories, such as the radio
and climate control system.
Some clusters with gages do not have a battery warning
light. They have a
CHECK GAGES warning to indi'cate
a problem. Vehicles with th'e supercharged engine also
have
a simil'ar battery warning light. When the engine
is running, the
gage shows the
condition
of the charging system. Readings outside the
red warning zone indicate the normal operating range.
geadings
in the red warning zone Indicate a possible
problem
in the electrical system. The CHECK GAGES
light will also come on, and a warning chime will sound.
Have your vehicle serviced immediately.
2-66
ProCarManuals.com
Page 120 of 405

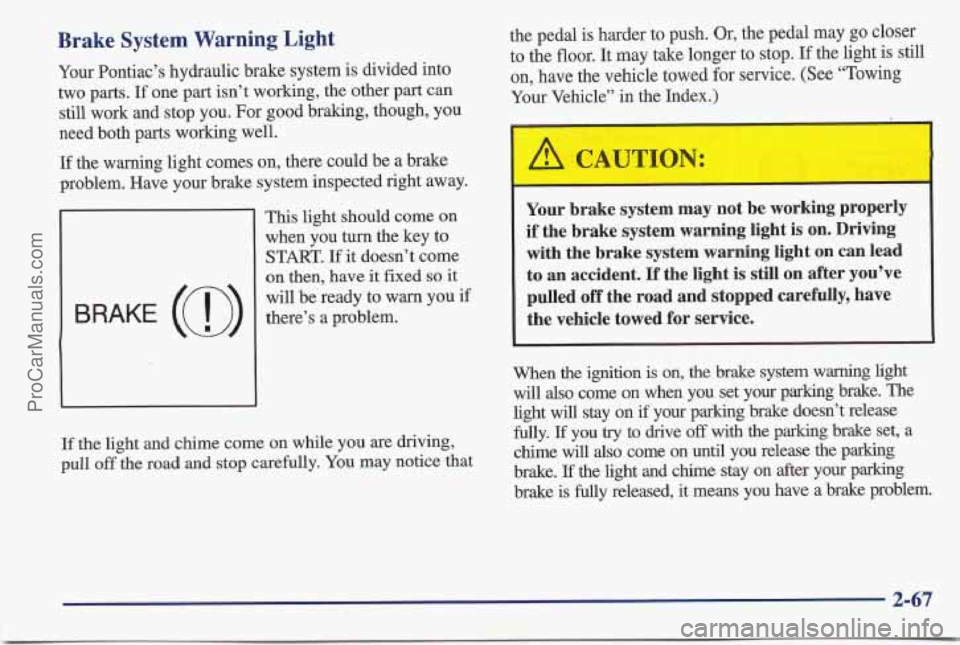

Brake System Warning Light
Your Pontiac’s hydraulic brake system is divided into
two parts.
If one part isn’t working, the other part can
still work and stop you. For good braking, though, you
need both parts working well.
If the warning light comes on, there could be a brake
problem. Have your brake system inspected right away.
BRAKE (a)
This light should come on
when you turn the key to
START. If it doesn’t come
on then, have
it fixed so it
will be ready to warn you
if
there’s a problem.
If the light and chime come on while you are driving,
pull
off the road and stop carefully. You may notice that the pedal
is harder to push. Or, the pedal may
go closer
to the floor. It may take longer to stop.
If the light is still
on, have the vehicle towed for service. (See “Towing
Your Vehicle” in the Index.)
Your brake system may not be working properly
if the brake system warning light is
on. Driving
with the brake system warning light on can lead to an accident. If the light is still
on after you’ve
pulled off the road and stopp,ed carefully, have
the vehicle towed for service.
When the ignition is on, the brake system warning light
will also come on when you set your parking brake. The
light will stay on
if your parking brake doesn’t release
fully.
If you try to drive off with the parking brake set, a
chime will
also come on until you release the parking
brake.
If the light and chime stay on after your parking
brake is fully released, it means
you have a brake problem.
2-67
