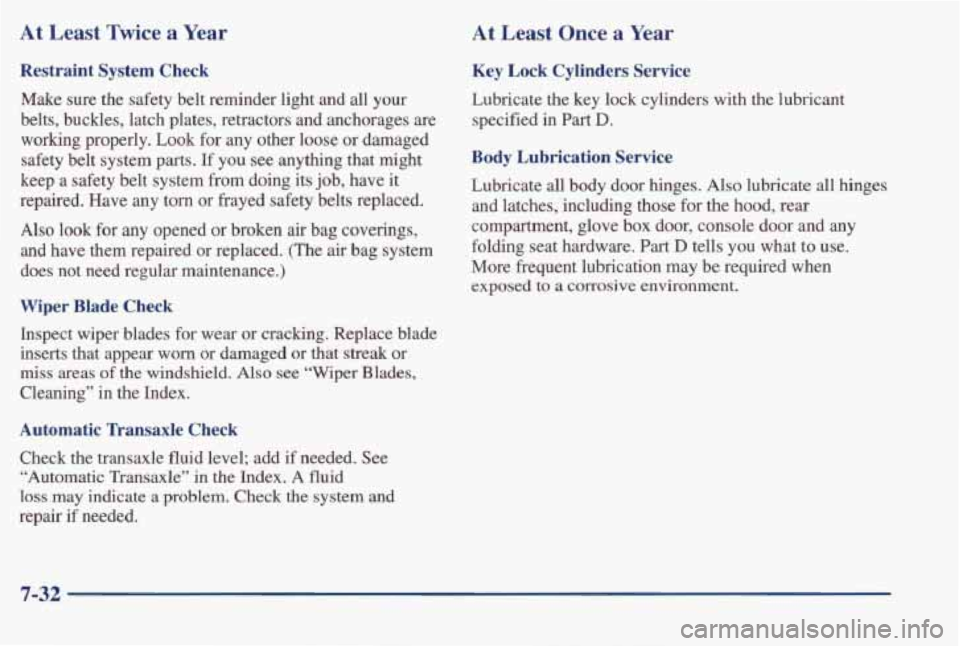

Page 351 of 395

At Least Twice a Year At Least Once a Year
Restraint System Check
Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages are working properly.
Look for any other loose or damaged
safety belt system parts. If you see anything that might
keep a safety belt system from doing its job, have it
repaired. Have any torn or frayed safety belts replaced.
Also look for any opened or broken air bag coverings,
and have them repaired or replaced. (The air bag system
does not need regular maintenance.)
Wiper Blade Check
Inspect wiper blades for wear or cracking. Replace blade
inserts that appear worn or damaged or that streak or
miss areas of the windshield. Also see “Wiper Blades,
Cleaning’’ in the Index.
Automatic Transaxle Check
Check the transaxle fluid level; add if needed. See “Automatic Transaxle”
in the Index. A fluid
loss may indicate
a problem. Check the system and
repair if needed.
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specified in
Part D.
Body Lubrication Service
Lubricate all body door hinges. Also lubricate all hinges
and latches, including those for the hood,
rear
compartment, glove box door, console door and any
folding seat hardware.
Part D tells you what to use.
More frequent lubrication may be required when
exposed
to a corrosive environment.
7-32
Page 352 of 395

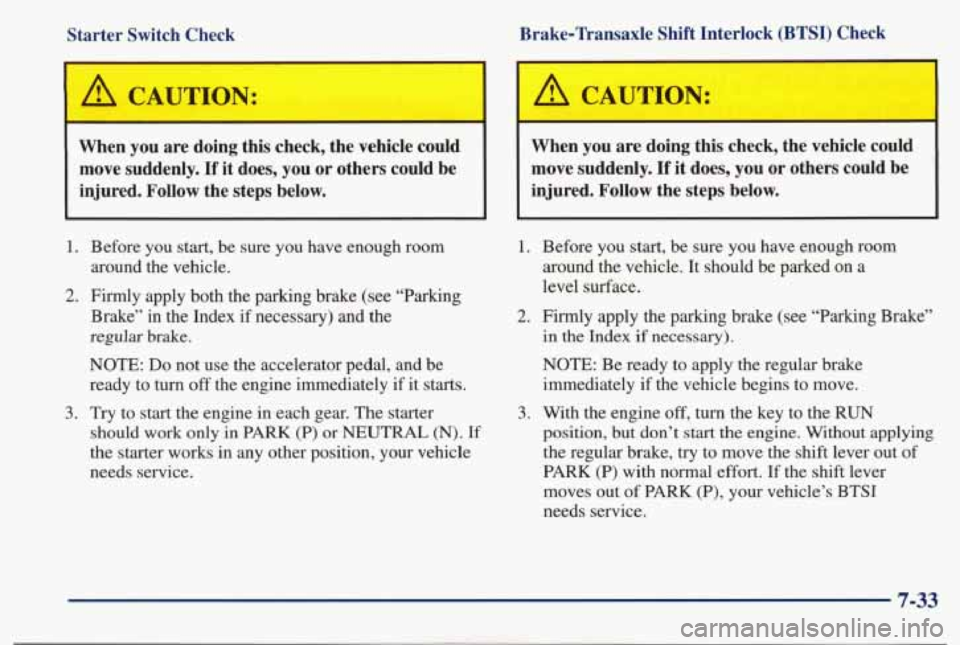

Starter Switch Check
A CAUTION:
When you are doing this check, the vehicle could move suddenly.
If it does, you or others could be
injured. Follow the steps below. Brake-Transaxle Shift Interlock
(BTSI) Check
1. Before you start, be sure you have enough room
2. Firmly apply both
the parking brake (see “Parking
around the vehicle.
Brake” in the Index if necessary) and the
regular brake.
NOTE: Do not use the accelerator pedal, and be
ready to turn
off the engine immediately if it starts.
should work only in
PARK (P) or NEUTRAL (N). If
the starter works in any other position, your vehicle
needs service.
3. Try to start the engine in each gear. The starter
I A CAUTION:
When you are doing this check, the vehicle could
move suddenly. If it does, you
or others could be
injured. Follow the steps below.
1. Before you start, be sure you have enough room around the vehicle. It should be parked on
a
level surface.
2. Firmly apply the parking brake (see “Parking Brake”
in the Index if necessary).
NOTE: Be ready to apply the regular brake
immediately if the vehicle begins to move.
3. With the engine off, turn the key to the RUN
position, but don’t start the engine. Without applying
the regular brake,
try to move the shift lever out of
PARK
(P) with normal effort. If the shift lever
moves out
of PARK (P), your vehicle’s BTSI
needs service.
7-33
Page 353 of 395

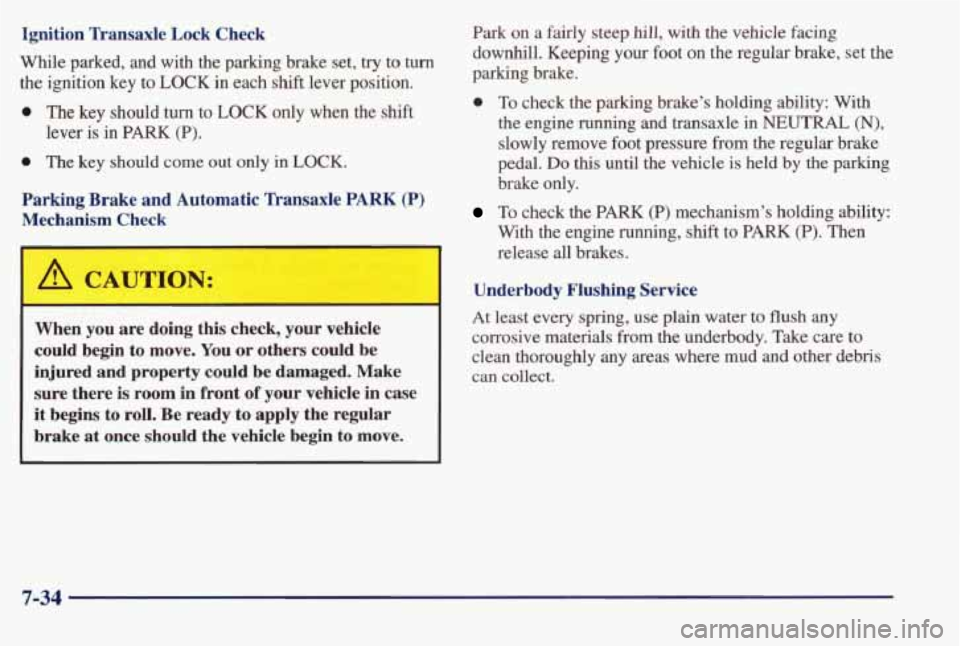

Ignition Transaxle Lock Check
While parked, and with the parking brake set, try to turn
the ignition key to LOCK in each shift lever position.
0 The key should turn to LOCK only when the shift
lever is in PARK (P).
0 The key should come out only in LOCK.
Parking Brake and Automatic Transaxle PARK (P)
Mechanism Check
1 A CAUTION:
When you are doing this check, your vehicle
could begin to move. You or others could
be
injured and property could be damaged. Make
l sure there is room in front of your vehicle in case
it begins to roll. Be ready to apply the regular
brake at once should the vehicle begin to move.
Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot
on the regular brake, set the
parking brake.
0 To check the parking brake’s holding ability: With
the engine running and transaxle in
NEUTRAL (N),
slowly remove foot pressure from the regular brake
pedal.
Do this until the vehicle is held by the parking
brake only.
To check the PARK (P) mechanism’s holding ability:
With the engine running, shift to
PARK (P). Then
release all brakes.
Underbody Flushing Service
At least every spring, use plain water to flush any
corrosive materials
from the underbody. Take care to
clean thoroughly
any areas where mud and other debris
can
collect.
7-34
Page 354 of 395

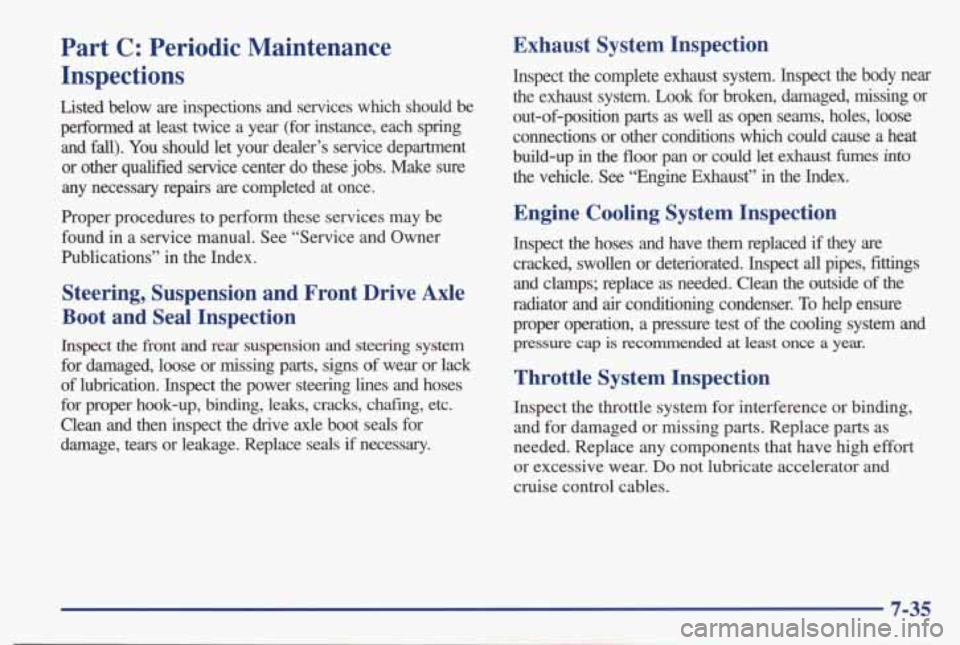

Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should be
performed at least twice a year (for instance, each spring
and fall). You should let your dealer’s service department
or other qualified service center do these jobs. Make
sure
any necessary repairs are completed at once.
Proper procedures to perform these services may be
found
in a service manual. See “Service and Owner
Publications” in the Index.
Steering, Suspension and Front Drive Axle
Boot and Seal Inspection
Inspect the front and rear suspension and steering system
for damaged, loose or missing parts, signs of wear or lack
of lubrication. Inspect the power steering lines and hoses
for proper hook-up, binding, leaks,
cracks, chafing, etc.
Clean and then inspect the drive axle boot seals for
damage, tears or leakage. Replace seals
if necessary.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body near
the exhaust system. Look for broken, damaged,
missing or
out-of-position parts
as well as open seams, holes, loose
connections or other conditions which could cause a
heat
build-up in the floor pan or could let exhaust fumes intw
the vehicle. See “Engine Exhaust” in the Index.
Engine Cooling System Inspection
Inspect the hoses and have them replaced if they are
cracked, swollen or deteriorated. Inspect all pipes, fittings
and clamps; replace as needed. Clean the outside of the
radiator and
air conditioning condenser. To help ensure
proper operation, a pressure test of the cooling system and
pressure cap is recommended at least once a year.
Throttle System Inspection
Inspect the throttle system for interference or binding,
and for damaged or missing
parts. Replace parts as
needed. Replace any components that have high effort
or excessive wear.
Do not lubricate accelerator and
cruise control cables.
7-35
Page 355 of 395

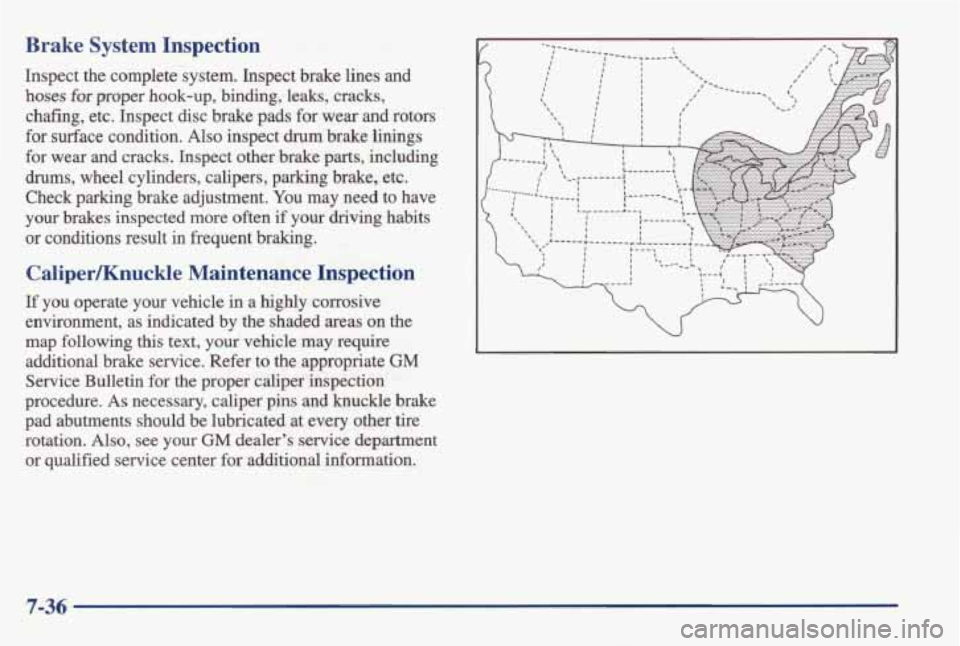

Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads
for wear and rotors
for surface condition.
Also inspect drum brake linings
for wear and cracks. Inspect other brake parts, including
drums, wheel cylinders, calipers, parking brake, etc.
Check parking brake adjustment. You may need to have
your brakes inspected more often if your driving habits
or conditions result in frequent braking.
CaliperKnuckle Maintenance Inspection
If you operate your vehicle in a highly corrosive
environment, as indicated by the shaded areas on the
map following
this text, your vehicle may require
additional brake service. Refer to the appropriate
GM
Service Bulletin for the proper caliper inspection
procedure.
As necessary, caliper pins and knuckle brake
pad abutments should be lubricated at every other tire
rotation.
Also, see your GM dealer’s service department
or qualified service center for additional information.
7-36
Page 356 of 395

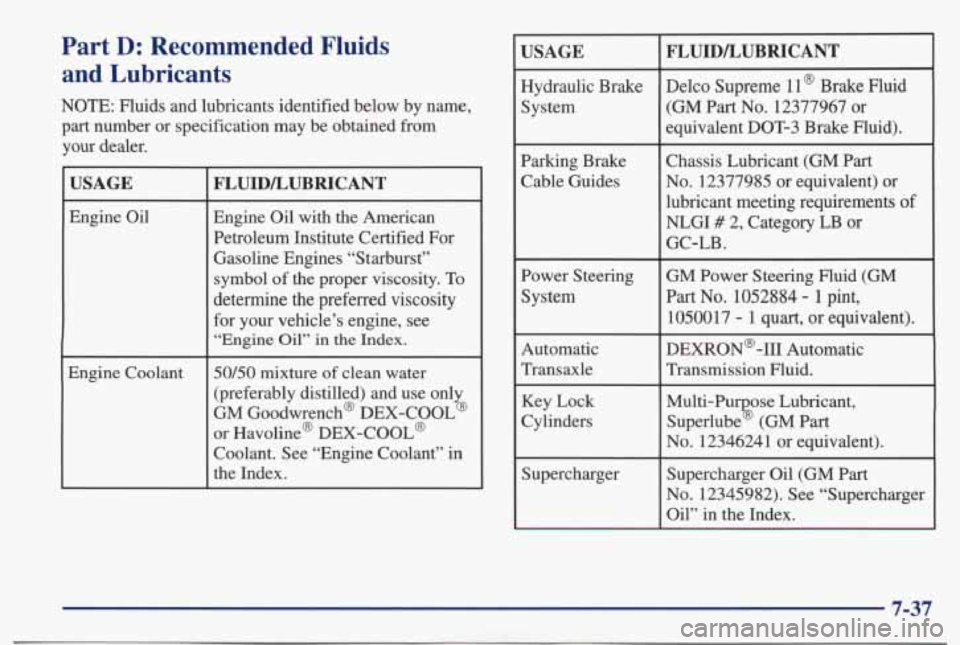

Part D: Recommended Fluids
and Lubricants
NOTE: Fluids and lubricants identified below by name,
part number or specification may be obtained from
your dealer.
USAGE
Engine Oil
Engine Coolant
FLUID/LUBRICANT
Engine Oil with the American
1 Petroleum Institute Certified For
Gasoline Engines “Starburst”
symbol of the proper viscosity. To
determine the preferred viscosity
for your vehicle’s engine, see
~ “Engine Oil” in the Index.
50/50 mixture of clean water
(preferably distilled) and use only
GM Goodwrench@ DEX-COOL@
or Hwoline@ DEX-COOL@
Coolant. See “Engine Coolant” in
1 the Index.
USAGE
Hydraulic Brake
System
Parking Brake Cable Guides
Power Steering
System
Automatic
Transaxle
~ ~ ~~
Key Lock
Cylinders
Supercharger
FLUIDLUBRICANT
Delco Supreme 11 @ Brake Fluid
(GM Part No. 12377967 or
equivalent
DOT-3 Brake Fluid).
Chassis Lubricant (GM
Part
No. 12377985 or equivalent) or
lubricant meeting requirements of
NLGI
# 2, Category LB or
GC-LB.
GM Power Steering Fluid (GM
Part No. 1052884 - 1 pint,
1050017 - 1 quart, or equivalent).
DEXRON@-III Automatic
Transmission Fluid.
Multi-Pu ose Lubricant,
Superlube
% (GM Part
No. 12346241 or equivalent).
Supercharger Oil (GM Part
No. 12345982). See “Supercharger
Oil” in the Index.
7-37
Page 357 of 395

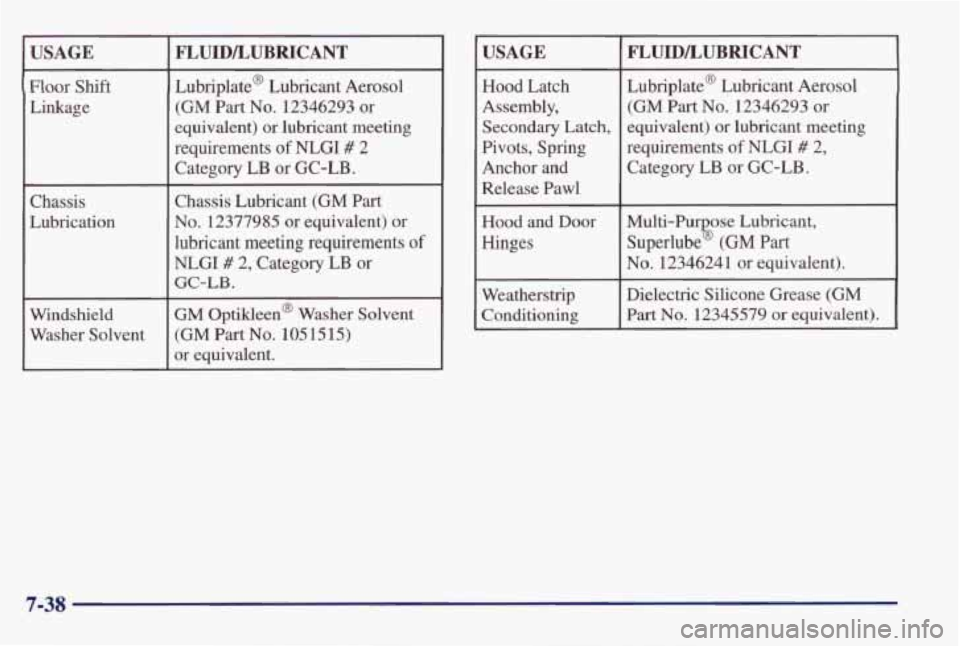

~ USAGE
Floor Shift
Linkage
Chassis
Lubrication
Windshield
Washer Solvent
FLUIDLUBRICANT
Lubriplate@ Lubricant Aerosol
(GM Part No. 12346293 or
equivalent) or lubricant meeting
requirements
of NLGI # 2
Category LB or GC-LB.
Chassis Lubricant (GM Part
No. 12377985 or equivalent) or
lubricant meeting requirements
of
NLGI # 2, Category LB or
GM Optikleen@ Washer Solvent
(GM Part No. 1051515)
or equivalent.
GC-LB.
USAGE
Hood Latch
Assembly,
Secondary Latch,
Pivots, Spring
Anchor and
Release Pawl
Hood and Door
Hinges
Weatherstrip Conditioning
FLUIDLUBRICANT
Lubriplate@ Lubricant Aerosol
(GM Part No. 12346293
or
equivalent) or lubricant meeting
requirements
of NLGI # 2,
Category LB or GC-LB.
Multi-Pu ose Lubricant,
Superlube
(GM Part
No. 12346241 or equivalent).
%
Dielectric Silicone Grease (GM
Part
No. 12345579 or equivalent).
7-38
Page 358 of 395

Part E: Maintenance Record
After the scheduled services are performed, record the
date, odometer reading and who performed the service
in the boxes provided after the maintenance interval.
Any additional information from “Owner Checks and Services” or “Periodic Maintenance” can be added on
the following record pages.
Also, you should retain all
maintenance receipts. Your owner information portfolio
is a convenient place to store them.
Maintenance Record
.,. -
- ~ ~~ _.
ODOMETER
DATE MAINTENANCE PERFORMED SERVICED
BY READING
7-39
Page 359 of 395

I 1

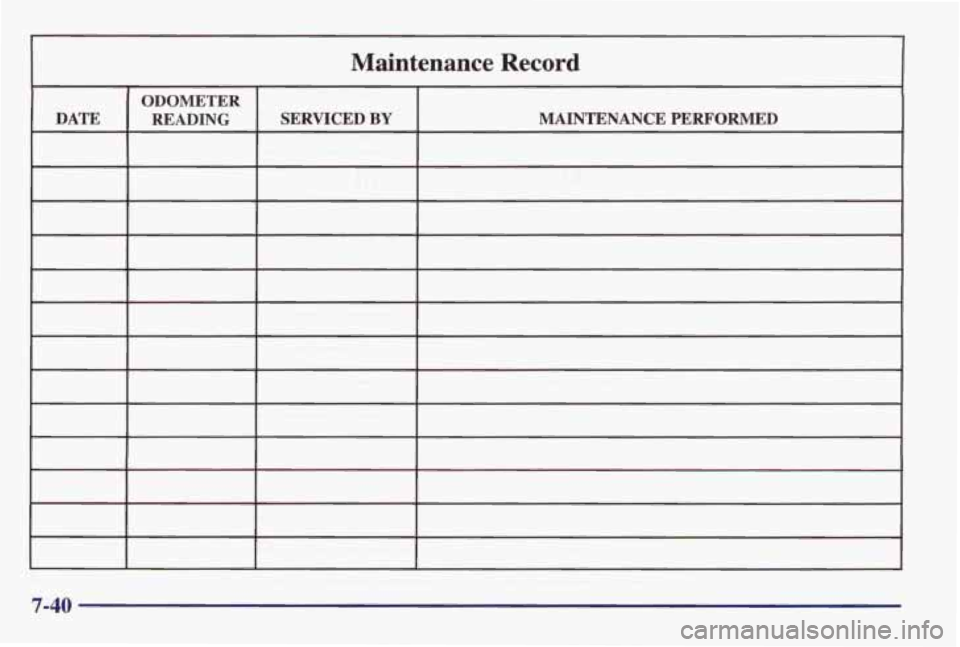

Maintenance Record
ODOMETER
DATE MAINTENANCE PERFORMED SERVICED
BY READING
r
7-40
Page 360 of 395

tl

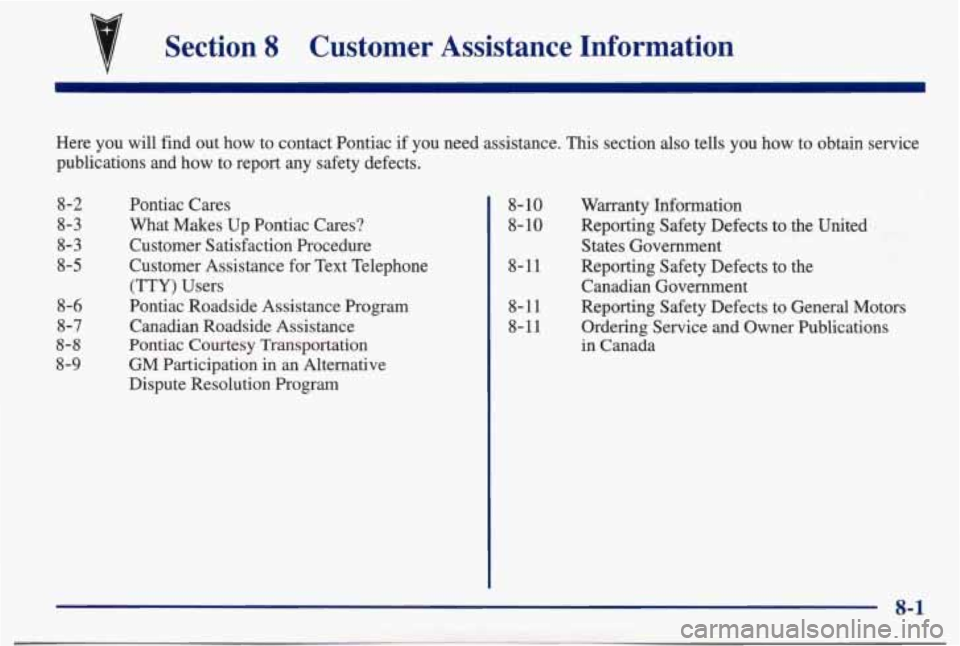

Section 8 Customer Assistance Information
Here you will find out how to contact Pontiac if you need assistance. This section also tells you how to obtain\
service
publications and
how to report any safety defects.
8-2
8-3
8-3
8-5
8-6 8-7
8-8
8-9
Pontiac Cares
What Makes
Up Pontiac Cares?
Customer Satisfaction Procedure
Customer Assistance for Text Telephone
(TTY) Users
Pontiac Roadside Assistance Program Canadian Roadside Assistance
Pontiac Courtesy Transportation
GM Participation in an Alternative
Dispute Resolution Program
8- 10 Warranty Information
8-10 Reporting Safety Defects to the United
States Government
8-11 Reporting Safety Defects to the
Canadian Government
8- 11 Reporting Safety Defects to General Motors
8-11 Ordering Service and Owner Publications
in Canada
