PONTIAC FIREBIRD 1995 Owners Manual

Maintenance Schedule I1 r
97,500 Miles (162 500 km)
Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the steering linkage. Lubricate the
transmission shift linkage (or every
12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
I I I 1
DATE ACTUAL MILEAGE SERVICED BY:
100,000 Miles (166 000 km)
0 Replace spark plugs (5.7L Code P engine
0 If you have not used your vehicle under
only). An Emission Control Service.
conditions of severe service and, therefore,
have not changed your automatic
transmission fluid, change both the fluid and filter.
DATE I ACTUAL MILEAGE [SERVICED BY: I
7-44
ProCarManuals.com

Part B: Owner Checks and Services
Listed below are owner checks and services which should be performed at the intervals specified to help
ensure the safety, dependability and emission control
performance
of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in
Part D.
At Each Fuel Fill
It is important for you or a service station attendant to
peqorm these underhood checks at each fuel
fill.
Engine Oil Level
Check the engine oil level and add the proper oil if
necessary. See “Engine Oil” in the Index for further
details.
Engine Coolant Level
Check the engine coolant level and add the proper
coolant mix
if necessary. See “Coolant” in the Index for
further details.
Windshield Washer Fluid Level
Check the windshield washer fluid level in the
windshield washer tank and add the proper fluid
if
necessary. See “Windshield Washer Fluid” in the Index
for further details.
At Least Once a Month
Tire Inflation
Check tire inflation. Make sure tires are inflated to the
pressures specified on the Tire-Loading Information
label located on the rear edge of the driver’s door. See
“Tires” in the Index for further details.
Cassette Deck ; ,.
Clean cassette deck. Cleaning should be done every
50 hours of tape play. See “Audio Systems” in the Index
for further details.
At Least Mce a Year
Hydraulic Clutch System Inspection
Check the fluid level in the clutch reservoir. See
“Hydraulic Clutch Fluid” in the Index. A fluid loss in
this system could indicate a problem. Have the system
inspected and repaired at once.
7-45
ProCarManuals.com

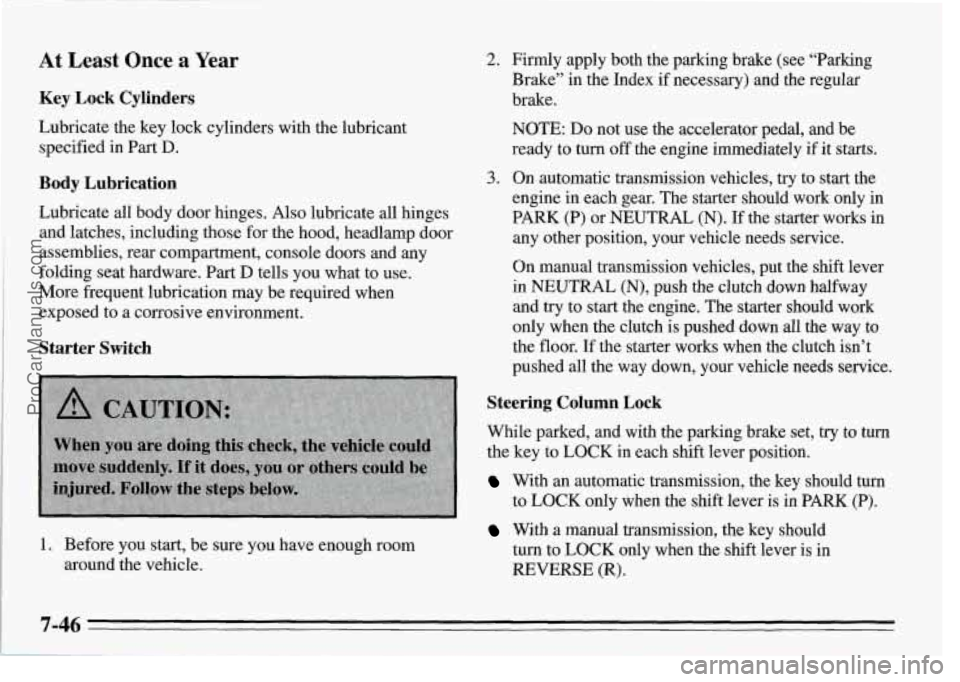

At Least Once a Year
Key Lock Cylinders
Lubricate the key lock cylinders with the lubricant
specified in Part
D.
Body Lubrication
Lubricate all body door hinges. Also lubricate all hinges
and latches, including those for the hood, headlamp door
assemblies, rear compartment, console doors and any
folding seat hardware.
Part D tells you what to use.
More frequent lubrication may be required when
exposed to
a corrosive environment.
Starter Switch
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake (see “Parking
Brake” in the Index if necessary) and the regular
brake.
NOTE:
Do not use the accelerator pedal, and be
ready to turn
off the engine immediately if it starts.
3. On automatic transmission vehicles, try to start the
engine
in each gear. The starter should work only in
PARK (P) or NEUTRAL (N). If the starter works in
any other position, your vehicle needs service.
On manual transmission vehicles, put the shift lever
in NEUTRAL
(N), push the clutch down halfway
and
try to start the engine. The starter should work
only when the clutch
is pushed down all the way to
the floor. If the starter works when the clutch isn’t
pushed
all the way down, your vehicle needs service.
Steering Column Lock
While parked, and with the parking brake set, try to turn
the key to LOCK in each shift lever position.
With an automatic transmission, the key should turn
to LOCK only when the shift lever is in PARK (P).
With a manual transmission, the key should
turn to LOCK only when the shift lever is in
REVERSE (R).
7-46
_I
ProCarManuals.com

On vehicles with a key release button, try to turn the key Park on a fairly steep hill, with the vehicle facing
to LOCK without pressing the button. The key should downhill. Keeping your foot on the regular brake, set the
turn to LOCK only with the key button depressed. parking brake.
On all vehicles, the key should come out only in LOCK. 0 To check the parking brake: With the engine running
Parking Brake and Automatic Transmission PARK foot pressumfrom the regular brake pedal. Do this
(P) Mechanism Check until the vehicle is held by the parking brake only.
and transmission in NEUTRAL (N), slowly remove
0 To check the PARK (P) mechanism's holding ability:
Shift to PARK (P). Then release all brakes.
Underbody Flushing
At least every spring, use plain water to flush any
corrosive materials from the underbody. Take care to
clean thoroughly
any areas where mud and other debris
can collect.
t '. . .. , . 5; 1
f'
7-47
ProCarManuals.com

Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should
be performed at least twice a year (for instance, each
spring and fall). You should let your
GM dealer’s
service department or other qualified service center do
these jobs. Make sure any necessary repairs are
completed at once.
Restraint Systems
Now and then, make sure all your belts, buckles, latch
plates, retractors, anchorages and reminder systems are
working properly. Look for any loose parts or damage.
If you see anything that might keep a restraint system
from doing its job, have it repaired.
Steering and Suspension Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs
of
wear, or lack of lubrication. Inspect the power steering
lines and hoses for proper hookup, binding, leaks,
cracks, chafing, etc.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body
near the exhaust system. Look for broken, damaged, missing or out-of-position parts as well as open seams,
holes, loose connections, or other conditions which could cause a heat build-up in the floor pan or could let
exhaust fumes into the vehicle. See “Engine Exhaust” in
the Index.
7-48
ProCarManuals.com

Throttle Linkage Inspection
Inspect the throttle linkage for interference or binding,
and for damaged or missing parts. Replace parts as
needed.
Manual Transmission
Check the transmission fluid level; add if needed. See
“Manual Transmission”
in the Index. A fluid loss may
indicate a problem. Check the system and repair if
needed.
Rear Axle Service
Check the gear lubricant level in the rear axle and add if
needed. See “Rear Axle” in the Index. A fluid loss may
indicate a problem. Check the axle and repair it if
needed.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hookup, binding, leaks, cracks, chafing,
etc. Inspect disc brake pads for wear and rotors for
surface condition. Also inspect drum brake linings for
wear and cracks. Inspect other brake parts, including
drums, wheel cylinders, calipers, parking brake, etc. The
parking brake
is self-adjusting and no manual
adjustment is required.
You may need to have your
brakes inspected more often if your driving habits or
conditions result in frequent braking.
7-49
ProCarManuals.com

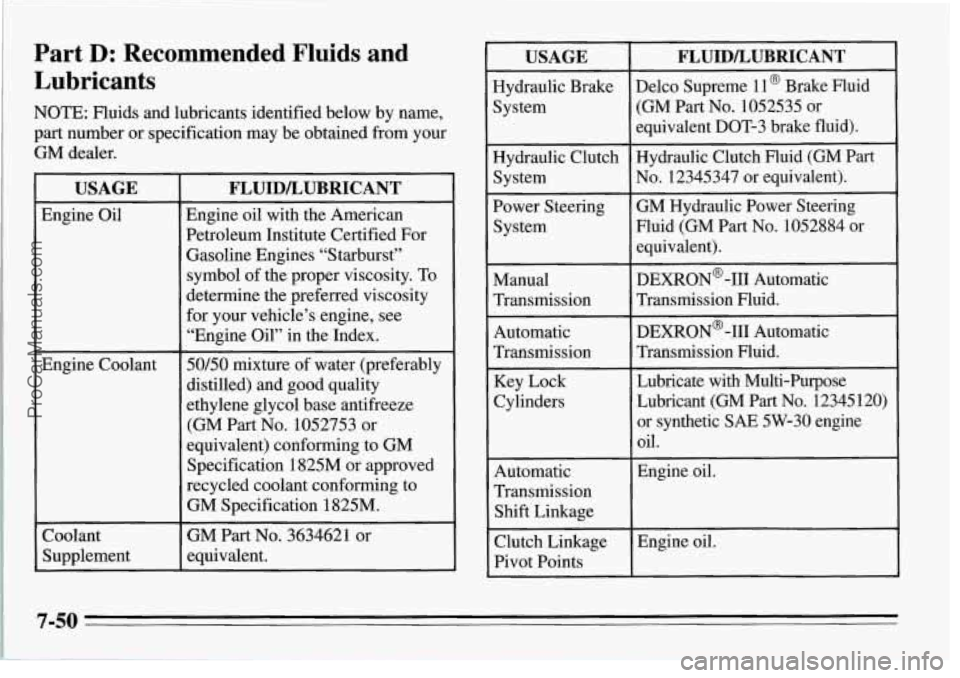

Part D: Recommended Fluids and
Lubricants
NOTE: Fluids and lubricants identified below by name,
part number or specification may be obtained from your
GM dealer.
USAGE
Engine Oil
Engine Coolant
Coolant
Supplement
FLUIDLUBRICANT
Engine oil with the American
Petroleum Institute Certified For
Gasoline Engines “Starburst”
symbol of the proper viscosity. To
determine the preferred viscosity
for your vehicle’s engine, see
“Engine Oil” in the Index.
50/50 mixture of water (preferably
distilled) and good quality
ethylene glycol base antifreeze
(GM Part No. 1052753 or
equivalent) conforming to GM
Specification 1825M or approved
recycled coolant conforming to
GM Specification 1825M.
GM Part No. 3634621 or
equivalent.
USAGE
Hydraulic Brake
System
Hydraulic Clutch
System
Power Steering
System
Manual
Transmission
Automatic
Transmission
Key Lock
Cylinders
Automatic
Transmission
Shift Linkage
Clutch Linkage
Pivot Points
FLUIDLUBRICANT
Delco Supreme 11 @ Brake Fluid
(GM Part No. 1052535 or
equivalent DOT-3 brake fluid).
Hydraulic Clutch Fluid (GM Part
No. 12345347 or equivalent).
GM Hydraulic Power Steering
Fluid (GM Part No. 1052884 or
equivalent).
DEXRON@-I11 Automatic
Transmission Fluid.
DEXRON@
-111 Automatic
Transmission Fluid.
Lubricate with Multi-Purpose
Lubricant (GM Part No. 12345 120) or synthetic
SAE 5W-30 engine
oil.
Engine oil. ~~
Engine oil.
ProCarManuals.com

I USAGE
Floor Shift
1 Linkage
Chassis
Lubrication
Rear Axle
(Standard
Differential)
Rear Axle
(Limited-Slip
Differential)
Windshield
Washer Solvent
FLUIDLUBRICANT
- lgine oil.
Chassis lubricant (GM Part No.
1052497 or equivalent) or
lubricant meeting requirements of
NLGI Grade 2, Category LB or
Axle Lubricant (GM Part No.
1052271) or SAE 80W-90 GL-5
Gear Lubricant.
Axle Lubricant (GM Part No.
12345977) or SAE 8OW-90 GL-5
Gear Lubricant, and Limited-Slip
Differential Lubricant Additive
(GM Part
No. 1052358 or
equivalent) where required. See
“Rear Axle” in the Index.
GM Optikleen@ Washer Solvent
(GM Part
No. 1051515) or
equivalent.
GC-LB.
USAGE
Hood Latch
Assembly
a. Pivots and
Spring
Anchor
b. Release Pawl
Hood and Door
Hinges, Fuel
Door Hinge, Rear
compartment Lid
Hinges, Rear
Folding Seat
Weatherstrip
Conditioning
FLUIDLUBRICANT
a. Engine oil.
b. Chassis lubricant (GM Part No.
1052497 or equivalent) or
lubricant meeting requirements
of NLGI Grade 2, Category LB
or GC-LB.
Engine oil or Lubriplate Lubricant
(GM Part
No. 1050109).
Dielectric Silicone Grease (GM
Part No. 12345579 or equivalent).
See “Replacement Parts” in the Index for recommended
replacement filters, valves and spark plugs.
7-51
ProCarManuals.com

Part E: Maintenance Record
After the scheduled services are performed, record the
date, odometer reading and who performed the service
in the boxes provided after the maintenance interval.
Any additional information from “Owner Checks and
Services”
or “Periodic Maintenance” can be added on
the following record pages.
Also, you should retain all
maintenance receipts.
Your owner information portfolio
is a convenient place to store them.
Maintenance Record
ODOMETER
DATE READING SERVICED BY MAINTENANCE PERFORMED
7-52
ProCarManuals.com

Maintenance Record
ODOMETER
DATE MAINTENANCE PERFORMED
SERVICED BY READING
7-53
