clock PONTIAC FIREBIRD 1996 User Guide

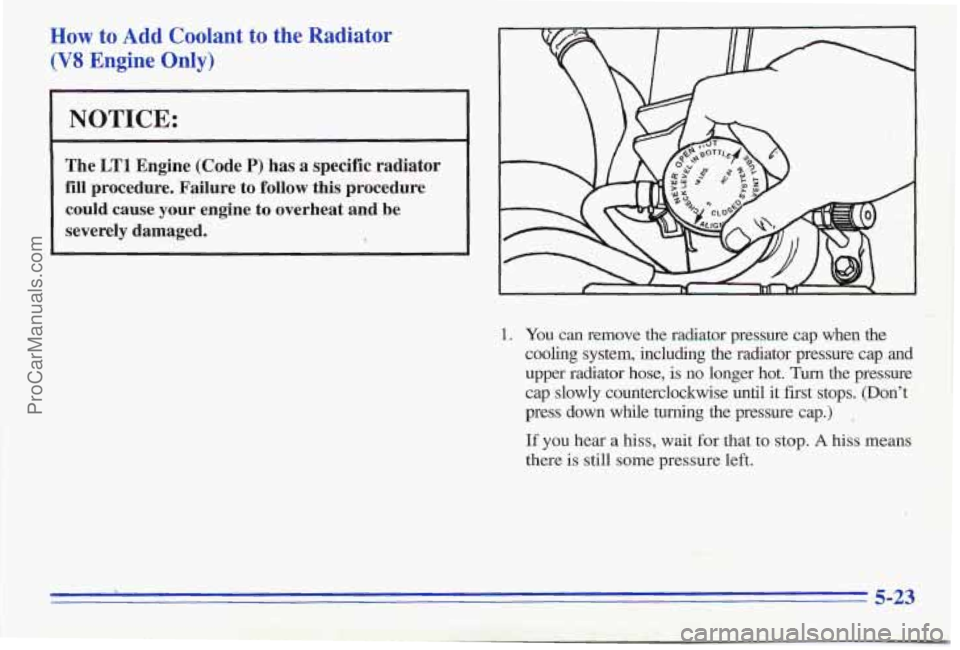

How to Add Coolant to the Radiator
(V8 Engine Only)
NOTICE:
The LTl Engine (Code P) has a specific radiator
fill procedure. Failure to follow this procedure
could cause your engine to overheat and be
severely damaged.
<
I
1. You can remove the radiator pressure cap when the
cooling system, including the radiator pressure cap and upper radiator hose, is
no longer hot. Turn the pressure
cap slowly counterclockwise until it first stops. (Don’t
press down while turning the pressure cap.)
.
If you hear a hiss, wait for that to stop. A hiss means
there is still some pressure left.
ProCarManuals.com

Removing the Spare Tire and Tools
The equipment you’ll need is in the right (passenger)
rear area behind the trim panel.
First you must remove the close-out panel. See
“Close-Out Panel” in the Index.
On convertible models, you must also remove the
convertible top protection panel. It’s at
the upper back
the trunk. Turn the two screw
knobs under the trunk
edge a quarter turn left (counterclockwise) to remove
the panel.
The following steps will tell you how to use the jack and
change
a tire.
i
of
5-28
ProCarManuals.com

Each wheel has one locknut in place of the standard
wheel nut.
A special wheel lock key (removal tool) and
instructions are located in the center console. Attach
the wheel lock key to the socket
of the wheel wrench.
Remove the locking wheel nut by turning
counterclockwise.
ProCarManuals.com

4. Raise the vehicle by rotating the wheel wrench
clockwise. Raise the vehicle
far enough off the ground
SO there is enough room for the spare tire to fit.
Remove all the wheel nuts and take off the flat tire.
5. Remove any rust or dirt
from the wheel bolts,
mounting surfaces and
spare wheel.
A CAUTION:’
Rust or dirt on the wheel, or on the parts to
which it is fastened, can make the wheel nuts
become loose after a time. The wheel could come
off and cause an accident. When you change a
wheel, remove any rust or
dirt from the places
where the wheel attaches to the vehicle. In an
emergency, you can use
a cloth or a paper towel
to do
this; but be sure to use a scraper or wire
brush later,
if you need to, to get all the rust or
dirt off.
5-35
ProCarManuals.com

7. Lower the vehicle by rotating the wheel wrench
counterclockwise. Lower the jack completely.
a. Tighten the wheel
nuts firmly in a
criss-cross sequence
as shown.
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to become loose
and even come
off. This could lead to an accident.
Be sure to 'use the correct wheel nuts.
If' you have
to replace them, be sure to get new
GM original
equipment wheel nuts.
Stop somewhere
as soon as you can and have the
nuts tightened with a torque wrench to
100 lb-ft
(140 Nom).
ProCarManuals.com

Gasoline vapor is highly flammable. It burns
violently, and that can cause very bad injuries.
Don’t smoke if you’re near gasoline or refueling
your vehicle. Keep sparks, flames, and smoking
materials away from gasoline.
To take off the cap, turn it slowly to the left
(counterclockwise).
I
n
If you get gasoline on yourself’ and then
something ignites
it, you could be badly burned.
Gasoline can spray out
on you if you open the
fuel filler cap
too quickly. This spray can happen
if your tank
is nearly full, and is more likely in
hot weather. Open the fuel filler cap slowly and
wait for any “hiss” noise to stop. Then unscrew
the cap all the
way.
6-5
ProCarManuals.com

4.
5.
6.
7.
Pull off the assembly from the outside.
To remove a socket with a tab, press the tab and turn
the socket counterclockwise.
To remove a socket
without a tab, turn
the socket counterclockwise.
To remove the bulb, push in and turn it
counterclockwise, then pull it out.
Reverse the steps with
a new bulb.
Rear Sidemarker.
I
I P
To replace a rear sidemarker bulb:
1. Remove the screw from the sidemarker assembly.
2. To pull out the bulb housing, tilt the housing to
remove
the tabbed end.
6-42
ProCarManuals.com

3. Turn counterclockwise and pull out the socket and
the bulb.
4. Pull out the bulb.
5. Reverse the steps with a new bulb.
Windshield Wiper Blade Replacement
Replacement blades come in different types and are
removed in different ways.
To remove the wiper blade assembly:
1. Lift the wiper arm until it locks into an
upright position.
2. Press the locking tab down while sliding the blade
assembly
down.
L
6-43
ProCarManuals.com

Brake Adjustment
.................................. 6-36
Master Cylinder
.............................. 6-33
Parking
..................................... 2-36
Pedal Travel
................................. 6-36
Replacing System Parts
........................ 6-36
System Warning Light
......................... 2-78
Fluid
....................................... 6-33
Trailer
...................................... 4-35
Transmission Shift Interlock
.................... 2-39
Wear
....................................... 6-35
Brakes. Anti-Lock
............................... 4-6
Braking
........................................ 4-5
Braking in Emergencies .......................... 4- 10
Break-In. New Vehicle
.......................... 2-21
Brightness Control .............................. 2-53
BTSI ......................................... 2-39
BTSICheck
................................... 7-41
Bulb Replacement
.............................. 6-37
Canadian Roadside Assistance
.................... 8-6
Capacities and Specifications
...................... 6-69
Carbon Monoxide
.................... 2-40,4-28. 4-35
Cassette Deck Service
........................... 7-39
Cassette Tape Player
........................ 3-6. 3-10
Care ....................................... 3-22
Errors .................................. 3-8, 3.11
CD Player Theft-Deterrent Feature ................. 3- 18
Center High-Mounted Stoplamp
Bulb Replacement .... 6-40
Certification Label .............................. 4-30
Chains. Safety ................................. 4-35
Chains. Tire
................................... 6-52 Changing
a Flat Tire ............................. 5-27
Chechng Your Restraint Systems
.................. 1-41
Chemical Paint Spotting .......................... 6-60
Child Restraints
................................ 1-32
Securing in a Rear Seat Position
................. 1-34
Securing in the Right Front Seat Position
.......... 1-36
TopStrap
................................... 1-33
Where
to Put ....................... ... 1-32
Cigarette Lighter
............................... 2-59
Circuit Breakers and Fuses
....................... 6-64
Cleaner. Air
................................... 6-16
Cleaning
...................................... 6-53
Aluminum Wheels
.................... ... 6-59
ConvertibleTop
............................... 6-59
Check Gauges Light
............................. 2-87
Fabric
...................................... 6-54
Glass ....................................... 6-56
Inside
of Your Pontiac ......................... 6-53
Instrument Panel
............................. 6-56
Leather
..................................... 6-56
Outside of Your Pontiac
........................ 6-58
Removable Roof Panel
......................... 6-57
Stains
...................................... 6-55
Tires ....................................... 6-59
Wheels
..................................... 6-59
Special Problems
............................. 6-55
.Vinyl
....................................... 6-55
Windshield and Wiper Blades
................... 6-57
Climate Control System
........................... 3-1
Clock, Setting the
................................ 3-6
Close-Out Panel
................................ 2-58
Clutch, Hydraulic
............................... 6-25
Comfort Controls
................................ 3-1
2 . .
