Passive Arming
If the ignition was just turned off and a door was
opened, the system will arm
six seconds after all doors
are closed, whether or not you lock them. In all other
cases, the system will wait 30 seconds after all doors are
closed before arming, allowing you time
to get into the
vehicle and put the key in the ignition. The parking
lamps will flash when the system arms. Passive arming
is not enabled from the factory.
Turning Off the Alarm
Disarming the System
There are two ways to disarm the system:
1. Press the UNLOCK button on the key chain
transmitter. If the horn chirps two or three times
when you unlock the car, the alarm sounded in your
absence. Two chirps means that the shock sensor was
set off and three chirps means that a door or hatch
was opened.
proper key.
2. Turn the ignition to the RUN position with the
For more information on customizing the features
mentioned here, see “Feature Customization” in
the Index.
If you started the alarm by pressing the panic button on
the key chain transmitter, you must either push that
button again or turn the ignition switch to the RUN
position to stop the alarm.
If the alarm is sounding due to the shock sensor or a
door or hatch opening, it can be turned
off by either
turning the ignition switch with a proper key inserted or
by pressing any button on the key chain transmitter. If
you
use your key chain transmitter to silence the alarm,
additional things will happen depending upon which
button you press.
Pressing the UNLOCK button will turn the alarm
off, unlock the driver’s door and disarm the system.
0 Pressing the LOCK button will turn the alarm off,
keep the doors locked and keep the system armed.
Pressing the trunk symbol button twice within five
seconds will turn the alarm off, unlock and disarm
the hatch only.
keep the doors locked and keep the system armed.
Pressing the panic button will turn the alarm off,
If the alarm is sounding because an incorrect ign“’ >n
key was used, press any button on the key chain
transmitter to turn the alarm off.
The alarm will stop by itself after two minutes.
2-15

New Vehicle “Break-In” Ignition
Switch
NOTICE:
Your modern Pontiac doesn’t need an elaborate
“break-in.” But it will perform better in the long
run
if you follow these guidelines:
a
a
a
Keep your speed at 55 mph (88 kmh) or
less
for the first 500 miles (805 km).
Don’t drive
at any one speed -- fast or
slow
-- for the first 500 miles (805 km).
Don’t make full-throttle starts.
Avoid making hard stops for the first
200 miles (322 km) or so. During this time
your new brake linings aren’t yet broken
in. Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking-in guideline every
time you get new brake linings.
Don’t
tow a trailer during break-in.
See “Towing
a Trailer’’ in the Index for
more information.
C
I
D
A E
With the ignition key in the ignition switch, you can turn
the switch to five positions.
ACC (A): Position in which you can operate your
electrical power accessories. Press in the ignition switch
as you turn the top
of it toward you.
LOCK (B): The only position in which you can remove
the
key. This locks your steering wheel, ignition an’d
automatic transmission.
2-23

NOTICE:
If your key seems stuck in LOCK and you can’t
turn
it, be sure you are using the correct key; if
so, is it all the way in? If it is, then turn the
steering wheel left and right while you turn the
key hard. But turn the key only with your hand.
Using
a tool to force it could break the key or the
ignition switch. If none of this works, then your
vehicle needs service.
Starting Your Engine
Automatic Transmission
Move your snm lever to PARK (P) or NEUTRAL (N).
Your engine won’t start in any other position -- that’s a
safety feature. To restart when you’re already moving,
use NEUTRAL (N) only.
NOTICE:
~~
Don’t try to shift to PARK (P) if your Pontiac is
moving.
If you do, you could damage the
transmission. Shift to
PARK (P) only when your
vehicle is stopped.
2-25

Manual Transmission
The gear selector should be in NEUTRAL (N). Hold the
clutch pedal to the floor and start the engine. Your
vehicle won’t start if the clutch pedal
is not all the way
down
-- that’s a safety feature.
1. Without pushing the accelerator pedal, turn your
ignition key to START. When the engine starts, let
go of the key. The idle speed will go down as your
engine gets warm.
NOTICE:
Holding your key in START for longer than
15 seconds at a time will cause your battery to be
drained much sooner. And the excessive heat can
damage your starter motor.
2. If it doesn’t start right away, hold your key in
START for about three to five seconds at a time until
your engine starts. Wait about 15 seconds between
each try to help avoid draining your battery.
3. If your engine still won’t start (or starts but then stops),
it could be flooded with too much gasoline. Try
pushing
your accelerator pedal all the way to the floor and
holding it there as you hold the key
in START for about
three seconds.
If the vehicle starts briefly but then stops
again,
do the same thing, but this time keep the pedal
down for five or six seconds. This clears the extra
gasoline from the engine. After waiting about
15 seconds, repeat the normal starting procedure.
NOTICE:
Your engine is designed to work with the
electronics in your vehicle. If you add electrical
parts or accessories, you could change the way
the engine operates. Before adding electrical
equipment, check
with your dealer. If you don’t,
your engine might not perform properly.
If you ever have to have your vehicle towed, see
the part
of this manual that tells how to do it
without damaging your vehicle. See “Towing
Your Vehicle” in the Index.
2-26

Ensure the shift lever is fully in PARK (P) range before
starting the engine. Your Pontiac has a
Brake-Transmission Shift Interlock.
You have to fully
apply your regular brakes before you can shift from
PARK
(P) when the ignition key is in the RUN position.
If you cannot shift out of PARK (P), ease pressure on
the shift lever
-- push the shift lever all the way into
PARK (P) and also release the shift lever button on floor
shift console models as
you maintain brake application.
Then move the shift lever into the‘gear you wish. (Press
the shift lever button before moving the shift lever
on
floor shift console models.) See “Shifting Out of
PARK,
(P) in this section.
REVERSE (R): Use this gear to back up.
I NOTICE:
Shifting to REVERSE (R) while your vehicle is
moving forward could damage your
transmission. Shift to
REVERSE (R) only after
your vehicle is stopped.
To rock your vehicle back and forth to get out of snow,
ice or sand without damaging your transmission, see
“Stuck: In Sand, Mud, Ice
or Snow” in the Index.
NEUTRAL (N): In this position, your engine
doesn’t connect with the wheels.
To restart when you’re
already moving, use
NEUTRAL (N) only. Also, use
NEUTRAL (N) when your vehicle is being towed.
A 1
A CAUTION:
Shifting out of PARK (P) or NEUTRAL (N) while
your engine
is “racing” (running at high speed) is
dangerous. Unless your foot is firmly on the
brake pedal, your vehicle could move
very
rapidly. You could lose control and hit people or
objects. Don’t shift out of PARK (P) or
NEUTRAL
(N) while your engine is racing.
NOTICE:
Damage to your transmission caused by shifting
out of PARK
(P) or NEUTRAL (N) with the
engine racing isn’t covered
by you warranty.
2-29

FIRST (1): This position (if equipped) gives you
even more power (but lower fuel economy) than
SECOND (2). You can use it on very steep hills, or in
deep snow or mud. If the selector lever is put in first
gear, the transmission won’t shift into
FIRST (1) until
the vehicle is going slowly enough.
NOTICE:
If your rear wheels can’t rotate, don’t try to
drive. This might happen if you were stuck in
very deep sand or mud or were up against a solid
object. You could damage your transmission.
Also, if you stop when going uphill, don’t hold your
vehicle there
with only the accelerator pedal. This
could overheat and damage the transmission. Use
your brakes or shift into
PARK (P) to hold your
vehicle in position on
a hill.
Maximum engine speed is limited to protect driveline
components from improper operation.
Second-Gear Start (If Equipped)
(3800 Engine)
Your vehicle may be equipped with a second-gear start
feature. Press 2ND GEAR START to provide more
traction when you are starting on ice
or other slippery
surfaces.
A light on the switch will illuminate when the
2nd gear start
is selected. The transmission will be in
SECOND (2) gear when the vehicle begins to move.
After starting
in SECOND (2) gear, the vehicle will
upshift normally.
2-31

This feature is for improved traction only ,when the road
surface is slippery and is not intended for continuous use
or when the vehicle is stuck in sand, mud, ice, snow or
gravel. Always use
NORMAL for normal road
conditions. You may press the 2ND GEAR START
switch again to turn
off this feature. The light on the
switch will
go out. Whenever you start your vehicle, the
transmission is in the NORMAL
mode.
Manual Transmission
5-Speed
1 3 5
2 4 R
This is your shift pattern.
Here’s how to operate
your transmission:
FIRST (1): Press the clutch pedal and shift into
FIRST (1). Then slowly let up on the clutch pedal as
you press the accelerator pedal.
You can shift into FIRST (1) when you’re going less
than
20 mph (32 km/h). If you’ve come to a complete
stop and it’s
hard to shift into FIRST (l), put the shift
lever in NEUTRAL
(N) and let up on the clutch, Press
the clutch pedal back down. Then shift into FIRST
(1).
SECOND (2): Press the clutch pedal to the floor as
you let up on the accelerator pedal and shift into
SECOND
(2). Then, slowly let up on the clutch pedal as
you press the accelerator pedal.
THIRD (3), FOURTH (4), and FIFTH (5): Shift into
THIRD
(3), FOURTH (4) and FIFTH (5) the same way
you
do for SECOND (2). Slowly let up on the clutch
pedal as
you press the accelerator pedal.
To Stop, let up on the accelerator pedal and press the
brake pedal. Just before the vehicle stops, press the
clutch pedal and the brake pedal, and shift to
NEUTRAL
(N),
NEUTRAL (N): Use this position when you start or
idle your engine.
2-32

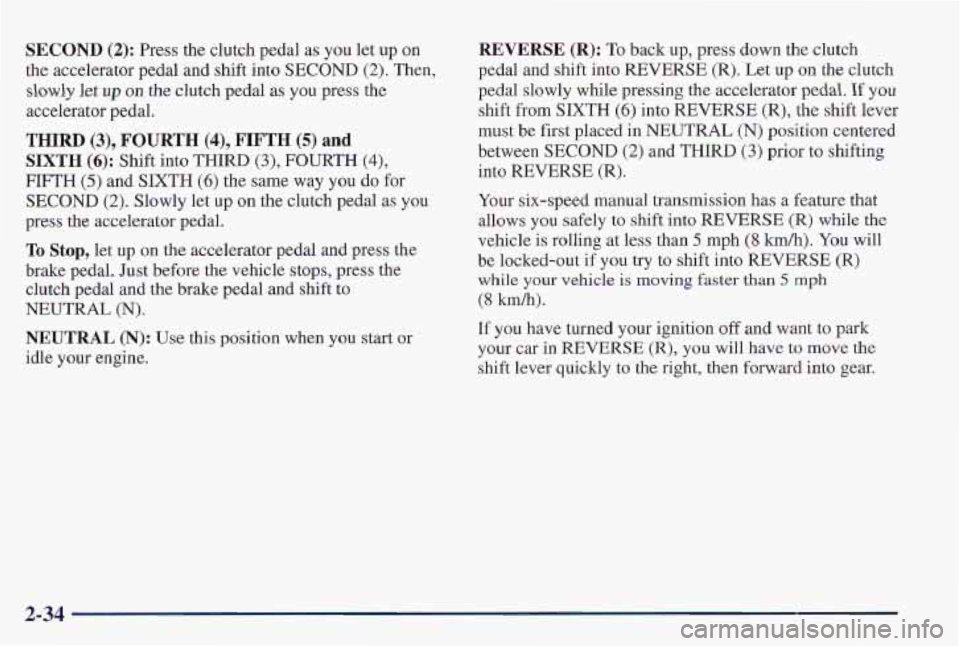

SECOND (2): Press the clutch pedal as you let up on
the accelerator pedal and shift into
SECOND (2). Then,
slowly let up on the clutch pedal as you press the
accelerator pedal.
THIRD (3), FOURTH (4), FIFTH (5) and
SIXTH (6): Shift into THIRD (3), FOURTH (4),
FIFTH (5) and SIXTH (4) the same way you do for
SECOND (2). Slowly let up on the clutch pedal as you
press the accelerator pedal.
To Stop, let up on the accelerator pedal and press the
brake pedal. Just before the vehicle stops, press the
clutch pedal and the brake pedal and shift to
NEUTRAL
(N).
NEUTRAL (N): Use this position when you start or
idle your engine.
REVERSE (R): To back up, press down the clutch
pedal and shift into
REVERSE (R). Let up on the clutch
pedal slowly while pressing the accelerator
pedal. If you
shift from SIXTH (6) into REVERSE (R), the shift lever
must
be first placed in NEUTRAL (N) position centered
between
SECOND (2) and THIRD (3) prior to shifting
into REVERSE (R).
Your six-speed manual transmission has a feature that
allows
you safely to shift into REVERSE (R) while the
vehicle is rolling at less than
5 mph (8 km/h). You will
be locked-out
if you try to shift into REVERSE (R)
while your vehicle is movins fa ’ :r than 5 mph
(8 km/h).
If you have turned your ignition off and want to park
your car
in REVERSE (R), you will have to move the
shift lever quickly to the right, then forward into gear.
2-34

Windshield Wipers
You control the windshield wipers by turning the band
with the wiper
symbol on it.
For a single wiping cycle, turn the band to MIST. Hold
it there until
the wipers start, then let go. The wipers will
stop
after one cycle. If you want more cycles, hold the
band
on MIST longer.
You can set the wiper speed for a long or short delay
between wipes. This can be very useful in light rain or
snow. Turn the band
to choose the delay time. The
closer to LO, the shorter the delay.
For steady wiping at low speed, turn the
band away
from
you to the LO position, For high-speed wiping,
turn the band further, to
HI, To stop the wipers, move
the band
to OFF.
Damaged wiper blades may prevent you from seeing
well enough to drive safely.
To avoid damage, be sure to
clear ice and snow from the wiper blades before using
them.
If they’re frozen to the windshield, carefully
loosen
or thaw them. If your blades do become
damaged, get new blades
or blade inserts,
Heavy
snow or ice can overload your wipers. A circuit
breaker will
stop them until the motor cools. Clear away
snow or ice to prevent an overload.
2-46

System Warning Light” and “Towing Your Vehicle” in Anti-Lock 1- System Warning Eight
the Index.)
Your braKe s cem may not be working properly
if the brake system warning light is on. Driving
~ with the brake system warning light on can lead
to an accident.
If the light is still on or if the
anti-lock brake system warning light
is flashing
after
you’ve pulle’d of€ the road and stopped
~
!
ABS
INOP
With the anti-lock brake
system, this light will come
on when you start your
engine and it will stay
on for three seconds.
That’s normal.
carefully, have the vehicle towed for service. If the light flashes when you’re driving, you don’t have
anti-lock brakes and there could be
a problem with your
regular brakes. Pull off the road and stop carefully. You
When the ignition is on* the brake system warning light may notice that the pedal is harder to push. or, the pedal
on when YOu set Your Parking brake* The may go closer to the floor, It may take longer to stop,
light will stay
on if your parking brake doesn’t release Have the vehicle towed for service. (See “Towing Your
fully.
If it stays on after your parking brake is fully Vehicle” in the Index.)
released, it means you have
a brake problem.
2-80
