5. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.6. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the lap
portion of the belt and feed the shoulder belt back
into the retractor. If you are using a forward-facing
child restraint, you may nd it helpful to use your
knee to push down on the child restraint as you
tighten the belt.
7. Push and pull the child restraint in different
directions to be sure it is secure.
If the airbag or airbags are off, the off indicator in the
passenger airbag status indicator will come on and stay
on when the vehicle is started.
1-57
Page 62 of 348
If a child restraint has been installed and the off symbol is
not lit, see “If the On Indicator is Lit for a Child Restraint”
underPassenger Sensing System on page 1-65for more
information.
To remove the child restraint, unbuckle the vehicle’s
safety belt and let it go back all the way.

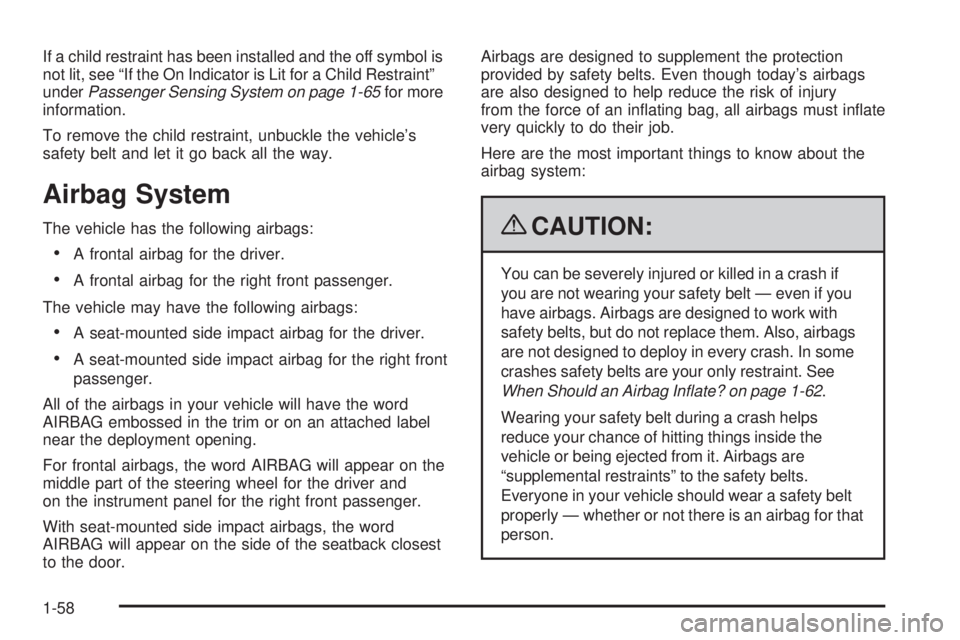

Airbag System
The vehicle has the following airbags:
A frontal airbag for the driver.
A frontal airbag for the right front passenger.
The vehicle may have the following airbags:
A seat-mounted side impact airbag for the driver.
A seat-mounted side impact airbag for the right front
passenger.
All of the airbags in your vehicle will have the word
AIRBAG embossed in the trim or on an attached label
near the deployment opening.
For frontal airbags, the word AIRBAG will appear on the
middle part of the steering wheel for the driver and
on the instrument panel for the right front passenger.
With seat-mounted side impact airbags, the word
AIRBAG will appear on the side of the seatback closest
to the door.Airbags are designed to supplement the protection
provided by safety belts. Even though today’s airbags
are also designed to help reduce the risk of injury
from the force of an in ating bag, all airbags must in ate
very quickly to do their job.
Here are the most important things to know about the
airbag system:
{CAUTION:
You can be severely injured or killed in a crash if
you are not wearing your safety belt — even if you
have airbags. Airbags are designed to work with
safety belts, but do not replace them. Also, airbags
are not designed to deploy in every crash. In some
crashes safety belts are your only restraint. See
When Should an Airbag Inflate? on page 1-62.
Wearing your safety belt during a crash helps
reduce your chance of hitting things inside the
vehicle or being ejected from it. Airbags are
“supplemental restraints” to the safety belts.
Everyone in your vehicle should wear a safety belt
properly — whether or not there is an airbag for that
person.
1-58
Page 63 of 348

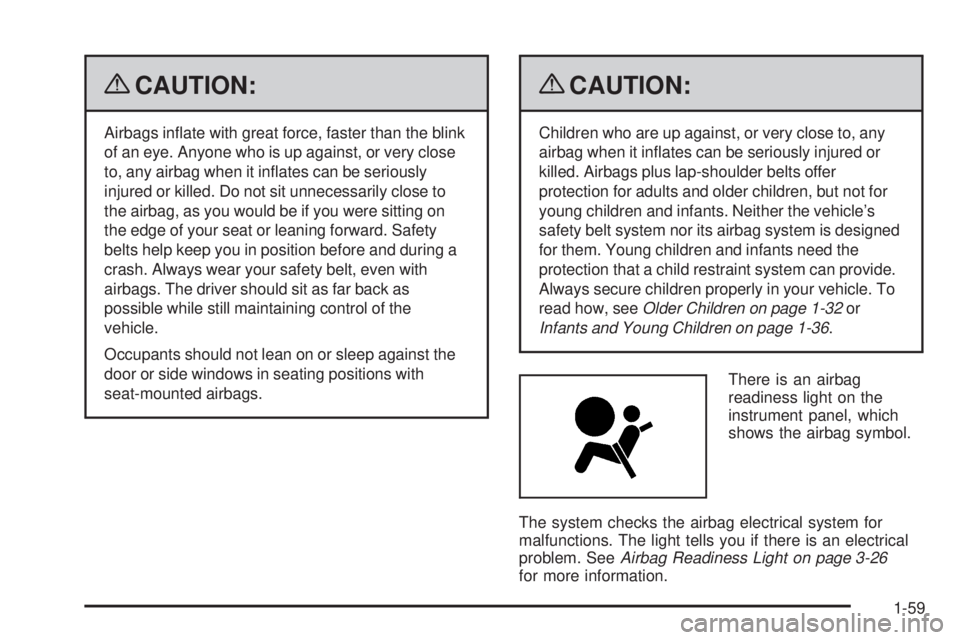

{CAUTION:
Airbags in ate with great force, faster than the blink
of an eye. Anyone who is up against, or very close
to, any airbag when it in ates can be seriously
injured or killed. Do not sit unnecessarily close to
the airbag, as you would be if you were sitting on
the edge of your seat or leaning forward. Safety
belts help keep you in position before and during a
crash. Always wear your safety belt, even with
airbags. The driver should sit as far back as
possible while still maintaining control of the
vehicle.
Occupants should not lean on or sleep against the
door or side windows in seating positions with
seat-mounted airbags.
{CAUTION:
Children who are up against, or very close to, any
airbag when it in ates can be seriously injured or
killed. Airbags plus lap-shoulder belts offer
protection for adults and older children, but not for
young children and infants. Neither the vehicle’s
safety belt system nor its airbag system is designed
for them. Young children and infants need the
protection that a child restraint system can provide.
Always secure children properly in your vehicle. To
read how, seeOlder Children on page 1-32or
Infants and Young Children on page 1-36.
There is an airbag
readiness light on the
instrument panel, which
shows the airbag symbol.
The system checks the airbag electrical system for
malfunctions. The light tells you if there is an electrical
problem. SeeAirbag Readiness Light on page 3-26
for more information.
1-59
Page 64 of 348

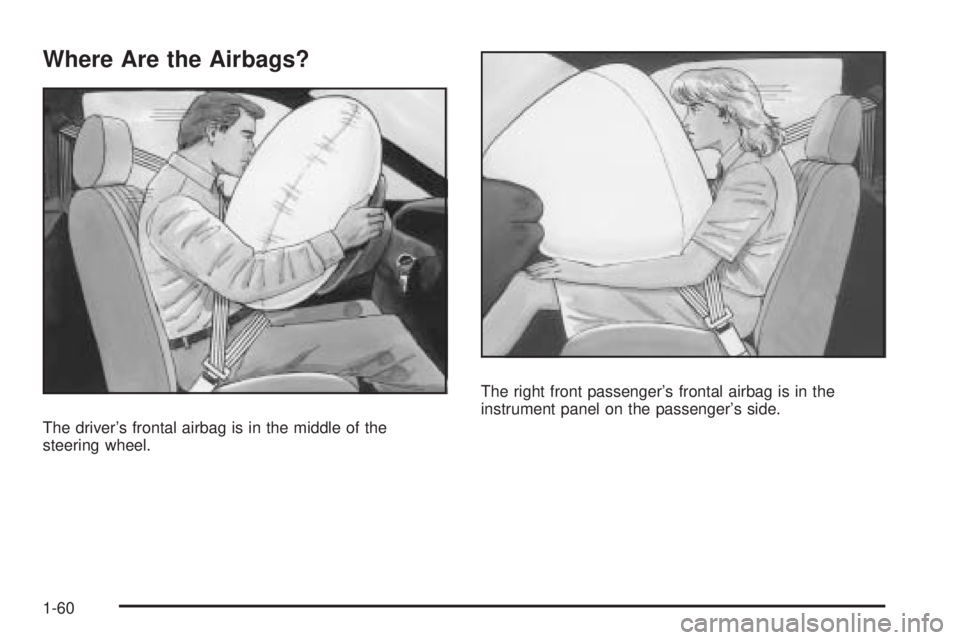

Where Are the Airbags?
The driver’s frontal airbag is in the middle of the
steering wheel.The right front passenger’s frontal airbag is in the
instrument panel on the passenger’s side.
1-60
Page 65 of 348

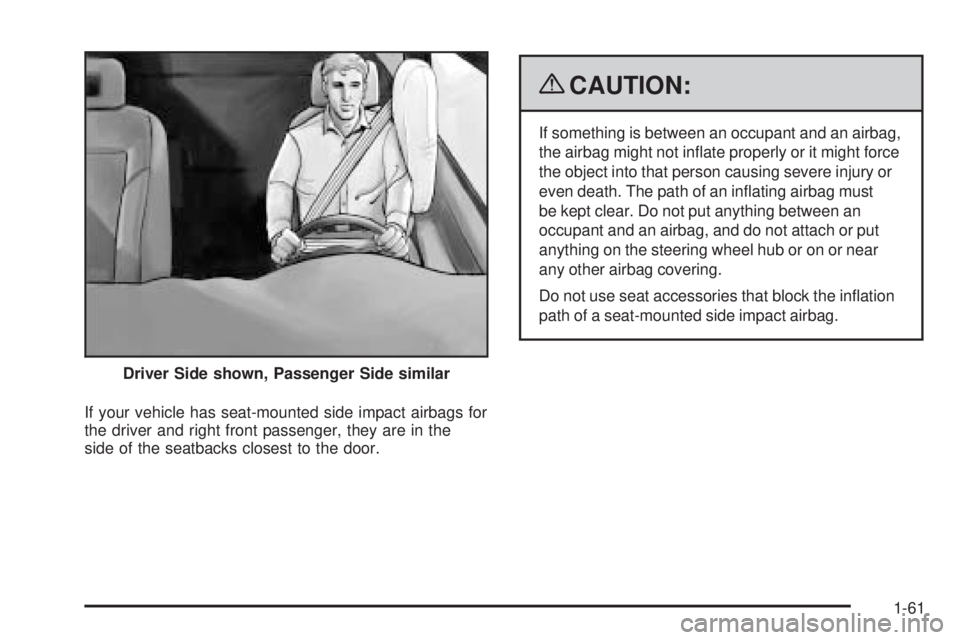

If your vehicle has seat-mounted side impact airbags for
the driver and right front passenger, they are in the
side of the seatbacks closest to the door.
{CAUTION:
If something is between an occupant and an airbag,
the airbag might not in ate properly or it might force
the object into that person causing severe injury or
even death. The path of an in ating airbag must
be kept clear. Do not put anything between an
occupant and an airbag, and do not attach or put
anything on the steering wheel hub or on or near
any other airbag covering.
Do not use seat accessories that block the in ation
path of a seat-mounted side impact airbag.
Driver Side shown, Passenger Side similar
1-61
Page 66 of 348

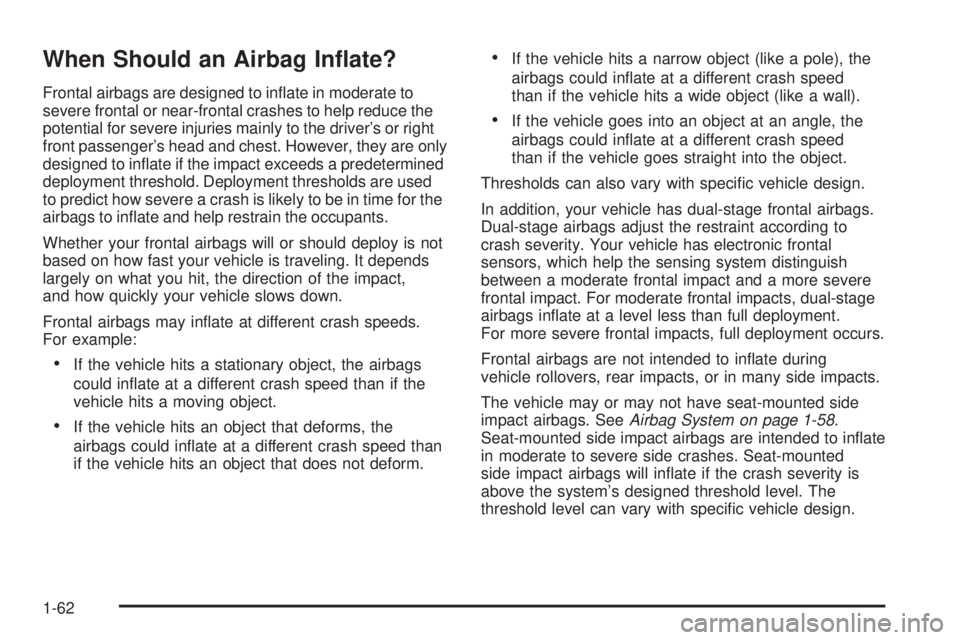

When Should an Airbag In ate?
Frontal airbags are designed to in ate in moderate to
severe frontal or near-frontal crashes to help reduce the
potential for severe injuries mainly to the driver’s or right
front passenger’s head and chest. However, they are only
designed to in ate if the impact exceeds a predetermined
deployment threshold. Deployment thresholds are used
to predict how severe a crash is likely to be in time for the
airbags to in ate and help restrain the occupants.
Whether your frontal airbags will or should deploy is not
based on how fast your vehicle is traveling. It depends
largely on what you hit, the direction of the impact,
and how quickly your vehicle slows down.
Frontal airbags may in ate at different crash speeds.
For example:
If the vehicle hits a stationary object, the airbags
could in ate at a different crash speed than if the
vehicle hits a moving object.
If the vehicle hits an object that deforms, the
airbags could in ate at a different crash speed than
if the vehicle hits an object that does not deform.
If the vehicle hits a narrow object (like a pole), the
airbags could in ate at a different crash speed
than if the vehicle hits a wide object (like a wall).
If the vehicle goes into an object at an angle, the
airbags could in ate at a different crash speed
than if the vehicle goes straight into the object.
Thresholds can also vary with speci c vehicle design.
In addition, your vehicle has dual-stage frontal airbags.
Dual-stage airbags adjust the restraint according to
crash severity. Your vehicle has electronic frontal
sensors, which help the sensing system distinguish
between a moderate frontal impact and a more severe
frontal impact. For moderate frontal impacts, dual-stage
airbags in ate at a level less than full deployment.
For more severe frontal impacts, full deployment occurs.
Frontal airbags are not intended to in ate during
vehicle rollovers, rear impacts, or in many side impacts.
The vehicle may or may not have seat-mounted side
impact airbags. SeeAirbag System on page 1-58.
Seat-mounted side impact airbags are intended to in ate
in moderate to severe side crashes. Seat-mounted
side impact airbags will in ate if the crash severity is
above the system’s designed threshold level. The
threshold level can vary with speci c vehicle design.
1-62
Page 67 of 348
Seat-mounted side impact airbags are not intended to
in ate in frontal impacts, near-frontal impacts, rollovers,
or rear impacts. A seat-mounted side impact airbag is
intended to deploy on the side of the vehicle that is
struck.
In any particular crash, no one can say whether an
airbag should have in ated simply because of the
damage to a vehicle or because of what the repair costs
were. For frontal airbags, in ation is determined by
what the vehicle hits, the angle of the impact, and how
quickly the vehicle slows down. For seat-mounted
side impact airbags, deployment is determined by the
location and severity of the side impact.
What Makes an Airbag In ate?
In a deployment event, the sensing system sends an
electrical signal triggering a release of gas from the
in ator. Gas from the in ator lls the airbag causing the
bag to break out of the cover and deploy. The in ator, the
airbag, and related hardware are all part of the airbag
module.
Frontal airbag modules are located inside the steering
wheel and instrument panel. For vehicles with
seat-mounted side impact airbags, there are airbag
modules in the side of the front seatbacks closest to
the door.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel
or the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle.
Airbags supplement the protection provided by safety
belts. Frontal airbags distribute the force of the impact
more evenly over the occupant’s upper body, stopping
the occupant more gradually. Seat-mounted side impact
airbags distribute the force of the impact more evenly
over the occupant’s upper body.
But airbags would not help in many types of collisions,
primarily because the occupant’s motion is not
toward those airbags. SeeWhen Should an Airbag
Inflate? on page 1-62for more information.
Airbags should never be regarded as anything more
than a supplement to safety belts.
1-63
Page 68 of 348

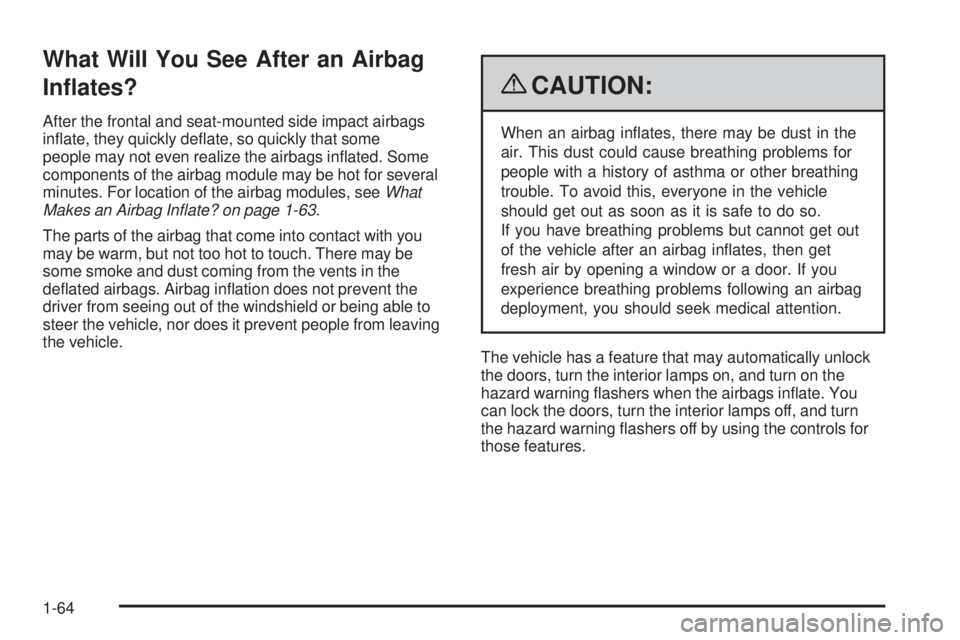

What Will You See After an Airbag
In ates?
After the frontal and seat-mounted side impact airbags
in ate, they quickly de ate, so quickly that some
people may not even realize the airbags in ated. Some
components of the airbag module may be hot for several
minutes. For location of the airbag modules, seeWhat
Makes an Airbag Inflate? on page 1-63.
The parts of the airbag that come into contact with you
may be warm, but not too hot to touch. There may be
some smoke and dust coming from the vents in the
de ated airbags. Airbag in ation does not prevent the
driver from seeing out of the windshield or being able to
steer the vehicle, nor does it prevent people from leaving
the vehicle.
{CAUTION:
When an airbag in ates, there may be dust in the
air. This dust could cause breathing problems for
people with a history of asthma or other breathing
trouble. To avoid this, everyone in the vehicle
should get out as soon as it is safe to do so.
If you have breathing problems but cannot get out
of the vehicle after an airbag in ates, then get
fresh air by opening a window or a door. If you
experience breathing problems following an airbag
deployment, you should seek medical attention.
The vehicle has a feature that may automatically unlock
the doors, turn the interior lamps on, and turn on the
hazard warning ashers when the airbags in ate. You
can lock the doors, turn the interior lamps off, and turn
the hazard warning ashers off by using the controls for
those features.
1-64
Page 69 of 348
In many crashes severe enough to in ate the airbag,
windshields are broken by vehicle deformation. Additional
windshield breakage may also occur from the right front
passenger airbag.
Airbags are designed to in ate only once. After an
airbag in ates, you will need some new parts for the
airbag system. If you do not get them, the airbag
system will not be there to help protect you in another
crash. A new system will include airbag modules and
possibly other parts. The service manual for your
vehicle covers the need to replace other parts.
The vehicle has a crash sensing and diagnostic
module which records information after a crash. See
Vehicle Data Recording and Privacy on page 7-16
andEvent Data Recorders on page 7-17.
Let only quali ed technicians work on the airbag
system. Improper service can mean that the airbag
system will not work properly. See your dealer/
retailer for service.
Passenger Sensing System
The vehicle has a passenger sensing system for the right
front passenger position. The passenger airbag status
indicator will be visible, near the clock, located in the
center of the instrument panel, when the vehicle is
started.
The word ON and OFF or the symbol for on and off will
be visible, during the system check.
When the system check is complete, either the word
ON and OFF or the symbol for on and off will be visible.
SeePassenger Airbag Status Indicator on page 3-27. United States
Canada
1-65
Page 70 of 348

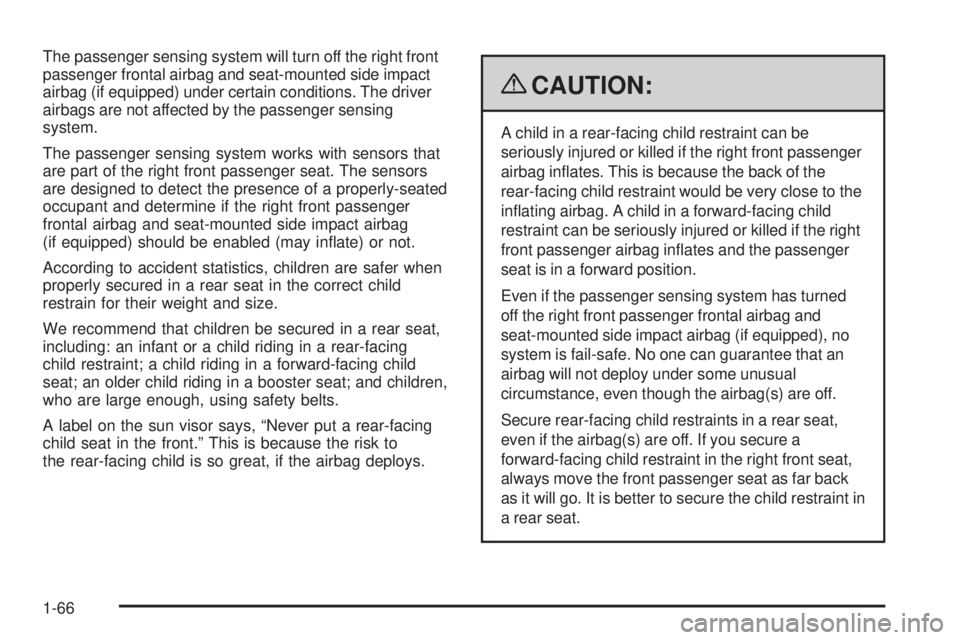

The passenger sensing system will turn off the right front
passenger frontal airbag and seat-mounted side impact
airbag (if equipped) under certain conditions. The driver
airbags are not affected by the passenger sensing
system.
The passenger sensing system works with sensors that
are part of the right front passenger seat. The sensors
are designed to detect the presence of a properly-seated
occupant and determine if the right front passenger
frontal airbag and seat-mounted side impact airbag
(if equipped) should be enabled (may in ate) or not.
According to accident statistics, children are safer when
properly secured in a rear seat in the correct child
restrain for their weight and size.
We recommend that children be secured in a rear seat,
including: an infant or a child riding in a rear-facing
child restraint; a child riding in a forward-facing child
seat; an older child riding in a booster seat; and children,
who are large enough, using safety belts.
A label on the sun visor says, “Never put a rear-facing
child seat in the front.” This is because the risk to
the rear-facing child is so great, if the airbag deploys.
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front passenger
airbag in ates. This is because the back of the
rear-facing child restraint would be very close to the
in ating airbag. A child in a forward-facing child
restraint can be seriously injured or killed if the right
front passenger airbag in ates and the passenger
seat is in a forward position.
Even if the passenger sensing system has turned
off the right front passenger frontal airbag and
seat-mounted side impact airbag (if equipped), no
system is fail-safe. No one can guarantee that an
airbag will not deploy under some unusual
circumstance, even though the airbag(s) are off.
Secure rear-facing child restraints in a rear seat,
even if the airbag(s) are off. If you secure a
forward-facing child restraint in the right front seat,
always move the front passenger seat as far back
as it will go. It is better to secure the child restraint in
a rear seat.
1-66
