PONTIAC G5 2010 Owner's Guide

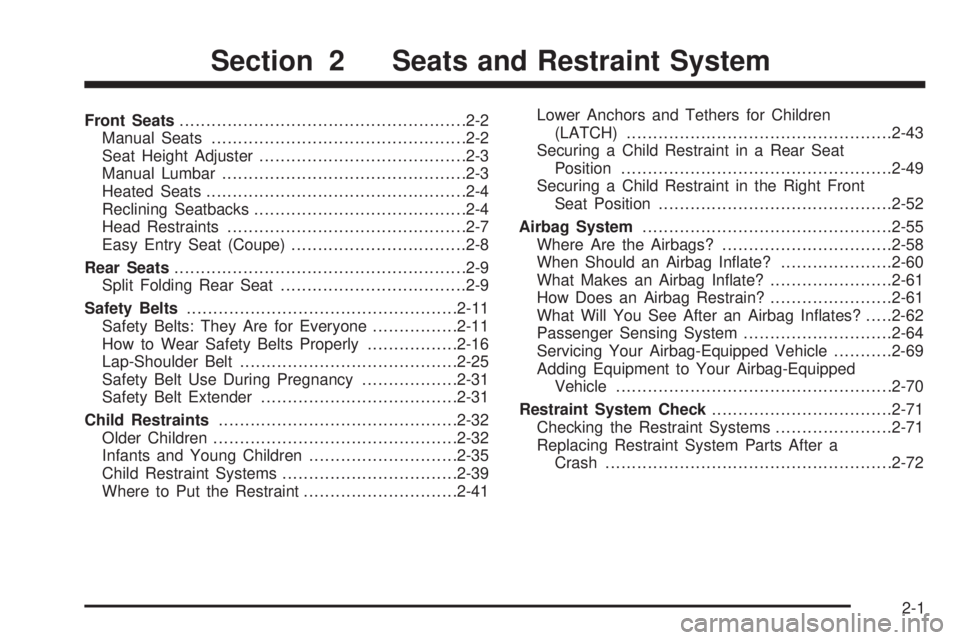

Front Seats..................................................... .2-2
Manual Seats ............................................... .2-2
Seat Height Adjuster ...................................... .2-3
Manual Lumbar ............................................. .2-3
Heated Seats ................................................ .2-4
Reclining Seatbacks ....................................... .2-4
Head Restraints ............................................ .2-7
Easy Entry Seat (Coupe) .................................2-8
Rear Seats ...................................................... .2-9
Split Folding Rear Seat .................................. .2-9
Safety Belts .................................................. .2-11
Safety Belts: They Are for Everyone ................2-11
How to Wear Safety Belts Properly .................2-16
Lap-Shoulder Belt ........................................ .2-25
Safety Belt Use During Pregnancy ..................2-31
Safety Belt Extender .................................... .2-31
Child Restraints ............................................ .2-32
Older Children ............................................. .2-32
Infants and Young Children ............................2-35
Child Restraint Systems .................................2-39
Where to Put the Restraint .............................2-41Lower Anchors and Tethers for Children
(LATCH) ................................................. .2-43
Securing a Child Restraint in a Rear Seat Position .................................................. .2-49
Securing a Child Restraint in the Right Front Seat Position ........................................... .2-52
Airbag System .............................................. .2-55
Where Are the Airbags? ................................2-58
When Should an Airbag Inflate? .....................2-60
What Makes an Airbag Inflate? .......................2-61
How Does an Airbag Restrain? .......................2-61
What Will You See After an Airbag Inflates? .....2-62
Passenger Sensing System ............................2-64
Servicing Your Airbag-Equipped Vehicle ...........2-69
Adding Equipment to Your Airbag-Equipped Vehicle ................................................... .2-70
Restraint

System Check ................................. .2-71
Checking the Restraint Systems ......................2-71
Replacing Restraint System Parts After a Crash ..................................................... .2-72
Section 2 Seats and Restraint System
2-1

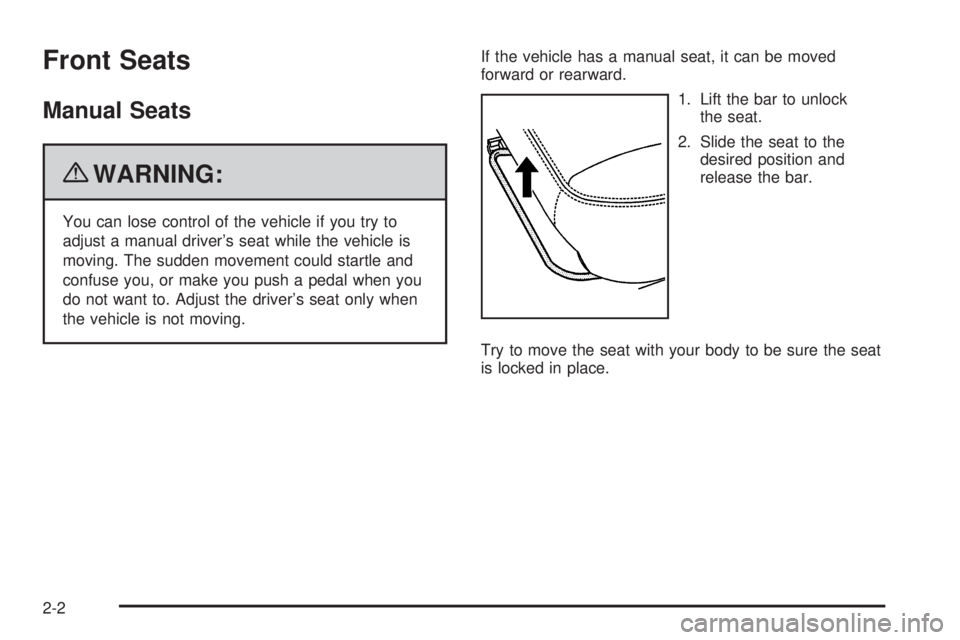

Front Seats
Manual Seats
{WARNING:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
do not want to. Adjust the driver’s seat only when
the vehicle is not moving.If the vehicle has a manual seat, it can be moved
forward or rearward.
1. Lift the bar to unlockthe seat.
2. Slide the seat to the desired position and
release the bar.
Try to move the seat with your body to be sure the seat
is locked in place.
2-2

Seat Height Adjuster
The driver’s seat height adjuster is located on the
outboard side of the seat.
To raise the seat, move the lever upward repeatedly
until the seat is at the desired height. To lower the seat,
move the lever downward repeatedly until the seat is
at the desired height.
Manual Lumbar
On vehicles with this
feature, the knob is
located on the front of the
driver seat lower cushion
on the inboard side.
Turn the knob clockwise or counterclockwise to increase
or decrease the lumbar support.
2-3

Heated Seats
Your vehicle may have heated front seats. The switches
are located on the instrument panel above the climate
control system.Press the side of the
switch with the double
indicator lights to turn on
the heated seat at the
highest setting.
Both indicator lights will be lit to indicate that the setting
is on high. Press the side of the switch with the single
indicator light to go to the low setting. The indicator light
will be lit to indicate that the setting is on low. Return
the switch to the center to turn off the heated seat.
If your vehicle has been turned off, the last heated seat
setting will be retained when the vehicle is started
again.
Reclining Seatbacks
{WARNING:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
do not want to. Adjust the driver’s seat only when
the vehicle is not moving.
{WARNING:
If either seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatbacks to be sure they
are locked.
Your seats have manual reclining seatbacks. The lever
used to operate them is located on the outboard
side of the seats.
Driver’s Switch Shown,
Passenger’s Switch Similar
2-4

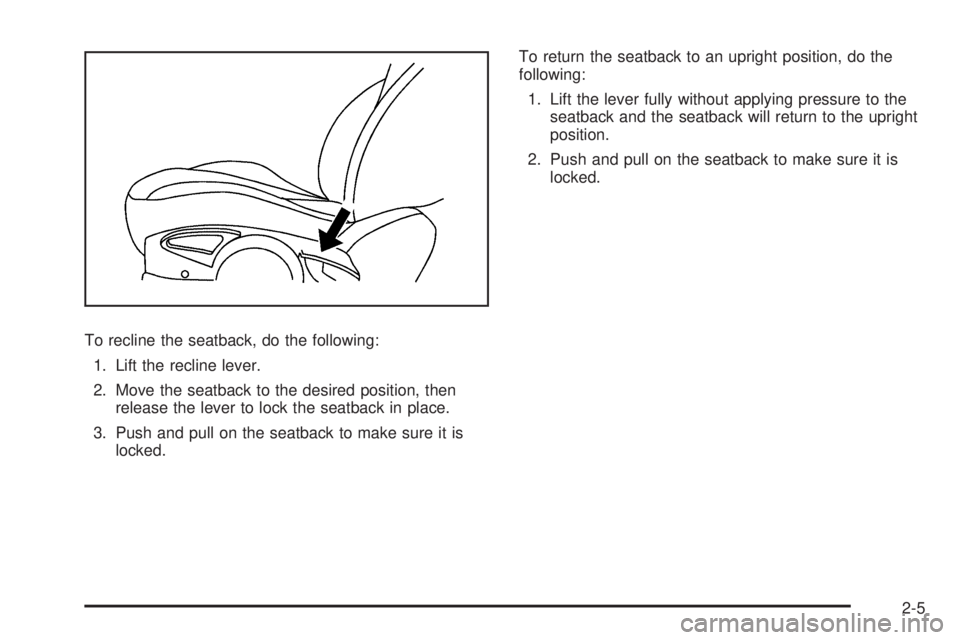

To recline the seatback, do the following:1. Lift the recline lever.
2. Move the seatback to the desired position, then release the lever to lock the seatback in place.
3. Push and pull on the seatback to make sure it is locked. To return the seatback to an upright position, do the
following:
1. Lift the lever fully without applying pressure to the seatback and the seatback will return to the upright
position.
2. Push and pull on the seatback to make sure it is locked.
2-5

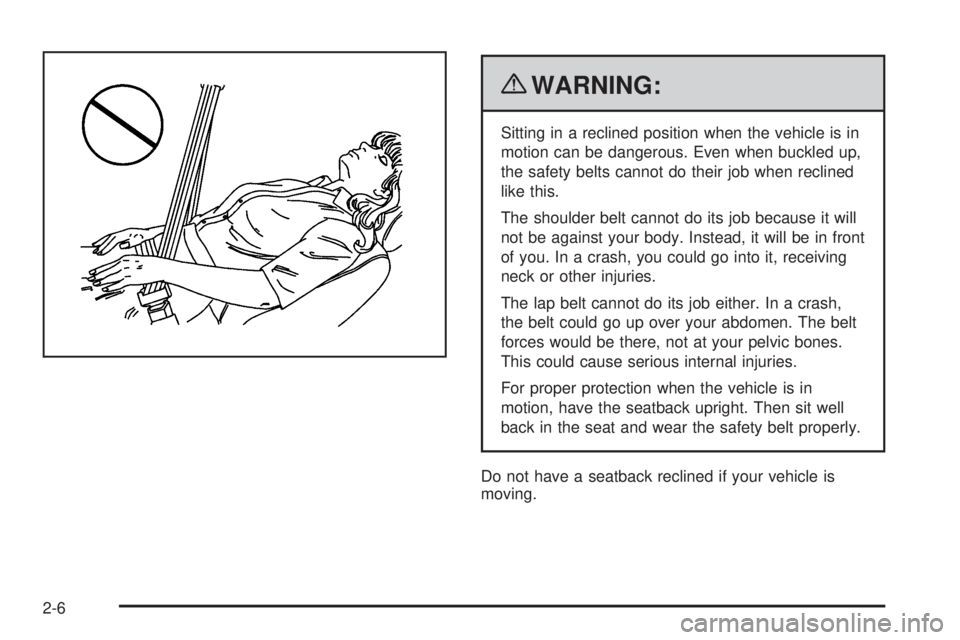

{WARNING:
Sitting in a reclined position when the vehicle is in
motion can be dangerous. Even when buckled up,
the safety belts cannot do their job when reclined
like this.
The shoulder belt cannot do its job because it will
not be against your body. Instead, it will be in front
of you. In a crash, you could go into it, receiving
neck or other injuries.
The lap belt cannot do its job either. In a crash,
the belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit well
back in the seat and wear the safety belt properly.
Do not have a seatback reclined if your vehicle is
moving.
2-6

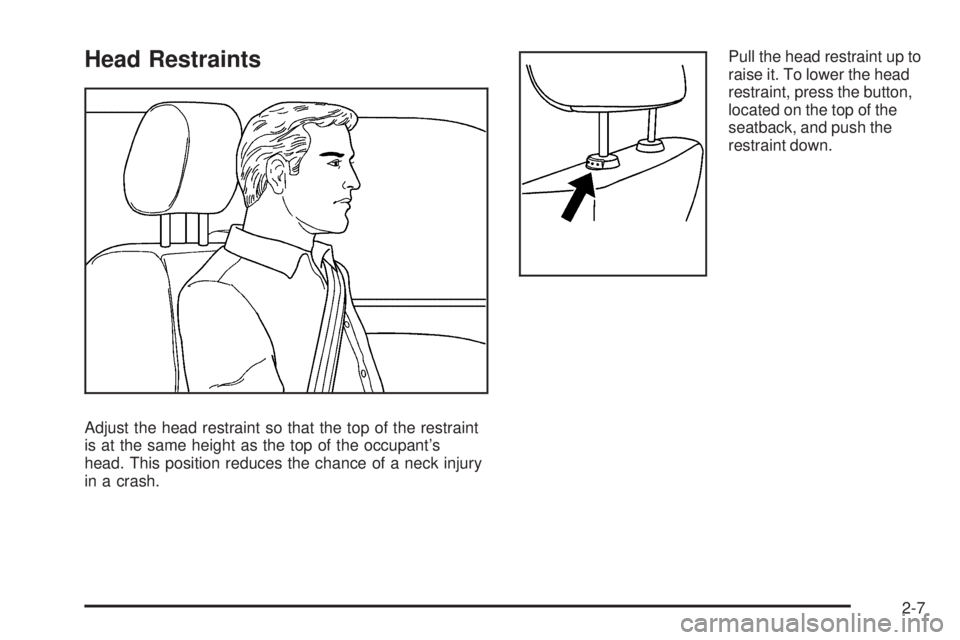

Head Restraints
Adjust the head restraint so that the top of the restraint
is at the same height as the top of the occupant’s
head. This position reduces the chance of a neck injury
in a crash.Pull the head restraint up to
raise it. To lower the head
restraint, press the button,
located on the top of the
seatback, and push the
restraint down.
2-7

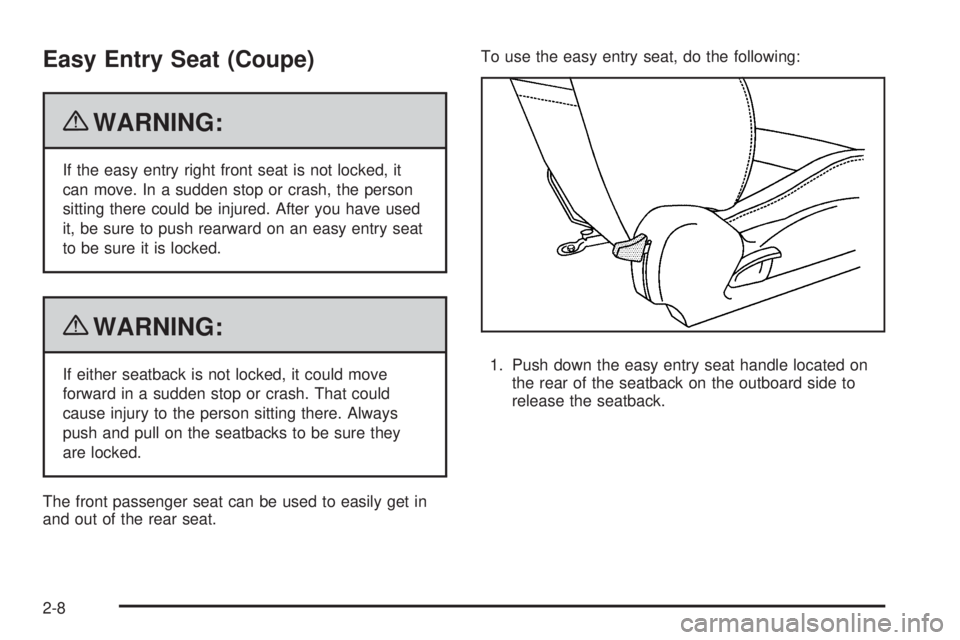

Easy Entry Seat (Coupe)
{WARNING:
If the easy entry right front seat is not locked, it
can move. In a sudden stop or crash, the person
sitting there could be injured. After you have used
it, be sure to push rearward on an easy entry seat
to be sure it is locked.
{WARNING:
If either seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatbacks to be sure they
are locked.
The front passenger seat can be used to easily get in
and out of the rear seat. To use the easy entry seat, do the following:
1. Push down the easy entry seat handle located on the rear of the seatback on the outboard side to
release the seatback.
2-8

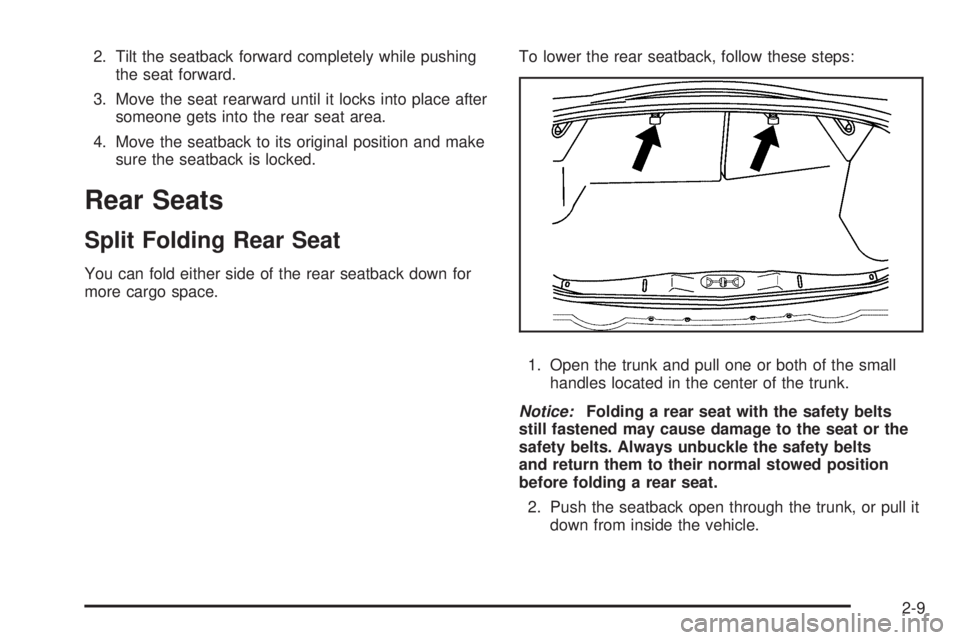

2. Tilt the seatback forward completely while pushingthe seat forward.
3. Move the seat rearward until it locks into place after someone gets into the rear seat area.
4. Move the seatback to its original position and make sure the seatback is locked.
Rear Seats
Split Folding Rear Seat
You can fold either side of the rear seatback down for
more cargo space. To lower the rear seatback, follow these steps:
1. Open the trunk and pull one or both of the small handles located in the center of the trunk.
Notice: Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
2. Push the seatback open through the trunk, or pull it down from inside the vehicle.
2-9

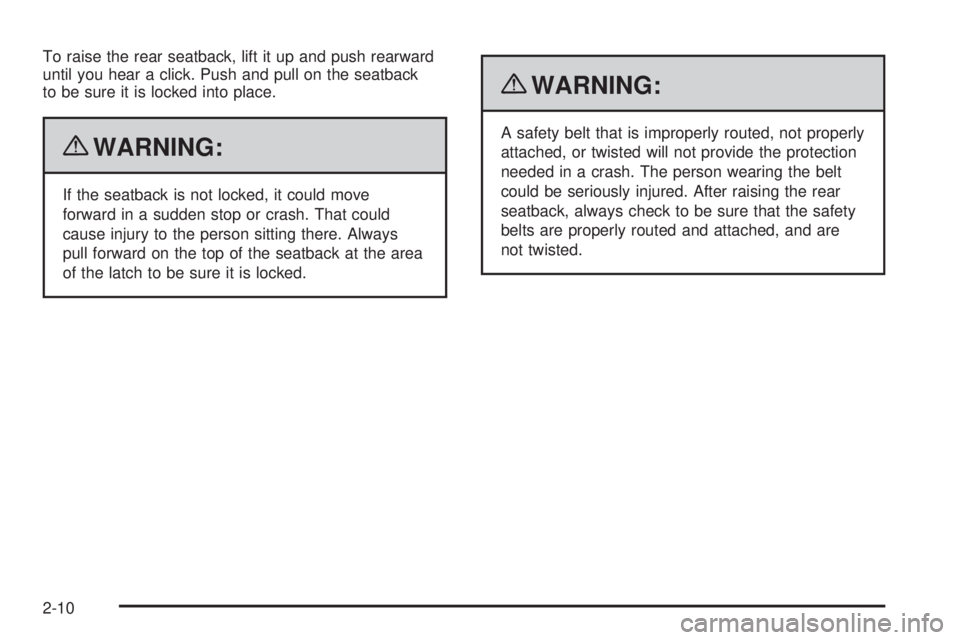

To raise the rear seatback, lift it up and push rearward
until you hear a click. Push and pull on the seatback
to be sure it is locked into place.
{WARNING:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
pull forward on the top of the seatback at the area
of the latch to be sure it is locked.
{WARNING:
A safety belt that is improperly routed, not properly
attached, or twisted will not provide the protection
needed in a crash. The person wearing the belt
could be seriously injured. After raising the rear
seatback, always check to be sure that the safety
belts are properly routed and attached, and are
not twisted.
2-10
