PONTIAC G6 2007 Owners Manual

{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
and stays on, it means that something may
be wrong with the airbag system. If this
ever happens, have the vehicle serviced
promptly, because an adult-size person
sitting in the right front passenger’s seat
may not have the protection of the frontal
airbag. SeeAirbag Readiness Light on
page 196for more on this, including
important safety information.
A thick layer of additional material such as a
blanket, or aftermarket equipment such as seat
covers, seat heaters, and seat massagers,
can affect how well the passenger sensing system
operates. Remove any additional material from
the seat cushion before reinstalling or securing the
child restraint and before a small occupant,
including a small adult, sits in the right front
passenger’s seat. You may want to consider not
using seat covers or other aftermarket equipment ifyour vehicle has the passenger sensing system.
SeeAdding Equipment to Your Airbag-Equipped
Vehicle on page 93for more information about
modications that can affect how the system
operates.
The passenger sensing system may suppress the
airbag deployment when liquid is soaked into
the seat. If this happens, the off indicator in the
passenger airbag status indicator and the
airbag readiness light on the instrument panel will
be lit. The system should resume normal
operation after the seat is allowed to dry. If the
system operates incorrectly after the seat
has dried, have your dealer check the system.
{CAUTION:
Stowing of articles under the passenger’s
seat or between the passenger’s seat
cushion and seatback may interfere with
the proper operation of the passenger
sensing system.
91

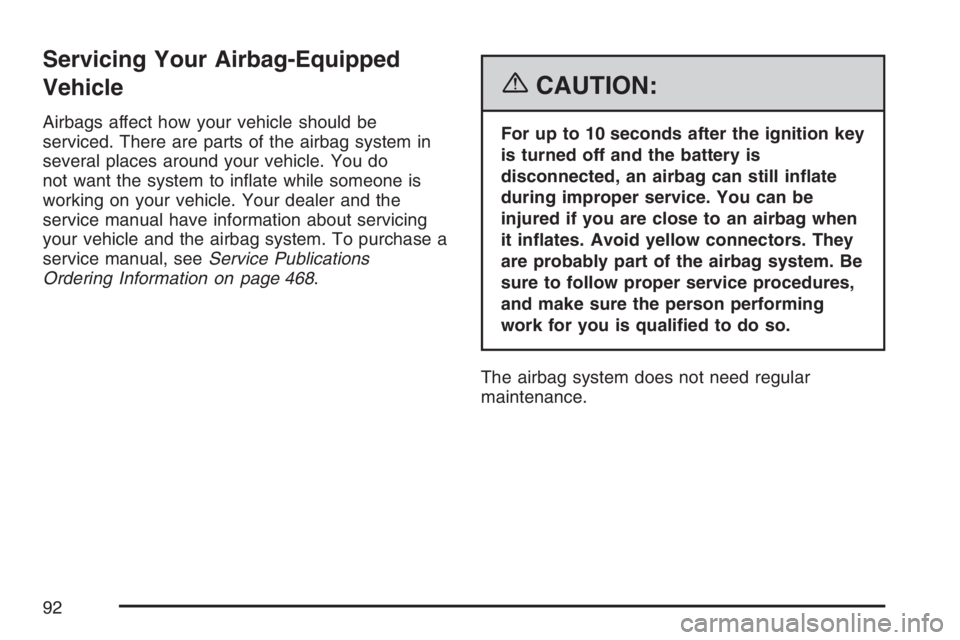

Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be
serviced. There are parts of the airbag system in
several places around your vehicle. You do
not want the system to inate while someone is
working on your vehicle. Your dealer and the
service manual have information about servicing
your vehicle and the airbag system. To purchase a
service manual, seeService Publications
Ordering Information on page 468.
{CAUTION:
For up to 10 seconds after the ignition key
is turned off and the battery is
disconnected, an airbag can still inate
during improper service. You can be
injured if you are close to an airbag when
it inates. Avoid yellow connectors. They
are probably part of the airbag system. Be
sure to follow proper service procedures,
and make sure the person performing
work for you is qualied to do so.
The airbag system does not need regular
maintenance.
92

Adding Equipment to Your
Airbag-Equipped Vehicle
Q:Is there anything I might add to the front
or sides of the vehicle that could keep the
airbags from working properly?
A:Yes. If you add things that change your
vehicle’s frame, bumper system, height,
front end or side sheet metal, they may keep
the airbag system from working properly.
Also, the airbag system may not work properly
if you relocate any of the airbag sensors. If
you have any questions about this, you should
contact Customer Assistance before you
modify your vehicle. The phone numbers and
addresses for Customer Assistance are in
Step Two of the Customer Satisfaction
Procedure in this manual. SeeCustomer
Satisfaction Procedure on page 450.
Q:Because I have a disability, I have to get
my vehicle modied. How can I nd out
whether this will affect my airbag system?
A:Changing or moving any parts of the
front seats, safety belts, the airbag sensing
and diagnostic module, steering wheel,
instrument panel, ceiling headliner, ceiling and
pillar garnish trim, roof-mounted airbag
modules, or airbag wiring can affect the
operation of the airbag system. If you have
questions, call Customer Assistance. The
phone numbers and addresses for Customer
Assistance are in Step Two of the Customer
Satisfaction Procedure in this manual.
SeeCustomer Satisfaction Procedure on
page 450.
93

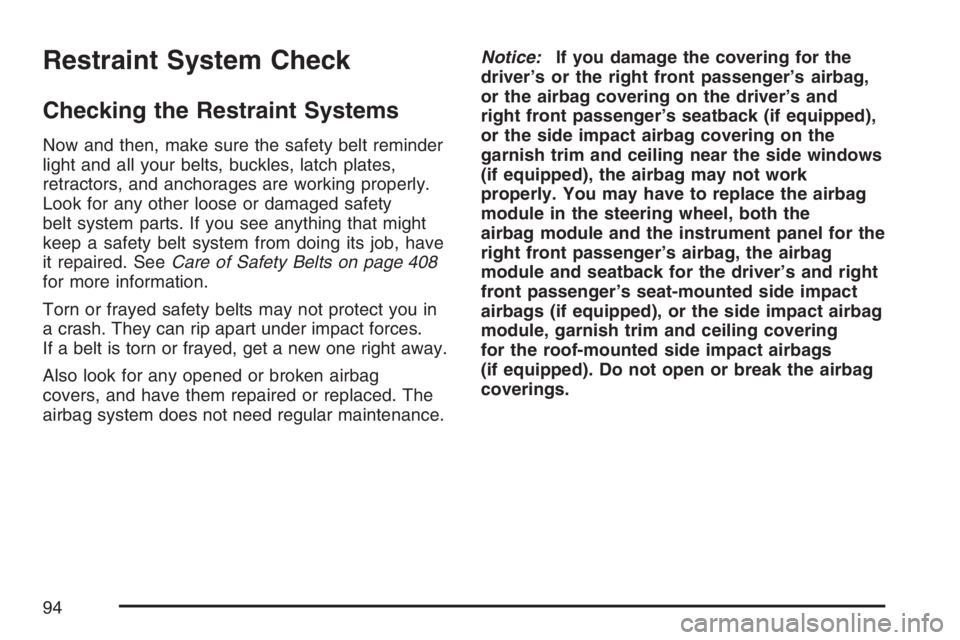

Restraint System Check
Checking the Restraint Systems
Now and then, make sure the safety belt reminder
light and all your belts, buckles, latch plates,
retractors, and anchorages are working properly.
Look for any other loose or damaged safety
belt system parts. If you see anything that might
keep a safety belt system from doing its job, have
it repaired. SeeCare of Safety Belts on page 408
for more information.
Torn or frayed safety belts may not protect you in
a crash. They can rip apart under impact forces.
If a belt is torn or frayed, get a new one right away.
Also look for any opened or broken airbag
covers, and have them repaired or replaced. The
airbag system does not need regular maintenance.Notice:If you damage the covering for the
driver’s or the right front passenger’s airbag,
or the airbag covering on the driver’s and
right front passenger’s seatback (if equipped),
or the side impact airbag covering on the
garnish trim and ceiling near the side windows
(if equipped), the airbag may not work
properly. You may have to replace the airbag
module in the steering wheel, both the
airbag module and the instrument panel for the
right front passenger’s airbag, the airbag
module and seatback for the driver’s and right
front passenger’s seat-mounted side impact
airbags (if equipped), or the side impact airbag
module, garnish trim and ceiling covering
for the roof-mounted side impact airbags
(if equipped). Do not open or break the airbag
coverings.
94

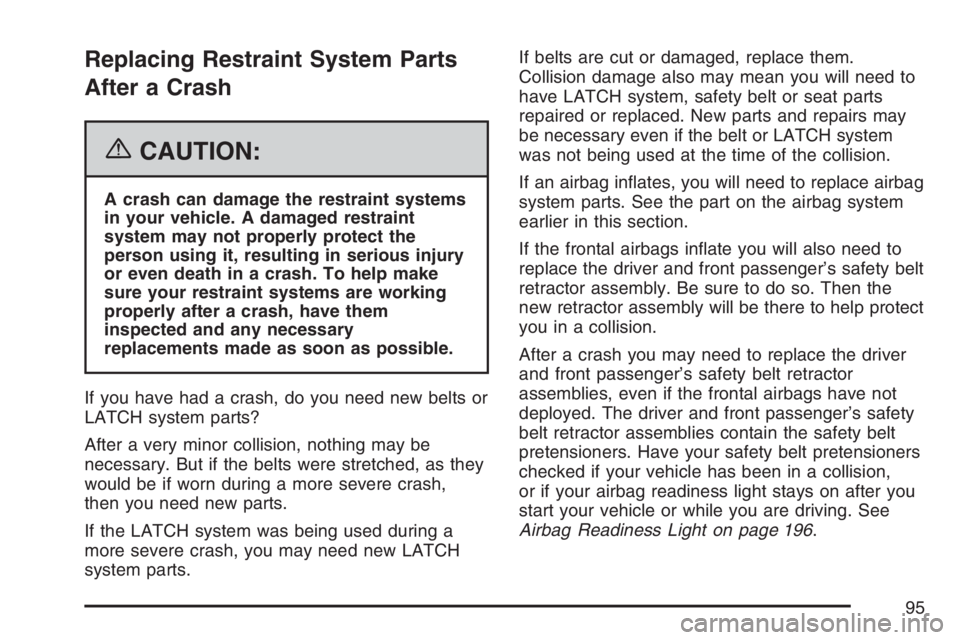

Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems
in your vehicle. A damaged restraint
system may not properly protect the
person using it, resulting in serious injury
or even death in a crash. To help make
sure your restraint systems are working
properly after a crash, have them
inspected and any necessary
replacements made as soon as possible.
If you have had a crash, do you need new belts or
LATCH system parts?
After a very minor collision, nothing may be
necessary. But if the belts were stretched, as they
would be if worn during a more severe crash,
then you need new parts.
If the LATCH system was being used during a
more severe crash, you may need new LATCH
system parts.If belts are cut or damaged, replace them.
Collision damage also may mean you will need to
have LATCH system, safety belt or seat parts
repaired or replaced. New parts and repairs may
be necessary even if the belt or LATCH system
was not being used at the time of the collision.
If an airbag inates, you will need to replace airbag
system parts. See the part on the airbag system
earlier in this section.
If the frontal airbags inate you will also need to
replace the driver and front passenger’s safety belt
retractor assembly. Be sure to do so. Then the
new retractor assembly will be there to help protect
you in a collision.
After a crash you may need to replace the driver
and front passenger’s safety belt retractor
assemblies, even if the frontal airbags have not
deployed. The driver and front passenger’s safety
belt retractor assemblies contain the safety belt
pretensioners. Have your safety belt pretensioners
checked if your vehicle has been in a collision,
or if your airbag readiness light stays on after you
start your vehicle or while you are driving. See
Airbag Readiness Light on page 196.
95

✍NOTES
96

Keys.............................................................. 99
Remote Keyless Entry System.................. 100
Remote Keyless Entry System
Operation............................................... 101
Doors and Locks........................................ 108
Door Locks................................................ 108
Power Door Locks..................................... 109
Door Ajar Reminder.................................. 109
Delayed Locking........................................ 110
Automatic Door Lock................................. 110
Programmable Automatic Door Unlock....... 111
Rear Door Security Locks......................... 111
Lockout Protection..................................... 112
Trunk........................................................ 113
Windows...................................................... 115
Power Windows........................................ 116
Sun Visors................................................ 117
Theft-Deterrent Systems............................. 118
Content Theft-Deterrent............................. 118
PASS-Key
®III+......................................... 120
PASS-Key®III+ Operation......................... 120Starting and Operating Your Vehicle......... 122
New Vehicle Break-In................................ 122
Ignition Positions....................................... 122
Retained Accessory Power (RAP)............. 124
Starting the Engine.................................... 125
Adjustable Throttle and Brake Pedal
(Automatic Transaxle)............................ 127
Engine Coolant Heater.............................. 128
Automatic Transaxle Operation.................. 129
Manual Transaxle Operation...................... 134
Parking Brake........................................... 135
Shifting Into Park (P)
(Automatic Transaxle)............................ 136
Shifting Out of Park (P)
(Automatic Transaxle)............................ 138
Parking Your Vehicle
(Manual Transaxle)................................ 138
Parking Over Things That Burn................. 139
Engine Exhaust......................................... 140
Running the Engine While Parked............. 141
Section 2 Features and Controls
97

Mirrors......................................................... 142
Manual Rearview Mirror............................. 142
Manual Rearview Mirror with OnStar
®....... 142
Automatic Dimming Rearview Mirror with
OnStar
®and Compass........................... 143
Automatic Dimming Rearview Mirror with
Compass............................................... 145
Outside Power Mirrors............................... 147
Outside Convex Mirror............................... 147
OnStar
®System.......................................... 148Storage Areas............................................. 150
Glove Box................................................. 150
Cupholder(s).............................................. 150
Center Console Storage Area.................... 150
Convenience Net....................................... 150
Sunroof....................................................... 150
Sunroof - Panoramic................................. 151
Retractable Hardtop.................................... 153
Lowering the Retractable Hardtop.............. 154
Raising the Retractable Hardtop................ 157
Section 2 Features and Controls
98

Keys
{CAUTION:
Leaving children in a vehicle with the
ignition key is dangerous for many
reasons. They could operate the power
windows or other controls or even make
the vehicle move. The children or others
could be badly injured or even killed.
Do not leave the keys in a vehicle with
children.
99

One key is used for the
ignition and all locks.
When a new vehicle is delivered to the dealer, the
key has a key tag. This tag has a bar-coded key
code that tells your dealer how to make extra keys.
This tag may be removed and kept by your dealer.
If it has not been removed, keep the tag in a safe
place. If you lose your key, your dealer can easily
make another one by using the key code. See
Roadside Assistance Program on page 456for
more information.
Notice:If you ever lock your keys in your
vehicle, you may have to damage the vehicle
to get in. Be sure you have spare keys.Remote Keyless Entry System
If the vehicle has the Remote Keyless Entry (RKE)
system, it operates on a radio frequency subject
to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.
100
