PONTIAC G6 2007 Owners Manual

Parking Brake and Automatic Transaxle
Park (P) Mechanism Check
{CAUTION:
When you are doing this check, your
vehicle could begin to move. You or
others could be injured and property
could be damaged. Make sure there is
room in front of your vehicle in case it
begins to roll. Be ready to apply the
regular brake at once should the vehicle
begin to move.Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular
brake, set the parking brake.
To check the parking brake’s holding ability:
With the engine running and transaxle in
NEUTRAL (N), slowly remove foot pressure
from the regular brake pedal. Do this until the
vehicle is held by the parking brake only.
To check the PARK (P) mechanism’s holding
ability: With the engine running, shift to
PARK (P). Then release the parking brake
followed by the regular brake.
Contact your GM Goodwrench
®dealer if service is
required.
Underbody Flushing Service
At least every spring, use plain water to ush any
corrosive materials from the underbody. Take
care to clean thoroughly any areas where mud and
other debris can collect.
441

Recommended Fluids and
Lubricants
Fluids and lubricants identied below by name,
part number, or specication may be obtained from
your dealer.
Usage Fluid/Lubricant
Engine OilEngine oil which meets GM
Standard GM6094M and displays
the American Petroleum Institute
Certied for Gasoline Engines
starburst symbol. GM Goodwrench
®
oil meets all the requirements for
your vehicle. To determine the
proper viscosity for your vehicle’s
engine, seeEngine Oil on page 325.
Engine
Coolant50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant. SeeEngine Coolant on
page 339.
Hydraulic
Brake SystemDelco
®Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Windshield
WasherGM Optikleen
®Washer Solvent.
Hydraulic
Clutch SystemHydraulic Clutch Fluid
(GM Part No. U.S. 12345347,
in Canada 10953517) or equivalent
DOT-3 brake uid.
Usage Fluid/Lubricant
Hydraulic
Power
Steering
System (if
equipped)GM Power Steering Fluid
(GM Part No. U.S. 89021184,
in Canada 89021186).
Automatic
TransaxleDEXRON
®-VI Automatic
Transmission Fluid.
Manual
TransaxleManual Transmission Fluid
(Part No. 21018899).
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Hood Latch
Assembly,
Secondary
Latch, Pivots,
Spring Anchor,
and Release
PawlLubriplate Lubricant Aerosol
(GM Part No. U.S. 12346293,
in Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood and
Door HingesMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 109435474).
Weatherstrip
ConditioningWeatherstrip Lubricant
(GM Part No. U.S. 3634770,
in Canada 10953518) or Dielectric
Silicone Grease
(GM Part No. U.S. 12345579, in
Canada 992887).
442

Normal Maintenance Replacement Parts
Replacement parts identied below by name, part number, or specication can be obtained from your
GM dealer.
Part GM Part NumbersACDelco®Part
Numbers
Engine Air Cleaner/Filter
2.4L, 3.5L and 3.9L Engines 10366901 A1615C
3.6L Engine 22676970 A1627C
Engine Oil Filter
2.4L Engine 12605566 PF457G
3.5L Engine 89017342 PF61
3.6L Engine 89017524 PF48
3.9L Engine 89017342 PF61
Spark Plugs
2.4L Engine 12598004 41-103
3.5L Engine 12591131 41-100
3.6L Engine 12597464 41-990
3.9L Engine 12591131 41-100
Windshield Wiper Blades
Driver’s Side — 24.0 inches (60.0 cm) 19120742 —
Passenger’s Side — 21.2 inches (53.0 cm) 19120743 —
443

Engine Drive Belt Routing
2.4L L4 Engine
3.5L V6 Engine and 3.9L V6 Engine
444

3.6L V6 Engine
445

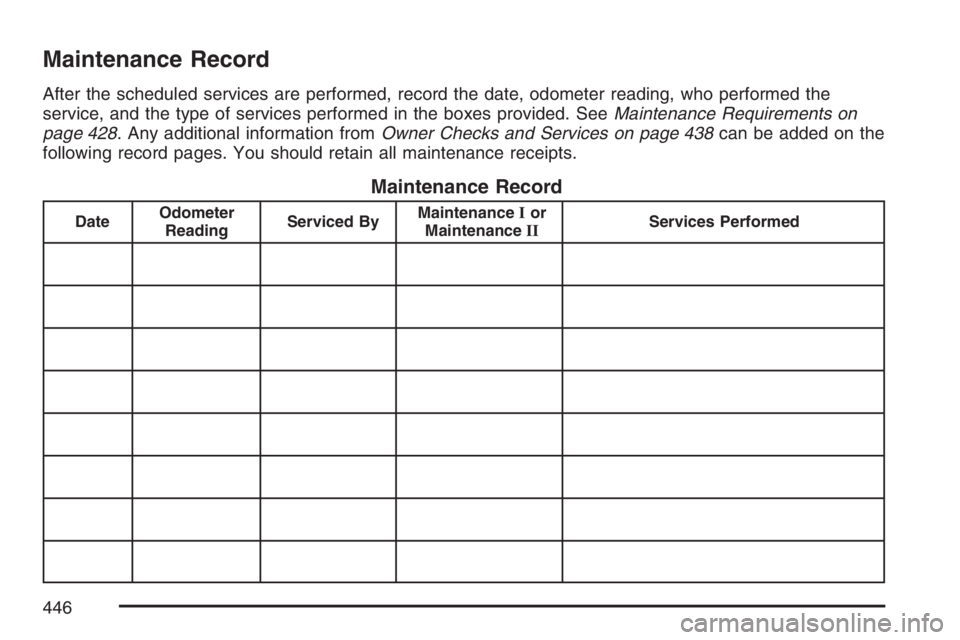

Maintenance Record
After the scheduled services are performed, record the date, odometer reading, who performed the
service, and the type of services performed in the boxes provided. SeeMaintenance Requirements on
page 428. Any additional information fromOwner Checks and Services on page 438can be added on the
following record pages. You should retain all maintenance receipts.
Maintenance Record
DateOdometer
ReadingServiced ByMaintenanceIor
MaintenanceIIServices Performed
446

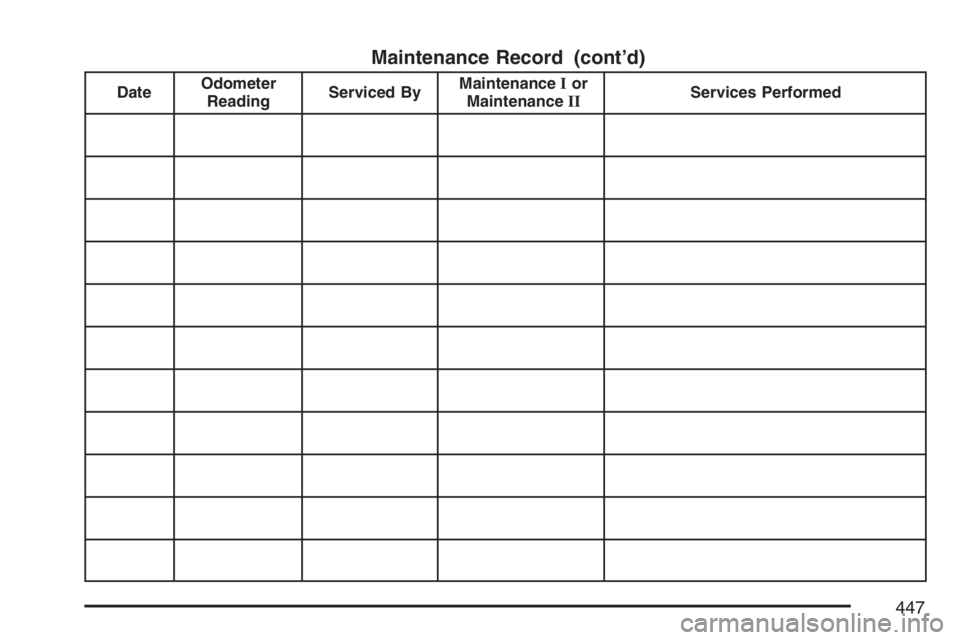

Maintenance Record (cont’d)
DateOdometer
ReadingServiced ByMaintenanceIor
MaintenanceIIServices Performed
447

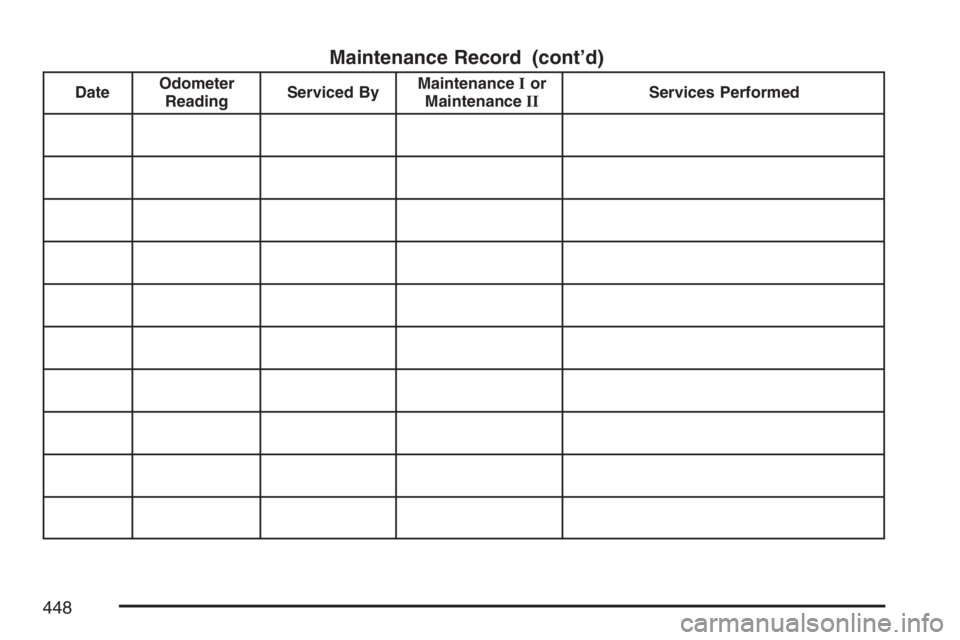

Maintenance Record (cont’d)
DateOdometer
ReadingServiced ByMaintenanceIor
MaintenanceIIServices Performed
448

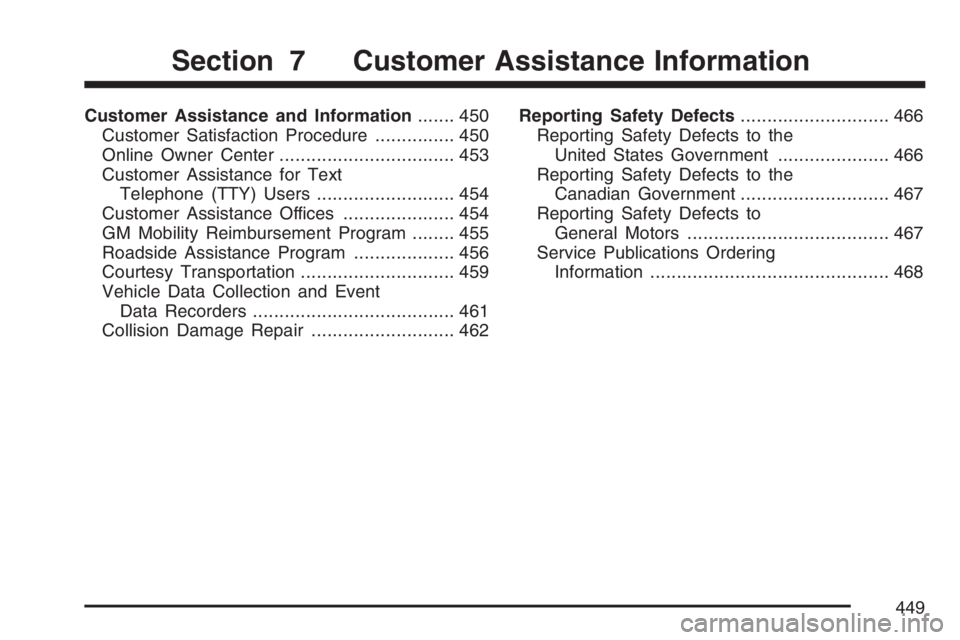

Customer Assistance and Information....... 450
Customer Satisfaction Procedure............... 450
Online Owner Center................................. 453
Customer Assistance for Text
Telephone (TTY) Users.......................... 454
Customer Assistance Offices..................... 454
GM Mobility Reimbursement Program........ 455
Roadside Assistance Program................... 456
Courtesy Transportation............................. 459
Vehicle Data Collection and Event
Data Recorders...................................... 461
Collision Damage Repair........................... 462Reporting Safety Defects............................ 466
Reporting Safety Defects to the
United States Government..................... 466
Reporting Safety Defects to the
Canadian Government............................ 467
Reporting Safety Defects to
General Motors...................................... 467
Service Publications Ordering
Information............................................. 468
Section 7 Customer Assistance Information
449

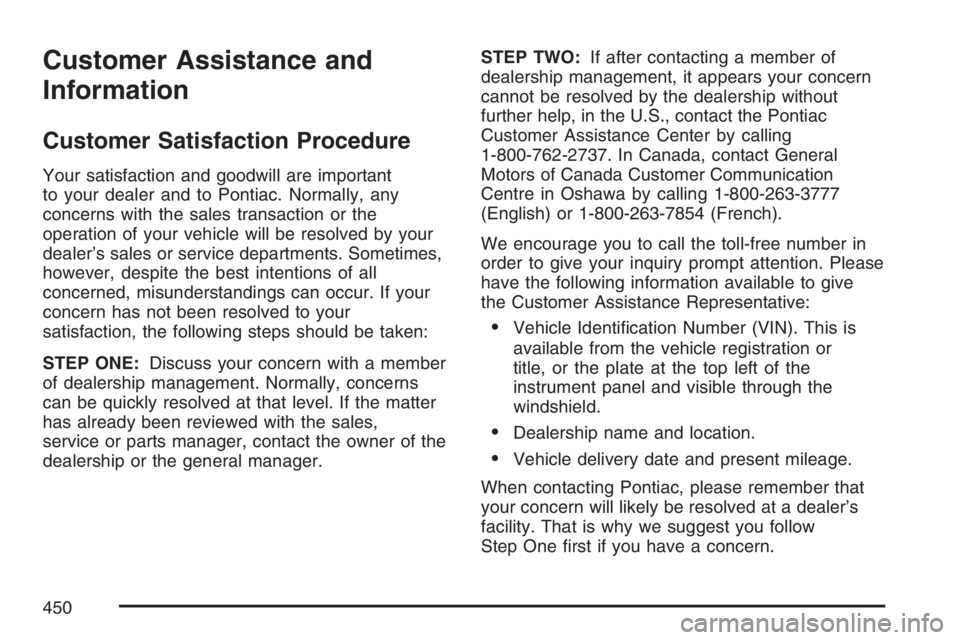

Customer Assistance and
Information
Customer Satisfaction Procedure
Your satisfaction and goodwill are important
to your dealer and to Pontiac. Normally, any
concerns with the sales transaction or the
operation of your vehicle will be resolved by your
dealer’s sales or service departments. Sometimes,
however, despite the best intentions of all
concerned, misunderstandings can occur. If your
concern has not been resolved to your
satisfaction, the following steps should be taken:
STEP ONE:Discuss your concern with a member
of dealership management. Normally, concerns
can be quickly resolved at that level. If the matter
has already been reviewed with the sales,
service or parts manager, contact the owner of the
dealership or the general manager.STEP TWO:If after contacting a member of
dealership management, it appears your concern
cannot be resolved by the dealership without
further help, in the U.S., contact the Pontiac
Customer Assistance Center by calling
1-800-762-2737. In Canada, contact General
Motors of Canada Customer Communication
Centre in Oshawa by calling 1-800-263-3777
(English) or 1-800-263-7854 (French).
We encourage you to call the toll-free number in
order to give your inquiry prompt attention. Please
have the following information available to give
the Customer Assistance Representative:
Vehicle Identication Number (VIN). This is
available from the vehicle registration or
title, or the plate at the top left of the
instrument panel and visible through the
windshield.
Dealership name and location.
Vehicle delivery date and present mileage.
When contacting Pontiac, please remember that
your concern will likely be resolved at a dealer’s
facility. That is why we suggest you follow
Step One rst if you have a concern.
450
