PONTIAC G8 2009 User Guide

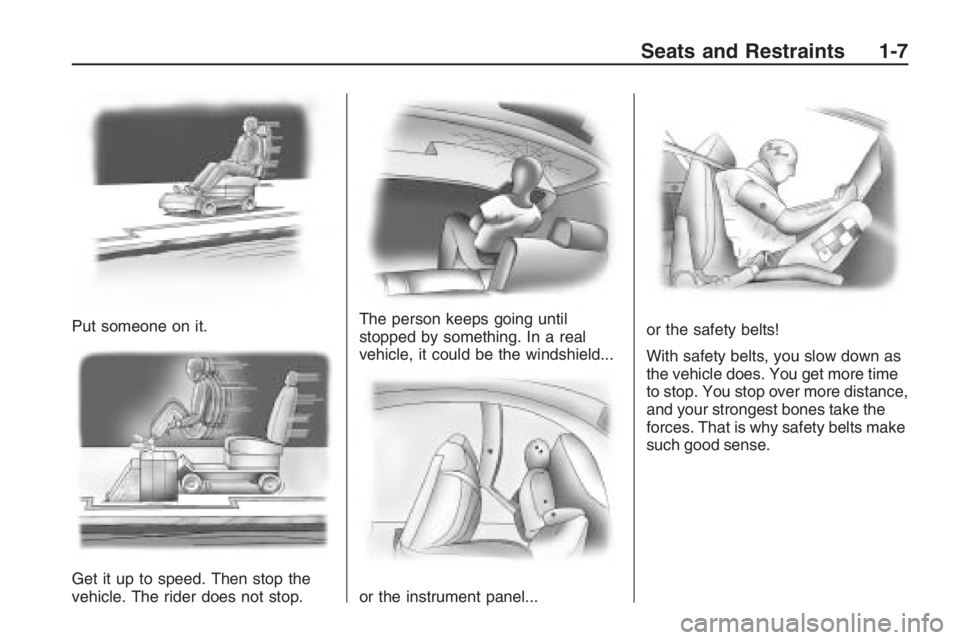

Put someone on it.
Get it up to speed. Then stop the
vehicle. The rider does not stop.The person keeps going until
stopped by something. In a real
vehicle, it could be the windshield...
or the instrument panel...or the safety belts!
With safety belts, you slow down as
the vehicle does. You get more time
to stop. You stop over more distance,
and your strongest bones take the
forces. That is why safety belts make
such good sense.
Seats and Restraints 1-7

Questions and Answers About
Safety Belts
Q:
Will I be trapped in the vehicle
after a crash if I am wearing a
safety belt?
A:Youcouldbe — whether you are
wearing a safety belt or not. But
your chance of being conscious
during and after an accident, so
youcanunbuckle and get out, is
muchgreater if you are belted.
And you can unbuckle a safety
belt, even if you are upside down.
Q:If my vehicle has airbags,
why should I have to wear
safety belts?
A:Airbags are supplemental
systems only; so they workwith
safety belts — not instead of
them. Whether or not an airbag is
provided, all occupants still have
to buckle up to get the most
protection. That is true not only in
frontal collisions, but especially in
side and other collisions.
Q:If I am a good driver, and I
never drive far from home,
why should I wear safety
belts?
A:You may be an excellent driver,
but if you are in a crash — even
one that is not your fault — you
and your passenger(s) can be
hurt. Being a good driver does not
protect you from things beyond
your control, such as bad drivers.
Most accidents occur within
25 miles (40 km) of home. And
the greatest number of serious
injuries and deaths occur at
speeds of less than 40 mph
(65 km/h).
Safety belts are for everyone.
How to Wear Safety Belts
Properly
This section is only for people of
adult size.
Be aware that there are special
things to know about safety
belts and children. And there are
different rules for smaller children
and infants. If a child will be riding in
the vehicle, seeOlder Children on
page 1-34orInfants and Young
Children on page 1-36. Follow those
rules for everyone’s protection.
It is very important for all occupants
to buckle up. Statistics show that
unbelted people are hurt more often
in crashes than those who are
wearing safety belts.
Occupants who are not buckled up
can be thrown out of the vehicle
in a crash. And they can strike
others in the vehicle who are
wearing safety belts.
1-8 Seats and Restraints

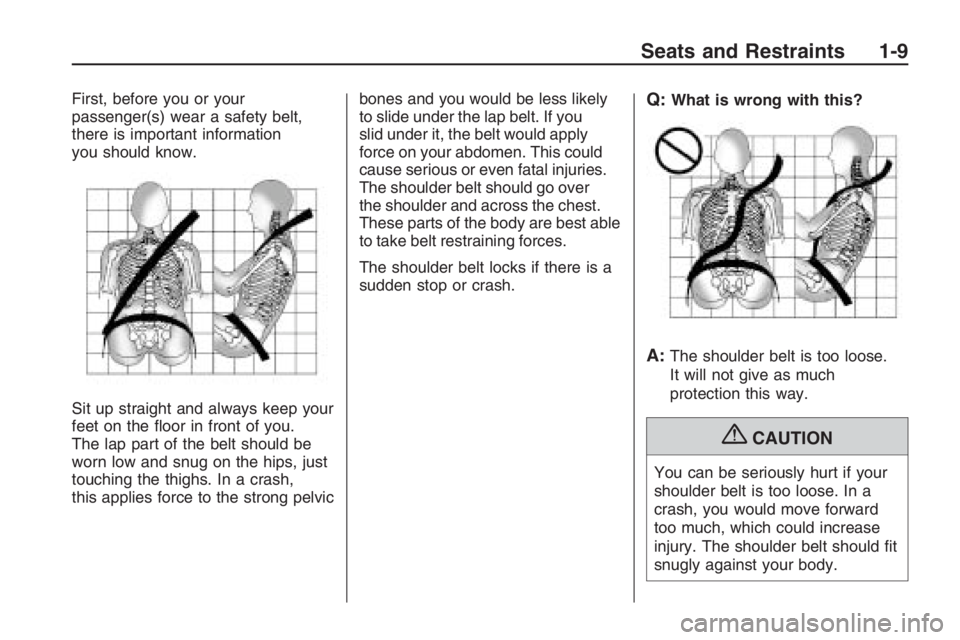

First, before you or your
passenger(s) wear a safety belt,
there is important information
you should know.
Sit up straight and always keep your
feet on the oor in front of you.
The lap part of the belt should be
worn low and snug on the hips, just
touching the thighs. In a crash,
this applies force to the strong pelvicbones and you would be less likely
to slide under the lap belt. If you
slid under it, the belt would apply
force on your abdomen. This could
cause serious or even fatal injuries.
The shoulder belt should go over
the shoulder and across the chest.
These parts of the body are best able
to take belt restraining forces.
The shoulder belt locks if there is a
sudden stop or crash.Q:What is wrong with this?
A:The shoulder belt is too loose.
It will not give as much
protection this way.
{CAUTION
You can be seriously hurt if your
shoulder belt is too loose. In a
crash, you would move forward
too much, which could increase
injury. The shoulder belt should t
snugly against your body.
Seats and Restraints 1-9

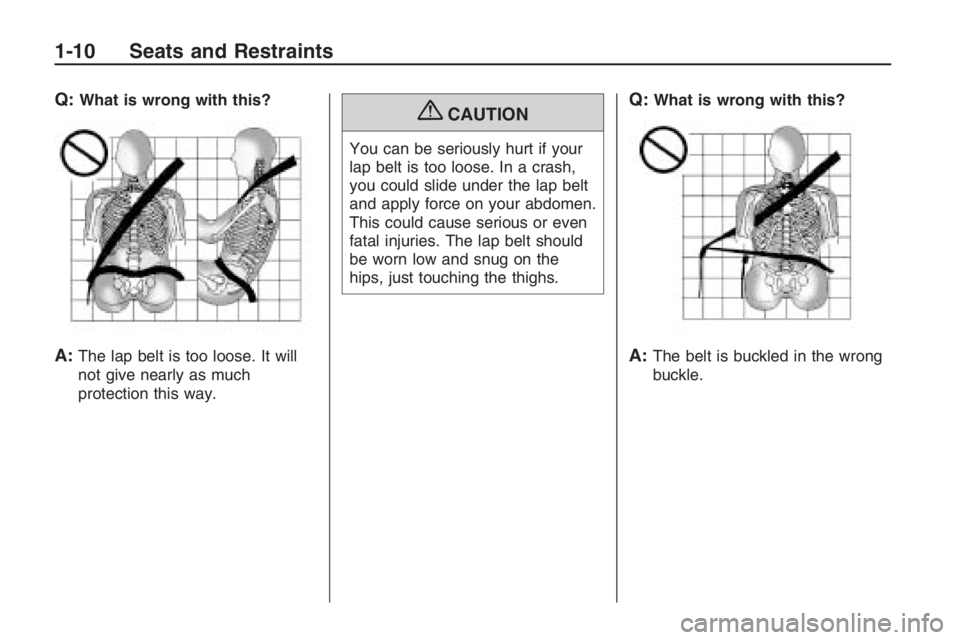

Q:What is wrong with this?
A:The lap belt is too loose. It will
not give nearly as much
protection this way.
{CAUTION
You can be seriously hurt if your
lap belt is too loose. In a crash,
you could slide under the lap belt
and apply force on your abdomen.
This could cause serious or even
fatal injuries. The lap belt should
be worn low and snug on the
hips, just touching the thighs.
Q:What is wrong with this?
A:The belt is buckled in the wrong
buckle.
1-10 Seats and Restraints

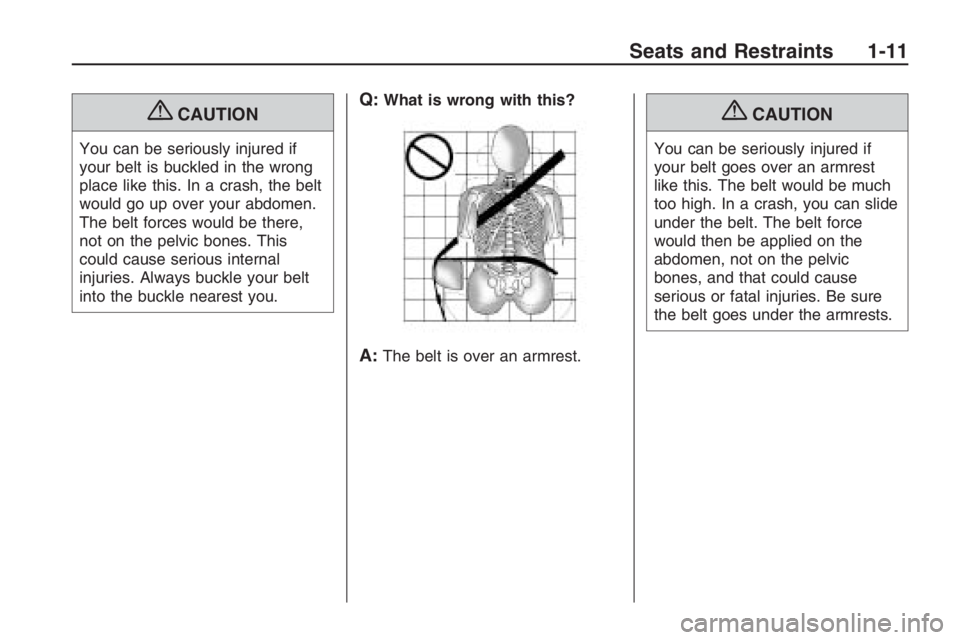

{CAUTION
You can be seriously injured if
your belt is buckled in the wrong
place like this. In a crash, the belt
would go up over your abdomen.
The belt forces would be there,
not on the pelvic bones. This
could cause serious internal
injuries. Always buckle your belt
into the buckle nearest you.
Q:What is wrong with this?
A:The belt is over an armrest.
{CAUTION
You can be seriously injured if
your belt goes over an armrest
like this. The belt would be much
too high. In a crash, you can slide
under the belt. The belt force
would then be applied on the
abdomen, not on the pelvic
bones, and that could cause
serious or fatal injuries. Be sure
the belt goes under the armrests.
Seats and Restraints 1-11

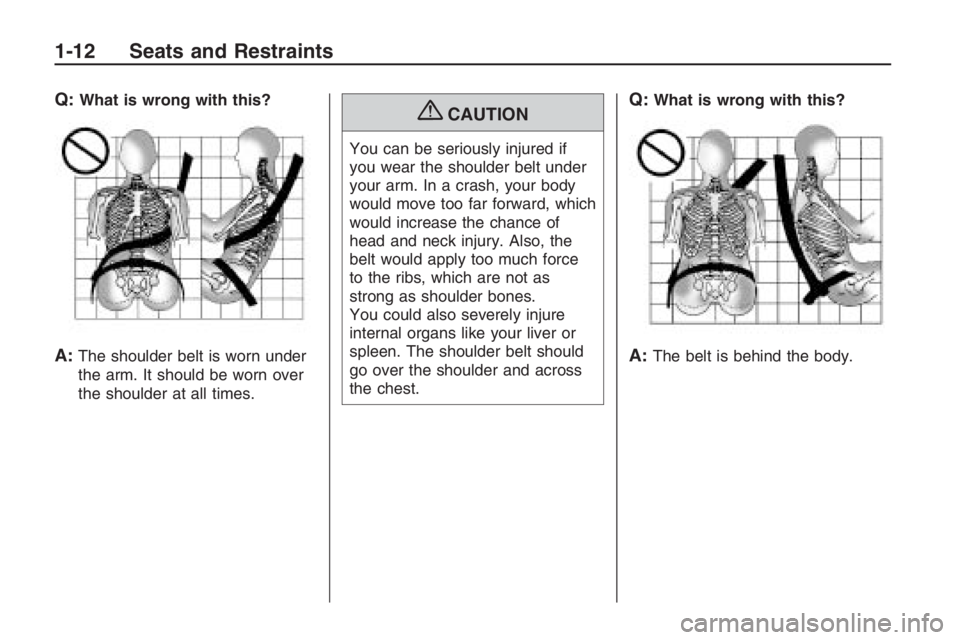

Q:What is wrong with this?
A:The shoulder belt is worn under
the arm. It should be worn over
the shoulder at all times.
{CAUTION
You can be seriously injured if
you wear the shoulder belt under
your arm. In a crash, your body
would move too far forward, which
would increase the chance of
head and neck injury. Also, the
belt would apply too much force
to the ribs, which are not as
strong as shoulder bones.
You could also severely injure
internal organs like your liver or
spleen. The shoulder belt should
go over the shoulder and across
the chest.
Q:What is wrong with this?
A:The belt is behind the body.
1-12 Seats and Restraints

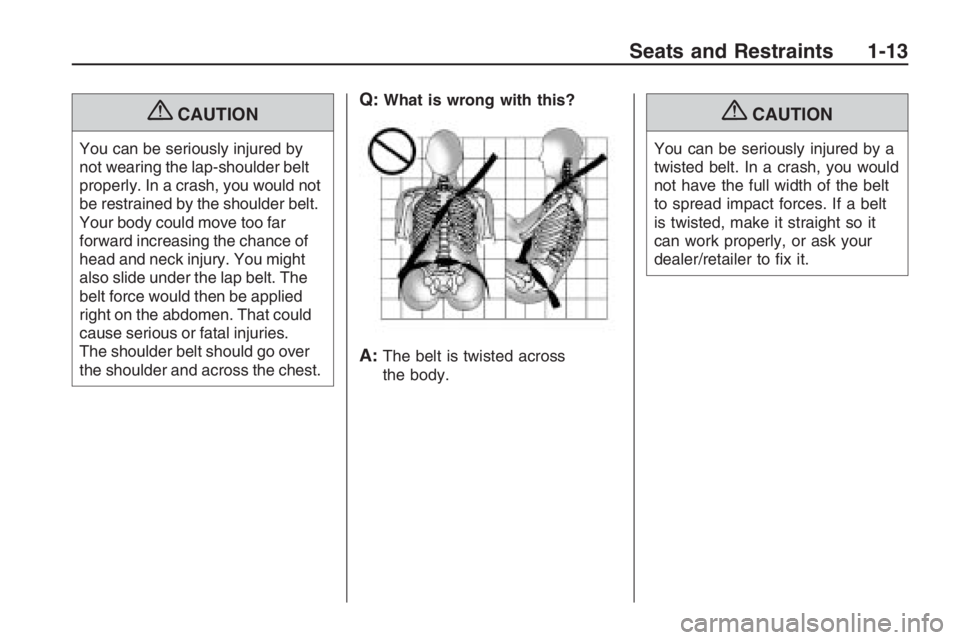

{CAUTION
You can be seriously injured by
not wearing the lap-shoulder belt
properly. In a crash, you would not
be restrained by the shoulder belt.
Your body could move too far
forward increasing the chance of
head and neck injury. You might
also slide under the lap belt. The
belt force would then be applied
right on the abdomen. That could
cause serious or fatal injuries.
The shoulder belt should go over
the shoulder and across the chest.
Q:What is wrong with this?
A:The belt is twisted across
the body.
{CAUTION
You can be seriously injured by a
twisted belt. In a crash, you would
not have the full width of the belt
to spread impact forces. If a belt
is twisted, make it straight so it
can work properly, or ask your
dealer/retailer to x it.
Seats and Restraints 1-13

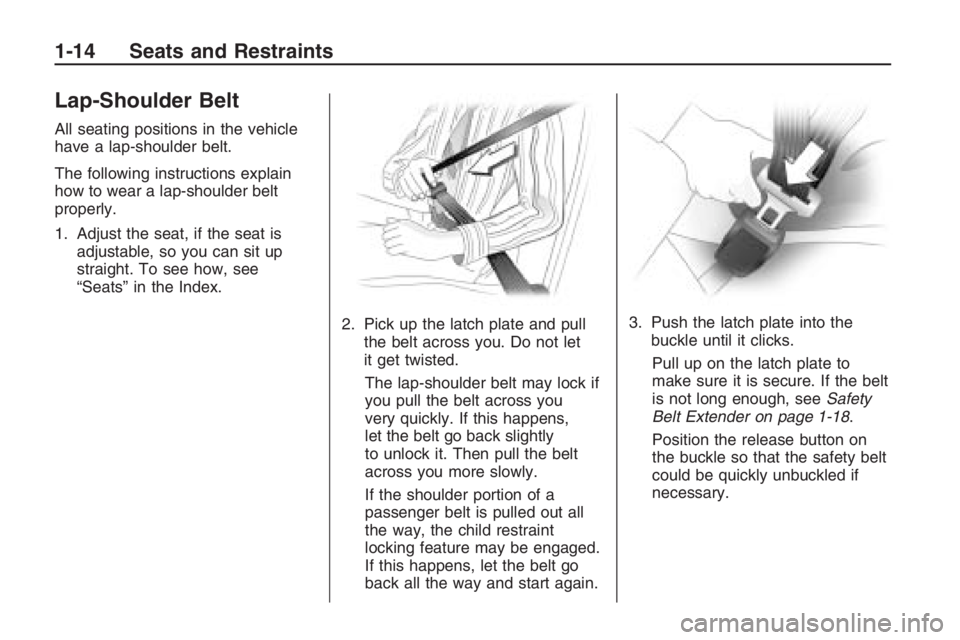

Lap-Shoulder Belt
All seating positions in the vehicle
have a lap-shoulder belt.
The following instructions explain
how to wear a lap-shoulder belt
properly.
1. Adjust the seat, if the seat is
adjustable, so you can sit up
straight. To see how, see
“Seats” in the Index.
2. Pick up the latch plate and pull
the belt across you. Do not let
it get twisted.
The lap-shoulder belt may lock if
you pull the belt across you
very quickly. If this happens,
let the belt go back slightly
to unlock it. Then pull the belt
across you more slowly.
If the shoulder portion of a
passenger belt is pulled out all
the way, the child restraint
locking feature may be engaged.
If this happens, let the belt go
back all the way and start again.3. Push the latch plate into the
buckle until it clicks.
Pull up on the latch plate to
make sure it is secure. If the belt
is not long enough, seeSafety
Belt Extender on page 1-18.
Position the release button on
the buckle so that the safety belt
could be quickly unbuckled if
necessary.
1-14 Seats and Restraints

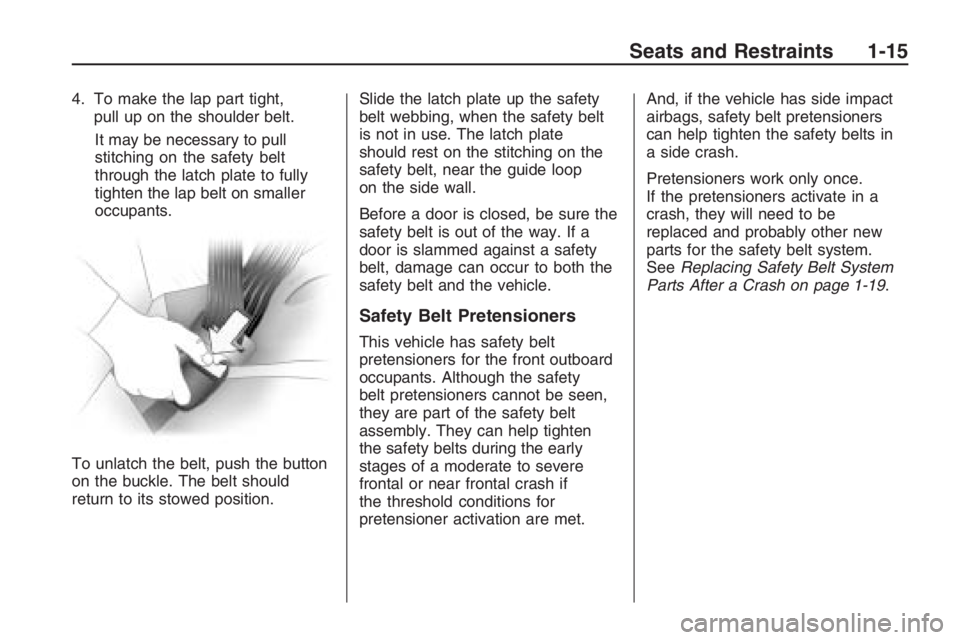

4. To make the lap part tight,
pull up on the shoulder belt.
It may be necessary to pull
stitching on the safety belt
through the latch plate to fully
tighten the lap belt on smaller
occupants.
To unlatch the belt, push the button
on the buckle. The belt should
return to its stowed position.Slide the latch plate up the safety
belt webbing, when the safety belt
is not in use. The latch plate
should rest on the stitching on the
safety belt, near the guide loop
on the side wall.
Before a door is closed, be sure the
safety belt is out of the way. If a
door is slammed against a safety
belt, damage can occur to both the
safety belt and the vehicle.
Safety Belt Pretensioners
This vehicle has safety belt
pretensioners for the front outboard
occupants. Although the safety
belt pretensioners cannot be seen,
they are part of the safety belt
assembly. They can help tighten
the safety belts during the early
stages of a moderate to severe
frontal or near frontal crash if
the threshold conditions for
pretensioner activation are met.And, if the vehicle has side impact
airbags, safety belt pretensioners
can help tighten the safety belts in
a side crash.
Pretensioners work only once.
If the pretensioners activate in a
crash, they will need to be
replaced and probably other new
parts for the safety belt system.
SeeReplacing Safety Belt System
Parts After a Crash on page 1-19.
Seats and Restraints 1-15

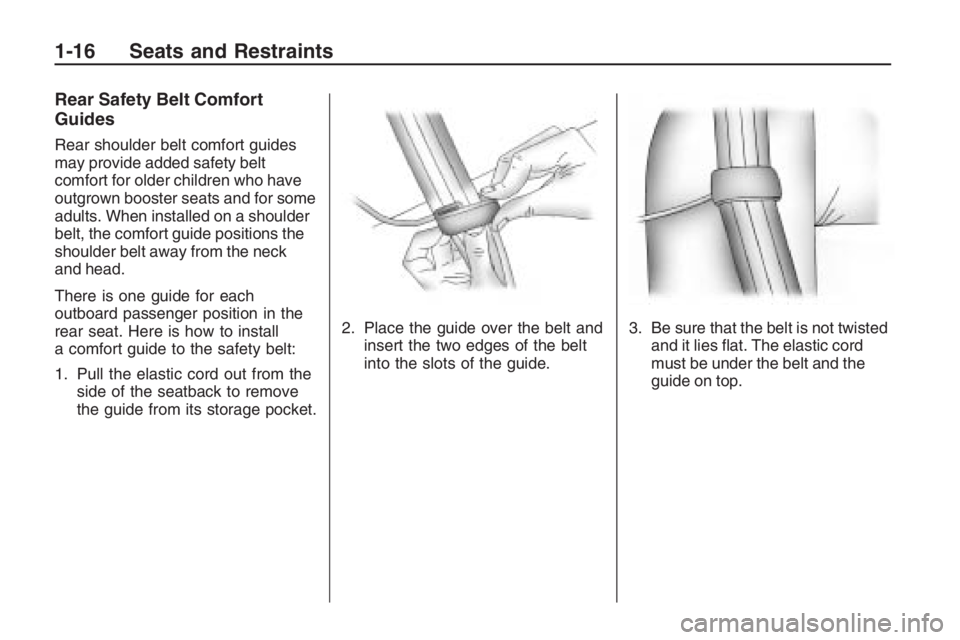

Rear Safety Belt Comfort
Guides
Rear shoulder belt comfort guides
may provide added safety belt
comfort for older children who have
outgrown booster seats and for some
adults. When installed on a shoulder
belt, the comfort guide positions the
shoulder belt away from the neck
and head.
There is one guide for each
outboard passenger position in the
rear seat. Here is how to install
a comfort guide to the safety belt:
1. Pull the elastic cord out from the
side of the seatback to remove
the guide from its storage pocket.2. Place the guide over the belt and
insert the two edges of the belt
into the slots of the guide.3. Be sure that the belt is not twisted
and it lies at. The elastic cord
must be under the belt and the
guide on top.
1-16 Seats and Restraints
