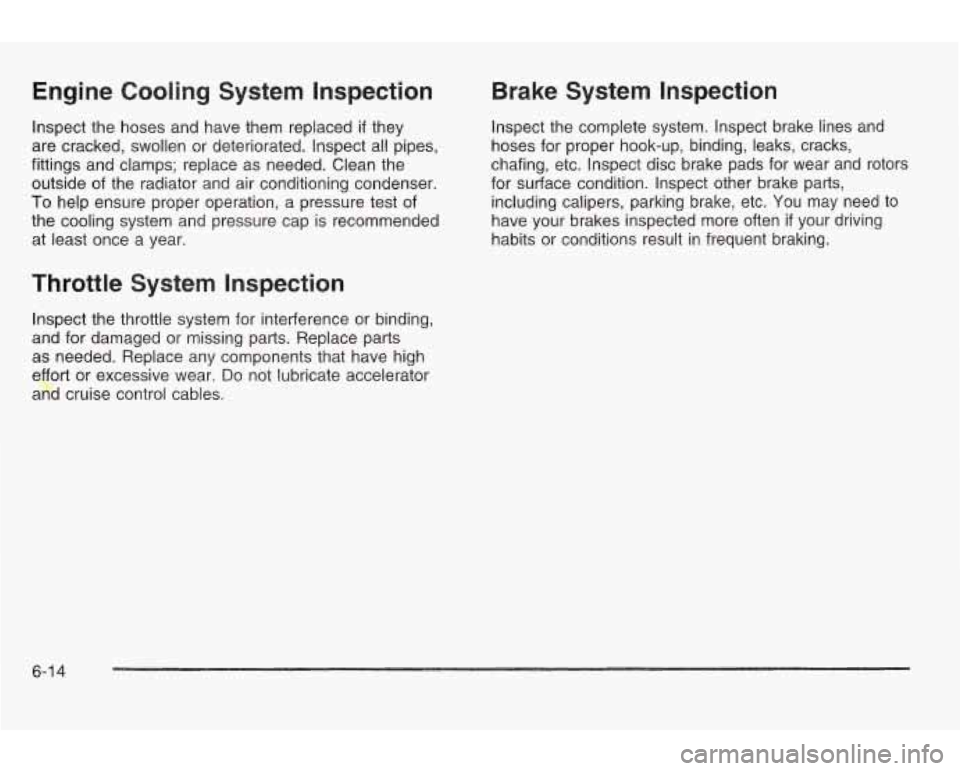

Engine Cooling System Inspection
Inspect the hoses and have them replaced if they
are cracked, swollen or deteriorated. Inspect all pipes,
fittings and clamps; replace as needed. Clean the
outside of the radiator and air conditioning condenser.
To help ensure proper operation, a pressure test of
the cooling system and pressure cap is recommended
at least once a year.
Throttle System Inspection
Inspect the throttle system for interference or binding,
and
for damaged or missing parts. Replace parts
as needed. Replace any components that have high
effort or excessive wear.
Do not lubricate accelerator
and cruise control cables.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads for wear and rotors
for surface condition. Inspect other brake parts,
including calipers, parking brake, etc. You may need to
have your brakes inspected more often
if your driving
habits or conditions result in frequent braking.
6-1
4

Part D: Recommended Fluids and
Lubricants
Fluids and lubricants identified below by name, part
number or specification may be obtained from your
dealer.
Usage
Engine Oil Fluid/Lubricant
Engine oil with the American
Petroleum Institute Certified for
Gasoline Engines starburst symbol
of the proper viscosity.
To determine
the preferred viscosity for your
vehicle’s engine, see
Engine Oil
on page 5-15.
Engine Coolant
Hydraulic Brake Svstem
Windshield
Washer Solvent
Hydraulic
Clutch System 50/50
mixture of clean, drinkable
water and use only DEX-COOL
Coolant. See Engine Coolant
on page
5-23.
Delco Supreme 11 Brake Fluid or
equivalent DOT-3 brake fluid.
GM Optikleen Washer Solvent or
equivalent.
Hydraulic Clutch Fluid
(GM Part No.
U.S. 12345347 in
Canada 1095351 7, or equivalent
DOT-3 brake fluid). Usage
Power Steering System
Manual
Transaxle
Automatic Transaxle
Key Lock
Cylinders
Hood Latch Assembly,
Secondary
Latch, Pivots,
Spring
Anchor and
Release Pawl
Hood and Door Hinges
Weatherstrip Conditioning Fluid/Lubricant
GM Power Steering Fluid
(GM Part No.
U.S. 1052884, in
Canada 993294, or equivalent).
DEXRON-Ill Automatic Transmission
Fluid.
DEXRON-Ill Automatic Transmission
Fluid.
Multi-Purpose Lubricant, Superlube
(GM Part No.
US. 12346241, in
Canada 10953474, or equivalent).
Lubriplate Lubricant Aerosol
(GM Part No.
US. 12346293, in
Canada 992723, or equivalent) or
lubricant meeting requirements of
NLGl
#2, Category LB or GC-LB.
Multi-Purpose Lubricant, Superlube
(GM Part No.
U.S. 12346241, in
Canada 10953474, or equivalent).
Dielectric Silicone Grease
Canada 1974984, or equivalent).
(a! Part ?!e. V.S. 123?557S, Ir!
6-1 5

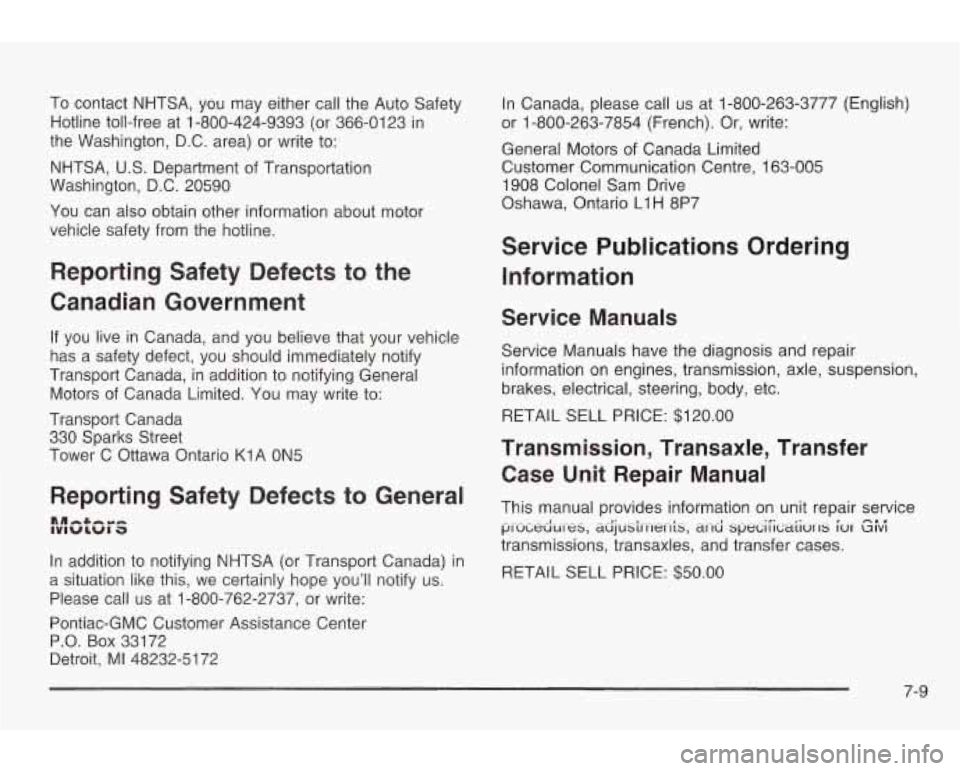

To contact NHTSA, you may either call the Auto Safety
