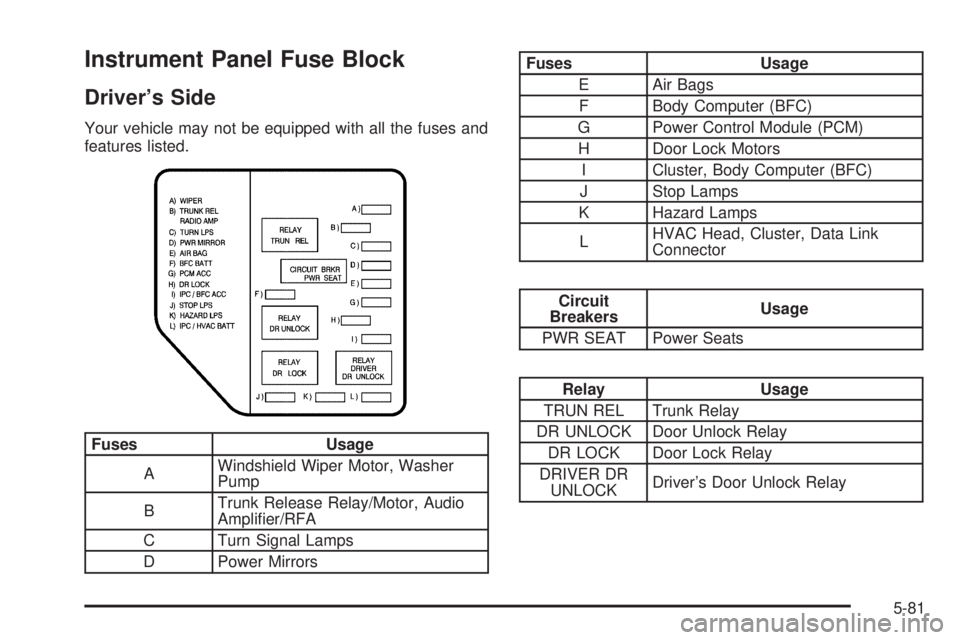

Instrument Panel Fuse Block
Driver’s Side
Your vehicle may not be equipped with all the fuses and
features listed.
Fuses Usage
AWindshield Wiper Motor, Washer
Pump
BTrunk Release Relay/Motor, Audio
Amplifier/RFA
C Turn Signal Lamps
D Power Mirrors
Fuses Usage
E Air Bags
F Body Computer (BFC)
G Power Control Module (PCM)
H Door Lock Motors
I Cluster, Body Computer (BFC)
J Stop Lamps
K Hazard Lamps
LHVAC Head, Cluster, Data Link
Connector
Circuit
BreakersUsage
PWR SEAT Power Seats
Relay Usage
TRUN REL Trunk Relay
DR UNLOCK Door Unlock Relay
DR LOCK Door Lock Relay
DRIVER DR
UNLOCKDriver’s Door Unlock Relay
5-81

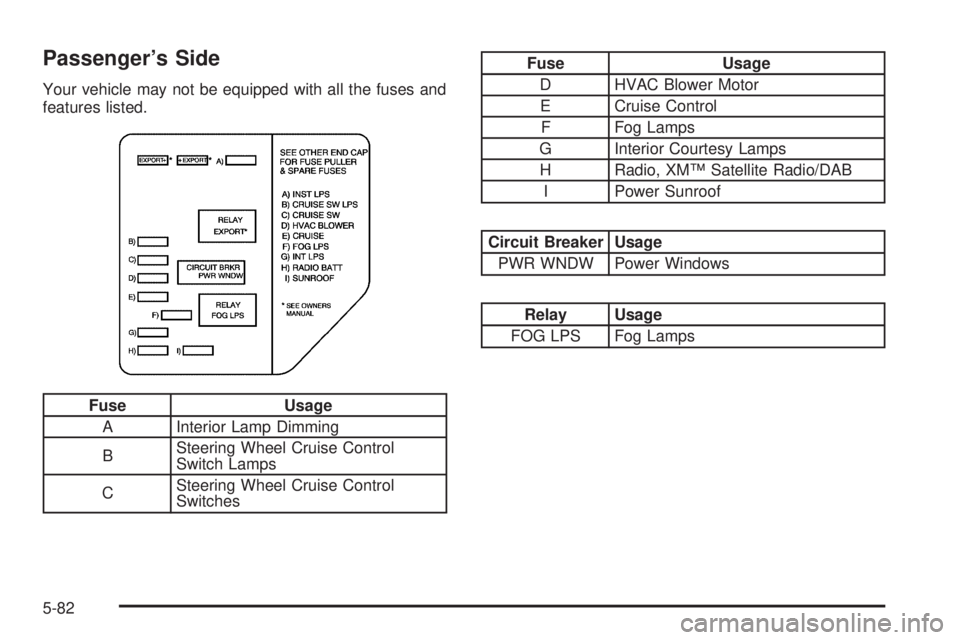

Passenger’s Side
Your vehicle may not be equipped with all the fuses and
features listed.
Fuse Usage
A Interior Lamp Dimming
BSteering Wheel Cruise Control
Switch Lamps
CSteering Wheel Cruise Control
Switches
Fuse Usage
D HVAC Blower Motor
E Cruise Control
F Fog Lamps
G Interior Courtesy Lamps
H Radio, XM™ Satellite Radio/DAB
I Power Sunroof
Circuit Breaker Usage
PWR WNDW Power Windows
Relay Usage
FOG LPS Fog Lamps
5-82
Engine Compartment Fuse Block
Your vehicle may not be equipped with all the fuses and
features listed.
The engine compartment fuse block is located on the
driver’s side of the vehicle, near the battery.
Fuse Usage
1 Ignition Switch
2Right Electrical Center-Fog Lamps,
Radio, Body Function Control
Module, Interior Lamps
Fuse Usage
3Left Electrical Center-Stop Lamps,
Hazard Lamps, Body Function
Control Module, Cluster, Climate
Control System
4 Anti-Lock Brakes
5Left Electrical Center-Power Seats,
Power Mirrors, Door Locks, Trunk
Release, Audio Amplifier, Remote
Keyless Entry
6 Not Used
7 Ignition Switch
8 Cooling Fan #1
Relays Usage
9 Rear Defog
10 Not Used
11 Starter (V6 only)
12 Cooling Fan #1
13 HVAC Blower (Climate Control)
14 Cooling Fan #2
15 Cooling Fan
16 Air Conditioning Compressor
17 Not Used
18 Fuel Pump
5-83
Relays Usage
19 Automatic Headlamp System
20 Automatic Headlamp System
21 Horn
22 Daytime Running Lamps (DRL)
Fuses Usage
23–32 Spare Fuse Holder
33 Rear Defog
34Accessory Power Outlets, Cigarette
Lighter
35 Generator
36 Not Used
37Air Conditioning Compressor, Body
Function Control Module
38 Automatic Transaxle
39 Powertrain Control Module (PCM)
40 Anti-Lock Brakes (ABS)
41 Ignition System
42Back-Up Lamps, Brake Transaxle
Shift Interlock
Fuses Usage
43 Horn
44 PCM
45 Parking Lamps
46Climate Control System, Air
Conditioning
47Canister Vent Valve, Exhaust
Oxygen Sensors
48 Fuel Pump, Injectors
49 Not Used
50 Right Headlamp
51 Left Headlamp
52 Cooling Fan #2
53 HVAC Blower (Climate Control)
54 Crank (V6 only)
55 Cooling Fan #2 Ground
56 Fuse Puller for Mini Fuses
57 Not Used
5-84
